USER MANUAL Sonicare HealthyWhite HX6712 PHILIPS

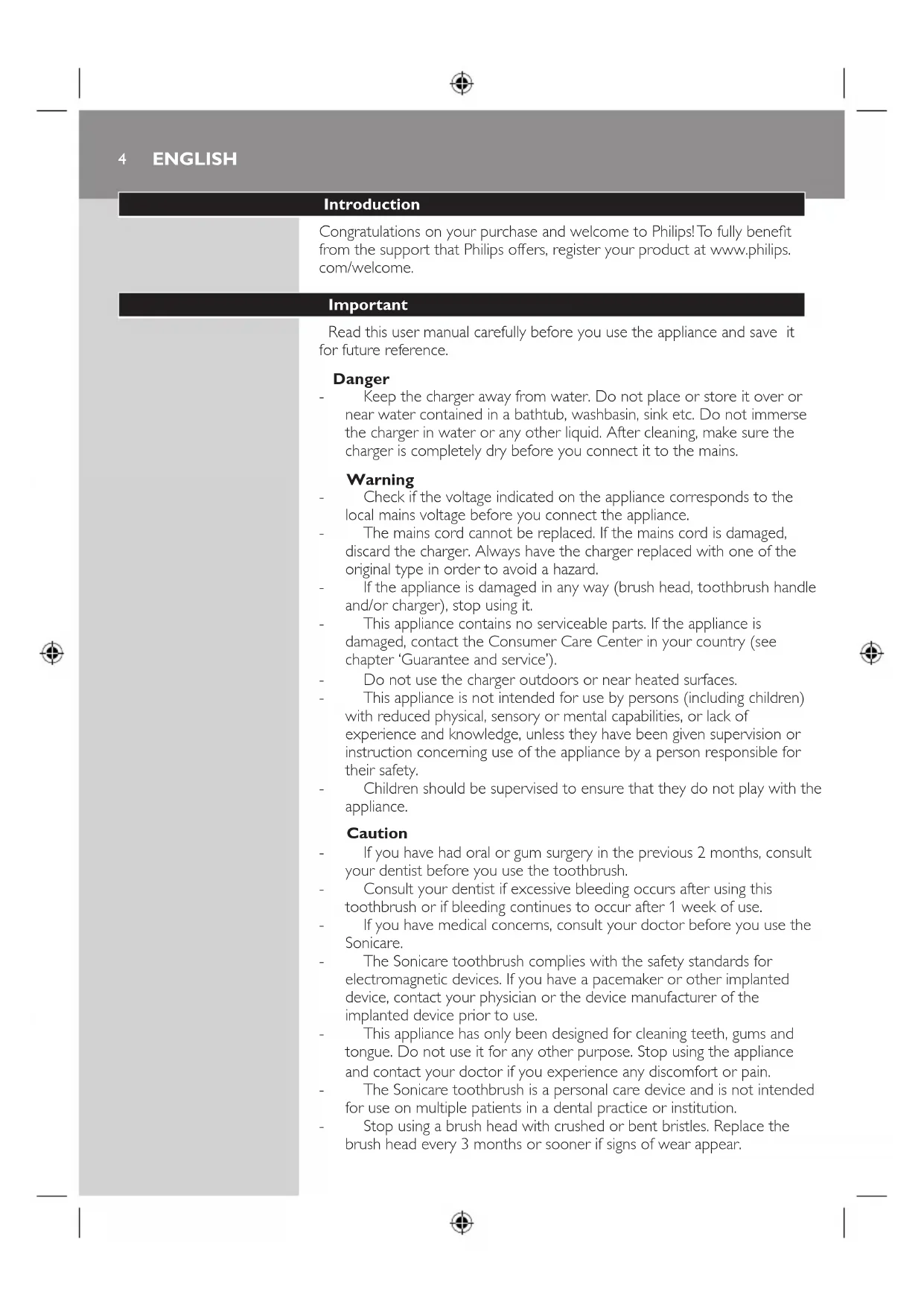

Congratulations on your purchase and welcome to Philips! To fully beneÀ t

from the support that Philips off

ers, register your product at www.philips.

Read this user manual carefully before you use the appliance and save it

Keep the charger away from water. Do not place or store it over or

near water contained in a bathtub, washbasin, sink etc. Do not immerse

the charger in water or any other liquid. After cleaning, make sure the

charger is completely dry before you connect it to the mains.

Check if the voltage indicated on the appliance corresponds to the

local mains voltage before you connect the appliance.

The mains cord cannot be replaced. If the mains cord is damaged,

discard the charger. Always have the charger replaced with one of the

original type in order to avoid a hazard.

If the appliance is damaged in any way (brush head, toothbrush handle

and/or charger), stop using it.

This appliance contains no serviceable parts. If the appliance is

damaged, contact the Consumer Care Center in your country (see

chapter ‘Guarantee and service’).

Do not use the charger outdoors or near heated surfaces.

This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for

Children should be supervised to ensure that they do not play with the

If you have had oral or gum surgery in the previous 2 months, consult

your dentist before you use the toothbrush.

Consult your dentist if excessive bleeding occurs after using this

toothbrush or if bleeding continues to occur after 1 week of use.

If you have medical concerns, consult your doctor before you use the

The Sonicare toothbrush complies with the safety standards for

electromagnetic devices. If you have a pacemaker or other implanted

device, contact your physician or the device manufacturer of the

implanted device prior to use.

This appliance has only been designed for cleaning teeth, gums and

tongue. Do not use it for any other purpose. Stop using the appliance

and contact your doctor if you experience any discomfort or pain.

The Sonicare toothbrush is a personal care device and is not intended

for use on multiple patients in a dental practice or institution.

Stop using a brush head with crushed or bent bristles. Replace the

brush head every 3 months or sooner if signs of wear appear.

ENGLISHDo not use other brush heads than the ones recommended by the

If your toothpaste contains peroxide, baking soda or other bicarbonate

(common in whitening toothpastes), thoroughly clean the brush head

and the handle with soap and water after each use. Otherwise the

Do not clean brush heads, the handle, the charger and the charger

cover in the dishwasher.

Electromagnetic À elds (EMF)

This Philips appliance complies with all standards regarding electromagnetic

À elds (EMF). If handled properly and according to the instructions in this

user manual, the appliance is safe to use based on scientiÀ c evidence

D Handle with soft grip

G Charge light indicator

Deluxe charge indicator (speciÀ c types only)

Standard charge indicator (speciÀ c types only)

H Standard charger (speciÀ c types only)

H1 Charger cover with brush head holder

I Deluxe charger (speciÀ c types only)

I1 Charger cover with brush head holder

I3 Charger base with cord wrap facility

Changing the colour code ring

ush heads come with interchangeab

le colour code rings to

identify your brush head.

To change the colour code ring:

1 Pull the colour code ring from the bottom of the brush head.

of the brush head. Then press down on the other side to snap the

Attaching the brush head

1 Align the brush head so the bristles face the front of the handle.

2 Firmly press the brush head down onto the metal shaft until it stops.

e is a small gap between the colour code ring and the handle.

Charging the Sonicare

1 Put the plug of the charger in the wall socket.

2 Place the handle on the charger.

The battery charge indicator next to the batter

indicate that the toothbrush is charging.

Battery charge indicator

The battery charge indicator shows the approximate remaining battery

Deluxe charge indicator (speciÀ c types only):

Solid green: 50-100%

Flashing green: 10-49%

Flashing yellow: less than 10%

Standard charge indicator (speciÀ c types only):

Solid green: 50-100%

Flashing green: less than 50%

Note: When the battery is low, you hear 3 beeps after the completion of the

brushing cycle and the battery charge indicator Á ashes for 30 seconds.

Note: To keep the battery fully charged, you may keep your Sonicare on the

charger when not in use. It takes 24 hours to charge the battery fully.

Brushing instructions

1 Wet the bristles and apply a small amount of toothpaste.

ENGLISH62 Place the toothbrush bristles against the teeth at a slight angle

towards the gumline.

3 Press the on/off button to switch on the Sonicare.

4 Apply light pressure to maximise Sonicare’s effectiveness and let the

Sonicare toothbrush do the brushing f

5 Gently move the brush head slowly across the teeth in a small back

th motion so the longer bristles reach between your teeth.

Continue this motion throughout the brushing cycle.

Note: To make sure you brush evenly throughout the mouth, divide your mouth

into 4 sections using the Quadpacer feature (see chapter ‘Features’).

6 Begin brushing in section 1 (outside upper teeth) and brush for 30

e you move to section 2 (inside upper teeth). Continue

brushing in section 3 (outside lower teeth) and brush for 30 seconds

before you move to section 4 (inside lower teeth).

7 After you have completed the brushing cycle, you can

spend additional time brushing the che

wing surfaces of your teeth

and areas where staining occurs. You can also brush your tongue,

with the toothbrush switched on or off, as you prefer.

The Sonicare is safe to use on:

Braces (brush heads wear out sooner when used on braces)

Dental restorations (À llings, crowns, veneers)

Note: You can switch off the toothbrush at any time by pressing and holding

the on/off button for 2 seconds.

Clean and White mode brushing instructions

The Clean and White mode consists of 2 minutes of Clean mode to clean

the whole mouth and an additional 30 seconds of White mode to focus on

the visible front teeth.

utes as instructed in steps 1-6 above.

2 After the 2 minutes of Clean mode, the White mode begins with

a change in brushing sound and motion.

That is your signal to start

brushing the visible upper front teeth for 15 seconds

3 At the next beep and pause, move to the visible lower front teeth

nal 15 seconds of brushing.

The Sonicare automatically starts in the default Clean mode. To select a

different brushing mode:

1 Press the on/off button to toggle between modes.

The green LED indicates the selected mode

Note: You can only switch between modes when the toothbrush is switched on.

Standard mode for superior teeth cleaning.

ENGLISH 7Sensitive mode (speciÀ c types only)

Gentle yet thorough cleaning for sensitive gums and teeth.

Clean and White mode

2 minutes of Clean mode with an additional 30 seconds of White mode to

focus on the visible front teeth.

Note: When the Sonicare is used in clinical studies, the default 2-minute Clean

mode must be selected. However, in whitening/stain reduction studies, the

Clean and White mode must be selected. The handle should be fully charged

and the Easy-start feature deactivated.

This Sonicare comes with the Easy-star

The Easy-start feature gently increases power over the À rst 14

brushings to help you get used to brushing with the Sonicare.

Note: Each of the À rst 14 brushings must last at least 1 minute to move

through the Easy-start ramp-up cycle properly.

Note: When the Clean and White mode is selected, the Easy-start feature is

Deactivating or activating the Easy-start feature

1 Attach the brush head to the handle.

2 Place the handle in the plugged-in charger.

o deactivate Easy-star

Press and hold the on/off button for 2 seconds. You hear 1 beep to indicate

that the Easy-start feature has been deactivated.

To activate Easy-start:

Press and hold the on/off button for 2 seconds. You hear 2 beeps to

indicate that the Easy-start feature has been activated.

Note: Use of the Easy-start feature beyond the initial ramp-up period is not

recommended and reduces the effectiveness of the Sonicare toothbrush in

The Smartimer indicates that your brushing cycle is complete by

automatically switching off the toothbrush at the end of the brushing cycle.

Dental professionals recommend brushing no less than 2 minutes twice a

If you want to pause or stop brushing during the 2-minute brushing cycle,

press and hold the on/off button for 2 seconds. Press the on/off button

again and the Smartimer picks up where you left off.

The Smartimer automatically resets to the beginning of a 2-minute cycle if:

you stop brushing for 30 seconds or longer.

you put the handle in the charger.

ENGLISH8Quadpacer (select models)

The Quadpacer is an interval timer that has a short beep and pause

to remind you to brush the 4 sections of your mouth evenly and

When you use the two-minute Clean or Sensitive mode, you hear a

short beep and a pause in brushing action at 30, 60 and 90 seconds.

When you use the Clean and White mode, you hear and feel a change

in the brush head sound and motion after 2 minutes of Clean mode.

Then move the brush head to the visible upper front teeth and brush

them for 15 seconds. At the À nal beep and pause, move to the visible

lower front teeth and brush them for 15 seconds.

Cord wrap facility (speciÀ c types only)

If your Sonicare type includes the deluxe charger cover and base, the travel

charger is pre-installed inside the cover. If you want to shorten the mains

cord, you can store excess cord in the cord wrap facility in the charger

1 To separate the charger cover from the charger base, press the two

y snap bars on the charger base and pull the white charger cover

2 Wrap excess mains cord around the grey charger base as shown in

. Make sure you wrap the cord on the inside of the two

3 When you have stored the excess cord, guide the mains cord

through the small gr

oove in the rear of the grey charger base.

4 To reattach the charger cover, press it down over the charger base

until it snaps into place

Tip: For extra convenience during travel, you can remove the travel charger and

use it without the charger cover and charger base.

Do not clean brush heads, the handle, the charger or the charger covers

1 Remove the brush head and rinse the metal shaft area with warm

Do not push on the rubber seal on the metal shaft with sharp objects, as

this may cause damage.

2 Wipe the entire surface of the handle with a damp cloth.

1 Rinse the brush head and bristles after each use.

2 Remove the brush head from the handle and rinse the brush head

connection at least once a week with warm water

1 Unplug the charger before you clean it.

2 Wipe the surface of the charger with a damp cloth.

If you are not going to use the appliance for a long time, unplug it, clean

it and store it in a cool and dry place a

way from direct sunlight. You can

use the cord wrap facility (speciÀ c types only) to store the mains cord

in an organised way.

You can store brush heads on the pegs at the back of the charger.

ery 3 months to achieve optimal

Use only Sonicare ProResults replacement brush heads.

Do not throw away the appliance with the normal household waste

at the end of its life

, but hand it in at an ofÀ cial collection point for

recycling. By doing this, you help to preserve the environment.

The built-in rechargeable battery contains substances that may pollute

the environment. Always remove the battery before you discard and

hand in the appliance at an ofÀ cial collection point. Dispose of the

battery at an ofÀ cial collection point for batteries. If you have trouble

removing the battery, you can also take the appliance to a Philips

service centre. The staff of this centre will remove the battery for you

and will dispose of it in an environmentally safe way.

Removing the rechargeable battery

Please note that this process is not reversible.

1 To deplete the rechargeable battery of any charge, remove the

, switch on the Sonicare and let it run until

it stops. Repeat this step until you can no longer switch on the

2 Insert a Á athead (standard) screwdriver into the slot located at the

bottom of the handle and turn it anticlockwise to r

3 Hold the handle upside down and push down on the shaft to release

the internal components of the handle.

4 Insert the screwdriver under the circuit board, next to the battery

connections, and twist to br

eak the connections. Remove the circuit

board and pry the battery from the plastic carrier.

Guarantee and service

If you need service or information or if you have a problem, please visit

the Philips website at www

.philips.com or contact the Philips Consumer

Care Centre in your country (you À nd its phone number in the worldwide

guarantee leaÁ et). If there is no Consumer Care Centre in your country, go

to your local Philips dealer.

ENGLISH 11Guarantee restrictions

The terms of the international guarantee do not cover the following:

Damage caused by misuse, abuse, neglect, alterations or unauthorised

Normal wear and tear, including chips, scratches, abrasions,

discolouration or fading.

Frequently asked questions

This chapter lists the questions most frequently asked about the appliance.

nd the answer to your question, contact the Consumer

Care Center in your country.

Why doesn’t the Sonicare work? You ma

y need to recharge the Sonicare. Charge the Sonicare for at

The socket may not be live. The electricity supply to sockets in mirror

cabinets over washbasins or shaver sockets in bathrooms may be cut

off when the light is switched off

You may need to reattach or replace the brush head.

Why do I feel a tickling

sensation when I use the

You may experience a slight tickling/tingling sensation when you

use the Sonicare for the À rst time. As you become accustomed to

brushing with the Sonicare, this sensation diminishes.

The brush head chatters against

my teeth. What can I do about

To avoid this, keep the brush head properly oriented, with the bristles

placed on the gumline at a slight angle.

Why does the Sonicare seem

You may need to charge the Sonicare.

The Easy-start feature may be on. Deactivate the Easy-start feature

(See chapter ‘Features’).

You may need to replace the brush head.

Why does the Sonicare seem to

change power during brushing?

You may be in the Clean and White brushing mode. If this is the

case, the toothbrush starts in the Clean mode for 2 minutes

and then changes to the White mode for 30 seconds. The Clean and

White mode has a different sound and brush movement.

Do I need a special charger if I

travel with the Sonicare?

No, you do not need a special charger. The Sonicare charger can be

used with common worldwide voltages between 100-240V AC, at

either 50 or 60Hz. A simple plug adapter is all that is required.

Consumer Care Centre in uw land.

NEDERLANDS52535455© 2016 Koninklijke Philips Electronics NV (KPENV). All rights

reserved. PHILIPS and the Philips shield are registered trademarks of

KPENV. Quadpacer, Sonicare and the Sonicare logo are trademarks

of Philips Oral Healthcare, LLC and/or KPENV.

Printed in the U.S.A.

Printed on 75% recycled paper

Protected by U.S. and international patents.

Other patents pending.
