USER MANUAL ECN40105W ELECTROLUX

ECN40105WElectrolux. Thinking of you.

10 electroluxElectrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

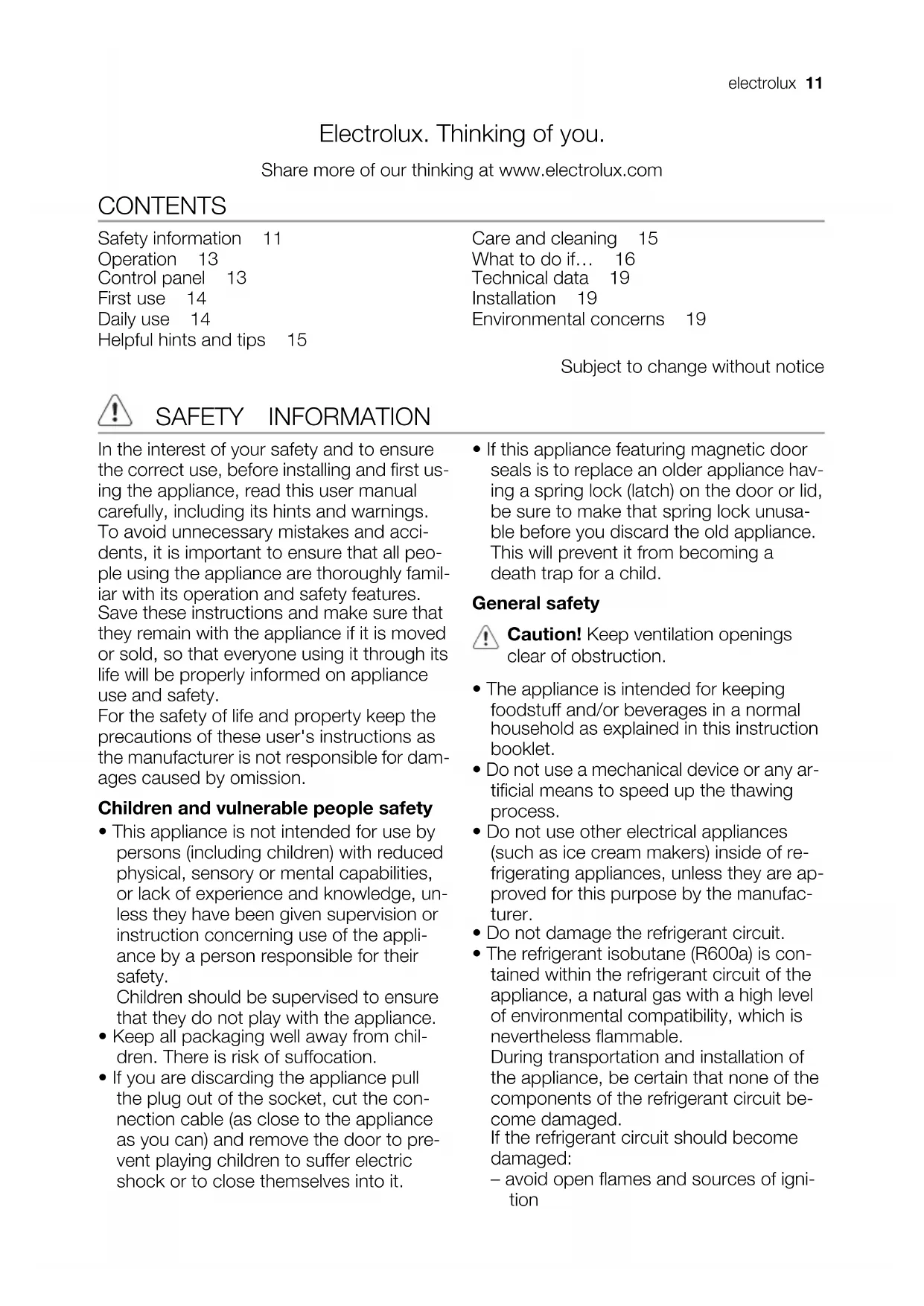

CONTENTS Safety information 11

Helpful hints and tips 15

Care and cleaning 15

Environmental concerns 19

Subject to change without notice

SAFETY INFORMATION In the interest of your safety and to ensure

the correct use, before installing and first us-

ing the appliance, read this user manual

carefully, including its hints and warnings.

To avoid unnecessary mistakes and acci-

dents, it is important to ensure that all peo-

ple using the appliance are thoroughly famil-

iar with its operation and safety features.

Save these instructions and make sure that

they remain with the appliance if it is moved

or sold, so that everyone using it through its

life will be properly informed on appliance

For the safety of life and property keep the

precautions of these user's instructions as

the manufacturer is not responsible for dam-

ages caused by omission.

Children and vulnerable people safety

• This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities,

or lack of experience and knowledge, un-

less they have been given supervision or

instruction concerning use of the appli-

ance by a person responsible for their

Children should be supervised to ensure

that they do not play with the appliance.

• Keep all packaging well away from chil-

dren. There is risk of suffocation.

• If you are discarding the appliance pull

the plug out of the socket, cut the con-

nection cable (as close to the appliance

as you can) and remove the door to pre-

vent playing children to suffer electric

shock or to close themselves into it.

• If this appliance featuring magnetic door

seals is to replace an older appliance hav-

ing a spring lock (latch) on the door or lid,

be sure to make that spring lock unusa-

ble before you discard the old appliance.

This will prevent it from becoming a

death trap for a child.

Caution! Keep ventilation openings

clear of obstruction.

• The appliance is intended for keeping

foodstuff and/or beverages in a normal

household as explained in this instruction

• Do not use a mechanical device or any ar-

tificial means to speed up the thawing

• Do not use other electrical appliances

(such as ice cream makers) inside of re-

frigerating appliances, unless they are ap-

proved for this purpose by the manufac-

• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is con-

tained within the refrigerant circuit of the

appliance, a natural gas with a high level

of environmental compatibility, which is

nevertheless flammable.

During transportation and installation of

the appliance, be certain that none of the

components of the refrigerant circuit be-

If the refrigerant circuit should become

– avoid open flames and sources of igni-

electrolux 11– thoroughly ventilate the room in which

the appliance is situated

• It is dangerous to alter the specifications

or modify this product in any way. Any

damage to the cord may cause a short-

circuit, fire and/or electric shock.

Warning! Any electrical component

(power cord, plug, compressor) must

be replaced by a certified service agent

or qualified service personnel.

1. Power cord must not be lengthened.

2. Make sure that the power plug is not

squashed or damaged by the back of

the appliance. A squashed or dam-

aged power plug may overheat and

3. Make sure that you can come to the

mains plug of the appliance.

4. Do not pull the mains cable.

5. If the power plug socket is loose, do

not insert the power plug. There is a

risk of electric shock or fire.

6. You must not operate the appliance

without the lamp cover

• This appliance is heavy. Care should be

taken when moving it.

• Do not remove nor touch items from the

freezer compartment if your hands are

damp/wet, as this could cause skin abra-

sions or frost/freezer burns.

• Avoid prolonged exposure of the appli-

ance to direct sunlight.

used in this appliance are

special purpose lamps selected for house-

hold appliances use only. They are not

suitable for household room illumination.

• Do not put hot pot on the plastic parts in

• Do not store flammable gas and liquid in

the appliance, because they may explode.

• Do not place food products directly

against the air outlet on the rear wall.

• Frozen food must not be re-frozen once

it has been thawed out.

• Store pre-packed frozen food in accord-

ance with the frozen food manufacturer's

• Appliance's manufacturers storage rec-

ommendations should be strictly adhered

to. Refer to relevant instructions.

• Do not place carbonated or fizzy drinks in

the freezer compartment as it creates

pressure on the container, which may

cause it to explode, resulting in damage

• Ice lollies can cause frost burns if con-

sumed straight from the appliance.

• Before maintenance, switch off the appli-

ance and disconnect the mains plug from

• Do not clean the appliance with metal ob-

• Do not use sharp objects to remove frost

from the appliance. Use a plastic scraper.

Important! For electrical connection

carefully follow the instructions given in

• Unpack the appliance and check if there

are damages on it. Do not connect the ap-

pliance if it is damaged. Report possible

damages immediately to the place you

bought it. In that case retain packing.

• It is advisable to wait at least four hours

before connecting the appliance to allow

the oil to flow back in the compressor.

• Adequate air circulation should be

around the appliance, lacking this leads

to overheating. To achieve sufficient ven-

tilation follow the instructions relevant to

• The appliance must not be located close

to radiators or cookers.

• Make sure that the mains plug is accessi-

ble after the installation of the appliance.

• Any electrical work required to do the serv-

icing of the appliance should be carried

out by a qualified electrician or compe-

• This product must be serviced by an au-

thorized Service Centre, and only genu-

ine spare parts must be used.

5) If the lamp cover is foreseen.

6) If the lamp is foreseen.

7) If the appliance is Frost Free.

12 electroluxEnvironment Protection

This appliance does not contain gasses

which could damage the ozone layer,

in either its refrigerant circuit or insula-

tion materials. The appliance shall not

be discarded together with the urban re-

fuse and rubbish. The insulation foam

contains flammable gases: the appli-

ance shall be disposed according to

the applicable regulations to obtain

from your local authorities. Avoid dam-

aging the cooling unit, especially at the

rear near the heat exchanger. The ma-

terials used on this appliance marked

OPERATION Switching on

Insert the plug into the wall socket.

The Pilot light will light up.

Turn the Temperature regulator clockwise.

Important! If the temperature inside the

appliance is too high the Alarm light will light

To turn off the appliance, turn the Tempera-

ture regulator to the OFF position.

Temperature regulation

The temperature is automatically regulated.

To operate the appliance, proceed as fol-

• turn the Temperature regulator towards

to obtain the minimum coldness.

• turn the Temperature regulator towards

to obtain the maximum coldness.

A medium setting is generally the most

However, the exact setting should be chos-

en keeping in mind that the temperature in-

side the appliance depends on:

• how often the lid is opened

• the quantity of food stored

• the location of the appliance.

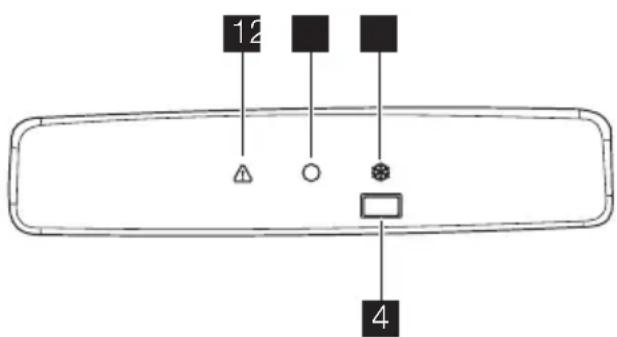

1 High temperature alarm light

You can activate the Action Freeze function

by pressing the Action Freeze switch.

The Action Freeze light will light up.

This function stops automatically after 52

It is possible to deactivate the function at

any time by pressing Action Freeze switch.

The Action Freeze light will switch off.

High temperature alarm

An increase in the temperature in the freez-

er (for example due to an power failure) is in-

• switching on of the Alarm light

• sounding of buzzer.

During the alarm phase, the buzzer can be

switched off by pressing the Alarm reset

electrolux 13During the alarm phase, don't place food in-

When normal conditions are restored the

Alarm light will switch off automatically.

FIRST USE Cleaning the interior

Before using the appliance for the first time,

wash the interior and all internal accesso-

ries with lukewarm water and some neutral

soap so as to remove the typical smell of a

brand-new product, then dry thoroughly.

Important! Do not use detergents or abra-

sive powders, as these will damage the fin-

DAILY USE Freezing fresh food

The freezer compartment is suitable for

freezing fresh food and storing frozen and

deep-frozen food for a long time.

To freeze fresh food activate the Action

Freeze function at least 24 hours before plac-

ing the food to be frozen in the freezer com-

The maximum amount of food that can be

frozen in 24 hours is specified on the rating

The freezing process lasts 24 hours: during

this period do not add other food to be fro-

Storage of frozen food

When first starting-up or after a period out

of use, before putting the products in the

compartment let the appliance run at least

2 hours on the higher settings.

Important! In the event of accidental

defrosting, for example due to a power

failure, if the power has been off for longer

than the value shown in the technical

characteristics chart under "rising time", the

defrosted food must be consumed quickly

or cooked immediately and then re-frozen

Frozen Food Calendar

The symbols show different types of frozen

The numbers indicate storage times in

months for the appropriate types of frozen

goods. Whether the upper or lower value of

the indicated storage time is valid depends

on the quality of the foods and treating be-

Opening and closing the lid

As the lid is equipped with a tightly closing

seal, it is not easy to reopen it shortly after

closing (due to the vacuum formed inside).

Wait a few minutes before reopening the ap-

pliance. The vacuum valve will help you to

Warning! Never pull the handle with im-

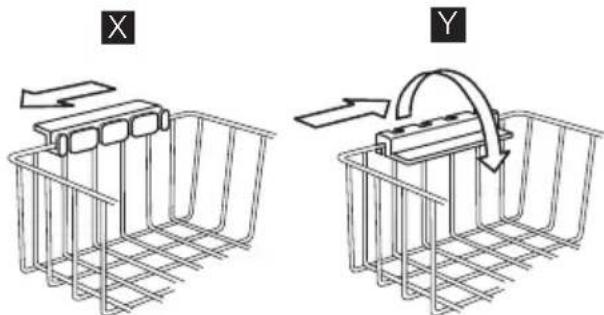

Hang the baskets on the upper edge of the

freezer (X) or place them inside the freezer

(Y). Turn and fix the handles for these two

positions as shown in the picture.

X Y The baskets will slide into each other.

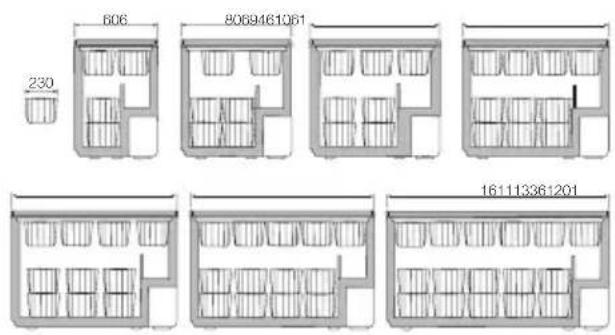

The following pictures show how many bas-

kets can be placed inside the various freez-

er models. 8) Refer to "Technical data" 14 electrolux606

You can purchase additional baskets from

your local Service Centre.

The freezer is equipped with a special lock

in order to avoid accidental locking. The

lock is designed in such manner that you

can turn the key and thus close the lid only

if you previously push the key into the lock.

In order to close the freezer do these steps:

1. push the key into the lock gently.

2. turn the key clockwise towards the sym-

In order to open the freezer do these steps:

1. push the key into the lock gently.

2. turn the key counter-clockwise towards

Important! Spare keys are available at the

local Service Centre.

Warning! Keep the key well away from

Make sure to remove the key from the

lock before you discard the old appli-

HELPFUL HINTS AND TIPS Hints for freezing

To help you make the most of the freezing

process, here are some important hints:

• the maximum quantity of food which can

be frozen in 24 hrs. is shown on the rat-

• the freezing process takes 24 hours. No

further food to be frozen should be add-

ed during this period;

• only freeze top quality, fresh and thorough-

ly cleaned, foodstuffs;

• prepare food in small portions to enable it

to be rapidly and completely frozen and

to make it possible subsequently to thaw

only the quantity required;

• wrap up the food in aluminium foil or pol-

ythene and make sure that the packages

• do not allow fresh, unfrozen food to

touch food which is already frozen, thus

avoiding a rise in temperature of the latter;

• lean foods store better and longer than

fatty ones; salt reduces the storage life of

• water ices, if consumed immediately after

removal from the freezer compartment,

can possibly cause the skin to be freeze

• it is advisable to show the freezing in date

on each individual pack to enable you to

keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this ap-

pliance, you should:

• make sure that the commercially frozen

foodstuffs were adequately stored by the

• be sure that frozen foodstuffs are transfer-

red from the foodstore to the freezer in

the shortest possible time;

• not open the lid frequently or leave it

open longer than absolutely necessary.

• Once defrosted, food deteriorates rapidly

and cannot be refrozen.

• Do not exceed the storage period indica-

ted by the food manufacturer.

CARE AND CLEANING Caution! Unplug the appliance before

carrying out any maintenance operation.

This appliance contains hydrocarbons

in its cooling unit; maintenance and re-

electrolux 15charging must therefore only be carried

out by authorized technicians.

1. Switch off the appliance.

2. Disconnect the mains plug from the

3. Regularly clean the appliance and the ac-

cessories with warm water and neutral

soap. Clean the lid seal carefully.

4. Fully dry the appliance.

5. Connect the mains plug to the mains

6. Switch on the appliance.

Caution! Do not use detergents,

abrasive products, highly perfumed

cleaning products or wax polishes to

clean the inner side of the appliance.

Prevent damage to the cooling system.

Important! There is no need to clean the

Many proprietary kitchen surface cleaners

contain chemicals that can attack/damage

the plastics used in this appliance. For this

reason it is recommended that the outer cas-

ing of this appliance is only cleaned with

warm water with a little washing-up liquid

Defrosting the freezer

Defrost the freezer when the frost layer rea-

ches a thickness of about 10-15 mm.

The best time to defrost the freezer when it

contains no or only a little food.

To remove the frost, do these steps:

1. Switch off the appliance.

2. Remove any stored food, wrap it in sev-

eral layers of newspaper and put it in a

3. Leave the lid open , remove the plug

from the defrost water drain and collect

all defrost water on a tray. Use a scra-

per to remove ice quickly.

4. When defrosting is completed, dry the in-

terior thoroughly and refit the plug.

5. Switch on the appliance.

6. Set the temperature regulator to obtain

the maximum coldness and run the ap-

pliance for two or three hours using this

7. Reload the previously removed food into

Important! Never use sharp metal tools to

scrape off frost as you could damage the

appliance. Do not use a mechanical device

or any artificial means to speed up the

thawing process other than those

recommended by the manufacturer. A

temperature rise of the frozen food packs,

during defrosting, may shorten their safe

Periods of non-operation

When the appliance is not in use for long pe-

riods, take the following precautions:

1. Switch off the appliance.

2. Disconnect the mains plug from the

4. Defrost and clean the appliance and all

5. Leave the lid open to prevent unpleas-

Important! If the cabinet will be kept on,

ask somebody to check it once in a while to

prevent the food inside from spoiling in

case of a power failure.

Caution! Before troubleshooting,

disconnect the power supply.

Only a qualified electrician or compe-

tent person must do the troubleshoot-

ing that is not in this manual.

Important! There are some sounds during

normal use (compressor, refrigerant

The appliance is noisy. The appliance is not supported

Check if the appliance stands sta-

ble (all the four feet should be on

16 electroluxProblem Possible cause Solution

The compressor oper-

The temperature is not set cor-

Set a warmer temperature.

The lid has been opened too fre-

Do not leave the lid open longer

The lid is not closed properly. Check if the lid closes well and

the gaskets are undamaged and

Large quantities of food to be fro-

zen were put in at the same time.

Wait some hours and then check

the temperature again.

Food placed in the appliance

Allow food to cool to room tem-

perature before storing.

The temperature of the room

that contains the appliance is

too high for efficient operation.

Try to reduce the temperature in

the room where the appliance

The High temperature

It is too warm inside the freezer. Refer to "High Temperature

The cabinet has been recently

switched on and the tempera-

ture is still too high.

Refer to "High Temperature

There is too much frost

Products are not wrapped prop-

Wrap the products better.

The lid is not shut properly or do

Check if the lid closes well and

the gaskets are undamaged and

The temperature is not set cor-

Set a warmer temperature.

The water drainage plug is not

correctly positioned.

Position the water drainage plug

The lid doesn't close

There is excessive frost. Eliminate excess frost.

The lid gaskets are dirty or sticky. Clean the lid gaskets.

Food packages are blocking the

Arrange the packages in the right

way, see the sticker in the appli-

The lid is difficult to open. The lid gaskets are dirty or sticky. Clean the lid gaskets.

The valve is blocked. Check the valve.

The lamp does not work.

The lamp is defective. Refer to "Replacing the lamp".

It is too warm in the freez-

The temperature is not set cor-

Set a lower temperature.

The lid does not close tightly or

it is not shut properly.

Check if the lid closes well and

the gasket is undamaged and

Before freezing the appliance

was not precooled sufficiently.

Pre-cool the appliance for enough

electrolux 17Problem Possible cause Solution

Large quantities of food to be fro-

zen were put in at the same time.

Wait some hours and then check

the temperature again. Next time

insert smaller quantities of food to

be frozen at any one time.

Food placed in the appliance

Allow food to cool to room tem-

perature before storing.

Products to be frozen are

placed too closely to each other.

Place the products in a way so

that cold air could circulate

The lid has been opened often. Try to not open the lid often.

The lid has been opened for a

Do not leave the lid open longer

It is too cold inside the

The temperature is not set cor-

Set a warmer temperature.

The appliance does not

work at all. Neither cool-

ing nor lighting works.

Plug is not connected to the

mains socket properly.

Connect the mains plug properly.

Power does not reach the appli-

Try connecting another electrical

device to the power outlet.

The appliance is not switched on. Switch on the appliance.

There is no voltage in the mains

socket (try to connect another

Call an electrician.

If your appliance is still not working properly

after making the above checks, contact the

nearest service centre.

To obtain fast service, it is essential that

when you apply for it you specify the model

and serial number of your appliance which

can be found either on the guarantee certifi-

cate or on the rating plate located on the ex-

ternal right side of the appliance.

1. Disconnect the mains plug from the

2. Replace the used lamp with a new lamp

of the same power and specifically de-

signed for household appliances. (the

maximum power is shown on the lamp

3. Connect the mains plug to the mains

4. Open the lid. Make sure that the lamp

Warning! Do not remove the lamp

cover at the time of replacement.

Do not operate the freezer if the lamp

cover is damaged or missing.

18 electroluxTECHNICAL DATA Volume (gross) Litre 404 Height mm 876 Rising Time hours 31

Volume (net) Litre 400 Width mm 1336 Energy Consumption kWh/24h 1,152

Voltage Volts 230 Weight Kg 56 Climatic Class SN-T Further technical information are situated in the rating plate on the external right side of

INSTALLATION Positioning

Warning! If you are discarding an old

appliance that has a lock or catch on

the lid, you must ensure that it is made

unusable to prevent young children

being trapped inside.

Important! The appliance shall have the

plug accessible after installation.

This appliance can be installed in a dry, well

ventilated indoor (garage or cellar), but for

optimum performance install this appliance

at a location where the ambient tempera-

ture corresponds to the climate class indica-

ted on the rating plate of the appliance:

SN +10°C to + 32°C N +16°C to + 32°C ST +16°C to + 38°C T +16°C to + 43°C Electrical connection

Before plugging in, ensure that the voltage

and frequency shown on the rating plate cor-

respond to your domestic power supply.

The appliance must be earthed. The power

supply cable plug is provided with a contact

for this purpose. If the domestic power sup-

ply socket is not earthed, connect the appli-

ance to a separate earth in compliance with

current regulations, consulting a qualified

The manufacturer declines all responsibility

if the above safety precautions are not ob-

This appliance complies with the E.E.C. Di-

Ventilation requirements

1. Put the freezer in horizontal position on

a firm surface. The cabinet must be on

2. Make sure that the clearance between

the appliance and rear wall is 5 cm.

3. Make sure that the clearance between

the appliance and the sides is 5 cm.

The airflow behind the appliance must be

ENVIRONMENTAL CONCERNS The symbol on the product or on its

packaging indicates that this product may

not be treated as household waste. Instead

it should be taken to the appropriate

collection point for the recycling of electrical

and electronic equipment. By ensuring this

product is disposed of correctly, you will

help prevent potential negative

consequences for the environment and

human health, which could otherwise be

caused by inappropriate waste handling of

this product. For more detailed information

about recycling of this product, please

contact your local council, your household

waste disposal service or the shop where

you purchased the product.

electrolux 19Electrolux. Thinking of you.

Lue lisää osoitteessa www.electrolux.com

28 electroluxElectrolux. Thinking of you.

electrolux 39Electrolux. Thinking of you.

50 electroluxElectrolux. Thinking of you.

electrolux 61Electrolux. Thinking of you.

4 Action Freeze-bryter

matvarepakkene under

70 electroluxElectrolux. Thinking of you.

gas in under denna period.
