Description of the appliance, 17

Overall view

Start-up and use, 18-19

Practical advice on using the burners

Practical advice on using the electric hotplates

Precautions and tips, 20

General safety

Disposal

Maintenance and care, 21

Switching the appliance off

Cleaning the appliance

Gas tap maintenance

Troubleshooting, 22

! Before operating your new appliance please read this instruction booklet carefully. It contains important information for safe use, installation and care of the appliance.
! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

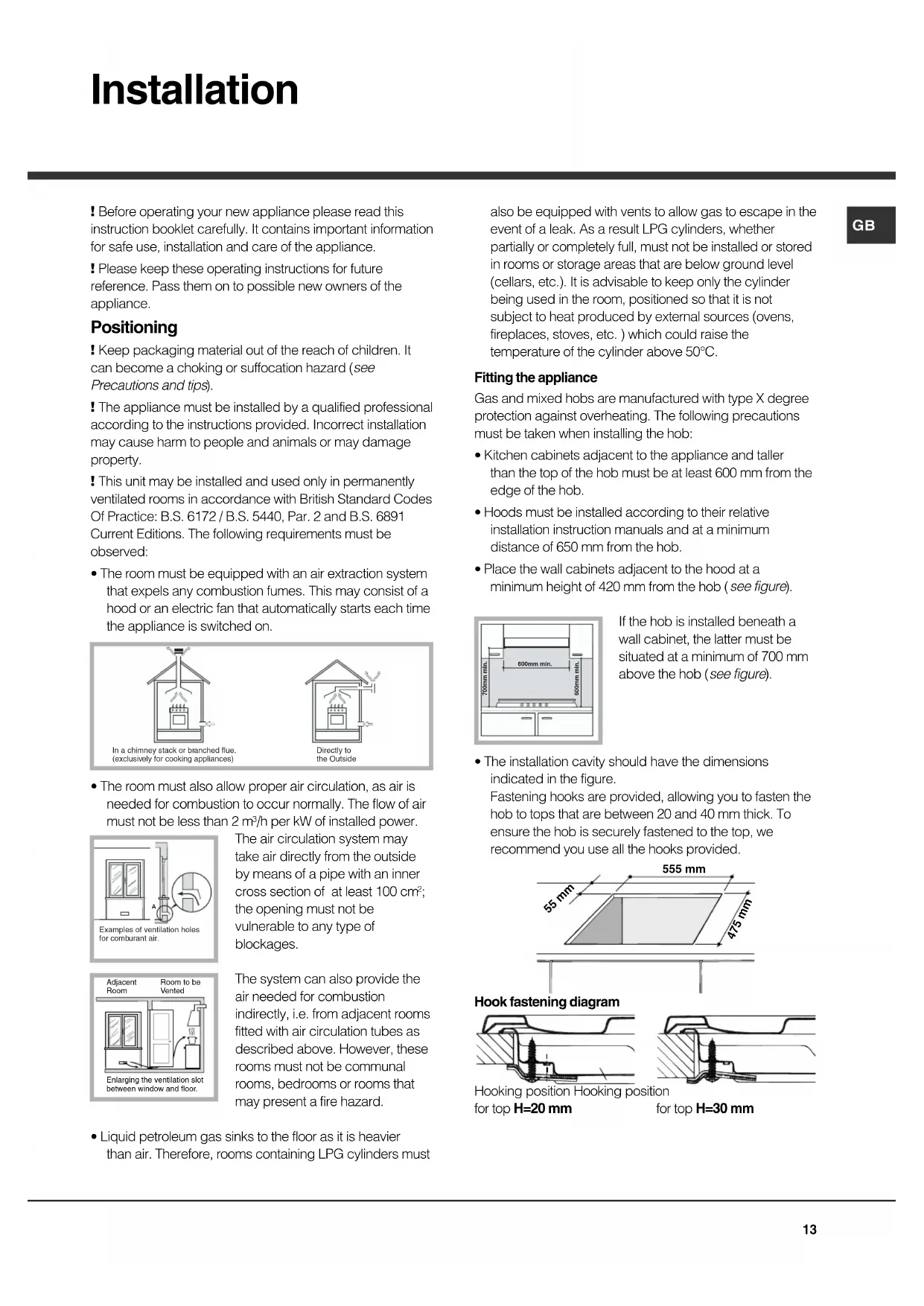

Positioning

! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard (see Precautions and tips).
! The appliance must be installed by a qualified professional according to the instructions provided. Incorrect installation may cause harm to people and animals or may damage property.
! This unit may be installed and used only in permanently ventilated rooms in accordance with British Standard Codes Of Practice: B.S. 6172 / B.S. 5440, Par. 2 and B.S. 6891 Current Editions. The following requirements must be observed:
- The room must be equipped with an air extraction system that expels any combustion fumes. This may consist of a hood or an electric fan that automatically starts each time the appliance is switched on.

In a chimney stack or branched flue, (exclusively for cooking appliances)

Directly to the Outside

• The room must also allow proper air circulation, as air is needed for combustion to occur normally. The flow of air must not be less than 2m^3/h per kW of installed power.

Examples of ventilation holes for combustant air.

The air circulation system may take air directly from the outside by means of a pipe with an inner cross section of at least 100cm^2 the opening must not be vulnerable to any type of blockages.

Enlarging the ventilation slot between window and floor.

The system can also provide the air needed for combustion indirectly, i.e. from adjacent rooms fitted with air circulation tubes as described above. However, these rooms must not be communal rooms, bedrooms or rooms that may present a fire hazard.

• Liquid petroleum gas sinks to the floor as it is heavier than air. Therefore, rooms containing LPG cylinders must

also be equipped with vents to allow gas to escape in the event of a leak. As a result LPG cylinders, whether partially or completely full, must not be installed or stored in rooms or storage areas that are below ground level (cellars, etc.). It is advisable to keep only the cylinder being used in the room, positioned so that it is not subject to heat produced by external sources (ovens, fireplaces, stoves, etc.) which could raise the temperature of the cylinder above 50^ .

Fitting the appliance

Gas and mixed hobs are manufactured with type X degree protection against overheating. The following precautions must be taken when installing the hob:

• Kitchen cabinets adjacent to the appliance and taller than the top of the hob must be at least 600mm from the edge of the hob.
• Hoods must be installed according to their relative installation instruction manuals and at a minimum distance of 650mm from the hob.
• Place the wall cabinets adjacent to the hood at a minimum height of 420mm from the hob (see figure).

If the hob is installed beneath a wall cabinet, the latter must be situated at a minimum of 700mm above the hob (see figure).

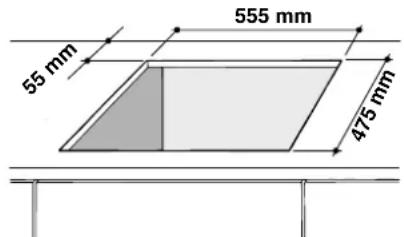

• The installation cavity should have the dimensions indicated in the figure.

Fastening hooks are provided, allowing you to fasten the hob to tops that are between 20 and 40mm thick. To ensure the hob is securely fastened to the top, we recommend you use all the hooks provided.

Hook fastening diagram

Hooking position Hooking position

for top H=20 mm

for top H=30 mm

GB

Hooking position Back for top H=40 mm

Front

! Use the hooks contained in the "accessory pack"
- Where the hob is not installed over a built-in oven, a wooden panel must be installed as insulation. This must be placed at a minimum distance of 20mm from the lower part of the hob.

Ventilation

To ensure adequate ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 × 560 ~mm (see diagrams).

When installing the cooktop above a built-in oven without forced ventilation, ensure that there are air inlets and outlets for ventilating the interior of the cabinet adequately.

Electrical connection

Hobs equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate (this is located on the lower part of the appliance). The earth wire in the cable has a green and yellow cover. If the appliance is to be installed above a built-in electric oven, the electrical connection of the hob and the oven must be carried out separately, both for electrical safety purposes and to make extracting the oven easier.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data plate.

The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3mm installed between the appliance and the mains. The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50^ .

! The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.

Before connecting to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated on the data plate.
  The voltage is in the range between the values indicated on the data plate.
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).
! The manufacturer declines any liability should these safety measures not be observed.

Gas connection

The appliance should be connected to the main gas supply or to a gas cylinder in compliance with current national regulations. Before carrying out the connection, make sure the cooker is compatible with the gas supply you wish to use. If this is not the case, follow the instructions indicated in the paragraph "Adapting to different types of gas." When using liquid gas from a cylinder, install a pressure regulator which complies with current national regulations.

! Check that the pressure of the gas supply is consistent with the values indicated in Table 1 ("Burner and nozzle specifications"). This will ensure the safe operation and longevity of your appliance while maintaining efficient energy consumption.

Connection with a rigid pipe (copper or steel)

! Connection to the gas system must be carried out in such a way as not to place any strain of any kind on the appliance.

There is an adjustable L-shaped pipe fitting on the

appliance supply ramp and this is fitted with a seal in order to prevent leaks. The seal must always be replaced after rotating the pipe fitting (seal provided with appliance). The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment.

Connecting a flexible jointless stainless steel pipe to a threaded attachment

The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment.

These pipes must be installed so that they are never longer than 2000mm when fully extended. Once connection has been carried out, make sure that the flexible metal pipe does not touch any moving parts and is not compressed.

! Only use pipes and seals that comply with current national regulations.

Checking the tightness of the connection

! When the installation process is complete, check the pipe fittings for leaks using a soapy solution. Never use a flame.

Adapting to different types of gas

To adapt the hob to a different type of gas other than default type (indicated on the rating plate at the base of the hob or on the packaging), the burner nozzles should be replaced as follows:

1. Remove the hob grids and slide the burners off their seats.
2. Unscrew the nozzles using a 7 mm socket spanner, and replace them with nozzles for the new type of gas (see table 1 "Burner and nozzle characteristics").
3. Reassemble the parts following the above procedure in the reverse order.

4. Once this procedure is finished, replace the old rating sticker with one indicating the new type of gas used. Sticker are available from any of our Service Centres.

5. Adjusting the burners' primary air : Does not require adjusting.

6. Setting the burners to minimum:

7. Turn the tap to the low flame position.
8. Remove the knob and adjust the adjustment screw, which is positioned in or next to the tap pin, until the flame is small but steady.

1. Having adjusted the flame to the required low setting, while the burner is alight, quickly change the position of the knob from minimum to maximum and vice versa several times, checking that the flame does not go out.
2. Some appliances have a safety device (thermocouple) fitted. If the device fails to work when the burners are set to the low flame setting, increase this low flame setting using the adjusting screw.
3. Once the adjustment has been made, replace the seals on the by-passes using sealing wax or a similar substance.
   ! If the appliance is connected to liquid gas, the regulation screw must be fastened as tightly as possible.
   ! Once this procedure is finished, replace the old rating sticker with one indicating the new type of gas used. Stickers are available from any of our Service Centres.
   ! Should the gas pressure used be different (or vary slightly) from the recommended pressure, a suitable pressure regulator must be fitted to the inlet pipe (in order to comply with current national regulations).

DATA PLATE
Electrical connections	see data plate
CE	This appliance conforms to the following European Economic Community directives: - 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments - 2004/108/EEC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments - 93/68/EEC dated 22/07/93 and subsequent amendments. - 2009/142/EEC dated 30/11/09 (Gas) and subsequent amendments. - 2002/96/EC and subsequent amendments.

Burner and nozzle specifications

Table 1				Liquid Gas					Naturale Gas
Burner	Diameter (mm)	Thermal Power kW (p.c.s.*) Nom. Red.		By-pass 1/100 (mm)		Nozzle 1/100 (mm)***	Flow* g/h		Nozzle 1/100 (mm)	Flow* l/h
Fast (Large) (R)	100	3.00	0.70	41	39	86	218	214	116	286
Reduced Fast (RR)	100	2.60	0.70	41	39	80	189	186	110	248
Semi Fast (Medium) (S)	75	1.65	0.40	30	28	64	120	118	96	157
Auxiliary (Small) (A)	55	1.00	0.40	30	28	50	73	71	71	95
Triple Crown (TC)	130	3.25	1.50	60	61	91	236	232	133	309
Supply pressures	Nominal (mbar)						28-30	37	20
	Minimum (mbar)						20	25	17
	Maximum (mbar)						35	45	25

• At 15°C and 1013 mbar-dry gas
  Propane P.C.S. = 50.37 MJ/kg.
  * Butane P.C.S. = 49.47 MJ/kg.
  Natural P.C.S. = 37.78 MJ/m
  (1) Only for appliances with the security device.

Table 1 (For Hungary)		G 20		G 25.1		G 30
Burner	By-pass 1/100 (mm)	Thermal Power kW	Nozzle 1/100 (mm)	Thermal Power kW	Nozzle 1/100 (mm)	Thermal Power kW	Nozzle 1/100 (mm)
Fast (R)	3.00	2,90	116	2,25	116	2,70	86
Reduced Fast (RR)	2.60	2,45	110	1,90	110	2,30	80
Semi Fast (Medium) (S)	1.65	1,60	96	1,25	96	1,50	64
Auxiliary (Small) (A)	1.00	0,90	71	0,65	71	0,90	50
Triple Crown (TC)	3.25	3,15	133	2,45	133	2,90	91
Supply pressures		25 mbar 25 mbar				30 mbar

At 15^ and 1013 mbar-dry gas P.C.I. G30 122,8 MJ/m
P.C.I. G20 35,9 MJ/m 3 P.C.I. G25.1 30,9 MJ/m

PH 640./HA PH 640MST./HA PH 631./HA

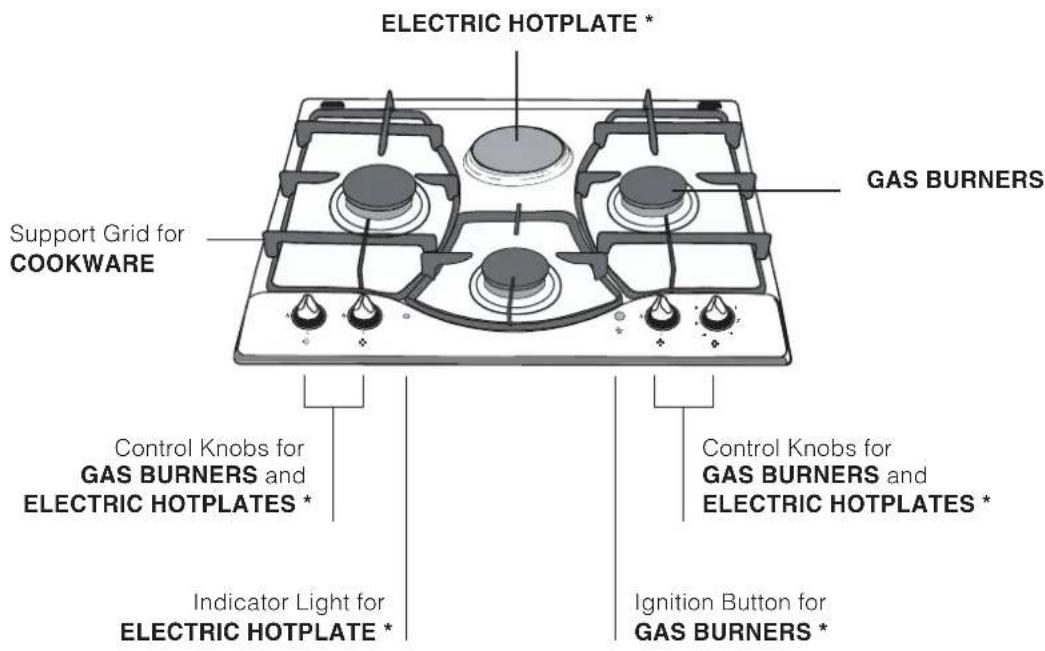

Overall view

GB

The INDICATOR LIGHT FOR ELECTRIC HOTPLATES switches on whenever the selector knob is moved from the 'off' position.
- GAS BURNERS differ in size and power. Use the diameter of the cookware to choose the most appropriate burner to cook with.
Control Knobs for GAS BURNERS and ELECTRIC PLATES adjust the power or the size of the flame.

• GAS BURNER ignition* enables a specific burner to be lit automatically.

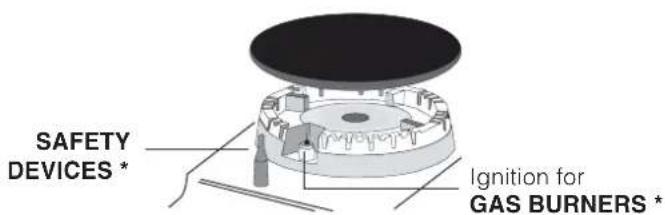

• SAFETY DEVICE* stops the gas flow if the flame is accidentally extinguished.

*Only available on certain models.

GB

! The position of the corresponding gas burner or electric hotplate* is shown on every knob.

Gas burners

Each burner can be adjusted to one of the following settings using the corresponding control knob:

• Off

Maximum

Minimum

To light one of the burners, hold a lit match or lighter near the burner and, at the same time, press down and turn the corresponding knob anti-clockwise to the maximum setting.

Since the burner is fitted with a safety device, the knob should be pressed for approximately 2-3 seconds to allow the automatic device keeping the flame alight to heat up.

When using models with an ignition button, light the desired burner by first pressing the gas burners

button (identifiable by the symbol), then pressing down the corresponding knob as far as possible and turning it anticlockwise towards the maximum setting. Some models are equipped with an ignition switch incorporated into the control knob. If this is the case, the ignitor is present, but not the switch (the symbol is located near each knob).

To light a burner, simply press the corresponding knob all the way in and then turn it in the counterclockwise direction to the "High" setting, keeping it pressed in until the burner lights.

If a flame is accidentally extinguished, turn off the control knob and wait for at least 1 minute before trying to relight it.

To switch off the burner, turn the knob in a clockwise direction until it stops (when reaches the "●" position).

Electric hotplates*

The corresponding knob may be turned clockwise or anti-clockwise and set to six different positions:

Setting	Normal or Fast Plate
0	Off
1	Low
2 - 5	Medium
6	High

When the selector knob is in any position other than the off position, the 'on' light comes on.

Practical advice on using the burners

To ensure the burners operate efficiently:

• Use appropriate cookware for each burner (see table) so that the flames do not extend beyond the bottom of the cookware.
  Always use cookware with a flat base and a cover.
• When the contents of the pan reach boiling point, turn the knob to minimum.

Burner	Ø Cookware Diameter (cm)
Fast (R)	24 - 26
Reduced Fast (RR)	22 - 24
Semi Fast (S)	16 - 20
Auxiliary (A)	10 - 14
Triple Crown (TC)	24 - 26

* Only available on certain models.

Practical advice on using the electric hotplates

To avoid heat loss and damage to the hotplates, use pans with a flat base, whose diameter is no less than that of the hotplate itself.

Setting	Setting
0	Off
1	Cooking vegetables, fish
2	Cooking potatoes (using steam) soups, chickpeas, beans.
3	Continuing the cooking of large quantities of food, minestrone.
4	For roasting (average)
5	For roasting (above average)
6	For browning and reaching a boil in a short time

Before using the hotplates for the first time, you should heat them at maximum temperature for approximately 4 minutes, without placing any pans on them. During this initial stage, their protective coating hardens and reaches its maximum resistance.

* Only available on certain models.

GB

! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

General safety

• This is a class 3 built-in appliance.
• Gas appliances require regular air exchange to maintain efficient operation. When installing the hob, follow the instructions provided in the paragraph on "Positioning" the appliance.
• These instructions are only valid for the countries whose symbols appear in the manual and on the serial number plate.
• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• Do not touch the appliance with bare feet or with wet or damp hands and feet.
• The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.
• Ensure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.
• The openings used for ventilation and dispersion of heat must never be covered.
  Always make sure the knobs are in the "●"/"○" position when the appliance is not in use.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.

• Never carry out any cleaning or maintenance work without having detached the plug from the mains.

• In case of malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance).

• Always make sure that pan handles are turned towards the centre of the hob in order to avoid accidental burns.
• Do not close the glass cover (if present) when the gas burners or electric hotplates are still hot.
• Do not leave the electric hotplate switched on without a pan placed on it.
• Do not use unstable or deformed pans.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers may take their old appliance to public waste collection areas, other communal collection areas, or if national legislation allows return it to a retailer when purchasing a similar new product.

All major household appliance manufacturers are active in the creation of systems to manage the collection and disposal of old appliances.

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

! Do not use abrasive or corrosive detergents such as stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.

! Never use steam cleaners or pressure cleaners on the appliance.

• It is usually enough to wash the hob with a damp sponge and dry it with absorbent kitchen roll.
• The removable parts of the burners should be washed frequently with warm water and soap and any burnt-on substances removed.
• For hobs which ligth automatically, the terminal part of the electronic instant lighting devices should be cleaned frequently and the gas outlet holes should be checked for blockages.
• The electric hotplates should be cleaned with a damp cloth and lubricated with a little oil while still warm.
• Stainless steel can be marked by hard water that has been left on the surface for a long time, or by aggressive detergents containing phosphorus. After cleaning, rinse and dry any remaining drops of water.

Gas tap maintenance

Over time, the taps may become jammed or difficult to turn. If this happens, the tap must be replaced.

! This procedure must be performed by a qualified technician authorised by the manufacturer.

GB

It may happen that the appliance does not function properly or at all. Before calling the service centre for assistance, check if anything can be done. First, check to see that there are no interruptions in the gas and electrical supplies, and, in particular, that the gas valves for the mains are open.

Problem

The burner does not light or the flame is not even around the burner.

The flame dies in models with a safety device.

The burner does not remain lit when set to minimum.

The cookware is unstable.

Possible causes/Solution

• The gas holes on the burner are clogged.
• All the movable parts that make up the burner are mounted correctly.

• There are draughts near the appliance.

• You pressed the knob all the way in.

• You keep the knob pressed in long enough to activate the safety device.

• The gas holes are not blocked in the area corresponding to the safety device.

• The gas holes are not blocked.

• There are no draughts near the appliance.
  The minimum setting has been adjusted properly.

• The bottom of the cookware is perfectly flat.

• The cookware is positioned correctly at the centre of the burner.
• The pan support grids have been positioned correctly.

If, despite all these checks, the hob does not function properly and the problem persists, call the nearest Customer Service Centre. Please have the following information handy:

• The appliance model (Mod.).
  The serial number (S/N).

This information can be found on the data plate located on the appliance and/or on the packaging.

! Never use unauthorised technicians and never accept replacement parts which are not original.

ITGB

Italian, 1 Francais, 23 English, 12

Espanol, 36

Romana,47

Türkce,58

Sommaire

Installation, 24-29

Positionnement

Causes / Solutions possibles
