Tesla 550W - Power Supply (PC) Fractal Design - Free user manual and instructions

Product Type	PC Power Supply
Brand	Fractal Design
Model	Tesla 550W
Total Power	550 W
Input Voltage	100-240 VAC
Input Frequency	47-63 Hz
Input Current	5-10 A
+3.3V Output	24 A (combined +3.3V and +5V: 140 W max)
+5V Output	24 A (combined +3.3V and +5V: 140 W max)
+12V Output	4 rails, 20 A each, 510 W max
-12V Output	0.5 A / 6 W
+5VSB Output	2.5 A / 12.5 W
Fan	120 mm, temperature control
Noise Level	Extremely quiet
Power Factor Correction	Active, 99%
Protections	Overcurrent, overvoltage, overload, undervoltage, short-circuit
Main Connectors	1 x 20/24-pin (with detachable 4-pin connector), 1 x 4-pin +12V (P4), 1 x 8-pin (EPS12V), IDE peripheral cables, SATA cables, floppy drive connector
Warranty	60 months (5 years)
Design	Swedish, minimalist Scandinavian design
Cables	Sleeved, long enough for large towers
Dimensions (approx.)	150 x 140 x 86 mm (L x W x H)

Frequently Asked Questions - Tesla 550W Fractal Design

What is the maximum power delivered by the Fractal Design Tesla 550W power supply?

The total power is 550 W, with a maximum of 510 W on the +12V rail.

Which connectors are included with this power supply?

It includes a 20/24-pin connector (with detachable 4-pin), a 4-pin P4 (+12V) cable, an 8-pin EPS12V cable, IDE peripheral cables, SATA cables, and a floppy drive connector.

Is the fan quiet?

Yes, it is equipped with a 120 mm temperature-controlled fan designed for extremely quiet operation.

What protections are integrated?

The power supply has protections against overcurrent, overvoltage, overload, undervoltage, and short circuits.

Can I use this power supply with an older 20-pin motherboard?

Yes, the 20/24-pin connector has a detachable 4-pin part, allowing use on a 20-pin motherboard.

What is the warranty period?

The warranty is 60 months (5 years) from the date of delivery to the end user, against hardware or manufacturing defects.

Is the power supply compatible with large cases?

Yes, the cables are sleeved and long enough for use in large towers.

What is the supported input voltage?

It operates on a universal voltage range of 100 to 240 VAC, with a frequency of 47 to 63 Hz.

How to properly install the power supply?

First secure the power supply in the case with the provided screws, then connect all cables (motherboard, peripherals) before plugging in the power cord and turning on the switch. Do not plug in the power cord until the last step.

What to do if I encounter a problem with the power supply?

First consult the user manual. If the problem persists, contact the retailer or Fractal Design after-sales service. Never open the casing, as this voids the warranty and exposes you to dangerous voltages.

USER MANUAL Tesla 550W Fractal Design

Black power supply unit with fan and cable, no visible text or symbols on main body

USER'S MANUAL

Table of contents

English......Page 3

Français......Page 6

Deutsch......Page 9

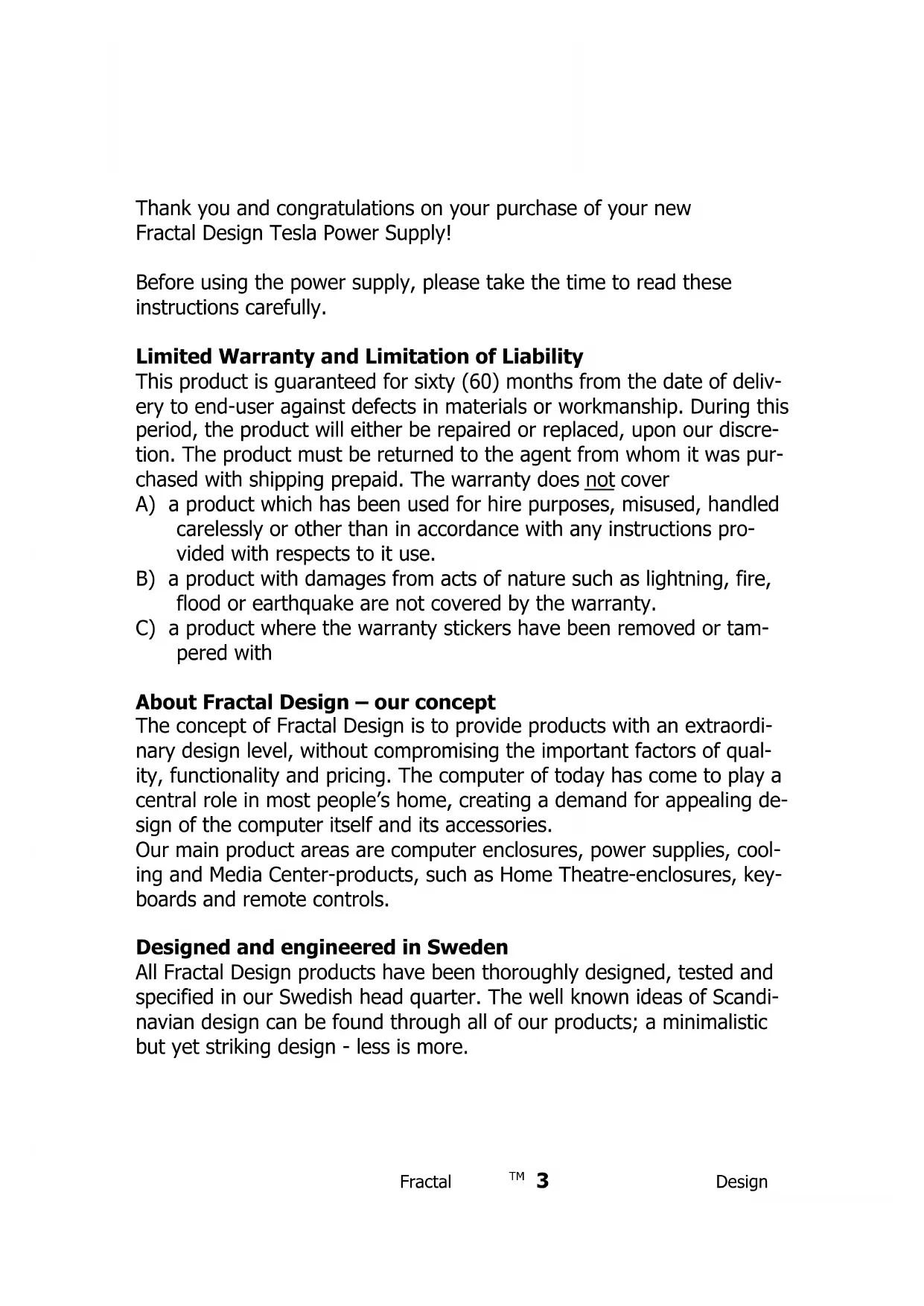

Thank you and congratulations on your purchase of your new Fractal Design Tesla Power Supply!

Before using the power supply, please take the time to read these instructions carefully.

Limited Warranty and Limitation of Liability

This product is guaranteed for sixty (60) months from the date of delivery to end-user against defects in materials or workmanship. During this period, the product will either be repaired or replaced, upon our discretion. The product must be returned to the agent from whom it was purchased with shipping prepaid. The warranty does not cover

A) a product which has been used for hire purposes, misused, handled carelessly or other than in accordance with any instructions provided with respects to it use.
B) a product with damages from acts of nature such as lightning, fire, flood or earthquake are not covered by the warranty.
C) a product where the warranty stickers have been removed or tampered with

About Fractal Design – our concept

The concept of Fractal Design is to provide products with an extraordinary design level, without compromising the important factors of quality, functionality and pricing. The computer of today has come to play a central role in most people's home, creating a demand for appealing design of the computer itself and its accessories.

Our main product areas are computer enclosures, power supplies, cooling and Media Center-products, such as Home Theatre-enclosures, keyboards and remote controls.

Designed and engineered in Sweden

All Fractal Design products have been thoroughly designed, tested and specified in our Swedish head quarter. The well known ideas of Scandinavian design can be found through all of our products; a minimalistic but yet striking design - less is more.

Introduction

Fractal Design's Tesla PSU series delivers top notch performance to an affordable price. All PSU's offers 100% real wattage, high efficiency, plentiful of connectors and a noise level which is practically inaudible. Simply, Tesla PSU series is all an enthusiast can dream about!

Features

• 5 years warranty
  • High efficiency, 80 PLUS certified
• Extremely silent, temperature regulated 120mm fans
  • Four +12V-rails, delivering 20A each
• Sleeved cables, long enough even for the user with a big tower.
  • 99% Active Power Factor Correction
  • Over Current/Voltage/Power Protection, Under Voltage Protection and Short Circuit Protection
  • Full range universal input 115V-230V

Model Tesla 550W
AC Input Ra-ting	100V-240V
Input Current	5-10A
Frequency	47-63Hz
DC Output	Max Load / Max Output
+3.3V	24A / 140W combined +3.3V and +5V
+5V	24A / 140W combined +3.3V and +5V
+12V	4 rails, 20A each / 510W
-12V	0.5A / 6W
+5VSB	2.5A / 12.5W
Total Power	550W

Installation

Please read through this entire manual before proceeding with the installation.

Warning! Do not connect AC power cord before the last step!

1. Install the power supply according to the manual of your computer case, with the enclosed mounting screws.
2. Connect the 20/24-pin cable to the motherboard. The 20/24-pin cable header has a detachable 4-pin connector if you have an older motherboard with only 20-pin connection.
3. Connect the 4pin +12V (also called P4-cable) cable to the motherboard. If your motherboard instead has an 8-pin socket, connect the 8-pin (also called EPS12V-cable) cable to it.
   Warning! The detachable 4-pin cable from the 20/24-pin cable is not a P4/+12V connector. Serious damage can occur if you use the detachable 4-pin instead of the P4/+12V connector.
4. Connect the peripheral cables to IDE-connected drives if you have such (older HDD and optical drives).
5. Connect the SATA power connectors to SATA-connected drives (newer HDD and optical drives)
6. Connect the floppy connector if you have a floppy drive
7. Connect the AC power cord to the Fractal PSU and turn on the on/off switch.

WARNING!

Always operate the power supply in a safe and dry environment. Never insert any objects into the open ventilation or fan grill area!

Hazardous voltages inside power supply! Never remove the cover. Warranty is voided once the cover is removed.
