USER MANUAL Wakeup Light Plus HF3485 PHILIPS

White portable water heater with digital display showing '7:00' and control buttons (no text or symbols on body)

Diagram of three open panels with grid patterns and directional arrows indicating rotation (no text or symbols)

A B C D E F G H I L K J 17 16 15 14 13 12 1 2 3 4 5 6 7 8 9 10 11 FM USB off

Simple geometric diagram with two concentric squares, no text or symbols present

Simple line drawing of a portable radio with a cross mark and label (no text or symbols on the device itself)

Warning symbol with steam inside a triangle, no text or numbers present

For indoor use only

Digital display panel with clock icon, status indicators, and function buttons

Control panel interface with icons and a timer displaying '0:00' in the center

10:00:00 MENU SELECT MENU

MENU SELECT MANUAL

10 MENU SELECT +

12 13

Diagram of a vehicle's padlock layout with warning symbols and labeled parts

Diagram of a device control panel with warning icons and status indicators

14

15

FM 0.0.0.0

Digital display panel with bird silhouette and icons for settings or functions

18

19

20 0.0.0.0

21

ENGLISH 6

DANSK 18

DEUTSCH 30

ΕΛΛΗΝΙΚΑ 43

ESPAÑOL 57

SUOMI 70

FRANÇAIS 81

ITALIANO 94

NEDERLANDS 106

NORSK 119

PORTUGUÊS 131

SVENSKA 144

TÜRKÇE 156

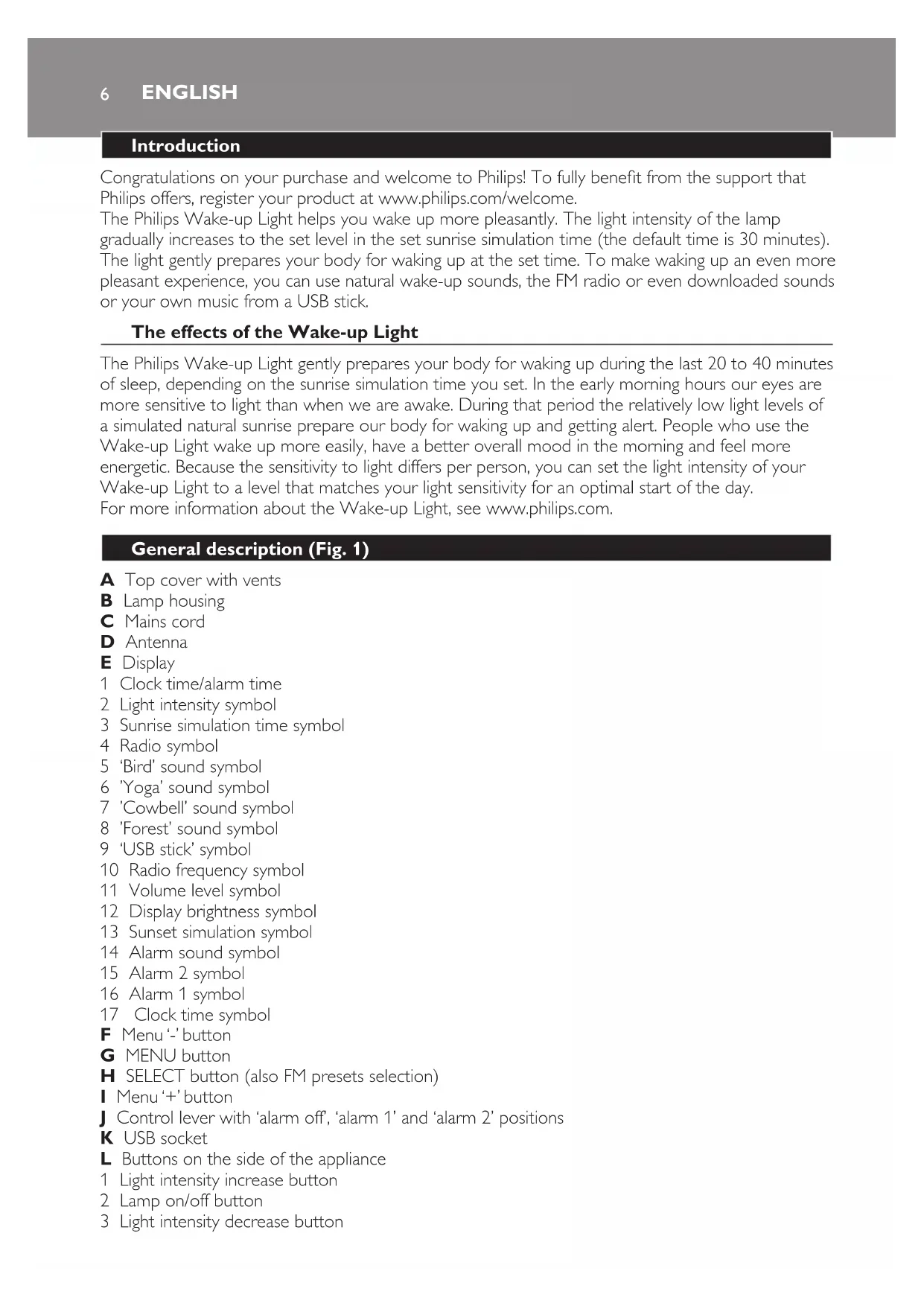

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

The Philips Wake-up Light helps you wake up more pleasantly. The light intensity of the lamp gradually increases to the set level in the set sunrise simulation time (the default time is 30 minutes).

The light gently prepares your body for waking up at the set time. To make waking up an even more pleasant experience, you can use natural wake-up sounds, the FM radio or even downloaded sounds or your own music from a USB stick.

The effects of the Wake-up Light

The Philips Wake-up Light gently prepares your body for waking up during the last 20 to 40 minutes of sleep, depending on the sunrise simulation time you set. In the early morning hours our eyes are more sensitive to light than when we are awake. During that period the relatively low light levels of a simulated natural sunrise prepare our body for waking up and getting alert. People who use the Wake-up Light wake up more easily, have a better overall mood in the morning and feel more energetic. Because the sensitivity to light differs per person, you can set the light intensity of your Wake-up Light to a level that matches your light sensitivity for an optimal start of the day.

For more information about the Wake-up Light, see www.philips.com.

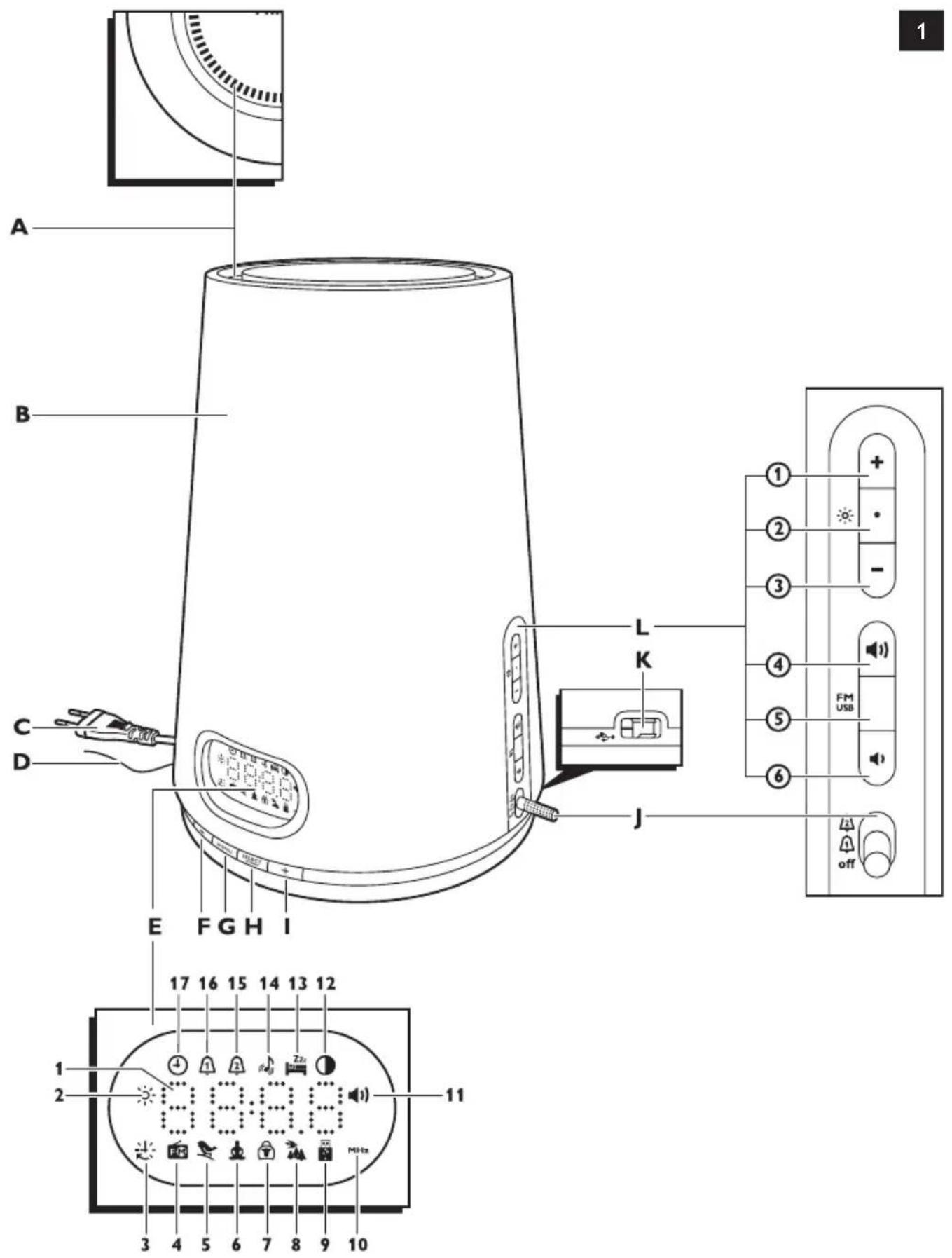

General description (Fig. 1)

A Top cover with vents
B Lamp housing
C Mains cord
D Antenna
E Display
1 Clock time/alarm time
2 Light intensity symbol
3 Sunrise simulation time symbol
4 Radio symbol
5 'Bird' sound symbol
6 'Yoga' sound symbol
7 'Cowbell' sound symbol
8 'Forest' sound symbol
9 'USB stick' symbol
10 Radio frequency symbol
11 Volume level symbol
12 Display brightness symbol
13 Sunset simulation symbol
14 Alarm sound symbol
15 Alarm 2 symbol
16 Alarm 1 symbol
17 Clock time symbol
F Menu '-' button
G MENU button
H SELECT button (also FM presets selection)
Menu '+' button
J Control lever with 'alarm off', 'alarm 1' and 'alarm 2' positions
K USB socket
L Buttons on the side of the appliance
1 Light intensity increase button
2 Lamp on/off button
3 Light intensity decrease button

4 Volume increase button
5 Radio on/off button
6 Volume decrease button

Important

• Read this user manual carefully before you use the appliance and save it for future reference.
• This appliance is double insulated according to Class II (Fig. 2).

Danger

• Water and electricity are a dangerous combination. Do not use this appliance in wet surroundings (e.g. in the bathroom or near a shower or swimming pool).
• Do not let water run into the appliance or spill water onto the appliance (Fig. 3).

Warning

• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
• Do not place anything on top of or close to the appliance that could cause water or any other liquid to drip or splash onto the appliance.
• As you can only disconnect the appliance from the mains by removing the mains plug from the wall socket, always make sure the mains plug is within easy reach when the appliance is connected to the mains.
• The appliance is suitable for a mains voltage of 230V and a frequency of 50Hz.
• If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• Always let the appliance cool down for approx. 15 minutes before you open the top cover to remove the lamp. The lamp and the metal part of the top cover become hot during use and you may burn your fingers when you touch them. (Fig. 4)
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is for indoor use only (Fig. 5).

Caution

• Do not drop the appliance on the floor, hit it hard or expose it to other heavy shocks.
• Place the appliance on a stable, level and non-slippery surface.
• Do not use the appliance at room temperatures lower than 10°C or higher than 35°C.
• Make sure the vents in the top and in the bottom of the appliance remain open during use.
• Never use the appliance if the lamp housing or top cover is damaged, broken or missing.
• Consult your doctor before you start using the appliance if you have suffered from or are suffering from serious depression.
• Do not use this appliance as a means to reduce your hours of sleep. The purpose of this appliance is to help you wake up more easily. It does not diminish your need for sleep.
• The appliance has no on/off switch. To disconnect the appliance from the mains, remove the plug from the wall socket.
• This appliance is only intended for household use, including similar use for instance in hotels.

General

• This appliance allows you to choose the light intensity level you want to wake up to (see section 'Setting the light intensity' in chapter 'Using the appliance').
• If you often wake up too early or with a headache, reduce the light intensity level and/or the sunrise simulation time.

ENGLISH8

- If you share a bedroom with someone else, this person may unintentionally wake up from the light of the appliance, even though this person is further removed from the appliance. This phenomenon is the result of differences in light sensitivity between people.

- The power consumption of the appliance is lowest if the radio, the USB playback function and the lamp are switched off.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Preparing for use

Setting the clock

1 Put the plug in the wall socket.
The hour indication on the display starts flashing to indicate that you have to set the clock time (Fig. 6).
2 Press the menu - or + button to select the hour.
3 Press the SELECT button to confirm.

The minute indication starts flashing (Fig. 7).

4 Press the menu - or + button to set the minutes.
5 Press the SELECT button to confirm.

The appliance leaves the menu and the display shows the set clock time.

The appliance is now ready for use.

Note: The method described above only applies when you plug in the appliance for the first time, when there has been a power failure or when the mains plug has been removed from the wall socket for more than 15 minutes. In these cases, the hour indication flashes to indicate that you have to set the clock time. In all other cases, you have to use the menu to set the clock time (see section 'Menu functions' in chapter 'Using the appliance').

Using the appliance

Menu functions

Below you find a description of all functions that can be set in the menu. These functions appear in the menu in the following order:

• Clock time
• Alarm time 1
• Alarm time 2
• Alarm sound
• Sunset simulation
• Display brightness

You can set the menu functions in the following way:

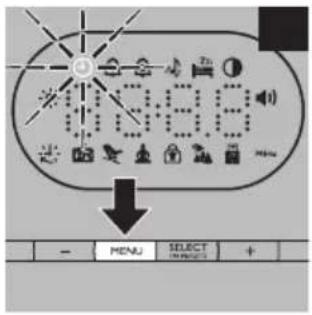

1 Press the MENU button to enter the menu (Fig. 8).

Note: If you do not press any button within 30 seconds, the appliance exits the menu and the display shows the clock time again.

2 Press the menu - or + button to select a function. (Fig. 9)
3 Press the SELECT button to enter this function (Fig. 10).
4 Press the menu - or + button to change a setting. (Fig. 9)

5 Press the SELECT button to confirm (Fig. 10).

Setting the alarm

Setting the alarm time

When you set the alarm, you set an alarm time and light intensity and you choose the type of sound you want to wake up to. The alarm is set when the alarm symbol is visible on the display. The light intensity slowly increases to the selected level during the set sunrise simulation time before the set alarm time. The default sunrise simulation time is 30 minutes. This is the recommended time, but as the sensitivity to light differs from person to person, it is possible to adjust the sunrise simulation time to your own preference (see section 'Setting the sunrise simulation time' in this chapter). At the set alarm time (after the sunset simulation time), the alarm sound slowly increases in 90 seconds to the selected level.

Note: You can set two different alarm times, for example if you want to wake up at a different time in the weekend than on weekdays.

Note: The volume you set for the alarm is also used as the volume for the radio and music on your USB stick. To set the alarm volume, press the volume increase or decrease button. If you do not want to wake up to the lamp or to a sound, select a light intensity or volume level of 0. See sections 'Using the appliance as a bedside lamp' and 'Setting the volume' in this chapter.

1 Push the control lever to the middle position if you want to set alarm 1. Push the control lever to the top position if you want to set alarm 2 (Fig. 11).

The hour indication of the alarm time starts flashing (Fig. 12).

▶To adjust the time, follow steps 2 to 5.

2 Press the menu - or + buttons to set the hour (Fig. 9).

Note: You can only do this when the hour indication flashes. If this is not the case, push the control lever down and up again to enter the alarm time function. You can also set the alarm time in the menu (see section 'Menu functions' in this chapter).

3 Press the SELECT button to confirm (Fig. 10).

The minute indication of the alarm time starts flashing (Fig. 13).

4 Press the menu - or + buttons to set the minutes. (Fig. 9)

5 Press the SELECT button to confirm or wait for a few seconds (Fig. 10).

The appliance leaves the menu and the display shows the clock time.

The alarm time is now set.

Setting the light intensity

You can set the light intensity you prefer for the simulated sunrise that takes place before the alarm goes off.

Note: The light intensity you set is used for the alarm function as well as for the lamp function (see section 'Using the appliance as a bedside lamp' below).

1 Press the lamp on/off button. (Fig. 14)

Note: It takes approx. 1 second for the lamp to go on. This is normal, the lamp needs to heat up.

Note: You can also set the light intensity when the lamp is out, but switching on the lamp makes it easier to determine the preferred light intensity.

2 Press the light intensity increase and decrease buttons to select a light intensity (Fig. 15).

You can choose a light intensity between 1 and 20.

If you do not want the lamp to go on gradually as a simulated sunrise before the alarm goes off, set the light intensity to 0.

ENGLISH10

Tip: When you use the appliance for the first time, set the light intensity to 20. The moment you wake up, check which light intensity level the appliance has reached by briefly pressing the light intensity increase or decrease button. When you do this, the current alarm light intensity level appears on the display. Set the alarm light intensity to this level for the next day.

3 To switch off the lamp, press the lamp on/off button again.

Setting the alarm sound

Note: You can adjust the volume level of the alarm sound to your preference (see section 'Setting the volume' in this chapter). If you do not want to wake up to an alarm sound, set the volume level to 0.

1 Follow the instructions in section 'Menu functions' above and select the alarm sound function.

2 Press the SELECT button to confirm.

3 Press the menu - or + buttons to select the desired alarm sound (see below).

The display shows the symbol of the selected alarm sound.

4 Press the SELECT button to confirm.

You can choose one of the following sounds:

- Radio (see also section 'Using the radio as alarm sound' below') (Fig. 16)

- 'Bird' sound (Fig. 17)

- 'Yoga' sound (Fig. 18)

- 'Cowbell' sound (Fig. 19)

- 'Forest' sound (Fig. 20)

- Downloaded wake-up sounds or your own music from a USB stick (see also section 'Using music on a USB stick as alarm sound' below). (Fig. 21)

Tip: You can download more wake-up sounds at www.philips.com.

Using the radio as alarm sound

1 Follow instructions 1-4 in section 'Setting the alarm sound' to select the radio as alarm sound.

The display shows P1, which is preset radio station 1 (Fig. 22).

If you want to select another preset radio station, press the menu - or + button (see section 'Using the radio/playing music from a USB stick'). If you want to change the frequency of the preset radio stations, see section 'Using the radio/playing music from a USB stick' in this chapter)

2 Press the SELECT button to confirm.

The selected preset radio station is now set as the alarm sound.

Using music on a USB stick as alarm sound

Note: You can only use music on a USB stick if it is in MP3 or WMA format. You can check this on your computer. The extension of the files should be .mp3 or .wma.

Refer to chapter 'USB specifications' for more USB information.

1 Insert the USB stick in the USB socket of the appliance.

2 Follow instructions 1-4 in section 'Menu functions' above to select music from a USB stick as alarm sound.

The display shows 0001 to indicate the first song on the USB stick. (Fig. 23)

To select another song, press the menu - and + buttons.

3 Press the SELECT button to confirm.

The selected song is now set as the alarm sound.

Setting the sunrise simulation time

The sunrise simulation time is the time in which the light intensity of the lamp gradually increases to the set level before the alarm sound is played. The default sunrise simulation time is 30 minutes, because this is the optimum time for your body to prepare for waking up. As the sensitivity to light differs from person to person, it is possible to adjust the sunrise simulation to your own preference. You can reduce the sunrise simulation time to 20 or 25 minutes or increase it to 40 minutes.

1 Simultaneously press and hold the light intensity increase and decrease buttons for 3 seconds (Fig. 24).
The sunrise simulation symbol and the default sunrise simulation time of 30 minutes appears on the display. (Fig. 25)
2 Press the menu - or + button to increase or decrease the sunrise simulation time. (Fig. 9)
3 Press the SELECT button to confirm (Fig. 10).

Snoozing

1 Tap on the surface of the Wake-Up light with the inside of your hand to snooze the appliance (some force needs to be applied to prevent accidental snoozing) (Fig. 26).
The lamp continues to be on at the selected intensity level, but the alarm sound stops. After 9 minutes, the alarm sound is automatically played again.

Note: The 9-minute snooze time is fixed. This time cannot be adjusted.

Switching the alarm function off and on

1 To switch off the alarm function when the alarm goes off, push down the control lever to the bottom position (Fig. 27).
Note: The lamp stays on to light your room. You can switch off the lamp by pressing the lamp on/off button.
Note: If you forget to switch off the alarm, the alarm (sound and/or light) automatically switches off after 90 minutes.
2 If you want the alarm to go off at one of the set alarm times the next day, set the control lever to alarm 1 or alarm 2 again.

Alarm demonstration

If you want to get a quick demonstration (60 seconds) of the gradually increasing light intensity and sound level, activate the test function of the appliance.

1 Simultaneously press and hold the menu - or + buttons until the word TEST appears on the display (Fig. 28).
2 Simultaneously press the menu - or + buttons again to stop the demonstration.

Note: The appliance continues to run the alarm demonstration until you press the menu + and - button again. The test automatically stops after 9 hours.

Using the radio/playing music from a USB stick

Switching on the radio

1 To switch on the radio, press the radio on/off button (Fig. 29).

The radio starts to play.

Note: The radio function has 3 preset stations. To select one of the preset stations, press the SELECT button below the display.

2 To select the desired radio frequency, press the menu - or + button. (Fig. 30)

ENGLISH12

Tip: To scan radio frequencies automatically, press and hold the menu - or + button for approx. 2 seconds.

Tip: To make sure you get a good radio signal, fully unwind the antenna and move it around until you have found a position at which reception is best.

3 To switch off the radio, press the radio on/off button again.

Changing the preset radio stations

The radio of the Wake-Up light has 3 preset radio stations. If you want to set different radio stations as the preset stations, follow the steps below.

1 Press the radio on/off button to switch on the radio. (Fig. 31)

The display shows P1, which is preset station 1 (Fig. 22).

Note: Press the SELECT button one or more times if you want to select another preset station.

2 To scan radio frequencies in order to change the preset station, press the menu - or + button (Fig. 30).

The appliance automatically stores the selected radio frequency.

Playing music from a USB stick

Note: You can only use music on a USB stick if it is in MP3 or WMA format. The appliance does not play any other format. You can check this on your computer. The extension of the files should be .mp3 or .wma. For more information, see chapter ‘USB specifications’.

1 To play music from a USB stick, press the radio on/off button twice. (Fig. 31)

If there is a USB stick in the USB socket, the appliance automatically starts scanning the number of MP3 or WMA files on the USB stick. This may take a few minutes. Then the number of songs is shown on the display and the appliance starts playing the first song on the USB stick.

If the appliance detects that the files on the USB stick are not in MP3 or WMA format, the display shows 'ERR'.

2 To select the desired song file, press the menu - or + button. (Fig. 30)

If you hold down the menu - or + button, the song selection function skips through the songs faster.

3 To stop playing music from the USB stick, press the radio on/off button again.

Note: Put your music files in the root folder of the USB stick to ensure faster scanning.

Note: The songs are ordered based on the date that the music was put on the USB stick. If you want the songs to be played in a specific order, put them in this order on your computer first and then copy them to your USB stick.

Setting the volume

1 To set the volume for the radio or music from a USB stick, press the volume increase or decrease button. (Fig. 32)

You can choose a volume level between 1 and 20.

Note: The volume level you have selected is automatically set as the volume level for the alarm as well.

Sunset simulation

You can use the sunset simulation when you want the light and/or the sound of the Wake-up Light to stay on and dim gradually during a set period of time (15 minutes to 1.5 hours) before you go to sleep. The lamp and/or sound switch off automatically after the set time.

Note: The light intensity you set for the start of the sunset simulation is also used as the light intensity for the sunrise simulation

1 Switch on the lamp and/or the radio or music from a USB stick. See sections 'Using the appliance as a bedside lamp' and/or 'Using the radio/playing music from a USB stick' in this chapter.
2 Follow the steps in section 'Menu functions' in this chapter to select the sunset simulation function and to set the sunset simulation time.
▶You can choose a time from 15 to 90 minutes (15, 30, 60 or 90).

Note: After the set time, no matter whether only the light and/or the radio are on, the sunset simulation switches off both light and sound.

Tip: You can also press the light on/off button for 3 seconds to activate the sunset simulation function (Fig. 33).

Using the appliance as a bedside lamp

You can use the appliance as a bedside lamp.

1 To switch on the lamp, press the lamp on/off button. (Fig. 14)
Note: It takes approx. 1 second for the lamp to go on. This is normal, the lamp needs to heat up.

2 Press the light intensity increase and decrease buttons to select a light intensity (Fig. 15). You can choose a light intensity between 1 and 20.

Note: The light intensity you have selected is automatically set as the light intensity level for the alarm as well.

3 To switch off the lamp, press the lamp on/off button again.

Setting the display brightness

1 Follow the steps in section 'Menu functions' in this chapter to select the display brightness function and to set the desired display brightness. (Fig. 34)
▶You can select a display brightness between 1 and 4.

Tip: If you set the display brightness to level 1, the appliance consumes the least power.

Note: The display brightness automatically increases to maximum level when setting the appliance to allow the user optimal visibility. When the user has finished setting the appliance and leaves the menu, the display brightness automatically returns to the set level.

Cleaning and maintenance

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Regularly remove dust from the outside of the appliance with a dry cloth.

1 Unplug the appliance before you clean it.
2 Clean the outside of the appliance with a dry cloth.
Do not let water run into the appliance or spill water onto the appliance (Fig. 3).

Replacement

Except for the lamp, the appliance does not contain any serviceable parts.

The lamp has to be replaced when it stops burning or when the light output decreases (also see chapter 'Important'). You must replace the lamp with a Philips Halogen lamp, 100W, 12V, GY6.35.

Only this lamp provides the correct light intensity.

Note: This appliance has been designed to be used with self-shielded lamps only (Fig. 35).

For more information, visit our website www.philips.com.

Replacing the lamp

1 Unplug the appliance before you replace the lamp.
2 If the lamp is still hot, let it cool down for approx. 15 minutes.
3 To unlock the top cover, press it and turn it anticlockwise until the O symbol on the top cover is aligned with the ● symbol on the lamp housing. (Fig. 36)
4 Remove the top cover. (Fig. 37)
5 Remove the old lamp from the lamp holder (Fig. 38).
6 Insert the pins of the new lamp into the lamp holder. (Fig. 39)

Do not touch the lamp with your fingers. Use a cloth or paper towel when you place the lamp (Fig. 40).

7 Place the top cover back onto the appliance.

8 Lock the top cover by turning it clockwise until the ● symbol on the top cover and the ● symbol on the lamp housing are aligned. (Fig. 41)

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 42).

Guarantee and service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Centre in your country.

Problem Solution

The appliance does not work at all.	Perhaps the plug is not inserted properly in the wall socket. Put the plug properly in the wall socket.
	Perhaps there is a power failure. Check if the power supply works by connecting another appliance.
The appliance functions properly, but the lamp does not work anymore.	Perhaps the lamp has reached the end of its life. The life depends on how you use the appliance. In case of heavy use, the lamp may not last as long as you expect. If the lamp breaks down, you can order a new one or buy it at your local retailer. Contact the Philips Consumer Care Centre in your country.
The appliance becomes hot during use.	This is normal, as the appliance is heated up by the light of the lamp and the electronics. Always let the appliance cool down before you replace the lamp.
Problem Solution
The appliance does not respond when I try to set different functions.	Remove the plug from the wall socket and wait 20 minutes before you reinsert it. When you reinsert the plug, the appliance goes back to the factory settings and you have to set all functions again.
The lamp does not go on when the alarm goes off.	Perhaps you set a light intensity level that is too low. Increase the light intensity level.
	Perhaps you switched off the alarm function by setting the control lever to the bottom position. To switch on the alarm function, set the control lever to the middle position (alarm 1) or top position (alarm 2), depending on the time at which you want to wake up.
	Perhaps the appliance is defective. Contact the Philips Consumer Care Centre in your country.
The lamp does not go on right away when I switch it on.	It takes approx. 1 second for the lamp to go on. This is normal, the lamp needs to heat up.
I do not hear the alarm sound when the alarm goes off.	Perhaps you set a sound level that is too low. To set a higher sound level see chapter ‘Using the appliance’, section ‘Setting the volume’.
	Perhaps you switched off the alarm function by setting the control lever to the bottom position.
	If you selected the radio as the alarm sound, the radio may be defective. Switch on the radio after you switch off the alarm to check if the radio works. If it does not work, contact the Philips Consumer Care Centre in your country.
	If you selected a downloaded wake-up sound or music on a USB stick as the alarm sound, it is possible that the sounds or songs do not have the correct format. This appliance only supports .mp3 and .wma files. If the sound or music on the USB stick cannot be played, the appliance automatically sets the bird sound as alarm sound to ensure that you wake up at the set alarm time anyway.
The radio does not work.	The radio may be defective. Contact the Philips Consumer Care Centre in your country.
	Perhaps you set the volume too low. Increase the volume level.
The radio produces a crackling sound.	Perhaps the broadcast signal is weak. Adjust the frequency (see chapter ‘Using the appliance’ section ‘Using the radio/playing music from a USB stick’) and/or change the position of the antenna by moving it around. Make sure you have unwound the antenna completely.
The alarm went off yesterday, but it did not go off today.	Perhaps you switched off the alarm function by setting the control lever to the bottom position.
	Perhaps you set a volume level and/or light intensity level that is too low. Set a higher volume level and/or light intensity level.

Problem Solution

	Perhaps there was a power failure that lasted more than approximately 15 minutes. In this case, the appliance goes back to factory settings. You need to set all functions again.
I wanted to snooze, but the alarm did not go off again after 9 minutes.	You probably pushed down the control lever to bottom position. This switches off the alarm function altogether. If you want to snooze, you have to tap on the appliance.
	Perhaps you set the volume level to 0.
The light wakes me too early.	Perhaps the light intensity level you have set is not appropriate for you. Try a lower light intensity level if you wake up too early. If light intensity 1 is not low enough, move the appliance further away from the bed.
The light wakes me too late	Perhaps the appliance is positioned at a lower level than your head. Make sure the appliance is located at a height at which the light is not blocked by your bed, duvet or pillow. Also make sure the appliance is not placed too far away.
The lamp flashes. Perhaps the appliance is not suitable for the voltage to which it is connected. Make sure that the voltage indicated on the appliance corresponds to the local mains voltage.
The appliance does not recognise the USB stick.	Perhaps the USB stick is not inserted into the USB socket properly. Make sure you push the USB stick far enough into the USB socket.
An error message appears on the display when I insert the USB stick into the USB socket.	Perhaps the music on the USB stick does not have the right format. Make sure that the song is an MP3 or WMA file. You can check this on your computer. The extension of the files should be .mp3 or .wma. See chapter 'USB specifications' for more information.
I have programmed the appliance to wake me up with music on a USB stick, but instead I hear a bird sound.	Perhaps you have removed the USB stick from the appliance or it is not inserted into the USB socket properly. If the appliance does not detect a USB stick, it automatically sets the bird sound as alarm sound to ensure that you wake up at the set alarm time anyway. To use music on a USB stick as alarm sound, the USB has to be in the USB socket permanently.

USB specifications

Compatible USB devices

• USB flash memory (USB2.0 or USB1.1)
• USB flash players (USB2.0 or USB1.1)
• Memory cards (requires an additional card reader to work with this audio system)

Note: If your USB device a boot function, please wait until it has finished booting and is ready for use before you connect it to the USB port of the appliance.

Supported formats

• USB or memory file format (FAT12, FAT16, FAT32 (sector size: 512 bytes)
• MP3 bit rate (data rate): 32-320 Kbps and variable bit rate
• WMA v7, v8 or v9

• Directory nesting up to a maximum of 8 levels

• Number of albums/folders: maximum 99

• Number of tracks/titles: maximum 999
• File name in Unicode UTF8 (maximum length: 128 bytes)

Unsupported formats:

• Empty albums: an empty album is an album that does not contain MP3/WMA files and is not shown on the display.
• Unsupported file formats are skipped. For example Word documents (.doc) or MP3 files with extension .dlf are ignored and not played.
• AAC, WAV and PCM audio files
• DRM protected files are not supported.
• WMA files in Lossless format
• Hidden files

Introduktion

- Weckton "Yoga" (Abb. 18)

- Weckton "Kuhglocken" (Abb. 19)

- Weckton "Wald" (Abb. 20)

Stille inn alarmlyden

Merk: Du kan justere alarmlydens volumnivå slik du selv ønsker. (Se avsnittet Stille inn volumet i dette kapitlet.) Hvis du ikke ønsker å våkne til en alarmlyd, kan du sette volumet på 0.

Diagram showing three open panels with grid patterns and curved arrows indicating rotation or movement (no text or symbols)
