ND ALADA 90 - Basket TEKA - Free user manual and instructions

Brand	Teka
Model	ND ALADA 90
Product type	Extractor hood
Width	90 cm
Power supply	220-240 V, 50 Hz
Motor power	250 W
Lighting power	2 x 20 W (G4)
Extraction rate	800 m³/h
Number of speeds	Multiple (programmable)
Timer function	Yes, adjustable (default 10 min)
Filter type	Washable metal filters (dishwasher) + activated carbon option
Filter cleaning	At least once a month
Minimum installation distance (electric cooking)	50 cm
Minimum installation distance (gas cooking)	65 cm
Evacuation type	External (duct) or recirculation with charcoal filter
Recommended duct diameter	Min 120 mm, max 150 mm (with reducer supplied)
Included accessories	Reduction 150/125 mm, non-return valve, brackets, screws
Usage	Domestic

Frequently Asked Questions - ND ALADA 90 TEKA

How to clean the metal filters of the Teka ND ALADA 90 hood?

Remove the filters using the handles. Wash them in hot water with mild detergent or in the dishwasher (place them vertically). Dry them in the air before putting them back. Clean them at least once a month.

How to change the hood bulbs?

Unscrew the burnt bulb from the socket. Replace it with a new bulb of the same type: 20 W, G4. Screw it back in.

What is the minimum distance between the hood and the hob?

For an electric hob: 50 cm. For a gas or mixed hob: 65 cm.

How to program the extraction timer?

Press and hold the desired speed for more than 2 seconds for a default of 10 minutes. To set another duration: press the Timer button, select the time, press Timer again, then press and hold the speed for more than 2 seconds.

What to do if the hood is not extracting enough or vibrates?

Check the metal filters: if they are saturated with grease, clean them or replace the charcoal filters. Ensure the exhaust duct is not blocked.

Are the activated carbon filters washable?

No, activated carbon filters are neither washable nor regenerable. They must be replaced every 3 to 6 months depending on usage.

How to install the Teka ND ALADA 90 hood?

Follow the provided installation guide: attach the brackets to the wall, hang the hood, connect the exhaust duct (diameter 120 or 150 mm), and install the duct covers. Observe the safety distances.

Which bulbs to use for the hood lighting?

Use halogen or LED bulbs of type G4, maximum power 20 W.

The hood is noisy or vibrates excessively, what to do?

Check that the filters are clean and properly in place. Ensure the exhaust duct is correctly fixed and unobstructed. Contact technical service if the problem persists.

Where to find technical service for the Teka hood?

Contact the nearest TEKA Technical Assistance Service. Always use genuine spare parts.

USER MANUAL ND ALADA 90 TEKA

Line drawing of a kitchen fan with a lid and ventilation grille (no text or symbols)

Completely black image with no visible content, text, or symbols.

Estimado cliente:

Technical diagram of a mechanical component with labeled parts A through F

A B D O P

H D L

mm	A	B	C		D		E	F	G	H
			MPV	MAX	VOD.70	VOD.70
CRISTAL	900/700	490	580	950	90	80	330	297	560	410
INOX		540

TEKA INDUSTRIAL S.A. SANTANDER (E)Campana decorativa Serial n°: A-00000Código Técnico * N'KATAΣKETHE
ELECT:*
Potencia nom. lámpara:Potência nom. lampada:Puisance lampes.: 2x20W max.Lamps rate:
MEFTΣTH ONOMAΣTH ΙΣΧΓΣ:

FIG. 1 E C H G J O B A A3 L Q R V T S F G D H I M U

山

FIG. 2 C E A B A

Technical diagram of a mechanical component with labeled parts A through F

Gebrauchsanleitung

Simple line drawings of various symbols and colors (no text or labels)

Licht

FIG. 1 E C H G J O B A L A3 Q R V T S F G D H I M U

FIG. 2 C E A B A

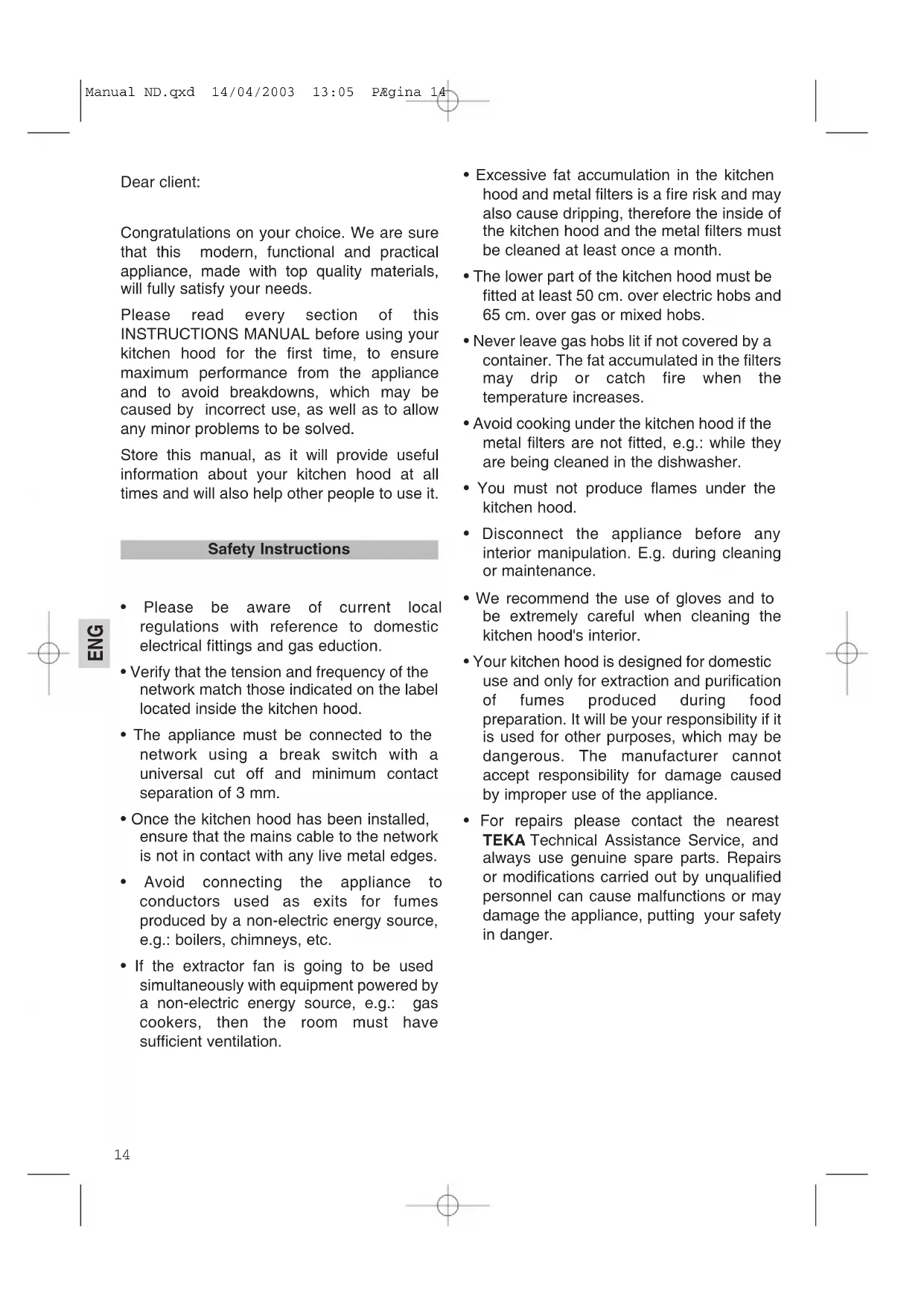

Dear client:

Congratulations on your choice. We are sure that this modern, functional and practical appliance, made with top quality materials, will fully satisfy your needs.

Please read every section of this INSTRUCTIONS MANUAL before using your kitchen hood for the first time, to ensure maximum performance from the appliance and to avoid breakdowns, which may be caused by incorrect use, as well as to allow any minor problems to be solved.

Store this manual, as it will provide useful information about your kitchen hood at all times and will also help other people to use it.

Safety Instructions

• Please be aware of current local regulations with reference to domestic electrical fittings and gas eduction.
• Verify that the tension and frequency of the network match those indicated on the label located inside the kitchen hood.
• The appliance must be connected to the network using a break switch with a universal cut off and minimum contact separation of 3 mm.
• Once the kitchen hood has been installed, ensure that the mains cable to the network is not in contact with any live metal edges.
• Avoid connecting the appliance to conductors used as exits for fumes produced by a non-electric energy source, e.g.: boilers, chimneys, etc.

• If the extractor fan is going to be used simultaneously with equipment powered by a non-electric energy source, e.g.: gas cookers, then the room must have sufficient ventilation.

• Excessive fat accumulation in the kitchen hood and metal filters is a fire risk and may also cause dripping, therefore the inside of the kitchen hood and the metal filters must be cleaned at least once a month.

• The lower part of the kitchen hood must be fitted at least 50 cm. over electric hobs and 65 cm. over gas or mixed hobs.
• Never leave gas hobs lit if not covered by a container. The fat accumulated in the filters may drip or catch fire when the temperature increases.
• Avoid cooking under the kitchen hood if the metal filters are not fitted, e.g.: while they are being cleaned in the dishwasher.
• You must not produce flames under the kitchen hood.
• Disconnect the appliance before any interior manipulation. E.g. during cleaning or maintenance.
• We recommend the use of gloves and to be extremely careful when cleaning the kitchen hood's interior.
• Your kitchen hood is designed for domestic use and only for extraction and purification of fumes produced during food preparation. It will be your responsibility if it is used for other purposes, which may be dangerous. The manufacturer cannot accept responsibility for damage caused by improper use of the appliance.
• For repairs please contact the nearest TEKA Technical Assistance Service, and always use genuine spare parts. Repairs or modifications carried out by unqualified personnel can cause malfunctions or may damage the appliance, putting your safety in danger.

Index

Page

Description of the appliance 15

Instructions for use 15

Programming timer 15

Cleaning and maintenance 16

Problem solving 16

Sizes and specifications 17

Accessories supplied 18

Installation 18

Active carbon filters 18

Description of the appliance

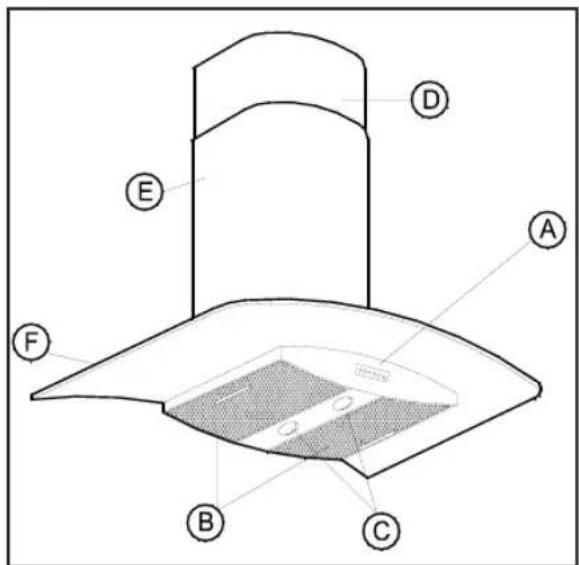

A Electronic programmer control box with buttons to control speed, light and power in use indicators.
B Metal filters.
C Lamp with two bulbs - 20 W (G-4).
D, E Vertically adjustable tubecovers.
F Decorative part (Not included).

Technical diagram of a mechanical component with labeled parts A through F

Instructions for use

	30min.	20min.	10min.	5min.
	Light
	Minimum speed
	Medium speed
	Maximum speed
	Extra fan
	Timer

Switch on the extractor fan a few minutes before you start to cook in order to ensure that a steady air flow has been established before fumes appear.

Allow the extractor fan to run for several minutes after you have finished cooking (between 3 to 5 minutes) in order to expel all the grease from the outlet duct. This prevents the return of grease, smoke and smells.

Programming timer

1.- The draft hood will remain on for 10 minutes at the selected level if pressed at any speed for more than 2 seconds.
To programme a time other than the pre-selected one (10 minutes):

a).- Press the "Timer" button with the draft hood turned off.
b).- Select the intake time by pressing the corresponding button. (see figure).
c).- Press the "Timer" button again.
d).- Press the chosen speed for more than 2 seconds, and the light will begin to flash.

Cleaning and maintenance

During cleaning and maintenance work, make sure the safety instructions set out on page 14 are complied with.

Cleaning the hood body

• If your kitchen hood is made from stainless steel, use proprietary cleaners mentioned in the product instructions.
• Never use metallic scourers, nor abrasive or corrosive products.
• Dry the kitchen hood using a cloth that does not produce fibres.

Cleaning the metal filters

Extract the filters from their housings using the handles specially designed for this purpose.

The metal filters can be cleaned by soaking

them in hot water with neutral detergent until the fat dissolves and then rinsing them under the tap or using special anti-grease products. They can also be washed in a dishwasher. In this case, it is advisable to stack them vertically to avoid food residues to stick to them.

Cleaning in a dishwasher with aggressive detergents or polish may damage the metallic surface (blackening it), although this will not affect its fat retention capacity.

Once clean, leave them to dry off and then fit them onto the kitchen hood.

Changing light bulbs

Proceed as follows:

• Unscrew the lamp cap trimming cover.
• Change the broken/burnt out lamp. Maximum lamp power is 20 W (G-4).
• Screw in the lamp cap trimming cover.

Problem solving

Proceed with the following checks before calling Technical Services:

Problem Possible cause	Solution
The extractor fan does not work. The mains cable is not connected to the network.There is no current in the network.		Connect mains cable to the network.Provide current to the network.
The kitchen hood does not extract sufficiently or vibrates.	Filters are saturated with fat.Obstruction in the air exit conduct.	Change or clean the active charcoal and/or metal filters, as the case may be.Remove the obstruction.
The lamps do not light up. The lamps are blown.The lamps are slack.		Change the lamps.Tighten the lamps.

Sizes and specifications

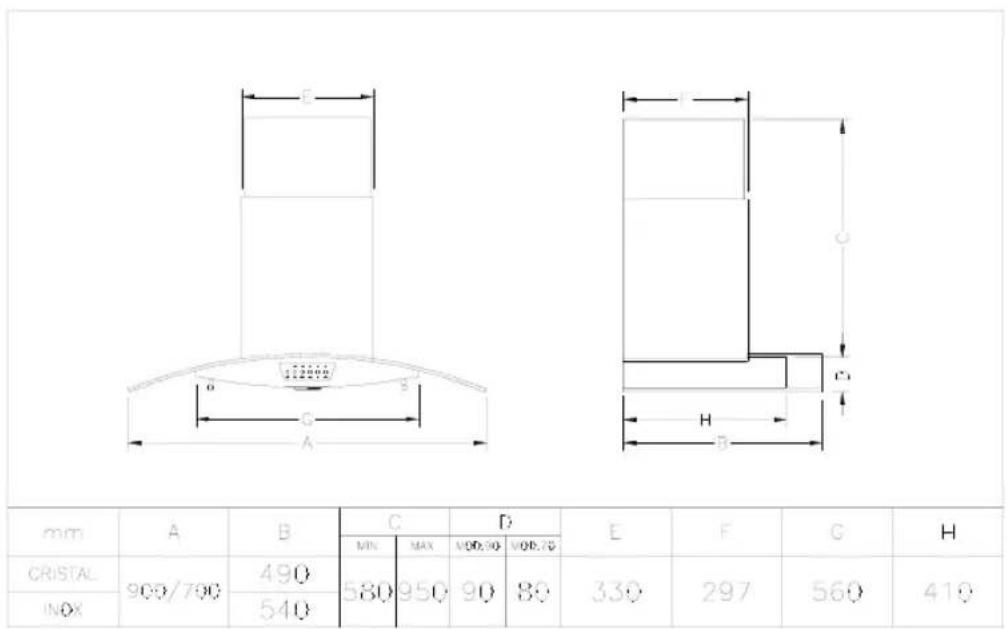

mm A B C D E F G H MIN MAX VOD.90 VOD.70 CRISTAL 900/700 490 580 950 90 80 330 297 560 410 INDEX 540

TEKA INDUSTRIAL S.A. SANTANDER (E) Campana decorativa Serial n°: A-00000 Código Técnico * N'KATAZKEI'HE: ELECT: * Potencia nom. lámpara: Potência nom. lámpada: Puissance lampes.. Lamps rate: 2x20W max. MEFTSTH ONOMASTH IEXFΣ:

Technical code	Network tension (V)	Network frequency (Hz)	Lights / Motor power (W)	Extraction capacity
214321ND	220-240 50	2x20 / 250 80	0 m	^3/h
216321ND	220-240 50	2x20 / 150 60	0 m	^3/h
234321ND	110-127 60	2x20 / 280 73	0 m	^3/h

TEKA INDUSTRIAL S.A. reserves the right to make changes and corrections to its products as it deems necessary, without altering their basic characteristics.

Accesories supplied

1 150/125 mm reduction.

1 Anti-recoil valve.

2 Support for tubecover.

2 Wall supports.

4 Screws M4x12.

6 Wall plugs (∅8 x 40).

6 Long bolts ( 5 × 45 ).

4 Wall plugs (∅6 x 30).

4 Long bolts ( 4 × 30 ).

2 ∅6.4 x ∅18, washers.

2 ∅6.4 x ∅12, washers.

2 Screws (∅3.9 x 13).

2 Clips.

Installation

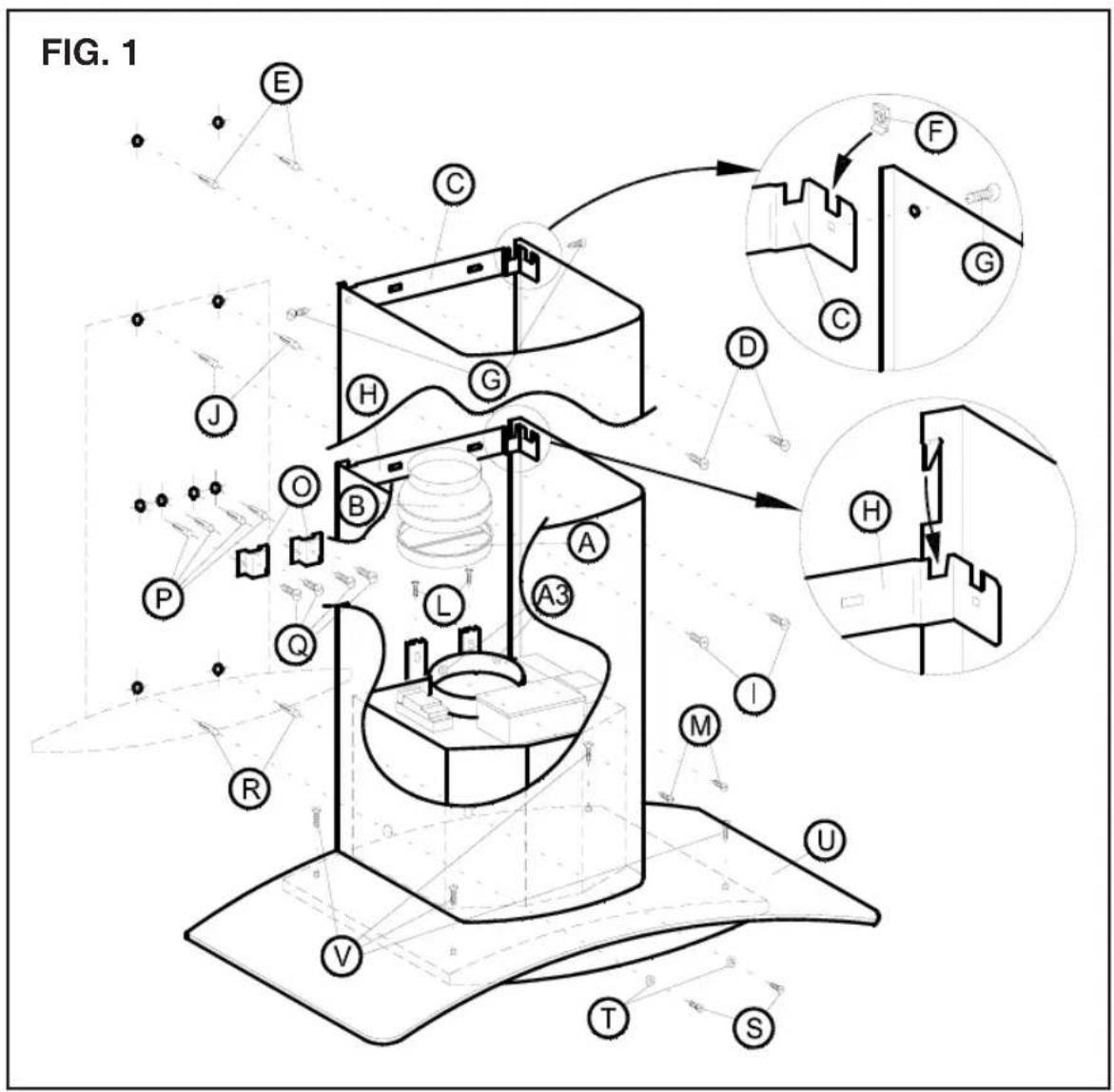

Fig. 1 (Page 19)

On installing the kitchen hood make sure that the Safety Instructions set out on page 14 are complied with.

To obtain optimum performance, the external duct must not be more than FOUR METRES LONG, have no more than two 90° angles and its diameter must be at least ∅120.

1) Using the attached template, trace and drill the points for fitting the wall plugs onto the wall (P) ( 8 × 40 ) and (J) ( 6 × 30 ).

2) Attach the supports (O) to the wall using the long bolts (Q) (∅ 5x45) and the support (H) with the long bolts (I) (∅ 4x30), as in figure 1.

3) Fit the support (O) to the body of the hood using the long bolts (L) (M4 x 12).

4) Trace the location of the wall plugs (R) (∅8 x 40), through the inside of the kitchen hood.

5) Take the kitchen hood off.

6) Drill into the wall and fit the wall plugs (R) ( 8 × 40 ).

7) Hang the kitchen hood; tighten the screws (M) (M4 x 12) with the washers (A3) (∅6.4 x ∅12) and the long bolts (S) (∅5 x 45) with the washers (T) (∅6.4 x ∅18).

8) Adjust the decorative part (U), fixing it softly to the body of the bell using the screws provided with the decorative part.

9) Mount the tubecovers, attaching the lower one to the support (H) as per the detail in figure 1. Lift the upper tubecover up to the desired height and mark its shape on the wall. Remove the tubecovers.

10) Fit the clips (F) to the support (C).

11) Centre the support (C) around the shape marked; trace and drill the fixing points for the wall plugs (E) ( 6 × 30 ). Attach the support (C) with the long bolts (D) ( 4 × 30 ).

12) Fit the part (A) if the inner tube (not supplied) is ∅150 or (A) + (B) if it is ∅120.

13) Attach the inner tube with a clamp (not supplied) to (A) or (B) as the case may be.

14) Once the inner tube has been fitted, fit the lower tubecover around the extractor fan outlet and attach the upper tubecover with the screws (G) ( 3.9 × 13 ).

15) Adjust the decorative part (U), fixing it tightly to the body of the bell using the screws provided with the decorative part.

When exterior gas extraction is not possible,

Active charcoal filters (Optional)

then the kitchen hood may be set to purify the air by recycling it through active carbon filters.

The active carbon filters have an active life of between three to six months, depending on the individual conditions of use. These filters cannot be washed nor regenerated. They must be replaced once their useful life comes to an end.

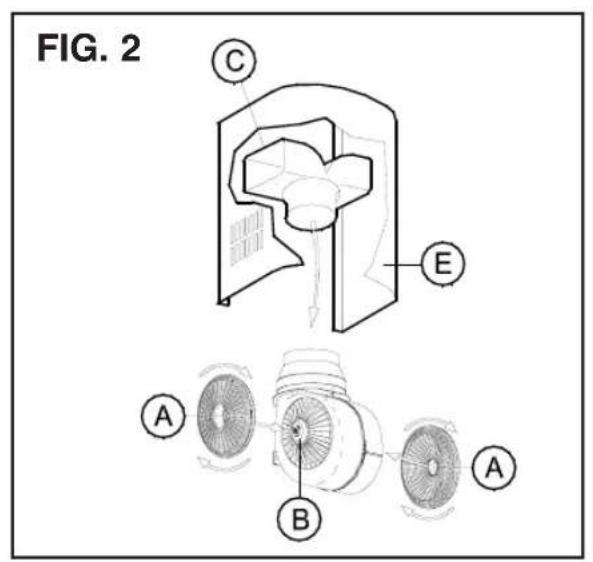

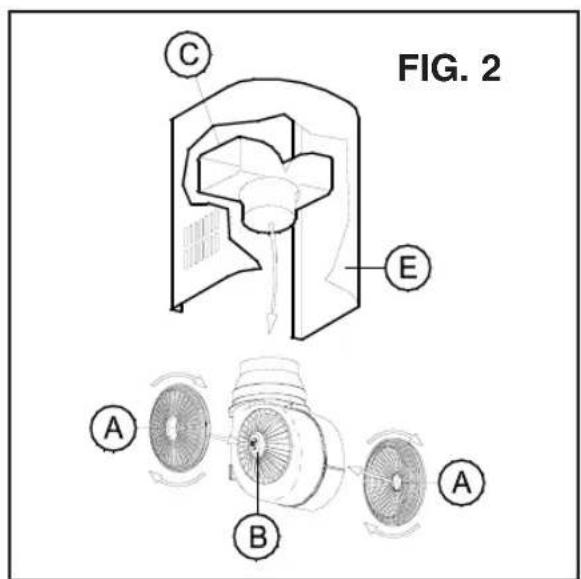

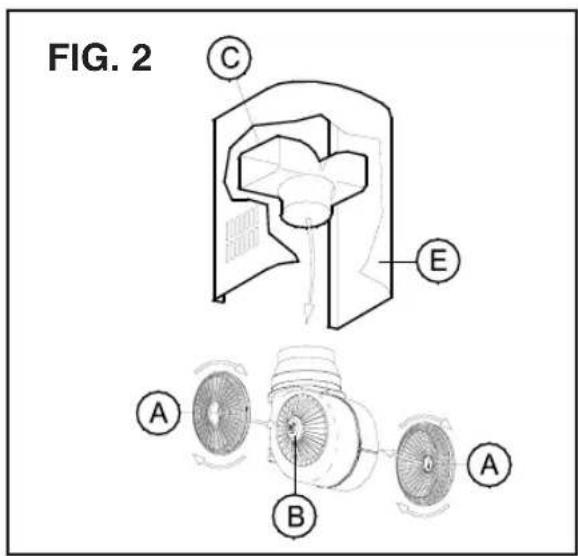

SET type 1 - Fig. 3 (Page 19)

1) Put the filters into the lateral draught section of the motor making the holes in the filters match up (A) with the pivots (B) of the motor carcass. Turn as indicated in the diagram.

2) Remove the tubecovers (E). Fit the diffuser (C) on to the motor's air outlet vent. Fit the tubecovers back on (E).

FIG. 1 E C H G J O B L A A3 Q R V T S F G C D H I U

EN3

FIG. 2 C E A B A

Technical diagram of a mechanical component with labeled parts A through F
