USER MANUAL Sonicare FlexCare+ HX6921 PHILIPS

1FlexCare+ 900+ series

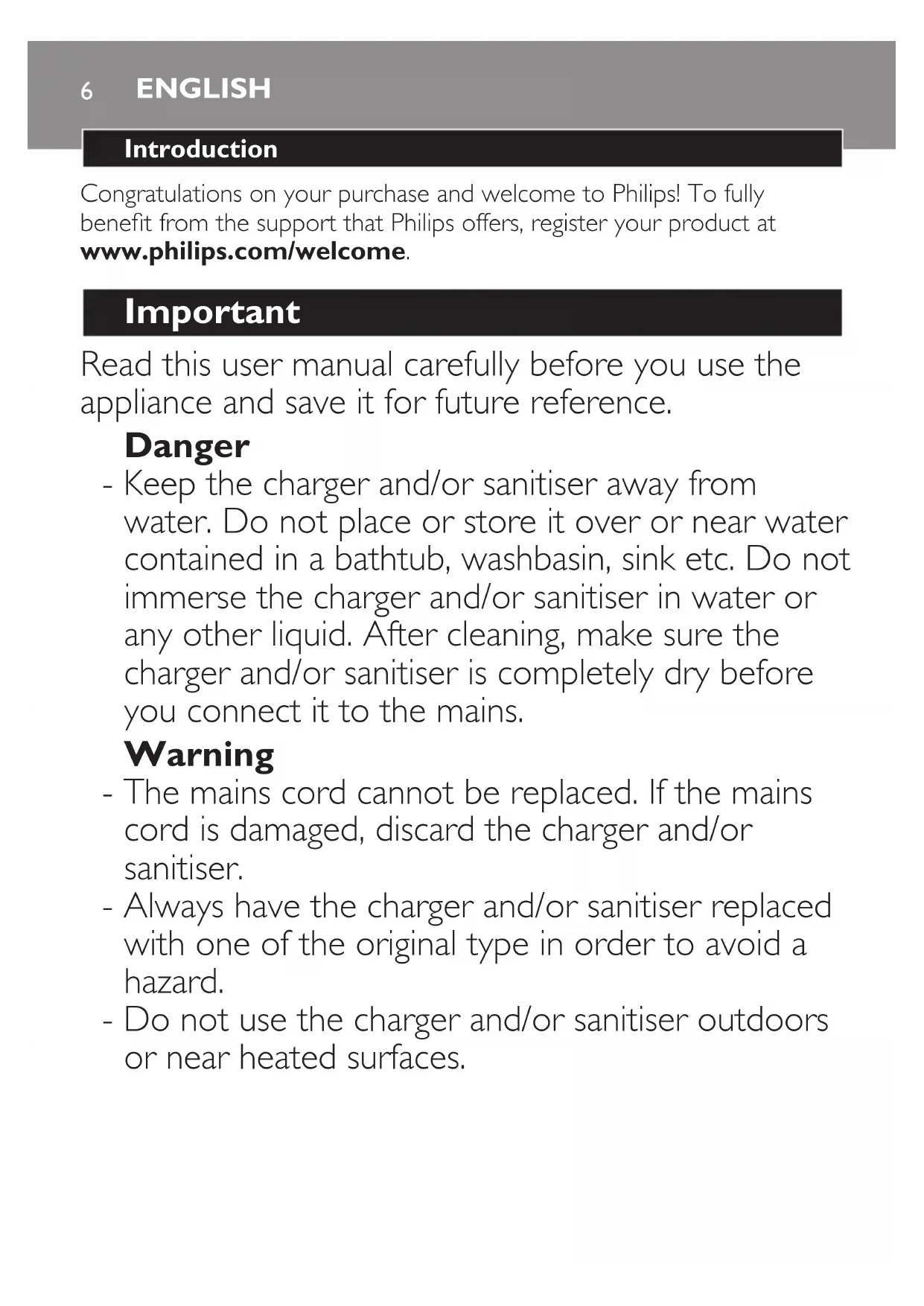

Congratulations on your purchase and welcome to Philips! To fully

benet from the support that Philips offers, register your product at

www.philips.com/welcome.

Read this user manual carefully before you use the

appliance and save it for future reference.

- Keep the charger and/or sanitiser away from

water. Do not place or store it over or near water

contained in a bathtub, washbasin, sink etc. Do not

immerse the charger and/or sanitiser in water or

any other liquid. After cleaning, make sure the

charger and/or sanitiser is completely dry before

you connect it to the mains.

- The mains cord cannot be replaced. If the mains

cord is damaged, discard the charger and/or

- Always have the charger and/or sanitiser replaced

with one of the original type in order to avoid a

- Do not use the charger and/or sanitiser outdoors

or near heated surfaces.

ENGLISH- If the appliance is damaged in any way (brush

head, toothbrush handle, charger and/or sanitiser),

stop using it. This appliance contains no user-

serviceable parts. If the appliance is damaged,

contact the Consumer Care Centre in your

country (see chapter ‘Guarantee and support’).

- This appliance can be used by children aged from

8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of

experience and knowledge if they have been

given supervision or instruction concerning use of

the appliance in a safe way and understand the

hazards involved. Children shall not play with the

appliance. Cleaning and user maintenance shall

not be made by children unless they are older

than 8 and supervised.

- Discontinue use of the sanitiser if the UV light

bulb remains on when the door is open. UV light

can be harmful to the human eye and skin.

Keep the sanitiser out of the reach of children at

- Do not clean the brush head, the handle, the

charger, the charger cover and/or the sanitiser in

- If you have had oral or gum surgery in the previous

2 months, consult your dentist before you use the

ENGLISH 7- Consult your dentist if excessive bleeding occurs

after using this toothbrush or if bleeding continues

to occur after 1 week of use.

- The Sonicare toothbrush complies with the safety

standards for electromagnetic devices. If you have

a pacemaker or other implanted device, contact

your physician or the manufacturer of the

implanted device prior to use.

- If you have medical concerns, consult your doctor

before you use the Sonicare.

- This appliance has only been designed for cleaning

teeth, gums and tongue. Do not use it for any

other purpose. Stop using the appliance and

contact your doctor if you experience any

- Do not use other brush heads than the ones

recommended by the manufacturer.

- If your toothpaste contains peroxide, baking soda

or bicarbonate (common in whitening toothpastes),

thoroughly clean the brush head with soap and

water after each use. This prevents possible cracking

- The UV light bulb is hot during and immediately

after the sanitising cycle. Do not touch the UV

light bulb when it is hot.

Do not operate the sanitiser without the protective

screen in place to avoid contact with a hot bulb.

ENGLISH8Electromagnetic elds (EMF)

This Philips appliance complies with all applicable standards and

regulations regarding exposure to electromagnetic elds.

General description (Fig. 1)

4 Handle with soft grip

8 Deluxe recharge gauge

9 UV sanitiser base with integrated charger and cord wrap

(specic types only)

10 UV sanitiser (specic types only)

11 Deluxe charger (specic types only)

12 Charger cover with brush head holder

14 Charger base with cord wrap

- Not shown: UV light bulb

- Not shown: Sanitiser drip tray

- Not shown: Protective screen for UV light bulb

ENGLISH 9Preparing for use

Changing the colour code ring

Sonicare brush heads come with interchangeable colour code rings to

identify your brush head.

To change the colour code ring:

1 Pull the colour code ring from the bottom of the brush head

2 Install a new ring by slipping one edge of the new ring over the

bottom of the brush head (Fig. 3).

Attaching the brush head

1 Align the brush head so the bristles face the front of the handle.

2 Firmly press the brush head down on the metal shaft until it stops.

Note: There is a small gap between the colour code ring and the handle.

Charging your Sonicare

1 Put the mains plug of the charger or sanitiser in the wall socket.

2 Place the handle on the charger or sanitiser (Fig. 5).

, The ashing light of the battery gauge indicates that the toothbrush

- 1 solid green LED indicates that the toothbrush is 34-66% charged.

- 2 solid green LEDs indicate that the toothbrush is 67-94% charged.

- 3 solid green LEDs indicate that the toothbrush is fully charged.

Note: If the battery charge of your Sonicare is low, you hear 3 beeps and

1 LED of the recharge gauge ashes yellow for 30 seconds after completing

Note: To keep the battery fully charged at all times, you may keep your

Sonicare on the charger when not in use. Once the Sonicare is fully charged,

the charger draws minimal energy from the wall socket.

Note: It takes at least 24 hours to fully charge the battery.

ENGLISH10Using the Sonicare

Brushing instructions

1 Wet the bristles and apply a small amount of toothpaste.

2 Place the toothbrush bristles against the teeth at a slight angle

towards the gumline (Fig. 6).

3 Press the power on/off button to switch on the Sonicare.

4 Apply light pressure to maximise Sonicare’s effectiveness and let

the Sonicare toothbrush do the brushing for you. Do not scrub.

5 Gently move the brush head slowly across the teeth in a small back

and forth motion so the longer bristles reach between your teeth.

Continue this motion throughout your brushing cycle.

Note: To make sure you brush evenly throughout the mouth, divide your

mouth into 4 sections using the Quadpacer feature (see chapter ‘Features’).

6 Begin brushing in section 1 (outside top teeth) and brush for

30 seconds before moving to section 2 (inside top teeth).

Continue brushing in section 3 (outside bottom teeth) and brush for

30 seconds before moving to section 4 (inside bottom teeth) (Fig. 7).

7 After you have completed the brushing cycle, you can spend

additional time brushing the chewing surfaces of your teeth and

areas where staining occurs. You may also brush your tongue,

with the toothbrush switched on or off, as you prefer (Fig. 8).

Your Sonicare is safe to use on:

- Braces (brush heads wear out sooner when used on braces)

- Dental restorations (llings, crowns, veneers)

ENGLISH 11Brushing modes

Sonicare automatically starts in the default Clean mode.

1 Prior to switching on the Sonicare, press the mode button to

toggle between modes.

, The selected brushing mode illuminates.

, Once a brushing mode has been selected, it remains active until

another brushing mode is selected.

Note: When the toothbrush is switched on, you cannot toggle between modes.

The following brushing modes are available:

Complete whole mouth cleaning (2 minutes).

Complete whole mouth cleaning (2 minutes) plus gentle cleaning for

problem areas and along the gumline (1 minute).

Touch-up for a quick clean (1 minute).

Gentle cleaning for sensitive gums and teeth (2 minutes).

Gentle gum stimulation (2 minutes).

Note: When Sonicare is used in clinical studies, the default 2-minute Clean

mode must be selected. The handle has to be fully charged. Deactivate the

Easy-start feature. For areas where excess staining occurs, an additional

30 seconds of brushing time can be spent to help remove stains.

This Sonicare type comes with the Easy-start feature activated.

The Easy-start feature gently increases power over the rst 14 brushings

to help you get used to brushing with the Sonicare.

Note: Each of the rst 14 brushings must be at least 1 minute in length to

properly move through the Easy-start ramp-up cycle.

Deactivating or activating the Easy-start feature

1 Attach your brush head to the handle.

2 Place the handle on the plugged-in charger.

- To deactivate Easy-start:

Press and hold the power on/off button for 2 seconds. You hear 1 beep

to indicate that the Easy-start feature has been deactivated.

- To activate Easy-start:

Press and hold the power on/off button for 2 seconds. You hear 2 beeps

to indicate that the Easy-start feature has been activated.

Note: Using the Easy-start feature beyond the initial ramp-up period is not

recommended and reduces Sonicare’s effectiveness in removing plaque.

The Smartimer indicates that your brushing cycle is complete when

it automatically switches off the toothbrush at the end of the brushing cycle.

Dentists recommend brushing at least 2 minutes twice a day.

- The Quadpacer is an interval timer that has a short beep and pause

to remind you to brush the 4 sections of your mouth. Depending on

the brushing mode you have selected, the Quadpacer beeps at

different intervals during the brushing cycle. See section ‘Brushing

modes’ in chapter ‘Using the Sonicare’ (Fig. 7).

The Quadpacer feature on this type has been activated. To deactivate or

reactivate the Quadpacer feature:

ENGLISH 131 Place the handle with a brush head attached on the plugged-in

2 Press and hold the mode button for 2 seconds.

, You hear 1 beep to indicate the Quadpacer has been deactivated

or you hear 2 beeps to indicate the Quadpacer has been activated.

Cord wrap on deluxe charger (specic types only)

If your type includes the deluxe charger cover and base, the travel charger is

pre-installed inside the cover. If you want to shorten the mains cord, you

can store excess cord in the cord wrap feature built into the charger base.

1 To separate the charger cover from the charger base, press the two

grey snap bars on the charger base and pull the white charger

cover upwards. (Fig. 9)

2 Wrap excess power cord around the grey charger base as shown

in the picture. Be sure to wrap the cord on the inside of the two

snap levers. (Fig. 10)

3 When you have stored the excess cord, guide the mains cord

through the small groove in the rear of the grey charger base.

4 To reattach the charger cover, press it down over the charger base

until it snaps into place.

Tip: For extra convenience during travel, you can remove the travel charger

and use it without the charger cover and charger base.

Cord wrap on sanitiser with integrated charger

(specic types only)

- If your type includes the sanitiser, you can store excess cord in the

cord wrap feature built into the bottom of the sanitiser. (Fig. 12)

ENGLISH14Sanitising (specic types only)

- With the UV sanitiser you can clean your brush head after every use

Discontinue use of the sanitiser if the UV light bulb remains on when

the door is open or if the blue window is broken or missing from the

sanitiser. UV light can be harmful to the human eye and skin.

This appliance should be kept out of reach of children at all times.

Unplug the sanitiser and call Consumer Care if the sanitiser gives off

smoke or a burning smell while it is operating.

1 After brushing, rinse the brush head and shake off excess water.

Do not place the travel cap on the brush head during sanitisation.

2 Place your nger in the door recess on top of the sanitiser and pull

open the door (Fig. 14).

3 Place the brush head on one of the 2 pegs in the sanitiser. (Fig. 15)

- Make sure the bristles of the brush head directly face the light bulb.

Note: Only clean Sonicare ProResults brush heads in the sanitiser.

4 Make sure the sanitiser is plugged into the wall socket.

5 Close the door and press the green power on/off button once to

select the UV clean cycle.

Note: You can only switch on the sanitiser if the door is properly closed.

Note: The sanitiser stops if you open the door during the sanitising cycle.

Note: The sanitiser cycle runs for 10 minutes and then automatically switches

, The sanitiser is in operation when the blue light glows through the

, When the sanitising cycle is complete, the sanitiser automatically

Do not clean the brush head, handle, travel charger, charger cover and

the UV sanitiser in the dishwasher.

1 Remove the brush head and rinse the metal shaft area with warm

Do not push on the rubber seal on the metal shaft with sharp objects,

as this may cause damage.

2 Use a damp cloth to wipe the entire surface of the handle.

1 Rinse the brush head and bristles after each use (Fig. 17).

2 Remove the brush head from the handle and rinse the brush head

connection at least once a week with warm water.

1 Unplug the charger.

2 Use a damp cloth to wipe the surface of the charger.

Sanitiser (specic types only)

Do not clean the sanitiser when the UV light bulb is hot.

For optimal effectiveness, it is recommended to clean the sanitiser weekly.

1 Unplug the sanitiser.

2 Pull the drip tray straight out. Rinse the drip tray and wipe it clean

with a damp cloth (Fig. 18).

3 Clean all reector surfaces with a damp cloth.

4 Remove the protective screen in front of the UV light bulb. (Fig. 19)

To remove the screen, grasp the edges next to the snaps, gently squeeze

ENGLISH165 Remove the UV light bulb.

To remove the light bulb, grasp it and pull it out of the metal clasp.

Clean the protective screen and the UV light bulb with a damp cloth.

7 Reinsert the UV light bulb.

To reinsert the light bulb, align the bottom of the light bulb with the metal

clasp and push the bulb into the clasp.

8 Reinsert the protective screen.

To reinsert the screen, align the pegs on the screen with the slots on the

reective surface near the UV light bulb. Push the screen straight into the

slots on the sanitiser.

- If you are not going to use the appliance for an extended period of

time, remove the mains plug from the wall socket. Then clean the

appliance and store it in a cool and dry place away from direct sunlight.

You can use the cord wrap feature to store the mains cord neatly.

- Replace Sonicare brush heads every 3 months to achieve optimal

- Use only compatible Sonicare replacement brush heads.

- You can order replacement UV light bulbs from the Consumer Care

Centre in your country or an authorised Philips service centre.

- This symbol on a product means that the product is covered by

European Directive 2012/19/EU (Fig. 20).

- This symbol means that the product contains a built-in rechargeable

battery covered by European Directive 2006/66/EC which cannot be

disposed of with normal household waste. Follow the instructions in

section ‘Removing the rechargeable battery’ to remove the battery

- Inform yourself about the local separate collection system for

electrical and electronic products and rechargeable batteries.

Follow local rules and never dispose of the product and rechargeable

batteries with normal household waste. Correct disposal of old

products and rechargeable batteries helps prevent negative

consequences for the environment and human health.

Removing the rechargeable battery

Please note that this process is not reversible.

To remove the rechargeable battery, you need a at-head (standard)

1 To deplete the rechargeable battery of any charge, remove the

handle from the charger, switch on the Sonicare and let it run until

it stops. Repeat this step until you can no longer switch on the

2 Insert a at-head (standard) screwdriver into the slot located at

the bottom of the handle. Turn the screwdriver anticlockwise to

release the bottom cap. (Fig. 22)

3 Hold the handle upside down and push down on the shaft to

release the internal components of the handle (Fig. 23).

4 Insert the screwdriver under the circuit board, next to the battery

connections, and twist to break the connections. Remove the

circuit board and pry the battery from the plastic carrier (Fig. 24).

ENGLISH18Guarantee and support

If you need information or support, please visit www.philips.com/

support or read the separate worldwide guarantee leaet.

Guarantee restrictions

The terms of the international guarantee do not cover the following:

- Damage caused by use of unauthorised replacement parts.

- Damage caused by misuse, abuse, neglect, alterations or unauthorised

- Normal wear and tear, including chips, scratches, abrasions,

discolouration or fading.

Frequently asked questions

This chapter lists the questions most frequently asked about the

appliance. If you cannot nd the answer to your question, contact the

Consumer Care Centre in your country.

You may need to recharge the Sonicare.

Charge the Sonicare for at least 24 hours.

The socket may not be live. The electricity

supply to sockets in mirror cabinets over

washbasins or shaver sockets in bathrooms may

be cut off when the light is switched off..

You may need to reattach or replace the brush

You may experience a slight tickling/tingling

sensation when you use Sonicare for the rst

time. As you become accustomed to brushing

with the Sonicare, this sensation diminishes.

Why is there a brief

pause in the bristle

This is the Quadpacer feature reminding you

to move to a new section of your mouth.

This feature enables you to spend equal time

brushing all areas of the mouth (see chapter

‘Using the Sonicare, section ‘Brushing

teeth. What can I do

To avoid this, keep the brush head properly

oriented, with the bristles placed on the gumline

You may need to charge the Sonicare.

The Easy-start feature may be on. Deactivate

the Easy-start feature (see chapter ‘Features’).

You may need to replace the brush head.

Brushing modes should be selected prior to

switching on the Sonicare.

ENGLISH20Question Answer

UV sanitiser light go

You may need to plug the sanitiser into a live

You may need to shut the sanitiser door.

You may need to replace the UV light bulb

(see chapter ‘Replacement’).

The travel charger, the deluxe charger and

the sanitiser can be used at common worldwide

voltages between 100-240V AC, at either 50 or

60Hz. All you need is a simple plug adapter.

Travel tip: The Sonicare battery is designed to

last up to 3 weeks between charges.

©2015 Koninklijke Philips N.V. (KPNV). All rights reserved.

Philips and the Philips shield are trademarks of KPNV.

Sonicare and the Sonicare logo are trademarks

of Philips Oral Healthcare, Inc. and/or KPNV.
