USER MANUAL Direct Serve CW1008 TEFAL

cafetie?re Direct serve CW 100 TEFAL.qxd:Cafet Tefal Express 01_FR. qxd 20/03/09 11:53 Page 18Safety instructions

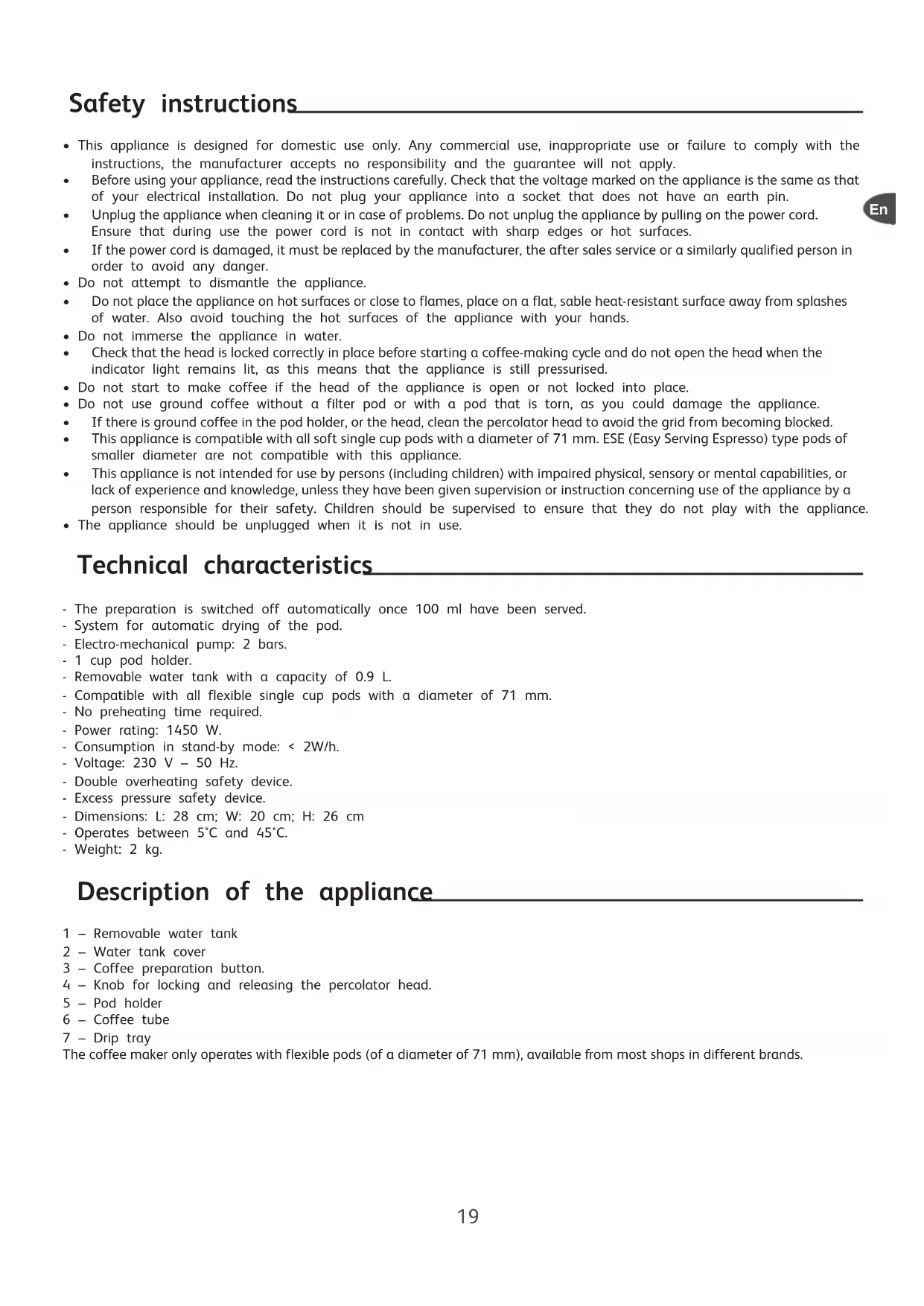

• This appliance is designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the

instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• Before using your appliance, read the instructions carefully. Check that the voltage marked on the appliance is the same as that

of your electrical installation. Do not plug your appliance into a socket that does not have an earth pin.

• Unplug the appliance when cleaning it or in case of problems. Do not unplug the appliance by pulling on the power cord.

Ensure that during use the power cord is not in contact with sharp edges or hot surfaces.

• If the power cord is damaged, it must be replaced by the manufacturer, the after sales service or a similarly qualified person in

order to avoid any danger.

• Do not attempt to dismantle the appliance.

• Do not place the appliance on hot surfaces or close to flames, place on a flat, sable heat-resistant surface away from splashes

of water. Also avoid touching the hot surfaces of the appliance with your hands.

• Do not immerse the appliance in water.

• Check that the head is locked correctly in place before starting a coffee-making cycle and do not open the head when the

indicator light remains lit, as this means that the appliance is still pressurised.

• Do not start to make coffee if the head of the appliance is open or not locked into place.

• Do not use ground coffee without a filter pod or with a pod that is torn, as you could damage the appliance.

• If there is ground coffee in the pod holder, or the head, clean the percolator head to avoid the grid from becoming blocked.

• This appliance is compatible with all soft single cup pods with a diameter of 71 mm. ESE (Easy Serving Espresso) type pods of

smaller diameter are not compatible with this appliance.

• This appliance is not intended for use by persons (including children) with impaired physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• The appliance should be unplugged when it is not in use.

Technical characteristics

- The preparation is switched off automatically once 100 ml have been served.

- System for automatic drying of the pod.

- Electro-mechanical pump: 2 bars.

- Removable water tank with a capacity of 0.9 L.

- Compatible with all flexible single cup pods with a diameter of 71 mm.

- No preheating time required.

- Power rating: 1450 W.

- Consumption in stand-by mode: < 2W/h.

- Voltage: 230 V – 50 Hz.

- Double overheating safety device.

- Excess pressure safety device.

- Dimensions: L: 28 cm; W: 20 cm; H: 26 cm

- Operates between 5°C and 45°C.

Description of the appliance

1 – Removable water tank

2 – Water tank cover

3 – Coffee preparation button.

4 – Knob for locking and releasing the percolator head.

The coffee maker only operates with flexible pods (of a diameter of 71 mm), available from most shops in different brands.

cafetie?re Direct serve CW 100 TEFAL.qxd:Cafet Tefal Express 01_FR. qxd 20/03/09 11:54 Page 19First use

• In order to ensure the best level of quality, all of our appliances are tested during production. We therefore recommend that

you rinse the appliance before first use, as follows:

• Remove the removable water tank.

• Fill it completely with cold drinking water, and fit it to the appliance.

Note: the water tank can also be filled without removing it from the appliance.

• Plug the appliance into the mains socket with an earth pin.

• Place a container under the coffee tube.

• Check that the head is correctly closed and in the locked position .

• Press the button (3) to start a coffee cycle.

• Repeat this operation as many times as necessary to empty the water tank.

• The pod coffee maker is now ready for use.

• The using technology eliminates the need for preheating and waiting around. The single button starts the coffee

preparation immediately. The coffee maker switches itself off automatically after pouring the optimal volume of coffee.

• Remove the removable water tank.

• Fill it with cold drinking water, and fit it to the appliance.

• Release the percolator head by turning the knob to the position .

• Remove the pod holder and centre the pod on it.

• Note: the coffee should be evenly distributed in the pod, so that it is flat.

• Place the pod holder in the percolator head.

• Close the cover and turn the knob to the locked position .

• Ensure that the knob is locked in place: you should feel a click.

• Do not start a cycle if the knob is not in the locked position .

• Do not force the knob, if it is difficult to lock and requires excessive effort, open the head and ensure that the pod is laid flat

inside the pod holder. If the problem persists, change the pod.

• Place a 150 ml cup underneath the coffee tube. A larger cup will mean that the coffee goes colder quicker.

• The appliance does not require any preheating.

• The button lights up and the pump cycle starts, with an intermittent humming noise. After a few seconds the coffee starts to

• To obtain an optimal preparation, the coffee maker automatically supplies the optimal quantity of water for the pod (100 ml).

At the end of the cycle, the button flashes to indicate a vaporisation phase, to extract all of the aroma from the coffee and dry

• When the button stops flashing, the cycle is complete: open the cover and dispose of the pod.

Note: a stronger coffee can be obtained by pressing the button at any time. This starts the aroma extraction and pod drying phase.

Warning: take into account that another volume of coffee will now be poured.

• Do not attempt to open the percolator head during a cycle, the coffee maker is pressurised during the phase when the button

• You must wait until the button has stopped flashing before attempting to open the head.

• You can prepare several cups successively by changing the pod each time and following the instructions explained above.

• Do not leave a used pod in the pod holder for any length of time after use.

• Rinse the pod holder regularly using hot water and washing-up liquid.

• If the coffee maker has not been used for more than 3 days, empty the water tank and fill it with fresh water.

Cleaning and maintenance

• Unplug your appliance before carrying out any cleaning or maintenance operations.

To remove any coffee that is present in the drip tray, remove the grid and use a sponge to clean the drip tray recess.

• Do not place the appliance under running water.

• Rinse the pod holder regularly using hot water and washing-up liquid.

• Clean the outside of the appliance and the drip tray regularly using a damp sponge or a soft cloth.

cafetie?re Direct serve CW 100 TEFAL.qxd:Cafet Tefal Express 01_FR. qxd 20/03/09 11:54 Page 20• Rinse the water tank regularly with plenty of water.

• When scale makes the water tank opaque, carrying out a descaling operation. See descaling table below.

• Do not use alcohol, solvent based products or harsh abrasives to clean the appliance.

Regular descaling of your appliance is the best guarantee for its long life. The frequency of the descaling of your appliance depends

on the hardness of the water and the use of the appliance:

If in doubt as to the hardness of your water, descale your appliance every two months.

Note: Repairs to coffee makers will not be carried out if the appliance has not been descaled or used in accordance with the

instructions for use.

Warning: The chemical substances of descaling products may damage your work top (marble or stone) or any other surface that

they may come into contact with.

• Plug in the appliance.

• Open the percolator head and remove the pod holder.

• Close the head and lock it into position .

• Place a container with a capacity of 0.5 litres under the coffee tube.

• Fill the water tank halfway with water then add the descaling product in the following quantities:

- Descaling powder (citric ) available from shops: 40 g or 5 teaspoonfuls.

- White Vinegar available from hardware stores: 1 cupful (~ 100 ml)

• Fit the water tank into place.

Warning: at this stage, check that the pod holder is not inside the head, that the he head is closed and in the locked position .

• wait until the end of the cycle and for the light to stop flashing, then repeat the operation until the water tank is empty.

• Rinse the water tank with plenty of water, then fill it again halfway with cold drinking water.

• Repeat these steps to rinse the appliance, until the water tank is empty.

Warning: the rinsing phase is important. The taste of the coffee served after descaling may be impaired if rinsing is not carried out

Number of coffees per week Soft water (<19°th) Hard water (19° - 30°th) Very hard water (>30°th)

Less than 7 Once a year Every 8 months Every 6 months

Between 7 and 20 Every 4 months Every 3 months Every 2 months

More than 20 Every 3 months Every 2 months Every month

cafetie?re Direct serve CW 100 TEFAL.qxd:Cafet Tefal Express 01_FR. qxd 20/03/09 11:54 Page 2122

Problems Probable causes Corrective actions

The coffee does not flow.

The water tank is empty.

Pod holder grid blocked

Fill the water tank.

Fill the water tank, remove the filter

holder, lock the head and press the

button until the water flows.

- Descale the appliance.(see

descaling paragraph).

Clean the pod holder with plenty

of water and blow into the tube

The coffee is too short and the operation

The water tank is empty.

The water tank is not inserted

correctly into its housing

Push the water tank in correctly so

that it slots into the base

Coffee leaks from the percolator head

The head is dirty or impurities are

preventing it from closing correctly

The percolator head seal is damaged

Clean the percolator head and the pod

holder with a soft cloth

Contact an approved service centre

The pod is damaged when the appliance is

There is still pressure in the head when it

Wait until the button stops flashing

before opening the head

The preparation is pale and there is no

The pod is not positioned correctly in the

The pod holder is blocked

The pod is not compatible with the

Place the pod in a flat position in

the pod holder, ensure that the coffee is

evenly distributed in the sachet

Clean the pod holder with plenty

of water and blow into the tube

The button flashes rapidly and does not

The coffee maker has switched to a

safety mode because of overheating

Leave the appliance to cool for 6 hours.

If the problem persists, contact an

approved service centre

The head cannot be closed correctly.

The pod is not placed correctly in the

The pod is not compatible with the

Place the pod in a flat position in

the pod holder, and ensure that

the coffee is distributed evenly in

The head cannot be opened

The appliance has switched to a

safety mode because of excess pressure

The pod is not compatible with the

Do not force the locking knob. Wait

for quarter of an hour. If the problem

persists, contact an approved service

Only use flexible pods with a

diameter of 71 mm. ESE type pods

are not compatible with the coffee

Problems, probable causes and corrective actions

cafetie?re Direct serve CW 100 TEFAL.qxd:Cafet Tefal Express 01_FR. qxd 20/03/09 11:54 Page 2223

Help protect the environment!

Your appliance contains valuable materials which can be recovered or recycled

 Leave it at a local civic waste collection point

Problems Probable causes Corrective actions

The coffee is not strong enough for you

The coffee is not strong enough

The coffee you are using does not

Reduce the volume of the

preparation by pressing the button

before the automatic end of the cycle

Many coffees are available, choose a

The coffee is not hot enough

The cup is cooling the coffee down

The cup is cooling the coffee down

The coffee maker is scaled

Do not use a cup that is bigger than

150 ml, otherwise this cools

the coffee down more quickly

To keep the coffee hot longer,

preheat the cups with hot water for

Descale the coffee maker, refer to

the Descaling paragraph for

Brown particles are found on the pod. - Particles of scale have detached from

- Descale the coffee maker, refer to the

Descaling paragraph for instructions.

A green light may be seen on the button

when the appliance is plugged in.

- This is normal, the appliance is in

If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice:

(01) 677 4003 - Ireland

or consult our website - www.tefal.co.uk
