USER MANUAL EasyGrill Cuisine TCB2300 TEFAL

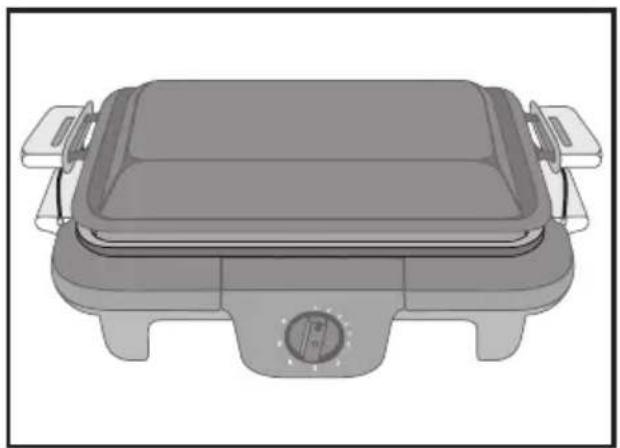

Black Tieral EASYGRILL grill with open lid and control knobs (no visible text or symbols on main body)

1 2 3 4 5 6

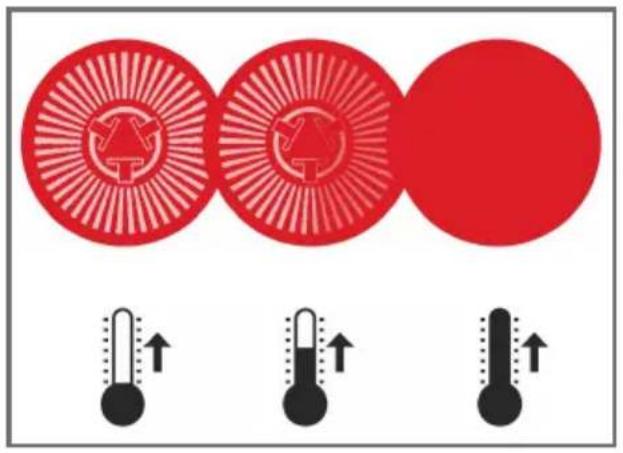

Diagram showing three red circular components with a central triangular symbol, each followed by a thermometer indicating temperature increase.

Clic! 1 2

A

1,5 L Max

B

Safety warning illustration showing a sad face and a smiling face in a mechanical device, with red arrows indicating failure or stress.

C

Diagram showing a grater with a drain and a side panel, illustrating the process of heating or cooling.

D

Diagram illustrating cable installation and electrical switch installation, showing wire being replaced by a plug and warning symbol.

E

1 2 3 4 5 6

F

15 min

G

Illustration of a grater with two cutlamps and a red arrow indicating a point of change (no text or symbols)

H

Illustration of a grating pan with steam rising from its lid, showing two cutlamps inside (no text or symbols)

I

Safety warning illustration showing two hands using a portable stove with red X marks and a warning symbol.

]

Illustration of a standard rectangular grater with side handles and a control knob (no text or symbols)

K

Top-down view of a portable electric stove or grill with open lid and side-mounted grilles (no text or symbols visible)

L

Illustration of hands holding a tray with two cutlery pieces, placed on a table with plates and fork (no text or symbols)

M

Illustration of a rectangular grater with two cutlamps on top, mounted on a base (no text or symbols)

N

Diagram illustrating temperature adjustment using a dial indicator, showing hand operating switch and magnified view with red arrows indicating cooling effect.

0

Diagram illustrating heating process with temperature and pressure indicators, showing a hand operating a grater with red X marks indicating thermal resistance.

P

Safety warning illustration showing hand holding valve inside a vehicle with temperature and speed indicators

Q

Diagram illustrating temperature measurement steps with hand gesture and thermometer symbols

R

S

Illustration showing three steps of cleaning a kitchen sink with different material and disinfection conditions indicated by icons.

T

Diagram showing electrical socket installation with red X mark and plug, alongside a separate wiring diagram.

U

Interior view of a kitchen appliance cabinet with stacked dishes and a portable stove (no text or symbols visible)

V

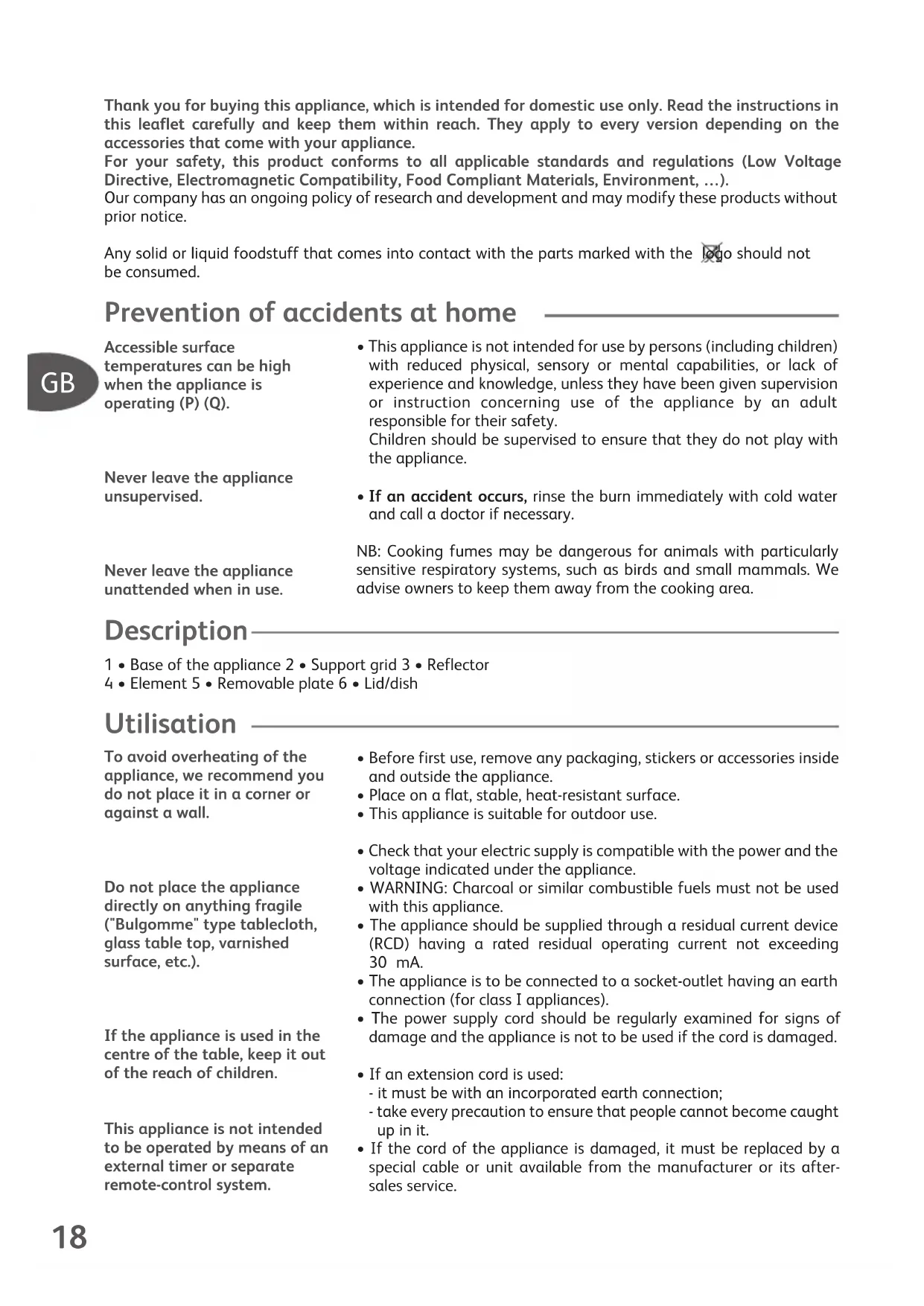

Thank you for buying this appliance, which is intended for domestic use only. Read the instructions in this leaflet carefully and keep them within reach. They apply to every version depending on the accessories that come with your appliance.

For your safety, this product conforms to all applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Food Compliant Materials, Environment, ...).

Our company has an ongoing policy of research and development and may modify these products without prior notice.

Any solid or liquid foodstuff that comes into contact with the parts marked with the logo should not be consumed.

Prevention of accidents at home

GB

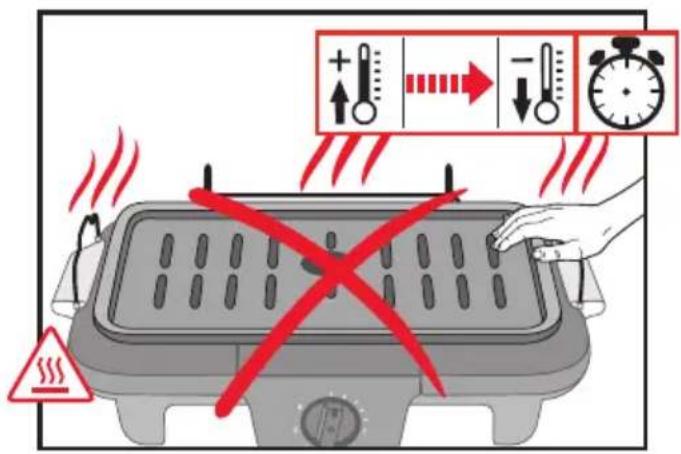

Accessible surface temperatures can be high when the appliance is operating (P) (Q).

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by an adult responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Never leave the appliance unsupervised.

- If an accident occurs, rinse the burn immediately with cold water and call a doctor if necessary.

Never leave the appliance unattended when in use.

NB: Cooking fumes may be dangerous for animals with particularly sensitive respiratory systems, such as birds and small mammals. We advise owners to keep them away from the cooking area.

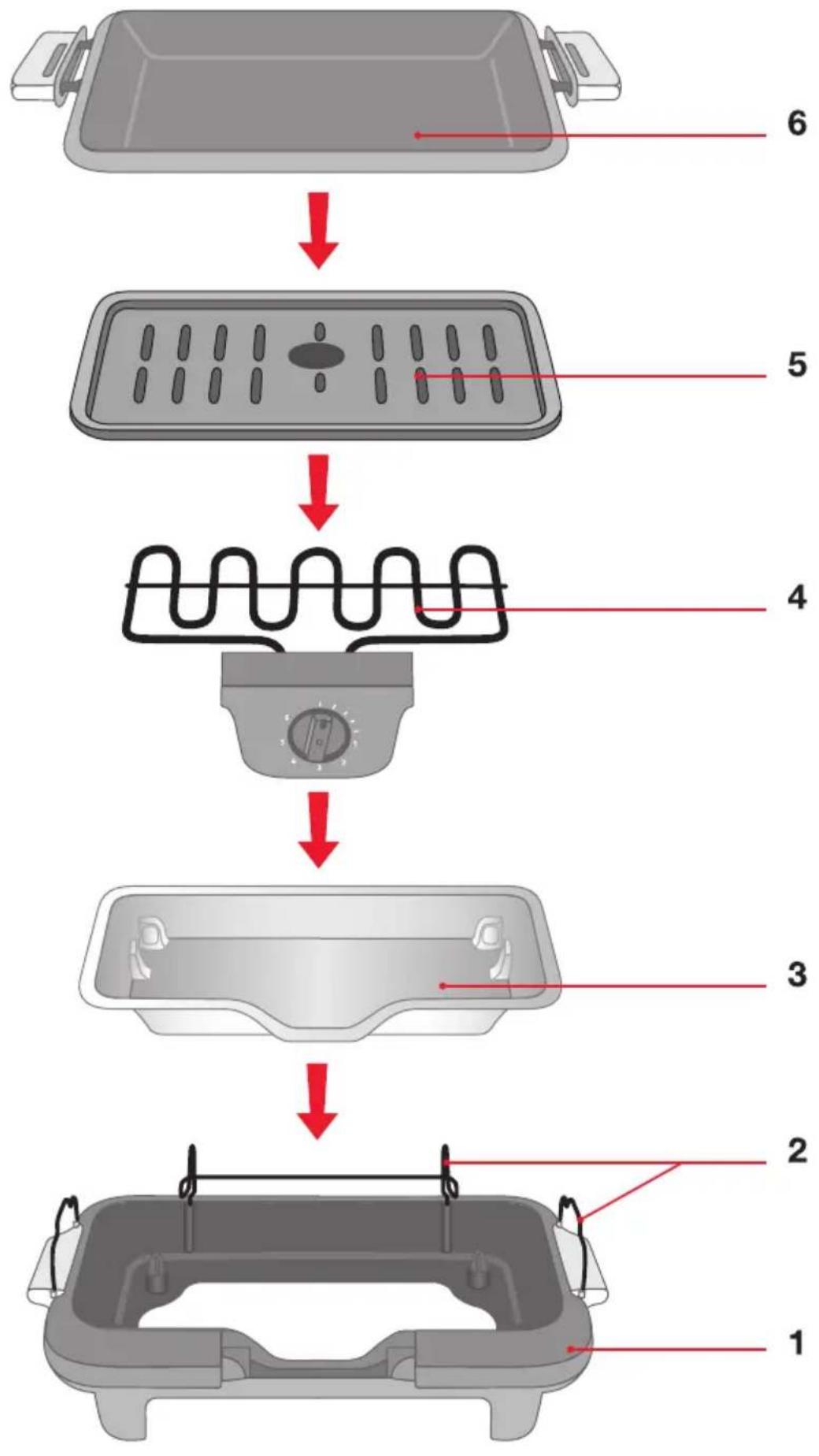

Description

1 • Base of the appliance 2 • Support grid 3 • Reflector
4 • Element 5 • Removable plate 6 • Lid/dish

Utilisation

To avoid overheating of the appliance, we recommend you do not place it in a corner or against a wall.

• Before first use, remove any packaging, stickers or accessories inside and outside the appliance.
• Place on a flat, stable, heat-resistant surface.
• This appliance is suitable for outdoor use.

Do not place the appliance directly on anything fragile ("Bulgomme" type tablecloth, glass table top, varnished surface, etc.).

• Check that your electric supply is compatible with the power and the voltage indicated under the appliance.
• WARNING: Charcoal or similar combustible fuels must not be used with this appliance.
• The appliance should be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.
• The appliance is to be connected to a socket-outlet having an earth connection (for class I appliances).
• The power supply cord should be regularly examined for signs of damage and the appliance is not to be used if the cord is damaged.

If the appliance is used in the centre of the table, keep it out of the reach of children.

• If an extension cord is used:
• it must be with an incorporated earth connection;
• take every precaution to ensure that people cannot become caught up in it.
• If the cord of the appliance is damaged, it must be replaced by a special cable or unit available from the manufacturer or its after-sales service.

This appliance is not intended to be operated by means of an external timer or separate remote-control system.

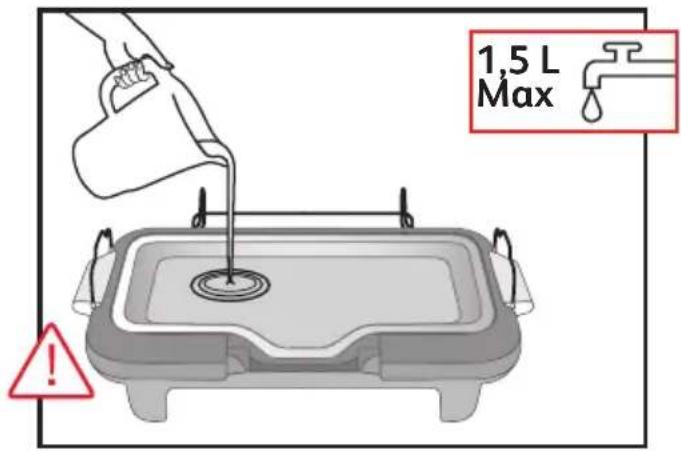

Do not cook food in aluminium foil.	Pour 1,5 litre maximum of water carefully into the reflector (3) so that the appliance works (B).Monitor the water level regularly. If more is needed, unplug the product, let it cool, then add water.

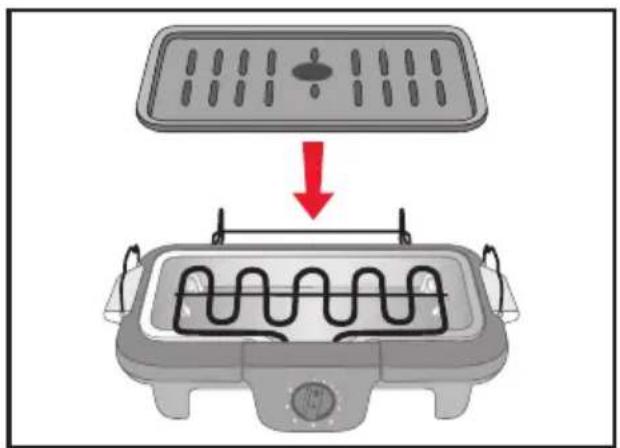

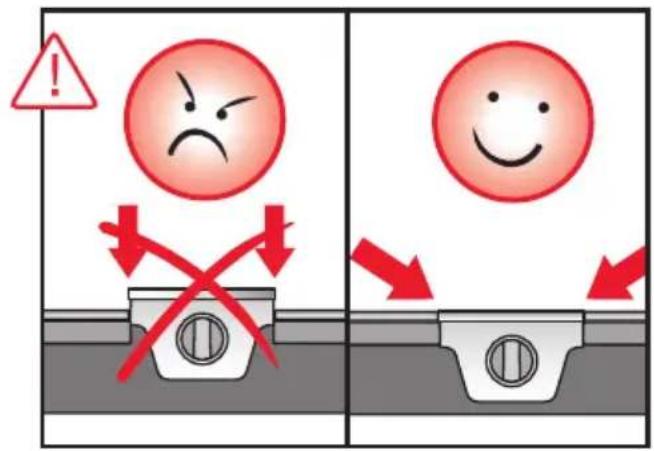

Don’t move your appliance when cooking.	If the heating element (4) is incorrectly positioned (C), the safety system will prevent the appliance from working.Fit the removable plate (5) onto the reflector (3) and ensure that it is stable and fitted correctly (D).

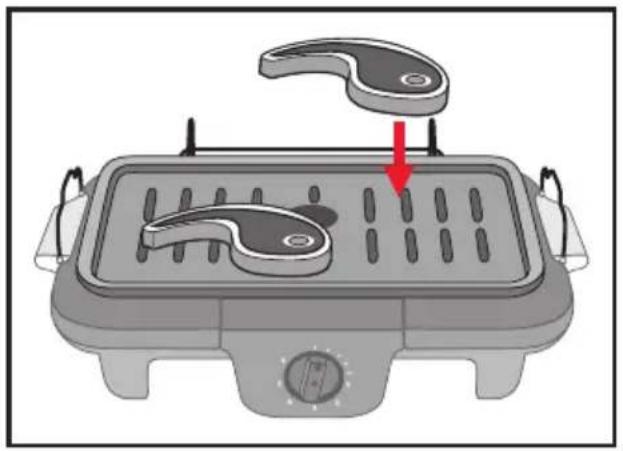

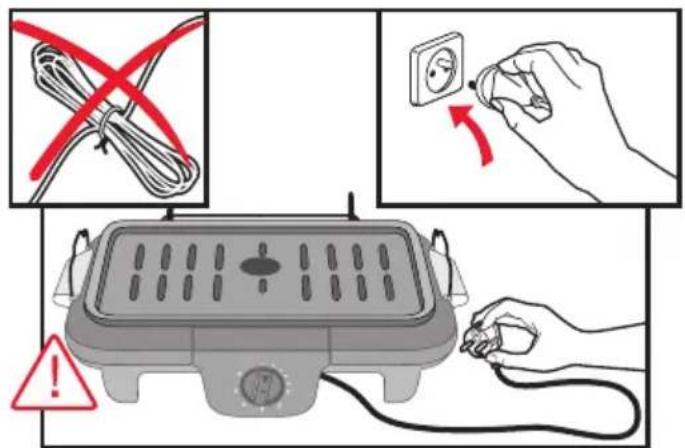

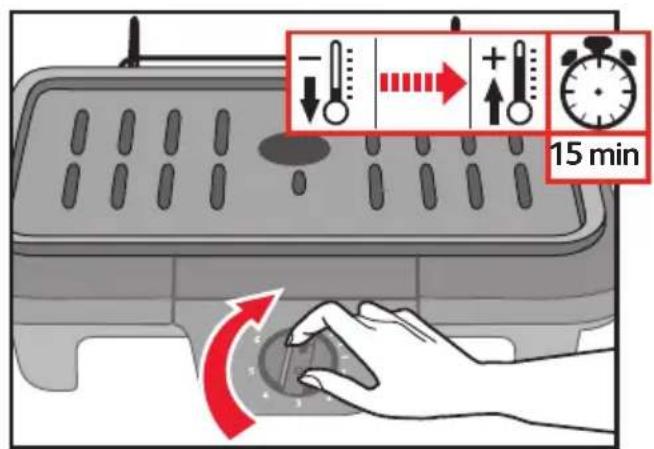

Do not place cooking utensils on the cooking surfaces of the appliance.	Only use the plate (5) supplied with the appliance or purchased from an approved service centre.Unwind the cord completely (E).Plug the cord into a mains socket (E).Set the thermostat to suit the chosen recipe (G). The position of the thermostat during pre-heating is the same as that used for cooking.Pre-heat the appliance for about 15 minutes (G).Always use a wooden or plastic spatula to avoid damaging the cooking plate (5).
Do not use aluminium foil or other objects under the plate.	To avoid damaging the dish (5): Only use it on the support for which it was designed (e.g.: do not use it in an oven, on a gas or electric hob, etc.).
Never start cooking without preheating 15 min.

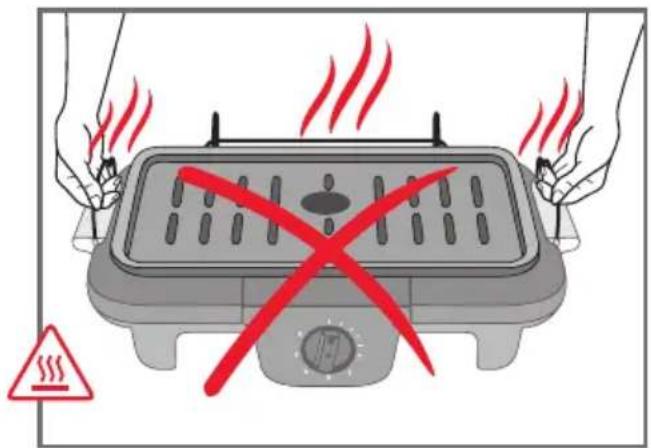

Never run the appliance empty.	CAUTION: the support grids (2) are hot. Do not use them to carry the appliance (J).Always use the serving dish (6) in its position on the support grids (2).
On first use, the appliance may smell slightly and possibly give off smoke for the first few minutes. This is normal and will quickly disappear.	Never use your dish (6) on a baking sheet or in an oven.Never use the serving dish (6) without the baking sheet (5) in position.Never restart the appliance without having changed the water in the reflector.

Using the lid

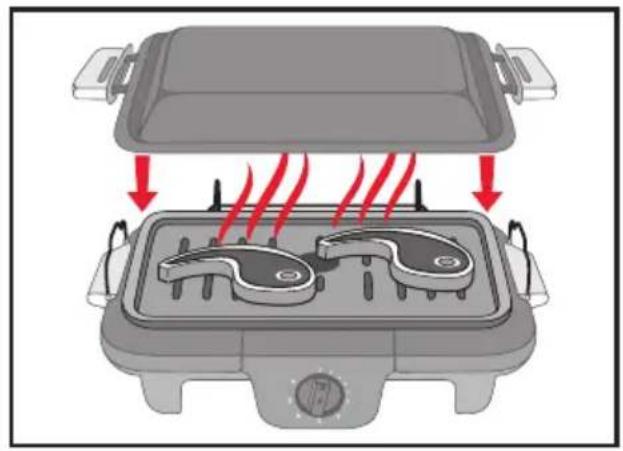

• Position “cook” (K): when positioned this way, the lid (6) allows “steam cooking”. The food cooks more quickly, more tender and more varied (pieces of chicken and meat, vegetables, fish).

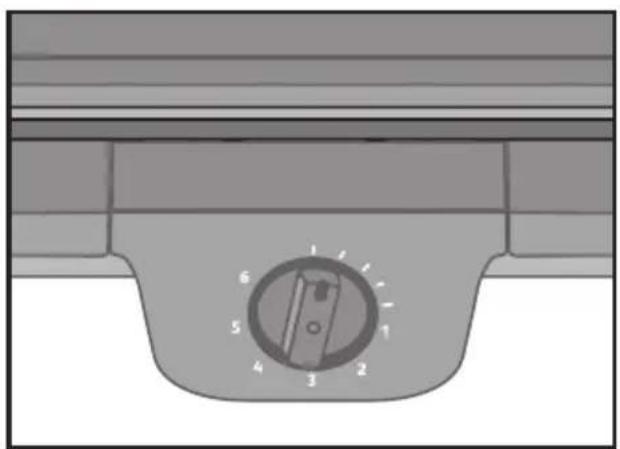

  Use the thermostat 1 to 6 (F).

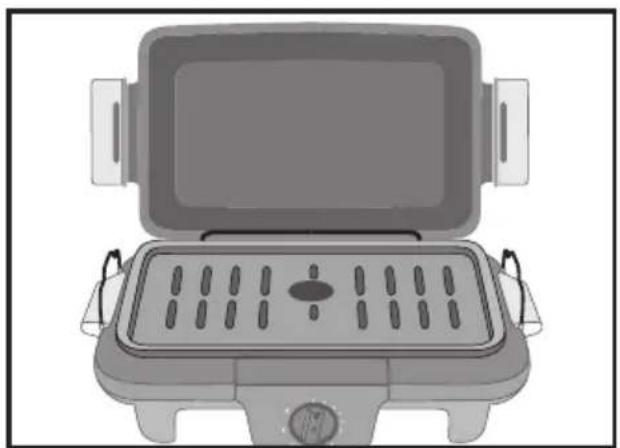

• Position “screen” (L): position which means that your hands are free when supervising the cooking.

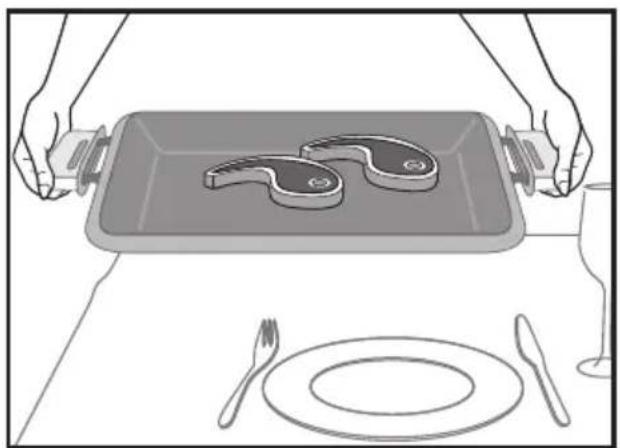

• Position “serve” (M): the lid (6) is turned over to become a table service dish.

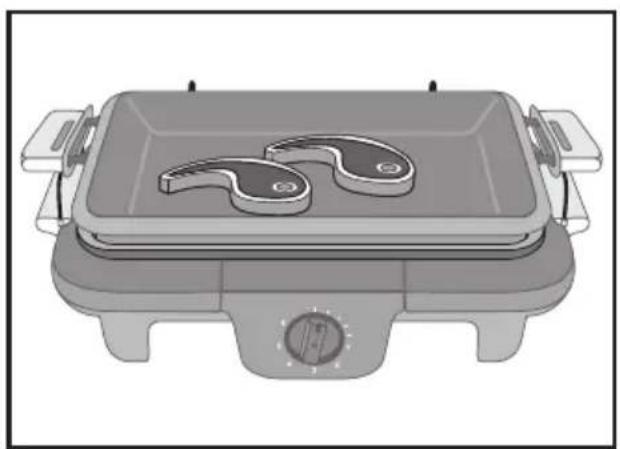

• “Keep warm” position (N): the lid (6) can then be placed on the barbecue to keep the food hot.
  Use the thermostat from 3 to 6,; according to need (F).

Cleaning

Do not use a metal scourer or scouring powder.

Never run the hot plate (5) under cold water.

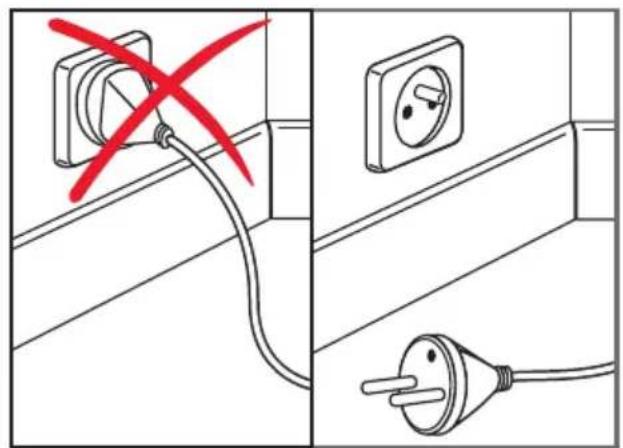

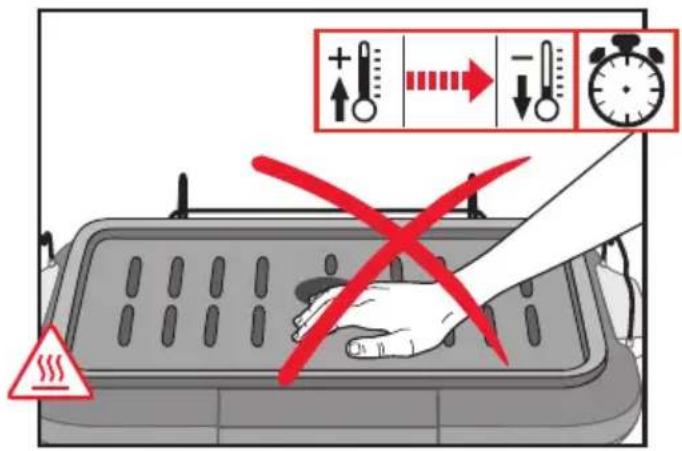

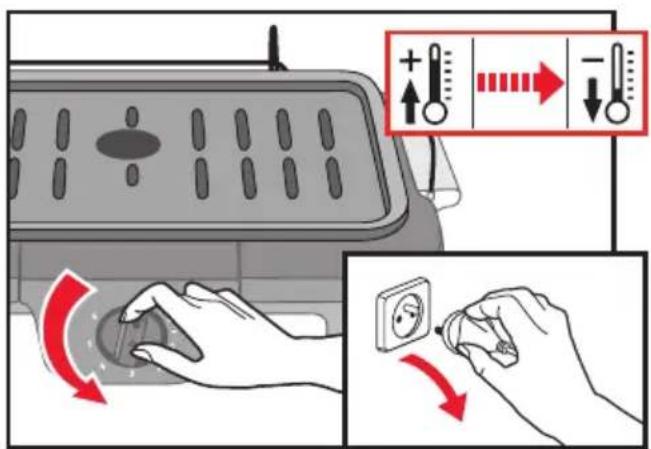

- Set the thermostat on position mini (O), turn the appliance off (O) and leave it to cool down (P) (Q).

Keep the appliance out of the reach of children.

Do not immerse the appliance in water.

Do not immerse the appliance, the control panel or power cord in water.

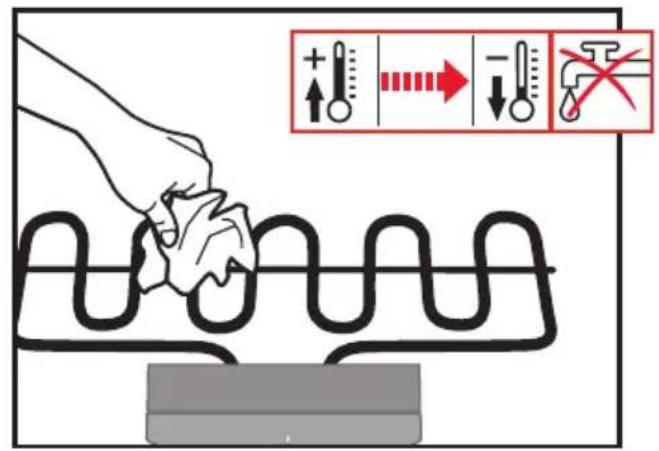

• If the heating element is really dirty, rub with a dry cloth when cold (R).

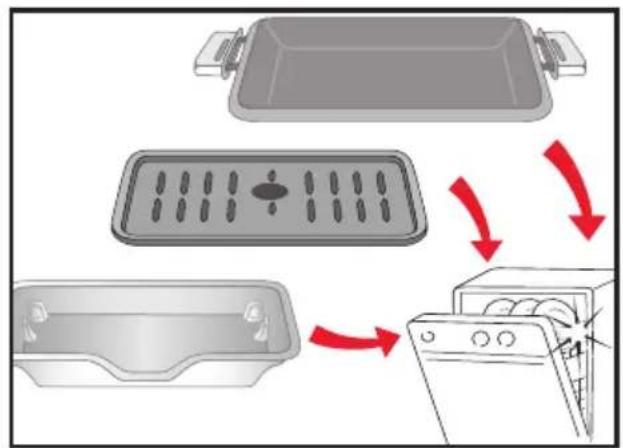

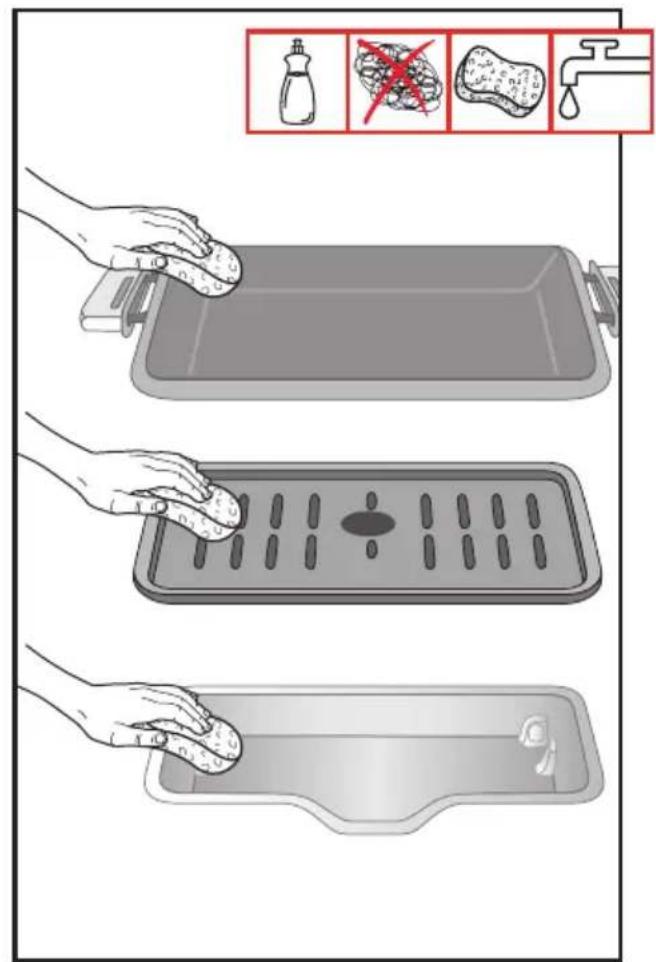

• The plate (5), the reflector (3) and the plate (6) must be cleaned after each use, either in the dishwasher (S) or with washing-up liquid (do not use a scouring pad or powder or metallic sponge) (T).

Storage

Keep the appliance out of the reach of children.

• Store the appliance away from sunlight, humidity and rain.

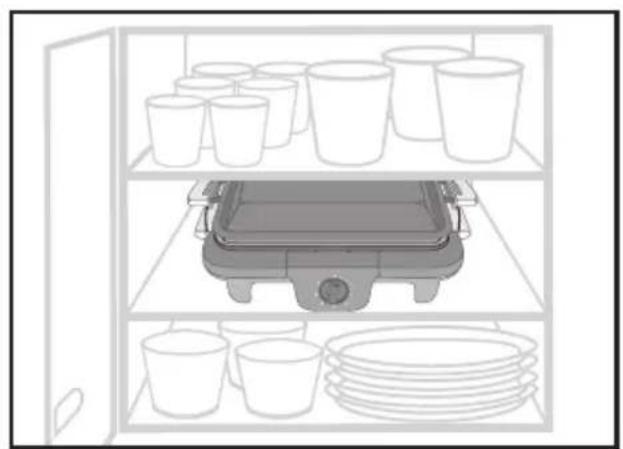

• Store the appliance indoor, in a dry place (V).

Environment protection first!

GB

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice: HELPLINE: 0845 602 1454 – UK, [phone] – Ireland or consult our website - www.tefal.co.uk
