USER MANUAL Minibiking ZipyLife

Waste management for all of your containers and domestic packagings that you deposit in the recycling bin

The packaging contains removable materials in order to treat them later in waste management

Do not deposit the device or the battery in the bin. Please, put it in a recycling bin or carry it to your local nearby store

Deposit the packaging materials in the yellow bin

This device conforms to the EU directives

This unit conforms to the ROHS regulations

Symbol of frequency restriction in some countries of European Union

PRECAUCIONES GO! MINIBIKING

PRECAUTIONS GO! MINIBIKING

CONDITIONS DE GARANTIE AID

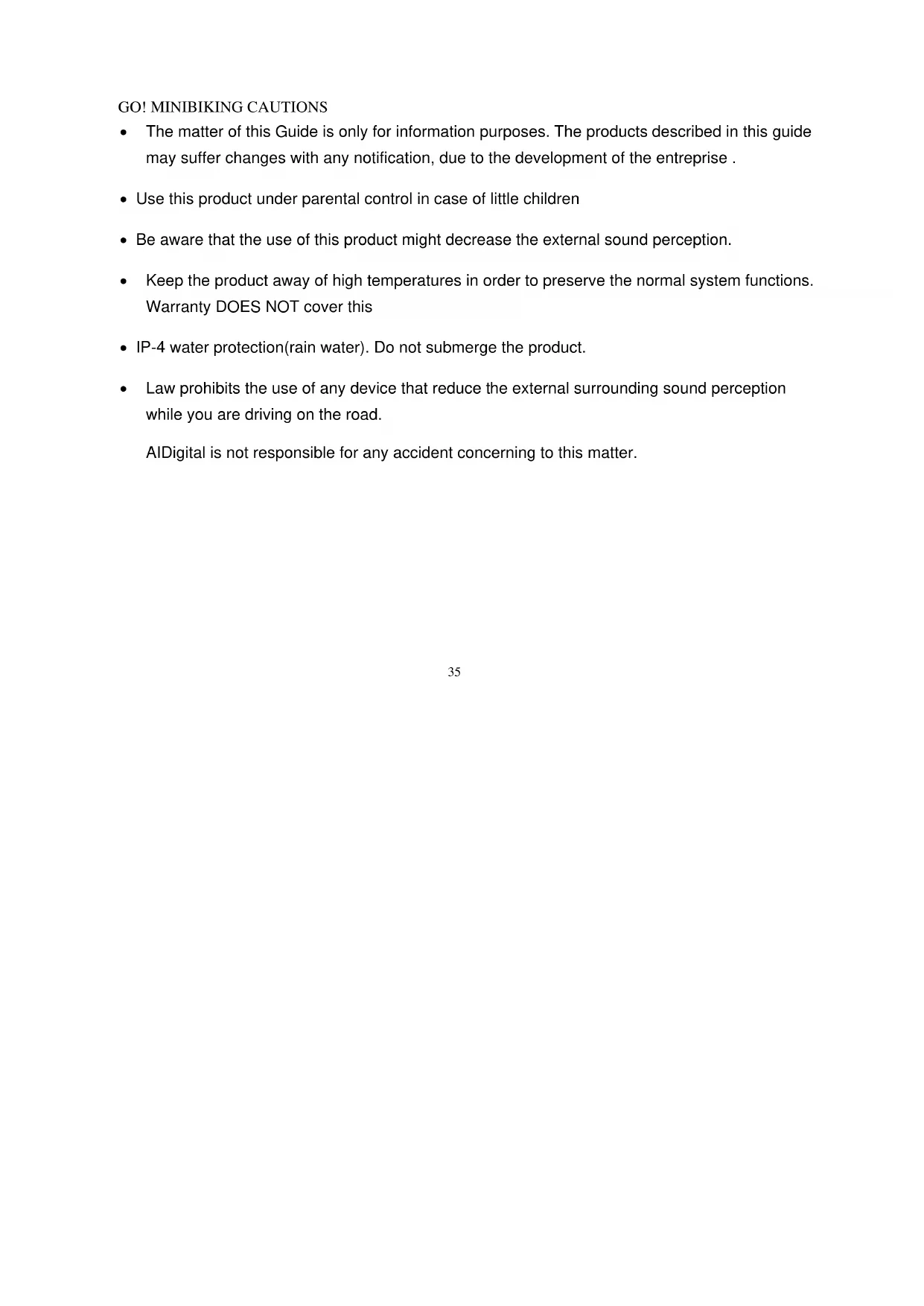

GO! MINIBIKING CAUTIONS

• The matter of this Guide is only for information purposes. The products described in this guide may suffer changes with any notification, due to the development of the enterprise.
• Use this product under parental control in case of little children
• Be aware that the use of this product might decrease the external sound perception.
• Keep the product away of high temperatures in order to preserve the normal system functions. Warranty DOES NOT cover this
• IP-4 water protection(rain water). Do not submerge the product.
• Law prohibits the use of any device that reduce the external surrounding sound perception while you are driving on the road.

AIDigital is not responsible for any accident concerning to this matter.

User Manual

The Minibiking portable MP3 music player can release clear and natural sound with distinct levels right from the palm of your hand.

The product packaging includes the following:

---Minibiking portable MP3 music player
---3.5mm/USB Cable
---Bike handle holder
---A protective jacket

Product features:

---Aluminum metal coat with high texture surface treatment facilitates usage both indoors and outdoors.
---Hi-Fi horn monomer with high fidelity acoustics and built-in sound effects
---A high capacity Lithium battery
---When using the earphone, the horn will be closed automatically.
---Integrated earphone, USB and charge function are integrated to one jack to make the product more simple and attractive.
---Supports MP3/WMA formatted files.

Product specifications:

Type

SH-700

Output value of loudspeaker

THD_+N = 0.15%

@ 2.0W

Output value of earphone

SNR=90db

@ 2.0W

Playing time

THD + N = 0.6%

@ 32Ω

SNR+90db

@ 32Ω

When using loudspeaker, it is about 9-20 hours (determined by the volume)

When using earphone, it is about 60 hours

USB charge: 6 hours

Charging time

2GB

USB 2.0 Full speed

FAT16/FAT32

1. Start up or shut down the power or start or pause playing
2. Turn up the volume
3. Turn down the volume
4. Previous song
5. Next song
6. LED status indicating lamp
7. Earphone/charge/USB share the 3.5mm jack protect cap.

---Unit needs to be charged fully prior to the first usage.
---3.5 mm/USB connecting line attached will be used when charging.
---Open the cap to connect the 3.5 mm plug to the player while the other USB end connects with the computer's USB.
---When charging, the LED lamp will be on for an extended period of time and after charging has completed, the LED lamp will turn off automatically.
---When pulling out the USB connecting line (no matter during charging period or data transmission with USB), the player will close automatically.

---Song transmission is realized by the connection between the jack of the USB connecting line and the computer. The player will be regarded as an unloading disk and the MP3/WMA songs can be downloaded and managed from the computer.

---It is suggested to that the user classify song albums or favorite songs into several file folders to facilitate saving and withdrawal.
---WMA format supports previous edition of Windows Media Audio 9 (including), rather than "digital rights management (DRM)" format.
---Music downloads shall be in accordance with laws and regulations.

1. Start-up: press for start-up, the songs will be played automatically after LED lamp is on for continuous 8 seconds.
2. Shut-down: press for 4 seconds, LED lamp will flash quickly and the player will be shut down.
3. Pause: press when playing, LED lamp will be on continuously and then enter pause status.
4. Changing songs during playback:

Press to skip to the next song.

Press to play back the song for less than 5 seconds. Press for more than 5 seconds to

skip to the last song in playback list.

1. Automatic shut-down mode: when songs are in pause status and there no buttons are pressed for a period of 3 minutes, the player will shut down automatically.

---Normal'play:LEDlamp will flash once every second.
---No songs: LED lamp will be on for an extended time. If there is no button operation, the player will shut down automatically after 3 minutes.
---Charging: LED lamp will be on continuously and will turn off when charging has completed.
---Songs transmission: LED lamp will flash automatically.

If abnormal conditions occur, please press + and at the same time. The player will shut down and reset automatically.

---If the LED lamp is normal but sound cannot be heard, please check whether the unit it is disconnected from the earphone or if the USB joint wire is removed.

---When abnormal playing happens or some distortion occurs, charge unit for half an hour and then reset the unit.

< Bike holder installation method >

• Put the holder on the small side of bike handle.. Use Velcro to affix on the Bike handle.
• Put the Music Player on the big side of the holder. Use Velcro to affix the music player in the holder.

INGLÉS / ENGLISH

AID WARRANTY CONDITIONS

EN

AID, in compliance with the Customer Protection Law (Ley 23/2003, July 10th, of Warranty in the Sale of Consumer Goods, BOE no. 165, 11/07/2003), offers Direct Warranty to Spain and Portugal customers for all our brands' products: ZIPY, MUSE, NEW ONE, AC-RAYAN, TNB, BARKAN, BRASFORMA, THE COMPLEMENTS, and GO BY ZIPY, under the following conditions:

A - Our products have a two year warranty. During the first year original defects that may be detected are repaired. In those cases stipulated by law, the buyer will be entitled to the replacement of the device by a new one, provided that the defects are not due to the negligence or exclusive fault of the buyer in handling the device. During the second year the buyer will need to prove that the malfunctioning of the device is due to a manufacturing defect. In both cases the warranty will apply provided that:

1. The product has been used for its destined purpose alone.
2. It was not opened, manipulated or altered in any way by someone other than the Official Technical Service.
3. It has not undergone shock, flood, overheating, electric overcharge or any other external circumstance that may constitute a possible reason of INVALIDATING the warranty.
4. The product will be returned to AID in proper packaging together with the receipt where the brand and type of product, the date of the purchase, the name and address of the shop that sold it and the reason for the malfunctioning should be clearly stated.

Any of the following circumstances invalidates the present warranty:

1. Breaking the ports, the screen or the glass.
2. Loss of liquid from the screen.
3. Wearing out, obvious marks of incorrect manipulation, inappropriate use, ill-treatment, shock, falls, dirt, and so on.
4. The data contained in the products are under no circumstances covered by any warranty whatsoever, nor are they to be considered during the physical repairing process of the products. AID guarantees absolute confidentiality of the data.
5. AID does not cover the incorrect configuration or installation of the software / hardware on the part of the client, neither as a component nor as a peripheric, included prives / controllers included.
6. The legislation on guarantees sets certain limits. "the guarantee does not cover additional components such as batteries, nor any elements that are subject to maintenance due to its use such as earphones". These accessories have a 6 months guarantee.
7. Waterproof bags have a 48-hour trial period, such as indicated on the product itself, therefore once this time period is elapsed they will no longer be covered by any guarantee.
8. Final users do not need to send us the device accessories, especially if they are not the original ones, since we will not be held responsible for them.

CASES:

1. If the product is out our guarantee, the AID technical department will facilitate a budget for the repair by fax or e-mail. Said budget will need to be authorized in writing, sealed and signed, and the user will have to satisfy the repair fee as well as the freight.
2. If the budget is not accepted a diagnosis fee will be charged. (6€)
3. Repairs have a 90 days guarantee, provided that the breakdown is under the same concept and in the case of budgeted breakdowns alone.

B - All the freight costs for the product will be covered by AID using only the transportation company designed by AID following the authorization procedure.

The expenses derived from incorrect or unjustified returns on the part of the client will be covered by the client alone.

C - Any incidence detected at the moment of the reception of the merchandise must be immediately notified at the AID Post-Sales Department: [e-mail] in compliance with Article 366 from the Code of Commerce, AID will not consider complaints about breakages, shocks or absence of boxes or pieces 24 hours after the delivery of the merchandise.

In the case of shipments originated in Canarias, Ceuta and Melilla, AID will not pay the customs tax nor any kind of reimbursable expenses.

DECLARATION OF CONFORMITY

ACCEsORIOS INTELIGENTES DIGITAL S.A. C/CARPINTEROS,6, OF-13 VILLAVICIOSA DE ODON. 28670 MADRID

We hereby declare, under our exclusive responsibility, our conformity with the product:

MP3 : GO- MINIBIKING of ZIPY made in China

To which this declaration refers with the following directives:

EN55022:2006+A1:2007

EN55024:1998+A1:2001+A2:2

003

EN61000-3-2:2006

EN61000-3-3:2008

In compliance with the resolutions of the Directive 99/05/CE, of the European Parliament and the March 9th 1999 Council, included in the Spanish law system by El Real decreto 1890/2000, November 20th.

Issue location and date

Signed by: Miguel Fauro
