RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accor

ingly, you may find descriptions of individual features that do not apply to

your specific appliance.

• The manufacturer will not be held liable for any damages resulting from in-

correct or improper installation.

• The minimum safety distance between the cooker top and the extractor

hood is 650 mm (some models can be installed at a lower height, please re-

fer to the paragraphs on working dimensions and installation).

• Check that the mains voltage corresponds to that indicated on the rating

plate fixed to the inside of the hood.

• For Class I appliances, check that the domestic power supply guarantees

Connect the extractor to the exhaust flue through a pipe of minimum diame-

ter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion

fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances (e.g. gas

burning appliances), a sufficient degree of aeration must be guaranteed in

the room in order to prevent the backflow of exhaust gas. The kitchen must

have an opening communicating directly with the open air in order to

guarantee the entry of clean air.

• The extractor hood has been designed exclusively for domestic use to elimi-

nate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only, making

sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use: overheated oil

can burst into flames.

• Do not flambè under the range hood; risk of fire

• This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concern-

ing use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appli-

• Switch off or unplug the appliance from the mains supply before carrying out

any maintenance work.

• Clean and/or replace the Filters after the specified time period (Fire hazard).

• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.EN

Ref. Q.ty Product Components

1 1 Hood Body, complete with: Controls, Light, Blower,

8 1 Directional Air Outlet grille

Ref. Q.ty Installation Components

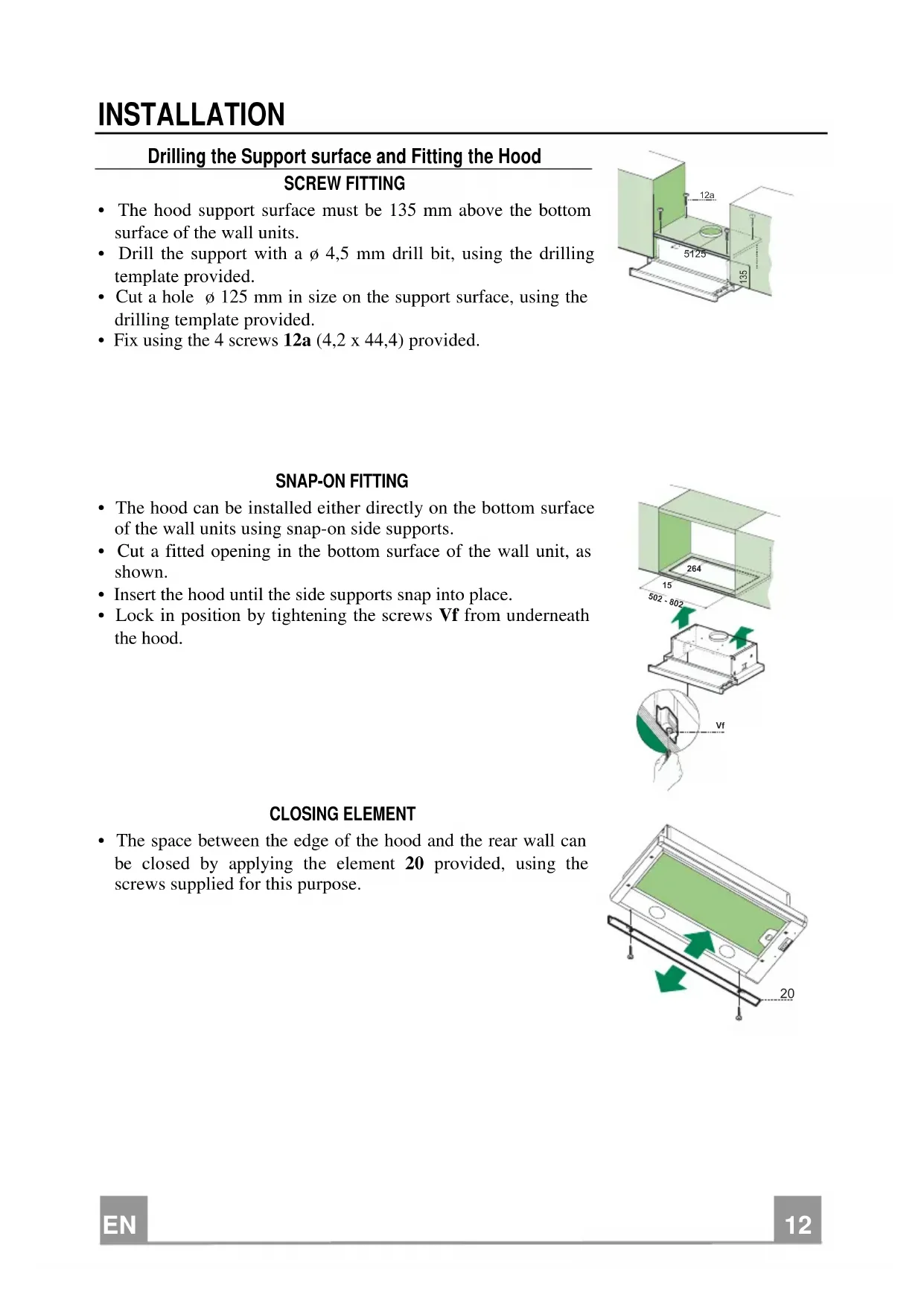

INSTALLATION Drilling the Support surface and Fitting the Hood

• The hood support surface must be 135 mm above the bottom

surface of the wall units.

• Drill the support with a ø 4,5 mm drill bit, using the drilling

• Cut a hole ø 125 mm in size on the support surface, using the

drilling template provided.

• Fix using the 4 screws 12a (4,2 x 44,4) provided.

• The hood can be installed either directly on the bottom surface

of the wall units using snap-on side supports.

• Cut a fitted opening in the bottom surface of the wall unit, as

• Insert the hood until the side supports snap into place.

• Lock in position by tightening the screws Vf from underneath

• The space between the edge of the hood and the rear wall can

be closed by applying the element 20 provided, using the

screws supplied for this purpose.

Connections DUCTED VERSION AIR EXHAUST SYSTEM When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe ø120 mm, the choice of which is left to the installer.

• Fix the pipe in position using sufficient pipe clamps (not supplied). • Remove any activated charcoal filters.

RECIRCULATION VERSION AIR OUTLET • Cut a hole ø 125 mm in any shelf that may be posi-tioned over the hood. • Connect the flange to the outlet on the shelf over the hood using a flexible or rigid pipe ø120 mm. • Fix the pipe in position using sufficient pipe clamps (not supplied). • Fix the directional grille 8 on the recirculation air outlet using the 2 screws 12e (2,9 x 9,5) provided. • Ensure that the activated charcoal filters have been inserted.

ELECTRICAL CONNECTION • Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm. • When opening the sliding carriage for the first time after installing the hood, pull it out briskly until it clicks.EN

L Light Switches the lighting system

M Motor Switches the extractor motor

V Speed Sets the operating speed of

1. Low speed, used for a

continuous and silent air

change in the presence of

light cooking vapour.

2. Medium speed, suitable

for most operating condi-

tions given the optimum

treated air flow/noise

3. Maximum speed, used for

eliminating the highest

cooking vapour emission,

including long periods.

L Light Switches the lighting system

M Motor Switches the extractor motor

V Speed Sets the operating speed of

1. Low speed, used for a

continuous and silent air

change in the presence of

light cooking vapour.

2. Medium speed, suitable

for most operating condi-

tions given the optimum

treated air flow/noise

CLEANING METAL CASSETTE GREASE FILTERS

• The filters must be cleaned every 2 months, or more frequently

in case of particularly heavy use of the hood. Filters can be

washed in a dishwasher.

• Pull out the sliding suction panel.

• Remove the filters one by one, after having disconnected the

relative fastening elements.

• Wash the filters, taking care not to bend them. Let them get dry

before refitting them. (The colour of the filter surface may

change throughout the time but this has no influence to the fil-

• When refitting the filters, make sure that the handle is visible

• Close the sliding suction panel.

Charcoal filter (Recycling version)

REPLACING CHARCOAL FILTERS

• These filters are not washable and cannot be regenerated, and

must be replaced approximately every four months or more

frequently by particularly heavy use.

• Pull out the sliding suction panel.

• Remove the grease filters.

• Remove the saturated carbon filter by releasing the fixing

• Replace the grease filters.

40 W incandescent light.

• Remove the metal grease filters.

• Unscrew the bulbs and replace them with new ones having the

same characteristics.

• Replace the metal grease filters.

• Remove the 2 screws fixing the Lighting support, and pull it

out of from the Hood.

• Extract the lamp from the Support.

• Replace with another of the same type, making sure that the

two pins are properly inserted in the lamp holder socket holes.

• Replace the Support, fixing it in place with the two screws re-

Ref. Installatieonderdelen
