USER MANUAL ZHC 7131 X ZANUSSI

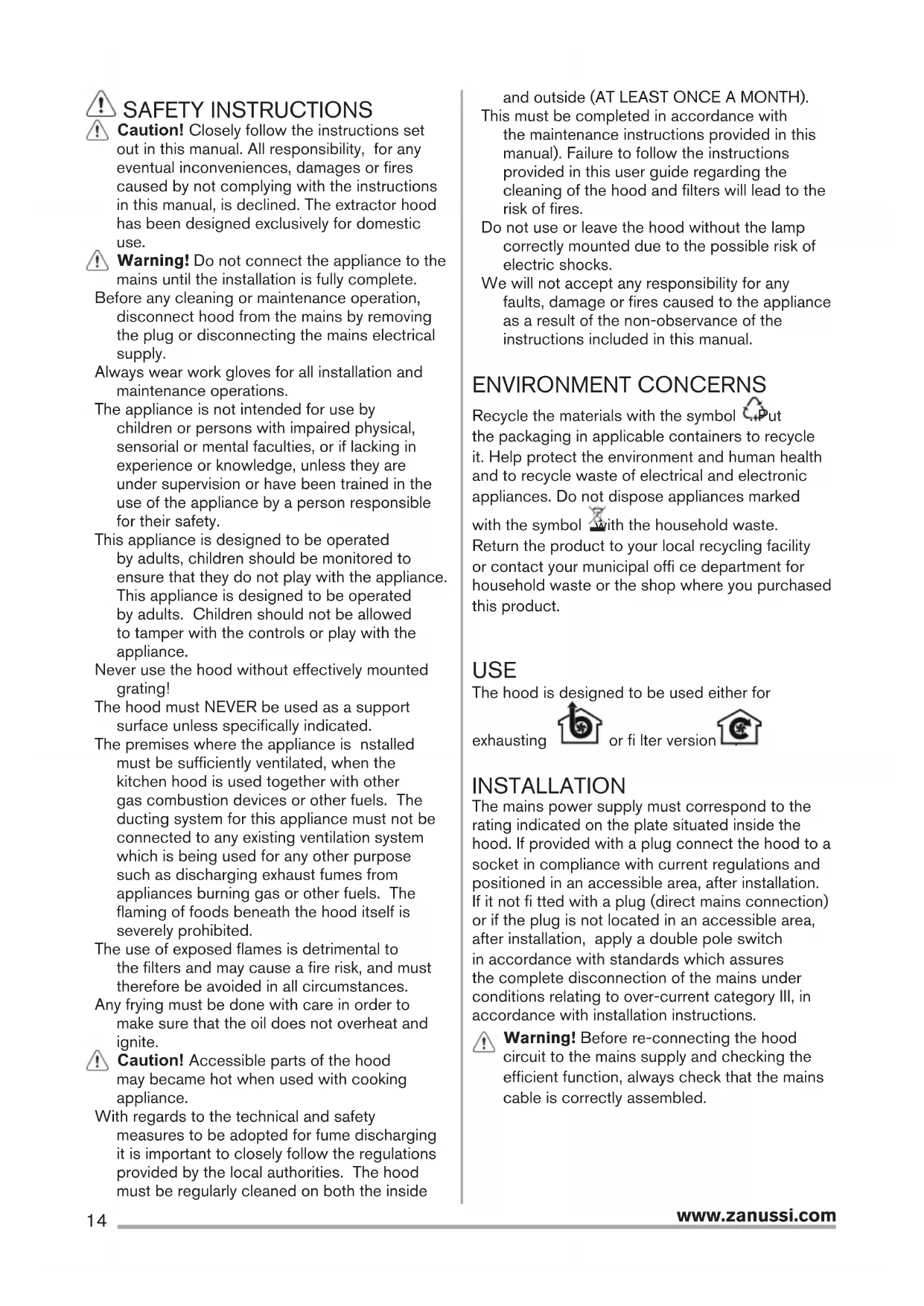

SAFETY INSTRUCTIONS Caution! Closely follow the instructions set

out in this manual. All responsibility, for any

eventual inconveniences, damages or fires

caused by not complying with the instructions

in this manual, is declined. The extractor hood

has been designed exclusively for domestic

Warning! Do not connect the appliance to the

mains until the installation is fully complete.

Before any cleaning or maintenance operation,

disconnect hood from the mains by removing

the plug or disconnecting the mains electrical

Always wear work gloves for all installation and

maintenance operations.

The appliance is not intended for use by

children or persons with impaired physical,

sensorial or mental faculties, or if lacking in

experience or knowledge, unless they are

under supervision or have been trained in the

use of the appliance by a person responsible

This appliance is designed to be operated

by adults, children should be monitored to

ensure that they do not play with the appliance.

This appliance is designed to be operated

by adults. Children should not be allowed

to tamper with the controls or play with the

Never use the hood without effectively mounted

The hood must NEVER be used as a support

surface unless specifically indicated.

The premises where the appliance is nstalled

must be sufficiently ventilated, when the

kitchen hood is used together with other

gas combustion devices or other fuels. The

ducting system for this appliance must not be

connected to any existing ventilation system

which is being used for any other purpose

such as discharging exhaust fumes from

appliances burning gas or other fuels. The

flaming of foods beneath the hood itself is

severely prohibited.

The use of exposed flames is detrimental to

the filters and may cause a fire risk, and must

therefore be avoided in all circumstances.

Any frying must be done with care in order to

make sure that the oil does not overheat and

Caution! Accessible parts of the hood

may became hot when used with cooking

With regards to the technical and safety

measures to be adopted for fume discharging

it is important to closely follow the regulations

provided by the local authorities. The hood

must be regularly cleaned on both the inside

and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with

the maintenance instructions provided in this

manual). Failure to follow the instructions

provided in this user guide regarding the

cleaning of the hood and filters will lead to the

Do not use or leave the hood without the lamp

correctly mounted due to the possible risk of

We will not accept any responsibility for any

faults, damage or fires caused to the appliance

as a result of the non-observance of the

instructions included in this manual.

ENVIRONMENT CONCERNS Recycle the materials with the symbol . Put

the packaging in applicable containers to recycle

it. Help protect the environment and human health

and to recycle waste of electrical and electronic

appliances. Do not dispose appliances marked

with the symbol with the household waste.

Return the product to your local recycling facility

or contact your municipal offi ce department for

household waste or the shop where you purchased

USE The hood is designed to be used either for

INSTALLATION The mains power supply must correspond to the

rating indicated on the plate situated inside the

hood. If provided with a plug connect the hood to a

socket in compliance with current regulations and

positioned in an accessible area, after installation.

If it not fi tted with a plug (direct mains connection)

or if the plug is not located in an accessible area,

after installation, apply a double pole switch

in accordance with standards which assures

the complete disconnection of the mains under

conditions relating to over-current category III, in

accordance with installation instructions.

Warning! Before re-connecting the hood

circuit to the mains supply and checking the

efficient function, always check that the mains

cable is correctly assembled.15

Warning! Power cable replacement must

be undertaken by the authorised service

assistance centre or similar qualified person.

The minimum distance between the supporting

surface for the cooking equipment on the hob and

the lowest part of the range hood must be not

less than 50cm from electric cookers and 65cm

from gas or mixed cookers. If the instructions

for installation for the gas hob specify a greater

distance, this must be adhered to.

MAINTENANCE ATTENTION! Before performing any

maintenance operation, isolate the hood

from the electrical supply by switching off at

the connector and removing the connector

fuse. Or if the appliance has been connected

through a plug and socket, then the plug must

be removed from the socket.

The cooker hood should be cleaned regularly (at

least with the same frequency with which you

carry out maintenance of the fat fi lters) internally

and externally. Clean using the cloth dampened

with neutral liquid detergent. Do not use abrasive

products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic

cleaning recommendations of the cooker hood

and replacement of the filters may cause fire

risks. Therefore, we recommend observing

these instructions. The manufacturer declines

all responsibility for any damage to the motor

or any fire damage linked to inappropriate

maintenance or failure to observe the above

safety recommendations.

Grease fi lter - The grease fi lter must be cleaned

once a month using non aggressive detergents,

either by hand or in the dishwasher, which must

be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease fi lter

may discolour slightly, but this does not affect its

NON-washable activated charcoal fi lter

The saturation of the charcoal fi lter occurs after

more or less prolonged use, depending on the type

of cooking and the regularity of cleaning of the

grease fi lter. In any case it is necessary to replace

the cartridge at least every four mounths.

The charcoal fi lter may NOT be washed or

CONTROLS The hood is fi tted with a control panel with

aspiration speed selection control and a light

switch to control cooking area lights.

3 Minimum suction power

4 Medium suction power

5 Maximum suction power

Use the high suction speed in cases of

concentrated kitchen vapours. It is recommended

that the cooker hood suction is switched on for 5

minutes prior to cooking and to leave in operation

during cooking and for another 15 minutes

approximately after terminating cooking.

LIGHTING Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs

ensure they are cooled down.

Replace the damaged lamp.

Use Ø35mm E14 28W halogen candle lamps only.17
