Product Type	Washing Machine
Brand	GE
Model	WCVH4800KWW
Height	171.8 cm (67.7 in)
Power Supply	120 V, 60 Hz, 15 A, single-phase
Required Outlet	3-prong grounded
Water Pressure	10 to 120 psi
Wash Capacity	Approximately 4.5 cubic feet (estimate)
Cycle Types	Whites/Heavy, Colors/Normal, Wrinkle-Free, Sportswear, Hand Wash, Delicates, Quick Wash, Rinse & Spin, Drain & Spin, Drum Clean
Wash Temperatures	Tap Cold, Cold, Warm, Hot, Sanitize
Spin Speeds	No Spin, Slow, Medium, Fast, Very Fast
Soil Level	Very Light, Light, Normal, Heavy
Options	Extra Rinse, Delay Start (up to 18 h), Control Lock, Favorite Cycle
Detergent Type	High Efficiency (HE) only
Dispenser	Drawer with compartments for detergent, bleach, and fabric softener
Routine Maintenance	Cleaning the pump filter, door gasket, and dispenser drawer
Drum Cleaning Cycle	Basket Clean (with bleach or specific cleaner)
Safety	Grounding required, child lock, motor shutdown in case of overheating
Replacement Parts	Available through GE Service (phone [phone] or website www.electromenagersge.ca)
Warranty	1 year (parts and labor)

Frequently Asked Questions - WCVH4800KWW GE

What to do if my washer does not start?

Check that the washer is properly plugged in and the circuit breaker has not tripped. Make sure the water faucets are open and the door is firmly closed. Press the START/PAUSE button to start the cycle.

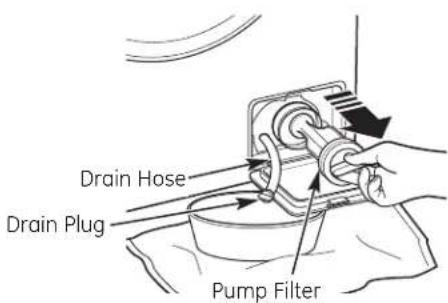

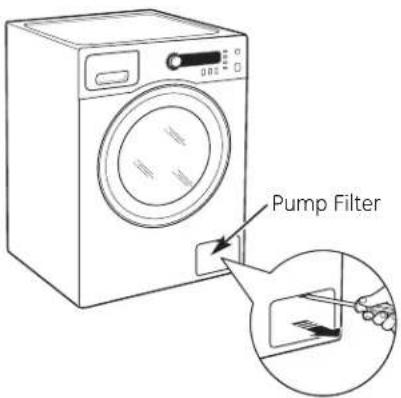

How to clean the pump filter?

Open the access panel using a coin. Unscrew the filter counterclockwise, clean it and replace it. Before removing the filter, drain any residual water using the small drain hose.

Why is my washer making loud noise or vibrating?

Check that the leveling legs are in full contact with the floor and the washer is level. Make sure the shipping bolts have been removed. Redistribute the load if unbalanced.

How to prevent bad odors in the washer?

Leave the door slightly open after each wash to air out. Regularly run the Basket Clean cycle with a cup of bleach or a specific cleaning product. Use only HE detergent.

What to do if water does not drain?

Check that the drain hose is not kinked or clogged. Clean the pump filter. Make sure the drain hose is not pushed too far into the drain (leave an air gap).

Why are clothes too wet after spin?

This may be due to an unbalanced load. Distribute the clothes evenly. Choose a higher spin speed. Check that the pump filter is not clogged.

How to use the Delay Start function?

Select the desired cycle and options, then press DELAY START. Set the delay in increments of one hour (up to 18 h). Press START/PAUSE to start the countdown.

What type of detergent to use?

Use only a high efficiency (HE) detergent. Check for the HE symbol on the packaging. Follow the MAX line in the detergent compartment.

How to lock the controls to prevent child use?

Press and hold the TEMP and SPIN buttons simultaneously for 3 seconds. A beep confirms the lock. To unlock, repeat the same operation.

What to do if water leaks under the washer?

Check the connections of the water inlet hoses and the drain hose. Make sure the door gasket is in good condition. Reduce the amount of detergent if foam overflows. Clean the pump filter.

USER MANUAL WCVH4800KWW GE

Operating Instructions

Control Panel 4

Control Settings 5-7

Features 8

Loading and Using the Washer .9-12

Installation Instructions 13-18

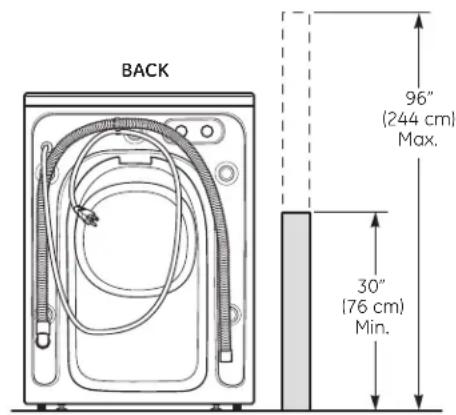

Drain Requirements 16

Electrical Requirements. 16

Grounding Requirements 16

Installing the Washer 17, 18

Location of Your Washer 14

Preparing to Install Your Washer .13

Replacement Parts 18

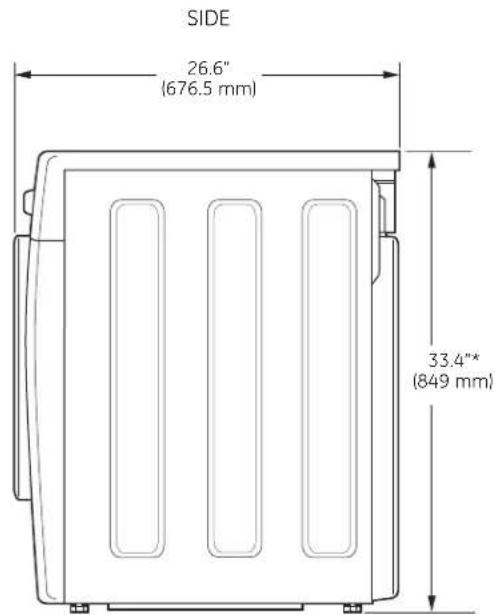

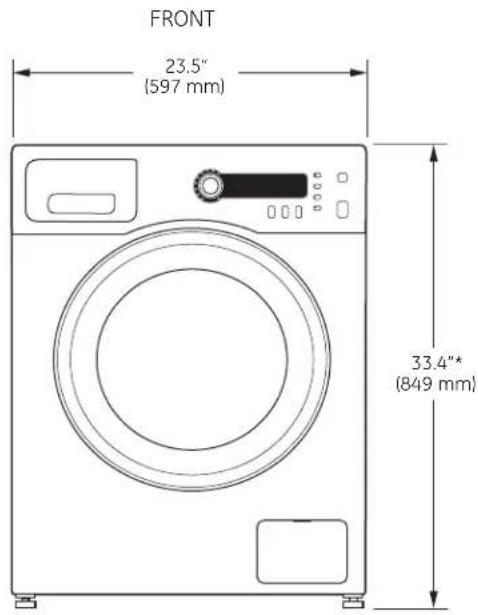

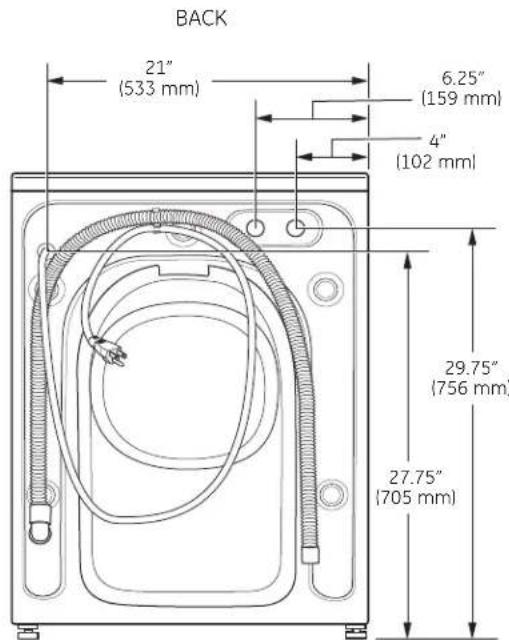

Rough-In Dimensions 14

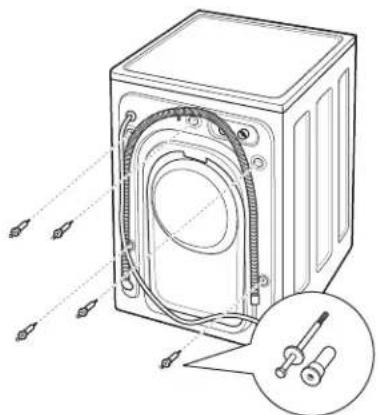

Unpacking Your Washer 15

Water Supply Requirements 16

Troubleshooting Tips 19-21

Consumer Support

Consumer Support .Back Cover

Warranty (Canada) 23

Warranty (U.S.) 22

ENERGY STAR

As an ENERGY STAR® partner,

GE has determined that this

product meets the ENERGY STAR®

guidelines for energy efficiency.

Write the model and serial

numbers here:

Model#

Serial #

You can find them on a label inside the door.

Owner's Manual & Installation Instructions

WCVH4800K

WCVH4815K

Laveuses

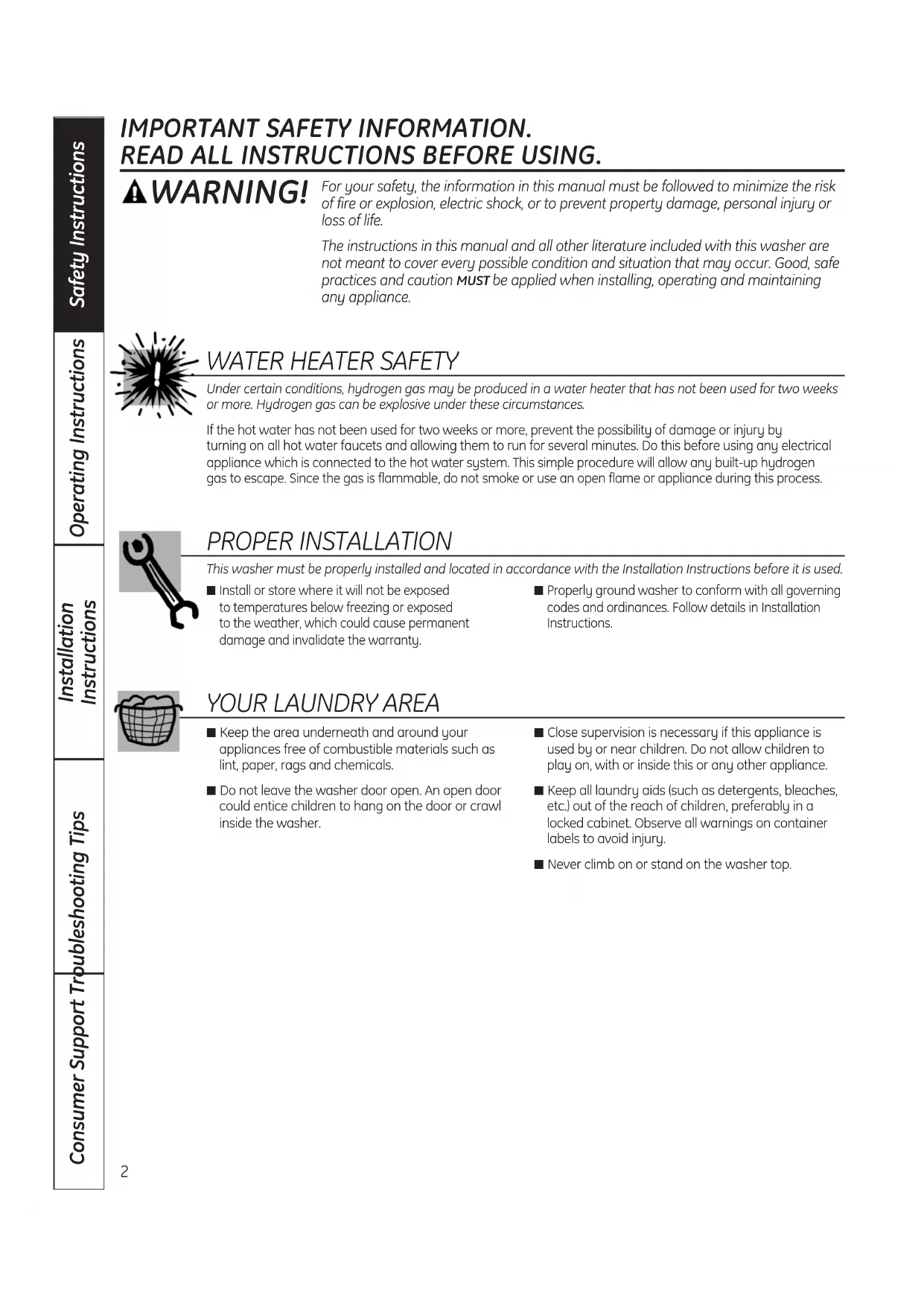

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life.

The instructions in this manual and all other literature included with this washer are not meant to cover every possible condition and situation that may occur. Good, safe practices and caution MUST be applied when installing, operating and maintaining any appliance.

WATER HEATER SAFETY

Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for two weeks or more. Hydrogen gas can be explosive under these circumstances.

If the hot water has not been used for two weeks or more, prevent the possibility of damage or injury by turning on all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance which is connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process.

PROPER INSTALLATION

This washer must be properly installed and located in accordance with the Installation Instructions before it is used.

Install or store where it will not be exposed to temperatures below freezing or exposed to the weather, which could cause permanent damage and invalidate the warranty.

• Properly ground washer to conform with all governing codes and ordinances. Follow details in Installation Instructions.

YOUR LAUNDRY AREA

• Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags and chemicals.

• Do not leave the washer door open. An open door could entice children to hang on the door or crawl inside the washer.

• Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with or inside this or any other appliance.

• Keep all laundry aids (such as detergents, bleaches, etc.) out of the reach of children, preferably in a locked cabinet. Observe all warnings on container labels to avoid injury.

Never climb on or stand on the washer top.

Use this appliance only for its intended purpose as described in this Owner's Manual.

WHEN USING THE WASHER

• Never reach into washer while it is moving. Wait until the machine has completely stopped before opening the door.
• Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing different chemicals can produce a toxic gas which may cause death.

• Do not wash or dry articles that have been cleaned in, washed in, soaked in or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) which may ignite or explode. Do not add these substances to the wash water. Do not use or place these substances around your washer or dryer during operation.
  The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer's wash and care instructions.
  To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the washer at the building's distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning. NOTE: Pressing the power button does NOT disconnect the appliance from the power supply.

• Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

• Do not slam the washer door closed. Do not try to force the door open when locked (LOCKED indicator ON). This could result in damage to the washer.
  The washer is equipped with an over-temperature detection system. The motor will stop if it becomes overheated. The washer will turn off the motor for 2 minutes to cool down. If the motor is still too hot after 2 minutes, the washer will repeat the cool-down a total of 3 times. If the motor remains too hot after 3 cool-downs, the washer will be paused until it is manually started again.

WHEN NOT IN USE

Turn off water faucets to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; they should be replaced every 5 years.
Before discarding a washer, or removing it from service, remove the washer door to prevent children from hiding inside.

• Do not attempt to repair or replace any part of this appliance unless specifically recommended in this Owner's Manual, or in published user-repair instructions that you understand and have the skills to carry out.
  Do not tamper with controls.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

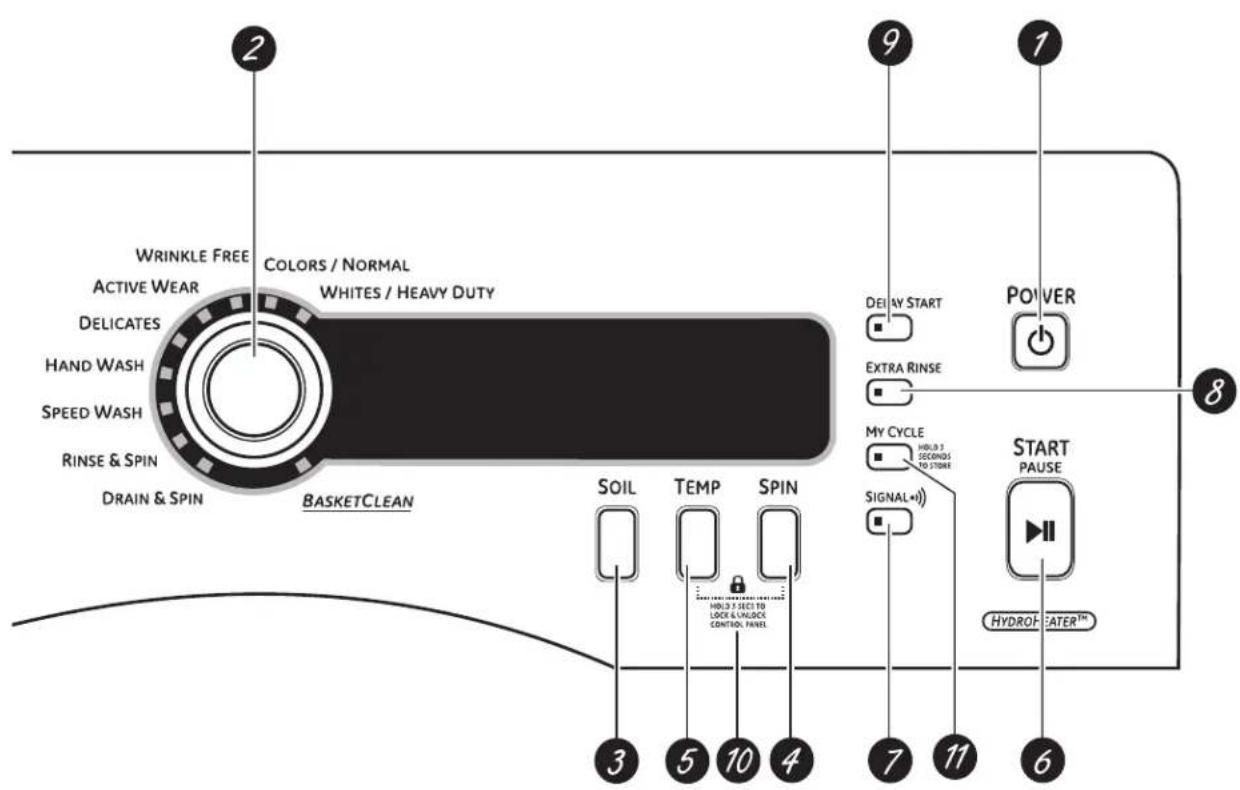

About the washer control panel.

You can locate your model number on a label inside the door.

WARNING! To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

Quick Start

If the screen is dark, press the POWER button to "wake up" the display.

Press the POWER button.

POWER

2 Select a wash cycle. (Defaults are set for each wash cycle. These default settings can be changed. See Control settings for more information.)

If you selected a wash cycle, press the START/PAUSE button.

Power

Press to "wake up" the display. If the display is active, press to put the washer into standby mode.

NOTE: Pressing POWER does not disconnect the appliance from the power supply.

Wash Cycles

The wash cycles are optimized for specific types of wash loads. The chart below will help you match the wash setting with the loads. The Gentle Wash™ lifters lightly tumble the clothes into the water and detergent solution to clean the load.

WHITES/HEAVY DUTY	For heavily to lightly soiled white cottons, household linens, work and play clothes.
COLORS/NORMAL	For heavy to lightly soiled colorfast cottons, household linens, work and play clothes.
WRINKLE FREE (PERMA PRESS)	For Easy Care and permanent press items.
ACTIVE WEAR	For active sports, exercise and some casual wear clothes. Fabrics include modern technology finishes and fibers such as spandex, stretch and microfibers.
DELICATES	For lingerie and special-care fabrics with light to normal soil. Provides gentle tumbling and soak during wash and rinse.
HANDWASH	For items labeled hand-washable with light soils. Provides gentle rocking to mimic the handwashing action.
SPEED WASH	For lightly soiled items that are needed in a hurry. Cycle time is approximately 30 minutes, depending on selected options.
RINSE & SPIN	To quickly rinse out any items at any time.
DRAIN & SPIN	Drain and spin at any time.

BASKET CLEAN To clean drum and reduce odor.

NOTE: Basket Clean is a special cycle used to clean the washer drum and reduce odor. DO NOT add garments to this cycle. Remove detergent cup and add one cup of bleach or other commercially available product manufactured for this purpose, such as Tide® Washing Machine Cleaner.

Control settings.

Soil Level

Changing the SOIL level increases or decreases the wash time to remove different amounts of soil. To change the SOIL level, press the SOIL level button until you have reached the desired setting. You can choose between Extra Light, Light, Normal, Heavy or Extra Heavy soil.

Spin Speed

Changing the SPIN setting changes the final spin speed of the cycles. Always follow the garment manufacturer's care label when changing the SPIN setting.
To change the SPIN setting, press the SPIN setting button until you have reached the desired setting. You can choose between No Spin, Low, Medium, High or Extra High Spin. Higher spin speeds are not available on certain cycles, such as Delicates.
Higher spin speeds remove more water from the clothes and will help reduce dry time, but may also increase the possibility of setting wrinkles on some fabrics..

Wash Temp

Adjust to select the proper water temperature for the wash cycle. The rinse water is always cold to help reduce energy usage and reduce setting of stains and wrinkles. Follow the fabric manufacturer's care label when selecting the wash temperature. To change the wash temperature, press the TEMP button until you have reached the desired setting. You can choose between Tap Cold, Cold, Warm, Hot or Sanitize. The Sanitized wash temperature is not available on certain cycles, such as Delicates.

When selecting the Sanitize wash temperature, the washer increases the water temperature to sanitize and kill more than 99% of many common bacteria found in home laundry. The sanitize wash temperature is only available on the Whites/Heavy Duty wash cycle. For best results, select the heavy soil setting when using the Sanitize wash temperature setting.

6 Start/Pause

Press to start a wash cycle. If the washer is running, pressing it once will pause the washer and unlock the door. This function can be used to add garments during a cycle. Press again to restart the wash cycle.

NOTE: If the washer is paused and the cycle is not restarted within 15 minutes, the current wash cycle will be cancelled.

NOTE: In some cases the washer will drain first, then unlock the door when it is paused.

NOTE: The washer performs automatic system checks after pressing the START/PAUSE button. Water will flow in 45 seconds or less. You may hear the door lock and unlock before water flows; this is normal.

Signal

When the light is "on," the washer will beep at the end of the cycle and every time you press a button on the control panel.

To turn the signal off, press the SIGNAL button and the light will go off.

EXTRA RINSE

Extra Rinse

Use an extra rinse when additional rinsing is desired to remove excess dirt and detergent from soiled loads.

DELAY START

Delay Start

Use to delay the start of your washer.

1. Choose your wash cycle and any options.
2. Press DELAY START button. You can change the delay time in 1-hour increments (up to 18 hours) each time you press the DELAY START button. Stop pressing the button when your desired time is displayed.
3. Press the START/PAUSE button to start the countdown.

The countdown time will be shown in the ESTIMATED TIME REMAINING display.

NOTES:

If the door is opened while the washer is in DELAY, the countdown time will continue to count down the delay time. If the door is not closed and the countdown time expires, the cycle will not start until the door is closed and the START/PAUSE button is pressed.
You can delay the start of a washer cycle up to 18 hours.

The light on the button will light up when DELAY START is on.

TEMP SPIN

Lock

You can lock the controls to prevent any selections from being made. Or you can lock or unlock the controls after you have started a cycle.

Children cannot accidentally start the washer by touching pads with this option selected.

To lock the washer, press and hold the TEMP and SPIN buttons together for 3 seconds.

To unlock the washer controls, press and hold the TEMP and SPIN buttons together for 3 seconds. A sound is made to indicate the lock/unlock status.

The control lock icon on the display will light up when it is on.

NOTE: The POWER button can still be used when the machine is locked.

MY CYCLE

HOLD 3 SECONDS TO STORE

My Cycle

To save a favorite cycle, set the desired settings for wash cycle, soil level, spin speed and wash temp settings and hold down the MY CYCLE button for 3 seconds. A beep will sound to indicate the cycle has been saved.

To use your custom cycle, press the MY CYCLE button before washing a load.

To change the saved cycle, set the desired settings and hold down the MY CYCLE button for 3 seconds.

NOTE: When using MY CYCLE, wash options cannot be modified after the cycle has been started.

NOTE: If you change wash options with MY CYCLE before starting the cycle, the MY CYCLE light will turn off and you will be returned to the base cycle.

About the washer features.

The Dispenser Drawer

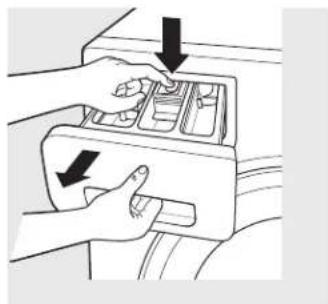

Slowly open the dispenser drawer by pulling it out until it stops.

After adding laundry products, slowly close the dispenser drawer. Closing the drawer too quickly could result in early dispensing of the bleach, fabric softener or detergent.

You may see water in the bleach and fabric softener compartments at the end of the cycle. This is a result of the flushing/siphoning action and is part of the normal operation of the washer.

Use only HE High-Efficiency detergent.

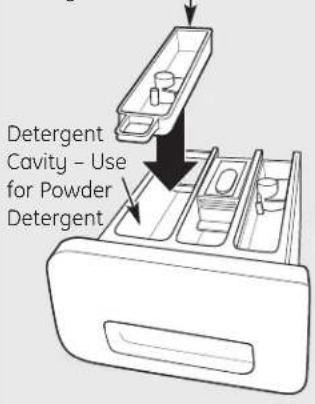

Detergent Cup - Use for Liquid Detergent
Detergent Cup - Use for Liquid Detergent

The Detergent Compartment

Only use high-efficiency detergent in this washer. Use the detergent manufacturer's recommended amount. DO NOT fill above the MAX line.
The detergent compartment is in the left side of the dispenser drawer. The detergent cavity (cup removed) is used for powder detergent, and the detergent cup is used for liquid detergent.
Powder Detergent - Remove the detergent cup and pour the suggested amount of powder detergent into the detergent cavity.
Liquid Detergent - Leave the detergent cup in the drawer and pour liquid detergent into the cup. Do not fill above the MAX line.

Add measured detergent to the left detergent compartment of the dispenser drawer.
Detergent is flushed from the dispenser at the beginning of the wash cycle. Either powdered or liquid high-efficiency detergent can be used.
Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. Avoid using too much detergent in your washer since it can lead to oversudsing and detergent residue being left on the clothes.

Liquid Bleach Compartment

The Liquid Bleach Compartment

If desired, measure out the recommended amount of liquid bleach, not to exceed 1/3 cup (80 ml) and pour into the right compartment labeled "LIQUID BLEACH" marked with this symbol

It is recommended to use High-Efficiency (HE) bleach in this front-load washer.

Do not exceed the maximum fill line. Overfilling can cause early dispensing of the bleach which could result in damaged clothes.

NOTE: Do not use powdered bleach in the dispenser.

Fabric Softener Compartment

The Fabric Softener Compartment

If desired, pour the recommended amount of liquid fabric softener into the compartment labeled "FABRIC SOFTENER." Use only liquid fabric softener in the dispenser.

Dilute with water to the maximum fill line.

Do not exceed the maximum fill line. Overfilling can cause early dispensing of the fabric softener, which could stain clothes.

NOTE: Do not pour fabric softener directly on the wash load.

Loading and using the washer.

Always follow fabric manufacturer's care label when laundering. GEAppliances.com

Sorting Wash Loads

Colors	Soil	Fabric	Lint
Whites	Heavy	Delicates	Lint Producers
Lights	Normal	Easy Care	Lint Collectors
Darks	Light	Sturdy Cottons

Combine large and small items in a load. Load large items first. Large items should not be more than half the total wash load.
■ Washing single items is not recommended. This may cause an out-of-balance load. Add one or two similar items.
■ Pillows and comforters should not be mixed with other items. This may cause an out-of-balance load.
- Sort dark-colored clothes from light-colored clothes to prevent dye transfer. This is a high-efficiency washer, so it uses less water, making dye transfer more common.

Loading the Washer

The wash drum may be fully loaded with loosely added items. Do not wash garments containing flammable materials (waxes, cleaning fluids, etc.).

To add items after the washer has started, press START/PAUSE and wait until the door is unlatched. The washer may take up to 30 seconds to unlock the door after pressing START/PAUSE, depending on the machine conditions. Do not try to force open the door when it is locked. After the door unlocks, open gently. Add items, close the door and press START/PAUSE to restart.

Loading and using the washer.

Care and Cleaning/General Maintenance

Exterior: Immediately wipe off any spills. Wipe with damp cloth. Wipe or dust spills or washing compounds with a damp cloth. Washer control panel and finishes may be damaged by some laundry pretreatment and stain remover products. Apply these products away from the washer. The fabric may then be washed and dried normally. Damage to your washer caused by these products is not covered by your warranty. Do not hit surface with sharp objects.

Interior: Dry around the washer door opening, flexible gasket (including attached hoses) and door glass. These areas should always be clean to ensure a watertight seal.

It is recommended to rinse the washer at least once per month with 1 cup of bleach (or other commercially available product manufactured for this purpose, such as Tide® Washing Machine Cleaner) poured into the bleach section of the dispenser (no clothes) using the BASKET CLEAN cycle (found in the WASHER cycles menu).

Moving and Storage: Ask the service technician to remove water from drain pump and hoses. Do not store the washer where it will be exposed to the weather. When moving the washer, the tub should be kept stationary by using the shipping bolts removed during installation. See Installation Instructions in this manual. If these parts are not available, they can be ordered by visiting our Website at GEAppliances.com or by calling 800.GE.CARES.

Long Vacations: Be sure water supply is shut off at faucets. Drain all water from hoses if weather will be below freezing.

Clean Pump Filter

Due to the nature of the front-load washer, it is sometimes possible for small articles to pass to the pump. The washer has a filter to capture lost items so they are not dumped to the drain. To retrieve lost items, clean out the pump filter.

1. With a knife or slotted screwdriver, pry open the door on the bottom right of the front of the unit.
2. Twist the small white cap counterclockwise a quarter turn and unhook the small rubber hose. Pull the hose out of the hole and remove the white drain hose plug above a small pan to capture any water that may drain. Drain the excess water. Replace.
3. Unscrew the pump filter. Rinse. Replace.
4. Close the access door.

Cleaning the Door Gasket

Open the washer door. Using both hands, press down the door gasket. Remove any foreign objects if found trapped inside the gasket. Make sure there is nothing blocking the holes behind the gasket.

While holding down the door gasket, inspect the interior of the gasket by pulling it down with your fingers. Remove any foreign objects if found trapped inside this gasket. Make sure there is nothing blocking the holes behind the gasket.

When you are finished cleaning the door gasket, remove your hands and the gaskets will return to the operating position.

Lock tab is visible only after drawer has been pulled out

Dispenser Drawer Area: Detergent and fabric softener may build up in the dispenser drawer. Residue should be removed once or twice a month.

Remove the drawer by first pulling it out until it stops. Then reach back into the rear center of the drawer cavity and press down firmly on the lock tab, pulling out the drawer.

■ Remove all cups and inserts from the dispenser drawer. Rinse the inserts, cups and drawer with hot water to remove traces of accumulated laundry products.

To clean the drawer opening, use a small brush to clean the recess. Remove all residue from the upper and lower parts of the recess.
Return inserts to the proper compartments. Replace the dispenser drawer.

To reduce buildup in the Dispenser Printer area:

Use only HE High-Efficiency detergent.

Loading and using the washer.

Fabric Care Labels

Below are fabric care label "symbols" that affect the clothing you will be laundering.

WASH LABELS

Machine wash cycle

Normal

Permanent Press/ wrinkle resistant

Gentle/ deli cate

Handwa

Do not wash Do not wring

Water temperature

Hot (50°C/120°F)

Warm (40^ / 105^)

Cold/cool (30^ / 85^)

BLEACH LABELS

Bleach symbols

DETERGENT LABELS

Use only HE High-Efficiency detergent.

Installation Instructions

Washer

WCVH4800 and WCVH4815

If you have any questions, call 800.GE.CARES (800.432.2737) or visit our Website at:

GEAppliances.com

In Canada, call 1.800.561.3344 or visit www.GEApliances.ca

BEFORE YOU BEGIN

Read these instructions completely and carefully.

IMPORTANT
Save these instructions
for local inspector's use.

• IMPORTANT
• Observe all governing
  codes and ordinances.
  Note to Installer - Be sure to leave these instructions with the Consumer.
  Note to Consumer - Keep these instructions for future reference.
• Skill level - Installation of this appliance requires basic mechanical and electrical skills.
  Completion time - 1-3 hours
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

FOR YOUR SAFETY:

WARNING

• This appliance must be properly grounded and installed as described in these Installation Instructions.
• Do not install or store appliance in an area where it will be exposed to water/weather. See Location of Your Washer section.
  NOTE: This appliance must be properly grounded, and electrical service to the washer must conform with local codes and ordinances and the latest edition of the National Electrical Code, ANSI/NFPA 70.

TOOLS REQUIRED FOR WASHER INSTALLATION

Wrench (provided)
□ Channel-lock adjustable pliers
Carpenter's level

PARTS SUPPLIED
Water Hoses (2)

Hose Fittings (4)

Shipping Bolt Hole Covers (5)

Wrench

Hose Guide

Detergent Cup

Do Not Install the Washer:

1. In an area exposed to dripping water or outside weather conditions. The ambient temperature should never be below 60^ (15.6°C) for proper washer operation.
2. In an area where it will come in contact with curtains or drapes.
3. On carpet. The floor MUST be a hard surface with a maximum slope of 1/2'' per foot (1.27 cm per 30 cm). To make sure the washer does not vibrate or move, you may have to reinforce the floor.

NOTE: If floor is in poor condition, use 3/4'' impregnated plywood sheet solidly attached to existing floor covering.

IMPORTANT:

Minimum Installation Clearances

• When installed in alcove: Sides, Rear, Top = 0" (0 cm)
• When installed in closet: Sides, Rear, Top = 0" (0 cm), Front = 1" (2.54 cm)
  Closet door ventilation openings required: 2 louvers each 60 square in. (387 cm²), located 3" (7.6 cm) from top and bottom of door

CONTRACTOR DIMENSIONS

ROUGH-IN DIMENSIONS

*NOTE: Washer legs have 0.75" [19 mm] adjustability. Stacked:67.7"(171.8 cm)

UNPACKING THE WASHER

WARNING: Recycle or destroy the carton and plastic bags after the washer is unpacked. Make materials inaccessible to children. Children might use them for play. Cartons covered with rugs, bedspreads or plastic sheets can become airtight chambers causing suffocation.

1. Cut and remove all packaging straps.
2. While it is in the carton, carefully lay the washer on its side. DO NOT lay the washer on its front or back.
3. Turn down the bottom flaps. Remove all base packaging including the styrofoam base.
4. Carefully return the washer to an upright position and remove the carton by lifting it upward.
5. Carefully move the washer to within 4 feet (122cm) of the final location.
6. Remove the following from the back side of the washer: 5 bolts 5 plastic spacers (including rubber grommets)

UNPACKING THE WASHER (cont.)

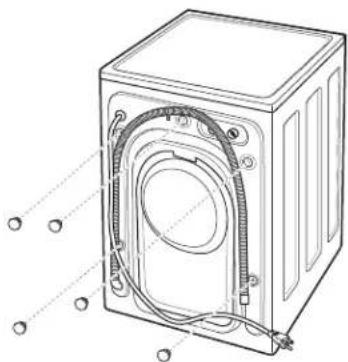

1. Insert shipping bolt hole covers into shipping bolt holes.

NOTES:

• Failure to remove the shipping braces can cause the washer to become severely unbalanced.
• Save all bolts for future use.
• If you must transport the washer at a later date, you must reinstall the shipping support hardware to prevent shipping damage. Keep the hardware in the plastic bag provided.

ELECTRICAL REQUIREMENTS

Read these instructions completely and carefully.

WARNING—TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK AND PERSONAL INJURY

DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.

Washer must be electrically grounded in accordance with local codes and ordinances or, in the absence of local codes, in accordance with the NATIONAL ELECTRICAL CODE, ANSI/NFPA NO. 70.

CIRCUIT - Individual, properly polarized and grounded 15-amp branch circuit fused with 15-amp, time-delay fuse or circuit breaker.

POWER SUPPLY - 2-wire, with ground, 120-volt, single-phase, 60-Hz, Alternating Current.

OUTLET RECEPTACLE - Properly grounded 3-prong receptacle to be located so the power supply cord is accessible when the washer is in an installed position.

GROUNDING REQUIREMENTS

WARNING:

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a licensed electrician if you are in doubt as to whether the appliance is properly grounded.

1. The washer MUST be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path of least resistance for electrical current.
2. Since your washer is equipped with a power supply cord having an equipment-grounding conductor and a grounding plug, the plug MUST be plugged into an appropriate, copper-wired receptacle that is properly installed and grounded in accordance with all local codes and ordinances or in the absence of local codes, with the National Electrical Codes, ANSI/NFPA 70 (latest edition). If in doubt, call a licensed electrician. DO NOT cut off or alter the grounding prong on the power supply cord. In situations where a two-slot receptacle is present, it is the owner's responsibility to have a licensed electrician replace it with a properly grounded three-prong, grounding-type receptacle.

WATER SUPPLY REQUIREMENTS

Hot and cold water faucets MUST be installed within 42 inches (107 cm) of your washer's water inlet. The faucets MUST be 3/4'' (1.9 cm) garden hose-type so inlet hoses can be connected. Water pressure MUST be between 10 and 120 pounds per square inch. Your water department can advise you of your water pressure. The hot water temperature should be set to deliver water at 120^ to 140^ F (48^ - 60^) to provide proper Automatic Temperature Control (ATC) performance.

DRAIN REQUIREMENTS

1. Drain capable of eliminating 17 gals (64.3 L) per minute.
2. A standpipe diameter of 1 - 1 / 4'' (3.18 cm) minimum.
3. The standpipe height above the floor should be: Minimum height: 30^ (76~cm) Maximum height: 96^ (244~cm)

To achieve a drain height above 58^ (147~cm) to a maximum of 96^ a service kit must be purchased through GE Service (WH49X301).

NOTE: The drain hose attached to the washer can reach a 58^ -high standpipe. For a higher standpipe, contact an authorized parts distributor.

INSTALLING THE WASHER

1. Run some water from the hot and cold faucets to flush the water lines and remove particles that might clog the water valve screens.

2. Remove the inlet hoses from the plastic bag. Remove black rubber washers from bag and insert into hose fitting before connecting to unit.

3. (90^ elbow end]

Carefully connect the inlet hose marked HOT to the outside "H" outlet of the

water valve. Tighten by hand; then tighten another 2/3 turn with pliers. Carefully connect

the other inlet hose to the inside "C" outlet of the water valve. Tighten by hand; then

tighten another 2/3 turn with pliers. Do not cross-thread or overtighten these connections.

1. Connect the inlet hose ends to the HOT and COLD water faucets tightly by hand; then tighten another 2/3 turn with pliers. Turn the water on and check for leaks.

1. Carefully move the washer to its final location. Gently rock the washer into position. It is important not to damage the rubber leveling legs when moving your washer to its final location. Damaged legs can increase washer vibration. It may be helpful to spray window cleaner on the floor to help move your washer into its final position. NOTE: To reduce vibration, ensure that all four rubber leveling legs are firmly touching the floor. Push and pull on the back right and then back left of your washer.

NOTE: Do not use the dispenser drawer or door to lift the washer.

NOTE: If you are installing into a drain pan, you can use a 24-inch-long 2 × 4 to lever the washer into place.

1. With the washer in its

final position, place a level on top of the washer (if the washer is installed under a counter, the washer should not be able to rock). Adjust the front

leveling legs up or down to ensure the washer is resting solidly. Turn the locknuts on each leg up toward the base of the washer and snug with a wrench.

NOTE: Keep the leg extension at a minimum to prevent excessive vibration. The farther out the legs are extended, the more the washer will vibrate.

If the floor is not level or is damaged, you may have to extend the rear leveling legs.

INSTALLING THE WASHER (cont.)

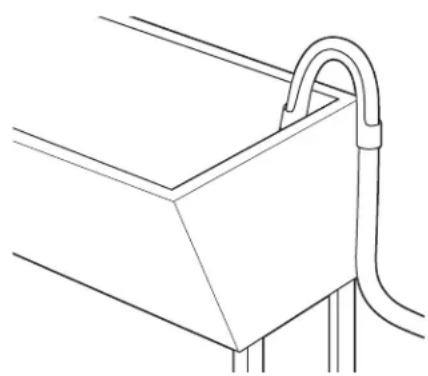

1. Attach U-shaped hose guide to the end of the drain hose. Place the hose in a laundry tub or standpipe.

NOTE: If the drain hose is placed in a standpipe without forming a U shape, a siphoning action could occur. There must be an air gap around the drain hose. A snug hose fit can also cause a siphoning action.

1. Plug the power cord into a grounded outlet.

NOTE: Check to be sure the power is off at the circuit breaker/fuse box before plugging the power cord into an outlet.

1. Turn on the power at the circuit breaker/fuse box.
2. Read the rest of this Owner's Manual. It contains valuable and helpful information that will save you time and money.
3. Before starting the washer, check to make sure:

Main power is turned on.
The washer is plugged in.
The water faucets are turned on.
The unit is level and all four leveling legs are firmly on the floor.
The shipping support hardware is removed and saved.
The drain hose is properly tied up.
There are no leaks at the faucet, drain line or washer.

1. Run the washer through a complete cycle. Check for water leaks and proper operation.
2. If your washer does not operate, please review the Before you call for service section before calling for service.
3. Place these instructions in a location near the washer for future reference.

REPLACEMENT PARTS

If replacement parts are needed for your washer, they can be ordered in the United States by visiting our Website at GEAppliances.com or by calling 800.GE.CARES. In Canada, visit www.GEAppliances.ca or call 1.800.561.3344.

Troubleshooting Tips

Save time and money! Review the charts on the

following pages first and you may not need to call

for service.

Problem Possible Cause What To Do
Not spinning or agitating	Drain hose is kinked or improperly connected sitting on it.	• Straighten drain hose and make sure washer is not
	Household drain may • Check household plumbing. You may need to call be clogged a plumber.
	Drain hose siphoning; drain hose • Ensure there is an air gap between hose and drain. pushed too far down in the drain
	Washer pump filter may • Clean Pump Filter – Open the pump access door (use a coin) be clogged and remove the pump filter by turning it counterclockwise and pulling out. Clean the filter, removing all loose debris, and put filter back in place.
	Load is out of balance	• Redistribute clothes and run Drain & Spin or Rinse & Spin. • Increase load size if washing small load containing heavy and light items.
Leaking water	Door gasket is damaged	• Check to see if gasket is seated and not torn. Objects left in pockets may cause damage to the washer (nails, screws, pens, pencils).
	Door gasket not damaged	• Water may drip from the door when the door is opened. This is a normal operation.
	Check back left of washer for water	• If this area is wet, you have oversudsing condition. Use less detergent.
	Fill hoses or drain hose is improperly connected faucets and make sure end of drain hose is correctly inserted in and secured to drain facility.	• Make sure hose connections are tight at washer and sure end of drain hose is correctly inserted in and secured to drain facility.
	Household drain may • Check household plumbing. You may need to call be clogged a plumber.
Not draining	Drain hose is kinked or improperly connected sitting on it.	• Straighten drain hose and make sure washer is not
	Household drain may • Check household plumbing. You may need to call be clogged a plumber.
	Drain hose siphoning; drain hose • Ensure there is an air gap between hose and drain. pushed too far down in the drain
	Washer pump filter may • Clean Pump Filter –Open the pump access door (use a coin) be clogged and remove the pump filter by turning it counterclockwise and pulling out. Clean the filter, removing all loose debris, and put filter back in place.
Not spinning	Drain hose is kinked or improperly connected	• Straighten drain hose and make sure washer is not sitting on it.
	Household drain may • Check household plumbing. You may need to call a plumber.
	Drain hose siphoning; drain hose • Ensure there is an air gap between hose and drain. pushed too far down in the drain
	Washer pump filter may • Clean Pump Filter – Open the pump access door (use a coin) be clogged and remove the pump filter by turning it counterclockwise and pulling out. Clean the filter, removing all loose debris, and put filter back in place.
	Load is out of balance	• Redistribute clothes and run Drain & Spin or Rinse & Spin. • Increase load size if washing small load containing heavy and light items.
	Motor is overheated • Washer motor will stop if it becomes overheated. It will automatically restart after a cool-down period of up to 2 hours (if washer has not been manually turned off).
	Door is open	• Make sure door is closed.

Before you call for service...

Problem Possible Cause What To Do
Incomplete cycle or timer not advancing improperly connected sitting on it.	Drain hose is kinked or • Straighten drain hose and make sure washer is not
	Household drain may • Check household plumbing. You may need to call be clogged a plumber.
	Drain hose siphoning; drain hose • Ensure there is an air gap between hose and drain. pushed too far down in the drain
	Washer pump filter may • Clean Pump Filter - Open the pump access door (use a coin) be clogged and remove the pump filter by turning it counterclockwise and pulling out. Clean the filter, removing all loose debris, and put filter back in place.
	Automatic load redistribution • Timer stops at 1 minute; machine has redistributed the load once or twice. This is normal operation. Do nothing; the machine will finish the wash cycle.
Loud or unusual noise; vibration or shaking	Cabinet moving • Washer is designed to move 1/4" to reduce forces transmitted to the floor. This movement is normal.
	All rubber leveling legs are not firmly touching the floor • Push and pull on the back right and then back left of your washer to check if it is level. If the washer is uneven, adjust the rubber leveling legs so they are all firmly touching the floor. Your installer should correct this problem.
	Unbalanced load • Open door and manually redistribute load. To check machine, run rinse and spin with no load. If normal, unbalance was caused by load.
	Shipping bolts not removed • All five (5) shipping bolts should be removed before use.
Clothes too wet	Drain hose is kinked or improperly connected sitting on it. • Straighten drain hose and make sure washer is not
	Household drain may • Check household plumbing. You may need to call be clogged a plumber.
	Drain hose siphoning; drain hose • Ensure there is an air gap between hose and drain. pushed too far down the drain
	Washer pump filter may • Clean Pump Filter - Open the pump access door (use a coin) be clogged and remove the pump filter by turning it counterclockwise and pulling out. Clean the filter, removing all loose debris, and put filter back in place.
	Load is out of balance • Redistribute clothes and run Drain & Spin or Rinse & Spin. • Increase load size if washing small load containing heavy and light items.
No power/washer not working or dead	Drain hose is kinked or improperly connected • Straighten drain hose and make sure washer is not sitting on it.
	Household drain may • Check household plumbing. You may need to call be clogged a plumber.
	Drain hose pushed too far down in the drain • Ensure there is an air gap between hose and drain.
	Washer pump filter may • Clean Pump Filter - Open the pump access door (use a coin) be clogged and remove the pump filter by turning it counterclockwise and pulling out. Clean the filter, removing all loose debris, and put filter back in place.
	Washer is unplugged • Make sure cord is plugged securely into a working outlet.
	Water supply is turned off • Turn both hot and cold faucets fully on.
	Circuit breaker/fuse is tripped/blown • Check house circuit breakers/fuses. Replace fuses or reset breaker. Washer should have separate outlet.
	Controls are not set properly • Hold START/PAUSE button to start cycle.
	Automatic self-system checks • First time the washer is plugged in, automatic checks occur. It may take up to 20 seconds before you can use your washer. This is normal operation.
Problem Possible Cause What To Do
Water does not enter washer or enters slowly	Automatic self-system checks	After START is pressed, the washer does several system checks. Water will flow several seconds after START is pressed.
	Water valve screens are stopped up	Turn off the water source and remove the water connection hoses from the upper back of the washer. Use a brush or toothpick to clean the screens in the machine. Reconnect the hoses and turn the water back on.
	Filter clogged or fill hose may be kinked must be free of solids) on the unit	Make sure that the water valve filters (blue and orange screen are not clogged. Turn off water and check filter by disconnecting hose at machine. Check that fill hoses are not kinked or clogged.
	Energy efficiency	This is an energy-efficient washer. As a result, the temperature settings for this washer may be different than for a non-energy-efficient washer.
	Insufficient water supply • Make sure that the water supply is turned on. Make sure that the water faucets are turned to their completely open position.
	The washer door is open • The washer door must be closed for all washer cycle operations. If the door is opened during the washer operation, all functions will stop, including water filling.
	Incorrect fill hose connection	Make sure that the fill hoses connect the hot water supply to the hot inlet on the washer and the cold water supply to the cold inlet on the washer (hot to hot, cold to cold).
	Water fill optimization	Water may not cover the top level of the clothes. This is normal for this high-efficiency washer. The water fill is optimized by the system for best wash performance.
Snags, holes, tears, rips or excessive wear	Pens, pencils, nails, screws or other objects left in pockets	Remove loose items from pockets.
	Pins, snaps, hooks, sharp buttons, belt buckles, zippers and sharp objects left in pockets	Fasten snaps, hooks, buttons and zippers.
Wrinkling	Improper sorting	Avoid mixing heavy items (like work clothes) with light items (like blouses).
	Overloading	Load your washer so clothes have enough
	Incorrect wash cycle	Match Cycle selection to the type of fabric you are washing (especially for easy-care loads).
	Repeated washing in water that is too hot	Wash in warm or cold water.
Grayed or yellowed clothes	Not enough detergent	Use correct amount of detergent.
	Not using HE (high-efficiency) detergent	Use HE detergent.
	Hard water	Use hottest water safe for fabric. Use a water conditioner like Calgon brand or install a water softener.
	Water is not hot enough	Make sure water heater is delivering water at 120°-140°F (48°-60°C).
	Detergent is not dissolving	Try a liquid detergent.
	Dye transfer	Sort clothes by color. If fabric label states wash separately, unstable dyes may be indicated.
Colored spots	Incorrect use of fabric softener	Check fabric softener package for instructions and follow directions for using dispenser.
	Dye transfer	Sort whites or lightly colored items from dark colors. Promptly remove wash load from washer.
Water temperature is incorrect connected	Water supply is improperly	Make sure hoses are connected to correct faucets.
	House water heater is not set • Make sure house water heater is delivering water properly	at 120°-140°F (48°-60°C).
Bad odor inside your washer	Washer unused for a long time or not using recommended quality of HE detergent	Leave the door slightly open for the water to air dry. Run a Basket Clean cycle (found in the Washer cycles menu) with 1 cup of bleach or other commercially available product manufactured for this use such as Tide® Washing Machine Cleaner. See Care and Cleaning/General Maintenance in the Loading and using the washer section.
Slight variation in metallic color	This is normal	Due to the metallic properties of paint used for this unique product, slight variations of color may occur due to viewing angles and lighting conditions.

GE Washer Warranty. (For customers in the United States)

All warranty service provided by our Factory Service Centers, or an authorized Customer Care technician. To schedule service on-line, visit us at GEAppliances.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number avail ble when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: We Will Replace:

One Year

From the date of the

original purchase costs to

Any part of the washer which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE will also provide, free of charge, all labor and related service replace the defective part.

What Is Not Covered (in the United States):

Service trips to your home to teach you how to use the product.
■ Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
Damage after delivery.

• Replacement of house fuses or resetting of circuit breakers.
  Damage to the product caused by accident, fire, floods or acts of God.
• Incidental or consequential damage caused by possible defects with this appliance.
  Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTY--Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

All warranty service provided by our Factory Service Centres or an authorized technician. For service, call 1.800.561.3344. Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

For The Period Of: We Will Replace:

One Year Any part of the washer which fails due to a defect in materials or workmanship. During this From the date of the limited one-year warranty, Mabe will also provide, free of charge, all labour and related original purchase service costs to replace the defective part.

What Is Not Covered (in Canada):

Service trips to your home to teach you how to use the product.
■ Improper installation, delivery or maintenance.
Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
Damage after delivery.

■ Replacement of house fuses or resetting of circuit breakers.
Damage to the product caused by accident, fire, floods or acts of God.
- Incidental or consequential damage caused by possible defects with this appliance.
Product not accessible to provide required service.

EXCLUSION OF IMPLIED WARRANTY--Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In-home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide.

Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from province to province. To know what your legal rights are in your province, consult your local or provincial consumer affairs office.

Warrantor: Mabe Canada Inc., Burlington, Ontario

Consumer Support Troubleshooting Tips

Installation Instructions

Operating Instructions

Safety Instructions

Notes.

Power (alimentation)

HOLD 3 SECONDS TO STORE

My Cycle (Favori)

HOLD 3 SECS TO LOCK & UNLOCK CONTROL PANEL

Lock (Bloquear)

HOLD 3 SECONDS TO STORE

My Cycle (Mi ciclo)

Modelos
WCVH4800, WCVH4815

Garante: General Electric Company. Louisville, KY 40225

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Registre su electrodoméstico GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line. In Canada: www.GEAppliances.ca

Schedule Service

In the U.S.: GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours. In Canada, call 1.800.561.3344

Real Life Design Studio

In the U.S.: GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

In Canada, contact: Manager, Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

Extended Warranties

In the U.S.: GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, please visit our Website or contact your local extended warranty provider.

Parts and Accessories

In the U.S.: GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA and MasterCard cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Customers in Canada should consult the yellow pages for the nearest Mabe service center, or call 1.800.661.1616.

Contact Us

In the U.S.: GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

In Canada: www.GEAppliances.ca, or write to:

Director, Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

Register Your Appliance

In the U.S.: GEAppliances.com

Register your new appliance on-line-at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada: www.GEAppliances.ca
