USER MANUAL MW2706 TRISTAR

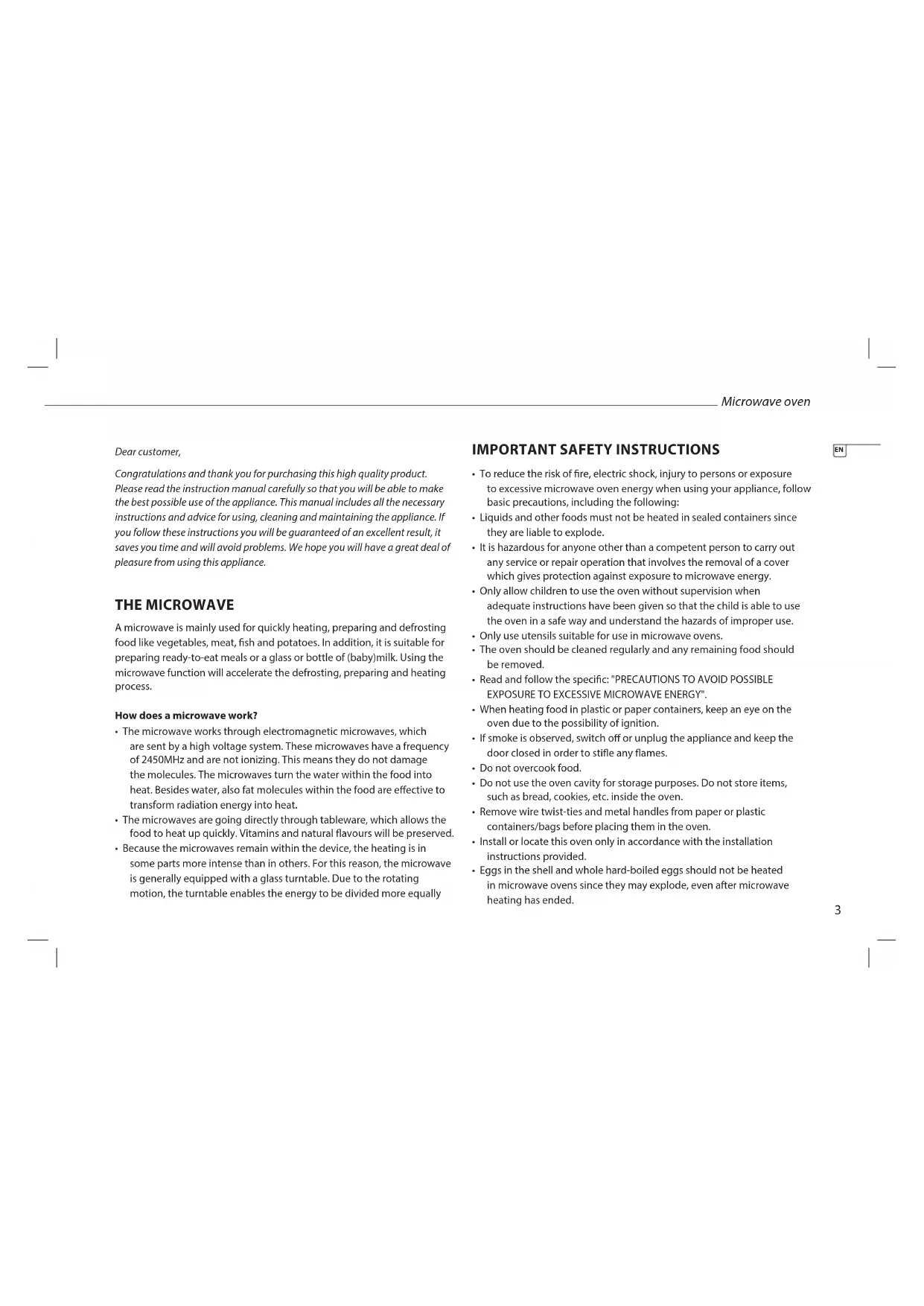

Congratulations and thank you for purchasing this high quality product.

Please read the instruction manual carefully so that you will be able to make

the best possible use of the appliance. This manual includes all the necessary

instructions and advice for using, cleaning and maintaining the appliance. If

you follow these instructions you will be guaranteed of an excellent result, it

saves you time and will avoid problems. We hope you will have a great deal of

pleasure from using this appliance.

THE MICROWAVE A microwave is mainly used for quickly heating, preparing and defrosting

food like vegetables, meat, sh and potatoes. In addition, it is suitable for

preparing ready-to-eat meals or a glass or bottle of (baby)milk. Using the

microwave function will accelerate the defrosting, preparing and heating

How does a microwave work?

• The microwave works through electromagnetic microwaves, which

are sent by a high voltage system. These microwaves have a frequency

of 2450MHz and are not ionizing. This means they do not damage

the molecules. The microwaves turn the water within the food into

heat. Besides water, also fat molecules within the food are eective to

transform radiation energy into heat.

• The microwaves are going directly through tableware, which allows the

food to heat up quickly. Vitamins and natural avours will be preserved.

• Because the microwaves remain within the device, the heating is in

some parts more intense than in others. For this reason, the microwave

is generally equipped with a glass turntable. Due to the rotating

motion, the turntable enables the energy to be divided more equally

IMPORTANT SAFETY INSTRUCTIONS

• To reduce the risk of re, electric shock, injury to persons or exposure

to excessive microwave oven energy when using your appliance, follow

basic precautions, including the following:

• Liquids and other foods must not be heated in sealed containers since

they are liable to explode.

• It is hazardous for anyone other than a competent person to carry out

any service or repair operation that involves the removal of a cover

which gives protection against exposure to microwave energy.

• Only allow children to use the oven without supervision when

adequate instructions have been given so that the child is able to use

the oven in a safe way and understand the hazards of improper use.

• Only use utensils suitable for use in microwave ovens.

• The oven should be cleaned regularly and any remaining food should

• Read and follow the specic: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

• When heating food in plastic or paper containers, keep an eye on the

oven due to the possibility of ignition.

• If smoke is observed, switch o or unplug the appliance and keep the

door closed in order to stie any ames.

• Do not overcook food.

• Do not use the oven cavity for storage purposes. Do not store items,

such as bread, cookies, etc. inside the oven.

• Remove wire twist-ties and metal handles from paper or plastic

containers/bags before placing them in the oven.

• Install or locate this oven only in accordance with the installation

instructions provided.

• Eggs in the shell and whole hard-boiled eggs should not be heated

in microwave ovens since they may explode, even after microwave

• Use this appliance only for its intended uses as described in manual. Do not

use corrosive chemicals or vapors in this appliance. This oven is especially

designed to heat. It is not designed for industrial or laboratory use.

• If the supply cord is damaged, it must be replaced by the manufacturer,

its service agent or similarly qualied persons in order to avoid a hazard.

• Do not store or use this appliance outdoors.

• Do not use this oven near water, in a wet basement or near a

• The temperature of accessible surfaces may be high when the appliance

is operating. The surfaces are liable to get hot during use. Keep cord

away from heated surface, and do not cover any events on the oven.

• Do not let cord hang over edge of table or counter.

• Failure to maintain the oven in a clean condition could lead to

deterioration of the surface that could adversely aect the life of the

appliance and possibly result in a hazardous situation.

• The contents of feeding bottles and baby food jars shall be stirred or

shaken and the temperature checked before consumption, in order to

• Microwave heating of beverages can result in delayed eruptive boiling,

therefore care must be taken when handling the container.

• The appliance is not intended for use by persons (including children)

with reduced physical , sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible

• Children should be supervised to ensure that they do not play with the

• The appliances are not intended to be operated by means of an

external timer or separate remote-control system.

• Accessible parts may become hot during use. Young children should be

kept away. Steam cleaner may not be used for cleaning.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the

oven door glass since they can scratch the surface, which may result in

shattering of the glass.

• The rear surface of appliance shall be placed against a wall.

• Never use the microwave without the turntable shaft, turntable ring

assembly and the glass turntable.

• Make sure food and containers of food are always placed on the glass

Precautions to avoid possible exposure to excessive

• Do not attempt to operate this oven with the door open since this can

result in harmful exposure to microwave energy. It is important not to

break or tamper with the safety interlocks.

• Do not place any object between the oven front face and the door or

allow soil or cleaner residue to accumulate on sealing surfaces.

• If the door or door seals are damaged, the oven must not be operated

until it has been repaired by a competent person.

• If the apparatus is not maintained in a good state of cleanliness, its

surface could be degraded and aect the lifespan of the apparatus and

lead to a dangerous situation.

To reduce the risk of injury to persons grounding installation

• Touching some of the internal components can cause serious personal

injury or death. Do not disassemble this appliance.

• Electric Shock Hazard Improper use of the grounding can result in

electric shock. Do not plug into an outlet until appliance is properly

installed and grounded.

• Consult a qualied electrician or serviceman if the grounding

instructions are not completely understood or if doubt exists as to

whether the appliance is properly grounded. If it is necessary to use an

extension cord , use only a 3-wire extension cord.

• A short power-supply cord is provided to reduce the risks resulting

from becoming entangled in or tripping over a longer cord.

• If a long cord set or extension cord is used the marked electrical rating

of the cord set or extension cord should be at least as great as the

electrical rating of the appliance.

• The long cord should be arranged so that it will not drape over the

counter top or tabletop where it can be pulled on by children or

tripped over unintentionally.

Which materials are not suitable for placing in the microwave?

Not all materials can be placed in a microwave. Below shows which

materials are not suitable:

• Cookware made of porcelain and ceramics

• Non-heat-resistant bowls

• Flammable material such as plastic, paper, plastic, textile, wood, owers

or other ammable material.

• The packaging of sealed packaged foods can easily burst, which may

• Keep warm packages. These can be ignited.

• Metal locking strips

• Pillows lled with grain, cherry pits or gel.

• Sealed bowls and eggs. Eggs may burst due to the pressure.

If you’re not sure, you can test the material in question by following

the procedure below.

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along

with the utensil in question.

2. Cook on maximum power for 1 minute.

3. Carefully feel the utensil. If the empty utensil is warm, do not use it for

4. Do not exceed 1 minute cooking time.

INSTALLATION AND CONNECTION

• Remove all packing material and accessories. Examine the oven for any

damage such as dents or a broken door. Do not install if the oven is

• Remove any protective lm, found on the microwave oven cabinet

• Do not remove the light brown Mica cover that is attached to the oven

cavity to protect the magnetron.

• Select a level surface that provide enough open space for the intake

and/or outlet vents.

• The rear surface of appliance shall be placed against a wall. A minimum

clearance of 7.5cm is required between the oven and any adjacent

walls. One side must be open. Leave a minimum clearance of 30cm

above the oven. Do not remove the feet from the bottom of the oven.

• Blocking the intake and/or outlet openings can damage the oven.

• Place the oven as far away from radios and TV as possible. Operation of

microwave oven may cause interference to your radio or TV reception.

• Plug your oven into a standard household outlet. Be sure the voltage

and the frequency is the same as the voltage and the frequency on the

• Do not install the oven over a stove or other heat-producing appliance.

If installed near or over a heat source, the oven could be damaged and

the warranty would be void.

OPERATION INSTRUCTION

1. Use the power knob to choose the desired level setting, for the

dierent settings please refer the table below.

2. Use the timer knob to set the desired cooking time.

3. Please note as soon as the timer is turned the microwave oven starts

4. After the cooking time is up, the microwave will “dong” which indicates

that your food is ready.

5. If the device is not in use, always set the timer knob to the “0” position.

Function/Power Output Application

Low 17% micro. Soften ice cream

Med. 55% micro. Stew, sh

Med. High 77% micro.

Reheat, milk, boil water,

vegetables, beverage

Notice: When removing food from the oven, please ensure that the oven

power is switched o by turning the timer switch to 0 (zero). Failure to

do so, and operating the microwave oven without food in it, can result in

overheating and damage to the microwave.

• Before cleaning, unplug the appliance and wait for the appliance to

• Clean the inside of the appliance with a damp cloth. Never use harsh

and abrasive cleaners, scouring pad or steel wool, which damages the

• Clean the accessories in the usual way in soapy water.

• The door frame and seal and neighboring parts must be cleaned

carefully with a damp cloth when they are dirty.

• Never immerse the device in water or any other liquid. The device in

not dishwasher proof.

TROUBLE SHOOTING Normal

Microwave oven interfering TV

Radio and TV reception may be

interfered when microwave oven

operating. It is similar to the

interference of small electrical

appliances, like mixer, vacuum

cleaner, and electric fan. This is

In low power microwave cooking,

oven light may become dim. This

Steam accumulating on door, hot

In cooking, steam may come out of

food. Most will get out from vents.

But some may accumulate on cool

place like oven door. This is normal.

Oven started accidentally with no

It is forbidden to run the unit

without any food inside. It is very

• Tristar is not liable for damages occurred through:

o In case the appliance has fallen.

o In case the appliance has been technically changed by the owner or

another third party.

o In case of improper use of the appliance.

o In case of normal wear of the appliance.

• By executing repairs the original warranty period of 2 years will not

be extended, nor the right to a complied new warranty. This warranty

is only legal on European soil. This warranty does not overrule the

European directive 1944/44CE.

• Always keep your receipt, without this receipt you can not claim any

form of warranty whatsoever.

• Damage caused by not following the instruction manual will lead to a void

of warranty, if this results in consequential damages Tristar will not be liable.

• Tristar will not be liable for material damage or personal injury caused

by improper use or if the safety instructions are not properly executed.

• Cleaning, as mentioned in this manual, is the only necessary

maintenance for this appliance.

• When the appliance should be repaired, make sure that this will be

performed by an authorized company.

• This appliance may not be amended or changed.

• If problems arise during the 2 years from the date of purchase, which

are covered by the factory warranty, you can go back to the point of

purchase to replace it for a new one.

• For questions or compliances please contact your retailer “point of

• This appliance is covered with a 24 month guarantee starting on the

date of purchase (receipt).

• Only material or manufacturing defects are included in this warranty.

• If you wish to make a claim please return the entire machine in the

original packaging to your dealer together with the receipt.

• Damage to accessories does not mean automatic free replacement of

the whole appliance. In such cases please contact our hotline. Broken

glass or breakage of plastic parts are always subject to a charge.

• Defects to consumables or parts subject to wearing, as well as cleaning,

maintenance or the replacement of these parts are not covered by the

guarantee and hence are to be paid!

• The guarantee lapses in case of unauthorized tampering.

• After the expiry of the guarantee repairs can be carried by the

competent dealer or repair service against the payment of the ensuing

GUIDELINES FOR PROTECTION OF THE ENVIRONMENT This appliance should not be put into the domestic garbage

at the end of its durability, but must be oered at a central

point for the recycling of electric and electronic domestic appliances. This

symbol on the appliance, instruction manual and packaging puts your

attention to this important issue. The materials used in this appliance

can be recycled. By recycling used domestic appliances you contribute

an important push to the protection of our environment. Ask your local

authorities for information regarding the point of recollection.

The packaging is 100% recyclable, return the packaging separated.

This device is equipped with a mark according to the European Directive

2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By

ensuring that this product will be correctly processed into waste, it will

help prevent possible negative consequences for the environment and

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with

the safety objectives of the Low Voltage Directive "No 2006/95/EC", the

protection requirements of the EMC Directive 2004/108/EC "Electromagnetic

Compatibility" and the requirement of Directive 93/68/EEC.

Med. High 77% micro. Rijst, vis, kip, gehakt

Med. High (Moyen fort) 77% micro.

Riz, poisson, poulet,

High (Fort) 100% micro.

Med. Bassa (Scong) 33% micro.

Bruksanvisning575859Quality shouldn't be a luxury!
