Operation theory of Microwave oven

Microwave is a kind of high frequency electromagnetic wave, which is commonly

distributed in the nature. But the existing form of microwave is dispersed so that it

cannot be collected together for heating purpose.

The key component of magnetron of microwave oven will transform the energy

of electricity to microwave and huge energy of microwave field is established

under the closed cavity. So the molecule of food is caused to vibrate at very high

speed and the friction heat produced will cook the food in a fast way.

There is 3 property of microwave, that isAbsorbability, the microwave can cause the excess vibration of molecule of

various food so as to obtain the heating purpose. But the infiltration ability is

largely depend on the size, thickness and properties of the food.

Penetrability, microwave can penetrate through ceramics, glass,

temperature-resistant plastics. It is required to use the containers whose

material have good microwave penetrability to achieve best heating result. See

the below utensils guide.

Reflectivity, microwave would be reflected by the metal wall of interior cavity so

as to establish an even magnetic field, thus can prevent the overheating of

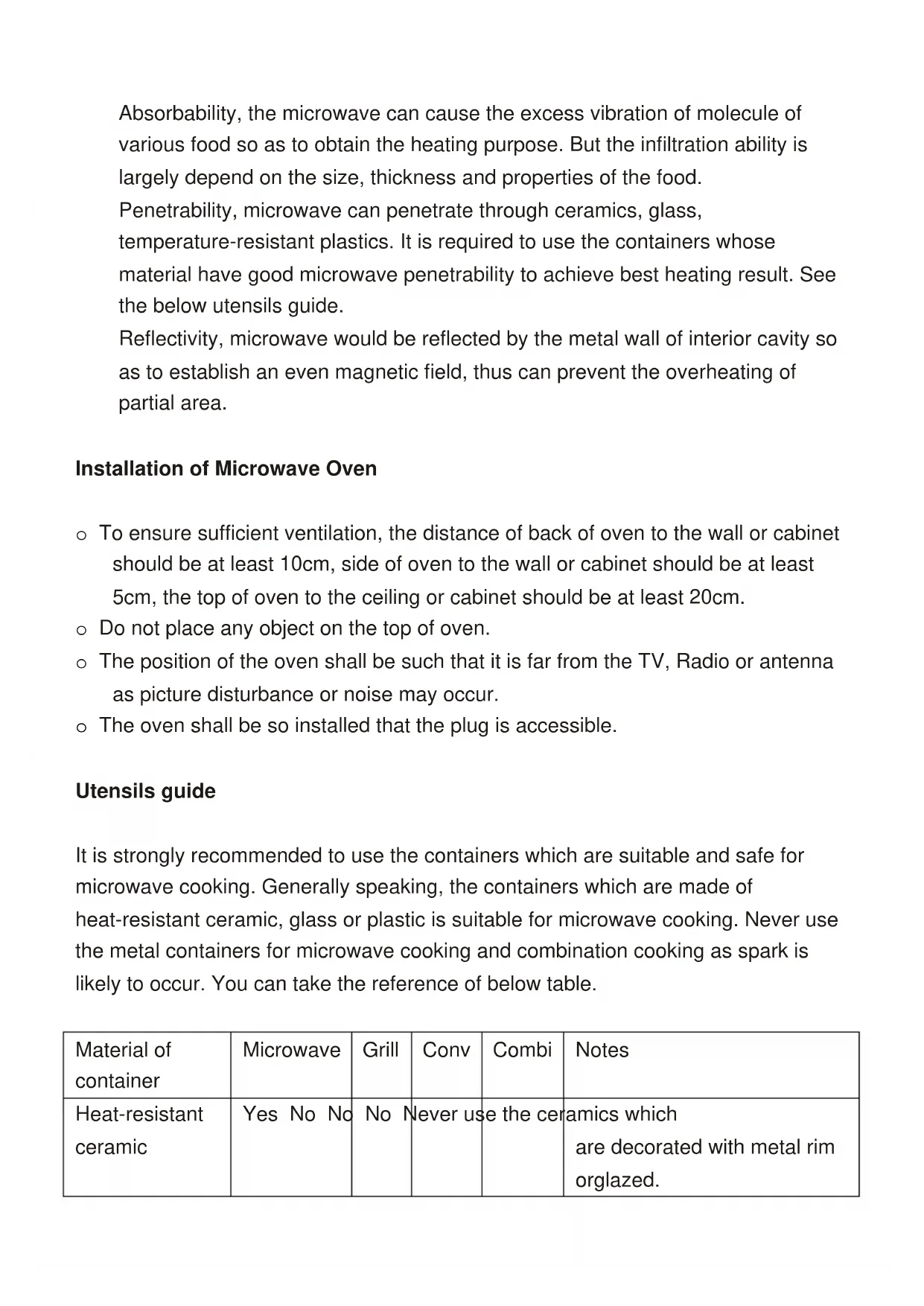

Installation of Microwave Oven

o To ensure sufficient ventilation, the distance of back of oven to the wall or cabinet

should be at least 10cm, side of oven to the wall or cabinet should be at least

5cm, the top of oven to the ceiling or cabinet should be at least 20cm.

o Do not place any object on the top of oven.

o The position of the oven shall be such that it is far from the TV, Radio or antenna

as picture disturbance or noise may occur.

o The oven shall be so installed that the plug is accessible.

It is strongly recommended to use the containers which are suitable and safe for

microwave cooking. Generally speaking, the containers which are made of

heat-resistant ceramic, glass or plastic is suitable for microwave cooking. Never use

the metal containers for microwave cooking and combination cooking as spark is

likely to occur. You can take the reference of below table.

Yes No No No Never use the ceramics which

are decorated with metal rim

orglazed.Heat-resistant

Grill rack No Yes Yes Yes

Plastic film Yes No No No It should not be when cooking

meat or chops as the over

temperature may do damage

As there is manufacturing residue or oil remained on the oven cavity, it usually would

smell the odor, even a slight smoke. It is normal and would not occur after several

times use. Keep the door or window open to ensure good ventilation. So it is strongly

recommended to operate as follows:

Set the oven to convection or grill mode and operate dry several times, operating dry

can only be conducted in the grill or convection mode, it cannot be conducted at

combination mode or microwave mode.

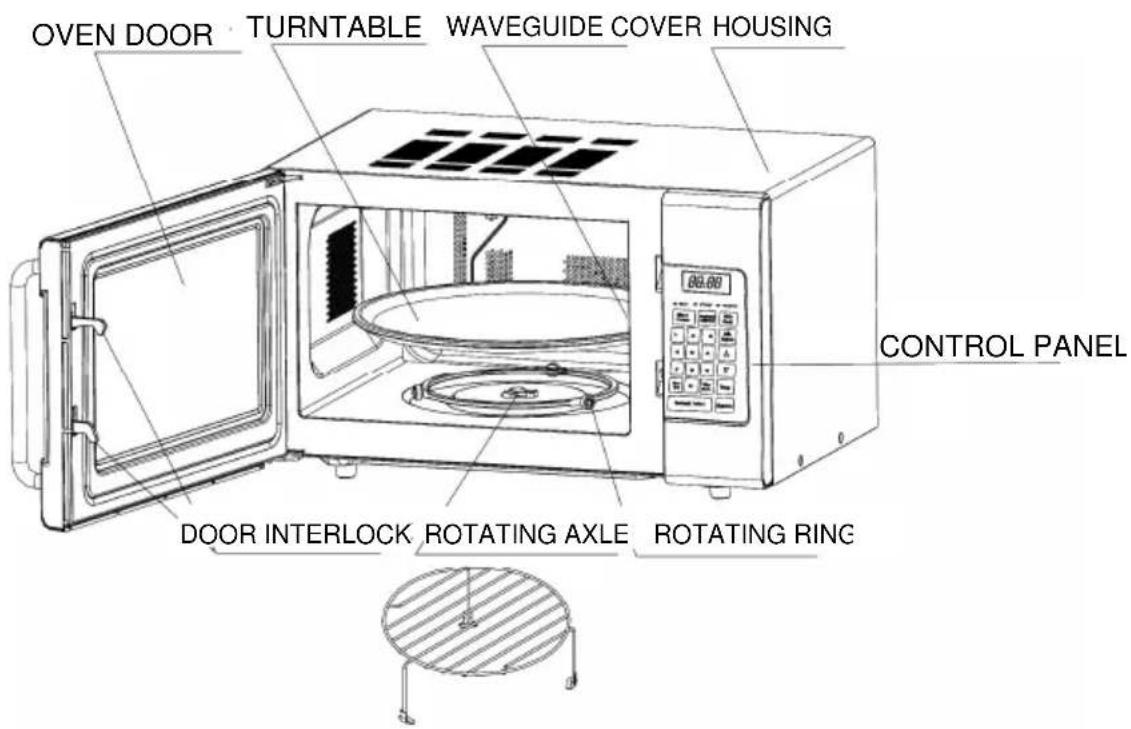

Know your microwave oven

OVEN DOOR TURNTABLE WAVEGUIDE COVER HOUSING CONTROL PANEL DOOR INTERLOCK ROTATING AXLE ROTATING RINGNotes:

 The oven cannot be activated without the door properly closed. This is a safety

feature, never intend to damage it.

 The operation of control panel is illustrated in next page.

 Do not remove the waveguide cover during cleaning.

 Grill rack is used only for MW-2905

Important safeguards

The following basic precautions should always be followed when using electrical

• Read all instructions before using.

• Make sure the voltage in your living area corresponding to the one shown on

the rating label of the appliance. And the wall socket is properly grounded.

• To reduce the risk of fire in the oven cavity:

o Do not overcook the food.

o Remove wire twist-ties from paper or plastic bags before placing

o Do not heat oil or fat for deep drying as the temperature of oil cannot

o After use wipe the waveguide cover with a damp cloth, followed by

dry cloth to remove any food splashes and grease. Built-up grease

may overheat and begin to cause smoke or catch fire.

o If materials inside the oven should smoke or ignite, keep oven door

closed, turn oven off and disconnect the power supply.

o Close supervision is necessary when using disposable containers

made from plastic, paper or other combustible material.

• To reduce the risk of explosion and sudden boiling:

o Do not place sealed containers in the oven. Baby bottles fitted with a

screw cap or teat are considered to be sealed containers.o When boiling liquid in the oven, use the wide-mouthed container and

stand about 20 seconds at the end of cooking to avoid delayed

eruptive boiling of liquids.

o Never cooking the egg and reheating the cooked egg to prevent from

o When cooking the potato, chestnut and sausage, pierce them with

blade or fork to prevent from exploding.

• Never operate the oven further if the door is damaged or the oven

malfunction or supply cord is damaged. Return the appliance to the nearest

authorized service center for repair and maintenance. Never try to adjust or

repair the oven yourself.

• If the supply cord is damaged it must be replaced by the manufacturer or its

service agent or a qualified technician in order to avoid a shock hazard.

• After cooking, the container is very hot. Using gloves to take out the food and

avoid steam burns by directing steam away from the face and hands.

• Slowly lift the furthest edge of dishes cover and microwave plastic wrap and

carefully open popcorn and oven cooking bags away from the face.

• To prevent the turntable from breaking:

o Let the turntable cool down before cleaning.

o Do not place hot foods or utensils on the cold turntable.

o Do not place frozen foods or utensils on the hot turntable.

• Make sure the utensils do not depress the interior walls during cooking.

• Do not store food or any other things inside the oven.

• Do not operate the oven without any liquid or food inside the oven. This

would do damage the oven.

• This appliance is not intended for use by young children or infirm persons

without supervision.

• When the appliance is operated in the combination mode, children should

only use the oven under adult supervision due to the temperatures

• Any accessories not recommended by the manufacturer may cause injuries

• Do not use outdoors.

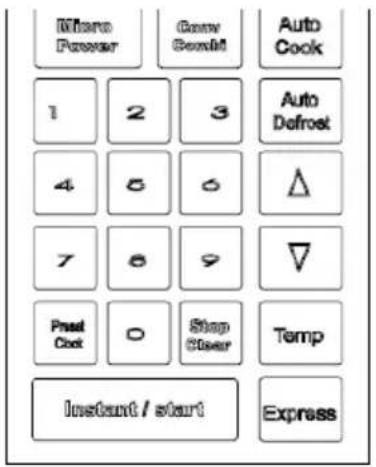

• Save these instructions.Household use onlyOperation of Control Panel

It will show the clock time,

cooking mode and left

operation time, which is

depend on the current

MODEL: 2615C MODEL: 2615CG

1. The LED Display will flash 3 times when plugged in power supply. Then it

Prompt you set the current clock and cooking procedure.

Example to set 12:30

3. Or wait for 5 seconds

d1 Meat d2 poultry d3 Seafood d1 Meat d2 poultry d3 Seafood3. Child lock function

Use this feature to lock the control panel

when you are cleaning or so that

children can not use the oven

A beep sound will be heard. All the

buttons are de-activated in this mode

When your preset cooking procedure

have finished the LED Display will show

and six beep sound will be heard

to prompt you to take out food. If you do

not press Stop/clear pad once or open

the door the beep will be sounded at an

interval of 3 minutes.

Press stop/clear pad once to

1. Stop the oven temporarily during cooking.

2. Clear the enter if you make a mistake during programming.

3. Touch the stop/clear twice to cancel a program during cooking

6. Microwave cooking

Press Micro Power pad LED Display will

cycle to show 100P, 80P, 60P, 40P, 20P,

100P--- High power, the magnetron is

energized all the operation time.

80P--- Medium High power, 80%

60P--- Medium power, 60% microwave

40P--- Medium Low Power, 40%

20P--- Low power, 20% microwave

1. The unit of time is minutes.

2. The max time you can set is 59

minutes and 59 seconds

3. Never operate the oven empty

4. If you turn the food during operation,

press the Instant/start button once and

the preset cooking procedure will

Touch and hold about 3

seconds or until the LED

To cancel child lock:

To unlock, touch and hold

for about 3 seconds or

until LED appear colon

1. Select the desire microwave

power by touching Microwave

2. After select power, then enter

the cooking time .For example

you want to cook the food for 10

minutes and 30 seconds or

4. Also you can change the cooking time by pressing or

Note: only when microwave oven is working, two keys

above can be activated.7. Express

Press this button LED Display will cycle

30---1:00---1:30---30---30---microwave

time. 1:00---microwave high power,

default 1 minute operation time.1:30---

microwave high power, default 1 minutes

and 30 seconds operation time.

8. Convection/Combination

For 2615C, Press this button LED Display will cycle to show C---C1---C2

For 2615CG, Press this button LED Display will cycle to show

C---C1---C2---G---G1---G2

A) Convection/Combination

C--- Convection, the convection unit will

be energized during operation time. In

this mode, hot air is circulated throughout

the oven cavity to brown and crisp foods

C1--- Combination of convection and

microwave cooking. The marriage of

these two cooking methods produces

juicy meats, as well as tender, flavorful

poultry, all with just the right amount of

browning and crispness. Meats and

poultry are best when cooked directly on

the rack. A shallow dish can be placed

below the food if gravy is to be made

C2---Same as above except more

microwave cooking time which is suitable

for cooking large size poultry utilizing the

penetration ability of microwave.

Select operating temperature by different

or 100℃. For baking, setting the oven at

For grill poultry, setting at 180-230℃.

In combination mode, the cooking temperature you set can't exceed 180℃ as the oven cannot be heated

Select your desired menu

Touch Instant /start to begin

Example: To cook with C. at 1800C for 20 minutes

1. Touch the button consecutively to select

2. Set the operating temperature, which depends on the food

type and different task to be performed.

B) first, then touch or .

3. Set cooking time or preheating time.

In most case the oven has to be preheated

to preset temperature before placing

food in order to achieve best result.

Pressing to set the default

preheating time. The oven would be well

heated within the default 15 minutes.

4. Press start cooking.

5. The temperature is rising constantly during

preheating period and LED will show as

follows while temperature changes, the oven

will be started from 80℃.

Once the oven has reached the 80℃ will go

steady and the oven temperature is

Once the oven has reached the 180℃ the

numbers will go steady and the preheating

process can be considered terminated.

orto the temperature higher than 180℃.Preheating

1. In the convection mode, preheating is usually required to obtain best result. But preheating is not

recommended to use in combination mode.

2. The preheating temperature must be always higher than oven temperature. For instance, the oven has

been operated at 230℃, then you would like the oven to be operated at 180℃, in this case LED displays

Err2. You must reset the temperature or wait the oven to cool down.

1. The oven should not be used without the turntable in place, and it should never be restricted so that it

cannot rotate. You may remove the turntable when preheating the oven and when preparing food to be

cooked directly on the turntable.

2. Do not cover turntable or rack with aluminum foil. It interferes with airflow that cooks food.

3. Round pizza pans are excellent cooking utensils for many convection-only items. Choose pans that do

not have extended handles.

4. When baking, check for doneness after time has elapsed. If not completely done, let stand in oven a few

minutes to complete cooking.

Convection cooking example:

Task Weight/dimension Cook Temperature Preheating Cooking time

Grilling poultry 1.5kgchicken 230℃ Yes 45 minutes

Making cake, Cake size is 20cm in diameter,

Making cookies 25 pieces cookies 160℃ Yes 20 minutes

Baking pizza 15mm thickness 200℃ Yes 30 minutes

The examples described in the above are just instructions, you can change cooking temperature, time by

yourself depending on the food type, weight, your cooking experience and your favor taste.

B) Grill/combination (only for

G--- Grill, the heat element will be

energized during operation time which is

applicable of grilling thin meats or pork,

sausage, chicken wing as good brown

color can be obtained.

G1--- Combination of Grill and microwave

cooking. Heat element and magnetron is

energized in an alternate way. Utilizing

the properties of microwave penetration

thick food is suggested to cook in this mode, as the center of food can be done and brown crust still can be

G2--- Same as above except more heating element working time

Note: it is not necessary to preheat for grill cooking.

In the mode of convection/ combi/grill, all of the oven parts, as well as the rack and cooking containers,

may become very hot. Use caution when removing any item from the oven. Use heavy potholders or oven

mitts to PREVENT BURNS.

Example :To grill food with G2

cook menu for 10 minutes and

(Take the reference of below defrost

Press this pad LED Display will cycle to

show D1---D2---D3---D1---

D1--- for defrosting meat.

D2--- for defrosting poultry.

D3--- for defrosting seafood.

For defrosting meat, the weight range

from 0.1Kg to 2.0 Kg.

For defrosting poultry, the weight range

For defrosting seafood, the weight range from 0.1to 0.9Kg.

- Shield thin end of chops or steaks with foil.

- Position the food with thinner parts in the centre in a single layer on a shallow dish. If pieces are stuck

together, try to separate as soon as possible.

- When the oven Beeps, it is to prompt you to turn over the food. Turn over, rearrange and shield the

- Press start to continue defrosting.

- After defrost time, stand covered with aluminum foil for 5-15 minutes.

- Place frozen minced beef on a shallow dish. Shield edges.

- When the oven Beeps, it is to prompt you to turn over the food. Remove defrosted portions, turn over and

shield edges with foil strips.

- Press start to continue defrosting.

- After defrost time, stand covered with aluminum foil for 5-15 minutes.

Roast Meat (Beef/pork/lamb)

- Shield the edges with foil strips.

- Place joint with lean side face upwards (if possible) on a shallow dish.

- When the oven Beeps, it is to prompt you to turn over the food. Turn over, and shield the defrosted

- Press start to continue defrosting.

- After defrost time, stand covered with aluminum foil for 10-30 minutes.

- Remove from original wrapper. Shield wing and leg tips with foil.

- Place breast side down on a shallow dish.

- When the oven Beeps, it is to prompt you to turn over the food. Turn over and shield the defrosted

- Press start to continue defrosting.

- After defrost time, stand covered with aluminum foil for 15-30 minutes.

Note: After standing run under cold water to remove giblets if necessary.

Chicken pieces (chicken wings and drumstick)

- Shield the exposed bone with foil.

- Place chicken pieces on a shallow dish.

- When the oven Beeps, it is to prompt you to turn over the food. Turn over, rearrange and shield the

- Press start to continue defrosting.

- After defrost time, stand covered with aluminum foil for 5-30 minutes.

Touch twice select AD-2

The oven has default cooking menu for

simple operation. When the LED flash

colon , press the Auto cook pad and

LED will cycle to show

cook procedure and tips, refer to the

Auto cook table on next page. Also, you

can adjust the cook time during cooking.

Function Category Direction

Wash rice and soak for 30 minutes. Place rice & b

oiling water with 0.25to 1 teaspoon

salt in a deep and large bowl. Refer the water volume as follow.

rice 100g 200g 300g cover pasta 100g 200g 300g cover

water 180ml 330ml 480ml yes water 300ml 600ml 900ml no

**Rice -After cooking, stand cover for 5 minutes or until water is absorbed.

stir several times. after cooking ,stand for 1 or 2 mins

0.8kg vegetable in a microwave

safe bowl .add water. Cover with wrap,

After cooking ,stir and allow to stand .Add amount water according to the vegetable

Same as Fresh vegetable

Suitable for popping a bag of corn, which is available

in the market, weighted 3.0

(85g) or 3.5Oz (100g). Prior to completing, if the popping speed has been decreased

to 1 time per 1-2 seconds you should press Pause/Cancel button to stop the popping

Heating a cup of 250mlor500 ml liq

uid. The liquid temperature is about 5

big mouth cup and do not seal.

Cooking the jacket potato. Choose medium sized potatoes approx. 200g,wash and

dry it, total weight is about 0.45 kg or 0.65kg. Place potatoes on a large dish and

cover the dish with a thin film to prevent water loss. Turning the potatos is necessary

Pizza Warm a piece of chilled pizza of 0.15Kg..

Suitable for steaming a fish of 0.45Kg. After the fish washed and scales removed,

make a slits on the skin of fish .Put the fish on a shallow dish of 22-27 cm diameter

sprinkle lightly with some ingredient. After cooking, stand for 2 minutes.

Note: 1. The cook time above based on the food which is of the room temperature of 20-25

specially noted in the above cooking menu A5. Time may vary for the food in different temperature.

2. When cooking the potatoes and fish it is suggested to cover the food with a layer of plastic thin film to

prevent the loss of water.

3. The temperature, weight and shape of food will largely influence the cooking effect. If any deviation has

been found to the factor noted on above menu, you can adjust the cooking time for best result.

Touch pad consecutively

to select desired menu

：11. Automatic start

Note: Always set current clock before you program the automatic start function.

If you do not want the oven start operation

immediately you can activate the

automatic start function as follows:

First set the current clock, cooking

And hold down the Preset Clock pad for

3 seconds and LED will show colon. Enter

the time you expected set current time to

start by pressing the keypad. Later LED

will show the current clock and the oven

will be started automatically at your preset

Preset time can be viewed by depressing

the Preset Clock button.

Once the Automatic start function has

* Pressing the Instant/Start pad if you

intend to operate the oven immediately;

* Pressing the Stop/Clear pad if you

intend to cancel this function.

12. Multi-stage cooking (Only for XB2615CG)

For best results, some recipes need different cook menu during different stage of cook cycle.

You can program your oven to switch from one power menu to another.

Example: you want cook food with 100p microwave power for 3 minutes then grill food for 9 minutes

Touch Display show Touch Display show

When microwave power cooking is finished,

microwave oven will begin grill operation

Note: Max 4 sequence can be set per time

repeat the steps 1, 2, if you like to set more.

Example: you hope that the microwave oven will

automatically start cooking with100P microwave power for

12 minutes and 30 seconds at 14:20clock.

Hold Preset clock for 3

seconds, then a short bee sound

Display will return current clock,

then set your delay time.

Enter what time you expect to

Touch the Preset clock for

Note: Automatic starting function is not applicable for

Express, auto cook and defrost.13. Multi-stage cooking (Only for XB2615C)

For best results, some recipes need different cook menu during different stage of cook cycle.

You can program your oven to switch from one power menu to another.

Example: you want cook food with 100p microwave power for 3 minutes then with 20P microwave for 9

When 100P microwave power cooking is

finished, microwave oven will begin 20P

microwave power operation automatically.

Note: Max 4 sequence can be set per time

repeat the steps 1, 2, if you like to set more.

Microwave cooking tips

1) Arrange food carefully, place thickest areas toward outside of dish.

2) Watch cooking time, cook for the shortest amount of time indicated and add more time as needed.

3) Cover foods before cooking

check recipe for suggestions: paper towels, microwave plastic wrap or a lid.

Covers prevent spattering and help foods to cook evenly. (Helps keep oven clean).

Use small pieces of aluminum foil to cover thin areas of meats or poultry to avoid overcooking.

5) Stir foods: From outside to center of dish once or twice during cooking, if possible.

Foods such as chicken, hamburgers or steaks should be turned over once during cooking.

7) Rearrange foods: Like meatballs halfway through cooking both from top to bottom and from the

center of the dish to the outside.

8) Allow standing time

After cooking ensure adequate standing time.

Remove food from oven and stir if possible.

Cover for standing time which allows the food to finish cooking without overcooking.

9) Check for doneness

Look for signs indicating that cooking temperature has been reached. Doneness signs include:

-Food steams throughout, not just at edge.

-Poultry thigh joints move easily.

-Pork and poultry show no pinkness..

-Fish is opaque and flakes easily with a fork.

A normal part of microwave cooking. The humidity and moisture in food will influence the amount of

moisture in the oven. Generally, covered foods will not cause as much condensation as uncovered foods.

Ensure that the ventilation openings are not blocked.11) Browning dish

When using a browning dish or self-heating material, always place a heat-resistant insulator such as a

porcelain plate under it to prevent damage to the turntable, rotating ring due to heat stress. The preheating

time specified in the dishes instructions must not be exceeded.

12) Microwave safe plastic wrap for cooking food with high fat content, do not bring the wrap in contact

with the food as it may melt.

13) Microwave safe plastic cookware

Some microwave safe plastic cookware is not suitable for cooking foods with high fat and sugar content.

Cleaning and maintenance

Clean the oven at regular intervals

Disconnect the power supply cord before cleaning. And if possible leave the door open to inactivate the

oven during cleaning.

The outside may be cleaned with mild soap and warm water, wipe clean with a damp cloth. Avoid the use

of harsh abrasive cleaners.

Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to

remove any spills or spatters. Do not use abrasive cleaners.

Care should be taken in cleaning the control panel. Wipe the panel with a cloth dampened slightly with

Do not scrub or use any sort of chemical cleaners. Avoid the use of excess water.

To clean the interior surfaces, wipe with a soft cloth and warm water for hygienic reasons. After use wipe

the waveguide cover in the oven with a soft damp cloth to remove any food splashed. Buildup splashes

may overheat and begin to smoke or catch fire. Do not remove the waveguide cover. Do not use a

commercial oven cleaner, abrasive or harsh cleaners and scouring pads on any part of your microwave

oven. Never spray oven cleaners directly onto any part of your oven.

Avoid using excess water. After cleaning the oven, ensure any water is removed with a soft cloth.

Turntable/ Rotating ring/Rotating axis

Wash with mild soapy water and dry thoroughly.

TIP: When the microwave oven has been used for a long time, there may be some strange odors exist in oven, Following

3 methods can get rid of them:

1. Place several lemon slices in a cup, then heat with high power for 2-3 min.

2. place a cup of red tea in oven, then heat with high power.

3. Put some orange peel into oven, then heat them with high power for 1 minute.Servicing

Warning: it is hazardous for anyone, other than a qualified service technician, to carry out any

service for repair operation which involves removal of any cover which gives protection against

exposure to microwave energy.

Caution: MICROWAVE RADIATION Do not become exposed to radiation from the microwave generator or other parts conducting

During servicing below listed parts are liable to be removed and give access to potentials above

1. Magnetron 2. High voltage transformer 3. High voltage capacitor

4. High voltage diode 5. High voltage fuse

Below listed condition may cause undue microwave exposure during servicing.

1. Unproper fitting of magnetron.

2. Unproper matching of Door interlock, door hinge and door.

3. Unproper fitting of switch support.

4. Door, Door seal or enclosure has been damage.

Note: 1. If LED displays during working, it indicates that sensor has been short circuit and

you need replace it at the nearest repaired department.

2. If LED displays during working, it indicates that sensor has been open circuit and you

need replace it at the nearest repaired department.

Beitrag zum Schutze unserer Umwelt. Bitte erfragen Sie bei der Gemeindeverwaltung die zuständige Entsorgungsstelle.

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of

at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance,

instruction manual and packaging puts your attention to this important issue. The materials used in this

appliance can be recycled. By recycling used domestic appliances you contribute an important push to the

protection of our environment. Ask your local authorities for information regarding the point of recollection..

Avvertenza per la tutela dell’ambiente
