THE MICROWAVE

A microwave is mainly used for quickly heating, preparing and defrosting food like vegetables, meat, fish and potatoes. In addition, it is suitable for preparing ready-to-eat meals or a glass or bottle of (baby)milk. Using the microwave function will accelerate the defrosting, preparing and heating process.

How does a microwave work?

• The microwave works through electromagnetic microwaves, which are sent by a high voltage system. These microwaves have a frequency of 2450MHz and are not ionizing. This means they do not damage the molecules. The microwaves turn the water within the food into heat. Besides water, also fat molecules within the food are effective to transform radiation energy into heat.
• The microwaves are going directly through tableware, which allows the food to heat up quickly. Vitamins and natural flavours will be preserved.
• Because the microwaves remain within the device, the heating is in some parts more intense than in others. For this reason, the microwave is generally equipped with a glass turntable. Due to the rotating motion, the turntable enables the energy to be divided more equally.

IMPORTANT SAFETY INSTRUCTIONS

• To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:
• Liquids and other foods must not be heated in sealed containers since they are liable to explode.

• It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

• Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.

• Only use utensils suitable for use in microwave ovens.
• The oven should be cleaned regularly and any remaining food should be removed.
• Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Do not overcook food.
• Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
• Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
  • Install or locate this oven only in accordance with the installation instructions provided.
• Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• Use this appliance only for its intended uses

\*\*\* TRISTAR Instruction manual

as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Do not store or use this appliance outdoors.
- Do not use this oven near water, in a wet basement or near a swimming pool.
- The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any events on the oven.
- Do not let cord hang over edge of table or counter. - Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
- The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• Accessible parts may become hot during use. Young children should be kept away. Steam cleaner may not be used for cleaning.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
• The rear surface of appliance shall be placed against a wall.
• Never use the microwave without the turntable shaft, turntable ring assembly and the glass turntable.
  • Make sure food and containers of food are always placed on the glass tray for cooking.

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.

• If smoke s emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• This appliance is intended to be used in household and similar applications such as:
  a. Staff kitchen areas in shops, offices and other working environments.
  b. By clients in hotels, motels and other residential type environments.
  c. Bed and breakfast type environments
  d. Farm houses
• Accessible parts may become hot during use. Young children should be kept away.
• Steam cleaner is not to be used.
• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
• Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.)
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)
  • Surface may get hot during use.

Precautions to avoid possible exposure to excessive microwave energy

• Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
• If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
• If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

To reduce the risk of injury to persons grounding installation

• Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.
• Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.
• Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.
• A short power-supply cord is provided to reduce the risks resulting from becoming

TRISTAR Instruction manual

entangled in or tripping over a longer cord.

• If a long cord set or extension cord is used the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
• The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

Which materials are not suitable for placing in the microwave?

Not all materials can be placed in a microwave. Below shows which materials are not suitable:

• Cookware made of porcelain and ceramics

• Non-heat-resistant bowls

- Metal bowls

• Metal racks (except the supplied rack)

- Aluminium foil

- Flammable material such as plastic, paper, plastic, textile, wood, flowers or other flammable material.

• The packaging of sealed packaged foods can easily burst, which may cause fire.

- Keep warm packages. These can be ignited.

• Metal locking strips

• Pillows filled with grain, cherry pits or gel.

- Sealed bowls and eggs. Eggs may burst due to the pressure.

If you're not sure, you can test the material in question

by following the procedure below.

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.

2.Cook on maximum power for 1 minute.

1. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.

4.Do not exceed 1 minute cooking time.

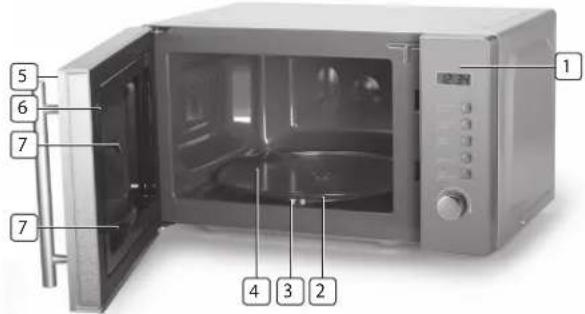

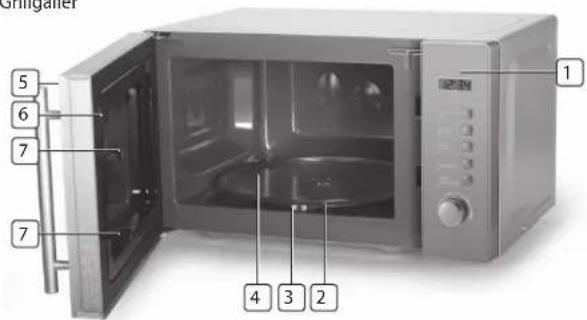

PARTS DESCRIPTION

1. Control panel
2. Turntable shaft
3. Turntable ring assembly
4. Turntable Glass tray
5. Observation window
6. Door assembly
7. Safety interlock system
8. Grill rack

8

Labeled diagram of a microwave oven with numbered parts for identification

INSTALLATION AND CONNECTION

• Remove all packing material and accessories. Examine the oven for any damage such as dents or a broken door. Do not install if the oven is damaged.
• Remove any protective film, found on the microwave oven cabinet surface.
• Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.
• Select a level surface that provide enough open space for the intake and/or outlet vents.

0cm 30cm 20cm 20cm mir85cm

• The minimum installation height is 85cm.
- The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30 cm above the oven, a minimum clearance of 20 cm is required between the oven and any adjacent walls.
- Do not remove the legs from the bottom of the oven.
- Blocking the intake and/or outlet openings can damage the oven.
- Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.
- Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.
- Do not install the oven over a stove or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1. Press "CLOCK/PRE-SET", the hour figure flash;
2. Turn "to adjust the hour figures, the input time should be within 0–23.
3. Press "CLOCK/PRE-SET", the minute figures will flash.
4. Turn " to adjust the minute figures, the input time should be within 0-59.
5. Press "CLOCK/PRE-SET" to finish clock setting. ":" will flash.

Note:

1. If the clock is not set, it would not function when powered.
2. During the process of clock setting, if no oppression in 1 minute, the oven will go back to the previous status automatically.

2. Microwave Cooking

1. Press the "Micro./Grill/Combi." key once, and "P100" display.
2. Press "Micro./Grill/Combi." for times or turn "" to select the microwave power "P100", "P80", "P50", "P30", "P10" will display in order.
3. Press "START/+30SEC./CONFIRM" to confirm.
4. Turn "to adjust the cooking time. (The time setting should be 0:05-95:00.)
5. Press "START/+30SEC./CONFIRM" to start cooking.

NOTE: The step quantities for the adjustment time of the coding switch are as followed.

0---1 min :5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes

\*\*\* TRISTAR Instruction manual

Microwave Power Chart

Microwave Power 100% 80% 50% 30% 10%
Display P100 P80 P50 P30 P10

3. Grill Cooking

1. Press the "Micro./Grill/Combi." key once, and "P100" display.
2. Press "Micro./Grill/Combi." for times or turn " " to select the grill power.
3. Press "START/+30SEC./CONFIRM" to confirm when the LED display "G".
4. Turn "to adjust the grill time. (The time setting should be 0:05-95:00.)
5. Press "START/+30SEC./CONFIRM" to start cooking.

Note: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press" START/+30 SEC/CONFIRM" to continue cooking. If no operation, it will continue working.

4. Combination Cooking

1. Press the "Micro./Grill/Combi." key once, and "P100" display.
2. Press "Micro./Grill/Combi." for times or turn "to select the combination power "C-1(55%microwave+45%grill)" and "C-2(36%microwave+64%grill)" will display in order.
3. Press "START/+30SEC./CONFIRM" to confirm.
4. Turn "to adjust the cooking time. (The time setting should be 0:05-95:00.)
5. Press "START/+30SEC./CONFIRM" to start cooking.

5. Speedy Cooking

1. In waiting state, press "START/+30SEC./CONFIRM" key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.

2. During the microwave, grill and combination cooking and time defrost process, press "START/+30SEC./CONFIRM" to increase the cooking time.

3. In waiting states, turn "left to choose the cooking time directly. After choosing the time, press "START/+30SEC./CONFIRM" to start cooking. The microwave power is 100%.

Note: Under the states of auto menu and weight defrost, cooking time cannot be increased by pressing "START/+30SEC./CONFIRM"

6. Defrost By Weight

1. Press "W.T./TIME DEFROST" once, the screen will display "dEF1".
2. Turn "to select the food weight. The range of weight is 100-2000g.
3. Press "START/+30SEC./CONFIRM" key to start defrosting.

7. Defrost By Time

1. Press "W.T./TIME DEFROST" twice, the screen will display "dEF2".
2. Turn " " to select the cooking time.
3. Press "START/+30SEC./CONFIRM" key to start defrosting.

Note: The defrost power is P30. And it will not change.

8. Multi-Stage Cooking

Two stages can be maximally set. If one stages is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu cannot be set as one of the multi-stage.

Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1. Press "W.T./TIME DEFROST" twice, the screen will display "dEF2";

2. Turn " 🔍" to adjust the defrost time of 5 minutes;

3. Press "Micro./Grill/Combi." once;

4. Turn " 🔥" to choose 80% microwave power till "P80" display;

5. Press "START/+30SEC./CONFIRM" to confirm;

6. Turn "to adjust the cooking time of 7 minutes;

7. Press "START/+30SEC./CONFIRM" to start cooking.

9. Pre-set Function

1. Set the clock first. (Consult the instruction of clock setting.)

2. Input the cooking program. Two stages can be set at most. Defrosting should not be set in preset function.

Example: if you want to cook with 80% microwave power for 7 minutes.

a. Press "Micro./Grill/Combi." once;
b. Turn "to choose 80% microwave power till "P80" display;
c. Press "START/+30SEC./CONFIRM" to confirm;
d. Turn " to adjust the cooking time of 7 minutes;

After the above steps, please do not press "START/+30SEC./CONFIRM".

Then do as following:

1. Press "CLOCK/PRE-SET". The hour figures flash;
2. Turn "" to adjust the hour figures, the input time should be within 0–23.
3. Press "CLOCK/PRE-SET", the minute figures will flash.
4. Turn "to adjust the minute figures, the input time should be within 0--59.
5. Press "START/+30SEC./CONFIRM" to finish setting. ":" will light, buzzer will ring twice when the time arrives, then cooking will start automatically.

Note: Clock must be set first. Otherwise, pre-set function will not work.

10. Auto Menu

1. In waiting states, turn " right to choose the menu from "A-1" to "A-8";
2. Press "START/+30SEC./CONFIRM" to confirm the menu you choose;
3. Turn " to choose th food weight;
4. Press "START/+30SEC./CONFIRM" to start cooking;
5. After cooking finish, the buzzer sounds five times.

Auto Menu

Menu Weight(g)	Display Power
A-1 REHEAT	200 200		100 %
	400 400
	600 600

Menu Weight(g)	Display Power
A-2 VEGETABLE	200 200		100 %300 300
	400 400
A-3 FISH	250 250		80 %350 350
	450 450
A-4 MEAT	250 250		100 %350 350
	450 450
A-5 PASTA	50 (with water 450 ml) 50		80 %
	100 (with water 800 ml)	100
A-6 POTATO	200 200		100 %400 400
	600 600
A-7 PIZZA	200 200		100 %
	400 400
A-8 SOUP	200 200		80 %
	400 400

11. Lock-out Function for Children

• Lock: In waiting state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting entering the children-lock state and screen will display "☐".
• Lock quitting: In locked state, press "STOP/CLEAR" for 3 seconds, there will be a long "beep" denoting that the lock is released.

\*\*\* TRISTAR Instruction manual

12. Inquiring Function

1. In cooking states of microwave, grill and combination, press "Micro./Grill/Combi.", the current power will be displayed for 3 seconds.
2. In pre-set state, press "CLOCK/PRE-SET" to inquire the time for delay start cooking. The pre-set time will flash for 3 seconds, then the oven will turn back to the clock display.
3. During cooking state, press "CLOCK/PRE-SET" to check the current time. It will be displayed for 3 seconds.

13. Specification

1. The buzzer will sound once when turning the knob at the beginning;
2. "START/+30SEC./CONFIRM" must be pressed to continue cooking if the door is opened during cooking;
3. Once the cooking programme has been set, "START/+30SEC./CONFIRM" is not pressed in 1 minute. The current time will be displayed. The setting will be cancelled.
4. The buzzer sounds once by efficient press, inefficient press will be no response.
5. The buzzer will sound five times to remind you when cooking is finished.

CLEANING

• Before cleaning, unplug the appliance and wait for the appliance to cool down.
• Clean the inside of the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the device.
• Clean the accessories in the usual way in soapy water.
• The door frame and seal and neighboring parts must be cleaned carefully with a damp cloth when they are dirty.
• Never immerse the device in water or any other liquid. The device in not dishwasher proof.

- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

TROUBLE SHOOTING

Normal
Microwave oven interfering TV reception.	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. This is normal.
Dim oven light.	In low power microwave cooking, oven light may become dim. This is normal.
Steam accumulating on door, hot air out of vents.	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. This is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

GUARANTEE

• Tristar is not liable for damages occurred through:
  o In case the appliance has fallen.
  o In case the appliance has been technically changed by the owner or another third party.
  o In case of improper use of the appliance.
  o In case of normal wear of the appliance.
• By executing repairs the original warranty period of 2 years will not be extended, nor the right to a complied new warranty. This warranty

is only legal on European soil. This warranty does not overrule the European directive 1944/44CE.

• Always keep your receipt, without this receipt you can not claim any form of warranty whatsoever.
- Damage caused by not following the instruction manual will lead to a void of warranty, if this results in consequential damages Tristar will not be liable.
- Tristar will not be liable for material damage or personal injury caused by improper use or if the safety instructions are not properly executed.
- Cleaning, as mentioned in this manual, is the only necessary maintenance for this appliance.
- When the appliance should be repaired, make sure that this will be performed by an authorized company.
• This appliance may not be amended or changed.
- If problems arise during the 2 years from the date of purchase, which are covered by the factory warranty, you can go back to the point of purchase to replace it for a new one.
- For questions or compliances please contact your retailer "point of purchase."
- This appliance is covered with a 24 month guarantee starting on the date of purchase (receipt).
- Only material or manufacturing defects are included in this warranty.
- If you wish to make a claim please return the entire machine in the original packaging to your dealer together with the receipt.
- Damage to accessories does not mean automatic free replacement of the whole appliance. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.
- Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of these parts are not covered by the guarantee and hence are to be paid!
- The guarantee lapses in case of unauthorized tampering.
- After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

GUIDELINES FOR PROTECTION OF THE ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that this product will be correctly processed into waste, it will help prevent possible negative consequences for the environment and human health.

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC", the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.

Labeled diagram of a microwave oven with numbered parts for identification

INSTALLEREN EN AANSLUITEN

Technical line drawing of a circular object with hatched fill and two legs, labeled with number 8 (no text or symbols beyond label)

Labeled diagram of a microwave oven with numbered parts for identification

INSTALLATION ET BRANCHEMENT

Simple line drawing of an oval-shaped object with a handle and two legs, no text or symbols present.

Labeled diagram of a microwave oven with numbered parts for identification

Labeled diagram of a microwave oven with numbered parts for identification

Labeled diagram of a microwave oven with numbered parts pointing to the interior panel

Technical line drawing of a circular mechanical component with hatched fill and labeled part '8' (no text or symbols beyond label)

5 6 7 7 4 3 2

INSTALLATION OCH ANSLUTNING

Labeled diagram of a microwave oven with numbered parts for identification

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Labeled diagram of a microwave oven with numbered parts for identification

INŠTALÁCIA A PRIPOJENIE

Quality shouldn't be a luxury!

Black outdoor grill with a dome-shaped top and four legs, no visible text or symbols on the device itself.

Black countertop oven with open lid and control knobs (no visible text or symbols)

Grain grater with fried bread and vegetables on a black tray (no text or symbols visible)

service.tristar.eu

Tristar Europe B.V. | Jules Verneweg 87 | 5015 BH Tilburg | The Netherlands
