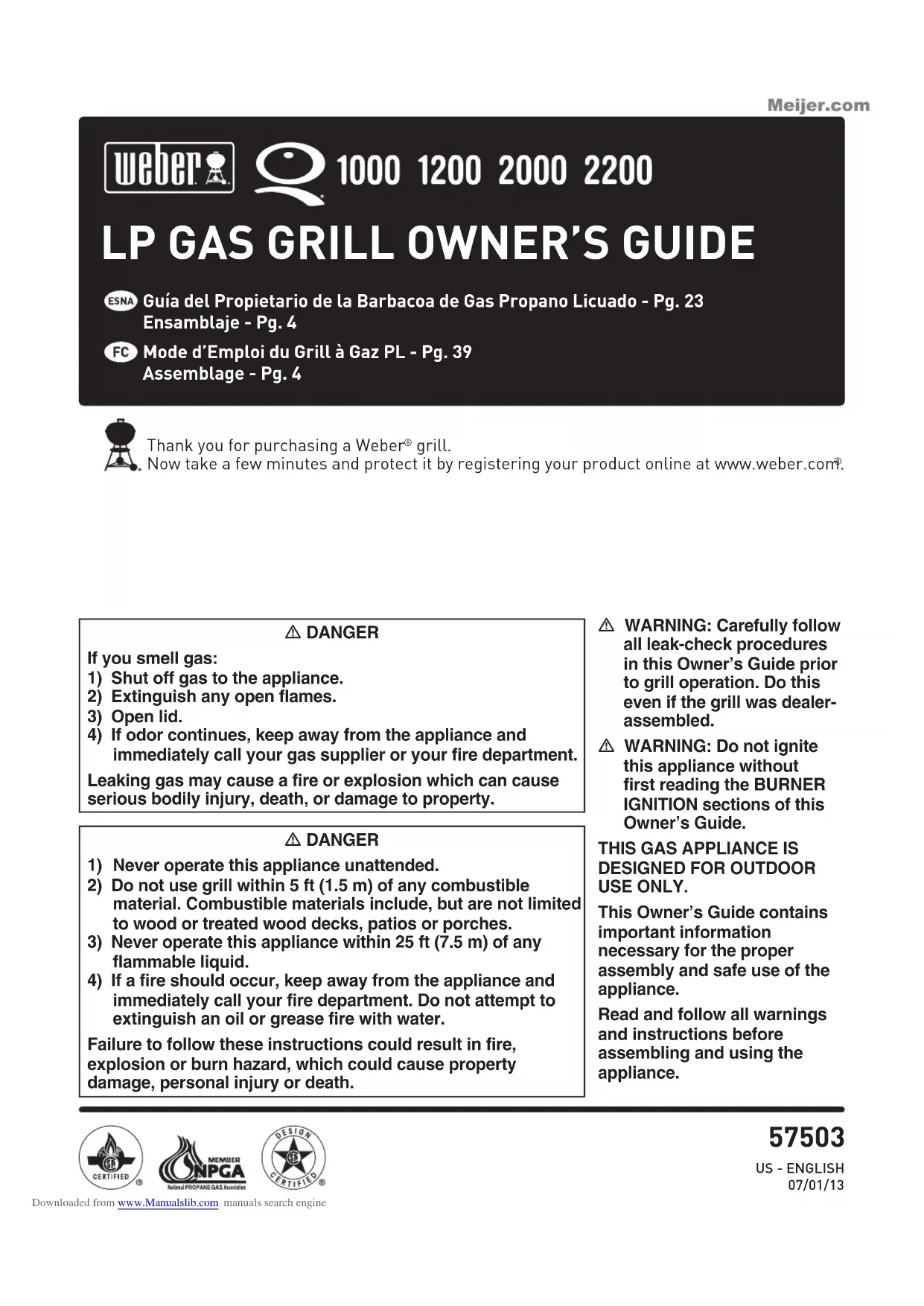

USER MANUAL Q1000 WEBER

1) Shut off gas to the appliance.

4) If odor continues, keep away from the appliance and

immediately call your gas supplier or your fire department. Leaking gas may cause a fire or explosion which can cause serious bodily injury, death, or damage to property.

US - ENGLISH07/01/13

Thank you for purchasing a Weber

grill. Now take a few minutes and protect it by registering your product online at www.weber.com.

1) Never operate this appliance unattended.

2) Do not use grill within 5 ft (1.5 m) of any combustible

material. Combustible materials include, but are not limited to wood or treated wood decks, patios or porches.

3) Never operate this appliance within 25 ft (7.5 m) of any

4) If a fire should occur, keep away from the appliance and

immediately call your fire department. Do not attempt to extinguish an oil or grease fire with water. Failure to follow these instructions could result in fire, explosion or burn hazard, which could cause property damage, personal injury or death. m WARNING: Carefully follow all leak-check procedures in this Owner’s Guide prior to grill operation. Do this even if the grill was dealer- assembled. m WARNING: Do not ignite this appliance without first reading the BURNER IGNITION sections of this Owner’s Guide.

WARNINGS m DANGER Failure to follow the DANGERS, WARNINGS and CAUTIONS contained in this Owner’s Guide may result in serious bodily injury or death, or may result in a fire or an explosion causing damage to property. WARNINGS: m Keep this Owner’s Guide for future reference. m Follow all warnings and instructions when using the appliance. m Improper assembly of grill may be dangerous. Please follow the assembly instructions carefully. m Do not use this grill unless all parts are in place. The grill must be properly assembled according to the assembly instructions. m Your Weber

gas grill should never be used by children. Accessible parts of the grill may be very hot. Keep young children and pets away while grill is in use. m This Weber

gas grill is not intended for commercial use. m This Weber

gas grill is not intended for and should never be used as a heater. m Exercise caution when using your Weber

gas grill. It will be hot during cooking or cleaning, and should never be left unattended, or moved while in operation. m Do not use charcoal or lava rock in your Weber

gas grill. m While igniting the grill or cooking, never lean over open grill. m Never place hands or fingers on the front edge of the cookbox when the grill is hot or the lid is open. m Do not attempt to disconnect the gas regulator or any gas fitting while your grill is in operation. m Use heat-resistant barbecue mitts or gloves when operating grill. m Use the pressure regulator that is supplied with your Weber

gas grill. m Should the burner go out while grill is in operation, turn the gas valve off. Open the lid and wait five minutes before attempting to relight grill, using the igniting instructions. m Do not use the Weber

grill in any vehicle or in any storage or cargo area of any vehicle, including cars, trucks, station wagons, mini-vans, sport utility vehicles (SUVs) or recreational vehicles (RVs). m Do not place barbecue grill on glass or a combustible surface; heat can be conducted through the legs of portable grills. m Do not build this model of grill in any built-in or slide-in construction. Ignoring this WARNING could cause a fire or an explosion that can damage property and cause serious bodily injury or death. m Do not store an extra (spare) or disconnected liquid propane cylinder under or near this grill. m After a period of storage and/ or nonuse, the Weber

gas grill should be checked for gas leaks and burner obstructions before use. See instructions in this Owner’s Guide for correct procedures. m Do not operate the Weber

gas grill if there is a gas leak present. m Do not use a flame to check for gas leaks. m Do not put a grill cover or anything flammable on the grill while grill is in operation or is hot. m Liquid propane gas is not natural gas. The conversion or attempted use of natural gas in a liquid propane gas unit or liquid propane gas in a natural gas unit is dangerous and will void your warranty. m Keep any electrical supply cord and the fuel supply hose away from any heated surfaces. m Do not enlarge valve orifice or burner ports when cleaning the valve or burner. m The Weber

gas grill should be thoroughly cleaned on a regular basis. m If you see, smell or hear the hiss of gas escaping from the liquid propane cylinder:

1. Move away from liquid propane

2. Do not attempt to correct the

3. Call your fire department.

m Should a grease fire occur, turn off the burner and leave lid closed until fire is out. m The use of alcohol, prescription drugs, non-prescription drugs, or illegal drugs may impair the consumer’s ability to properly and safely assemble, move, store or operate the appliance. ADDITIONAL WARNINGS FOR STATE OF CALIFORNIA: m Combustion byproducts produced when using this product contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. m Proposition 65 Warning: Handling the brass material on this product exposes you to lead, a chemical known to the state of California to cause cancer, birth defects or other reproductive harm. (Wash hands after handling this product.) Meijer.com Downloaded from www.Manualslib.com manuals search engineWWW.WEBER.COM

Thank you for purchasing a WEBER

product. Weber-Stephen Products LLC (“Weber”) prides itself on delivering a safe, durable and reliable product. This is Weber’s Limited Warranty provided to you at no extra charge. It contains the information you will need to have your WEBER

product repaired in the unlikely event of a failure or defect. WEBER’S RESPONSIBILITIESWeber provides, to the original purchaser of the WEBER product (or in the case of a gift or promotional situation, the person for whom it was purchased as a gift or promotional item), that the WEBER product is free from defects in material and workmanship for the period(s) of time specified below when assembled and operated in accordance with the accompanying Owner’s Guide. (Note: If you lose or misplace your WEBER Owner’s Guide, a replacement is available online at www.weber.com). Under normal, private single family home or apartment use and maintenance, Weber agrees to repair or replace defective parts within the applicable time periods, limitations and exclusions listed below. THIS LIMITED WARRANTY IS EXTENDED ONLY TO THE ORIGINAL PURCHASER AND IS NOT TRANSFERABLE TO SUBSEQUENT OWNERS, EXCEPT IN THE CASE OF GIFTS AND PROMOTIONAL ITEMS AS NOTED ABOVE.OWNER’S RESPONSIBILITIESTo ensure trouble-free warranty coverage, it is important that you register your WEBER product online at www.weber.com or via Weber Customer Service at 1-800-446-1071. Please also retain your original sales receipt and/or invoice. Registering your WEBER

product confirms your warranty coverage and provides a direct link between you and Weber in case we need to contact you.The Owner must take reasonable care of the WEBER product and follow all assembly instructions, usage instructions and preventative maintenance as outlined in the accompanying Owner’s Guide. If you live in a coastal area, or have your product located near a pool, maintenance includes regular washing and rinsing of the exterior surfaces as outlined in the accompanying Owner’s Guide. If you believe that you have a part that is covered by this Limited Warranty, please contact Weber Customer Service at 1-800-446-1071 or support@weberstephen.com. Weber will, upon investigation, repair or replace (at its option) a defective part covered by this Limited Warranty. In the event that repair or replacement are not possible, Weber may chose (at its option) to replace the grill in question with a new grill of equal or greater value. Weber may ask you to return parts for inspection, shipping charges to be pre-paid.This LIMITED WARRANTY does not cover damage, deterioration, discoloration and/or rust caused by:• Abuse, misuse, alteration, modification, misapplication, vandalism, neglect, improper assembly or installation, and failure to properly perform normal and routine maintenance;• Insects (such as spiders) and rodents (such as squirrels), including but not limited to damage to burner tubes and/or gas hoses;• Exposure to salt air and/or chlorine sources such as swimming pools and hot tubs/spas;• Severe weather conditions such as hail, hurricanes, earthquakes, tsunamis or surges, tornadoes or severe storms.The use and/or installation of parts on your WEBER product that are not genuine Weber parts will void this Limited Warranty, and any damages that result are not covered by this Limited Warranty. Any conversion of a gas grill not authorized by Weber and performed by a Weber authorized service technician will void this Limited Warranty.PRODUCT WARRANTY PERIODSCookbox: 5 years, no rust through/burn through (2 years paint excluding fading or discoloration)Lid assembly: 5 years, no rust through/burn through (2 years paint excluding fading or discoloration)Stainless steel burner tubes: 5 years, no rust through/burn throughPorcelain-enameled cast iron cooking grates: 5 years, no rust through/burn throughPlastic components: 5 years, excluding fading or discolorationAll remaining parts: 2 yearsDISCLAIMERSWEBER MAKES NO IMPLIED WARRANTIES INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OTHER THAN WHAT IS EXPRESSLY MADE IN THIS LIMITED WARRANTY. NO WARRANTIES SHALL APPLY AFTER THE APPLICABLE PERIODS OF THIS LIMITED WARRANTY. NO OTHER WARRANTIES GIVEN BY ANY PERSON OR ENTITY, INCLUDING A DEALER OR RETAILER WITH RESPECT TO ANY PRODUCT (SUCH AS ANY “EXTENDED WARRANTIES”), SHALL BIND WEBER. THE EXCLUSIVE REMEDY OF THIS LIMITED WARRANTY IS REPAIR OR REPLACEMENT OF THE PART OR PRODUCT. THE TERMS OF THIS LIMITED WARRANTY PROVIDE THE SOLE AND EXCLUSIVE REMEDY ARISING FROM THE SALE OF THE PRODUCTS COVERED HEREBY. WEBER SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL LOSS OR DAMAGES. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.IN NO EVENT SHALL RECOVERY OF ANY KIND BE GREATER THAN THE AMOUNT OF THE PURCHASE PRICE OF THE WEBER PRODUCT SOLD. YOU ASSUME THE RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO YOU AND YOUR PROPERTY AND/OR TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE MISUSE OR ABUSE OF THE PRODUCT OR FAILURE TO FOLLOW INSTRUCTIONS PROVIDED BY WEBER IN THE ACCOMPANYING OWNER’S GUIDE.THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY IN DIFFERENT JURISDICTIONS. PARTS AND ACCESSORIES REPLACED UNDER THIS LIMITED WARRANTY ARE WARRANTED ONLY FOR THE BALANCE OF THE ORIGINAL WARRANTY PERIOD(S).THIS LIMITED WARRANTY APPLIES TO PRIVATE SINGLE FAMILY HOME OR APARTMENT USE ONLY AND DOES NOT APPLY TO WEBER GRILLS USED IN COMMERCIAL, COMMUNAL OR MULTI-UNIT SETTINGS SUCH AS RESTAURANTS, HOTELS, RESORTS OR RENTAL PROPERTIES.WEBER MAY FROM TIME TO TIME CHANGE THE DESIGN OF ITS PRODUCTS. NOTHING CONTAINED IN THIS LIMITED WARRANTY SHALL BE CONSTRUED AS OBLIGATING WEBER TO INCORPORATE SUCH DESIGN CHANGES INTO PREVIOUSLY MANUFACTURED PRODUCTS, NOR SHALL SUCH CHANGES BE CONSTRUED AS AN ADMISSION THAT PREVIOUS DESIGNS WERE DEFECTIVE.

WARRANTY TABLE OF CONTENTS

The grills illustrated in this Owner’s Guide may vary slightly from the model purchased. WARNINGS ...............................2 WARRANTY ...............................3

Use disposable LP cylinders with a capacity of either

14.1 oz. or 16.4 oz. equipped with a CGA #600

connection. m CAUTION: Use cylinders that are marked “Propane Fuel” only. A) Make sure burner control knob is turned off by pushing it in and turning it clockwise to the off ( ) position. B) While holding carrying handle closest to propane cylinder with one hand, push propane cylinder into regulator and turn clockwise until tight (1). m WARNING: Do not use a wrench to tighten the connection. Using a wrench could damage the regulator coupling and could cause a leak.

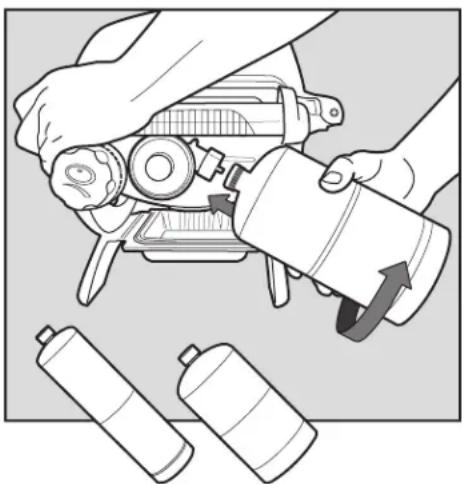

REMOVING THE LP CYLINDER

When your LP cylinder needs to be replaced, follow these instructions to remove it. A) Make sure burner control knob is turned off by pushing it in and turning it clockwise to the off (

position. B) While holding carrying handle closest to propane cylinder with one hand, unscrew propane cylinder from regulator. IMPORTANT INFORMATION ABOUT LP GAS & GAS CONNECTIONS

SAFE HANDLING TIPS FOR LP GAS

CYLINDERS There are various guidelines and safety factors that you need to keep in mind when using LP gas. Carefully follow these instructions before using your Weber

• Do not use a damaged, dented or rusty LP cylinder.

• Handle “empty” LP cylinders with the same care as you handle full cylinders. Even when an LP cylinder is empty of liquid, there may still be gas pressure inside the cylinder.

• LP cylinders should not be dropped or handled roughly.

• Never store or transport the LP cylinder where temperatures can reach 125° F (51.7° C) (the cylinder will become too hot to hold by hand). For example: do not leave the LP cylinder in a car on a hot day.

• LP cylinders must be kept out of reach of children.

STORAGE AND/OR NONUSE

For grills that have been stored or left unused for a while, it is important to follow these guidelines:

• Disconnect the cylinder if: 1) it is empty; 2) the grill is being stored in a garage or other enclosed area;

3) the grill is being transported.

• Place dust cap on cylinder valve outlet when cylinder is not in use.

• Do not store a disconnected LP cylinder in a building, garage, or any other enclosed area.

gas grill should be checked for gas leaks and any obstructions in the burner tube before it is used. (Refer to “CHECKING FOR GAS LEAKS” and “ANNUAL MAINTENANCE.”)

• Check that the areas under the cookbox and the removable catch pan are free from debris that might obstruct the flow of combustion or ventilation air.

• The spider/insect screen should also be checked for any obstructions. (Refer to “ANNUAL MAINTENANCE.”)

US INSTALLATION CODES

Installation must conform with local codes or, in the absence of local codes, with the latest edition of the National Fuel Gas Code, ANSI Z223.1/NFPA 54.

CANADIAN INSTALLATION CODES

These instructions, while generally acceptable, do not necessarily comply with the Canadian installation codes, particularly with piping above and below ground. In Canada, the installation of this appliance must comply with local codes and/or the latest edition of Standard CAN/CSA-B149.2 (Propane Storage and Handling Code). NOTE: Your retailer can help you match a replacement cylinder to your grill. REGULATOR CONNECTIONS Your Weber

gas grill is equipped with a pressure regulator, which is a device to control and maintain uniform gas pressure as gas is released from the LP cylinder. Each Weber

pressure regulator is designed for vapor withdrawal.

• The pressure regulator supplied with the Weber

gas grill must be used. This regulator is set for 11 inches of water column pressure.

Before using your grill for the first time, you need to purchase an LP cylinder. You may choose to purchase a spare LP cylinder so that you don’t run out of fuel in the middle of cooking a meal. m DANGER NEVER store a spare LP cylinder under or near Weber

gas appliances. Failure to follow this statement exactly may result in a fire causing death or serious injury. WHAT IS LP GAS? Liquefied petroleum gas, also called LP, LP gas, liquid propane, or simply propane or butane, is the flammable, petroleum-based product used to fuel your grill. It is a gas at moderate temperatures and pressure when it is not contained. But at moderate pressure inside a container, such as a cylinder, LP is a liquid. As pressure is released from the cylinder, the liquid readily vaporizes and becomes LP gas.

• LP has an odor similar to natural gas. You should be aware of this odor.

• LP is heavier than air. Leaking LP gas may collect in low areas and resist dispersion. Meijer.com Downloaded from www.Manualslib.com manuals search engineWWW.WEBER.COM

m DANGER Do not use an open flame to check for gas leaks. Be sure there are no sparks or open flames in the area while you check for leaks. Sparks or open flames will result in a fire or explosion, which can cause serious bodily injury or death and damage to property. m WARNING: The gas connections of your gas grill have been factory tested. We do, however, recommend that you leak check all gas connections before operating your gas grill. m WARNING: Perform these leak checks even if your grill was dealer or store assembled. m WARNING: You should check for gas leaks every time you disconnect and reconnect a gas fitting. NOTE: All factory-made connections have been thoroughly checked for gas leaks and the burner has been flame-tested. As a safety precaution, however, you should check all fittings for leaks before using your Weber® gas grill. Shipping and handling may loosen or damage a gas fitting.

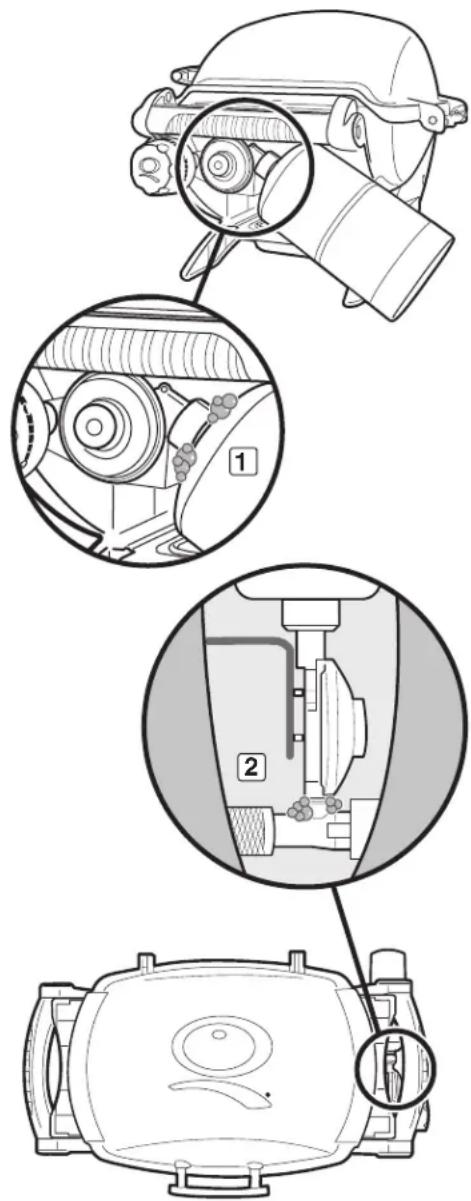

CHECKING FOR GAS LEAKS

You will need: A spray bottle or brush or rag and a soap and water solution. (You can make your own soap and water solution by mixing 20% liquid soap with 80% water; or, you can purchase leak check solution in the plumbing section of any hardware store.)A) Make sure burner control knob is turned off by pushing it in and turning it clockwise to the off ( position. m WARNING: Do not ignite burner when leak checking. B) To check for leaks, wet fittings with the soap and water solution, using a spray bottle, brush or rag. If bubbles form, or if a bubble grows, there is a leak. Apply the soap and water solution to the following connections:a) Regulator-to-cylinder connection (1). m WARNING: If there is a leak at connection (1), remove propane cylinder. DO NOT OPERATE THE GRILL. Install a different propane cylinder and recheck for leaks with soap and water solution. If a leak persists after installing a different propane cylinder, remove propane cylinder. DO NOT OPERATE THE GRILL. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

b) Valve-to-regulator connection (2). m WARNING: If there is a leak at connection (2), remove propane cylinder. DO NOT OPERATE THE GRILL. Contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

C) When leak checking is complete, rinse connections with water.NOTE: Since some leak test solutions, including soap and water, may be slightly corrosive, all connections should be rinsed with water after checking for leaks.Now you are ready to use your grill. WHAT IS A LEAK CHECK? The fuel system in your grill features connections and fittings. A leak check is a reliable way to make sure that no gas is escaping from any of the connections or fittings. Although all factory-made connections have been thoroughly checked for gas leaks, it’s important to perform a leak check before using your grill for the first time, as well as anytime you disconnect and reconnect a fitting and each time you perform routine maintenance.

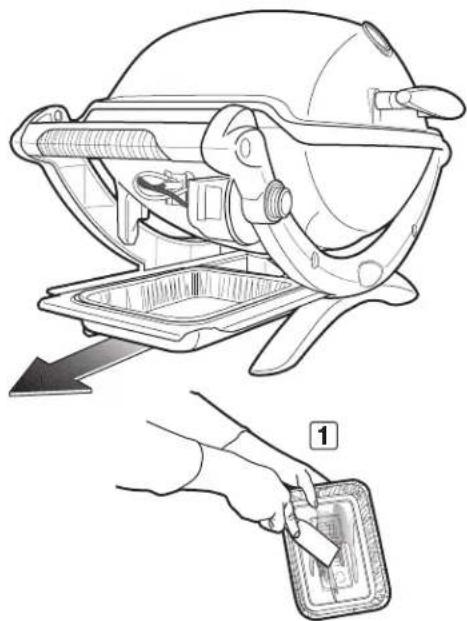

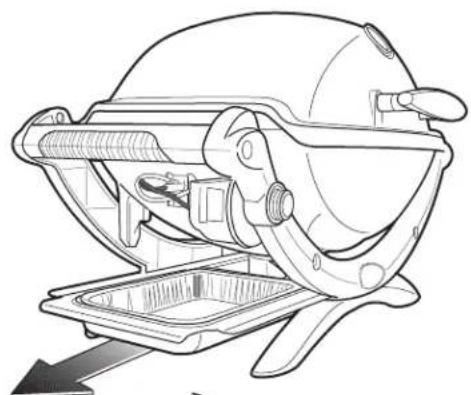

REMOVABLE CATCH PAN AND

Your grill was built with a grease collection system, which funnels grease away from food and into a removable catch pan. For your convenience, you can also line the removable catch pan with a Weber disposable drip pan, which will help keep the removable catch pan cleaner longer. Cleaning the removable catch pan is just as important as cleaning the cookbox. Check the removable catch pan for grease build-up each time you use your grill. Remove excess grease with a plastic scraper (1). Wash the removable catch pan with warm, soapy water and rinse with water. m WARNING: Check the removable catch pan or disposable drip pan for grease build-up before each use. Remove excess grease to avoid a grease fire. A grease fire can cause serious bodily injury or damage to property. m CAUTION: Do not line the cookbox, removable catch pan or disposable drip pan with aluminum foil. Safety must be considered when you are deciding where to place and operate your grill. Be sure to read the following warnings before installing or using your grill. WARNINGS: m Only use this grill outdoors in a well- ventilated area. Do not use in a garage, building, breezeway or any other enclosed area. m Your Weber

gas grill is not intended to be installed in or on recreational vehicles and/or boats. m Keep the cooking area clear of flammable vapors and liquids such as gasoline, alcohol, etc., and combustible materials. m The entire cookbox gets hot when in use. Do not touch. m Do not move the Weber

gas grill when operating or while grill is hot. m When cooking, the appliance must be on a level, stable surface in an area clear of combustible material. An asphalt surface (blacktop) may not be acceptable for this purpose. SAFETY FIRST It’s a good idea to get in the habit of performing a few safety checks before grilling.

PREHEATING Preheating the grill before grilling is important. To preheat: Light your grill according to the instructions in this Owner’s Guide; then turn burner(s) to start/high ( ) position, close the lid, and preheat grill. This will take 10 to 15 minutes depending on conditions such as air temperature and wind. After preheating, you can adjust the burner(s) as desired. m WARNING: Should the burner(s) go out while grill is in operation, turn all gas valves off. Open the lid and wait five minutes before attempting to relight grill, using the igniting instructions. COVERED COOKING All grilling is done with the lid down to provide uniform, evenly circulated heat. With the lid closed, the gas grill cooks much like a convection oven. The thermometer in the lid, a feature on some of our grills, indicates the cooking temperature inside the grill. All preheating and grilling is done with the lid down. No peeking — heat is lost every time you lift the lid.

GREASE COLLECTION SYSTEM

Unique cooking grate design features angled, cast-iron rails that deflect drippings away from the burner tube(s), preventing flare-ups that can char food. The remaining drippings flow into a removable catch pan that slides out for easy cleaning. For more grilling tips and recipes, visit www.weber.com

• Always preheat the grill before cooking. Set burner(s) on high heat and close lid; preheat for 10 to 15 minutes.

• The temperature of your gas grill may run hotter than normal for the first few uses.

• Recipe grilling times are based on outside temperatures of 70°F (21°C) and little or no wind. Allow for more cooking time on cold or windy days, or at higher altitudes. Allow for less cooking time in extremely hot weather.

• Grilling conditions may require adjustment of the burner control knobs to attain the correct cooking temperatures.

• Sear meats and cook with the lid down for perfectly grilled food every time.

• Crowding food onto a cooking grate means more time will be required to cook the food.

• Trim excess fat from steaks, chops, and roasts, leaving no more than a scant ¼ inch (6.4mm) of fat. Less fat makes cleanup easier, and is a virtual guarantee against unwanted flare-ups.

• In general, large pieces of meat will require more cooking time per pound (kilo) than small pieces of meat.

• Some foods, such as a casserole or thin fish fillets, will require a container for grilling. Disposable foil pans are very convenient, but any metal pan with ovenproof handles can also be used.

• Foods in containers, such as baked beans, will require more time if grilled in a deep casserole than in a shallow baking pan.

• Use tongs rather than a fork for turning and handling meats to avoid losing natural juices. Use two spatulas for handling large whole fish.

• Always be sure the cookbox and removable catch pan are clean and free from debris.

• Do not line the cookbox with foil. This could prevent the grease from flowing into the removable catch pan.

• If an unwanted flare-up should occur, turn burner(s) off and move food to another area of the cooking grate. Any flames will quickly subside. After flames subside, relight the grill. NEVER USE WATER

• Using a timer will help to alert you when “well done” is about to become “overdone.”

• A light coating of oil will help brown your food evenly and keep it from sticking to the cooking grate. Always brush or spray oil onto your food, not directly onto the cooking grate.

• When using a marinade, sauce or glaze with a high sugar content or other ingredients that burn easily, only brush it onto the food during the last 5 to 10 minutes of barbecuing. Meijer.com Downloaded from www.Manualslib.com manuals search engine14 WWW.WEBER.COM

Summary lighting instructions are on the right fold-out table (Q

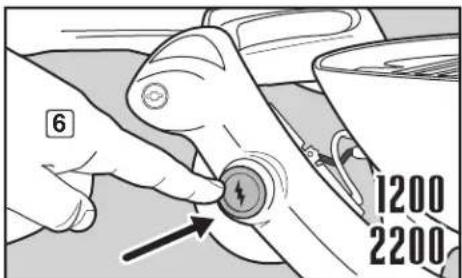

IGNITION There are two ways to ignite the burner. The first is by using the ignition system built into your grill. The second is with a match. Next are the steps for igniting your grill using the ignition system. On the following page are steps for igniting your grill with a match. BURNER IGNITION A) Open the grill lid (1). m DANGER Failure to open the lid before igniting the grill’s burner, or not waiting five minutes to allow the gas to clear if the grill does not light, may result in an explosive flare-up which can cause serious bodily injury or death. B) Unfold the side tables(2) (Q 1200, Q 2000,

2200).C) Make sure the burner control knob is turned to the off ( ) position(3). Check by pushing burner control knob in and turning it clockwise until it stops.D) Confirm that the cylinder is properly installed. Refer to “INSTALLING THE LP CYLINDER.”E) Push burner control knob in and turn it counterclockwise to start/high ( ) position (4). F1) Push the red igniter button several times, so it clicks each time (5) (Q 1000, Q 2000). F2) Push and hold in the electronic igniter button (6)

1200, Q 2200). You will hear the igniter clicking.G) Check that the burner is lit by looking through the cooking grates. You should see a flame. m WARNING: Do not lean over the open grill while igniting. m WARNING: If burner fails to ignite within five seconds, stop, turn the burner control knob to off and wait five minutes to allow the gas to clear before you try again or light with a match.

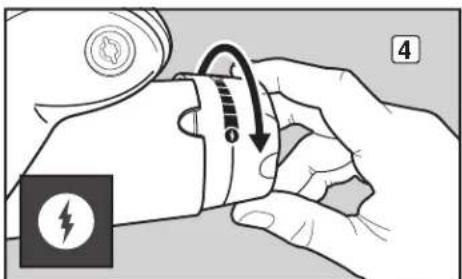

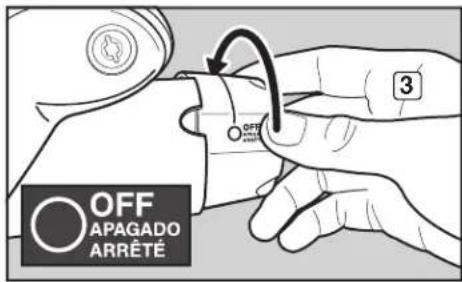

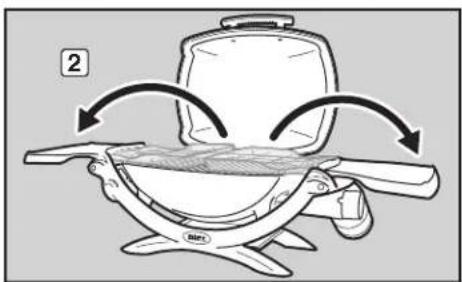

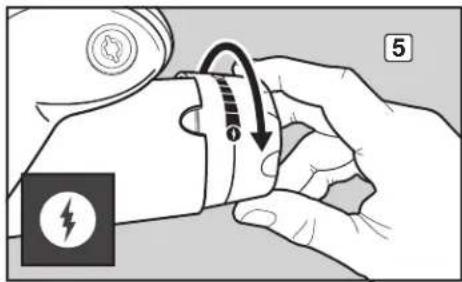

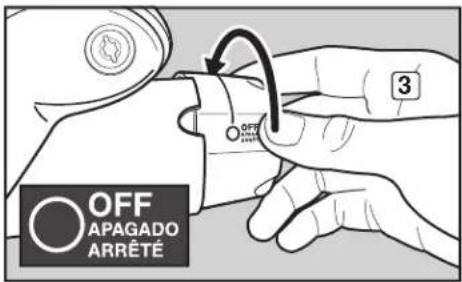

TO EXTINGUISH BURNER

Push burner control knob in and turn it clockwise to the off ( ) position. m CAUTION: Do not fold in side tables until grill is cold (Q

2200). Some batteries have a plastic protective wrap around them. This plastic must be removed before you attempt to ignite your grill. Do not confuse this plastic with the battery label.

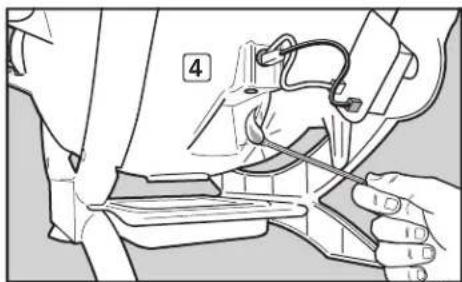

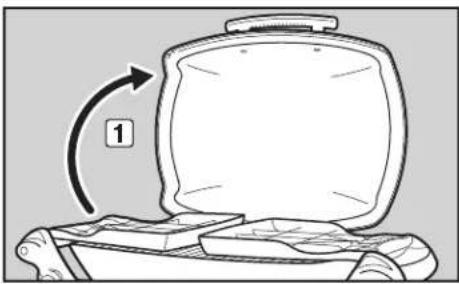

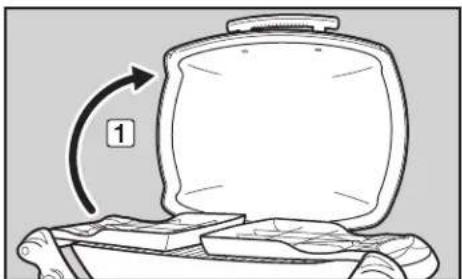

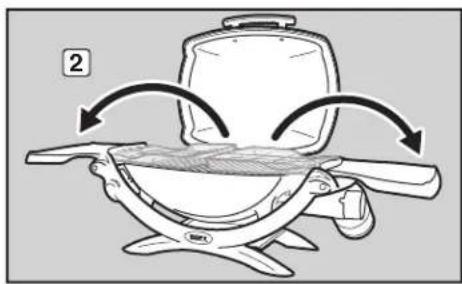

BURNER IGNITION – Lighting with a Match A) Open the grill lid (1). m DANGER Failure to open the lid before igniting the grill’s burner, or not waiting five minutes to allow the gas to clear if the grill does not light, may result in an explosive flare-up which can cause serious bodily injury or death. B) Unfold the side tables(2) (Q 1200, Q 2000,

2200).C) Make sure the burner control knob is turned to the off ( ) position(3). Check by pushing burner control knob in and turning it clockwise until it stops.D) Confirm that the cylinder is properly installed. Refer to “INSTALLING THE LP CYLINDER.”E) Strike a match and put the flame under the matchlight hole (4). While holding lit match, push burner control knob in and turn it counterclockwise to start/high ( ) position (5).F) Check that the burner is lit by looking through the cooking grates (6). You should see a flame. m WARNING: Do not lean over the open grill while igniting. Keep your face and body at least 12 in (30 cm) away from the matchlight hole when lighting thegrill. m WARNING: If the burner fails to ignite within five seconds, stop, turn the burner control knob to off and wait five minutes to allow the gas to clear before you try again.

TO EXTINGUISH BURNER

Push burner control knob in and turn it clockwise to the off ( ) position. m CAUTION: Do not fold in side tables until grill is cold (Q

TROUBLESHOOTING PROBLEMS SOLUTIONS Burner does not ignite when you push the igniterbutton. Be sure that there is gas flow to the burner by attempting to match light your burner. Refer to “BURNER IGNITION— Lighting with a Match.” If match lighting is successful, the problem lies in the ignition system. Refer to “MAINTAINING

2200).” Be sure that wires are correctly inserted into terminals on igniter electrode assembly. Check that the wires are connected to terminals on the push button igniter (Q

2200).” If a new battery is installed, confirm that battery’s plastic wrapping has been removed. Verify that the battery is in good condition and has been installed correctly. Refer to “MAINTAINING THE ELECTRONIC IGNITION SYSTEM (Q

2200).” Burner does not ignite, or flame is low when burner control knob is on high ( ) position. LP fuel could be low or empty. Replace LP cylinder. Refer to “REMOVING THE LP CYLINDER.” Burner flame pattern is erratic. Flame is low when burner control knob is on high( ) position. Flames do not run the whole length of the burnertube. Clean burner ports that run down the entire length of burner tube. Refer to “ANNUAL MAINTENANCE.” Burner burns with a yellow or orange flame, in conjunction with the smell of gas. Inspect spider/insect screen for possible obstructions. (Blockage of holes.) Clean spider/insect screen. Refer to “ANNUAL MAINTENANCE.” Experiencing flare-ups. m CAUTION: Do not line the cookbox with aluminum foil. Grill must be preheated with burner on high for 10 to 15 minutes. Clean the cooking grates thoroughly to remove grease. Refer to “CLEANING THE INSIDE OF THE GRILL.” The cookbox may be dirty and is not allowing grease to flow into removable catch pan. Clean cookbox. Refer to

“CLEANING THE INSIDE OF THE GRILL.”

Inside of lid appears to be “peeling.” (Resembles paint peeling.) The inside of the lid is cast aluminum. It is not painted. It cannot “peel.” What you are seeing is baked-on grease that has turned to carbon and is flaking off. THIS IS NOT A DEFECT. Clean thoroughly. Refer to “CLEANING THE INSIDE

If problems cannot be corrected by using these methods, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

m DANGER Failure to correct any problems described on this page may result in a fire, which can cause serious bodily injury or death, and cause damage to property. KEEPING YOUR WEBER

GRILL IN TIP-TOP SHAPE To keep your Weber gas grill performing as safely and efficiently as on day one, we strongly recommend that you inspect and clean the spider/insect screen(s) and burner tube(s) at least once a year. Below is important information about these two areas of the grill that should undergo annual maintenance.If you observe an incorrect flame pattern or blocked burner port, proceed to the “BURNER TUBE CLEANING OR REPLACEMENT” instructions on the following page.

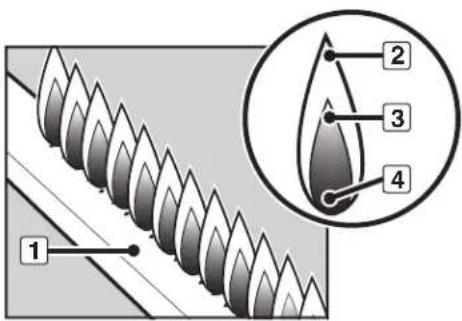

BURNER FLAME PATTERN

The burner tube(s) in your Weber gas grill was/were factory set for the correct air and gas mixture. The correct flame pattern is shown in illustration and described below:• Burner tube(s) (1)• Tips occasionally flicker yellow (2)• Light blue (3)• Dark blue (4)Check burner flame pattern. If the flames do not match the above description, it could be an indication that the spider/insect screen(s) has/have become dirty or blocked. WEBER

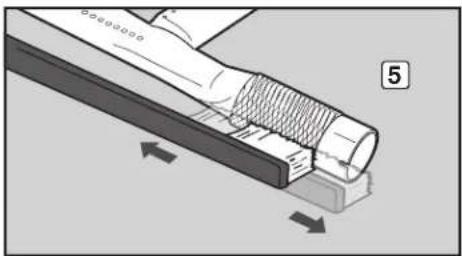

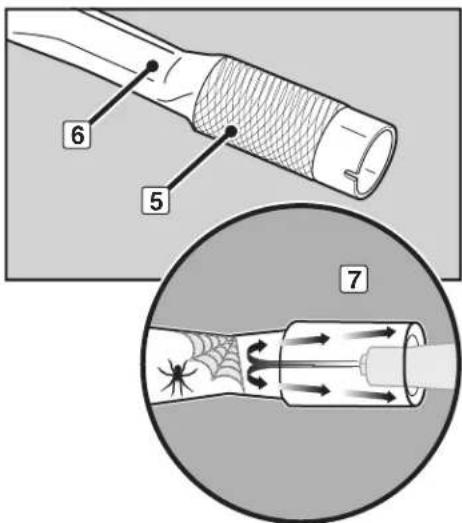

SPIDER/INSECT SCREEN(S) The combustion air opening(s) of the burner tube(s) (5) is/are fitted with stainless steel screen(s) to help prevent spiders and other insects from spinning webs and building nests inside the venturi section (6) of the burner tube(s). These nests can obstruct the normal gas flow, and can cause gas to flow back out of the combustion air opening(s) (7). Symptoms of this kind of obstruction include the odor of gas in conjunction with burner flames that appear yellow and lazy. This obstruction could result in a fire (8) in and around the gas valve(s), causing serious damage to your grill.NOTE: If a spider/insect screen becomes damaged or cannot be cleaned, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com®.

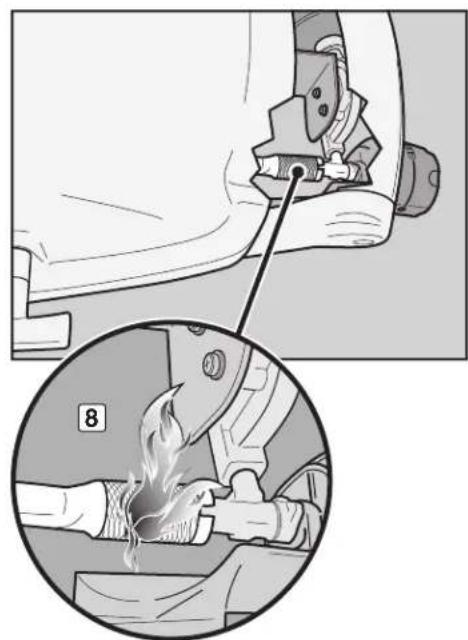

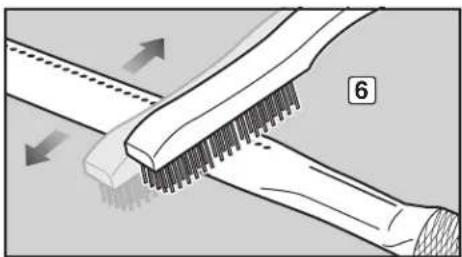

Over time, from repeated use of the grill, the burner tube ports will become dirty. Blocked and dirty ports can restrict full gas flow. Following are ways to determine whether burner tube ports are dirty or blocked.• Grill does not reach desired temperature• Grill heats unevenly• One or more of the burner(s) do not ignite Meijer.com Downloaded from www.Manualslib.com manuals search engine18 WWW.WEBER.COM

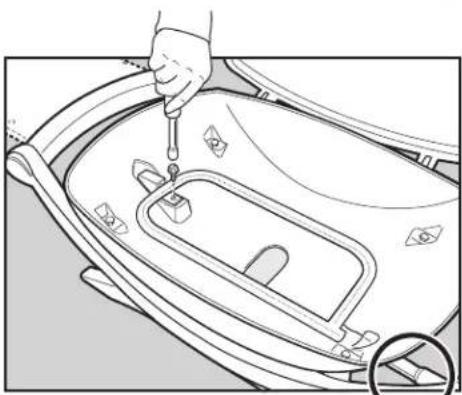

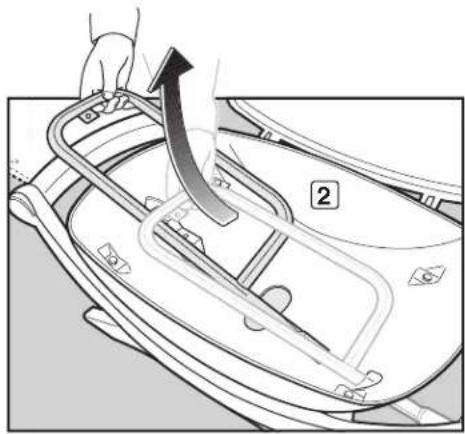

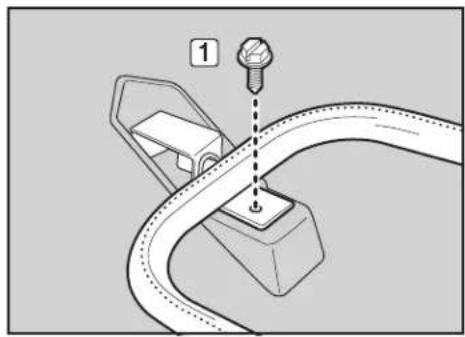

OR REPLACEMENT Confirm that Grill Is Off and Cool A) Check that the burner control knob is in the off ( )position. Check by pushing burner control knob in and turning it clockwise until it stops.B) Disconnect the LP cylinder.C) Remove the lid.D) Remove cooking grates. Remove Burner Tube You will need: A 3/8" nut driver.A) Remove the screw that holds the burner tube to the cookbox(1). B) Carefully slide the burner tube out from the cookbox(2). Clean Burner Tube You will need: A flashlight, a wire (a straightened-out coat hanger), a suitable stainless steel bristle brush, and a soft bristle brush (toothbrush).A) Look inside the burner tube with a flashlight(3).B) Clean any debris or blockage from the inside of the burner tube with the wire(4).C) Check spider/insect screen at the end of the burner tube and clean it using the soft bristle brush(5). m CAUTION: Do not clean the spider/ insect screen with hard or sharp tools. Do not dislodge the spider/insect screen or enlarge the screen openings. D) Use the steel bristle brush to clean the outside of the burner tube. This is done to make sure all burner ports (openings) running along the length of the tube are fully open(6). m CAUTION: Do not enlarge the burner ports when cleaning. Reinstall Burner Tube You will need: A 3/8" nut driver.A) Carefully slide the burner tube back into hole in right side of cookbox, aligning burner tube opening with valve orifice.B) Reinstall screw that holds the burner tube to the cookbox. m CAUTION: The burner tube opening (7) must be positioned properly over the valve orifice (8). m WARNING: You should check for gas leaks every time you disconnect and reconnect a gas fitting. Refer to

“CHECKING FOR GAS LEAKS.”

grill owners take a lot of pride in their grills. Flaunt your pride and joy. Keep your grill clean and beautiful—inside and out— by following these routine maintenance steps.

CLEANING THE OUTSIDE OF THE GRILL

To keep the outside of your grill looking its best, use the following guidelines for safe cleaning. m WARNING: Turn your Weber

gas grill off and wait for it to cool before cleaning it. Painted, Enameled and Plastic Surfaces Use a warm, soapy water solution to clean outside surfaces; then rinse with water.IMPORTANT: Do not use cleaners that contain acid, mineral spirits, or xylene. Do not use oven cleaner, abrasive cleansers (kitchen cleansers), cleaners that contain citrus products, or abrasive cleaning pads on grill or cart surfaces.Fold-out tables (Q 1200, Q 2000, Q 2200) are not to be used as cutting boards.

CLEANING THE INSIDE OF THE GRILL

To keep your grill performing safely and efficiently, it is important to remove any debris and excess grease that may have accumulated on the inside of the grill. Use the following guidelines for safe cleaning. Inside Lid Flaking, built-up grease resembles paint flakes. Wipe inside of lid with paper towel to prevent grease build-up. Wash inside lid with warm, soapy water; then rinse withwater. Cookbox Components & Burner Tube You will need: A stainless steel bristle brush, and a stiff plastic scraper.A) Scrape and brush the cooking grates with the scraper and brush. Remove the cooking grates and set aside. m CAUTION: Grill brushes should be checked for loose bristles and excessive wear on a regular basis. Replace brush if any loose bristles are found on cooking grates or brush. Weber recommends purchasing a new stainless steel grill brush at the beginning of every spring. m CAUTION: Do not clean cooking grates in a self-cleaning oven. B) Brush any debris off of burner tube. Do not enlarge burner ports (openings) running along length of burner tube (1).C) When cleaning is complete, replace the cooking grates. Cookbox Wash inside of cookbox with warm, soapy water; then rinse with water. Removable Catch Pan and Disposable Drip Pan Your grill was built with a grease collection system, which funnels grease away from food and into a removable catch pan. For your convenience, you can also line the removable catch pan with a Weber disposable drip pan, which will help keep the removable catch pan cleaner longer. Cleaning the removable catch pan is just as important as cleaning the cookbox. Check the removable catch pan for grease build-up each time you use your grill. Remove excess grease with a plastic scraper (2). Wash the removable catch pan with warm, soapy water and rinse with water. m WARNING: Check the removable catch pan or disposable drip pan for grease build-up before each use. Remove excess grease to avoid a grease fire. A grease fire can cause serious bodily injury or damage to property. m CAUTION: Do not line the cookbox, removable catch pan or disposable drip pan with aluminum foil.

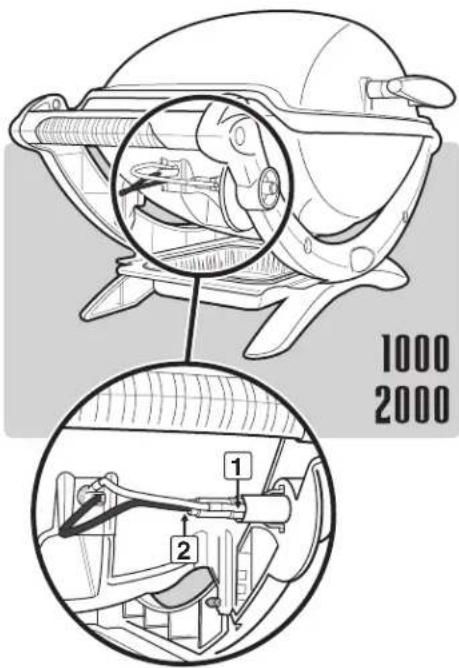

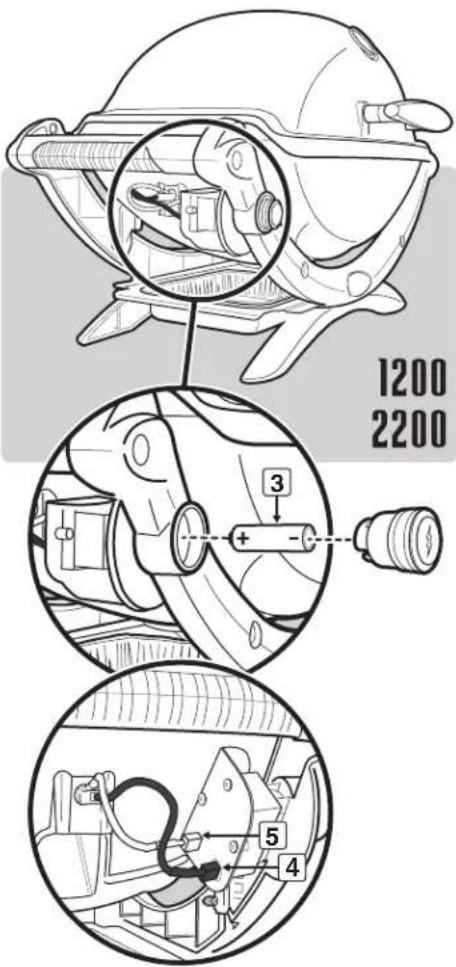

The igniter supplies a spark to the igniter electrode assembly. Whether you are performing routine maintenance or a troubleshooting check on the ignition system, read the following to keep your ignition system working properly. m WARNING: All gas controls and supply valves should be in the OFF position. If the igniter fails to ignite your Q grill, you will need to pinpoint where the problem is occurring: with the gas flow or with the ignition system. Begin by attempting to match light your burner. Refer to “BURNER IGNITION—Lighting with a Match.” If match lighting is successful, the problem lies in the ignition system.

• Check that both the white (1) and black (2) ignition wires are attached properly.• Verify that the igniter button pushes in, clicks and returns to the out position.

• Verify that the AAA battery (alkaline only) is in good condition and is installed correctly (3). Some batteries have a plastic protective wrap around them. This plastic must be removed before installing battery. Do not confuse this plastic with the battery label.• Make sure that both igniter wires are properly attached to the igniter module. Black wire to black terminal (4), white wire to white terminal (5).• Make sure the electronic igniter button is working by listening for clicking and looking for sparks at burner.If the electronic ignition system still fails to ignite, contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com

To obtain replacement disposable drip pans and cooking grates,contact thelocal retailerin your areaor log onto www.weber.com

. If you need furtherassistance, contact your Customer Service Representative. Meijer.com Downloaded from www.Manualslib.com manuals search engineWWW.WEBER.COM

grill includes designs and features originally created by Robert DeMars of Original Ideas, Inc. m ATTENTION: This product has been safety tested and is only certified for use in a specific country. Refer to country designation located on outer carton. These parts may be gas carrying or gas burning components. Please contact Weber-Stephen Products LLC, Customer Service Department for genuine Weber-Stephen Products LLC replacement part(s) information. m WARNING: Do not attempt to make any repair to gas carrying, gas burning, igniter components or structural components without contacting Weber-Stephen Products LLC, Customer Service Department. Your actions, if you fail to follow this Product Warning, may cause a fire, an explosion, or structural failure resulting in serious personal injury or death as well as damage to property.

WEBER-STEPHEN PRODUCTS LLC

© 2013 Designed and engineered by Weber-Stephen Products LLC, 200 East Daniels Road, Palatine, Illinois 60067 U.S.A. Printed in U.S.A. La barbacoa The Weber
