BriteNite 3W Sport - Flashlight WAGAN - Free user manual and instructions

Product Type	Rechargeable flashlight
Brand	WAGAN
Model	BriteNite 3W Sport
Main light source	LED 3W
Secondary light source	18 LED
Operating time (LED 3W)	Up to 3.5 hours
Operating time (18 LED)	Up to 9 hours
Battery type	Lead-acid, 4 V, 2.8 Ah
AC charger	110 V AC, output 4.5 V / 500 mA
Cigarette lighter charger	12 V DC, fuse 3 A
Charging time	Approximately 9 hours
Dimensions	172 × 185 × 89 mm
Weight	0.58 kg
Warranty	1 year limited (after registration)
Safety instructions	Do not point at eyes; do not use underwater; do not expose to flammable sources; store in a dry and clean place; recharge immediately when the light becomes dim; do not charge for more than 30 hours.
Maintenance	Recharge the battery every 1 to 2 months during prolonged storage to extend its life.
Instructions for use	Press the trigger: 1st press = LED 3W, 2nd = off, 3rd = 18 LED, 4th = off. Do not turn on while charging.

Frequently Asked Questions - BriteNite 3W Sport WAGAN

How to turn on the flashlight?

Press the trigger: once to turn on the LED 3W, a second time to turn it off, a third time to turn on the 18 LED, a fourth time to turn everything off.

What is the battery life?

The lead-acid battery of 4 V / 2.8 Ah provides up to 3.5 hours with the 3W LED and up to 9 hours with the 18 LEDs.

How to recharge the flashlight?

Turn off the flashlight. Plug the AC charger (110 V AC) or the cigarette lighter adapter (12 V DC) into the Jack socket. The LED indicator lights up. The full charging time is approximately 9 hours. Do not charge for more than 30 hours.

Can I use the flashlight while charging?

No, do not turn on the flashlight while charging. This could damage the device and void the warranty.

Is the flashlight waterproof?

No, it is not waterproof. Do not use it underwater. Store it in a dry and clean place.

How to maintain the battery during prolonged storage?

Recharge the battery every 1 to 2 months to prevent deterioration. Do not let the battery fully discharge.

Can I replace the battery?

The battery is internal and not user-replaceable. For any issues, contact customer service.

What to do if the flashlight no longer turns on?

First check the charge. Plug it in for one hour, then try again. If it still does not turn on, contact WAGAN for possible replacement under warranty.

What is the warranty?

WAGAN offers a one year limited warranty against defects in materials and workmanship. Product registration within 30 days of purchase is required to activate the warranty (see http://tinyurl.com/waganwarranty). Keep your receipt.

How to get a return for a defective product?

Call WAGAN at 800-231-5806 to obtain an RMA number. Return the item in a prepaid package with an explanation of the problem, your name, address, and phone number. WAGAN will replace the defective item.

USER MANUAL BriteNite 3W Sport WAGAN

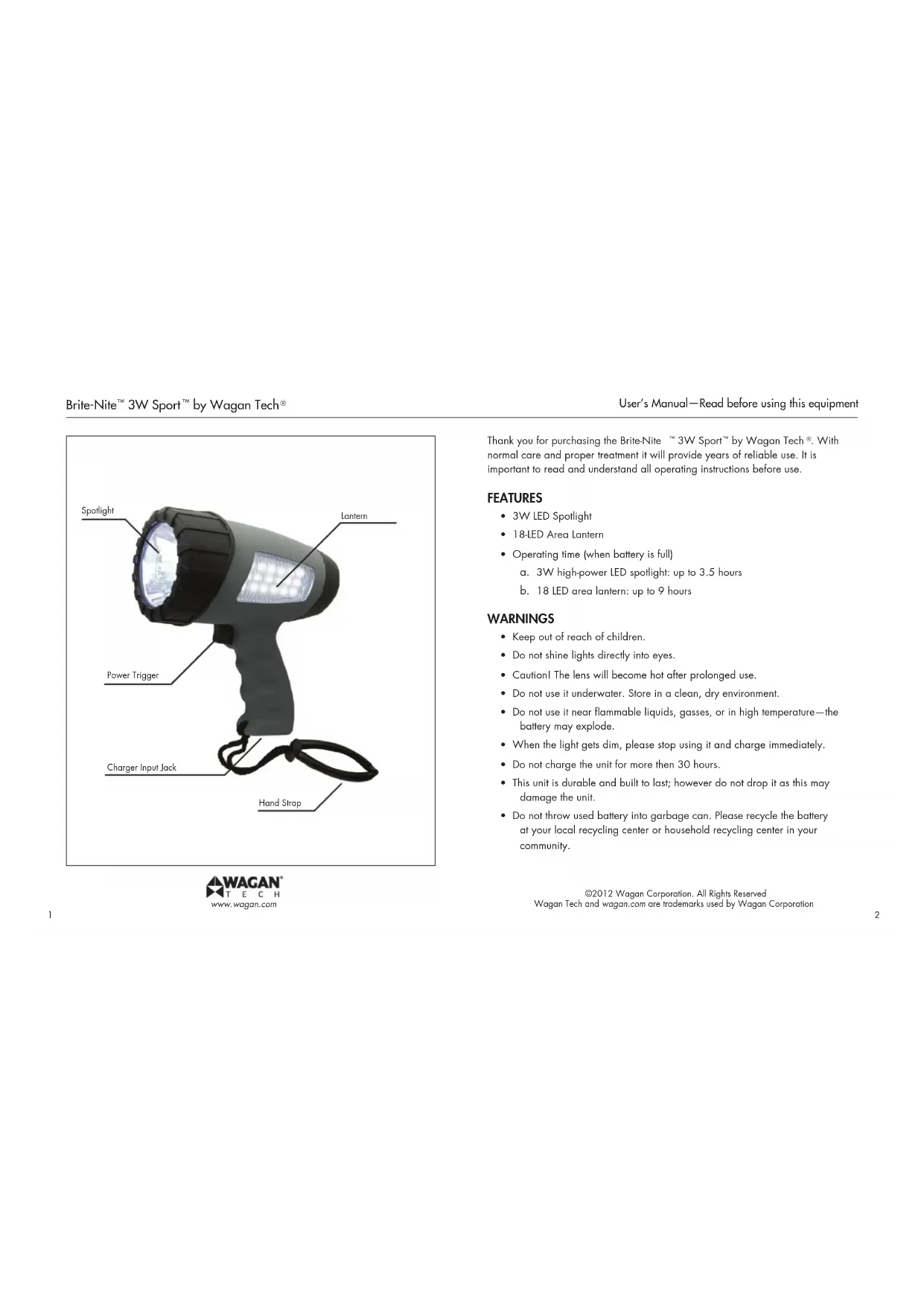

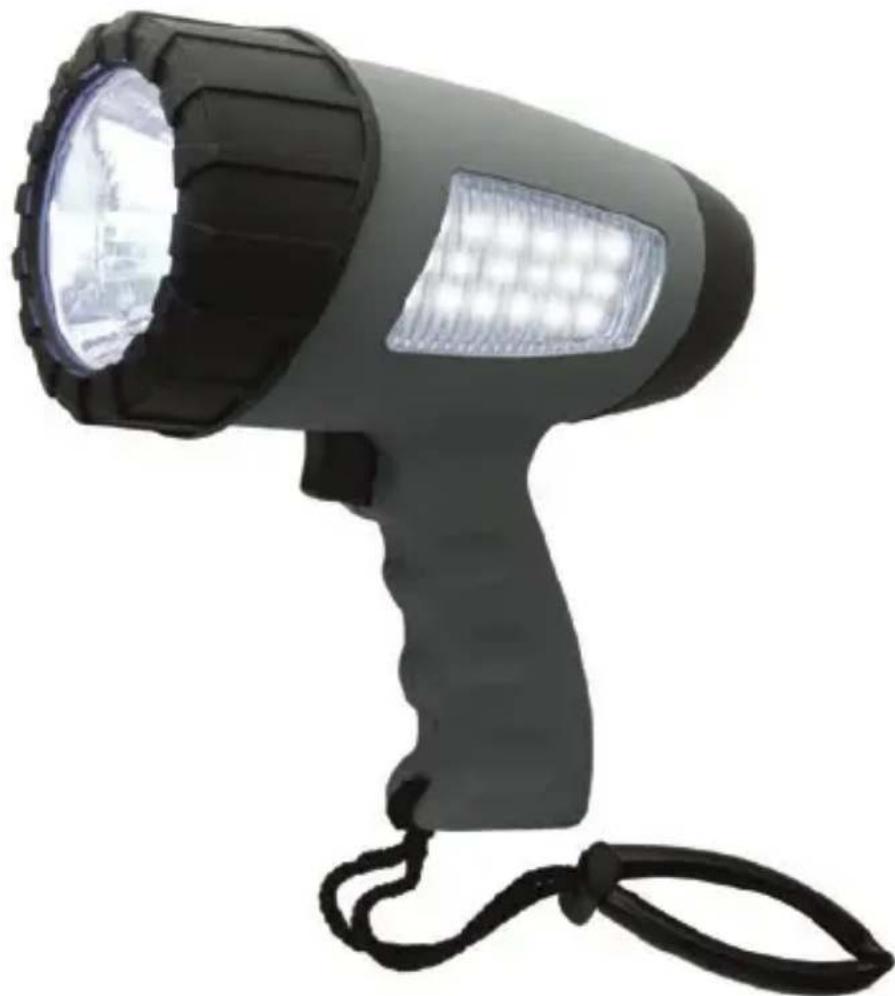

Brite-Nite™ 3W Sport™

Thank you for purchasing the Brite-Nite 3W Sport by Wagan Tech. With normal care and proper treatment it will provide years of reliable use. It is important to read and understand all operating instructions before use.

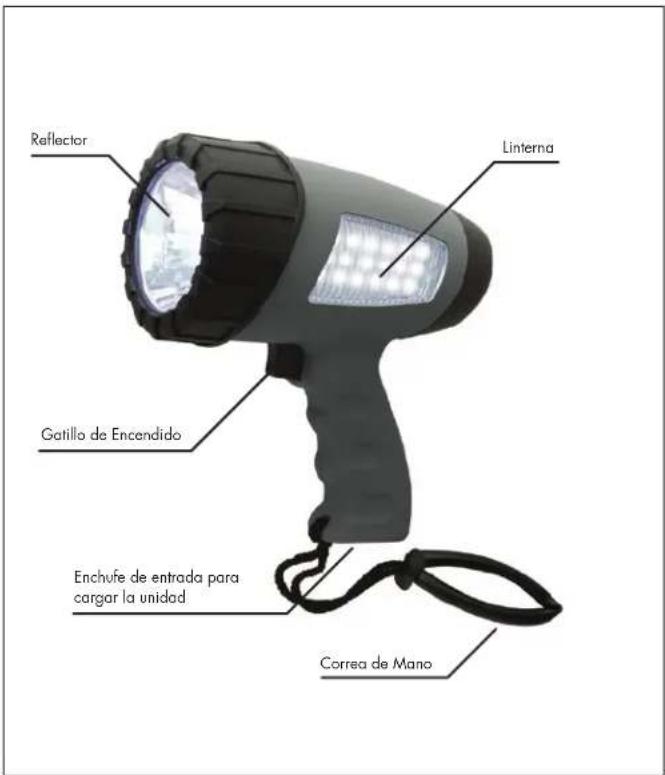

FEATURES

3W LED Spotlight
18-LED Area Lantern
- Operating time (when battery is full)
a. 3W high-power LED spotlight: up to 3.5 hours
b. 18 LED area lantern: up to 9 hours

WARNING

• Keep out of reach of children.
• Do not shine lights directly into eyes.
• Caution! The lens will become hot after prolonged use.
• Do not use it underwater. Store in a clean, dry environment.
• Do not use it near flammable liquids, gasses, or in high temperature—the battery may explode.
• When the light gets dim, please stop using it and charge immediately.
• Do not charge the unit for more than 30 hours.
• This unit is durable and built to last; however do not drop it as this may damage the unit.
• Do not throw used battery into garbage can. Please recycle the battery at your local recycling center or household recycling center in your community.

©2012 Wagan Corporation. All Rights Reserved
Wagan Tech and wagan.com are trademarks used by Wagan Corporation

OPERATION

1. Push the power trigger once to turn on the 3W LED spotlight; push it again to turn it off.
2. Push the power trigger a third time to turn on the 18 LED area lantern; push it again to turn it off
3. The unit will not turn off automatically. When the light becomes dim, please turn off the light and charge immediately to avoid battery damage.

RECHARGING THE UNIT

IMPORTANT

DO NOT turn on the light while charging. Doing so may damage the unit and will not be covered under the warranty. As with all sealed lead-acid batteries, when storing, be sure to recharge the battery fully every 1-2 months to prolong the life of the battery.
DO NOT leave the unit plugged in after it is fully charged. Charging the unit past the recommended maximum time will damage the internal battery and will void the warranty.

AC CHARGING

Make sure the unit is turned off before charging.

1. Insert the AC charging plug into the charging jack on the bottom of the handle of the spotlight.
2. Plug the transformer end of the AC adapter into a 110V AC outlet.
3. The LED indicator light will illuminate to indicate that the spotlight is charging.
4. The LED indicator light will go out when fully charged (about 9 hours).

DC CHARGING

Make sure the unit is turned off before charging.

1. Insert the DC charging plug into the charging jack located on the bottom of the handle of the spotlight.
2. Plug the other end into the 12V cigarette socket of your vehicle.
3. The LED indicator light will illuminate to indicate that the spotlight is charging.
4. The LED indicator light will go out when fully charged (about 9 hours)

MAINTENANCE

Store and operate in a clean and dry environment. It is advisable to recharge the spotlight after using, otherwise the battery life will be shortened. As with all sealed lead-acid batteries, when storing, be sure to recharge the battery fully every 1-2 months to prolong the life of the battery. DO NOT leave the spotlight plugged in after the charging time or you will damage the internal battery. The lifespan of the internal battery depends on how it is treated.

BATTERY

The battery is not intended to be removed from the spotlight by the user.

LED LIGHTS

The Brite-Nite 3W Sport uses bright LEDs that do not need changing. Do not attempt to alter or change the LEDs.

©2012 Wogan Corporation. All Rights Reserved

Wagan Tech and wagan.com are trademarks used by Wagan Corporation

SPECIFICATIONS

Size: 6.77 in x 7.28 in x 3.5 in (172 mm x 185 mm x 89 mm)
Weight: 1.28 lbs [0.58kg]
Battery: 4 V, 2.8 Ah lead acid
- AC adaptor: 110 V, 4.5 V, 500 mA
- DC adaptor: 12V,3A fuse

WAGAN Corp. Limited Warranty

All WAGAN Corporation products are warranted to the original purchaser of this product.

Warranty Duration: This product is warranted to the original purchaser for a period of one (1) Year from the original purchase date, to be free of defects in material and workmanship. WAGAN Corporation disclaims any liability for consequential damages. In no event will WAGAN Corporation be responsible for any amount of damages beyond the amount paid for the product at retail. In the event of a defective item, please contact WAGAN Corporation at [800] 231-5806 to obtain a Returned Merchandise Authorization number (RMA#), and return instructions. Each item returned will require a separate RMA#. After you have received the RMA# and the return instructions from WAGAN Corporation, please follow the instructions and send the item with PREPAID SHIPPING, along with all of the required documentation, a complete explanation of the problem, your name, address and daytime phone number. WAGAN Corporation will, at its option, replace or repair the defective part.

A Returned Merchandise Authorization number (RMA#) is REQUIRED when sending in any defective item. WAGAN Corporation is not responsible for any item(s) returned without an official Returned Merchandise Authorization number. The item(s) must be returned with prepaid shipping. WAGAN Corporation is not responsible for any shipping charges incurred in returning the item(s) back to the company for repair or replacement. This warranty is void if the product has been damaged by accident, in shipment, unreasonable use, misuse, neglect, improper service, commercial use, repairs by unauthorized personal or other causes not arising out of defects in materials or workmanship. This warranty does not extend to any units which have been used in violation of written instructions furnished.

Warranty Disclaimers: This warranty is in lieu of all warranties expressed or implied and no representative or person is authorized to assume any other liability in connection with the sale of our products. There shall be no claims for defects or failure of performance or product failure under any theory of tort, contract or commercial law including, but not limited to negligence, gross negligence, strict liability, breach of warranty and breach of contract.

Warranty Performance: During the above one (1) Year warranty period, a product with a defect will be replaced with a comparable model when the product is returned to WAGAN Corporation with an original store receipt. The replacement product will be in warranty for the balance of the one (1) Year warranty period.
