USER MANUAL RMB96851IN ROSIERES

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Prije ugradnje, isključite uređaj i odspojite iz električne mreže.

1. Za najbolji radni učinak, kuhinjska napa treba biti postavljena na visini 65 \~75 cm iznad štednjaka/ploče za kuhanje.

Technical line drawing of two mechanical components with mounting base (no text or symbols)

Diagram of a brick wall with a small object inserted into the base, no text or symbols present

Diagram of a mechanical or fluid system with directional arrows and a central block, no text or symbols present.

Pri unutarnjoj ventilaciji, za filtriranje dima i para koristi se aktivni ugljeni filter. Prije ugradnje aktivnog ugljenog filtera, prvo uklonite filter za masnoću. Pritisnite zasun i povucite filter prema dole.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a laptop (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly (no text or symbols visible)

CLOSE ZATVARANJE

VAŽNA NAPOMENA:

o Budite sigurni da je aktivni ugljeni filter sigurno i ispravno učvršćen. U suprotnom se može olabaviti i izazvati opasnost.
o Sa ugrađenim aktivnim ugljenim filterom, usisna snaga kuhinjske biti će manja.

OPIS DIJELOVA KUHINJSKE NAPE

1 2 3 0/1 0 1 2 3 0/1

RADNE TIPKE

Tipka za malu brzinu 📋

Pure mechanical diagram showing two downward arrows pointing to a horizontal line with a central component (no text or symbols)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Diagram showing brick wall and ceiling installation with a box and directional arrow (no text or symbols)

Isometric line drawing of a brick wall with a pedestal and support structure (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a laptop (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Poznámka:

Diagram showing a mechanical or electrical setup with downward arrows and labeled components, possibly indicating forces or motion.

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 29

SAFETY PRECAUTION 29

SPECIFICATION 31

INSTALLATION (VENT OUTSIDE) 32

INSTALLATION (VENT INSIDE) 36

DESCRIPTION OF COMPONENTS 37

OPERATION 38

MAINTENANCE 38

TROBULESHOOTING 39

CONFORMITY WITH DIRECTIVES 40

ENVIRONMENTAL PROTECTION 40

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

SAFETY PRECAUTION

Never let the children operate the machine.

The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.

The cooker hood and its filter should be clean regularly in order to keep in good working condition.

Clean the cooker hood according to the instruction manual and keep the unit from danger of burning.

Forbid the direct baking from the gas cooker.

Please keep the kitchen room a good convection.

Before connecting this appliance check that the power supply cord is not damaged. A damage supply cord must be replaced by qualified service personnel only.

There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels;

he air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels;

☐ Regulations concerning the discharge of air have to be fulfilled.
This appliance if not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person slide for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not flambé under the range hood.
The range hood is not intended to be installed over a hob having more than four hob elements

Electrical Shock Hazard

Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.

Failure to follow these instructions can result in death, fire, or electrical shock.

Standard Installation Accessories List

Spec.	Illustration	Picture
Casing 1
Upper Chimney		1
Lower Chimney		1
Lower chimney bracket	1
Upper chimney bracket	1
Hanging Board 1
φ8 rawl plugs φ8×φ6 white color		9
Screws ST4.0×30		9
φ7.2screws ST4.0×8		2

Qty

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150mm)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

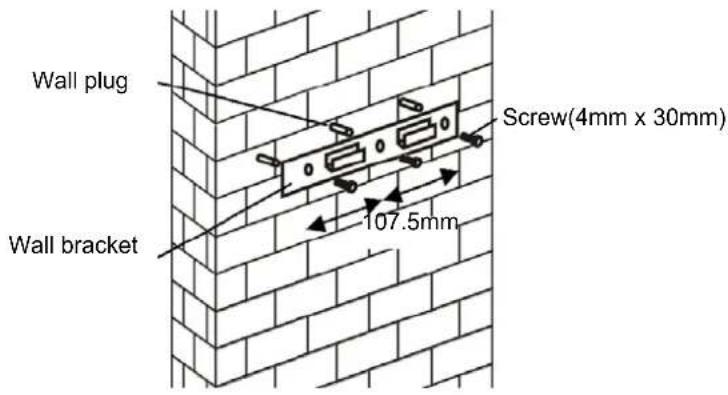

1. Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

Wall plug Screw(4mm x 30mm) Wall bracket 107.5mm

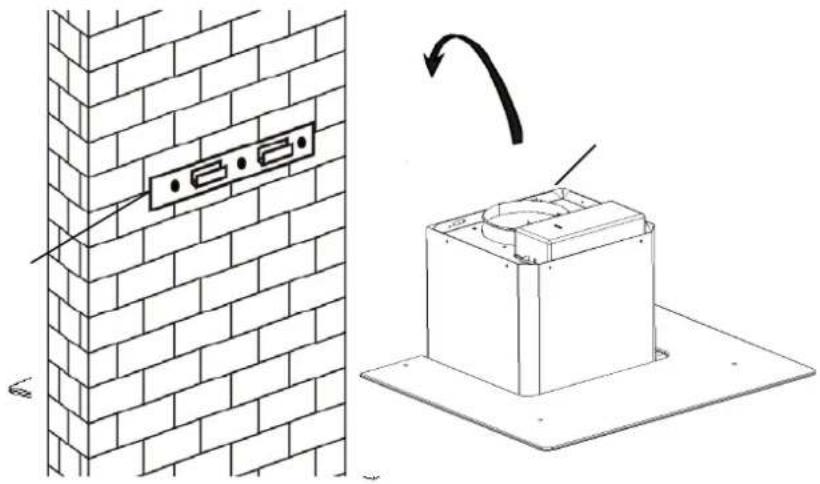

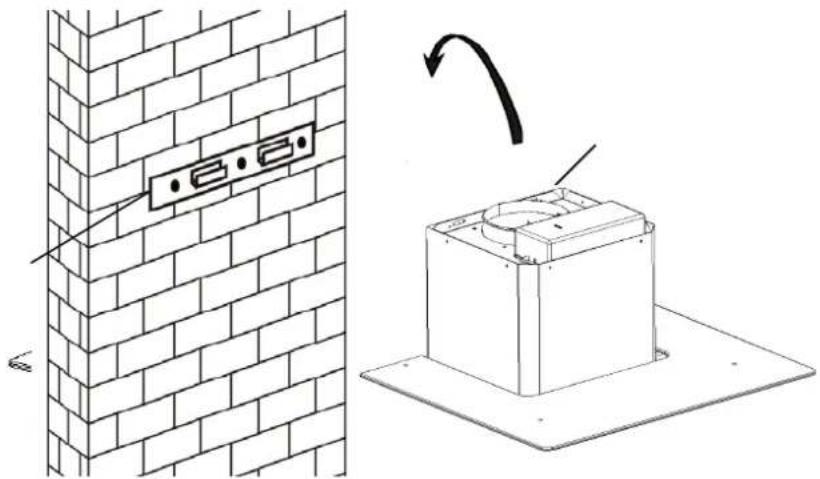

1. Leave up the cooker hood and hang onto the wall bracket hook.

Diagram showing a brick wall with an electrical outlet and a mechanical component with a curved arrow indicating rotation (no text or symbols)

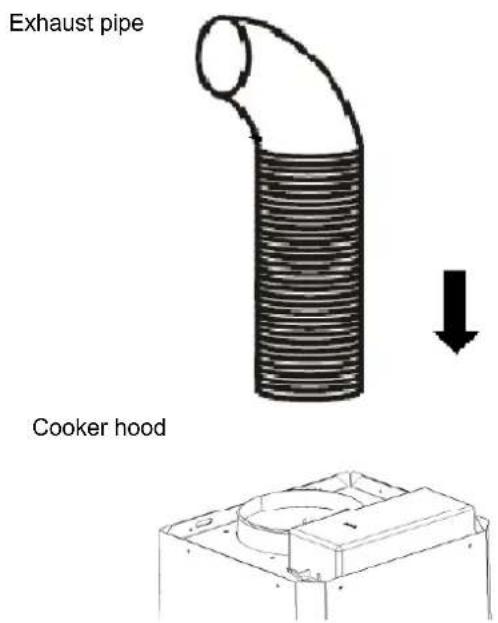

1. Fix the one-way-valve to the air outlet of the cooker hood. Then, attached the exhaust pipe onto the one-way-valve as shown below.

Exhaust pipe Cooker hood

6.

i. Place the glass in appropriate position on the top the cooker hood.

ii. Fix with 4 screws and washer. In order to avoid the glass cracking, please do not tighten the screws too strongly.

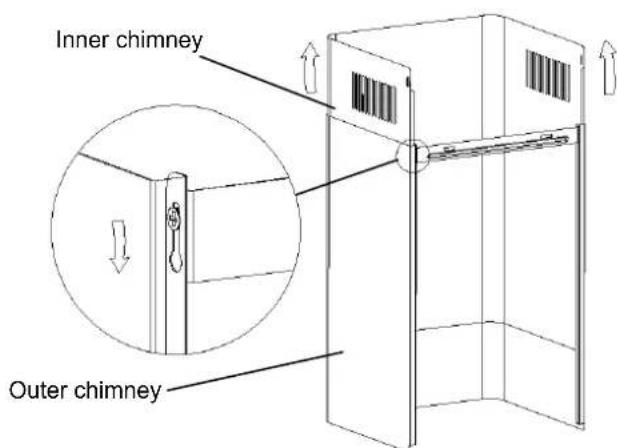

i. By Put the inner chimney into outer chimney . Then pulling out the inner chimney upwards. Adjust to reach the height required.

Simple line drawing of a brick wall with a pedestal and a small object inserted, no text or symbols present.

ii. Sliding the chimney to adjust the chimney height. When the height you required is reached, then hang the fixing hole to the fixing screws as showed in below pictures.

Inner chimney Outer chimney

8.

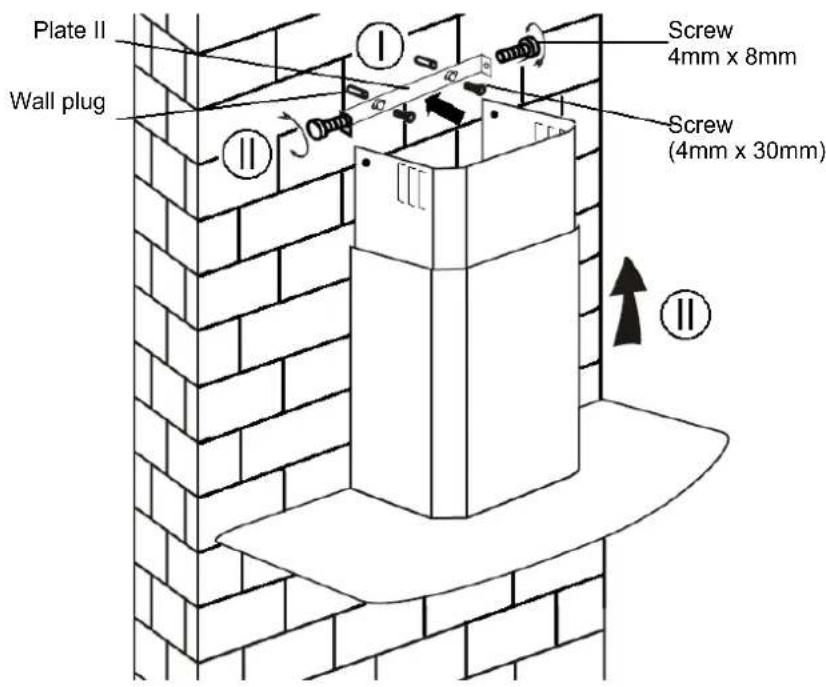

i. Drill 2 x 8mm holes to accommodate the plate II. Screw and tighten the plate II onto the wall with 2 screws provided.

ii. Assembly the chimney onto the unit and fix it with 2 screws.

Plate II Wall plug Screw 4mm x 8mm Screw (4mm x 30mm) II

INSTALLATION (VENT INSIDE)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "INSTALLATION (VENT OUTSIDE)".

Diagram of a conical structure with directional arrows indicating force or movement (no text or symbols)

Activated carbon filter can be used to trap odors. In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Simple line drawing of a hand holding a rectangular object over a flat surface, with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

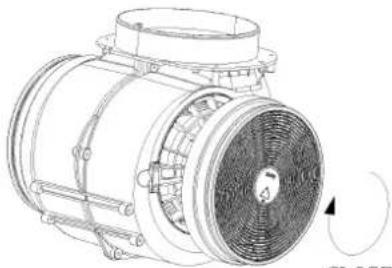

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

Technical line drawing of a mechanical component with a close button and fan (no text or symbols)

NOTE:

o Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
- When activated carbon filter attached, the suction power will be lowere

DESCRIPTION OF COMPONENTS

1 2 3 0/1 0 1 2 3 0/1

OPERATION

Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button

When high density of smoke or steam produced, press high-speed button for highest effective ventilation.

Light button

NOTE: If Low / Medium / High speed buttons are press at the same time, the unit will only operate at the highest speed.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust..... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Pure electrical circuit lines without any symbols

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: G4, MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROBULESHOOTING

Fault Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Halogen light bulb burn.	Replace the bulb with correct rating.
	Power cord looses. Plu	g in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

NOTICE D'INSTALLATION ET

D'UTILISATION

Sommaire

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Chevilles Fixation mural Vis (4mm x30mm) 107.5mm

Technical line drawing showing a brick wall with a mounted electrical outlet and a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram of a coiled pipe with a downward arrow indicating flow or direction (no text or symbols)

Hotte

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

6.

Support II Fixation murale Visse 4mm x 8mm Visse(4mm x 30mm) II

Installation (En recyclage)

Installation (En recyclage)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a downward arrow (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Enclenché

NOTE :

Pure mechanical diagram showing two downward arrows pointing to a horizontal beam with a central component (no text or symbols)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical diagram showing brick wall installation with a component mounted on a base, and a mechanical assembly with an arrow indicating rotation.

Simple line drawing of a ballot box with a flag, placed on a brick wall (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a laptop (no text or symbols)

Technical line drawing of a mechanical fan or motor with a close button indicator (no text or symbols on the diagram itself)

HINWEIS:

Pure electrical circuit lines without any symbols

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Diagram showing a brick wall with an electrical socket and a 3D box installation with an arrow indicating rotation (no text or symbols)

Diagram of a pipe with a circular opening and a downward arrow indicating flow or direction (no text or symbols)

Καπέλο

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

6.

Isometric line drawing of a brick structure with a vertical column and base, no text or symbols present

Báση Οπή ① Bíða 4mm x 8mm Bíða(4mm x 30mm) ②

Diagram of a mechanical or fluidic system with directional arrows indicating flow or movement (no text or symbols)

Illustration of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a laptop (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly (no text or symbols visible)

ΣΗΜΕΙΩΣΗ:

CLOSE

Diagram showing a mechanical or electrical setup with downward arrows indicating direction, possibly representing a system or signal flow.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Foro Supporto Vite (4mm x 30mm) 107.5mm

Technical diagram showing a brick wall with electrical socket and a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram of a cylindrical pipe with a downward arrow indicating flow or compression (no text or symbols)

Cappa

Technical line drawing of a mechanical housing or enclosure with mounting flanges and internal components (no text or symbols)

6.

Isometric line drawing of a brick wall with a small object on top (no text or symbols)

Piastra a II Foro Vite 4mm x 8mm Vite (4mm x 30mm) II

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present.

Illustration of a hand holding a rectangular object with an arrow pointing downward, next to a flat surface (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical line drawing of an electric motor with a close button and fan (no text or symbols)

NOTE:

Pure electrical circuit lines without any symbols

(Waste Electrical and Electronic Equipment - WEEE).

MONTAŻ (WERSJA WYWIEWOWA) 98

MONTAŻ (WERSJA Z RECYRKULACJA) 102

PANEL STEROWANIA 103

DZIAŁANIE 103

OBSŁUGA 104

MOŻLIWE USTERKI 105

OCHRONA ŚRODOWISKA 106

WPROWADZENIE

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical diagram showing a brick wall with electrical socket and a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram of a brick structure with a vertical support and base, no text or symbols present

Diagram of a mechanical or fluid system with directional arrows and motion indicators (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a downward arrow (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical line drawing of a mechanical fan or motor with a close button indicator (no text or symbols on the diagram itself)

UWAGA:

Technical diagram showing a mechanical or electrical system with downward force arrows and a labeled component.

☐ Regulations concerning the discharge of air have to be fulfilled.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Bloco de Tomada Parafuso (4mm x 30mm) 107.5mm

111

Technical line drawing showing a brick wall with an electrical outlet and a mechanical housing component (no text or symbols)

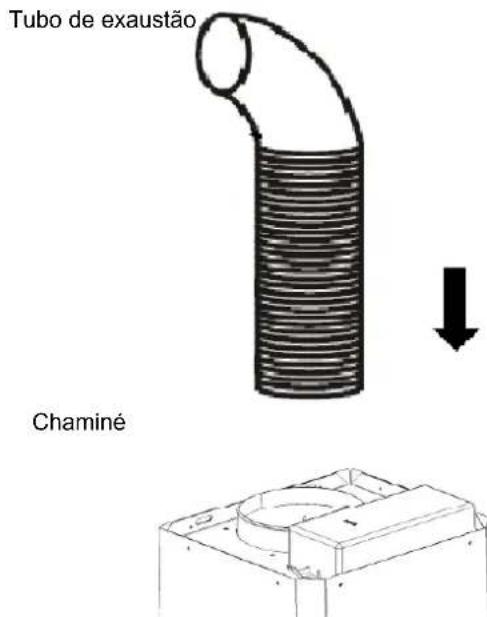

1. Fixe a válvula unidireccional para a saída de ar do exaustor. De seguida encaixe o tubo de saída do ar na válvula, como se exemplifica de seguida no desenho

Simple line drawing of a brick structure with a vertical column and a small object on top (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present.

Simple line drawing of a hand holding a rectangular object with an arrow pointing downward (no text or symbols)

Illustration of a hand pressing down on a laptop keyboard (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

NOTA:

Diagram showing a mechanical or electrical setup with downward arrows and labeled components, possibly indicating forces or motion.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Surub (4mmx30mm) 107.5mm

Technical line drawing showing a brick wall and a mechanical component with an arrow indicating rotation (no text or symbols)

Isometric line drawing of a brick wall with a small object inside, no text or symbols present

Cos interior Cos exterior

8.

Placa II Priza de perete surub 4mm x 8mm surub (4mm x 30mm) II

INSTALARE (VENTILARE ÎN INTERIOR)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a downward arrow (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical line drawing of a mechanical fan or motor with a close button and rotation arrow (no text or symbols)

NOTĂ:

Pure mechanical diagram showing two downward arrows pointing to a horizontal beam with a central component (no text or symbols)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Pred priključitevanjem cevi izklopite napo in potegnite vtikač iz vtičnice.

Vložek Nosilec 107.5mm Vijak (4mm x 30mm)

Technical diagram showing a brick wall with an electrical socket and a mechanical component with an arrow indicating rotation (no text or symbols)

Diagram of a brick chimney with a chimney mounted on a platform, no text or symbols present

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

V tem primeru v napo vstavite filter z aktivnim oglem, ki zadrži vonjave. Najprej morate sneti filter za maščobe, nato pa lahko vstavite ogleni filter. Potisnite na zapah in potegnite filter za maščobe navzdol.

Illustration of a hand holding a rectangular object with an arrow pointing downward (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Potisnite aktivni ogleni filter v napo in ga zavrtite v desno, v smeri vrtenja urinega kazalca. Postopek ponovite na drugi strani nape.

Technical line drawing of a mechanical fan or motor assembly (no text or symbols visible)

(PRITRJEVANJE)
CLOSE

OPOMBA:

Pure technical line drawing of a mechanical or electrical component with downward arrows indicating force or direction (no text or symbols)

Odklopite žico za žarnico in z nape odklopite držalo žarnice in žico. Pomembno: Ni mogoče zamenjati samo žarnico, ampak potrebujete komplet – žarnico, nosilec in žico. (lučka LED: G4, MAX 1.5W)

Pritrdite novo žarnico z nosilcem in žico tako, kot je bila pritrjena pregorela žarnica. Nato ponovno priključite žico.

Ponovno namestite steklo in privijte vijake. Prepričajte se, da ste jih do konca zategnili.

ODPRAVLJANJE NEPRAVILNOST V DELOVANJU

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing showing a brick wall with an electrical outlet and a mechanical component mounted on a base (no text or symbols)

Diagram of a pipe with a coiled tube and a downward arrow indicating flow or direction (no text or symbols)

Campana

Technical line drawing of a mechanical component with mounting flanges and a central circular feature (no text or symbols)

6.

Simple line drawing of a brick wall with a pedestal and a small object inside (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Two-step diagram showing hand positioning of a rectangular object on a flat surface, with no text or symbols present.

Technical line drawing of a mechanical component with no visible text or symbols

NOTA:

Pure electrical circuit lines without any symbols
