USER MANUAL AF 5078PS AGFAPHOTO
Copyright © 2010 Sagemcom
Supports mémoire photo
Cartes mémoire photo compatibles ....SD/SDHC/MMC/MS/XD
Format Photo ...... JPEG
Fabricant...1)Click Technology (Shenzhen) Co., Ltd ....2)Shenzhen Moso Power ....Supply TechnologyCo., Ltd
Modèle ....1)CPS008050100* .....2MSP-C1000IC5.0-5W-zz
Entrée.... 100-240V\~/50/60Hz
Sortie 5V==/1A
Copyright © 2010 Sagemcom

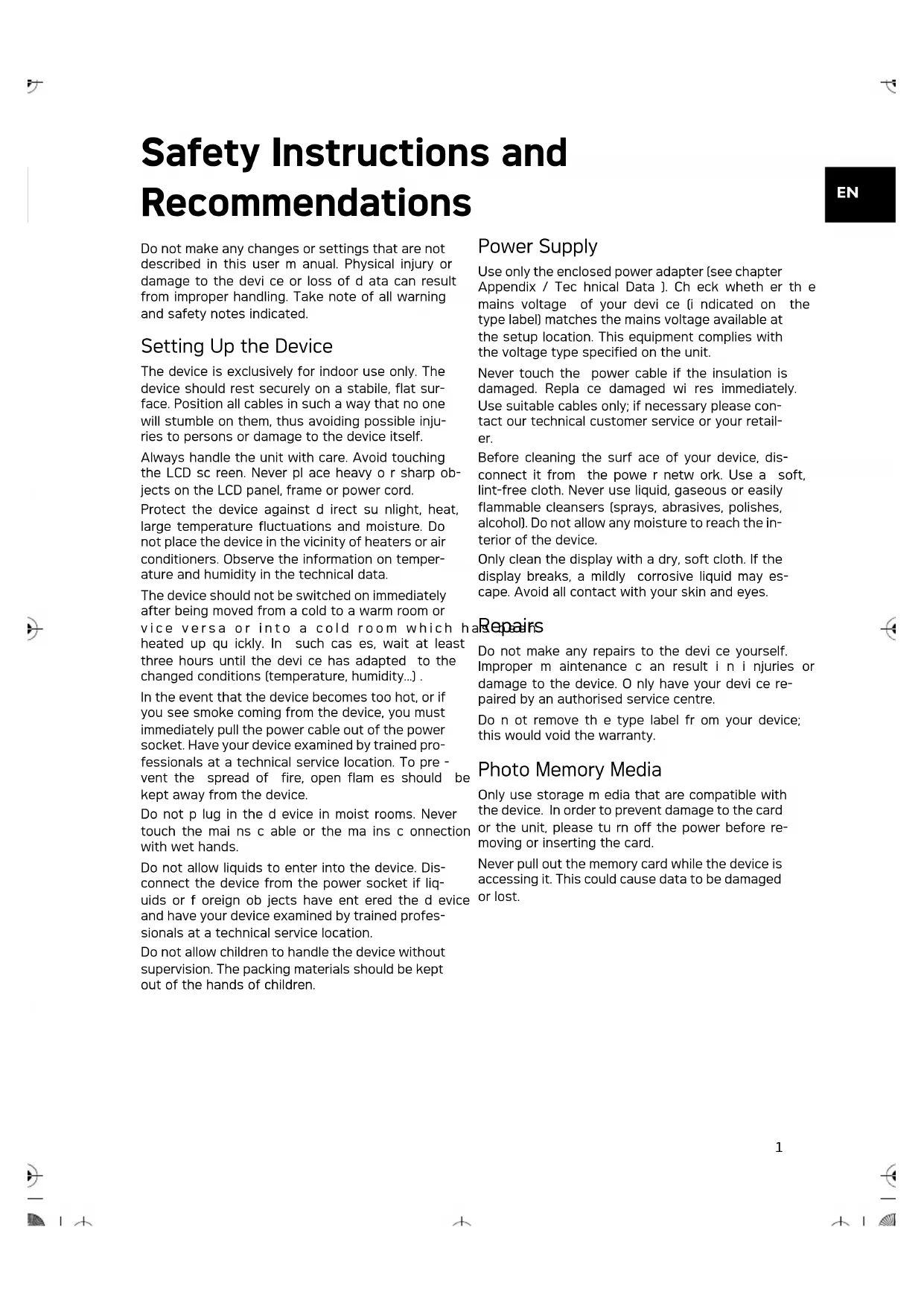

Safety Instructions and
Recommendations
Do not make any changes or settings that are not described in this user m anual. Physical injury or damage to the devi ce or loss of d ata can result from improper handling. Take note of all warning and safety notes indicated.
Setting Up the Device
The device is exclusively for indoor use only. The device should rest securely on a stable, flat surface. Position all cables in such a way that no one will stumble on them, thus avoiding possible injuries to persons or damage to the device itself.
Always handle the unit with care. Avoid touching the LCD sc reen. Never pl ace heavy o r sharp objects on the LCD panel, frame or power cord.
Protect the device against direct sunlight, heat, large temperature fluctuations and moisture. Do not place the device in the vicinity of heaters or air conditioners. Observe the information on temperature and humidity in the technical data.
The device should not be switched on immediately after being moved from a cold to a warm room or vice versa or into a cold room which heated up qu ickly. In such cas es, wait at least three hours until the devi ce has adapted to the changed conditions [temperature, humidity...] .
In the event that the device becomes too hot, or if you see smoke coming from the device, you must immediately pull the power cable out of the power socket. Have your device examined by trained professionals at a technical service location. To prevent the spread of fire, open flames should be kept away from the device.
Do not p lug in the d evice in moist rooms. Never touch the mai ns c able or the ma ins c onnection with wet hands.
Do not allow liquids to enter into the device. Disconnect the device from the power socket if liquids or foreign objects have entered the device and have your device examined by trained professionals at a technical service location.
Do not allow children to handle the device without supervision. The packing materials should be kept out of the hands of children.
Power Supply
Use only the enclosed power adapter (see chapter Appendix / Tec hnical Data). Check whether the mains voltage of your device (i ndicated on the type label) matches the mains voltage available at the setup location. This equipment complies with the voltage type specified on the unit.
Never touch the power cable if the insulation is damaged. Repla ce damaged wi res immediately. Use suitable cables only; if necessary please contact our technical customer service or your retailer.
Before cleaning the surf ace of your device, disconnect it from the power network. Use a soft, lint-free cloth. Never use liquid, gaseous or easily flammable cleansers (sprays, abrasives, polishes, alcohol). Do not allow any moisture to reach the interior of the device.
Only clean the display with a dry, soft cloth. If the display breaks, a mildly corrosive liquid may escape. Avoid all contact with your skin and eyes.
Repairs
Do not make any repairs to the devi ce yourself. Improper m aintenance c an result i n i njuries or damage to the device. O nly have your devi ce re-paired by an authorised service centre.
Do not remove the type label from your device; this would void the warranty.
Photo Memory Media
Only use storage media that are compatible with the device. In order to prevent damage to the card or the unit, please turn off the power before removing or inserting the card.
Never pull out the memory card while the device is accessing it. This could cause data to be damaged or lost.
Overview
Packing Contents
Digital photo frame with bracket
Power supply with exchangeable plugs
Quick Start Guide
Warranty Card

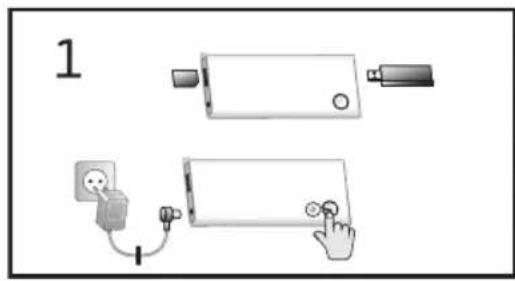

Basic Operation (fig. 1)
1 If there is a protective foil on the frame, please remove it before attempting to use.
2 Insert a memory card or a USB storage medium into the appropriate slot at the rear of the device. Your photo frame supports the following memory cards:
SD/SDHC/MMC/MS/XD.
Notice
Take note of the correct insertion direction!
The memory card can only be inserted in one direction. Do not force the card into the slot.
3 Insert the small plug of the power supply into the socket ⊖ ⊕ ⊕ on the rear side of your device. Insert the power supply unit into the socket.
4 Switch the device on using the on/off switch ⏻ on the rear. The player will start slide show after the start screen be displayed.

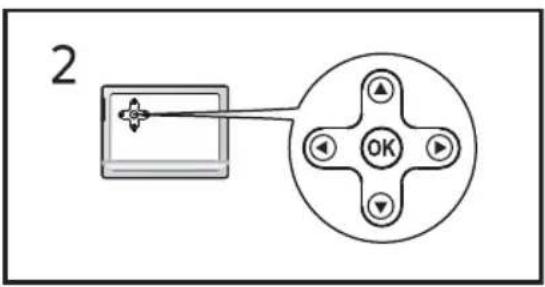

Buttons on the Reverse Side of the Device (fig. 2)
◀/▶—Navigating in the Menu / Skips to the previous or next image.
▲/▼—Navigating in the Menu
OK—Confirms the selection / Starting, interrupting the slide show

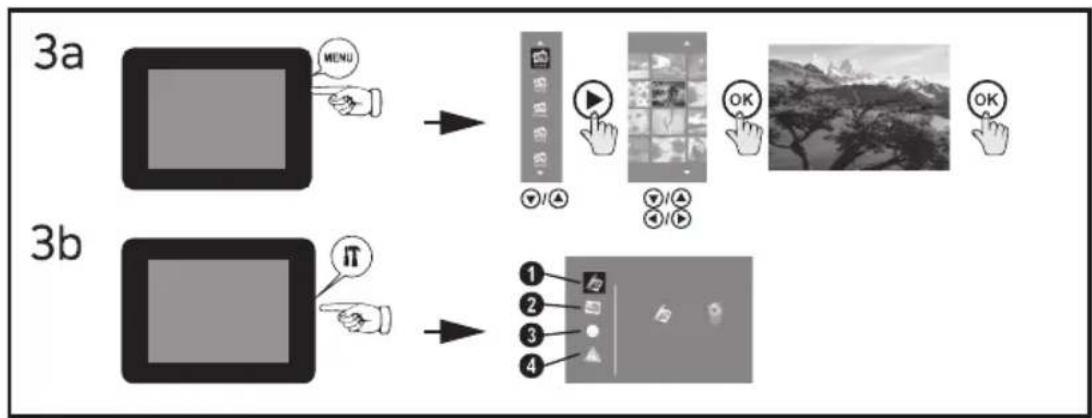

Menu Overview (Playback) (fig. 3a)
Using MENU you can switch between a Preview-Mode and slide show.
Menu Overview (Settings) (fig. 3b)
Using the 🔒 key y ou call u p the S ettings Menu.
Using ▲/▼ select:
① Copy or Delete Files
② Photo Settings
③ Display Settings
④ Factory default

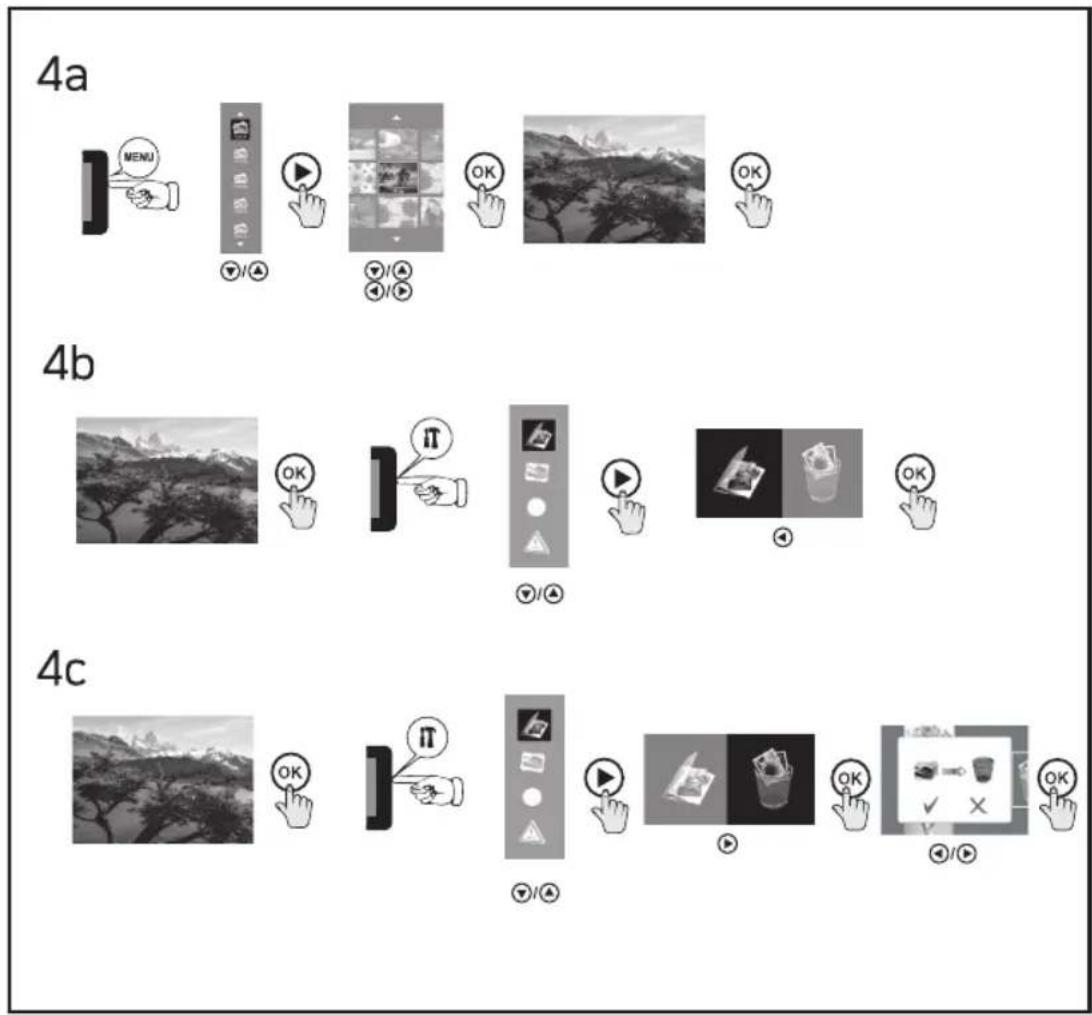

Photo Playback (fig. 4a)
1 Press MENU.
2 Using ▲/▼ select a folder or source, and confirm with ▶.
3 Use ▲/▼ or ◀/▶ to select the image from which to start the slide show an confirm using OK.
4 Press ◀/▶ to skip to the previous or next image.
5 Press Ⓞ to pause the slide show.
Copy or Delete Files (fig. 4b/4c)
1 Press Ⓞ to pause the slide show.
2 Using ▶/▶ select the file you want to copy or delete.
3 Press 📄 on the device.
4 Using ▲/▼ to select [copy or delete files] and confirm with OK.
5 Using ◀/▶ select:
—Copy files to the internal memory
Delete the files from the internal memory
6 Confirm with OK.
Settings
1 Press
2 Use ▲/▼ to s elect from the following settings:
Copy or Delete Files
Pho to Setting s (rotating image, slide show speed, transition effects, aspect ratio)
Display Settings (brightness, contrast, color saturation, backlight)
⚠️ Factory default (Restore the settin gs to th e factory default)
Technical Data
Dimensions (L × H × W).... 190 × 153 × 80 mm
Weight....0,37kg
Recommended Ambient 5-45°C
Relative humidity....20 - 80%
Power Consumption
Device is switched on (slide show).... 4,3W
Screen size....7"
Aspect ratio 16:10
Resolution....768×480 Pixel
Internal memory..... up to 1000 photos
USB port ....... USB-Host .....max. current load < 250 mA
Compatible Memory Cards.SD/SDHC/MMC/MS/XD
Photo formats......JPEG
File format....*.jpg
Power supply
Manufacturer....1)Click Technology ....(Shenzhen) Co., Ltd ....2)Shenzhen Moso Power ....Supply TechnologyCo., Ltd
Model No....1)CPS008050100* ..... 2)MSP-C1000IC5.0-5W-zz
Input..... 100-240V\~/50/60Hz
Output....5V==/1A
All data are provided for reference purposes only.
AgfaPhoto reserves the right to make any changes without prior notice.
AgfaPhoto is used under license of Agfa-Gevaert NV & Co. KG or Agfa-Gevaert NV. Neither Agfa-Gevaert NV & Co KG nor Agfa-Gevaert NV manufacture this product or provide any product warranty or support.
For service, support and warranty information, contact the distributor or manufacturer.
Contact:AgfaPhoto Holding GmbH, www.agfaphoto.com
Manufacturer: Sagemcom,
www.sagemcom.com
The CE marking certifies that the product m eets the m ain requi rements of the European Parliament and Council directive 1999/5/CE on telecommunications terminal equipment, regarding safety and health of users and regarding electromagnetic interference.
The declaration of co compliance can be co insulted on the site www.agfaphoto.com
Packaging: To faci litate pack aging recyc ling, please conform to yo ur local selective recyc ling rules.
Batteries: Old batteries have to be deposited in designated collection areas.
Product: The crossed out dustbin logo on your product signifies it is classified as Elec trical and Electronic Equipment covered by special disposal regulations.
To enforce recycling, recovery of The Waste Electrical and Electronic Equipment (WEEE) and to protect the environment and human health, European regulations requires that you selectively collect waste equipment using one of the following options:
- Your retailer will take your equipment back if you are buying a replacement product.
- Waste equipment can also be deposited in designated collection areas.
The paper and cardboard packaging used can be disposed of as recyclable paper. Have the plastic wrapping and Styrofoam packaging re cycled or dispose of it in the non-recyclable waste, depending on the requirements in your country.
All rights reserved. No part of this publication may be rep reduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of AgfaPhoto. The information contained herein is designed only for use with this product. AgfaPhoto is not responsible, if this information is applied to other devices.
This user manual is a document that does not represent a contract.
Errors, printing errors and changes are reserved.
