USER MANUAL Trail Speed Silva Schneider

Product photo of a red and black SLVA headband with a red and white headlamp (no text or symbols visible)

CHOOSE YOUR LANGUAGE:

Product photo of a black and red SLVA headband with red and black stripes (no visible text or symbols)

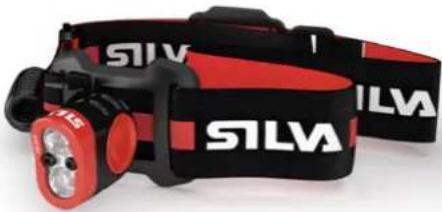

Thank you for choosing Silva Trail Speed headlamp. This ultra-compact high power headlamp is designed for advanced sports users who put performance and weight first.

The Trail Speed headlamp is equipped with Silva Intelligent Light® which is a light distribution technology that combines a wide angle flood light with a long reach spot light. This unique light image gives the user peripheral and long distance vision at the same time. For a runner, cross country skier, mountain biker or night orienteer this translates into less head movement, increased control, better balance and more speed.

PRODUCT OVERVIEW

The Trail Speed headlamp consists of the following parts:

• Headlamp unit
  • Ergonomic headset
• Helmet bracket
  • Bike handlebar bracket
• Battery case
  • 4xAA Alkaline batteries
• Extension cable
• Quick guide

BEFORE USE

BATTERIES 1

When inserting the batteries, be careful and note the battery polarity. How to insert the batteries is marked on the battery case. Never mix brands of batteries. Never mix new and used batteries. When you are planning not to use the product for a longer period, disconnect the battery case from the lamp.

HEaDSET

The elastic headset is designed to give a comfortable fit at speed activities such as running, XC skiing etc. Adjust the headset by moving the sliding buckle to fit it onto your head.

To remove, press the push button on the bracket and move the bike light up and out. ②

BIkE HanDlEBaR aTTaCHmEnT 4

The bike handlebar attachment is designed for use on bike handlebars with a dimension between 25 and 32 mm. Simply mount the attachment by wrapping the rubber strap around the handlebar and fasten it on the plastic hook.

Attach the bike light in the bike handlebar attachment by sliding the bike light bracket into the snap-in socket.

To remove, press the push button on the bracket and move the bike light up and out. 2

HElmET aTTaCHmEnT 3

The helmet attachment comes with a pre-mounted adhesive for easy mounting on any helmet. It is designed to not affect the protective characteristics of the helmet.

To mount the helmet attachment, make sure the surface of the helmet is clean and dry. Remove the protective film covering the adhesive and press the bracket onto its correct position.

If you do not want to use the adhesive on your helmet the attachment is prepared for mounting with 2 cable ties on the sides. (Not included)

Attach the bike light in the helmet attachment by simply sliding the bike light bracket into the snap-in socket.

To remove, press the push button on the socket and move the bike light up and out. ②

FLEXIBLE BA TTERY Ca RRY In g

The battery can be carried in multiple ways; for example on a waist belt or in a backpack or hip-bag.

DURING USE

SWITCH On YOUR HEaDlamP

On the side of the headlamp body there is a push button which controls all light modes.

Each press on the button gives you the following light: 5

1. Turns the headlamp ON with all LEDs in maximum power.

2. Both LEDs in min mode

3. Flood light LED in min mode
4. Starts over from 1

To turn OFF the headlamp; press and hold the button for 1 second.

6

The flash function, which is used to attract attention, is started from OFF mode by pressing and holding the button for 1 second. To turn OFF; press and hold the button for 1 second.

TEMPCOnTROI

Note that the headlamp body temperature will increase during use. The headlamp temperature is depending on light mode, ambient air temperature and the airflow (speed). The Trail Speed headlamp is equipped with a temperature control that prevents the headlamp body from overheating by reducing the power to the LEDs.

BATTERY InDICAT10n

During operation of the headlamp there will be a low battery warning when 20% of the battery time remains. This is done by flashing both LEDs for 1 second and repeated again after 5 seconds.

aFTER USE

mainTEnance

To make sure you get maximum performance from your Trail Speed headlamp, clean it regularly with a damp cloth. Headset cleaning – wash in washing machine at 40°C.

Note! Always make sure to disconnect the battery when the headlamp is not used.

TECHnICal SPECIFICATIONs

Weight: headlamp lincl. head bracket excl. battery packl: 62 grams Battery type: 4xAA Alkaline included [works with NiMh and Lithium also]

Light distance (Max/Min): 85m/45m

Lumen [Max/Min/Wide]: 400 Lumen

Burn time: Max/Min/Wide/Flash: 2hours/7hours/7hours/15hours Water resistance: IPX6

Operative temperature range: -20 - +60°

PROTECT THE EnVIROnmEnT.

Headlamp and batteries should be recycled and must not be thrown in the regular trash. Dispose these items in accordance with applicable local regulations.

WARRanTY

Silva warrants that, for a period of two [2] years, your Silva Product will be substantially free of defects in materials and workmanship under normal use. Silva's liability under this warranty is limited to repairing or replacing the product. This limited warranty extends only to the original purchaser.

If the Product proves defective during the Warranty Period please contact the original place of purchase. Make sure to have your proof of purchase on hand when returning the product. Returns cannot be processed without the original proof of purchase. This warranty does not apply if the Product has been altered, not been installed, operated, repaired, or maintained in accordance with instructions supplied by Silva, or has been subjected to abnormal physical or electrical stress, misuse, negligence or accident. Neither does the warranty cover normal wear and tear. Silva is not responsible for any consequences, direct or indirect, or damage resultant from use of this product. In no event will Silva's liability exceed the amount paid by you for the product. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This Warranty is valid and may be processed only in the country of purchase.

For more information please visit www.silva.se
