USER MANUAL Table Chef Duet 102309 PRINCESS

apparaat is ondergedompeld in water of

de netstekker uit het stopcontact. Gebruik

apparaat is ondergedompeld in water of

door gasten in hotels, motels, bed and

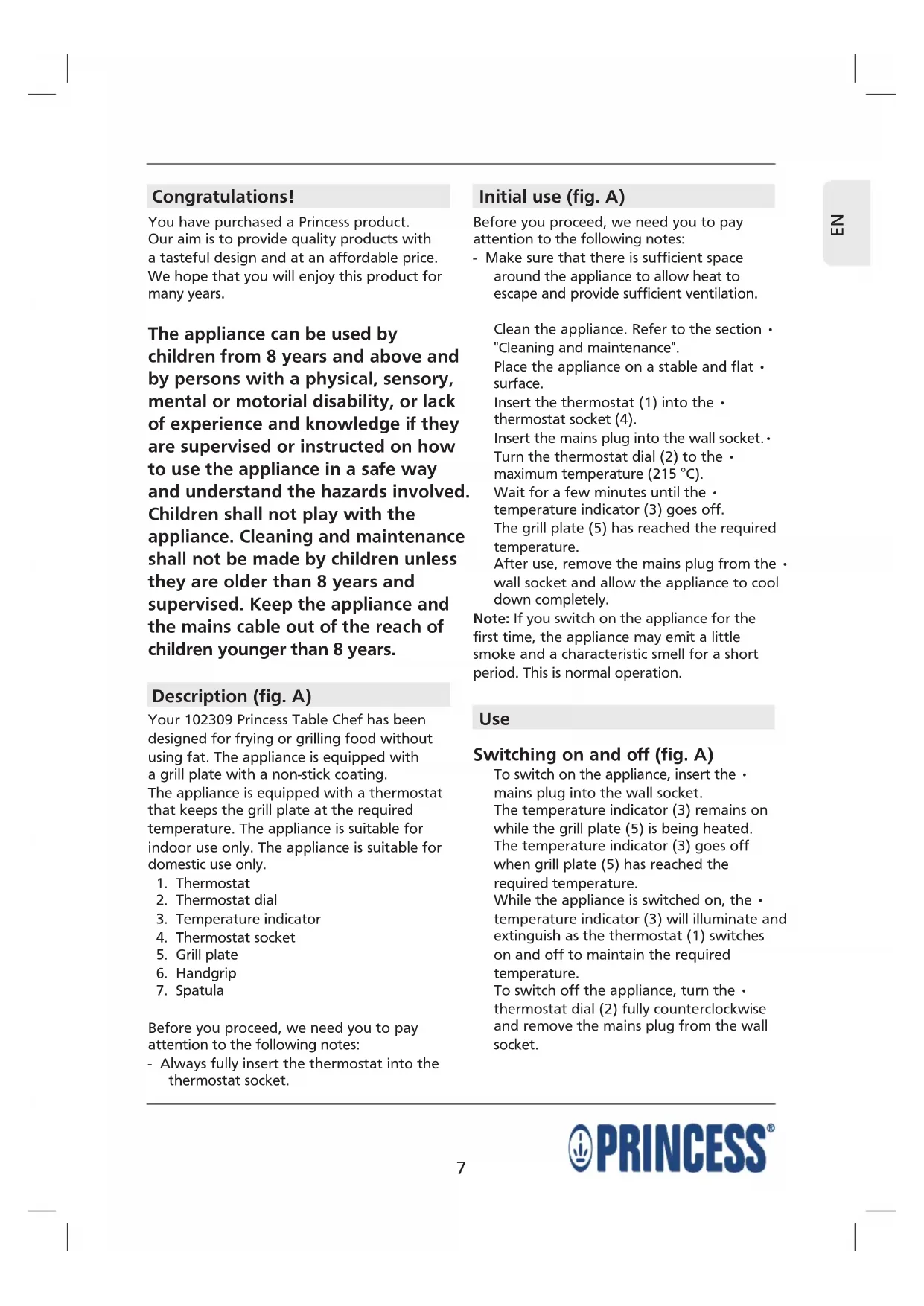

You have purchased a Princess product.

Our aim is to provide quality products with

a tasteful design and at an affordable price.

We hope that you will enjoy this product for

The appliance can be used by

children from 8 years and above and

by persons with a physical, sensory,

mental or motorial disability, or lack

of experience and knowledge if they

are supervised or instructed on how

to use the appliance in a safe way

and understand the hazards involved.

Children shall not play with the

appliance. Cleaning and maintenance

shall not be made by children unless

they are older than 8 years and

supervised. Keep the appliance and

the mains cable out of the reach of

children younger than 8 years.

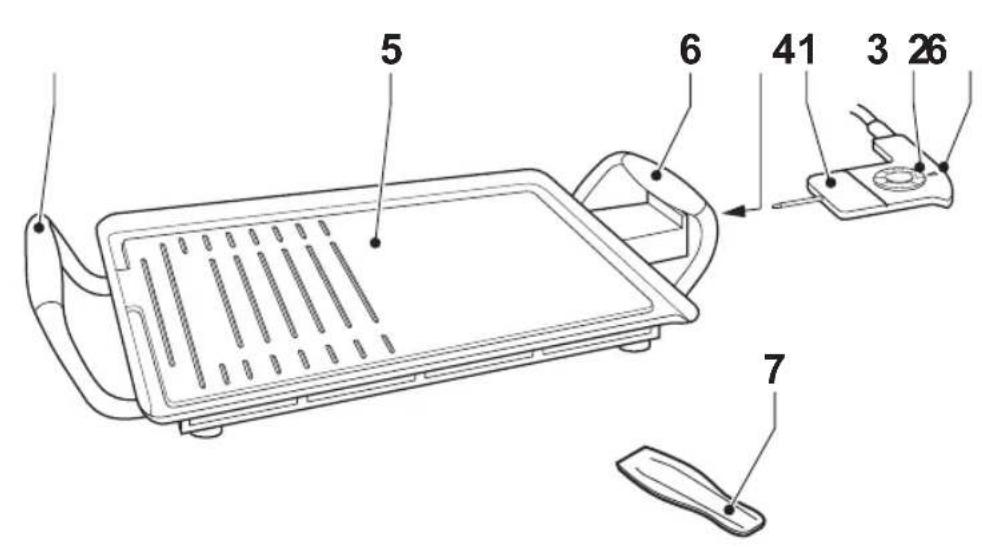

Description (fig. A)

Your 102309 Princess Table Chef has been

designed for frying or grilling food without

using fat. The appliance is equipped with

a grill plate with a non-stick coating.

The appliance is equipped with a thermostat

that keeps the grill plate at the required

temperature. The appliance is suitable for

indoor use only. The appliance is suitable for

Before you proceed, we need you to pay

attention to the following notes:

- Always fully insert the thermostat into the

Initial use (fig. A)

Before you proceed, we need you to pay

attention to the following notes:

- Make sure that there is sufficient space

around the appliance to allow heat to

escape and provide sufficient ventilation.

Clean the appliance. Refer to the section •

"Cleaning and maintenance".

Place the appliance on a stable and flat •

Insert the thermostat (1) into the •

thermostat socket (4).

Insert the mains plug into the wall socket.•

Turn the thermostat dial (2) to the •

maximum temperature (215 °C).

Wait for a few minutes until the •

temperature indicator (3) goes off.

The grill plate (5) has reached the required

After use, remove the mains plug from the •

wall socket and allow the appliance to cool

Note: If you switch on the appliance for the

first time, the appliance may emit a little

smoke and a characteristic smell for a short

period. This is normal operation.

Switching on and off (fig. A)

To switch on the appliance, insert the •

mains plug into the wall socket.

The temperature indicator (3) remains on

while the grill plate (5) is being heated.

The temperature indicator (3) goes off

when grill plate (5) has reached the

required temperature.

While the appliance is switched on, the •

temperature indicator (3) will illuminate and

extinguish as the thermostat (1) switches

on and off to maintain the required

To switch off the appliance, turn the •

thermostat dial (2) fully counterclockwise

and remove the mains plug from the wall

EN Setting the temperature (fig. A)

Turn the thermostat dial (2) clockwise to •

increase the temperature of the grill plate

Turn the thermostat dial (2) counterclockwise •

to decrease the temperature of the grill

Hints for use (fig. A)

Place the appliance on a stable and flat •

Clean the grill plate (5) with a soft, damp •

Insert the thermostat (1) into the •

thermostat socket (4).

Insert the mains plug into the wall socket.•

Turn the thermostat dial (2) to the •

required temperature (115-215 °C).

Wait for a few minutes until the temperature •

indicator (3) goes off. The grill plate (5) has

reached the required temperature.

Put the food onto the grill plate (5).•

Grill the food until it is ready for •

consumption. Experiment with the

required time and the required

temperature to achieve the best results.

Note: Small pieces will grill or fry better •

and more quickly than large pieces.

Turn the food using the spatula (7). •

Turn meat and fish only once in order to

prevent them from drying out.

Do not let metal cutlery touch the grill •

plate (5) to prevent damage to the non-

After use, turn the thermostat dial (2) fully •

Remove the mains plug from the wall socket.•

Remove the thermostat (1) from the •

thermostat socket (4).

Allow the appliance to cool down •

In order to defrost food, put the food on the

grill plate. Make sure that the mains plug is

not inserted into the wall socket. Defrosting

food on the grill plate is considerably faster

than defrosting food on, for example,

a ceramic or plastic dish.

Cleaning and maintenance

Before you proceed, we need you to pay

attention to the following notes:

- Before cleaning or maintenance, remove

the mains plug from the wall socket and

wait until the appliance has cooled down.

- Do not immerse the appliance in water or

- Do not immerse the thermostat in water or

Before you proceed, we would like you to

focus your attention on the following notes:

- Do not use aggressive or abrasive cleaning

agents to clean the appliance.

- Do not use sharp objects to clean the

Regularly check the appliance for possible •

Clean the appliance after each use:•

- Remove any residues with a paper towel.

- Clean the grill plate with a soft, damp

cloth. Thoroughly dry the grill plate with

a clean, dry cloth. Thoroughly dry the

- Clean the thermostat with a soft, damp

cloth. Thoroughly dry the thermostat

with a clean, dry cloth.

- Clean the spatula in soapy water.

Rinse the spatula under running water.

Thoroughly dry the spatula with a clean,

Put the appliance and the accessories in •

the original packaging.

Store the appliance with the accessories in •

a dry place, out of the reach of children.

Read the manual carefully before use. •

Keep the manual for future reference.

Only use the appliance and the accessories •

for their intended purposes. Do not use the

appliance and the accessories for other

purposes than described in the manual.

Do not use the appliance if any part or any •

accessory is damaged or defective.9

EN If a part or an accessory is damaged or

defective, it must be replaced by the

manufacturer or an authorised repair agent.

Children should be supervised to ensure •

that they do not play with the appliance.

The use of this appliance by children or •

persons with a physical, sensory, mental or

motorial disability, or lack of experience

and knowledge can give cause to hazards.

Persons responsible for their safety should

give explicit instructions or supervise the

use of the appliance.

Do not use the appliance near bathtubs, •

showers, basins or other vessels containing

Do not immerse the appliance in water or •

other liquids. If the appliance is immersed

in water or other liquids, do not remove

the appliance with your hands.

Immediately remove the mains plug from

the wall socket. If the appliance is

immersed in water or other liquids, do not

use the appliance again.

This appliance is intended to be used in •

domestic and similar applications such as

staff kitchen areas in shops, offices and

other working environments; farm houses;

by clients in hotels, motels and other

residential type environments; bed-and-

breakfast type environments.

Keep the appliance and the mains cable •

out of the reach of children younger than

Before use, always check that the mains •

voltage is the same as the voltage on the

rating plate of the appliance.

Connect the appliance to an earthed wall •

socket. If necessary, use an earthed

extension cable of a suitable diameter

For additional protection, install a residual •

current device (RCD) with a rated residual

operating current that does not exceed

The appliance is not intended to be •

operated by means of an external timer or

separate remote-control system.

Only use the appropriate connector to •

operate the appliance.

Make sure that water cannot enter the •

contact plugs of the mains cable and the

Always fully unwind the mains cable and •

the extension cable.

Make sure that the mains cable does not •

hang over the edge of a worktop and

cannot be caught accidentally or tripped

Keep the mains cable away from heat, oil •

Do not use the appliance if the mains cable •

or the mains plug is damaged or defective.

If the mains cable or the mains plug is

damaged or defective, it must be replaced

by the manufacturer or an authorised

Do not pull the mains cable to disconnect •

the mains plug from the mains.

Disconnect the mains plug from the mains •

when the appliance is not in use, before

assembly or disassembly and before cleaning

Safety instructions for Table Chef

Do not use the appliance outdoors.•

Place the appliance on a stable and flat •

Place the appliance on a heat-resistant and •

splash-proof surface.

Do not place the appliance on a hob.•

Make sure that there is sufficient space •

around the appliance to allow heat to

escape and provide sufficient ventilation.

Make sure that the appliance does not •

come into contact with flammable material.

Keep the appliance away from heat sources.•

Do not cover the appliance.•

Do not use charcoal or similar combustible •

Do not immerse the thermostat in water or •

other liquids. Do not remove the thermostat

from the water with your hands.

Immediately remove the mains plug from

the wall socket. If the thermostat is

immersed in water or other liquids, do not

use the appliance again.10

EN Do not let metal cutlery touch the grill plate •

to prevent damage to the non-stick coating.

Beware of steam and splashes when •

putting food on the hot grill plate.

Caution: Hot grease can splash from the •

Do not pour cold water onto the hot grill •

plate. The water will splash and damage

Always be careful when touching the •

appliance. Use oven gloves if you need to

touch the appliance during or shortly after

The grill plate becomes very hot during •

use. Do not touch the hot grill plate. Only

touch the handgrips when the grill plate is

The accessible surfaces of the appliance can •

become very hot during use. Do not touch

the accessible surfaces.

Make sure that your hands are dry before •

touching the appliance.

Do not move the appliance while it is •

switched on or is still hot. Remove the

mains plug from the wall socket and wait

until the appliance has cooled down.

Do not use the appliance near birds •

(e.g. tropical birds such as parrots). The grill

plate is finished with a non-stick coating

based on PTFE. Upon heating, the coating

may release small amounts of gases which

are fully harmless for people. However,

the nervous systems of birds are extremely

sensitive to these gases.

Store the appliance in a dry place when •

not in use. Make sure that children do not

have access to stored appliances.

U.K. Wiring instructions

The wires in the mains lead are coloured in

accordance with the following code:

BLUE NEUTRAL BROWN LIVE GREEN/YELLOW EARTH As the colours of the wire in the mains lead of

this appliance may not correspond with the

colour markings identifying the terminals on

your plug, proceed as follows:

The wire which is coloured BLUE must be

connected to the terminal which is marked

with the letter N or coloured black.

The wire which is coloured BROWN must be

connected to the terminal which is marked

with the letter L or coloured red.

The wire which is coloured GREEN/YELLOW

must be connected to the terminal which is

marked with the letter E or

GREEN or GREEN/YELLOW.

Warning! This appliance must be earthed.

Subject to change; specifications can be

changed without further notice.11

(5) for at undgå at beskadige non-stick-

Børn bør holdes under opsyn for at sikre, •

for at undgå at beskadige non-stick-

Sett termostaten (1) inn •
