USER MANUAL Smoothie Maker 212062 PRINCESS

apparaat is ondergedompeld in water of

in hotels, motels, bed and breakfasts en

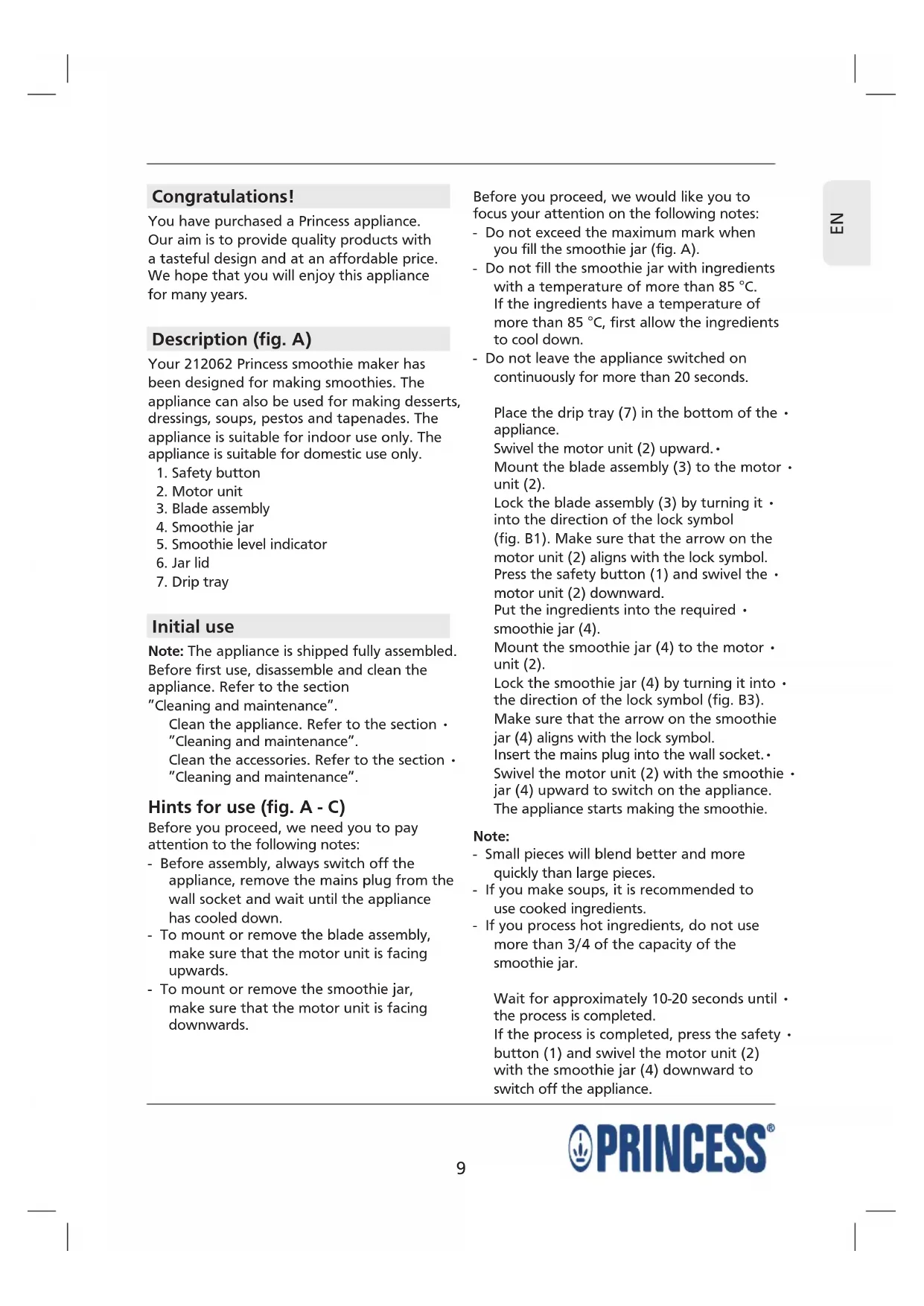

You have purchased a Princess appliance.

Our aim is to provide quality products with

a tasteful design and at an affordable price.

We hope that you will enjoy this appliance

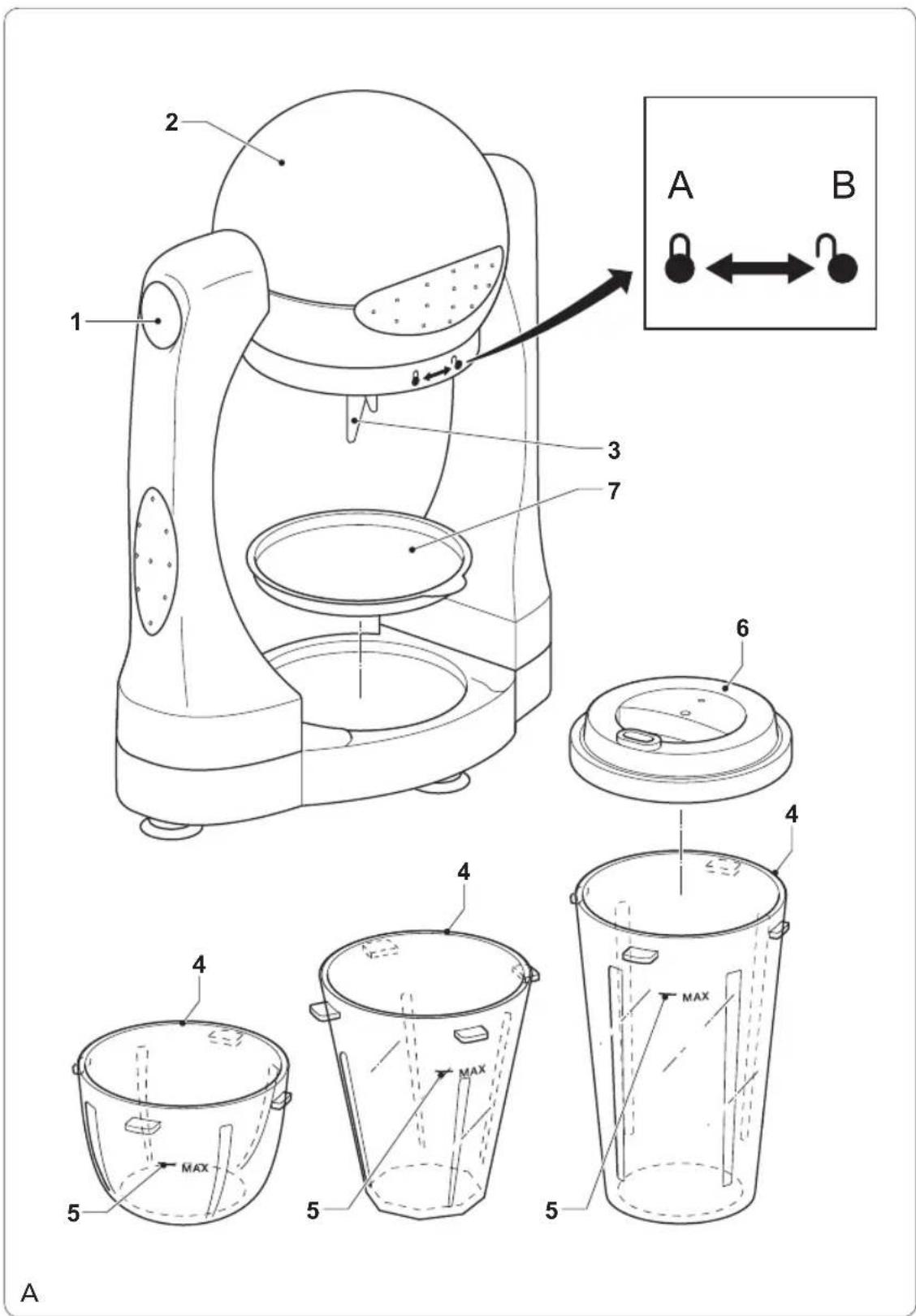

Description (fig. A)

Your 212062 Princess smoothie maker has

been designed for making smoothies. The

appliance can also be used for making desserts,

dressings, soups, pestos and tapenades. The

appliance is suitable for indoor use only. The

appliance is suitable for domestic use only.

Note: The appliance is shipped fully assembled.

Before first use, disassemble and clean the

appliance. Refer to the section

”Cleaning and maintenance”.

Clean the appliance. Refer to the section •

”Cleaning and maintenance”.

Clean the accessories. Refer to the section •

”Cleaning and maintenance”.

Hints for use (fig. A - C)

Before you proceed, we need you to pay

attention to the following notes:

- Before assembly, always switch off the

appliance, remove the mains plug from the

wall socket and wait until the appliance

- To mount or remove the blade assembly,

make sure that the motor unit is facing

- To mount or remove the smoothie jar,

make sure that the motor unit is facing

Before you proceed, we would like you to

focus your attention on the following notes:

- Do not exceed the maximum mark when

you fill the smoothie jar (fig. A).

- Do not fill the smoothie jar with ingredients

with a temperature of more than 85 °C.

If the ingredients have a temperature of

more than 85 °C, first allow the ingredients

- Do not leave the appliance switched on

continuously for more than 20 seconds.

Place the drip tray (7) in the bottom of the •

Swivel the motor unit (2) upward.•

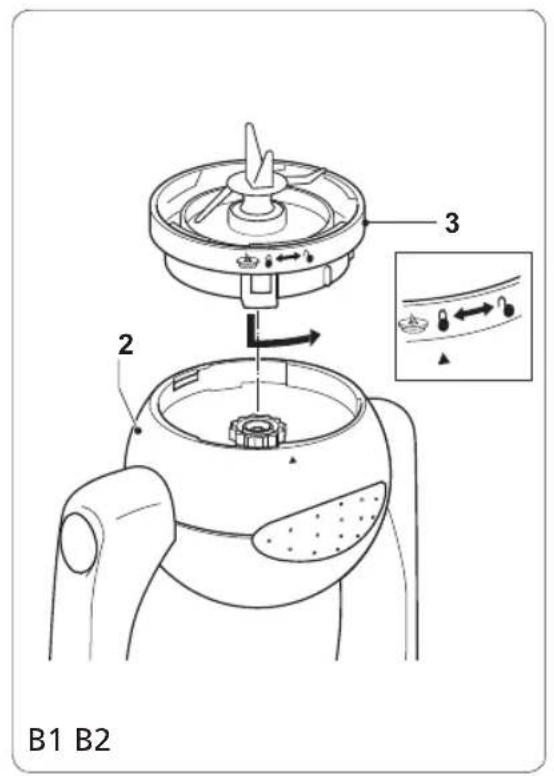

Mount the blade assembly (3) to the motor •

Lock the blade assembly (3) by turning it •

into the direction of the lock symbol

(fig. B1). Make sure that the arrow on the

motor unit (2) aligns with the lock symbol.

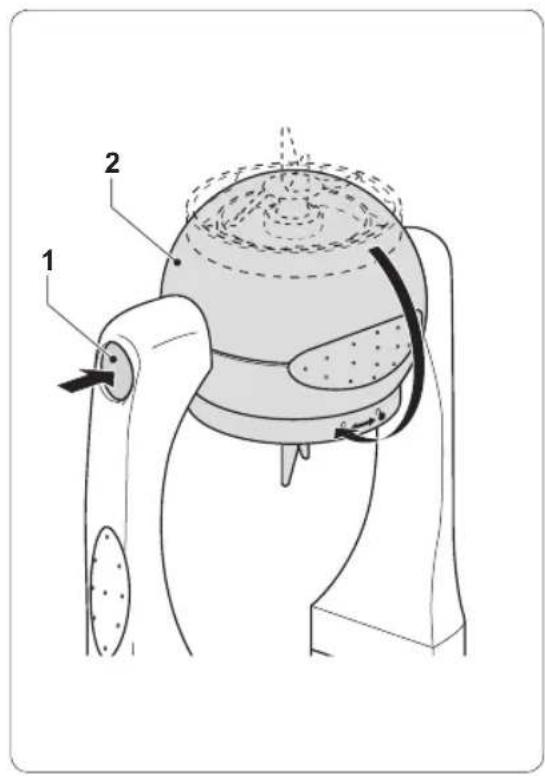

Press the safety button (1) and swivel the •

motor unit (2) downward.

Put the ingredients into the required •

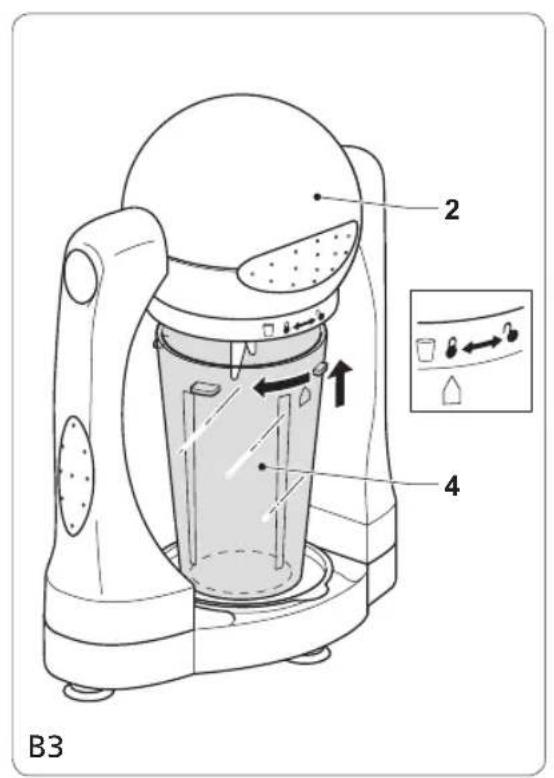

Mount the smoothie jar (4) to the motor •

Lock the smoothie jar (4) by turning it into •

the direction of the lock symbol (fig. B3).

Make sure that the arrow on the smoothie

jar (4) aligns with the lock symbol.

Insert the mains plug into the wall socket.•

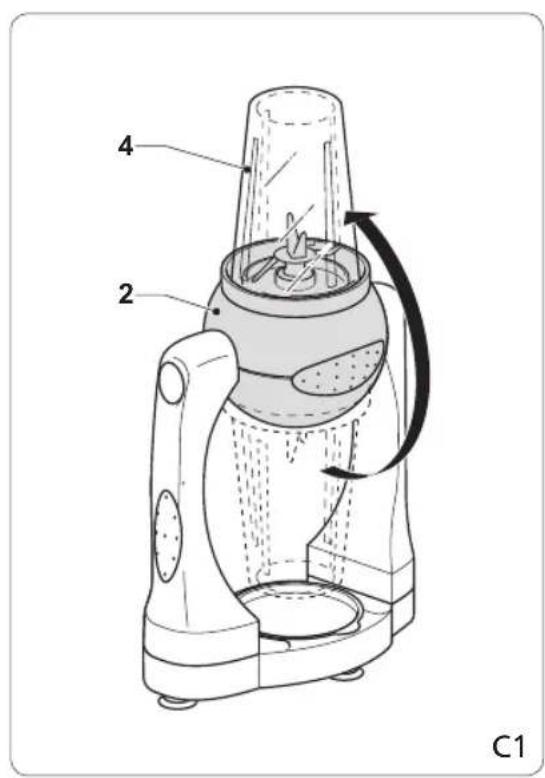

Swivel the motor unit (2) with the smoothie •

jar (4) upward to switch on the appliance.

The appliance starts making the smoothie.

- Small pieces will blend better and more

quickly than large pieces.

- If you make soups, it is recommended to

use cooked ingredients.

- If you process hot ingredients, do not use

more than 3/4 of the capacity of the

Wait for approximately 10-20 seconds until •

the process is completed.

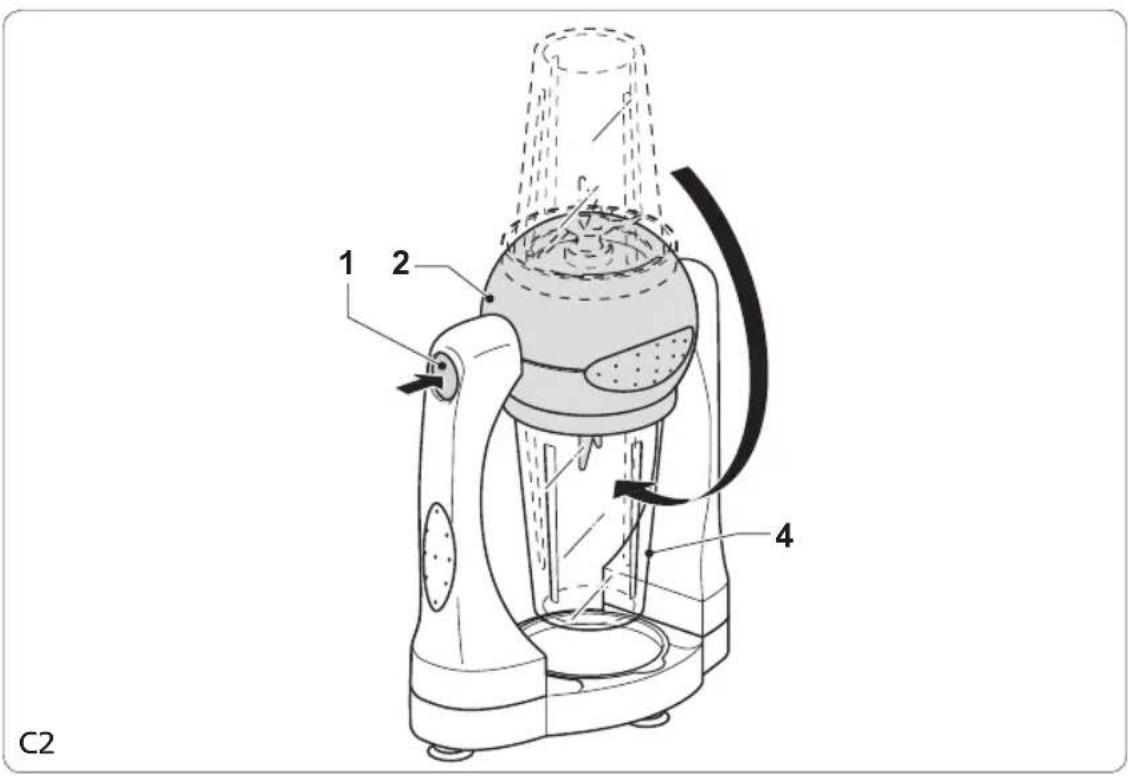

If the process is completed, press the safety •

button (1) and swivel the motor unit (2)

with the smoothie jar (4) downward to

switch off the appliance.10

EN Wait a few seconds until the liquid has •

gathered at the bottom of the smoothie jar

Remove the mains plug from the wall socket.•

Unlock the smoothie jar (4) by turning it •

into the direction of the unlock symbol

(fig. B3). Make sure that the arrow on the

smoothie jar (4) aligns with the unlock

Remove the smoothie jar (4) from the •

Swivel the motor unit (2) upward.•

Unlock the blade assembly (3) by turning it •

into the direction of the unlock symbol

(fig. B1). Make sure that the arrow on the

motor unit (2) aligns with the unlock

Remove the blade assembly (3) from the •

Place the jar lid (6) onto the smoothie jar (4).•

Allow the appliance to cool down •

Ingredients: peach, banana, wheat germs,

instant oat flakes, vanilla yoghurt, fresh orange

juice or skimmed milk, crushed ice cubes.

Put the ingredients into the smoothie jar.•

Blend the ingredients until they are •

blended to a smooth, mixed substance.

Serve the smoothie.•

Ingredients: frozen raspberries, grapefruit, egg

liqueur, forest honey.

Put the frozen raspberries into the •

Peel the grapefruit and cut it into pieces.•

Add the egg liqueur and the forest honey.•

Blend the ingredients until they are •

blended to a smooth, mixed substance.

Serve the smoothie.•

Ingredients: cucumber, celery stalk, artichoke

hearts, green pepper, lime juice, ice cubes,

Tabasco sauce, salt, garden cress, lime slices.

Peel the cucumber and remove the seeds.•

Cut the cucumber, the celery stalk and the •

artichoke hearts into pieces.

Put the vegetables into the smoothie jar.•

Add the green pepper, the lime juice and •

Blend the ingredients until they are blended •

to a smooth, mixed substance.

Add the Tabasco sauce and the salt.•

Garnish the smoothie with garden cress •

Serve the smoothie.•

Cleaning and maintenance

Before you proceed, we need you to pay

attention to the following notes:

- Before cleaning or maintenance, always

switch off the appliance, remove the mains

plug from the wall socket and wait until

the appliance has cooled down.

- Do not immerse the appliance in water or

Before you proceed, we would like you to

focus your attention on the following notes:

- Do not use aggressive or abrasive cleaning

agents to clean the appliance.

- Do not use sharp objects to clean the

- Do not clean the motor unit in the

Regularly check the appliance for possible •

Clean the accessories:•

- Clean the blade assembly in soapy water

or in the dishwasher.

- Clean the smoothie jar and the jar lid in

soapy water or in the dishwasher.

- Clean the drip tray in soapy water or in

- Thoroughly dry the accessories.

Clean the motor unit with a damp cloth. •

Thoroughly dry the motor unit with a

After cleaning, put the appliance in the •

Store the appliance in a dry and frost-free •

place, out of the reach of children.11

EN Safety instructions

Read the manual carefully before use. •

Keep the manual for future reference.

Only use the appliance and the accessories •

for their intended purposes. Do not use the

appliance and the accessories for other

purposes than described in the manual.

Do not use the appliance if any part or any •

accessory is damaged or defective. If a part

or an accessory is damaged or defective,

it must be replaced by the manufacturer or

an authorised repair agent.

Children should be supervised to ensure •

that they do not play with the appliance.

The use of this appliance by children or •

persons with a physical, sensory, mental or

motorial disability, or lack of experience

and knowledge can give cause to hazards.

Persons responsible for their safety should

give explicit instructions or supervise the

use of the appliance.

Do not use the appliance near bathtubs, •

showers, basins or other vessels containing

Do not immerse the appliance in water or •

other liquids. If the appliance is immersed

in water or other liquids, do not remove

the appliance with your hands.

Immediately remove the mains plug from

the wall socket. If the appliance is immersed

in water or other liquids, do not use the

This appliance is intended to be used in •

domestic and similar applications such as

staff kitchen areas in shops, offices and

other working environments; farm houses;

by clients in hotels, motels and other

residential type environments; bed-and-

breakfast type environments.

Before use, always check that the mains •

voltage is the same as the voltage on the

rating plate of the appliance.

The appliance is not intended to be •

operated by means of an external timer or

separate remote-control system.

Connect the appliance to an earthed wall •

socket. If necessary, use an earthed

extension cable of a suitable diameter

Make sure that water cannot enter the •

contact plugs of the mains cable and the

Always fully unwind the mains cable and •

the extension cable.

Make sure that the mains cable does not •

hang over the edge of a worktop and

cannot be caught accidentally or tripped

Keep the mains cable away from heat, oil •

Do not use the appliance if the mains cable •

or the mains plug is damaged or defective.

If the mains cable or the mains plug is

damaged or defective, it must be replaced

by the manufacturer or an authorised

Do not pull the mains cable to disconnect •

the mains plug from the mains.

Disconnect the mains plug from the mains •

when the appliance is not in use, before

assembly or disassembly and before cleaning

Safety instructions for smoothie

Place the appliance on a stable and flat •

Place the appliance on a heat-resistant and •

splash-proof surface.

Do not place the appliance on a hob.•

Do not place the appliance on hot surfaces •

or near open flames.

Make sure that the appliance does not come •

into contact with flammable material.

Keep the appliance away from heat sources.•

Do not use the appliance with an empty jar.•

Always mount the jar lid before switching •

on the appliance. Do not remove the jar lid

before switching off the appliance.

Beware of sharp parts. Keep your hands •

away from the moving parts during use

and during cleaning and maintenance.

Be extra careful during cleaning and •

maintenance. Be extra careful when

emptying the jar or handling the sharp blade.12

EN Do not leave the appliance unattended •

Store the appliance in a dry place when •

not in use. Make sure that children do not

have access to stored appliances.

U.K. Wiring instructions

The wires in the mains lead are coloured in

accordance with the following code:

BLUE NEUTRAL BROWN LIVE As the colours of the wire in the mains lead of

this appliance may not correspond with the

colour markings identifying the terminals on

your plug, proceed as follows:

The wire which is coloured BLUE must be

connected to the terminal which is marked

with the letter N or coloured black.

The wire which is coloured BROWN must be

connected to the terminal which is marked

with the letter L or coloured red.

If a 13Amp (BS1363) plug is used, a 13Amp

(BS1362) fuse must be fitted, or if any other

type of plug is used, a 13Amp fuse must be

fitted, either in the plug or adaptor, or on the

This is a double-insulated appliance and does

not need an earth connection.

Warning! On no account should either the live

or neutral wires be connected to the earth

Subject to change; specifications can be

changed without further notice.13
