USER MANUAL DDW1809W1 DANBY

Front view of a white Danby washing machine (no visible text or symbols on the device body)

CAUTION:

Read and follow all safety rules and operating instructions before first use of this product.

PRECAUTION:

Owner's Use and Care Guide 1 - 10

• Important Safety Information
• Operating Instructions
  • Care and Maintenance
• Troubleshooting
• Warranty

Lave-vaisselle

White hand symbol inside a black octagonal frame (no text or numbers)

Gray circular icon with a white telephone handset and signal waves (no text or symbols)

1-800-263-2629

(1-800-26-DANBY)

DO NOT RETURN THIS UNIT TO THE RETAILER WITHOUT FURTHER INSTRUCTIONS

Dear valued customer, we hope your Danby product purchase fulfills all your requirements. Your satisfaction is our priority!

Please contact us at our toll free consumer service number for any inquiries you may have about your new unit.

NE PAS RETOURNER CET APPAREIL CHEZ LE DÉTAILLANT SANS CONSIGNES SUPPLÉMENTAIRES

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When loading your dishwasher, follow basic safety precautions, including the following:

• Read all instructions before using the dishwasher.
• Use the dishwasher only for its intended function (normal, household use only).
• Use only detergents or wetting agents recommended for use in a dishwasher; do not use them for hand-washing, and keep them out of the reach of children.

When loading items to be washed:

• Locate sharp items (e.g. forks or knives) so that they are not likely to damage the door seal.
• Load sharp knives with the handles up to reduce the risk of cut-type injuries.
• Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.
• Do not touch the heating element during or immediately after use.
• Do not operate the dishwasher unless all enclosure panels are properly in place.
• Do not tamper with the controls.
• Do not abuse, sit on, or stand on the door or dish-rack of the dishwasher.
• To reduce the risk of injury, do not allow children to operate (or play in or on) the dishwasher.
• Do not allow children to play around the dishwasher when opening or closing the dishwasher door.
• Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
• Do not spray water on the appliance (it may cause electric shock or failure of electrical parts).

DANGER!

- DISHWASHER DETERGENT IS A STRONG ALKALINE AND CAN BE EXTREMELY DANGEROUS IF SWALLOWED; AVOID CONTACT WITH SKIN AND EYES, AND KEEP CHILDREN AWAY FROM THE DISHWASHER WHEN THE DOOR IS OPEN. CHECK THAT THE DETERGENT RECEPTACLE IS EMPTY AT THE END OF EACH WASH CYCLE.

- WARNING! HYDROGEN GAS IS EXPLOSIVE

Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

ELECTRICAL INSTRUCTIONS

An electrical supply of 120V AC only, 60 Hz is required. For your personal safety, the appliance must be grounded. To minimize possible shock hazards it must be plugged into a matching 3-prong (grounding type) electrical outlet. If the power cord is damaged, it must be replaced by the manufacturer or service agent, or a similarly qualified person in order to reduce the risk of a hazard.

IMPORTANT SAFETY INSTRUCTIONS (cont'd)

SAVE THESE INSTRUCTIONS!

SAFETY PRECAUTIONS

• Do not abuse, sit or stand on the door or dishrack of the dishwasher.
• Do not touch the heating element during or immediately after use.
• Do not wash plastic items unless they are marked dishwasher safe. For unmarked plastic items, check the manufacturer's recommendations.
• Use only detergent and rinse additives designed for an automatic dishwasher. Never use laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.
• Keep children away from the detergent and rinse aid, and from the open door of the dishwasher, as there could still be some detergent left inside.
• The door should not be left in the open position as this could present a tripping hazard.
• During installation, the power supply must not be excessively or dangerously bent or flattened.
• To reduce the risk of injury, do not allow children to play in or on a dishwasher.
• Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water spraying out.
• Do not place any heavy objects on the door when it is open. The appliance could tip forward.

When loading items to be washed:

1) Load sharp items so that they are not likely to damage the door seal.
2) Load sharp knives with the handles up to reduce the risk of cuts.
- When using your dishwasher, you should prevent plastic items from coming in contact with the heating element.
- Please dispose of packing materials properly.
- Use the dishwasher only for its intended function.
- Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

OPERATING INSTRUCTIONS

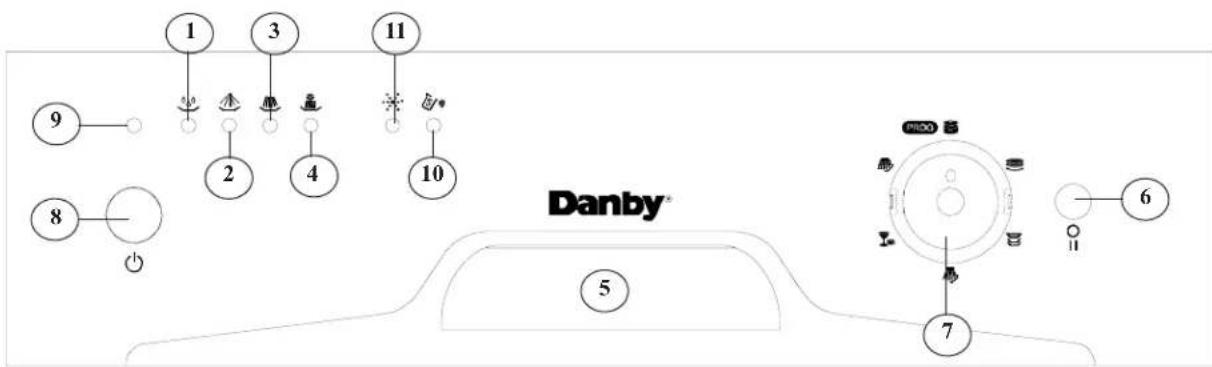

Danby® 1 2 3 4 5 6 7 8 9 10 11

1) Pre-Rinse Light: Illuminates during Pre-Rinse Cycle.
2) Wash Light: Illuminates during Wash Cycle.
3) Rinse Light: Illuminates during Rinse Cycle.
4) Drying Light: Illuminates during Drying period.
5) Door Handle: Pull to open the door.
6) START/PAUSE Button: Press this button to start or pause dishwasher; light will illuminate when starting.
7) Wash Program Selector: Turn the knob clockwise to select wash cycles.

8) ON/OFF Button: To turn on/off the power supply.
Note: This model has a “Program Memory” function; Cutton off power supply during washing will not reset the current wash program. To cancel a program see “Cancelling or Modifying a Wash Cycle Setting” pg. 7.
9) Power Light: Illuminates when ON/OFF button is pressed.
10) Salt Aid Warning Light: Illuminates when softener dispenser needs refilling.
11) Rinse Aid Warning Light: Illuminates when rinse aid dispenser needs refilling.

WASH CYCLES

Cycle Name	Type Description Detergent		(pre/main)
INTENSIVE	Intensive Wash 4/20	For heavily soiled loads, such as pots, pans, casserole dishes and dishes with dried food.
NORMAL	Normal wash 4/20	For normally soiled loads, such as pots, plates, glasses, bowls, and lightly soiled pans. Standard daily cycle.
ECONOMY	Light Wash	For lightly soiled loads, such as plates, glasses, bowls and lightly soiled pans.	20 gr.
RINSE	Rinse For dishes	ed to be rinsed and dried only.
RAPID WASH	Glassware For lightly aged	coiled loads, such as glasses, crystal and fine china.	15 gr.
SOAK	Soak Use to rinse the dishes that you plan to wash later that day. 15 gr.

OPERATING INSTRUCTIONS (cont'd)

WATER SOFTENER

There are two ways to reduce the water hardness: one way is by using water softener, the other is by using detergent.

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses salt specifically designed to eliminate lime and minerals from the water.

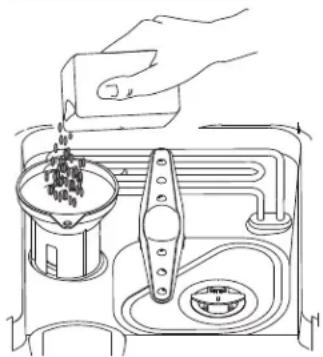

LOADING THE SALT INTO THE SOFTENER

Line drawing of a hand pouring liquid into a container with a pot and side dish (no text or symbols)

Always use salt intended for use with dishwashers. The salt container is located beneath the lower rack and should be filled as follows:

1. Remove the lower basket and unscrew and remove the cap from the salt container.
2. If you are filling the container for the first time, fill 2/3 of its volume with water.
3. Place the end of the salt filter(supplied) into the hole and introduce about 2kg of salt. It is normal for a small amount of water to come out of the salt container.
4. Carefully screw on the cap.

NOTE

1. The salt container must be refilled when the salt warning light comes on. Though the salt container is filled, the indicator light may not black out before the salt fully dissolves.
2. If there are spills of salt, a soak program could be run to clean the spills.

ADJUSTING SALT CONSUMPTION

Technical line drawing of a mechanical component with concentric rings and a central shaft (no text or symbols)

The dishwasher is designed to allow for adjusting the amount of salt consumed based on the hardness of the water used. This is intended to optimize and customize the level of salt consumption.

1. Unscrew the cap from the salt container.
2. There is a ring on the container with an arrow on it (see Figure to the side). If necessary, rotate the ring in the counterclockwise direction from the "-" setting toward the "+" sign, based on the hardness of the water being used. It is recommended that adjustments should be made in accordance with the following chart:

WATER HARDNESS			Selector Position	Salt consumption (gram/cycle)	Auto nomy (cycles/2kgs)
Clarke Degrees	^* dH	mmol/l
0~14 0~10 0~1.7			-	0	/
14~36 18~44 1	8~4.4		/	20 60
36~71 45~89 4	5~8.9		MED	40 40
71 89	8.9		+	60 25

Contact your local water board for information on the hardness of your water supply.

OPERATING INSTRUCTIONS (cont'd)

DETERGENT DISPENSER

WARNING: Dishwasher detergent is corrosive! Take care to keep out of the reach of children.

The dispenser must be refilled before the start of each wash cycle according to the measurements provided in the “Wash Cycles” table on the previous page. Your dishwasher uses less detergent and rinse aid than conventional dishwashers. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting dishwasher, otherwise it could become damp and not dissolve properly.

Amount of Detergent to Use:

If your water is not too hard, you may also prevent the formation of deposits by adding detergent. The amount of detergent needed can vary due to differences in water hardness. To determine the water hardness in your area, contact your local water utility or area water softening company. The harder your water, the more detergent you may need.

- Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry. Don't put powder detergent into the dispenser until you are ready to wash dishes.

Removing Hard Water Spots From Dishes- Try the following:

- Run dishes through a normal wash program.

- Remove all metal dishware, such as cutlery, pans etc. from dishwasher.

- Do not add detergent.

- Pour 2 cups of vinegar into a bowl, set it face up on lower rack of dishwasher and run dishes through normal wash program.

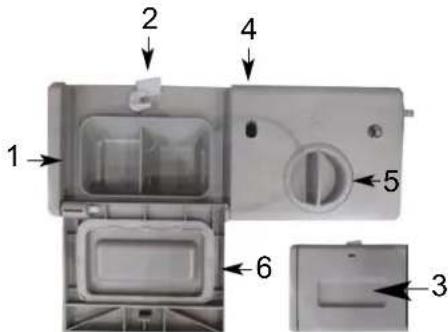

1 2 4 5 6 3

1) Main Wash Detergent
2) Dispenser Lid Lever
3) Prewash Detergent Compartment
4) Rinse Aid Level Indicator
5) Rinse Aid Compartment
6) Detergent Compartment Lid

RINSE AID DISPENSER

• To open the dispenser, turn the cap to the "open" (left arrow) position and lift out.
• Pour the rinse aid into the dispenser, being careful not to overfill.
• Replace the cap by inserting it aligned with "open" arrow and turning it to the "closed" (right arrow) position.
  The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes that can leave spots and streaks. It also improves drying by allowing water to "sheet" off the dishes.
• Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The dispenser holds about 3.5 oz of liquid rinse aid.
• Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with a damp cloth. Don't forget to replace the cap before you close the dishwasher door. If you have soft water, you may not need rinse aid as it may cause a white film to develop on your dishes.

4 3 2 ↑MAX

A measured amount of rinse aid is released during the final rinse. As with detergent, the amount of rinse aid needed for your dishes depends on the hardness of the water in your area. Too much rinse aid can result in lather or foaming and can cause cloudiness or streaks on your dishes. If the water in your area is very soft, you may not need rinse aid. If you do, you can dilutethe rinse aid with an equal amount of water.

The rinse aid dispenser has 4 settings. Always start with the dispenser set on "1". If spots and poor drying are problems, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "2". If the dishes still are not drying

properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free. We suggest the setting of "3".

Close-up of a white electronic device with a handle and circular button (no visible text or symbols)

Full 1/4 full (Refill)
3/4 Full Empty
1/2 Full

When to Refill the Rinse Aid Dispenser: If there is no rinse aid warning light on the control panel, you can judge the amount of rinse aid by the following means. The black dot on the rinse aid dispenser indicates the amount of rinse aid in the dispenser. As the rinse aid diminishes, the size of the black dot decreases. You should never let the rinse aid get below 1 / 4 full. As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes:

Interior view of a washing machine with handle, vent, and control knob (no text or symbols visible)

OPERATING INSTRUCTIONS (cont'd)

LOADING DISHWASHER RACKS

For best performance, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

HOW TO USE THE UPPER RACK:

The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cup and saucers, as well as plates, small bowls and lightly soiled shallow pans. Position the dishes and cookware so that they do not get moved by the spray of water. The upper rack can be adjusted for height by putting wheels of different height into the rails.

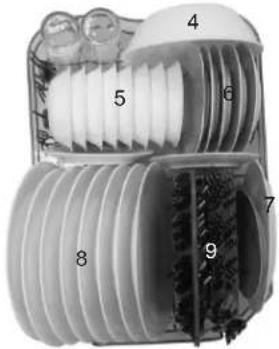

HOW TO USE THE LOWER RACK:

We recommend that you place large items in the lower rack: pots, pans, lids, serving dishes and bowls, as shown below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm. Pots, serving bowls, etc, must always be placed top down. Deep pots should be slanted to allow water flow. The bottom rack features fold down tine rows so that larger or more pots and pans can be loaded.

Technical diagram of a mechanical device with numbered components, likely a valve or pump assembly.

4) Serving bowl
5) bowl
6) Small plates
7) Serving plate
8) Large plates
9) Silverware basket

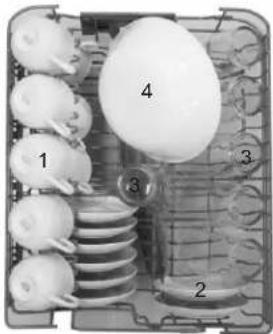

1 2 3 4 8

1) Cups
2) Saucer
3) Glasses

SILVERWARE BASKET

Silverware should be placed in the silverware basket with handles at the bottom: If the rack has side baskets, the spoon should be loaded individually in the appropriate slots. Long utensils should be placed in the horizontal position at the front of the upper rack.

2	4	5	1
	4	5	1
2	4	5	1
2	4	5	1
	4	5	1
2	4	5	4
2	4	5	7
	3	5
2	3	3	1
2	3	3	1
	3	3	1
2	3	6	6

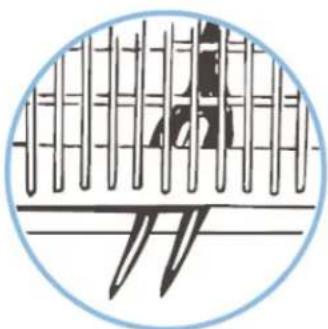

WARNING: Do not let any item extend beyond the bottom of the basket.

Circular diagram with grid lines and two stylized pen-like shapes at the bottom (no text or symbols)

Salad Forks

Close-up of a metallic cylindrical object with ribbed texture, possibly a mechanical or electronic component (no visible text or symbols)

OPERATING INSTRUCTIONS (cont'd)

TURNING ON THE APPLIANCE

Starting a wash cycle...

1) Make sure that the plug for the appliance is inserted into the wall socket.
2) Make sure that the water supply is turned on to full pressure.
3) Load the dishwasher (see "Loading Dishwasher Racks" on previous page).
4) Pour in the detergent (see "Detergent Dispenser" on page 3).
5) Turn the dial located on the right of the control panel in the clockwise direction until the number or the symbol for the cycle setting is aligned with the reference mark (see "Wash Cycles" on page 2).
6) Press the ON/OFF button, and the ON/OFF light will turn on. At this point, the wash cycle will begin.

Cancelling or Modifying a Wash Cycle Setting...

A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see "Detergent Dispenser" on page 3). Press the ON/OFF button, and the ON light will turn off. Rotate the dial in the clockwise direction to the desired cycle setting (see " Starting a wash cycle. . . " above). Then, turn the dishwasher back on using the ON/OFF button.

Forgot to Add a Dish?

A forgotten dish can be added any time before the detergent cup opens.

1) Pull the door handle.
2) Do not open the door until the water spray action stops. Steam may rise out of the dishwasher.
3) Add forgotten dish(es)
4) Push the door closed. Press "START" to begin.

FILTERING SYSTEM

1) MAIN FILTER: Food and soil particles trapped by this filter are pulverized by a special jet on the lower spray arm and washed down the drain.
2) COARSE FILTER: Larger items, such as pieces of bone or glass, that could clog the drain are trapped in the coarse filter. To remove an item caught in this filter, gently squeeze the tabs on top of this filter and lift it out.
3) FINE FILTER: This filter holds soil and food residue in the sump area and prevents it from being redeposited on the dishes during a cycle.

Diagram showing a mechanical assembly with three labeled parts and directional arrows indicating flow or movement.

FEATURES

Technical diagram of an internal combustion chamber with numbered components for identification

Front View

Diagram of a container with scattered particles and a handle, labeled '11' at the bottom (no text or symbols on the diagram itself)

Back View

12 13 14

Front View

CARE AND MAINTENANCE

CLEANING:

To clean the control panel use a lightly dampened cloth then dry thoroughly. To clean the exterior use a good appliance polish wax. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

PROTECT AGAINST FREEZING:

If your dishwasher is left in an unheated place during the winter, ask a service technician to:

1) Cut off electrical power to the dishwasher and remove fuses or trip circuit breaker.
2) Turn off the water supply and disconnect the water inlet pipe from the water valve.
3) Drain the water from the inlet pipe and water valve (use a pan to catch the water).
4) Reconnect the water inlet pipe to the water valve.
5) Remove the plastic sump cover in the tub the bottom and use a sponge to soak up the water in rubber boot.

CLEANING THE SPRAY ARMS:

It is necessary to clean the spray arms regularly as hard water chemicals will clog the spray arm jets and bearings. To remove the spray arm, screw off the nut to take out the washer on top of the spray arm and remove the arm. Wash the arms in soapy, warm water and use a soft brush to clean the jets. Replace after rinsing them thoroughly.

CLEANING THE FILTERS:

• For best performance and results, the filter assembly must be cleaned.
• Inspect the filters for obstructions every time the dishwasher has been used.
• By unscrewing the coarse filter you can remove the filter system. Remove any food remnants and use a cleaning brush to clean the filters under running water.
• Follow Step 1 to Step 3 to remove the filter system; follow Step 3 to Step 1 to install the filter system.

WARNING: NEVER RUN THE DISHWASHER WITHOUT THE FILTERS IN PLACE.

CLEANING THE DOOR:

To clean the edge around the door, you should use only a soft warm, damp rag. To prevent penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the finish. Some papers towels can also scratch or leave marks on the surface.

1

2

3

How to Keep Your Dishwasher Running Properly...

After Every Wash- After every wash, turn off the water supply to the appliance and leave the door slightly ajar so that moisture and odors are not trapped inside.

No Solvents or Abrasive Cleaning Products- To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Use only a cloth and warm, soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with warm water and a little white vinegar, or a cleaning product made specifically for dishwashers.

When You Go on Holiday- When you go on holiday, it is recommended that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly ajar. This will help the seals last longer and prevent odors from forming in the appliance.

Seals- One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
1) Dishwasher doesn’t run	Fuse blown or circuit breaker tripped.Power supply is not turned on.Water pressure is low.	Replace fuse or reset circuit breaker.Make sure dishwasher is turned on and door is closed. Plug in cord securely.Check that water supply is connected and the water is turned on.
2) Drain pump doesn’t stop	OverflowThe system is designed to detect an overflow. When it does, it shuts off the circulation pump and turns on the drain pump.
3) Noise	Some audible sounds are normalUtensils are not secure in basket / something small dropped into basket.Motor hums.	Sound from soft food shredding action and detergent cup opening.Ensure everything is secured in the dishwasher.If you do not use often, dishwasher may hum- remember to fill and pump out appliance every week to keep the seal moist.
4) Suds in the tub	Improper detergent.Spilled rinse agent.	Use only dishwasher detergent to avoid suds. If suds are present, open the door and let suds evaporate.Always wipe rinse agent spills immediately.
5) Dishes are not dry	Rinse agent dispenser is empty. Make sure that the rinse agent dispener is filled.
6) Dishes and flatware are not clean (spots / filming)	Improper program selected/run.Improper rack loading.Extremely hard water.	Select a stronger program.Make sure that the detergent dispenser and spray arms are not blocked by large dishware.Remove all metal utensils from dishwasher. See “Removing Hard Water Spots from Dishes” pg 3.
7) Detergent left in dispenser cups	Dishes blocking detergent cups. Re-load the dishes properly.
8) Water standing in the bottom of the tub	This is normal. A small amount of clean water around the outlet on the tub button at the back of the tub keeps the water seal lubricated.
9) Water doesn’t pump out of the tub	Drain is clogged. Make sure the kitchen sink is draining well. If the dishwasher drains into a disposer, run it clear.
10) Dishwasher leaks / steams	Overfill dispenser or rinse aid spills.Dishwasher isn’t level.Steam is normal.	Be careful not to overfill the rinse aid dispenser. Spilled rinse aid could cause oversuding and lead to overflowing. Wipe away any spills with a damp cloth.Make sure the dishwasher is level.Steam coming through the vent by the door latch is normal during drying and water draining.

LIMITED IN-HOME APPLIANCE WARRANTY

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.

This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts, are warranted for thirty (30) days only from purchase date, with no extensions provided.

First year	During the first twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the ORIGINAL purchaser.
To obtain service	Danby reserves the right to limit the boundaries of “In Home Service” to the proximity of an Authorized Service Depot. Any appliance requiring service outside the limited boundaries of “In Home Service”,it will be the consumer’s responsibility to transport the appliance (at their own expense) to the original retailer (point of purchase) or a service depot for repair. See “Boundaries of In Home Service” below. Contact your dealer from whom your unit was purchased, or contact your nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the units by anyone other than an authorized service depot, or the unit is used for commercial application, all obligations of Danby under this warranty shall be void.
Boundaries of in-home service	If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center your unit must be delivered to the nearest authorized Danby Service Depot, as service must only be performed by a technician qualified and certified for warranty service by Danby. Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (extremely high or low room temperature).
5) Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7) Service calls resulting in customer education.
8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application). Proof of purchase date will be required for warranty claims; so, please retain bills of sale. In the event warranty service is required, present this document to our AUTHORIZED SERVICE DEPOT.

Warranty Service

In-home

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] FAX: [phone]

1-800-263-2629

07/13

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

CONSIGNES DE SÉCURITÉ IMPORTANTES

CONSERVEZ CES INSTRUCTIONS!

PRÉCAUTIONS DE SÉCURITÉ

Line drawing of a hand pouring liquid into a container with a pot and side-mounted dish (no text or symbols)

Technical line drawing of a mechanical component with concentric rings and a central shaft (no text or symbols)

Close-up of a white electronic device with a handle and circular button (no visible text or symbols)

Technical diagram of a mechanical component with numbered parts labeled 4 through 9

4) Bol de service
5) Bol
6) Petes assiees
7) Assiee de service
8) Grandes assiees
9) Panier à couverts

Diagram of a mechanical or electrical component with numbered parts, likely for assembly or labeling.

Circular diagram showing a grid with three stylized black shapes, no text or symbols present.

Close-up of a metallic mechanical component with coiled, ribbed texture (no visible text or symbols)

CONSIGNES DE OPÉRATION (suite)

MISE EN MARCHE DE L'APPAREIL

Diagram showing a mechanical assembly with three labeled parts and directional arrows indicating flow or movement.

Technical diagram of a refrigerator internal structure with numbered components

Vue frontale

Simple line drawing of a container with scattered particles and a handle, no text or symbols present.

Vue arrière

12 13 14

Vue frontale

SOINS ET ENTRETIEN

NETTOYER:

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

For service, contact your nearest service depot or call: 1-800-26-Danby (1-800-263-2629) to recommend a depot in your area.

The model number of your dishwasher is found on the serial plate located on the back panel of the unit.

All repair parts available for purchase or special order when you visit your nearest service depot. To request service and/or the location of the service depot nearest you, call the toll free number listed to the left in Canada and the U.S.

When requesting service or ordering parts, always provide the following information:

• Product Type
• Model Number

LAVE-VAISSELLE
