USER MANUAL 771370 TRISA

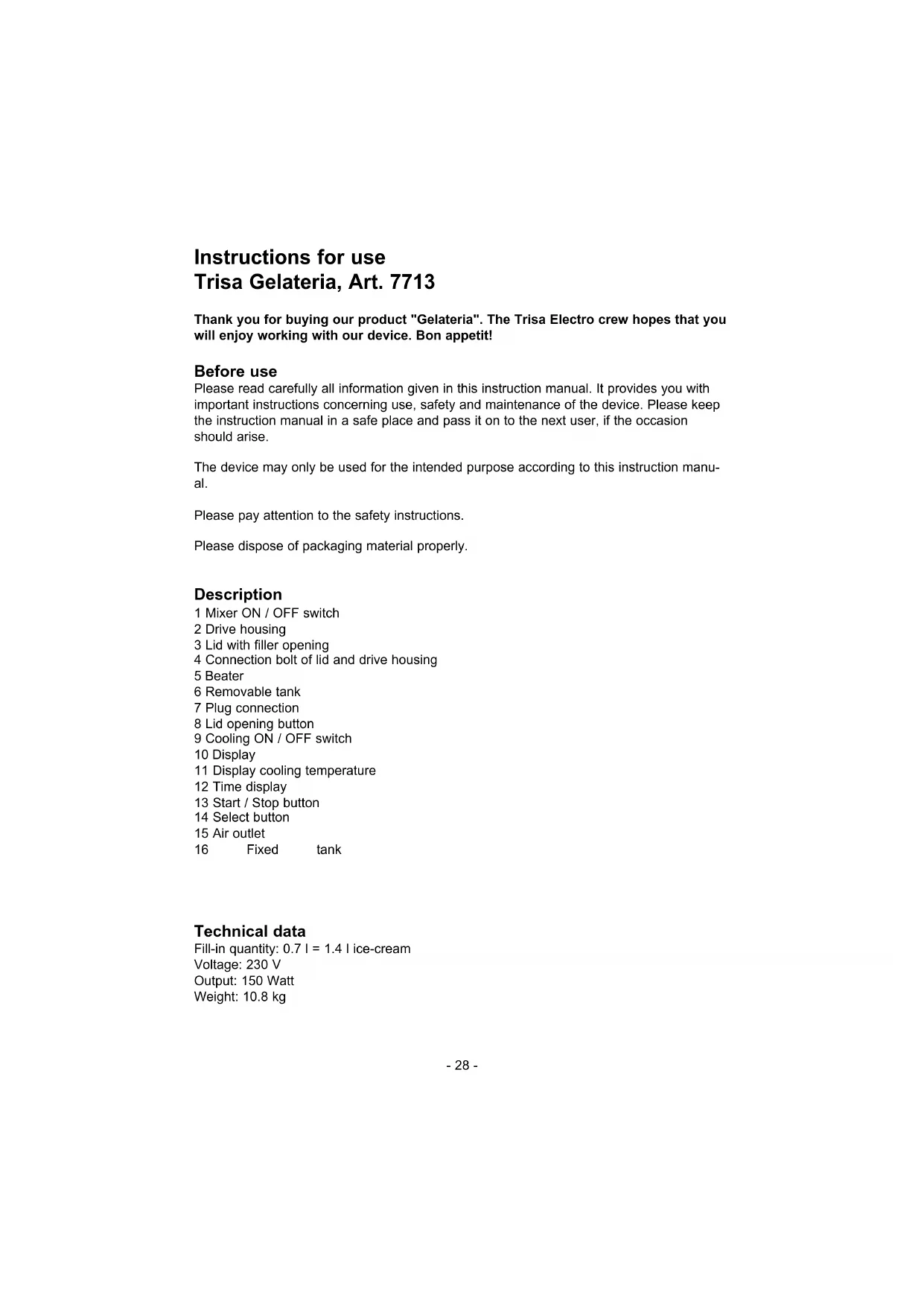

Instructions for use

Trisa Gelateria, Art. 7713

Thank you for buying our product "Gelateria". The Trisa Electro crew hopes that you will enjoy working with our device. Bon appetit!

Before use

Please read carefully all information given in this instruction manual. It provides you with important instructions concerning use, safety and maintenance of the device. Please keep the instruction manual in a safe place and pass it on to the next user, if the occasion should arise.

The device may only be used for the intended purpose according to this instruction manual.

Please pay attention to the safety instructions.

Please dispose of packaging material properly.

Description

1 Mixer ON / OFF switch

2 Drive housing

3 Lid with filler opening

4 Connection bolt of lid and drive housing

5 Beater

6 Removable tank

7 Plug connection

8 Lid opening button

9 Cooling ON / OFF switch

10 Display

11 Display cooling temperature

12 Time display

13 Start / Stop button

14 Select button

15 Air outlet

16

Fixed

tank

Technical data

Fill-in quantity: 0.7I = 1.4 ice-cream

Voltage: 230 V

Output: 150 Watt

Weight: 10.8 kg

Before initial use

Please check already when unpacking the device if all accessory parts, as stated in the instruction manual, are included and if the device is not damaged.

Cleanness and hygiene are very important when processing food. Wash up all parts that come into contact with ice cream (stainless steel and aluminium tank, beater and lid) and dry them carefully.

Attention!

During transportation the device may have been fallen over or put upside down - the cooling liquid then may be spread out in the cooling cycle and the compressor may not work.

Place the device on an even surface for 12 hours so that the cooling liquid will accumulate. Please also repeat this process if the device will be in wrong position in the future.

First use

Connect mains plug. (Only connect to alternating current with a voltage of 230 Volt).

Always place the device on a solid and even surface.

The ventilation opening on front and back must not be covered.

Keep a distance of at least 20~cm

Use

Attention

• Please always use only fresh and impeccable ingredients when making ice cream.
• Fruits must always be fresh and washed.
• Ingredients should be pre-cooled for processing.
• Never fill hot ingredients into the device!

Preparation of ice cream in the removable aluminium tank

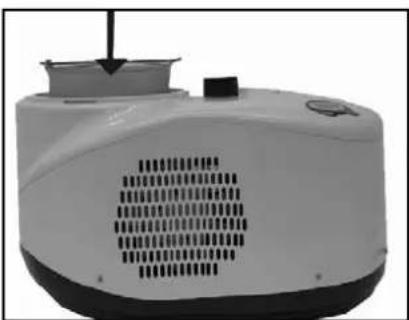

1. Place the empty removable aluminium tank (6) in the fixed stainless steel tank (16) of the device.

1. Connect the lid (3) and the drive housing (2) with the connection bolt (4).

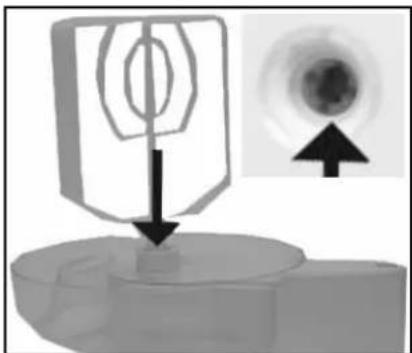

1. Place the beater (5) in the intended opening of the drive housing. The beater must be in a loose position.

1. Put on the drive housing (2) in a way so that the plug connection on the drive housing (2) is placed opposite the fixed plug connection (7) of the device. Turn the lid clockwise that the plug connections click into each other and the locking device will click into place.

If the plug connection is not connected properly, the drive motor will not work

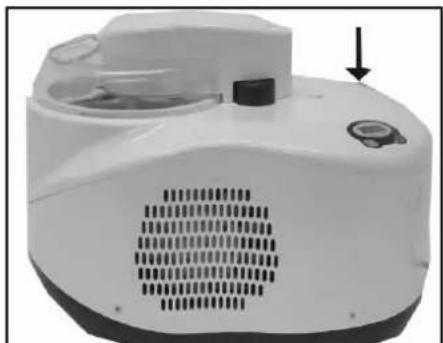

1. Switch on the device by pressing down the cooling ON/OFF switch (9).

Tip:

At first, switch on device and then start preparing ice cream.

So cooling is already at full power when filling in.

After switching on the mixer motor the cooling aggregate may only be switched off when the preparation of the ice cream has been finished. In case of switching-off or power failure during ice-cream preparation, the compressor will start cooling after rerunning only with a waiting period of 5 minutes. This is caused by an integrated safety circuit. This may result in an insufficient preparation of the ice cream

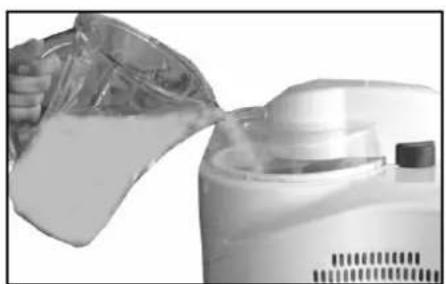

1. Now slowly fill in the prepared mixture into the ice cream maker through the filler opening of the lid (3).

Important

Only fill in the mixture up to 3cm below the edge of the bowl, as the mixture will increase in volume because of the cooling!

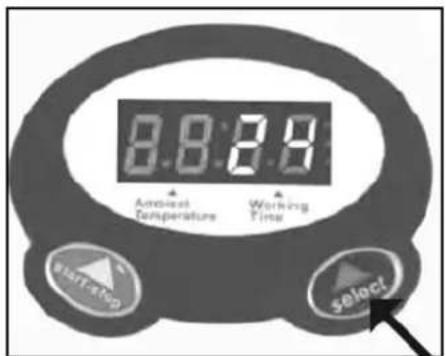

1. Select the desired period of time on the display by pressing the select button (14) (possible period of time are 5, 10, 20, 35 or 40 minutes). The desired period of time will now flash in green.

Remark:

Depending on recipe, temperature and quantity, the period of time for preparation may vary. It takes approx. 20 - 40 minutes.

If the ice cream is not solid enough, another period of time, e.g. 5 minutes, may be selected after completion.

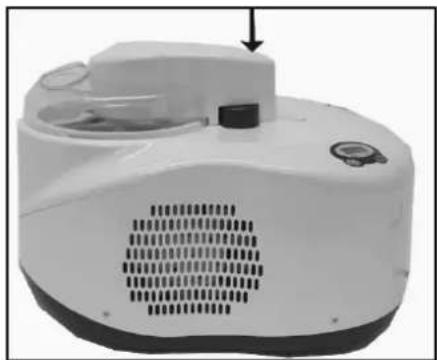

1. Now press the mixer ON / OFF button (1) to start the mixing procedure

The statement on the left side of the display shows current cooling temperature (starts at approx. -18^ up to a maximum of approx. -22^ ). Indication on display "18".

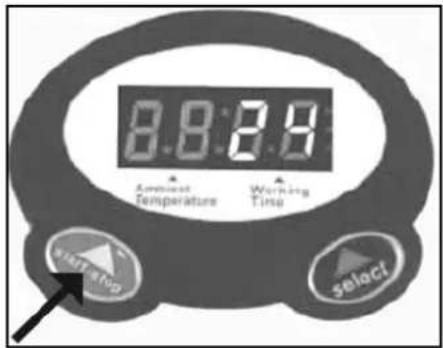

1. Start the mixing procedure by pressing the Start button (13).

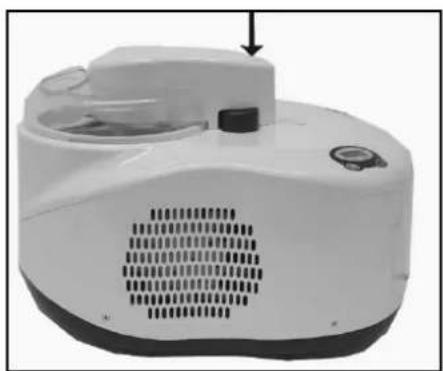

10.If the period of time has been expired, a signal tone will sound for 30 seconds. Press the mixer ON / OFF switch (1) to stop the mixing procedure.

Remark The mixer will turn off automatically.

Important Before removing the mixer, please ensure that the mixer ON / OFF switch is in the OFF position.

Important:

If the consistency of the ice cream is too strong for the beater and the drive motor, it will turn into opposite direction.

Turn off the mixer (4) to remove stress from mixer and motor. We do not accept any warranty in case of disregard.

1. In order to take ice-cream from the device, remove the drive housing (2) by pressing the lid opening button (8) und simultaneously turning the drive housing (2) counter-clockwise. Lift the drive housing. The beater (5) remains in with tank.

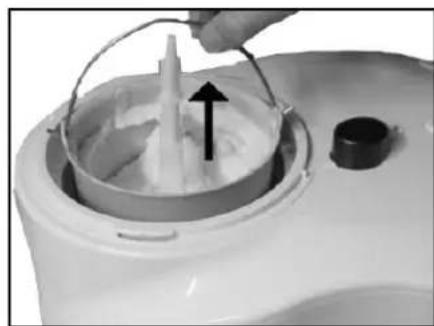

1. Pull out the tank (6).

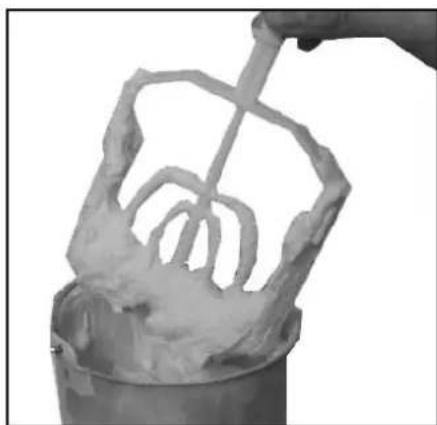

1. Remove the beater (5) right after termination of the mixing procedure.

Serve the ice cream immediately after preparation or fill the ice cream into a suitable container for deep-freezing.

Important

Never use pointed or solid objects to remove the ice cream. It may scratch the tank. Use a plastic scraper instead.

Keeping time

Ice cream with raw ingredients approx. 1 week in the freezer

Sorbets approx. 1 - 2 weeks in the freezer

Ice cream with cooked ingredients approx. 2 weeks in the freezer

Right after, new ice cream can be made again. Keep the cooling working and fill in the new mixture into the empty removable tank or into the fixed tank and continue the procedure.

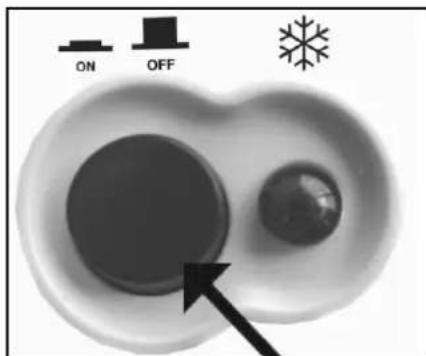

When the preparation of the ice cream is finished, switch off the cooling ON/OFF switch, disconnect the mains plug and carefully clean the device.

Remark Never leave ice cream with the device with running cooling compressor, because the ice cream will freeze to the device.

Preparation of ice cream in the fixed tank

1. Place the device on an even and solid surface.

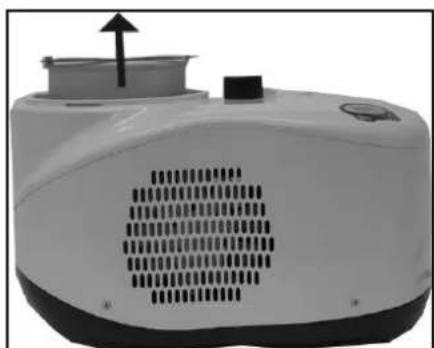

Remove the empty removable aluminium tank (6) from the stainless steel tank (16) of the device.

Directly fill in the mixture into the fixed tank. Now you may proceed as stated in the procedures 2 - 12 that are mentioned above.

Preparation of 2 different kinds of ice-cream

First prepare ice cream in the removable tank (6). When this procedure is finished you can fill in the second mixture directly into the fixed tank and execute the procedure as mentioned above.

Cleaning and care

Always disconnect mains plug before cleaning.
- Remove lid by pressing the lid opening button and simultaneously turning the lid counter-clockwise. Remove beater from lid by just pulling it out. Remove the transparent part of the lid by loosening the connection bolt. Wash up all parts carefully and dry them thoroughly.
- Wipe the housing, if necessary, with a damp cloth and dry it. Do not use scouring agents or solvents like benzine, petroleum, furniture cleaner or thinner.

Disposal

Make worn out appliances unusable. Pull out the mains plug and sever the cord. Electric appliances are to be returned to a shop of sale or handed over to an official dump.

Safety regulations

• Plug the appliance only in an outlet as mentioned on the rating plate.
• An electric appliance is not a children's toy. Children are not aware of the hazards of electrical appliances. Therefore close supervision is necessary when the appliance is used by children.
• Never put the device upside down.
• Never use sharp objects to remove ice cream.
• Never hang down the main cable. Keep children away from packing material, e.g., plastic bags.
• Do not use this appliance near the water contained in bath-tubs, washbasins or other receptables nor expose it to rain or other humidity.
• Should however the appliance fall into water, only take it out after pulling the plug. Then do not use the appliance anymore, but first have it checked by an authorized service department.
• Never use the appliance outdoor.
• Regular check if the main cable is defective. In this case the appliance must not be put into operation (immediately pull the plug). Send it to the manufacturer for repair.

The appliance must not be operated (disconnect the mains plug immediately) when:

• the appliance, casing or cable is damaged.
• the appliance shows visible signs of damage.
• a fault is suspected after a fall or the like.
• in case of faults during use.
• before cleaning or moving the appliance from place to place.

• after use.

• Never pull the plug out of the socket with wet hands.

• Never carry nor pull the appliance by the flex.
• Don't pull the flex over sharp edges. Don't wedge it.
• Do not bend the flex nor wind it around the appliance.
• Never put the appliance on hot surfaces nor near open flames. Lay the cord so that it does not touch hot or sharp-edged objects. Do not use the appliance while standing on a humid floor or when your hands or the appliance are wet.
• Do not leave the appliance unattended while it is connected to the power source.
• This appliance is not meant for commercial use only exclusively for private use.
• Only trained personnel should repair electrical appliances. Unskilled repairs can cause considerable danger to the user.
• In case of damage to the power cable this may only be replaced by a customer service authorized by the manufacturer.
• No warranty for any possible damage can be accepted if the appliance is used for impro per purpose, wrongly operated or unprofessionally repaired. In such a case, any warrant by claim is void.
