USER MANUAL CGW LUX 70 5G AI AL TR TEKA

Σ Qn LPG Gas = 11.70 kW

Σ Qn LPG Gas = 10.95 kW

Σ Qn Natural Gas = 9.65 kW

Σ Qn LPG Gas = 9.75 kW

Σ Qn LPG Gas = 709 (G30)

SERIE: COD. 04067E1 (04067GB) - 05.07.2012

These instructions are only valid if the country symbol appears on the appliance. If the symbol does not

appear on the appliance, it is necessary to refer to the technical instructions which will provide the

necessary instructions concerning modification of the appliance to the conditions of use of the country.

Instructions for the installation

and advice for the maintenance

CGW LUX 60 3G AI AL TR CI - CGW LUX 60 4G AI AL CI CGW LUX 60 4G AI AL TR CI - CGW LUX 70 5G AI AL TR CI CGW LUX 70 5G AI AL CI - CGW LUX 90 5G AI AL DR CI Instructions Manual

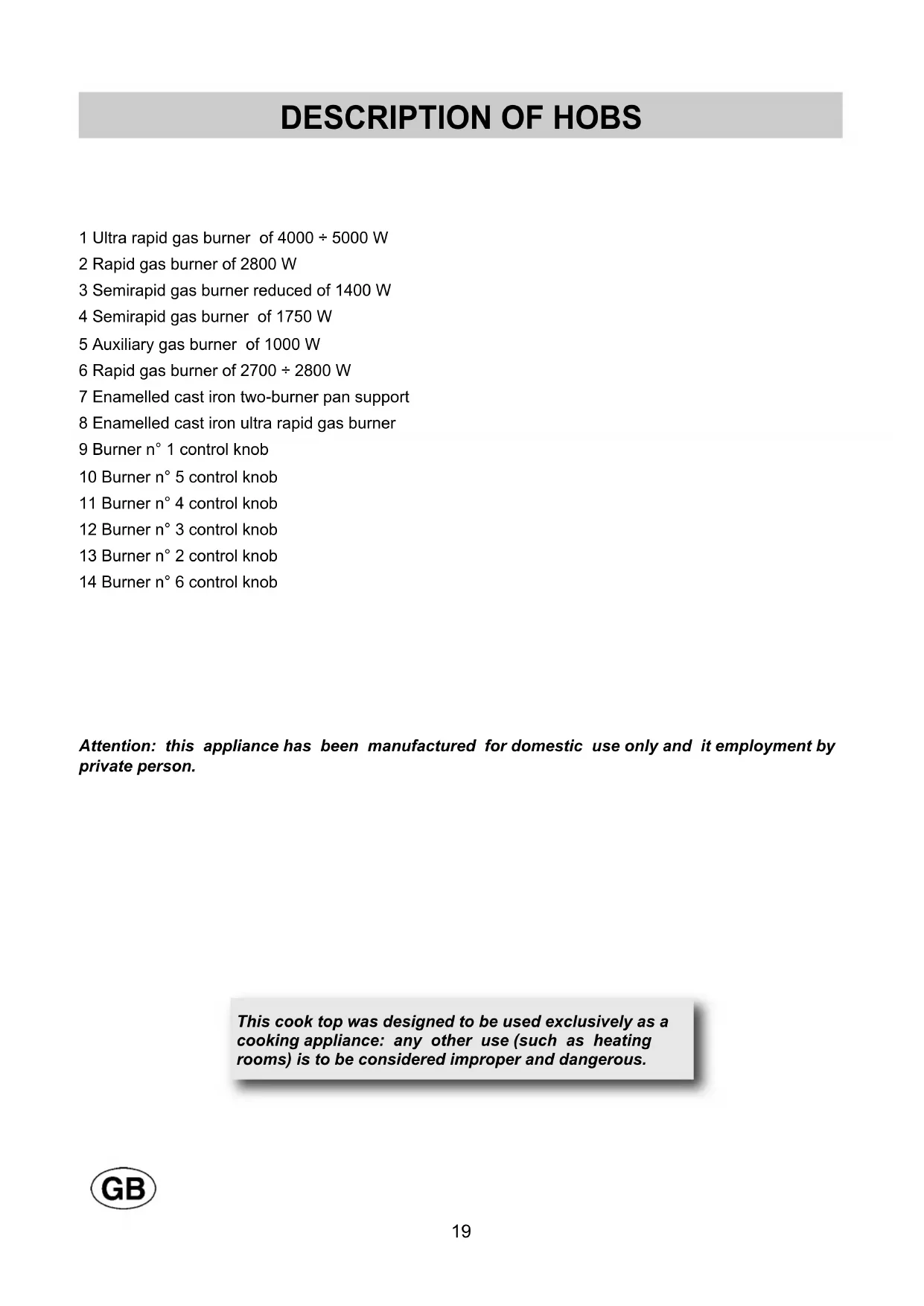

1 Ultra rapid gas burner of 4000 ÷ 5000 W

2 Rapid gas burner of 2800 W

3 Semirapid gas burner reduced of 1400 W

4 Semirapid gas burner of 1750 W

5 Auxiliary gas burner of 1000 W

6 Rapid gas burner of 2700 ÷ 2800 W

7 Enamelled cast iron two-burner pan support

8 Enamelled cast iron ultra rapid gas burner

9 Burner n° 1 control knob

Attention: this appliance has been manufactured for domestic use only and it employment by

This cook top was designed to be used exclusively as a

cooking appliance: any other use (such as heating

rooms) is to be considered improper and dangerous.1) BURNERS A diagram is screen-printed above each knob on

the front panel. This diagram indicates to which

burner the knob in question corresponds. After

having opened the gas mains or gas bottle tap,

light the burners as described below:

- automatic electrical ignition

Push and turn the knob corresponding to the

required burner in an anticlockwise direction until it

reaches the full on position (large flame fig. 1),

then depress the knob.

- Lighting burners equipped with flame failure

The knobs of burners equipped with flame failure

device must be turned in an anticlockwise

direction until they reach the full on position (large

flame fig. 1) and come to a stop. Now depress the

knob in question and repeat the previously

indicated operations.

Keep the knob depressed for about 10 seconds

once the burner has ignited.

As far as the models equipped with the griddle are

concerned, do not keep the ignition system

activated for more than 15 seconds; if after 15

seconds the burner is not switched on jet, switch off

the ignition and wait for at least 1 minute before

With regards to all the models, in case of accidental

extinguishment of the flame, disengage the ignition

by rotating the knob to the off position. Wait at least

1 minute before re-igniting the flame.

HOW TO USE THE BURNERS Bear in mind the following indications in order to

achieve maximum efficiency with the least

possible gas consumption:

- use adequate pans for each burner (consult the

following table and fig. 2).

- When the pan comes to the boil, set the knob to

the reduced rate position (small flame fig. 1).

- Always place a lid on the pans.

- Use only pan with a flat bottom.

- burners with flame failure device may only be

ignited when the relative knob has been set to

the Full on position (large flame fig. 1).

- Matches can be used to ignite the burners in a

- Never leave the appliance unattended when

the burners are being used. Make sure there

are no children in the near vicinity. Particularly

make sure that the pan handles are correctly

positioned and keep a check on foods

requiring oil and grease to cook since these

products can easily catch fire.

- The machine must not be used by people

(including children) with impaired mental or

physical capacities, or without experience of

using electrical devices, unless supervised or

instructed by an expert adult responsible for

their care and safety. Children should not be

allowed to play with the equipment.

- Never use aerosols near the appliance when it

- If the built-in hot plate has a lid, any spilt food

should be immediately removed from this

before it is opened. If the appliance has a glass

lid, this could shatter when the hot plate

becomes hot. Always switch off all the burners

before closing the lid.

- Containers wider than the unit are not

USE Burners Power W Pan Ø in cm

Reduced rate position

USE WARNINGS AND ADVICE FOR THE USER:

●use of a gas cooking appliance produces heat and moisture in the room in which it is installed. The

room must therefore be well ventiladed by keeping the natural air vents clear (see fig. 3) and by

activating the mechanical aeration device (suction hood or electric fan fig. 4 and fig. 5).

Intensive and lengthy use of the appliance may require additional ventilation. This can be achieved by

opening a window or by increasing the power of the mechanical exhausting system if installed.

●Do not attempt to change the technical characteristics of the product because it can be

●If you should not to use this appliance any more (or replace an old model), before disposing of it,

make it inoperative in conformity with current law on the protection of health and the prevention

of environmental pollution by making its dangerous parts harmless, especially for children who

might play on an abandoned appliance.

●Do not touch the appliance with wet or damp hands or feet.

●Do not use the appliance barefoot.

●The manufacturer will not be liable for any damage resulting from improper, incorrect or

●During, and immediately after operation, some parts of the cook top are very hot: avoid touching

●After using the cook top, make sure that the knob is in the closed position and close the main

tap of the gas supply or gas cylinder.

●If the gas taps are not operating correctly, call the Service Department.

WARNING: during operation the work surfaces of the cooking

area become very hot: keep children away!

FIG. 3 FIG. 4 FIG. 5

(*) AIR INLET: SEE INSTALLATION CHAPTER (PARAGRAPHS 5 AND 6)CLEANING FIG. 6

always disconnect the appliance from the gas

and electricity mains before carrying out any

2) HOT PLATE Periodically wash the hot plate, the enamelled stell

pan support, the enamelled burner caps “C” and the

burner heads "M" (see fig. 6) with lukewarm soapy

water. Following this, all parts should be thoroughly

rinsed and dried. Never wash them while they are

still warm and never use abrasive powders.

Do not allow vinegar, coffee, milk, salted water,

lemon or tomato juice from remaining in contact

with the enamelled surfaces for long periods of

comply with the following instructions, before

remounting the parts:

- check that burner heads slots (see fig. 6) have

not become clogged by foreign bodies.

- Check that enamelled burner cap “C” (fig. 6)

have correctly positioned on the burner head.

- Do not force the taps if they are difficult open

or close. Contact the technical assistance

service for repairs.

- Don’t use steam jets for the equipment

Note: continuous use could cause the

burners to change colour due to the high

temperature.TECHNICAL INFORMATION FOR THE INSTALLER Installation, adjustments of controls andmaintenance must only be carried out by aqualified engineer.The appliance must be correctly installed inconformity with current law and themanufacturer's instructions.Incorrect installation may cause damage topersons, animals or property for which theManufacturer shall not be consideredresponsible.During the life of the system, the automaticsafety or regulating devices on the appliancemay only be modified by the manufacturer orby his duly authorized dealer. 3) INSTALLING THE HOT PLATE Check that the appliance is in a good condition afterhaving removed the outer packaging and internalwrappings from around the various loose parts. Incase of doubt, do not use the appliance and contactqualified personnel.Never leave the packaging materials (cardboard,bags, polystyrene foam, nails, etc.) withinchildren’s reach since they could becomepotential sources of danger.The measurements of the opening made in the top ofthe modular cabinet and into which the hot plate will beinstalled are indicated in either fig. 7. Always complywith the measurements given for the hole into whichthe appliance will be recessed (see fig. 7 and 8) . The appliance belongs to class 3 and istherefore subject to all the provisionsestablished by the provisions governing suchappliances. COMPLY WITH THE DIMENSIONS

(in mm) CAUTION: do not place the glass directly on the unit. The bottom of the hob must rest on the unit.IMPORTANT!A perfect installation, adjustment ortransformation of the cook top to useother gases requires a QUALIFIEDINSTALLER: a failure to follow this rule willvoid the warranty. A B C D E

3F - 4F (60) 553 473 63.5 63.5 63.5 min.

INSTALLATION FIG. 7FIG. 8 23INSTALLATION

4) FIXING THE HOT PLATE The hot plate has a special seal which prevents

liquid from infiltrating into the cabinet. Strictly

comply with the following instructions in order to

correctly apply this seal:

- take off all the movable parts of the hob.

- Cut the seal in 4 parts of the necessary lenght to

positionning it on the 4 edges of the crystal.

- Overturn the hot plate and correctly position seal

so that the outer side of the seal perfectly

matches the outer perimetral edge of the crystal.

The ends of the strips must fit together without

- Evenly and securely fix the seal to the crystal,

pressing it in place with the fingers.

- Position the hob in the hole in the unit and fasten

it in place using the appropriate screws “F” of the

fastening hooks “G” (see fig. 10).

- In order to avoid accidental touch with the

overheating bottom of the hob, during the

working, is necessary to put a wooden insert,

fixed by screws, at a minimum distance of 70

mm from the top (see fig. 7).

IMPORTANT INSTALLATION INSTRUCTIONS The installer should note that the appliance

that side walls should be no higher than the

hot plate itself. Furthermore, the rear wall, the

surfaces surrounding and adjacent to the

appliance must be able to withstand an

overtemperature of 65 K.

The adhesive used to stick the plastic laminate

to the cabinet must be able to withstand a

temperature of not less than 150 °C otherwise

the laminate could come unstuck.

The appliance must be installed in compliance

with BS 6172 1990, BS 5440 part. 2 1989 and

This appliance is not connected to a device

able to dispose of the combustion fumes. It

must therefore be connected in compliance

with the above mentioned installation

standards. Particular care should be paid to

the following provisions governing ventilation

5) ROOM VENTILATION To ensure correct operation of the appliance, it is

important to ensure that the room where the hot plate

is installed has sufficient ventilation, as set out in BS

5440 part 2. 1989. See table below.

Natural air flow must enter directly through permanent

openings in the walls of the room in question. These

must open towards the outside and possess a

minimum section of 100 cm

see fig. 3). It must be

impossible to obstruct these openings.

Indirect ventilation with air drawn from adjacent rooms

is permitted in strict compliance with the provisions in

6) LOCATION AND AERATION Gas cooking appliances must always dispose of their

combustion fumes through hoods. These must be

connected to flues, chimneys or straight outside (see

fig. 4). If it is not possible to install a hood, an electric

fan can be installed on a window or on a wall facing

outside (see fig. 5). This must be activated at the

same time as the appliance, so long as the

specifications in the provisions in force are strictly

7) GAS CONNECTION Before connecting the appliance, check that the

values on the data label affixed to the underside

of the hot plate correspond to those of the gas

A label on the appliance indicates the regulating

conditions: type of gas and working pressure.

a gas hot plate can only be connected by a CORGI Registered engineer.

Installations should be carried out in accordance with

BS 6891 1988 and must comply with the Gas Safety

All hot plate installations must include an isolation tap.

GAS PRESSURE TEST Some hot plates models have a test point fitted under

the control panel, to conduct a gas pressure test

- turn off the gas supply.

- Remove screw in the pressure test point, place

test gauge connecting tube on test point.

- Fit a burner ring and cap onto burner assembly,

replace control knob onto corresponding control

- Turn on gas and ascertain working pressure.

After test, turn off control tap, turn off gas supply,

disconnect test gauge connecting tube.

Replace the test point screw, turn gas back on and

test for soundness. Reassemble the hotplate.

the appliance complies with the provisions of the

following CEE Directives:

2009/142 + 93/68 regarding gas safety.INSTALLATION

8) ELECTRICAL CONNECTION The electrical connections of the appliance

must be carried out in compliance with the

provisions and standards in force.

Before connecting the appliance, check that:

- the voltage matches the value shown on the

specification plate and the section of the wires of

the electrical system can support the load, which

is also indicated on the specification plate.

- the electrical capacity of the mains supply

an d c urre n t soc k e ts suit t h e max i m um

power rating of the appliance (consult the

data label applied to the underside of the

- the socket or system has an efficient earth

connection in compliance with the provisions and

standards in force. The manufacturer declines all

responsibility for failing to comply with these

When the appliance is connected to the

electricity main by a socket:

- fit a standard plug “C” suited to the load indicated

on the data label to the cable. Fit the wires

following figure 11, taking care of respecting the

following correspondences:

Letter L (live) = brown wire;

Letter N (neutral) = blue wire;

earth symbol = green - yellow wire.

- The power supply cable must be positioned so

that no part of it is able to reach an

overtemperature of 75 K.

- Never use reductions, adapters of shunts for

connection since these could create false contacts

and lead to dangerous overheating.

- The outlet must be accessible after the built-in.

When the appliance is connected straight to the

- install an omnipolar circuit-breaker between the

appliance and the electricity main. This circuit-

breaker should be sized, in compliance with

current installation regulations.

- Remember that the earth wire must not be

interrupted by the circuit-breaker.

- For optimum safety, the electrical connection may

also be protected by a high sensitivity differential

You are strongly advised to fix the relative yellow-

green earth wire to an efficient earthing system.

Before performing any service on the electrical

part of the appliance, it must absolutely be

disconnected from the electrical network.

all our appliances are designed and

manufactured in compliance with European

standards EN 60 335-1, EN 60 335-2-6 and

EN 60 335-2-102 plus the relative amendments.

The appliance complies with the provisions of

the following CEE Directives:

- CEE 2004/108/CE regarding to electromagnetic

- CEE 2006/95 regarding electrical safety.

IMPORTANT: the appliance must be

installed following the manufacturer's

instructions. The manufacturer will not be

liable for injury to persons or animals or

property damage caused by an incorrect

If the installation requires modifications to

the home's electrical system or if the

socket is incompatible with the appliance's

plug, have changes or replacements

performed by professionally-qualified

person. In particular, this person must also

make sure that the section of the wires of

the socket is suitable for the power

absorbed by the appliance.

Always disconnect the appliance from the

electricity main before making any adjustments.

All seals must be replaced by the technician at

the end of any adjustments or regulations.

Our burners do not require primary air

“Reduced rate” adjustment

- Switch on the burner and turn the relative knob to

the “Reduced rate” position (small flame fig. 1).

- Remove knob “M” (fig. 12 and 12/A) of the tap,

which is simply pressed on to its rod. The by-pass

for minimal rate regulation can be: beside the tap

(fig. 12) or inside the shaft. In any case, to access

to regulation, it can be done trought the insertion

of a small screwdriver ‘’D’’ beside the tap (fig. 12)

or in the hole ‘’C’’ inside the shaft of the tap

(fig 12/A). Turn the throttle screw to the right or left

until the burner flame has been adequately

regulated to the “Reduced rate” position.

The flame should not be too low: the lowest small

flame should be continuous and steady. Re-

assemble the several components.

It is understood that only burners operating

with G20 gas should be subjected to the above

mentioned adjustments. The screw must be

fully locked when the burners operate with G30

or G31 (turn clockwise).

FIG. 12 FIG. 12/ACONVERSIONS

10) REPLACING THE INJECTORS The burners can be adapted to different types of gas by

mounting injectors suited to the type of gas in question. To

do this, first remove the burner tops using a wrench “B”.

Now unscrew injector “A” (see fig. 13) and fit a injector

corresponding to the utilized type of gas in its place.

It is advisable to strongly tighten the injector in place.

After the injectors have been replaced, the burners

must be regulated as explained in paragraphs 9. The

technician must reset any seals on the regulating or

pre-regulating devices.

The envelope with the injectors and the labels can be

included in the kit, or at disposal to the authorized

customer Service Centre.

For the sake of convenience, the nominal rate table also

lists the heat inputs of the burners, the diameter of the

injectors and the working pressures of the various types

FIG. 13SERVICING Always disconnect the appliance from the

electricity and gas mains before proceeding

with any servicing operation.

11) REPLACING HOT PLATE PARTS Replacement of the components housed inside

the appliance: remove the trivets and the burners

from the upper part of the working table; remove

the fixing screws "V" of the burner (fig. 14) and the

knobs fixed by pressure with the hans, in order to

take off the appliance.

After having carried out the above listed operations,

taps (fig. 15) and electrical components can all be

It is advisable to change seal “D” whenever a tap is

replaced to ensure a perfect tightness.

Greasing the taps (see fig. 17 - 18)

If a tap becomes stiff to operate, it must be

immediately greased in compliance with the

following instructions:

- Clean the cone and its housing using a cloth

- Lightly spread the cone with the relative grease.

- Fit the cone back in place, operate it several times

and then remove it again. Eliminate any excess

grease and check that the gas ducts have not

- Fit all parts back in place, complying with the

demounting order in reverse.

- The tight closure test must be done using a foamy

liquid. The use of the flame is prohibited.

To facilitate the servicing technician’s task, here is a

chart with the types and sections of the powering

cables and the ratings of the electrical components.

TYPE OF TYPE OF SINGLE - PHASE HOT PLATE CABLE POWER SUPPLY CABLE TYPES AND SECTIONS ATTENTION!!!

If the power supply cable is replaced, the installer should leave the ground wire longer than the

phase conductors (fig. 19) and comply with the recommendations given in paragraph 8.

30TECHNICAL DATA ON THE DATA LABEL

Σ Qn LPG Gas rate = 11.70 kW

Frequency = 50/60 Hz

Σ Qn Natural Gas rate = 10.85 kW

Σ Qn LPG Gas rate = 10.95 kW

Σ Qn LPG Gas rate = 796 (G30)

Voltage = 220 - 240 V ~

Frequency = 50/60 Hz

Frequency = 50/60 Hz

G 20 - Natural 20 mbar

Σ Qn Natural Gas rate = 9.55 kW

Σ Qn LPG Gas rate = 694 (G30)

Voltage = 220 - 240 V ~

Frequency = 50/60 Hz

G 20 - Natural 20 mbar

Σ Qn Natural Gas rate = 7.8 kW

Σ Qn LPG Gas rate = 567 (G30)

Voltage = 220 - 240 V ~

Frequency = 50/60 Hz

Σ Qn Natural Gas rate = 9.65 kW

Σ Qn LPG Gas rate = 9.75 kW

Σ Qn LPG Gas rate = 709 (G30)

Voltage = 220 - 240 V ~

Frequency = 50/60 HzBefore leaving the factory, this appliance will have been tested and regulated by expert and specialized

personnel in order to guarantee the best performances.

Any repairs or adjustments which may be subsequently required may only be carried out by qualified

personnel with the utmost care and attention.

For this reason, always contact your Dealer or our nearest After Sales Service Center whenever repairs

or adjustments are required, specifying the type of fault and the model of the appliance in your

Please also note that genuine spare parts are only available from our After Sales Service Centers and

authorized retail outlets.

The above data are printed on the data label put on the inferior part of the appliance and on the packing

The above informations give to the technical assistant the possibility to get fit spare parts and a heaven-

sent intervention. We suggest to fill the table below.

DIMENSIONS A RESPECTER

Σ Qn LPG Gaz = 11.70 kW

Σ Qn LPG Gaz = 10.95 kW

Σ Qn LPG Gaz = 9.75 kW

ΣΕΙΡΑ: COD. 04067E1 (04067PT) - 05.07.2012

These instructions are only valid if the country symbol appears on the appliance. If the symbol does not

appear on the appliance, it is necessary to refer to the technical instructions which will provide the

necessary instructions concerning modification of the appliance to the conditions of use of the country.

Instruções para a instalação

uma chama livre é proibida.

To facilitate the servicing technician’s task, here is a

chart with the types and sections of the powering

cables and the ratings of the electrical components.MANUTENÇÃO FIG. 19

Σ Qn LPG Gás Natural = 11.70 kW

Σ Qn Gás Natural = 10.85 kW

Σ Qn LPG Gás Natural = 10.95 kW

Σ Qn LPG Gas rate = 796 (G30)

Σ Qn LPG Gas rate = 694 (G30)

Σ Qn LPG Gas rate = 567 (G30)

Σ Qn Gás Natural = 9.65 kW

Σ Qn LPG Gás Natural = 9.75 kW

Σ Qn LPG Gas rate = 709 (G30)
