Brand	KeepOut
Model	HX8
Product Type	Wired gaming headset
Connectivity	USB 2.0
Surround Sound	Virtual 7.1 channels
Speakers	High-fidelity, 40 mm (estimated)
Frequency Response	20 Hz - 20 kHz (estimated)
Impedance	32 ohms (estimated)
Sensitivity	105 dB (estimated)
Microphone	Built-in, with noise cancellation
Controls	Volume, mute, microphone (via software)
Cable Length	2.0 m (estimated)
Weight	Approximately 350 g (estimated)
Compatibility	PC (Windows 7/8/10), gaming consoles with USB port
Included Software	KeepOut 7.1 Gaming Headset Software
Software Features	Equalizer 12 presets + custom, 23 environment modes, Karaoke effect, microphone control
Package Contents	Headset, quick installation guide, installation CD
Warranty	Standard (varies by retailer)
Care	Clean with a soft, dry cloth, avoid liquids
Safety	Respect sound levels to protect hearing
Repairability	Spare parts not specified; contact KeepOut customer service

Frequently Asked Questions - HX8 KeepOut

How to connect the KeepOut HX8 headset to my PC?

Plug the headset into a free USB port on your PC or console. The operating system will recognize it automatically. For optimal experience, install the KeepOut 7.1 Gaming Headset software from the included CD.

7.1 sound not working, what to do?

Make sure you have installed the KEEPOUT Virtual 7.1 CH Audio Device driver. Open the KeepOut software, click the icon in the taskbar, and select the appropriate sound mode (e.g. "3D Games: 8CH"). Also check that your source application supports surround sound.

How to adjust the equalizer?

In the KeepOut software, go to the "Acceptor" or "Effect" tab. You will find 12 equalizer presets as well as a custom mode ("User-Defined"). Select the preset that matches your content or manually adjust the frequencies.

Can I use the headset on PlayStation or Xbox?

Yes, if your console has a USB port. Simply plug in the headset. Software features (equalizer, surround) require a PC for configuration, but the headset will work in basic stereo audio on console.

How to enable microphone noise cancellation?

In the KeepOut software, go to the "Receptor" (or microphone) tab. Enable the microphone, then adjust the "Noise cancellation" levels according to your needs. You can also enable echo and magic voice.

Volume is too low, how to increase it?

Use the volume wheel on the cable (if present) or adjust the volume in the KeepOut software via the "Output Device" slider. Also check the main Windows volume and the settings of the current application.

What does the [?] button in the software mean?

The [?] button displays tips on recommended sound configurations based on file type: MP3, CD (2CH), DVD Dolby Digital (6CH), 3D games (8CH), etc. Use it to optimize audio output.

How to disable the microphone?

You can disable the microphone directly in the KeepOut software under the "Receptor" tab by clicking the "Enable/Disable" button. An icon in the taskbar also provides quick access.

Software does not detect the headset, what to do?

Make sure the headset is properly plugged into a functioning USB port. Try a different port. If the problem persists, reinstall the driver from the CD or the KeepOut website. Restart your PC after installation.

How to clean the headset?

Use a soft, dry, lint-free cloth to wipe the ear cups and headband. Do not use chemicals or water. Store the headset in a dry place away from dust.

USER MANUAL HX8 KeepOut

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Главен конфигурация

[e-mail].

Abstract green brushstroke pattern on black background (no text or symbols)

ÚVOD

INSTALACE A KONFIGURACE

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Hlavní nastavení

MP3, WMA, AAC, CD, VCD: 2CH

DVD s Dolby Digital nebo DTS, WMA-Pro: 6CH DVD s Dolby Digital nebo DTS ES: 8k

3D hry: 8CH

Abstract green brushstroke pattern on black background (no text or symbols)

EINLEITUNG

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Abstract green brushstroke pattern on black background (no text or symbols)

ΕΙΣΑΓΩΓΗ

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Κύριος Διαμόρφωση:

Abstract green brushstroke pattern on black background (no text or symbols)

INTRODUCTION

Thank you for choosing the Keep out Gaming Headset.

PRODUCT DESCRIPTION

The Keep Out Headsets offer professional audio performance in games. Incorporates more advanced features for players to enter fully into the game. Its high-fidelity speakers produce quality sound 7.1 and create a unique acoustic environment thanks to its comfortable and adaptable soft padded arms. Your microphone incorporates the latest technology for noise suppression and provides excellent communication giving maximum realism to games.

The Keep Out Headsets are the best choice for the winner.

Package Contents

• Headset
• Quick installation guide in various languages.

Note:

Make sure that your package contains the items described above. If any item is missing or damaged, please contact your dealer.

INSTALLATION AND CONFIGURATION

1. Connection: Connect the Headset in a free USB port of your PC or game console.
2. Installation on Windows: Insert the installation CD into your drive and double-click the icon for My

Computer or My Computer, then double-click the floppy drive where you placed the CD and boot the installation program.

1. KEEP OUT 7.1 Sound Effect Gaming Headset Software:

Icon

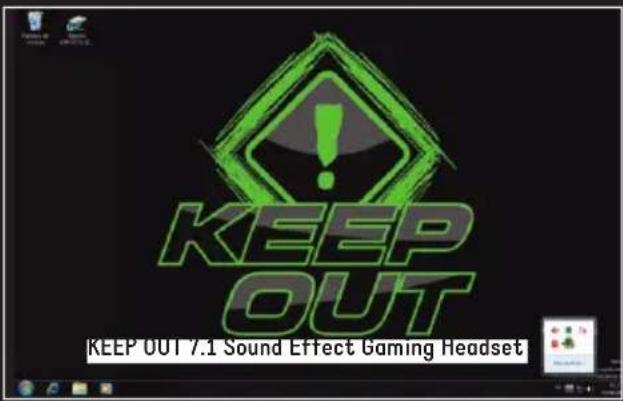

Please observe the following image, the icon will show KEEP OUT Gaming Headset 7.1 Sound Effect in the lower right corner of your desktop, click the icon to access.

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

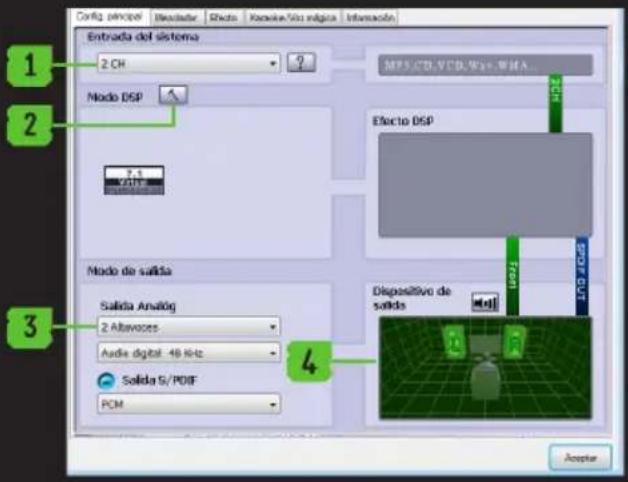

Principal Configuration:

1. Entry system, change options 2CH, 4CH, 6CH, 8CH, the button [?] On the right shows some tips as follows

MP3, WMA, AAC, CD, VCD: 2CH

DVD with Dolby Digital or DTS, WMA-Pro: 6CH

DVD with Dolby Digital or DTS ES: 8CH

3D Games: 8CH.

Note: An unsuitable choice of file type to play can cause poor reproduction.

1. Mode Settings DSP and DSP effects.
2. Analog Output Type: Headphones or speakers.
3. Output device, you can adjust the speaker decibels.

EN

Config: principal Receudar Efecto Receudar/Ver. relgica Información Entrada del sistema 2 CH MPS/CD-VCD-WS+WHA... Nado DSP 3.5 VDDF Efecto DSP Modo de salida Salida Analóg 2 Altavoces Audio digital +48 kHz Salida 5/PDF PCM Dispositivo de solids Aconer

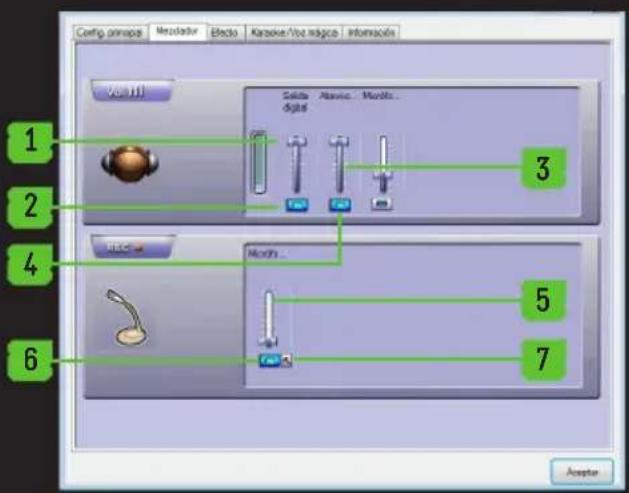

Mixer:

1. Volume Control
2. Switch on or off the sound
3. Microphone Volume Control
4. Switch the microphone on or off
   5.Recording.Microphone Volume Control
5. Recording. Switch the microphone on or off.
6. Advanced settings of the microphone

Config prinaps Neusledur Ebledo Kasokor/foz edgica | Información Vol. ytl 3 2 4 6 5 7 BECO 10 Munch Amino...

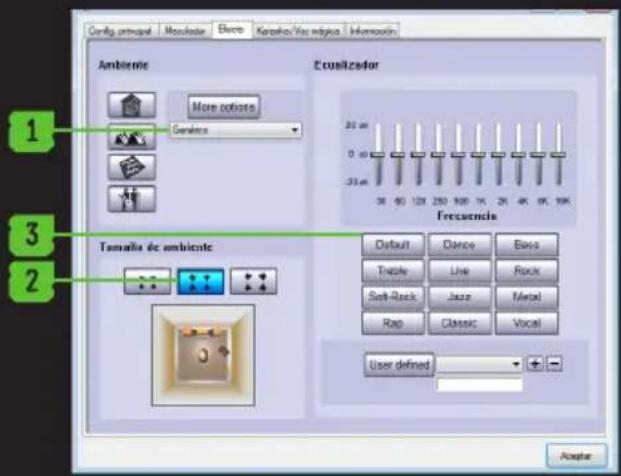

Effect:

1. Environment: 23 modes for your choice:
2. Size: Small, Medium, Large for election
3. Equalizer: 12 kinds for your choice and defined by the user.

Curlig principal Modulator Electro Kanafilo/Vos mágicas Hemocón Ambiente More circles Genérons Eculizador 20 am 0 am -35 am Frecuencia Tamaño de ambiente Default Dance Base Tratriz Line Rock Soft-Rock Jazz Metal Rap Classic Vocal User defined Acetate

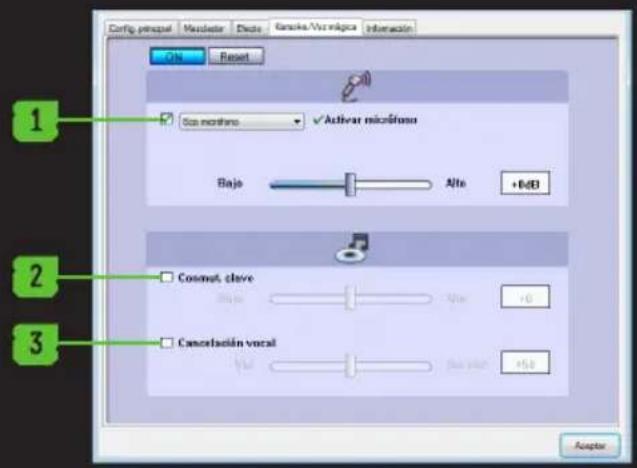

Karaoke / Magic Voice

1. Enable / disable and configure the microphone echo
2. Enable / disable and configure the playback speed
3. Enable / disable and configure the vocal cancel.

Config principal Mancelater Delete Ganoke/Vorrelógica Interacción File Reset 1 Scan months Activar microfono Bajo Alte +6dB 2 Cosmet. clave Alte +0 3 Cancelación vocal +0 +50 Acceptor

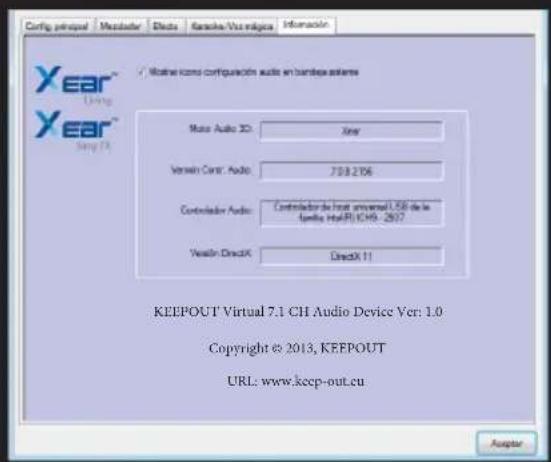

Information

Displays information about the software and allows you to display or not the software icon on the desktop.

Config principal Modaler Dioto Kanaka/Vuz edgus Información Xear™ Xear™ Smp 71 Material: Cnur configuración audio en bandex sistema Mato Audio 3D: Xear Version Cnur Audio: 708-2106 Controller Audio: Controller de los alt universel.50 de la familia HxR/RCHS - 2017 Vesión DirectA: DirectX 11 KEEPOUT Virtual 7.1 CH Audio Device Ver: 1.0 Copyright © 2013, KEEPOUT URL: www.keep-out.eu

TECHNICAL SUPPORT

For more information on installing and configuring this product go to our website www.keepout.eu or write an email to the following address: [e-mail].

Abstract green brushstroke pattern on black background (no text or symbols)

ES

INTRODUCCIÓN

1. KEEP OUT 7.1 Sound Effect Gaming Headset Software:

Icono

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Abstract green brushstroke pattern on black background (no text or symbols)

SISSEJUHATUS

Täname hoida eemal Gaming Headset.

TOOTE KIRJELDUS

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Peamised seade:

Abstract green brushstroke pattern on black background (no text or symbols)

INTRODUCTION

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

[e-mail].

Information

Abstract green brushstroke pattern on black background (no text or symbols)

UVOD

Hvala vam na odabiru Držite Gaming Headset.

PROIZVOD OPIS.

Držite Out slušalice nude profesionalne audio performanse u igrama. Sadrži više naprednih značajki za igrača ući u potpunosti u igru. Njegov high-fidelity zvučnici proizvoditi kvalitetan zvuk 7,1 i stvoriti jedinstven zahvaljujući akustičnost svojim udobnim i prilagodljiv mekih podstavljenim rukama. Vaš mikrofon sadrži najnoviju tehnologiju za suzbijanje buke i pruža odličnu komunikaciju daje maksimalnu realizma igre.

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Abstract green brushstroke pattern on black background (no text or symbols)

BEVEZETÉS

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Abstract green brushstroke pattern on black background (no text or symbols)

INTRODUZIONE

1. KEEP OUT 7,1 Sound Effect Software Gaming Headset:

Icona

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Abstract green brushstroke pattern on black background (no text or symbols)

INTRODUCTIE

INSTALLATIE EN SETUP

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

[e-mail].

Abstract green brushstroke pattern on black background (no text or symbols)

WSTEP

INSTALACJA I KONFIGURACJA

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Abstract green brushstroke pattern on black background (no text or symbols)

PT

INTRODUÇÃO

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

MP3, WMA, AAC, CD, VCD: 2CH

DVD com Dolby Digital ou DTS, WMA-Pro: 6CH

DVD com Dolby Digital ou DTS ES: 8CH

Jogos 3D: 8CH

[e-mail].

Abstract green brushstroke pattern on black background (no text or symbols)

INTRODUCERE

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Principal de configurare

Abstract green brushstroke pattern on black background (no text or symbols)

ÚVOD

1. KEEP OUT 7.1 Sound Effect Gaming Headset Software:

Ikona

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Hlavné nastavenie:

MP3, WMA, AAC, CD, VCD: 2CH

DVD s Dolby Digital alebo DTS, WMA-Pro: 6CH

DVD s Dolby Digital alebo DTS ES: 8k

3D hry: 8CH

Abstract green brushstroke pattern on black background (no text or symbols)

GIRIŞ

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Abstract green brushstroke pattern on black background (no text or symbols)

Importado por / Imported by:

APPROX IBERIA S. L.

CIF: B-91202499

Soporte técnico / Technical support:

[e-mail]

The content of this guide is subject to typographical errors.
