Product type	Wired gaming headset with microphone
Brand	KeepOut
Model	HX7
Connectivity	USB
Surround sound	Virtual 7.1 channels
Speakers	High-fidelity, frequency response 20 Hz - 20 kHz
Microphone	Built-in with noise cancellation
Compatibility	Windows PC, gaming consoles
Included software	KeepOut Gaming Headset 7.1 Sound Effect
DSP modes	23 environments, 12 preset equalizers, karaoke/magic voice mode
Controls	Volume, mute, microphone volume, microphone activation (via software)
Power supply	Via USB port
Cable length	Approximately 2 m
Weight	Approximately 300 g
Ear cushion material	Padded, adaptable
Maintenance	Clean with a soft, dry cloth. Do not use solvents.
Safety	Do not use at high volume for extended periods to protect hearing.
Spare parts	Contact KeepOut customer service for replacement cables or ear cushions.
Repairability	Repair by a qualified technician recommended.
Warranty	Check the seller's terms.

Frequently Asked Questions - HX7 KeepOut

How to connect the KeepOut HX7 headset to my PC?

Plug the headset into a free USB port on your PC or console. The system will recognize it automatically. For advanced features, install the software provided on the CD.

How to install the KeepOut HX7 headset software?

Insert the installation CD, open 'My Computer', double-click on the CD drive, then run the installation program. Follow the on-screen instructions.

How to enable 7.1 surround sound on my headset?

After installing the software, click on the KeepOut Gaming Headset 7.1 icon in the taskbar. In the 'Input System' tab, select 8CH mode for 3D games or DVDs with Dolby Digital.

How to adjust the headset equalizer?

In the software, go to the 'Equalizer' tab. You can choose from 12 presets (Rock, Jazz, Classical, etc.) or create your own profile by clicking on 'User defined'.

How to use the karaoke effect or magic voice?

In the software, open the 'Karaoke / Magic Voice' tab. You can enable microphone echo, adjust playback speed, or enable vocal cancellation.

My headset microphone doesn't work, what should I do?

Check that the microphone is enabled in the software ('Mixer' or 'Microphone' tab). Also make sure the headset is properly plugged in and the microphone is not muted.

What are the recommended settings for gaming?

For 3D games, set the output to 8CH. Use the 'Large' environment and a suitable equalizer (e.g., 'Game' or 'User defined'). Enable 7.1 surround sound for optimal immersion.

How to clean my KeepOut HX7 headset?

Use a soft, dry cloth to wipe the surfaces. Do not use chemicals or alcohol. For the ear cushions, remove them if possible and clean them gently.

Is the headset compatible with a PlayStation or Xbox?

Yes, the headset connects via USB. It is compatible with gaming consoles that have a USB port. Software features (surround, equalizer) may not be available depending on the console.

Where to find drivers or software if I lost the CD?

You can download drivers and software from the official KeepOut website: www.keep-out.eu in the technical support section.

USER MANUAL HX7 KeepOut

1. KEEP OUT 7.1 Sound Effect Gaming Headset Software:

Icono

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

MP3, WMA, AAC, CD, VCD: 2CH

Abstract green brushstroke pattern on black background (no text or symbols)

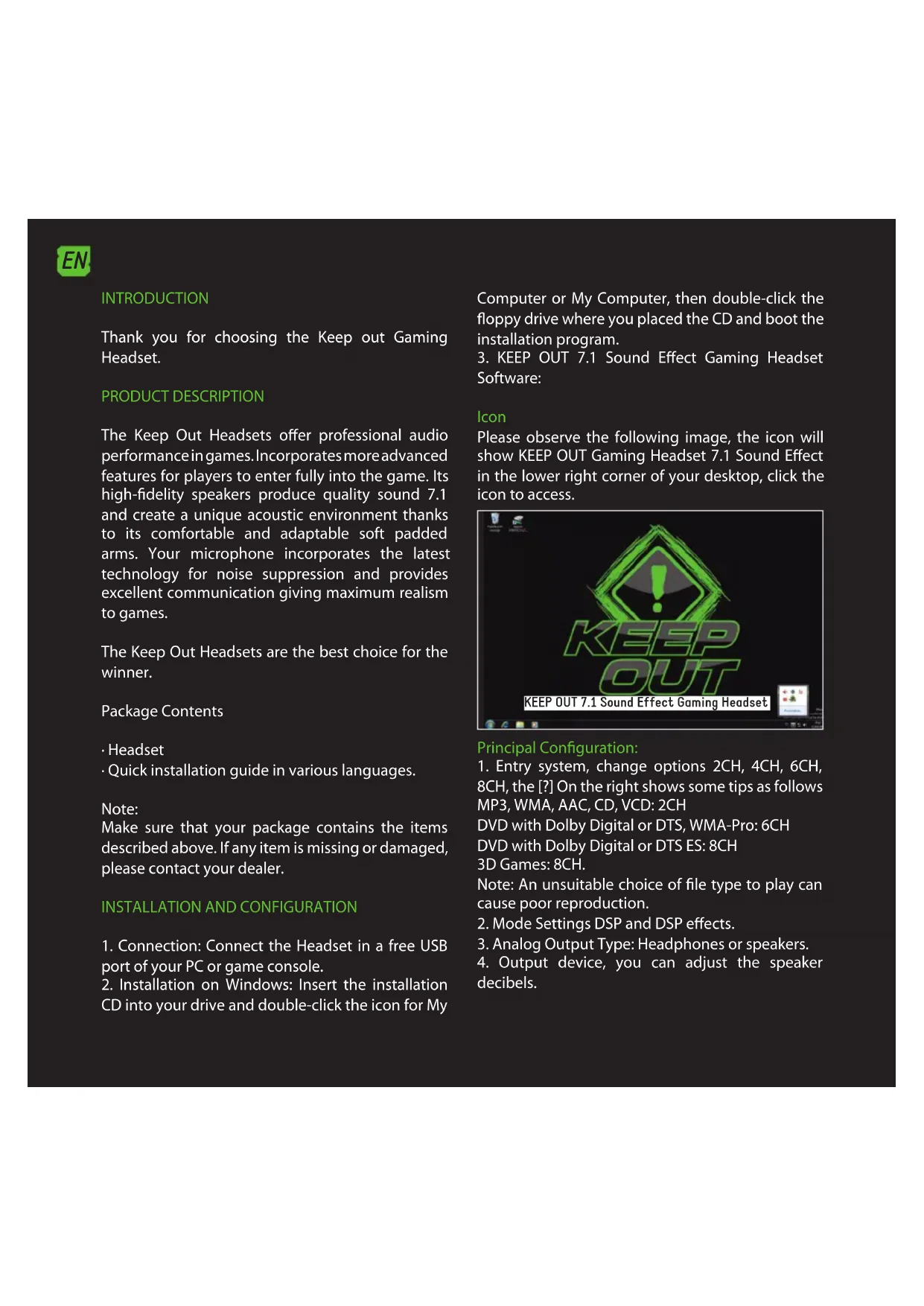

INTRODUCTION

Thank you for choosing the Keep out Gaming Headset.

PRODUCT DESCRIPTION

The Keep Out Headsets offer professional audio performance in games. Incorporates more advanced features for players to enter fully into the game. Its high-fidelity speakers produce quality sound 7.1 and create a unique acoustic environment thanks to its comfortable and adaptable soft padded arms. Your microphone incorporates the latest technology for noise suppression and provides excellent communication giving maximum realism to games.

The Keep Out Headsets are the best choice for the winner.

Package Contents

• Headset
• Quick installation guide in various languages.

Note:

Make sure that your package contains the items described above. If any item is missing or damaged, please contact your dealer.

INSTALLATION AND CONFIGURATION

1. Connection: Connect the Headset in a free USB port of your PC or game console.
2. Installation on Windows: Insert the installation CD into your drive and double-click the icon for My

Computer or My Computer, then double-click the floppy drive where you placed the CD and boot the installation program.

1. KEEP OUT 7.1 Sound Effect Gaming Headset Software:

Icon

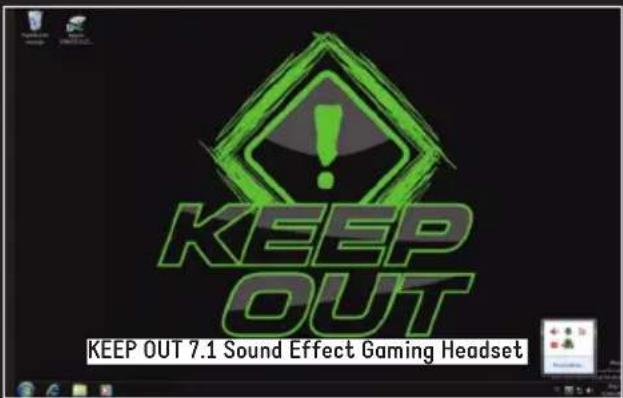

Please observe the following image, the icon will show KEEP OUT Gaming Headset 7.1 Sound Effect in the lower right corner of your desktop, click the icon to access.

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

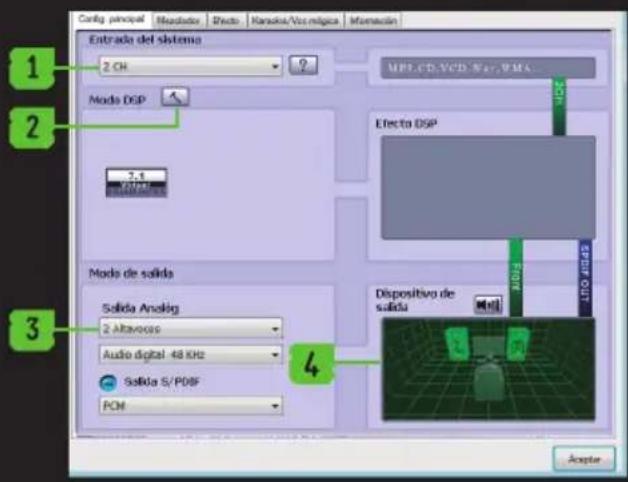

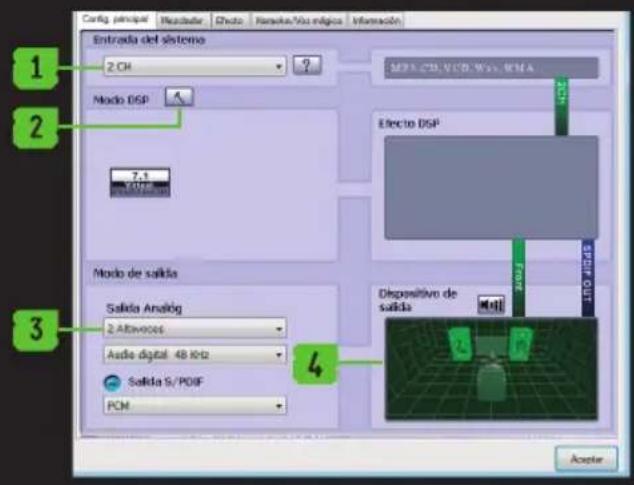

Principal Configuration:

1. Entry system, change options 2CH, 4CH, 6CH, 8CH, the [?] On the right shows some tips as follows MP3, WMA, AAC, CD, VCD: 2CH
   DVD with Dolby Digital or DTS, WMA-Pro: 6CH DVD with Dolby Digital or DTS ES: 8CH
   3D Games: 8CH.
   Note: An unsuitable choice of file type to play can cause poor reproduction.
2. Mode Settings DSP and DSP effects.
3. Analog Output Type: Headphones or speakers.
4. Output device, you can adjust the speaker decibels.

Config principal Readable Chuto Racuda/Vos enajos Información Entrada del sistema 2 CH Mode DSP 2.1 MOS/CD VCD WSS NEMA Efecto DSP Mode de salida Salida Analog 2 Altavocas Audio digital 48 kHz Salida S/PDIF PCM Dispositivo de salida Acker

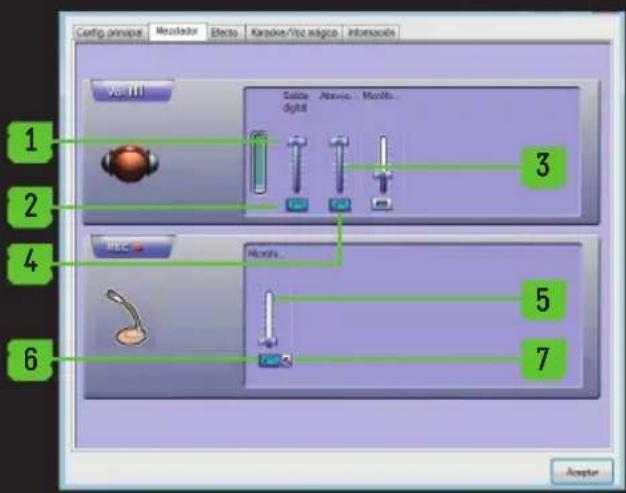

Mixer:

1. Volume Control
2. Switch on or off the sound
3. Microphone Volume Control
4. Switch the microphone on or off
5. Recording. Microphone Volume Control
6. Recording. Switch the microphone on or off.
7. Advanced settings of the microphone

Config prisms Modaler Electo Karaoke/Hz adapter Intensacite Vol H1 Saddle digital Analog Months... 3 REC Months... 5 6 7 Acceptor

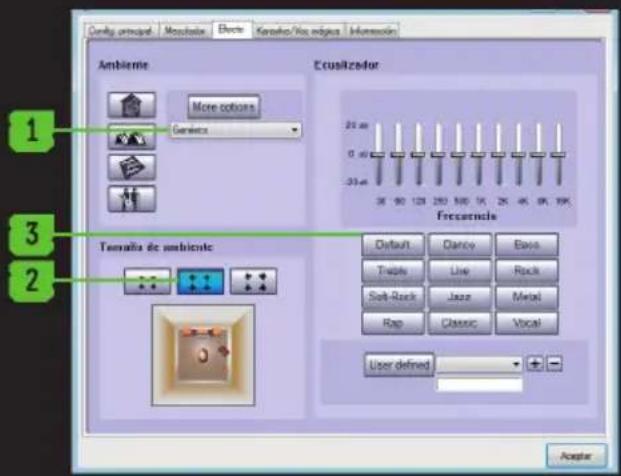

Effect:

1. Environment: 23 modes for your choice:
2. Size: Small, Medium, Large for election
3. Equalizer: 12 kinds for your choice and defined by the user.

Amblème More colours Genérica Eculizador 25 am 0 am -25 am 36 90 128 280 540 14 25 45 89 195 Frecuencia Tensilla de ambiente Default Dance Bava Triple Line Rocks Soft-Rock Jazz Melosi Rap Classic Vocal User defined Acetar

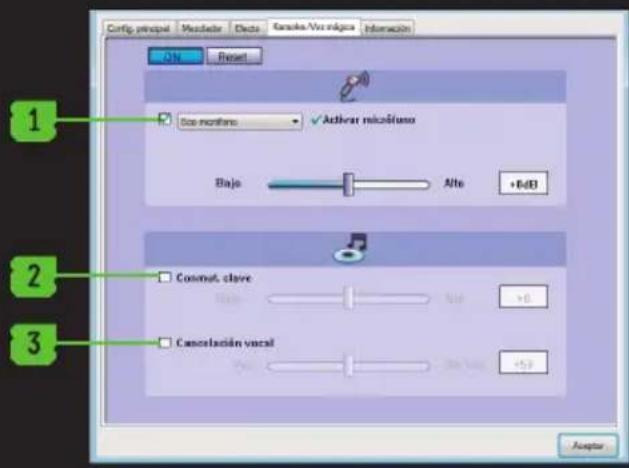

Karaoke / Magic Voice

1. Enable / disable and configure the microphone echo
2. Enable / disable and configure the playback speed
3. Enable / disable and configure the vocal cancel.

EN

Config principal Module Delete Kanake/Vor eligra Información ON Reset 1 Size multipliers Adiaver microfuran Bajo Alte +6/83 2 Candesal clove Multi Alte +0 Cancelación vocal +5.9 Auptur

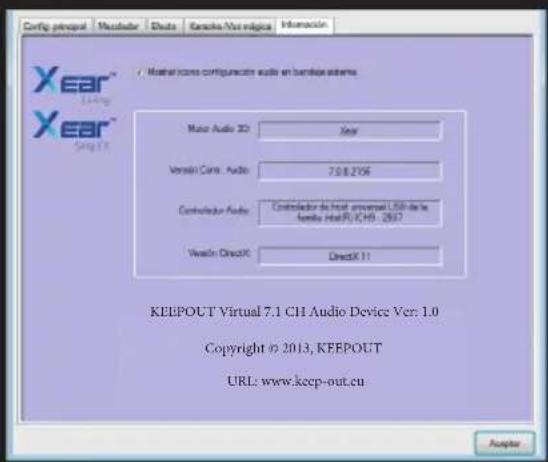

Information

Displays information about the software and allows you to display or not the software icon on the desktop.

Config principal Monitor Delete Kanake/Vor elógica Información XEAR™ 14-20 XEAR™ Seq 11 Motor icons configuración audio en bandias externa Motor Audio 3D Year Versalci Cins - Audio 7.0.8.256 Controller Audio Controller de local universal USB de la familia Incl (R) (CH) - 2807 Vesión DirectX DirectX 11 KEEPOUT Virtual 7.1 CH Audio Device Ver: 1.0 Copyright © 2013, KEEPOUT URL: www.keep-out.cu

TECHNICAL SUPPORT

For more information on installing and configuring this product go to our website www.keepout.eu or write an email to the following address: [e-mail].

Abstract green brushstroke pattern on black background (no text or symbols)

INTRODUCTION

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

[e-mail].

Abstract green brushstroke pattern on black background (no text or symbols)

EINLEITUNG

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

MP3, WMA, AAC, CD, VCD: 2CH

Abstract green brushstroke pattern on black background (no text or symbols)

INTRODUZIONE

1. KEEP OUT 7,1 Sound Effect Software Gaming Headset:

Icona

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

MP3, WMA, AAC, CD, VCD: 2CH

Abstract green brushstroke pattern on black background (no text or symbols)

PT

INTRODUÇÃO

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

MP3, WMA, AAC, CD, VCD: 2CH

DVD com Dolby Digital ou DTS, WMA-Pro: 6CH

DVD com Dolby Digital ou DTS ES: 8CH

Jogos 3D: 8CH

[e-mail].

Abstract green brushstroke pattern on black background (no text or symbols)

UVOD

Hvala vam na odabiru Držite Gaming Headset.

PROIZVOD OPIS.

Držite Out slušalice nude profesionalne audio performanse u igrama. Sadrži više naprednih značajki za igrača ući u potpunosti u igru. Njegov high-fidelity zvučnici proizvoditi kvalitetan zvuk 7,1 i stvoriti jedinstven zahvaljujući akustičnost svojim udobnim i prilagodljiv mekih podstavljenim rukama. Vaš mikrofon sadrži najnoviju tehnologiju za suzbijanje buke i pruža odličnu komunikaciju daje maksimalnu realizma igre.

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

MP3, WMA, AAC, CD, VCD: 2CH

DVD s Dolby Digital ili DTS, WMA-Pro: 6 kanala

DVD s Dolby Digital ili DTS ES: 8CH

3D igre: 8CH

Napomena: neprikladan izbor vrste datoteka za reprodukciju može uzrokovati lošu reprodukciju.

1. Način Postavke DSP i DSP učinci.
2. Analogni izlaz Tip: Slušalice ili zvučnike.
3. Izlaz uređaj, možete podesiti decibela zvučnika.

HR

Config principal Modulo Becho Kanada/Vos/mógica Mensación Entrada del sistema 2 CH Mode DSP 3.1 VDDP Mode de salida Salida Analog 2 Altavaca Audio digital 48 kHz Salida S/PDIF PCM Efecto DSP Dispositivo de salida Acepta

Mikser

Abstract green brushstroke pattern on black background (no text or symbols)

WSTEP

INSTALACJA I KONFIGURACJA

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Abstract green brushstroke pattern on black background (no text or symbols)

ΕΙΣΑΓΩΓΗ

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Κύριος Διαμόρφωση:

Abstract green brushstroke pattern on black background (no text or symbols)

ÚVOD

INSTALACE A KONFIGURACE

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Hlavní nastavení

MP3, WMA, AAC, CD, VCD: 2CH

DVD s Dolby Digital nebo DTS, WMA-Pro: 6CH DVD s Dolby Digital nebo DTS ES: 8k

3D hry: 8CH

Abstract green brushstroke pattern on black background (no text or symbols)

GIRIŞ

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

MP3, WMA, AAC, CD, VCD: 2CH

Dolby Digital veya DTS, WMA-Pro ile DVD: 6ch

Abstract green brushstroke pattern on black background (no text or symbols)

BEVEZETÉS

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Abstract green brushstroke pattern on black background (no text or symbols)

ВЪВЕДЕНИЕ

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Главен конфигурация

MP3, WMA, AAC, CD, VCD: 2CH

[e-mail].

Abstract green brushstroke pattern on black background (no text or symbols)

INTRODUCERE

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Principal de configurare

MP3, WMA, AAC, CD-uri, VCD: 2CH

DVD-ul cu Dolby Digital sau DTS, WMA-Pro: 6CH

DVD cu Dolby Digital sau DTS ES: 8CH

Jocuri 3D: 8CH

Abstract green brushstroke pattern on black background (no text or symbols)

ÚVOD

1. KEEP OUT 7.1 Sound Effect Gaming Headset Software:

Ikona

KEEP OUT KEEP OUT 7.1 Sound Effect Gaming Headset

Hlavné nastavenie:

MP3, WMA, AAC, CD, VCD: 2CH

DVD s Dolby Digital alebo DTS, WMA-Pro: 6CH

DVD s Dolby Digital alebo DTS ES: 8k

3D hry: 8CH

Abstract green brushstroke pattern on black background (no text or symbols)
