USER MANUAL Groove Mirabilia FALMEC

normative in vigore.

- Eseguire il montaggio dei vetri sulla cappa (fig. O5).14

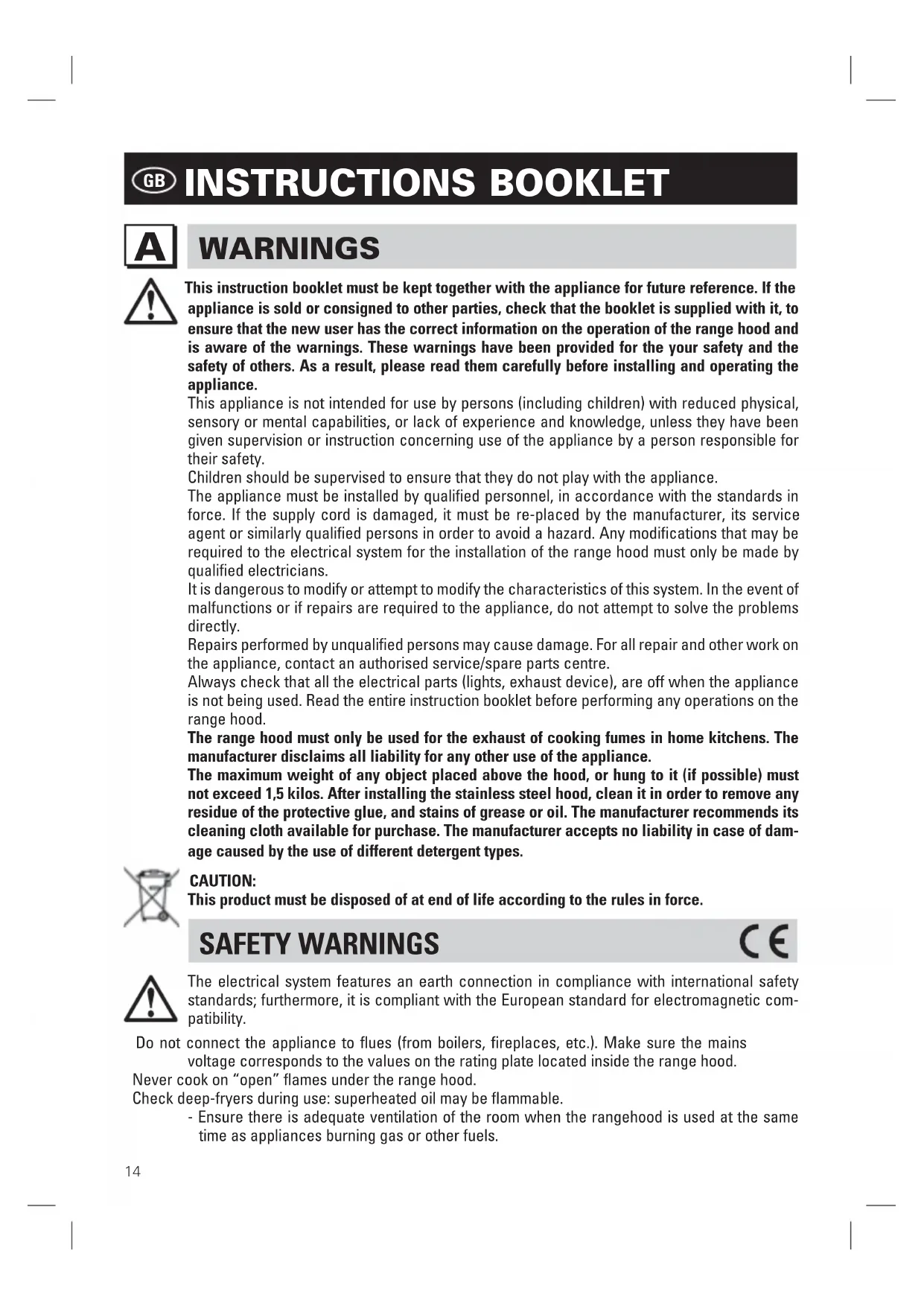

GB INSTRUCTIONS BOOKLET WARNINGS A This instruction booklet must be kept together with the appliance for future reference. If the

appliance is sold or consigned to other parties, check that the booklet is supplied with it, to

ensure that the new user has the correct information on the operation of the range hood and

is aware of the warnings. These warnings have been provided for the your safety and the

safety of others. As a result, please read them carefully before installing and operating the

This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

Children should be supervised to ensure that they do not play with the appliance.

The appliance must be installed by qualified personnel, in accordance with the standards in

force. If the supply cord is damaged, it must be re-placed by the manufacturer, its service

agent or similarly qualified persons in order to avoid a hazard. Any modifications that may be

required to the electrical system for the installation of the range hood must only be made by

qualified electricians.

It is dangerous to modify or attempt to modify the characteristics of this system. In the event of

malfunctions or if repairs are required to the appliance, do not attempt to solve the problems

Repairs performed by unqualified persons may cause damage. For all repair and other work on

the appliance, contact an authorised service/spare parts centre.

Always check that all the electrical parts (lights, exhaust device), are off when the appliance

is not being used. Read the entire instruction booklet before performing any operations on the

The range hood must only be used for the exhaust of cooking fumes in home kitchens. The

manufacturer disclaims all liability for any other use of the appliance.

The maximum weight of any object placed above the hood, or hung to it (if possible) must

not exceed 1,5 kilos. After installing the stainless steel hood, clean it in order to remove any

residue of the protective glue, and stains of grease or oil. The manufacturer recommends its

cleaning cloth available for purchase. The manufacturer accepts no liability in case of dam-

age caused by the use of different detergent types.

This product must be disposed of at end of life according to the rules in force.

SAFETY WARNINGS The electrical system features an earth connection in compliance with international safety

standards; furthermore, it is compliant with the European standard for electromagnetic com-

Do not connect the appliance to flues (from boilers, fireplaces, etc.). Make sure the mains

voltage corresponds to the values on the rating plate located inside the range hood.

Never cook on “open” flames under the range hood.

Check deep-fryers during use: superheated oil may be flammable.

- Ensure there is adequate ventilation of the room when the rangehood is used at the same

time as appliances burning gas or other fuels.15

- Do not flambe under the rangehood

- The exhaust air must not be discharged into a flue which is used for exhausting fumes from

appliances burning gas or other fuels.

- Ensure that all regulations concerning the discharge of exhaust air have been fulfilled before

you use the appliance.

Before performing any cleaning or maintenance operations, disconnect the appliance by un-

plugging it or using the main switch. The manufacturer disclaims all liability for any damage

that may be directly or indirectly caused to people, things and animals due to the failure to

follow all the instructions provided in this booklet and above all the warnings relating to the

installation, operation and maintenance of the appliance.

- there is a fire risk if cleaning is not carried out in accordance with the instructions.

CAUTION: Accessible parts may become hot when used with cooking appliances.

- Max. length screw for fixing the chimney is 10 mm (provided by the manufacturer).

WARNING: Failure to install the screws or fixing device in accordance with these instructions

may result in electrical hazards.

Warning only for Australia: hood width less than 90 cm: use max. 4 hobs

TECHNICAL SPECIFICATIONS B The technical data pertaining to the electric appliance The technical specifications of the appli-

ance are shown on the rating plates located inside the range hood.

(Section reserved for qualified installers of the range hood)

The distance between the hob and the lowest part of the rangehood is normally at least 65 cm

(see figure C1). This distance is measuresd in the lowest part of the rangehood not operating

at safety voltage. Based on this detail provided by European Standards, the distance may be

reduced in some models as specified in the general catalogue. If the instructions for installa-

tion for the gas hob specify a greater distance, this has to be taken into account.

In the outside exhaust version, the diameter of the fume discharge duct must be no smaller

than the range hood connection.

In the horizontal sections, the duct must slope slightly (around 10%) upwards, so as to better

convey the air outside of the room.

Avoid using angled pipes, make sure that the pipes are at least of the minimum length.

Comply with the current regulations on air discharge into the atmosphere.

If a boiler, stove, fireplace, etc. that uses gas or other fuels is being used at the same time,

make sure the room where the fumes are extracted is well ventilated, in compliance with the

current regulations.

Mounting instruction: see section “O” of the booklet.

ELECTRICAL CONNECTIONS D

(Section reserved for qualified installers)

Before doing any work inside the range hood, disconnect the appliance from the mains

Check that the wires inside the range hood are not disconnected or cut; if this is the case,

contact your nearest service centre. The electrical connections must be performed by quali-

The connections must be performed in compliance with the legal standards in force. Check16

that the relief valve and the electrical system are able to support the load of the appliance (see

the technical specifications in point B).

Some types of appliance are supplied with a cable without plug; in this case, “standardised”

plugs must be used, keeping in mind that:

- the yellow-green wire must be used for the earth,

- the blue wire must be used for the neutral,

- the brown wire must be used for the phase; the cable must not come into contact with hot

- fit a plug that is suitable for the load to the power cable, and connect it to a suitable power

For appliances that come supplied with cable and plug please ensure they are plugged into a

circuit suitable for this appliance.

Please refer to a qualifed person. (See technical specifications in point B).

The manufacturer declines all liability if the safety standards are not observed.

E RANGE HOOD WITH OUTSIDE DISCHARGE (exhaust)

In this version, the fumes and steam from the kitchen are conveyed outside through an exhaust

The exhaust conveyor that protrudes from the upper part of the range hood must be connected

to a duct that carries the fumes and steam outside. In this version, the charcoal filters, if fitted,

should be removed; to do this, see the instructions in point F. There must be adequate ventila-

tion of the room when the range hood is used at the same time as appliances burning gas or

other fuels, according to the standard.

Deviation for Germany:

When the range hood and appliances supplied with energy other than electricity are simulta-

neously in operation, the negative pressure in the room must not exceed 4 Pa (4x10 E-5 bar).

F RECIRCULATING RANGE HOOD (with filter)

In this version, the air passes through charcoal filters for purification, and is then recirculated

back into the kitchen.

Check that the charcoal filters are fitted to the motor, and if not, install them as described in

the instructions in point H.

If the hood is of filtering type, remove the non-return valve fitted at the motor’s outlet.

For maximum efficiency, the third speed should be used when there are strong odours or a lot

of steam, the second speed in normal conditions, and the first speed for keeping the air clean

with minimum energy consumption. The range hood should be switched on when starting to

cook, and left on until the odours disappear.

G OPERATION ELECTRONIC CONTROL PANEL Light pushbutton

- ON: light on (the pushbutton is lit);

- OFF: light off;17 English Dimmer with keyboard integrated functions: with motor off and prolonged pressing of keyboard light key (2 seconds), access is gained to the amend atmosphere light intensity (incandescent or LED lamp). By acting on the + and – keys, light intensity is adjusted. With motor started, the prolonged pressing of the key, switches the atmosphere light on or off. Pushbutton - Press to reduce motor speed Speed 1, 2 and 3 are indicated by the number of LEDs that light up (excluding the light and the timer LEDs). Pushbutton + Press to increase motor speed Speed 1, 2 and 3 are indicated by the number of LEDs that light up (excluding the light and the timer LEDs). (In the 4-speed version the pushbutton + blinks. The fourth speed remains on for a set duration of time. After 7 minutes the motor returns to the third speed). Mode pushbutton Function: it turns hood motor on and off. The function “desired speed” enables to start the motor at the speed that was selected before the hood was last turned off. Timer and ‘filter clogged’ alarm pushbutton - This function allows the automatic turning off of the hood after running for 15 minutes at the speed previously set (the pushbutton shows a flickering light). - After about 30 hours of running the pushbutton indicates the need for washing the metal filters (the pushbutton shows a solid red light). To disable the alarm press the pushbutton for a few seconds until the red light turns off. Then turn the hood off and on again to check that the alarm has disappeared.

FILTERS REMOVING AND REPLACING’S INSTRUCTIONS H

1. METAL FILTERS Open the panel (see fig. H3). Use handle A to remove the metal grease filter. A

2. CHARCOAL FILTERS To replace the charcoal filters, proceed as follows: remove the metal filters as described above. The two filters located at the ends of the motor can now be easily accessed. To install the new fi lters see picture. To order new charcoal fi lters contact the distributor/retailer.VALID ONLY FOR ITALY: download the appropriate order form from: www.falmec.com (access the assistance drop-down menu).18

LIGHTING ASSEMBLY AND REPLACEMENT I

1. SPOTLIGHT How to replace a square halogen light:

a) Check that the equipment is disconnected from the power supply.

b) Open the panel completely till 90° (see figure) pressing the PUSH button

c) Replace the lamp with a similar one (halogen, max 20 W, 12 Volt, G4 connection).

d) Close the panel. If the panel does not close correctly repeat the operation at point b.

2. GLASS LIGHTING To replace the incandescent lamp:

1) ensure the hood is disconnected from the electric mains;

2) remove the decorative glass (see sec. O);

3) replace the lamp with one of the same model (max. 25W);

4) re-mount the glass (see fig. O5).

3. MIRABILIA LED LIGHTING The hood is equipped with high efficiency, low power consumption LED lighting (light on

the work top and decorative light on the glass panes), with high durability under normal

WARNING: Do not remove the glass if the glass LED lighting is on.

MAINTENANCE AND CLEANING L Constant maintenance ensures the correct operation and efficiency of the appliance over

time. Special attention should be paid to the metal grease-trapping filters and the charcoal

filters. Frequent cleaning of the filters and their supports will ensure that fats and grease do

not accumulate on the range hood, with the consequent risk of fire.

1. METAL GREASE-TRAPPING FILTERS These trap the fat and grease particles suspended in the air, and therefore should be

washed every month in hot water and detergent, without bending them. Wait until they19

are completely dry before repositioning them. To remove and replace these filters, see

the instructions in point H1. This operation should be performed at regular intervals.

2. CHARCOAL FILTERS These trap the odours present in the stream of air that passes through them. The air is puri-

fied by passing a number of times through the filters and being recirculated into the kitchen.

The charcoal filters cannot be cleaned, and should be replaced on average every 3-4 months

(according to use). To replace the charcoal filters, see the instructions in point H2.

3. CLEANING THE OUTSIDE OF THE APPLIANCE It is advised to clean the external hood surfaces at least every 15 days in order to avoid that

oily or greasy substances affect the steel surfaces.

The ouside of the range hhod should be cleaned using a damp cloth and neutral liquid

detergent or denatured alcohol.

In case of fingerprint-less finish (fasteel) clean only with water and neutral soap using

clean with a soft cloth, rinse and wipe dry thoroughly. Do not use products that contain

abrasive substances, rough cloths or cloths specifically designed for cleaning steel. Using

abrasive substances or rough cloths will inevitably damage the finish of steel. The steel

surface will be irrevocably damaged if the instructions above are not complied with.

Keep these instructions together with the instructions for use of your hood.

The manufacturer accepts no liability for any damage caused by non-compliance with the

4. CLEANING THE INSIDE OF THE APPLIANCE The electrical parts or parts of the motor assembly inside the range hood must not be

cleaned using liquids or solvents.

Do not use abrasive products. All the above operations must be performed after having dis-

connected the appliance from the mains power supply.

WARRANTY M The new equipment is covered by warranty.

The warranty conditions are provided by the distributor.

The manufacturer is not liable for any inaccuracies in this booklet resulting from printing or

transcription errors. The manufacturer reserves the right to modify its products as it consid-

ers necessary or in the interests of the user, without compromising their essential safety and

operating characteristics.

HOOD INSTALLATION N WARNING: Failure to install the screws or fixing device in accordance with these instructions

may result in electrical hazards.

O1 - INSTRUCTIONS FOR WALL-MOUNTED MIRABILIA HOODS Phase 1

- Place the support bar next to the wall (A-Fig. O1), at a height above the cooktop which cor-

responds to X+300 mm.

- With a spirit level check that the bar is horizontal. Mark a point at each end of the bar.

- Drill the holes, fit 2 ø8mm expansion joints and screw in the bar.

- Fit the hood to the support bar (Fig. O2).

- Adjust hood alignment with the relevant screws: The top screw (B) adjusts the distance from

the wall. The bottom screw (C) adjusts the vertical sliding movement.20

- To prevent the hood from detaching if pressure is exerted from beneath, secure it to the wall

with the brackets supplied (fig. O3).

- Fit pipe/hose (E) into (D).

Place extension (H) in the chimney (G) and fasten this assembly to the body of the hood

- Slide the extension (H) until it is positioned at the desired height.

- Once you have found the best position, lean the bracket (L) on the wall, verify the horizontal

alignment with a spirit level and mark 2 drilling points at the ends.

- Drill the holes, insert 2 expansion bolts of 4mm ø and fasten the bracket (L) with the relative

- Tighten the extension (H) to the bracket (L) using screws (M).

- Power the hood in accordance with regulations in force (sec. D).

INSTRUCTIONS FOR MIRABILIA ISLAND 85/ISLAND 65 CENTRAL CHIMNEY Phase 1

- Identify the desired height for the positioning of the hood.

- Slide the lattice-works (C) and (C1) to the desired height (H2), then block them with the 8 self-

threading screws (V2) (Fig.1a).

- Fasten the lattice-work (C) to the ceiling using the four Ø 8 expansion plugs and relative

screws(V1) (Fig.1b).

- Insert the extension on the flue and fasten them to each other with masking tape (Fig. 2).

- Fasten the flue-extension assembly (D+E) to the lattice-work (C) with the 4 M4 metric screws

(V3) inserted in the existing holes without tightening them completely (Fig. 2).

- For suction version: identify the optimal height for the rigid or flexible exhaust pipe (F) and

connect it to the motor connection.

- Raise the hood, hooking it onto the 4 M5 metric screws (V4) pre-tightened to the lattice-work

(C) (center the Ø11 holes on the slot of the inner liner and move it laterally)(Fig. 3a).

- Completely tighten the 4 M5 screws (V4) (Fig. 3b).

Remove the masking tape (Fig. 3c), remove the four M4 metric screws (V3) previously tightened

onto the lattice-work (Fig. 3d) and slide the flue-extension assembly downwards. (Fig. 3e).

- Connect the pipe to the connection of the ceiling discharge hole. (Fig. 3f).

- Make electrical connections only after having removed electrical power supply.

- Fasten the extension to the lattice-work (C) by means of the 4 M4 metric screws (V3), without

tightening them completely(Fig. 3g).

- Block the extension completely to the lattice-work (C) by screwing down the 4 M4 metric

- Block the flue with the 2 self-threading screws (V5) (Fig. 3i).

- Use the extension support elements(A) (Fig. 2) only if the upper lattice-work is not used, or in

the case of a false ceiling.

- Fit the glass panels (fig. O5).21

FILTRY FILTRY INSTRUKCJE WYJMOWANIA I WYMIANY H
