normative in vigore.

- fissare la prolunga alla staffa (A) usando le viti in dotazione.13

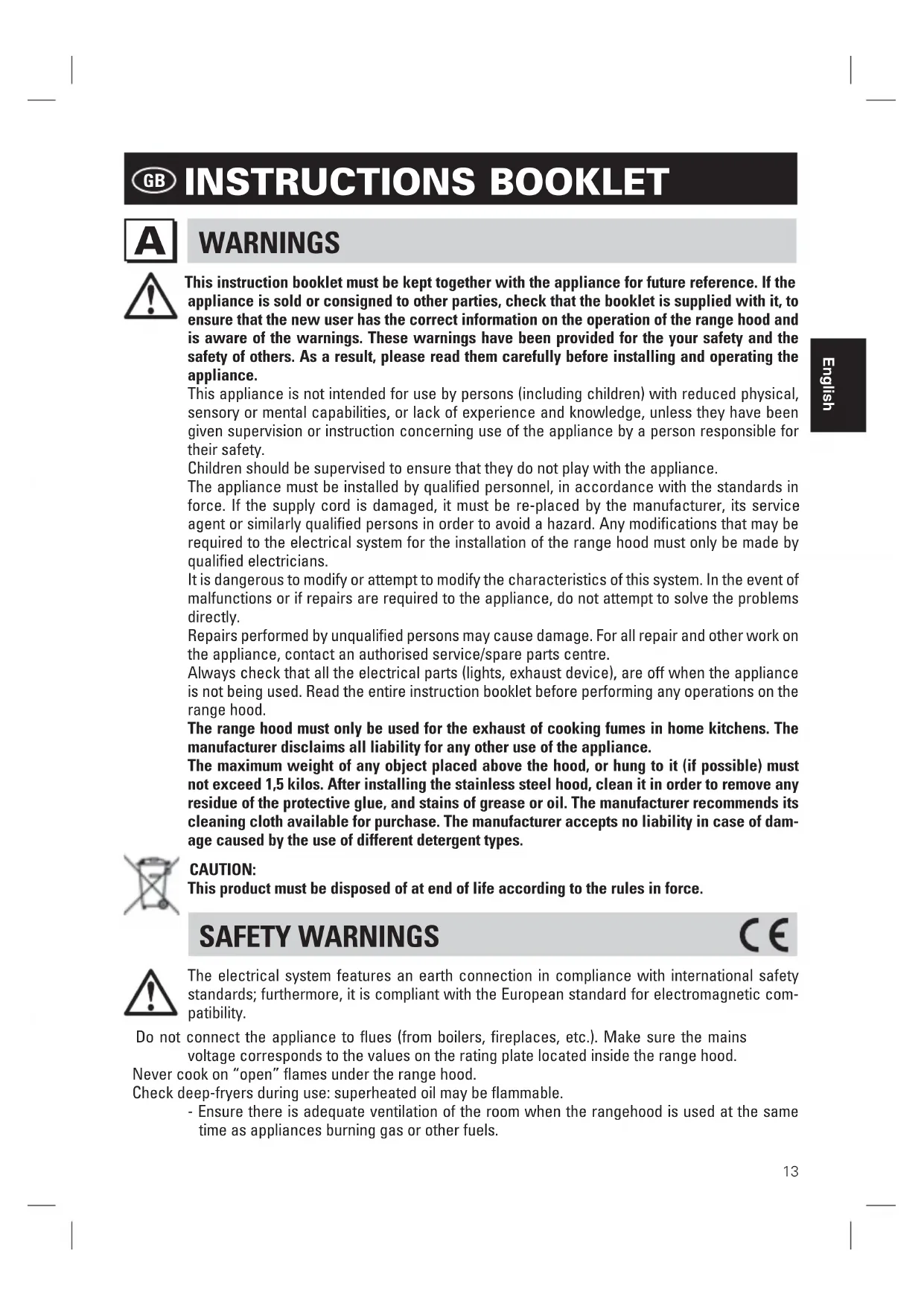

GB INSTRUCTIONS BOOKLET WARNINGS A This instruction booklet must be kept together with the appliance for future reference. If the

appliance is sold or consigned to other parties, check that the booklet is supplied with it, to

ensure that the new user has the correct information on the operation of the range hood and

is aware of the warnings. These warnings have been provided for the your safety and the

safety of others. As a result, please read them carefully before installing and operating the

This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

Children should be supervised to ensure that they do not play with the appliance.

The appliance must be installed by qualified personnel, in accordance with the standards in

force. If the supply cord is damaged, it must be re-placed by the manufacturer, its service

agent or similarly qualified persons in order to avoid a hazard. Any modifications that may be

required to the electrical system for the installation of the range hood must only be made by

qualified electricians.

It is dangerous to modify or attempt to modify the characteristics of this system. In the event of

malfunctions or if repairs are required to the appliance, do not attempt to solve the problems

Repairs performed by unqualified persons may cause damage. For all repair and other work on

the appliance, contact an authorised service/spare parts centre.

Always check that all the electrical parts (lights, exhaust device), are off when the appliance

is not being used. Read the entire instruction booklet before performing any operations on the

The range hood must only be used for the exhaust of cooking fumes in home kitchens. The

manufacturer disclaims all liability for any other use of the appliance.

The maximum weight of any object placed above the hood, or hung to it (if possible) must

not exceed 1,5 kilos. After installing the stainless steel hood, clean it in order to remove any

residue of the protective glue, and stains of grease or oil. The manufacturer recommends its

cleaning cloth available for purchase. The manufacturer accepts no liability in case of dam-

age caused by the use of different detergent types.

This product must be disposed of at end of life according to the rules in force.

SAFETY WARNINGS The electrical system features an earth connection in compliance with international safety

standards; furthermore, it is compliant with the European standard for electromagnetic com-

Do not connect the appliance to flues (from boilers, fireplaces, etc.). Make sure the mains

voltage corresponds to the values on the rating plate located inside the range hood.

Never cook on “open” flames under the range hood.

Check deep-fryers during use: superheated oil may be flammable.

- Ensure there is adequate ventilation of the room when the rangehood is used at the same

time as appliances burning gas or other fuels. English14

- Do not flambe under the rangehood

- The exhaust air must not be discharged into a flue which is used for exhausting fumes from

appliances burning gas or other fuels.

- Ensure that all regulations concerning the discharge of exhaust air have been fulfilled before

you use the appliance.

Before performing any cleaning or maintenance operations, disconnect the appliance by un-

plugging it or using the main switch. The manufacturer disclaims all liability for any damage

that may be directly or indirectly caused to people, things and animals due to the failure to

follow all the instructions provided in this booklet and above all the warnings relating to the

installation, operation and maintenance of the appliance.

- there is a fire risk if cleaning is not carried out in accordance with the instructions.

CAUTION: Accessible parts may become hot when used with cooking appliances.

- Max. length screw for fixing the chimney is 10 mm (provided by the manufacturer).

WARNING: Failure to install the screws or fixing device in accordance with these instructions

may result in electrical hazards.

Warning only for Australia: hood width less than 90 cm: use max. 4 hobs

TECHNICAL SPECIFICATIONS B The technical data pertaining to the electric appliance The technical specifications of the ap-

pliance are shown on the rating plates located inside the range hood.

(Section reserved for qualified installers of the range hood)

The distance between the hob and the lowest part of the rangehood is normally at least 65 cm

(see figure C1). This distance is measuresd in the lowest part of the rangehood not operating

at safety voltage. Based on this detail provided by European Standards, the distance may be

reduced in some models as specified in the general catalogue. If the instructions for installa-

tion for the gas hob specify a greater distance, this has to be taken into account.

In the outside exhaust version, the diameter of the fume discharge duct must be no smaller

than the range hood connection.

In the horizontal sections, the duct must slope slightly (around 10%) upwards, so as to better

convey the air outside of the room.

Avoid using angled pipes, make sure that the pipes are at least of the minimum length.

Comply with the current regulations on air discharge into the atmosphere.

If a boiler, stove, fireplace, etc. that uses gas or other fuels is being used at the same time,

make sure the room where the fumes are extracted is well ventilated, in compliance with the

current regulations.

Mounting instruction: see section “O” of the booklet.

ELECTRICAL CONNECTIONS D

(Section reserved for qualified installers)

Before doing any work inside the range hood, disconnect the appliance from the mains

Check that the wires inside the range hood are not disconnected or cut; if this is the case,

contact your nearest service centre. The electrical connections must be performed by quali-

The connections must be performed in compliance with the legal standards in force. Check15

that the relief valve and the electrical system are able to support the load of the appliance (see

the technical specifications in point B).

Some types of appliance are supplied with a cable without plug; in this case, “standardised”

plugs must be used, keeping in mind that:

- the yellow-green wire must be used for the earth,

- the blue wire must be used for the neutral,

- the brown wire must be used for the phase; the cable must not come into contact with hot

- fit a plug that is suitable for the load to the power cable, and connect it to a suitable power

For appliances that come supplied with cable and plug please ensure they are plugged into a

circuit suitable for this appliance.

Please refer to a qualifed person. (See technical specifications in point B).

The manufacturer declines all liability if the safety standards are not observed.

E RANGE HOOD WITH OUTSIDE DISCHARGE

In this version, the fumes and steam from the kitchen are conveyed outside through an exhaust

The exhaust conveyor that protrudes from the upper part of the range hood must be connected

to a duct that carries the fumes and steam outside. In this version, the charcoal filters, if fitted,

should be removed; to do this, see the instructions in point F. There must be adequate ventila-

tion of the room when the range hood is used at the same time as appliances burning gas or

other fuels, according to the standard.

Deviation for Germany:

When the range hood and appliances supplied with energy other than electricity are simulta-

neously in operation, the negative pressure in the room must not exceed 4 Pa (4x10 E-5 bar).

F RECIRCULATING RANGE HOOD (with filter)

In this version, the air passes through charcoal filters for purification, and is then recirculated

back into the kitchen.

Check that the charcoal filters are fitted to the motor, and if not, install them as described in

the instructions in point H.

If the hood is of filtering type, remove the non-return valve fitted at the motor’s outlet.

For maximum efficiency, the third speed should be used when there are strong odours or a lot

of steam, the second speed in normal conditions, and the first speed for keeping the air clean

with minimum energy consumption. The range hood should be switched on when starting to

cook, and left on until the odours disappear.

1. TWO BUTTON CONTROL PANEL LIGHT - Switch A Position 0: the light is off.

Position 1: the light is on. English16 SPEED - Switch B This is used to start and set the speed of the motor, from 1 to 3, or with continuous speed variator, depending on the version. LIGHT - C Motor operation indicator light.

2. FIVE BUTTON CONTROL PANEL LIGHT- button Pressed: the light is on Released: the light is off MOTOR button - 1, 2, 3, OFF 1: starts the motor at minimum speed 2: starts the motor at medium speed 3: starts the motor at maximum speed OFF: stops the motor

FILTERS REMOVING AND REPLACING’S INSTRUCTIONS H

1. METAL FILTERS To remove the metal grease-trapping filter, simply pull the handle A until releasing it from the front guide; then tilt it slightly downwards, and slide it out of the rear guide. To reposi-tion the filter, repeat the operation in the reverse order. A

2. CHARCOAL FILTERS To replace the charcoal filters, proceed as follows: remove the metal filters as described above. The two filters located at the ends of the motor can now be easily accessed. To install the new fi lters see picture. In case of hood with the motor box the fi lter is located on the botton part of the motor box. To install the new fi lters see picture. To order new charcoal fi lters contact the distributor/retailer.VALID ONLY FOR ITALY: download the appropriate order form from: www.falmec.com (access the assistance drop-down menu).17

LIGHTING ASSEMBLY AND REPLACEMENT I

1. LIGHT BULB To replace the light bulb:

a) Make sure the appliance is disconnected from the mains power supply.

b) Unscrew the support screw A and remove the light cover.

c) Replace the light bulb with the same model as the original (max 25 W, see the markings

A WARNING! Light bulbs with different shapes and power ratings from the original may seri-

ously damage the light compartment.

2. SPOTLIGHT To replace the lamp for “Round halogen light”:

a) Make sure the appliance is disconnected from the mains power supply.

b) Remove, by levering with a screwdriver, the support ring A for the cover glass.

c) Remove the cover glass B to access the light compartment.

d) Replace the lamp with the same type (halogen, max 20 W, 12 Volt, G4 fitting).

e) Replace the glass cover B and fasten it using the special ring A.

How to replace a square halogen light:

a) Check that the equipment is disconnected from the power supply.

b) Open the panel completely till 90° (see figure) pressing the PUSH button

c) Replace the lamp with a similar one (halogen, max 20 W, 12 Volt, G4 connection).

d) Close the panel. If the panel does not close correctly repeat the operation at point b. English18

Square halogen light

(Section reserved for qualified installers)

Replacing the fluorescent tube:

a) Disconnect the device from the mains;

b) Unscrew the fixing screws and remove the bottom panel;

c) Remove the fluorescent tube, by rotating through 90°, and replace it with one of similar

features (8W-13W-21W-28W according with the model);

d) Reconnect the device to the mains.

MAINTENANCE AND CLEANING L Constant maintenance ensures the correct operation and efficiency of the appliance over

time. Special attention should be paid to the metal grease-trapping filters and the charcoal

filters. Frequent cleaning of the filters and their supports will ensure that fats and grease do

not accumulate on the range hood, with the consequent risk of fire.

1. METAL GREASE-TRAPPING FILTERS These trap the fat and grease particles suspended in the air, and therefore should be

washed every month in hot water and detergent, without bending them. Wait until they

are completely dry before repositioning them. To remove and replace these filters, see

the instructions in point H1. This operation should be performed at regular intervals.

2. CHARCOAL FILTERS These trap the odours present in the stream of air that passes through them. The air is

purified by passing a number of times through the filters and being recirculated into the

kitchen. The charcoal filters cannot be cleaned, and should be replaced on average every

3-4 months (according to use). To replace the charcoal filters, see the instructions in point

3. CLEANING THE OUTSIDE OF THE APPLIANCE It is advised to clean the external hood surfaces at least every 15 days in order to avoid

that oily or greasy substances affect the steel surfaces.

The ouside of the range hhod should be cleaned using a damp cloth and neutral liquid

detergent or denatured alcohol.

In case of fingerprint-less finish (fasteel) clean only with water and neutral soap using

clean with a soft cloth, rinse and wipe dry thoroughly. Do not use products that contain

abrasive substances, rough cloths or cloths specifically designed for cleaning steel. Using

abrasive substances or rough cloths will inevitably damage the finish of steel.

The steel surface will be irrevocably damaged if the instructions above are not complied

Keep these instructions together with the instructions for use of your hood.

The manufacturer accepts no liability for any damage caused by non-compliance with the

instructions above.19

4. CLEANING THE INSIDE OF THE APPLIANCE The electrical parts or parts of the motor assembly inside the range hood must not be

cleaned using liquids or solvents.

Do not use abrasive products.

All the above operations must be performed after having disconnected the appliance from the

WARRANTY M The new equipment is covered by warranty. The warranty conditions are provided by the

The manufacturer is not liable for any inaccuracies in this booklet resulting from printing or

transcription errors. The manufacturer reserves the right to modify its products as it consid-

ers necessary or in the interests of the user, without compromising their essential safety and

operating characteristics.

N FOR WALL-MOUNTED RUSTIC HOOD WARNING: Failure to install the screws or fixing device in accordance with these instructions

may result in electrical hazards.

- Rest the support batten (A-Fig. 1) against the wall at a height above the hob determined by

the sum of the values X+Y+265 mm.

- Use a spirit level to make sure it is perfectly horizontal and make 2 marks at the ends of the

batten where the 2 holes are to be drilled.

- Drill the holes, insert the two ø 8mm screw anchors and fasten the batten using the relevant

- Adjust the alignment of the hood using the screws on the brackets (Fig. 3). The upper screw

(B) is used to adjust the distance from the wall, and the lower screw (C) the vertical sliding

- In order to prevent the hood from unhooking owing to pressure from underneath, fasten it

to the wall with a screw anchor and relevant screw inserted in the appropriate hole (Fig. 4).

FOR CORNER HOODS WITHOUT BAR Step 1

- Undo the rear metric screw (A) and remove the motor from the bottom of the hood (fig. 1).

- Check the horizontal alignment with a spirit level and mark the 4 holes to be drilled.

- Drill the holes, insert 2 x 8mm dia. screw anchors and fix the hood in the desired position,

using 2 screws B fixed in the two slots in the top back panel (Fig. 5).

- Fit the safety screws C in the bottom back panels (Fig. 5).

- After having fixed the hood, connect the flexible hose to the fume outlet hole and to the cir-

cular pipe fitting of the motor chamber.

- Replace the motor at the bottom of the hood and secure it with the rear metric screw (A)

MOUNTING THE RANGE HOOD WITHOUT MOTOR CHAMBER

1) Measure the distance (L) from the bottom of the range hood to the centre of the mounting

2) Measure the distance (M) between the two mounting holes.

3) Line up the centre of the cooktop with the centre of the range hood. Is: L+650 mm.

4) The height of the holes to be drilled above the cooktop is calculated by adding (L) to (H),

where (H) is defined by point C-1.

5) Drill the holes for the Fischer screw anchors (the diameter of the holes depends on the type

6) Before hanging and securing the range hood, remove:

- the steel grilles for range hoods with tangential motors

- the entire build-in assembly, if fitted, by unscrewing the screws that secure it to the bot-

7) To avoid hood unhooking due to underneath pressure, fix it to the wall with a screw anchor

and related screw, by using the appropriate holes at the back of the hood or the cope fla-

8) Hang the range hood.

9) Check, through the hole at the bottom, that the range hood is properly anchored to the

10) Adjust the height of the range hood using the screws on the Fischer hooks.

11) Fit the steel grilles or the build-in assembly.

12) Mounting instruction for chimney (fig. 8):

- Fasten bracket (A) to the wall, at the correct distance;

- Fasten the upper part of the extension to bracket (A).21

D BEDIENUNGSANLEITUNG HINWEISE A Diese Bedienungsanleitung muss unbedingt zusammen mit dem Gerät aufbewahrt werden,

FILTRY FILTRY INSTRUKCJE WYJMOWANIA I WYMIANY H
