imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register

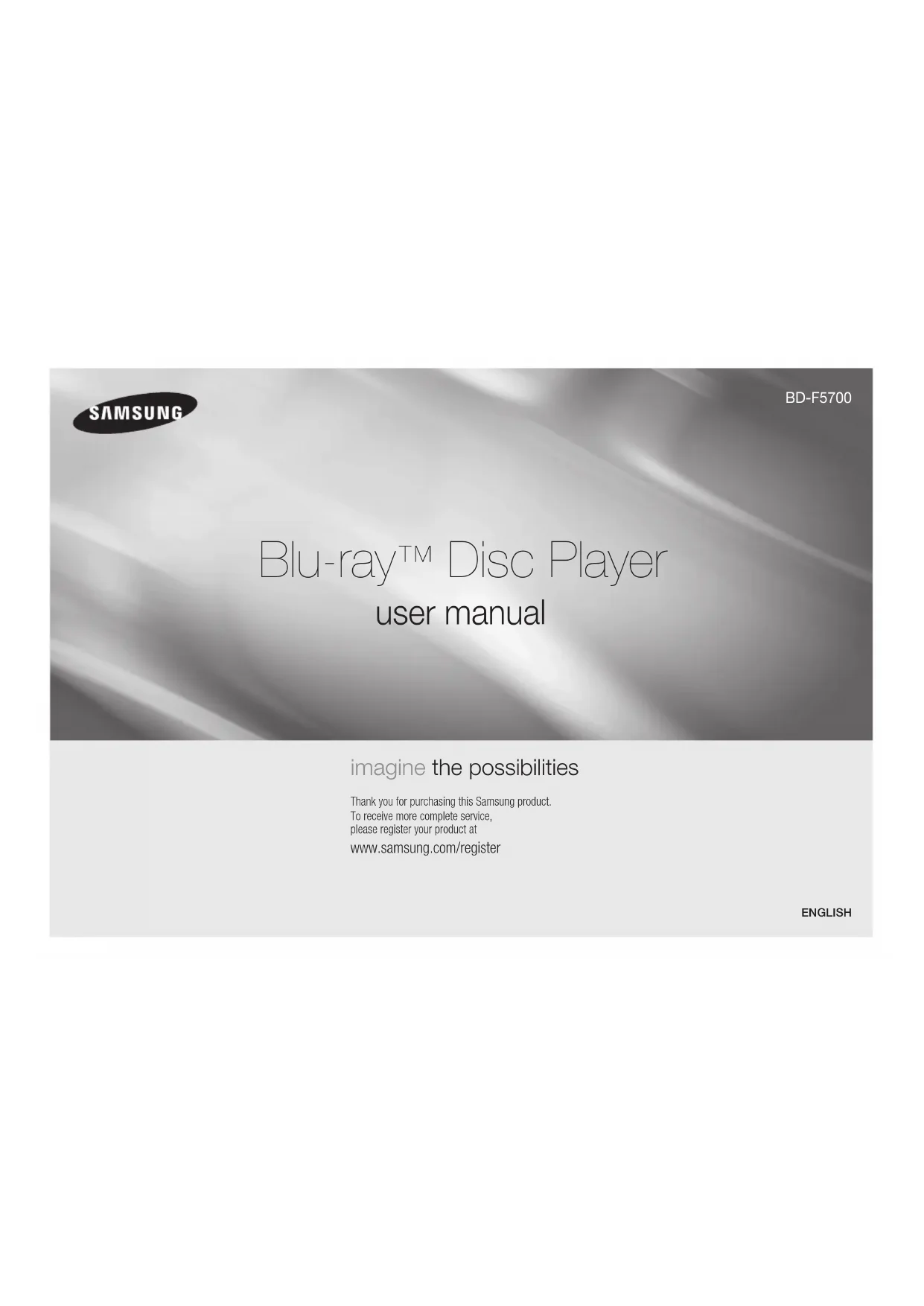

user manual BD-F5700ENGLISH 02348D-00-BD-F5700-ZC-ENG.indd 1 2013-11-22 오후 4:43:24Safety Information WarningTO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCKDO NOT OPENThe lighting flash and Arrowhead within the triangle is a warning sign alerting you to dangerous voltage inside the product.CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.The exclamation point within the triangle is a warning sign alerting you to important instructions accompanying the product.WARNING• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.FCC NOTE (for U.S.A)This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on.The user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect this equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.This class B digital product meets all requirements of the Canadian Interference - Causing Equipment Regulations.Note to CATV system installerThis reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.CLASS 1 LASER PRODUCTThis Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.DANGER :• VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM. (FDA 21 CFR)CAUTION :• CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM. (IEC 60825-1) • THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.CLASS 1 LASER PRODUCTKLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITEKLASS 1 LASER APPARATPRODUCTO LÁSER CLASE 1

` If the Region number of a Blu-ray Disc/DVDs does not correspond to the Region number of this player, the player cannot play the disc.Precautions Important Safety Instructions Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.1. Read these instructions.2. Keep these instructions.3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water.6. Clean only with a dry cloth.7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including AV receivers) that produce heat.9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where it exits the apparatus.11. Only use attachments/accessories specified by the manufacturer. 2

02348D-00-BD-F5700-ZC-ENG.indd 2 2013-11-22 오후 4:43:24Contents

Use only with the cart,

stand, tripod, bracket,

or table specified by

caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning

storms or when unused for long periods

14. Refer all servicing to qualified service

personnel. Servicing is required when

the apparatus has been damaged in any

way, such as when the power-supply

cord or plug is damaged, liquid has

been spilled or objects have fallen into

the apparatus, the apparatus has been

exposed to rain or moisture, does not

operate normally, or has been dropped.

Disc Storage & Management

- Fingerprints or scratches

on a disc may reduce

sound and picture quality

- Avoid touching the surface of a disc

where data has been recorded.

- Hold the disc by the edges so that

fingerprints will not get on the surface.

- Do not stick paper or tape on the disc.

- If you get fingerprints or dirt

on a disc, clean it with a mild

detergent diluted in water

and wipe with a soft cloth.

- When cleaning, wipe gently

from the inside to the outside of the disc.

Do not keep in direct sunlight.

Keep in a cool ventilated area.

Keep in a clean protection jacket and

• Do not expose this apparatus to dripping

or splashing. Do not put objects filled with

liquids, such as vases on the apparatus.

• To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

• Do not plug multiple electric devices into

the same wall socket. Overloading a socket

can cause it to overheat, resulting in a fire.

• Before connecting other components to

this player, be sure to turn them off.

If you move your player suddenly from a cold

place to a warm place, condensation may

occur on the operating parts and lens and

cause abnormal disc playback. If this occurs,

unplug the player, wait for two hours, and

then connect the plug to the power outlet.

Then, insert the disc, and try to play back

• If the product makes an abnormal noise

or produces a burning smell or smoke,

turn off the power switch immediately and

disconnect the power plug from the wall

outlet. Then, contact the nearest customer

service center for technical assistance. Do

not use the product. Using the product as

it is may cause a fire or an electric shock.

© 2013 Samsung Electronics Co.,Ltd.

All rights reserved; No part or whole of this

user's manual may be reproduced or copied

without the prior written permission of

Samsung Electronics Co.,Ltd.

Logos of Discs the player can play 4

CONNECTIONS Connecting to a TV 7

Connecting to an Audio System 8

Connecting to a Network Router 8

SETTINGS The Initial Settings Procedure9

General Settings 15

Support Settings 15

Playing a Commercially Recorded Disc 16

Playing Files on a USB Device 16

Playing a Disc with User Recorded Content

Playing Content Located in Your PC 17

Controlling Video Playback 17

Controlling Music Playback 17

Playing Photo Contents 18

02348D-00-BD-F5700-ZC-ENG.indd 3 2013-11-22 오후 4:43:24Getting Started Before using the User ManualDisc Types and Contents your player can playMedia Disc Type DetailsVIDEOBlu-ray Disc BD-ROM or BD-RE/-R recorded in the BD-RE format.DVD-VIDEO DVD-RW DVD-R DVD+RW DVD+RDVD-VIDEO, recorded DVD+RW/DVD-RW(V)/DVD-R/+R that have been recorded and finalized, or a USB storage media containing MKV or MP4 contents.MUSICCD-RW/-R, DVD-RW/-R, BD-RE/-RMusic recorded on CD-RW/-R, DVD-RW/-R, BD-RE/-R or a USB storage media containing MP3 or WMA contents.PHOTOCD-RW/-R, DVD-RW/-R, BD-RE/-RPhotos recorded on CD-RW/-R, DVD-RW/-R, BD-RE/-R or a USB storage media containing JPEG contents.

` The player may not play certain CD-RW/-R and DVD-R because of the disc type or recording conditions.

` If a DVD-RW/-R has not been recorded properly in DVD video format, it will not be playable.

` Your player will not play content that has been recorded on a DVD-R at a bit-rate that exceeds 10 Mbps.

` Your player will not play content that has been recorded on a BD-R or USB device at a bitrate that exceeds 25 Mbps.

` Playback may not work for some types of discs, or when you use specific functions, such as angle change and aspect ratio adjustment. Information about the discs is written in detail on the disc box. Please refer to this if necessary.

` When you play a BD-J title, loading may take longer than a normal title or some functions may perform slowly.Disc types your player cannot play• HD DVD• DVD-ROM/PD/ MV, etc• DVD-RAM• Super Audio CD (except CD layer)• DVD-RW (VR mode)• CVD/CD-ROM/CDV/CD-G/CD-I/LD (CD-Gs play audio only, not graphics.)• 3.9 GB DVD-R for Authoring.Region CodeBoth players and discs are coded by region. These regional codes must match for a disc to play. If the codes do not match, the disc will not play. The Region Code for this player is displayed on the rear panel of the player.Disc TypeRegion Code

A North America, Central America, South America, Korea, Japan, Taiwan, Hong Kong and South East Asia. DVD- VIDEO 1 The U.S., U.S. territories and CanadaLogos of Discs the player can playBlu-ray Disc BD-LIVENTSC broadcast system in U.S.A, Canada, Korea, JapanSupported File FormatsNotes on the USB connection• Your player supports USB storage media, MP3 players, digital cameras, and USB card readers.• The player does not support folder or file names longer than 128 characters. • Some USB/External HDD/digital camera devices may not be compatible with the player.• Your player supports the FAT16, FAT32, and NTFS file systems. • Connect USB devices directly to the player’s USB port. Connecting through a USB cable may cause compatibility problems.• Inserting more than one memory device into a multi-card reader may cause the reader to operate improperly. • The player does not support the PTP protocol.• Do not disconnect a USB device during a "loading" process.• The bigger the image resolution, the longer the image takes to display.• This player cannot play MP3 files with DRM (Digital Rights Management) downloaded from commercial sites. • Your player only supports video with a frame rate under 30fps (frames per second).• Your player only supports USB Mass Storage Class (MSC) devices such as thumb drives and USB HDD. (HUB is not supported.)• Certain USB HDD Devices, multi-card readers and thumb drives may not be compatible with this player.• If some USB devices require excessive power, they may be limited by the circuit safety device. 4

02348D-00-BD-F5700-ZC-ENG.indd 4 2013-11-22 오후 4:43:25• If playback from a USB HDD is unstable, provide additional power by plugging the HDD into

If the problem continues, contact the USB HDD manufacturer.

• You must remove the USB storage device safely by performing the "Safely Remove USB"

function to prevent possible damage to the USB memory.

Press the HOME button to move to the home screen, press the YELLOW (C) button, and

• SAMSUNG is not responsible for any data file damage or data loss.

• Your player does not support NTFS compressed files, sparse files, or encrypted files.

• You can repair or format a USB device on your Desktop PC. (MS-Windows OS only)

- Even when a file is encoded by a supported codec listed above, the file might not be

played if its content has a problem.

- Normal playback is not guaranteed if the file’s container information is wrong or the file

itself is corrupted.

- Files having a higher Bit rate/frame rate than standard may stutter during sound/video playback.

- The Seek (skip) function is not available if the file’s index table is damaged.

- Supports up to H.264 Level 4.1 and AVCHD

- Does not support H.264 FMO/ASO/RS and VC1 SP/MP/AP L4

Below 1280 x 720 : 60 frames max

- Does not support GMC 2 or higher

- Supports WMA 7, 8, 9 and STD

- Does not support WMA sampling rate of 22050Hz mono.

- AAC: Max sampling rate: 96Khz (8, 11, 12, 16, 22,24, 32,44.1, 48, 64, 88.2, 96)

Max bitrate: 320kbps

* Sampling rates (in kHz) - 8, 11, 16, 22, 32, 44.1, 48

* Bit rates - All bit-rates from 5kbps to 355kbps

Picture File Support

When the player displays the Blu-ray Disc menu, you cannot start the movie by pressing the Play button

on the player or the remote. To play the movie, you must select Play Movie or Start in the disc menu, and

You can perform software upgrades using the USB Host jack with a USB flash memory stick only.

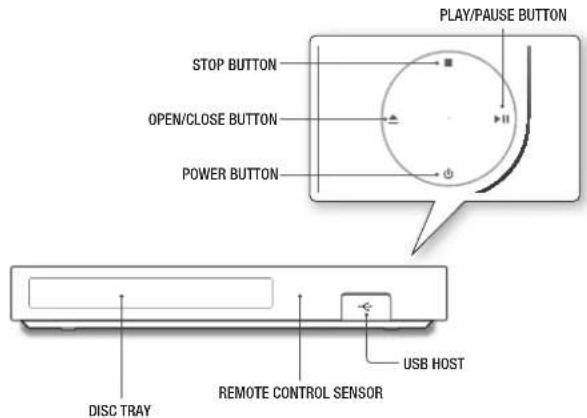

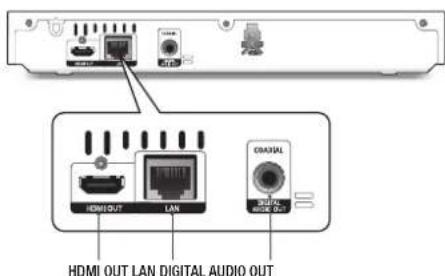

Rear Panel USB HOSTREMOTE CONTROL SENSORDISC TRAYPLAY/PAUSE BUTTONSTOP BUTTONPOWER BUTTONOPEN/CLOSE BUTTONHDMI OUT LAN DIGITAL AUDIO OUT AVCHD (Advanced Video Codec High Definition)

• This player can play back AVCHD format discs. These discs are normally recorded and used

• The AVCHD format is a high definition digital video camera format.

• The MPEG-4 AVC/H.264 format compresses images with greater efficiency than the

conventional image compressing format.

• Some AVCHD discs use the "x.v.Color" format. This player can play back AVCHD discs that

use "x.v.Color" format.

• "x.v.Color" is a trademark of Sony Corporation.

• "AVCHD" and the AVCHD logo are trademarks of Matsushita Electronic Industrial Co., Ltd.

and Sony Corporation.

Some AVCHD format discs may not play, depending on the recording condition.

AVCHD format discs need to be finalized.

"x.v.Color" offers a wider color range than normal DVD camcorder discs.

Some MKV and MP4 format discs may not play, depending on the video resolution and frame rate condition.

Check for the supplied accessories shown below. SCREENVIEW A-BFULLBONUS REPEATREPEAT Batteries for Remote Control

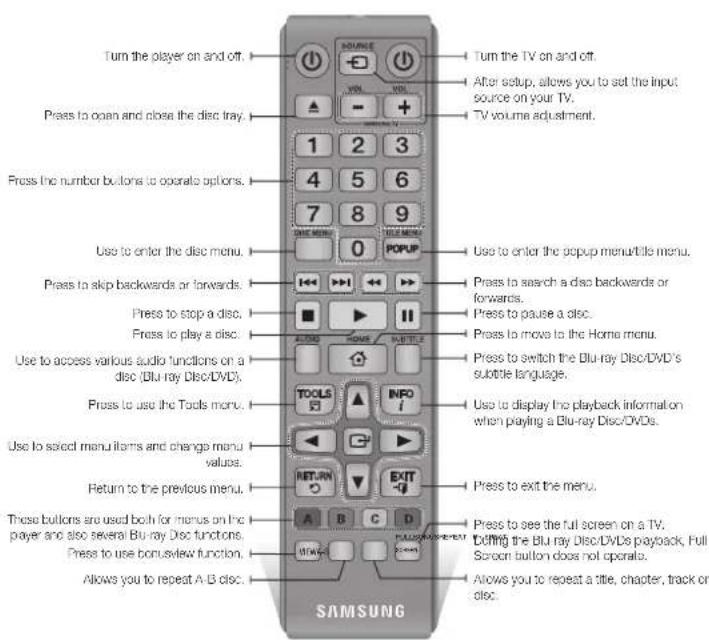

Tour of the Remote Control

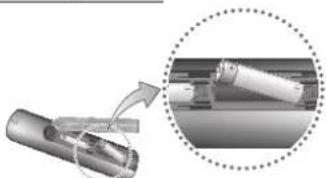

Installing batteries

` If the remote does not operate properly: • Check the polarity (+/–) of the batteries. • Check if the batteries are drained. • Check if the remote sensor is blocked by obstacles. • Check if there is any fluorescent lighting nearby.

` Dispose of batteries according to local environmental regulations. Do not put them in the household trash. Connections

Connecting to a TV Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV. - Do not connect the power cord to the wall outlet until you have made all the other connections. - When you change the connections, turn off all devices before you start.

` If you use an HDMI-to-DVI cable to connect to your display device, you must also connect the Digital Audio Out on the player to an audio system to hear audio.

` An HDMI cable outputs digital video and audio, so you don't need to connect an audio cable.

` Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user manual of your TV.

` When you connect the player to your TV using the HDMI cable or to a new TV, and then turn it on for the first time, the player automatically sets the HDMI output resolution to the highest supported by the TV.

` A long HDMI cable may cause screen noise. If this occurs, set HDMI Deep Color to Off in the menu.

` To view video in the HDMI 720p, 1080i, or 1080p output mode, you must use a High speed (category 2) HDMI cable.

` HDMI outputs only a pure digital signal to the TV. If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.Audio VideoSCREENVIEW A-BFULLBONUS REPEATREPEATTurn the player on and off.Allows you to repeat A-B disc.Press the number buttons to operate options.Press to open and close the disc tray. Use to enter the disc menu.Press to skip backwards or forwards.Press to stop a disc.Press to use bonusview function.Return to the previous menu.These buttons are used both for menus on the player and also several Blu-ray Disc functions.Use to select menu items and change menu values.Press to use the Tools menu.Use to access various audio functions on a disc (Blu-ray Disc/DVD).Press to play a disc.Press to pause a disc.Turn the TV on and off. Press to switch the Blu-ray Disc/DVD’s subtitle language.Use to enter the popup menu/title menu.Press to search a disc backwards or forwards.Press to move to the Home menu.Press to see the full screen on a TV. During the Blu-ray Disc/DVDs playback, Full Screen button does not operate.Press to exit the menu.Use to display the playback information when playing a Blu-ray Disc/DVDs.Allows you to repeat a title, chapter, track or disc.TV volume adjustment.After setup, allows you to set the input source on your TV. 7

02348D-00-BD-F5700-ZC-ENG.indd 7 2013-11-22 오후 4:43:26Connecting to an Audio System You can connect the Blu-ray player to an audio system using one of the methods illustrated below. - Do not connect the power cord to the wall outlet until you have made all the other connections. - When you change the connections, turn off all devices before you start. Method 1 Connecting to an HDMI supported AV receiver • Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN jack on your receiver.• Best quality (Recommended) Method 2 Connecting to an AV receiver with Dolby Digital or a DTS decoder

• Using a digital Coaxial cable (not supplied), connect the Coaxial Digital Audio Out jack on the product to the Digital Coaxial In jack of the receiver.• Good quality• You will hear sound only through the front two speakers with Digital Output set to PCM.AudioAudioMethod 2Method 1 Connecting to a Network Router You can connect your player to your network router using one of the methods illustrated below.To use the DLNA network functionality, you must connect your PC to your network as shown in the illustrations. Wired Network

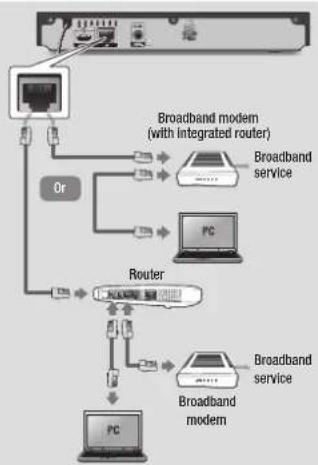

` Internet access to Samsung's software update server may not be allowed, depending on the router you use or your ISP's policy. For more information, contact your ISP (Internet Service Provider).

` DSL users, please use a router to make a network connection.Broadband serviceBroadband serviceBroadband modem (with integrated router)Broadband modem Router Or

02348D-00-BD-F5700-ZC-ENG.indd 8 2013-11-22 오후 4:43:27Wireless Network

` If your wireless router supports DHCP, this player can use a DHCP or static IP address to connect to the wireless network.

` Set your wireless router to Infrastructure mode. Adhoc mode is not supported.

` The player supports only the following wireless security key protocols: - WEP (OPEN/SHARED), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)

` Select a channel on the wireless router that is not currently being used. If the channel set for the wireless router is currently being used by another device nearby, it will result in interference and communication failure.

` In compliance with the newest Wi-Fi certification specifications, Samsung Blu-ray players do not support WEP or TKIP security encryption in networks running in the 802.11n mode.

` Wireless LAN, by its nature, may cause interference, depending on the operating conditions (router performance, distance, obstacles, interference by other radio devices, etc).Broadband serviceWireless Router Settings

The Initial Settings Procedure • The Home screen will not appear if you do not configure the initial settings.• The OSD (On Screen Display) may change in this player after you upgrade the software version.• The access steps may differ depending on the menu you selected. • After the initial settings process is complete, you can then operate the panel buttons and remote control.The Initial Settings Procedure appears when you turn on player for the first time and lets you set the OSD and menu languages, configure the connection to your home network, and choose the aspect ratio output (screen size and format) that is correct for your TV. Follow the directions that appear on the screen.

` The Home menu will not appear if you do not configure the initial settings except as noted below.

` If you press the BLUE (D) button during network setup, you can access the Home menu even if the network setup is not completed yet.

` When you return to the Home menu, the full screen mode is cancelled automatically.

` If you want to display the Initial Setting screen again to make changes, press the @ button on the front panel of the player for more than 5 seconds with no disc inserted. This resets the player to its default settings.

` After the initial settings process is complete, you can operate the HDMI-CEC function.

` If you want to use the Anynet+(HDMI-CEC) function to aid in the initial set up process, please follow the instructions below. 1) Connect the player to an Anynet+(HDMI-CEC) compliant Samsung TV using HDMI Cable.2) Set the Anynet+(HDMI-CEC) feature to On in both the TV and the player.3) Set the TV to the Initial Settings Procedure.

` If you leave the player in the stop mode for more than 5 minutes without using it, a screen saver will appear on your TV. If the player is left in the screen saver mode for more than 25 minutes, the power will automatically turn off. Menu Navigation

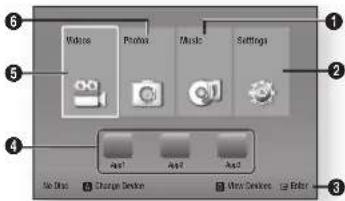

1 HOME Button : Press to move to the Home menu. 2 RETURN Button : Return to the previous menu. 3

Displays the buttons you can use on the

remote to access functions.

Selects applications.

The Videos, Photos, and Music options require

that you have an appropriate disc inserted into

the player or a USB flash device attached to

Accessing the Settings Menu

To access the Settings menu and sub-menus,

1. Press the POWER button.

The Home Menu appears.

Press the ◄► buttons to select Settings,

Press the ▲▼ buttons to select the desired

The access steps may differ depending on

the menu you selected. The OSD (On Screen

Display) may change in this player after you

upgrade the software version.

You can configure various display options

such as the TV Aspect Ratio, Resolution, etc.

Depending on the type of television you have,

you may want to adjust the screen size setting.

Depending on the disc type, some aspect

ratios may not be available.

If you select an aspect ratio and option which is

different than the aspect ratio of your TV screen,

the picture might appear to be distorted.

BD Wise (Samsung TVs only)

BD Wise is Samsung’s latest inter-connectivity

When you connect a Samsung player and a

Samsung TV with BD Wise to each other via

HDMI, and BD Wise is on in both the player

and TV, the player outputs video at the video

resolution and frame rate of the Blu-ray Disc/

When BD Wise is on, the Resolution setting

automatically defaults to BD Wise and BD Wise

appears in the Resolution menu.

If the player is connected to a device that does not

support BD Wise, you cannot use the BD Wise function.

For proper operation of BD Wise, set the BD Wise menu of both the player and the TV to On.

Lets you set the output resolution of the HDMI

video signal to Auto, 1080p, 1080i, 720p or

480p. The number indicates the number of

lines of video per frame. The i and p indicate

interlaced and progressive scan, respectively.

The more lines, the higher the quality.

Resolution according to the output

If the TV you connected to the player does not

support Movie Frame or the resolution you

selected, the message "If no pictures are shown

after selecting ‘Yes’, please wait for 15 seconds

to return to the previous resolution. Do you

want to change the resolution?" appears. If you

select Yes, the TV’s screen will go blank for 15

seconds, and then the resolution will revert to

the previous resolution automatically.

If the screen stays blank after you have

changed the resolution, remove all discs,

and then press and hold the

front of the player for more than 5 seconds.

All settings are restored to the factory default.

Follow the steps on the previous page to

access each mode and select the Display Setup

that your TV will support.

When the factory default settings are restored,

all stored user BD data is deleted.

The Blu-ray Disc must have the 24 frame feature

for the player to use the Movie Frame (24Fs) mode.

Setting the Movie Frame (24Fs) feature to

Auto allows you to adjust the player’s HDMI

output to 24 frames per second for improved

You can enjoy the Movie Frame (24Fs) feature

only on a TV supporting this frame rate.

You can select Movie Frame only when the

player is in the HDMI 1080i or 1080p output

Lets you set the color space format for

HDMI output to match the capabilities of the

connected device (TV, monitor, etc).

Lets you output video from the HDMI OUT jack with

Deep Color. Deep Color provides more accurate

color reproduction with greater color depth.

02348D-00-BD-F5700-ZC-ENG.indd 10 2013-11-22 오후 4:43:28Progressive Mode

Lets you improve picture quality when viewing DVDs.

Lets you select the digital audio output format that is suitable for your TV or AV Receiver. For

more details, please refer to the Digital Output Selection table below.

Digital Output Selection Setup PCMBitstream (Unprocessed)Bitstream (Re-encoded DTS) Bitstream (Re-encoded Dolby D)ConnectionHDMI ReceiverCoaxialHDMI ReceiverCoaxialHDMI Receiver or CoaxialHDMI supported AV receiver or CoaxialAudio Stream on Blu-ray Disc PCM Up to 7.1ch PCM 2ch PCM PCM 2ch Re-encoded DTSRe-encoded Dolby Digital *Dolby Digital PCM 2ch PCM 2ch Dolby Digital Dolby Digital Re-encoded DTSRe-encoded Dolby Digital *Dolby Digital Plus PCM 2ch PCM 2chDolby Digital Plus Dolby Digital Re-encoded DTSRe-encoded Dolby Digital *Dolby TrueHD PCM 2ch PCM 2ch Dolby TrueHD Dolby Digital Re-encoded DTSRe-encoded Dolby Digital * DTS PCM 2ch PCM 2ch DTS DTS Re-encoded DTS Re-encoded Dolby Digital *DTS-HD High Resolution AudioPCM 2ch PCM 2chDTS-HD High Resolution AudioDTS Re-encoded DTSRe-encoded Dolby Digital *DTS-HD Master AudioPCM 2ch PCM 2chDTS-HD Master AudioDTS Re-encoded DTSRe-encoded Dolby Digital *Audio Stream on DVD PCM PCM 2ch PCM 2ch PCM 2ch PCM 2ch PCM 2ch PCM 2ch Dolby Digital PCM 2ch PCM 2ch Dolby Digital Dolby Digital Dolby Digital Dolby Digital DTS PCM 2ch PCM 2ch DTS DTS DTS DTS Definition for Blu-ray Disc Any Decodes main feature audio and BONUSVIEW audio stream together into PCM audio and add Navigation Sound Effects.Outputs only main feature audio stream so that your AV receiver can decode the audio bitstream. You will not hear BONUSVIEW audio and Navigation Sound Effects.Decodes main feature audio and BONUSVIEW audio stream together into PCM audio and add Navigation Sound Effects, then re-encodes the PCM audio into DTS bitstreamDecodes main feature audio and BONUSVIEW audio stream together into PCM audio and add Navigation Sound Effects, then re-encodes the PCM audio into Dolby Digital bitstream * If Source Stream is 2ch, "Re-encoded

Dolby D" Settings are not applied.

Blu-ray Discs may include three audio streams :

- Main Feature Audio : The audio soundtrack

of the main feature.

- BONUSVIEW audio : An additional

soundtrack such as the director or actor’s

- Navigation Sound Effects : When you

choose a menu navigation selection, a

Navigation Sound Effect may sound.

Navigation Sound Effects are different on

Be sure to select the correct Digital Output or

you will hear no sound or just loud noise.

If the HDMI device (AV receiver, TV) is not

compatible with compressed formats (Dolby

Digital, DTS), the audio signal outputs as PCM.

Regular DVDs do not have BONUSVIEW audio

and Navigation Sound Effects.

Some Blu-ray Discs do not have BONUSVIEW

audio and Navigation Sound Effects.

If you play MPEG audio soundtracks, the audio

signal outputs as PCM regardless of your

Digital Output selections (PCM or Bitstream).

If your TV is not compatible with compressed

multi-channel formats (Dolby Digital, DTS), the

player may output PCM 2ch downmixed audio

even though you selected Bitstream (either Re-

encoded or Unprocessed) in the setup menu.

If your TV is not compatible with PCM sampling

rates over 48kHz, the player may output 48kHz

downsampled PCM audio even though you set

PCM Downsampling to Off.

Lets you choose to have 96KHz PCM signals

downsampled to 48KHz before they are

outputted to an amplifier. Choose only if your

amplifier or receiver is not compatible with a

Dynamic Range Control

Lets you apply dynamic range control to

Dolby Digital, Dolby Digital Plus, and Dolby

• Auto : Automatically controls the dynamic

range of Dolby TrueHD audio, based

on information in the Dolby TrueHD

Also turns dynamic range control on for

Dolby Digital and Dolby Digital Plus.

Leaves the dynamic range uncompressed,

letting you hear the original sound.

• On : Turns dynamic range control on for

all three Dolby formats. Quieter sounds

are made louder and the volume of loud

Lets you select the multi-channel downmix

method that is compatible with your stereo

system. You can choose to have the player

downmix to normal stereo or to surround

02348D-00-BD-F5700-ZC-ENG.indd 11 2013-11-22 오후 4:43:28Network Settings Please contact your ISP to find out if your IP address is static or dynamic. If it is dynamic - and most are - we recommend using the Auto procedure for network setup. This is easiest and will work in the majority of cases. If it is static, you must use the manual set up procedure.Network setup directions start below. Configuring Your Network

Connection Before you begin, contact your ISP to find out if your IP address is static or dynamic. If it is dynamic, and you have a wired or wireless network, we recommend using the Automatic configuration procedures described below. If you are connecting to a wired network, connect the player to your router using a LAN cable before you start the configuration procedure. If you are connecting to a wireless network, disconnect any wired network connection before you begin. To begin configuring your network connection, follow these steps: Wired Network

Wired - Automatic 1. In the Home screen, select Settings, and then press the v button.2. Select Network, and then press the v

button.3. Select Network Settings, and then press the v button.4. Select Wired in the Network Settings screen, and then press the v button.5. Select Connect button, and then press the

v button. The product detects the wired connection, verifies the network connection and then connects to the network. Ğ

Wired - Manual If you have a static IP address or the Automatic procedure does not work, you'll need to set the Network Settings values manually.Follow Steps 1 and 2 in Wired Network, and then follow these steps:1. Select Network Status. The player searches for a network, and then displays the connection failed message. 2. On the bottom of the screen, select IP Settings, and then press the v button. The IP Settings screen appears.3. Select the IP Setting field, and then press the v button.4. Select Enter manually in the IP Setting field, and then press the v button.5. Select a value to enter (IP Address, for example), and then press the v

button. Use the number keypad on your remote control to enter the numbers for the value. You can also enter numbers using the ▲▼ buttons. Use the ◄► buttons on the remote control to move from entry field to entry field within a value. When done with one value, press the v button.6. Press the ▲ or ▼ button to move to another value, and then enter the numbers for that value following the instructions in Step 5. 7. Repeat Steps 5 and 6 until you have filled in all values.

button. The player verifies the network connection and then connects to the network. Wireless Network You can setup a wireless network connection in four ways: - Wireless Automatic - Wireless Manual - WPS(PBC) - WPS(PIN)When you configure the wireless network connection, any wireless network devices currently connected through the player or, if applicable, the player's current wired connection, will be disconnected. Ğ

Wireless - Automatic 1. In the Home screen, select Settings, and then press the v button.2. Select Network, and then press the v

button.3. Select Network Settings, and then press the v button.4. Select Wireless in the Network Settings screen, and then press the v button. The player searches for and then displays a list of the available networks.5. Select the desired network, and then press the v button.6. On the Security screen, enter your network's Security Code or Pass Phrase. Enter numbers directly using the number buttons on your remote control. Enter letters by selecting a letter with an arrow button, and then pressing v button.

` To view the password as you enter it, use the arrow buttons to select Show Password on the right side, and then press v button.7. When done, select Done and then press the

v button. The player verifies the network connection and then connects to the network.8. When verification is complete, select OK, and then press the v button.

` You should be able to find the Security Code or Pass Phrase on one of the set up screens you used to set up your router or modem. Ğ

Wireless - Manual If you have a static IP address or the Automatic procedure does not work, you'll need to set the Network Settings values manually.1. Follow the directions in Wireless - Automatic through Step 5.Select your network type.Network Type WirelessWireless networkiptime23 setupsetup WPS(PBC) SearchNetwork SettingYou can connect your Blu-ray player to the internet. Please select which wireless network to use. m Move " Select ' Return 12

02348D-00-BD-F5700-ZC-ENG.indd 12 2013-11-22 오후 4:43:282. The player searches for a network,

and then displays the connection failed

3. On the bottom of the screen, select

IP Settings, and then press the

The IP Settings screen appears.

4. Select the IP Setting field, and then

5. Select Enter manually in the IP Setting

field, and then press the

6. Select a value to enter (IP Address, for

Use the number keypad on your remote

control to enter the numbers for the

value. You can also enter numbers using

the ▲▼ buttons. Use the ◄► buttons

on the remote control to move from

entry field to entry field within a value.

When done with one value, press the

7. Press the ▲ or ▼ button to move

to another value, and then enter the

numbers for that value following the

instructions in Step 6.

8. Repeat Steps 6 and 7 until you have

filled in all values.

You can get the Network values from your

9. When finished, select OK, and then

10. On the Security screen, enter your

network's Security Code or Pass

Phrase. Enter numbers directly using the

number buttons on your remote control.

Enter letters by selecting a letter with the

▲▼◄► buttons, and then pressing the

11. When finished, select Done at the right

of the screen, and then press the

The player verifies the network

connection and then connects to the

12. After the player verifies the network,

select OK, and then press the

1. In the Home screen, select Settings,

2. Select Network, and then press the

3. Select Network Settings, and then

4. Select Wireless in the Network Settings

screen, and then press the

5. Press the ▲ button on your remote, and

button on your remote.

The "Press the PBC button" message

7. Press the WPS(PBC) button on your

router within two minutes. Your player

automatically acquires all the network

settings values it needs and connects to

The Network Status screen appears.

The player connects to the network after

the network connection is verified.

Before you begin, open the router's setup

menu on your PC and access the screen with

the WPS PIN entry field.

1. In the Home screen, select Settings,

• Allow (All) : The Internet connection is

allowed for all BD-LIVE contents.

• Allow (Valid Only) : The Internet

connection is allowed only for BD-LIVE

contents containing a valid certificate.

• Prohibit : No Internet connection is allowed

What is a valid certificate?

When the player uses BD-LIVE to send the

disc data and a request to the server to certify

the disc, the server uses the transmitted data

to check if the disc is valid and sends the

certificate back to the player.

The Internet connection may be restricted

while you are using BD-LIVE contents.

Once the player is connected to the network,

you can enjoy various movie-related service

contents using a BD-LIVE compliant disc.

1. Attach a USB memory stick to the

USB jack on the front of the player, and

then check its remaining memory. The

memory device must have at least 1GB

of free space to accommodate the BD-

2. Insert a Blu-ray Disc that supports BD-

3. Select an item from various BD-LIVE

service contents provided by the disc

The way you use BD-LIVE and the provided

contents may differ, depending on the disc

2. Select Network, and then press the

3. Select Network Settings, and then

4. Select Wireless in the Network Settings

screen, and then press the

The player searches for and then

displays a list of the available networks.

5. Select the desired network, and then

7. Enter the PIN into the WPS PIN entry

field in the router's Set Up screen and

then save the the screen.

Contact the manufacturer of the router for

instructions explaining how to access the

route's Set Up screens or refer to the router's

For WPS connection, set your wireless router’s

security encryption to AES. Setting to WEP

security encryption does not support WPS

network connection is working or not.

Use to check whether a connection to a

network and the Internet has been established.

BD-Live Internet Connection

Set to allow or prohibit an Internet connection

when you use the BD-LIVE service.

02348D-00-BD-F5700-ZC-ENG.indd 13 2013-11-22 오후 4:43:28The DLNA Function

DLNA lets you play music, video, and photo

files located in your PC or NAS on the player.

To use DLNA with your player, you must

connect the player to your network.

To use DLNA with your PC, you must install

DLNA software on your PC.

If you have NAS, you can use DLNA without

any additional software.

To download DLNA software

1. Go to Samsung.com

2. Click Support, enter your player’s

product number in the field that

appears, and then click Product.

3. On the next screen, click Get downloads

4. Click Software on the next page.

5. Click the icon in the DLNA line under File

to start the download.

For instructions explaining how to play content

located on your PC, see page 17.

By using the Initial Settings function, you can

set the language, Network Settings, etc.

For more information about the Initial Settings

function, refer to the Initial Settings section of

this user manual (page 9).

You can turn on the power quickly by

decreasing the boot time.

If this function is set to On, Standby power

consumption will be increased.

Anynet+ is a convenient function that offers

linked operations with other Samsung players

that have the Anynet+ feature.

To operate this function, connect this player to

an Anynet+ Samsung TV with an HDMI cable.

With Anynet+ on, you can operate this player

using a Samsung TV remote control and start

disc playback simply by pressing the PLAY

( ) button on the TV’s remote control.

For more information, please see the TV user

does not support CEC.

If your Samsung TV has an Anynet+ logo, then

it supports the Anynet+ function.

Depending on your TV, certain HDMI output

resolutions may not work.

Please refer to the user manual of your TV.

If you have Anynet+ turned on, when you

turn off the product, disconnect, and then

reconnect the power cable, the product turns

on automatically to re-establish the Anynet+

connection. After about 15 seconds, it turns off

again automatically.

Some Samsung TVs, when connected to this

product using the Anynet+ function will, when

you turn them on, display a warning popup

message saying no connection has been

found. Never-the-less, the Anynet+ connection

is properly established and available to use.

Enables you to manage the downloaded

contents you accessed through a Blu-ray disc

that supports the BD-LIVE service and stored

You can check the device’s information

including the storage size, delete the BD data,

or change the Flash memory device.

In the external memory mode, disc playback

may be stopped if you disconnect the USB

device in the middle of playback.

Your player supports the FAT16, FAT32, and

NTFS file systems. We recommend you use

USB devices that support USB 2.0 protocol

with 4 MB/sec or faster read/write speed.

The Resume Play function may not work after

you format the storage device.

The total memory available to BD Data

Management may differ, depending on the

You can select the language you prefer for the

The selected language will only appear if it is

supported on the disc.

When you access this function for the first

time, the PIN screen appears. Enter the

default PIN - 0000 - using the number

buttons. To change the PIN, use the Change

PIN function (page 15). Each time you access

the Security Settings hereafter, you must

the PIN, continue using the default PIN.

Prevents playback of Blu-ray Discs with

specific age ratings unless the 4 digit PIN is

This function works in conjunction with DVDs

that have been assigned an age rating or

numeric rating that indicates the maturity level

of the content. These numbers help you control

the types of DVDs that your family can watch.

Select the rating level you want to set.

For example, if you select Level 6, discs rated

above 6 - Level 7 and 8 - will not play.

A larger number indicates more mature content.

When the DVD Parental Rating function is on,

you must enter the 4 digit PIN to play discs

with restricted rating levels.

02348D-00-BD-F5700-ZC-ENG.indd 14 2013-11-22 오후 4:43:28Change PIN Change the 4-digit password used to access

To change the PIN, follow these steps:

1. Select Change PIN, and then press the

button. The Enter old PIN screen

2. Enter the old PIN. If you never changed

the PIN, enter the default PIN: 0000.

The Enter new PIN screen appears.

3. Enter the new PIN in the Enter new PIN

4. Re-enter the new PIN in the Confirm

new PIN fields. The "PIN is changed

successfully." message appears.

If you forget your password

1. Remove any discs.

2. Press and hold the

front panel for 5 seconds or more.

All settings will revert to the factory settings.

When the factory default settings are restored,

all the user stored BD data will be deleted.

Lets you specify the time zone that is

applicable to your area.

The Software Upgrade menu allows you to

upgrade the player’s software for performance

improvements or additional services.

To upgrade By Online, follow these steps:

1. Select By Online, and then press the

button. The Connecting to Server

2. A popup message will appear if an

update is available.

3. If you select Yes, the player will turn off

automatically before restarting.

(Never turn the player on or off manually

4. The update progress popup will appear.

When the update is completed, the

player will turn off automatically.

5. Press the POWER button to turn on the

The Update is complete when the player turns

off after restarting. Press the POWER button to

turn on the updated player for your use.

Never turn the player off or back on manually

during the update process.

Samsung Electronics takes no legal

responsibility for player malfunction caused by

an unstable Internet connection or consumer

negligence during a software upgrade.

By USB To upgrade by USB, follow these steps:

1. Visit www.samsung.com/bluraysupport.

2. Download the latest USB software

upgrade zip archive to your computer.

3. Unzip the zip archive to your computer.

You should have a single RUF file with

the same name as the zip file.

4. Copy the RUF file to a USB flash drive.

5. Make sure there is no disc in the player,

and then insert the USB flash drive into

the USB port of the player.

6. In the player’s menu, go to Settings >

Support > Software Upgrade.

No disc should be in the product when you

upgrade the software using the USB Host jack.

When the software upgrade is done, check the

software details in the software Upgrade menu.

Do not turn off the player during the software

upgrade. It may cause the player to malfunction.

Software upgrades using the USB Host jack

must be performed with a USB flash memory

Auto Upgrade Notification

If you have connected the player to your

network, and then set Auto Upgrade

Notification on, the player automatically

notifies you when a new software version is

available for the player.

To set Auto Upgrade Notification on, follow

1. Select Auto Upgrade Notification, and

2. Use the ▲▼ buttons to select On, and

If there is a new software version available,

the player notifies you with a popup message.

1. To upgrade the firmware, select Yes

in the Pop-up. The player turns off

automatically, then restarts, and begins

the download. (Never turn the player on

or off manually during an upgrade.)

2. The update progress popup appears.

3. When the update is complete, the player

turns off again automatically.

4. Press the POWER button to turn on the

The update is complete when the player turns

off after restarting. Press the POWER button to

turn on the updated player for your use.

Never turn the player off or on manually during

Samsung Electronics takes no legal

responsibility for player malfunction caused by

an unstable Internet connection or consumer

negligence during software upgrade.

Provides contact information for assistance

Terms of Service Agreement

Lets you view the general disclaimer regarding

third party contents and services.

Returns all settings to their factory defaults

except for the network settings.

02348D-00-BD-F5700-ZC-ENG.indd 15 2013-11-22 오후 4:43:29Media Play

Playing a Commercially Recorded

button to open the disc

2. Place a disc gently into the disc tray

with the disc's label facing up.

button to close the disc

tray. Playback starts automatically.

Playing Files on a USB Device

You can play multimedia files located on a

1. Move to the Home menu.

2. In Stop mode, connect the USB storage

device to the USB port on the front

panel of the player.

The message "Do you want to access

the device?" is displayed.

3. Press the ◄► button to select Yes, and

4. If you have a disc in the Blu-ray player,

press the RED (A) or BLUE (D) button.

If you do not, go to Step 6.

If you pressed the RED (A) button, go to

If you pressed the BLUE (D) button, go

. Press the ◄► buttons to select USB,

7. A screen appears listing the contents

of the device. Depending on how the

contents are arranged, you will see

either folders, individual files, or both.

8. If necessary, use the ▲▼◄►buttons to

select a folder, and then press the

9. Use the ◄►▲▼ buttons to select a file

to view or play, and then press the

Even though the player will display folders for

all content types, it will only display files of the

Content Type you selected in Step 6 or Step

For example, if you selected music, you will

only be able to see music files. You can change

this selection by returning to the Home screen

and following the directions from Step 4.

10. Press the RETURN button one or more

times to exit a current screen, exit a

folder, or to return to the Home screen.

Press the EXIT button to return directly

11. The controls and tools you use to

control and play videos, music, and

pictures located on a USB device are

identical to those you use to play videos,

music, and pictures on a disc.

Go to pages 17~18 for instructions.

You must remove the USB storage device

safely by performing the "Safely Remove USB"

function in order to prevent possible damage

to the USB memory. Press the MENU button to

move to the Home menu, select the YELLOW

(C) button, and then press the

If you insert a disc when playing a USB storage

device, the device mode changes to Blu-ray,

DVD or CD automatically.

Playing a Disc with User Recorded

You can play multimedia files you have

recorded on Blu-ray, DVD, or CD discs.

1. Place a user recorded disc into the

disc tray with the disc’s label facing

up, and then close the tray. The Device

Connected pop-up appears.

2. Use the ◄► buttons to select the type

of content you want to view or play -

Even though the player will display folders for

all content types, it will only display files of

the Content Type you selected in Step 2. For

example, if you selected music, you will only

be able to see music files. You can change this

selection by returning to the Home screen and

3. A screen appears listing the contents

of the disc. Depending on how the

contents are arranged, you will see

either folders, individual files, or both.

4. If necessary, use the ▲▼◄►buttons to

select a folder, and then press the

5. Use the ◄►▲▼ buttons to select a file

to view or play, and then press the

6. Press the RETURN button one or more

times to exit a current screen, exit a

folder, or to return to the Home screen.

Press the EXIT button to return directly

7. Go to pages 17~18 for instructions

that explain how to control playback of

videos, music, and pictures on a disc. No Disc a Change Device

" Enter 123 App1 App2 App3a Settings 16

02348D-00-BD-F5700-ZC-ENG.indd 16 2013-11-22 오후 4:43:29Playing Content Located in Your PC To play content located in your PC on your Blu-ray disc player, you must connect the Blu-ray player to you network. (See pages 12~13.) and install DLNA Software on your PC.

To Play Content From Your PC 1. Go to the Home Menu.2. Press the BLUE (D) button on your remote (Device).3. In the Device screen that appears, select your PC, and then press the v button.4. Use the ◄► buttons to select the type of content you want to view or play - Videos, Photos, or Music - and then press the v button.

` Even though the player will display folders for all content types, it will only display files of the Content Type you selected in Step 4. For example, if you selected music, you will only be able to see music files. You can change this selection by returning to the Home screen and repeating Step 4.5. A screen appears listing the contents on your PC. Depending on how the contents are arranged, you will see either folders, individual files, or both.6. If necessary, use the ▲▼◄►buttons to select a folder, and then press the v button.7. Use the ◄►▲▼ buttons to select a file to view or play, and then press the v button.8. Press the RETURN button one or more times to exit a current screen, exit a folder, or to return to the Home screen. Press the EXIT button to return directly to the Home Screen.9. Go to pages 17~18 for instructions that explain how to control playback of videos, music, and pictures on a PC. Controlling Video Playback You can control the playback of video content located on a Blu-ray disc, DVD, CD, USB device, or you computer. Depending on the media, some of the functions described in this manual may not be available. Buttons on the Remote Control

used for Video Playback

Playback related buttons The player does not play sound in Search, Slow or Step mode.• To return to normal speed playback, press the

button, a new frame appears.Skip Motion Play During playback, press the 1

2 button. Each time you press the 1

2 button, the disc moves to the previous or next chapter or file. 

Using the disc menu, title menu,

popup menu, and title list DISC MENU buttonDuring playback, press this button to start the disc menu function.TITLE MENU buttonDuring playback, press this button to start the title menu function.POPUP MENU buttonDuring playback, press this button to start the popup menu function. Controlling Music Playback You can control the playback of music located on a Blu-ray disc, DVD, CD, USB device, or your computer. Buttons on the Remote Control

used for Music Playback

1 NUMBER buttons (Audio CD (CD-DA) only) :

During Playlist playback, press the desired track number. The selected track is played. 2 Skip : During playback, press the 1

button to move to the previous or next file of the playlist. 3

4 button, the playback speed will change. 5 Pause : Pauses a track. 6

6 button : Plays the currently selected track. SCREENVIEW A-B FULLBONUS REPEATREPEAT

1. During Playlist playback, press the

2. Press the ◄► buttons to select Track,

All, Shuffle, or Off.

Songs are played in the order

in which they were recorded.

) Track The current song is repeated.

) All All songs are repeated.

Shuffle plays songs in random

1. To move to the Music List, press the

The Music List screen appears.

2. Press the ▲▼◄► buttons to move

to a desired track, and then press the

YELLOW (C) button. A check appears

Repeat this procedure to select

3. To remove a track from the list, move to

the track, and then press the YELLOW

The check on the track is cancelled.

The tracks you selected are displayed

on the right side of the screen. The

player plays the first track.

5. To change the play list, press the

RETURN button to return to the Music

List. Repeat Steps 2, 3, and 4.

6. To cancel the play list and return to the

Home screen, press the RETURN or

You can create a playlist with up to 99 tracks

on Audio CDs (CD-DA).

If you remove all the tracks from a play list and

button, the player lists and

plays all the tracks on the disc.

Playing Photo Contents

You can control the playback of photo content

located on a Blu-ray disc, DVD, CD, USB

device, or your computer.

Using the Tools Menu

During playback, press the TOOLS button.

Select to start or stop the slide

Select to set a slide show's speed.

Select to listen to music while

viewing a slide show.

Select to enlarge the current

picture. (Enlarge up to 4 times)

Select to rotate the picture. (This

will rotate the picture either

clockwise or counter clockwise.)

Shows the picture information.

Depending on the disc or storage device, the

Tools menu may differ.

To enable the background music function, the

photo file must be in the same storage media

However, the sound quality can be affected

by the bit rate of the MP3 file, the size of the

photo, and the encoding method.

You can't enlarge the subtitle and PG graphic

in the full screen mode.

" Pause Tools ' Return+ 00:08 / 05:571/6TRACK 00105:57TRACK 00204:27TRACK 00304:07TRACK 00403:41TRACK 00503:17TRACK 00603:35PlaylistTRACK 001 CD ToolsRepeat Mode ? Off \Information < Adjust > Move ' Return

Before requesting service, please try the following solutions.

PROBLEM SOLUTION No operation can be

performed with the remote

• Check the batteries in the remote control. They may need replacing.

• Operate the remote control at a distance of no more than 20 feet from the

• Remove batteries and hold down one or more buttons for several minutes

to drain the microprocessor inside the remote control to reset it. Reinstall

batteries and try to operate the remote control again.

Disc does not play. • Ensure that the disc is installed with the label side facing up.

• Check the region number of the Blu-ray Disc/DVD.

Disc Menu does not appear. • Ensure that the disc has disc menus.

The prohibition message

appears on the screen.

• This message appears when an invalid button is pressed.

• The Blu-ray Disc/DVD’s software doesn’t support the feature (e.g., angles).

You’ve requested a title or chapter number or search time that is out of range.

Play mode differs from the

Setup Menu selection.

• Some of the functions selected in the Setup Menu may not work properly if

the disc is not encoded with the corresponding function.

The screen ratio cannot be

• The Screen Ratio is fixed on your Blu-ray Disc/DVD.

• This is not a problem with the player.

No audio. • Make sure you have selected the correct Digital Output in the Audio Options

The screen is blank. • If the HDMI output is set to a resolution your TV cannot support (for example,

1080p), you may not see a picture on your TV.

button (on front panel) for more than 5 seconds with no disc

inside. All settings will revert to the factory settings.

• When the factory default settings are restored, all stored user BD data is

PROBLEM SOLUTION Forgot password • Press the

button (on front panel) for more than 5 seconds with no disc

inside. All settings including the password will revert to the factory settings.

Don’t use this unless absolutely necessary.

• When the factory default settings are restored, all stored user BD data is

The picture is noisy or

• Make sure that the disc is not dirty or scratched.

No HDMI output. • Check the connection between the TV and the HDMI jack of the player.

• If random noise appears on the screen, it means that TV does not support

HDCP (High-bandwidth Digital Content Protection).

If you experience other

• Go to the contents and find the section of the user manual that contains the

explanations regarding the current problem, and follow the procedure once

• If the problem still cannot be solved, please contact your nearest Samsung

authorized service center.

I can see folders shared

through DLNA, but I cannot

• DLNAs shows only files corresponding to the Image, Music, and Movie

categories. Files that do not correspond to these categories are not displayed.

Video is played intermittently. • Check if the network is stable.

• Check if the network cable is properly connected and if the network is

DLNA connection between

Player and PC is unstable.

• The IP address under the same subnetwork should be unique. If they are not,

IP interference can cause this phenomenon.

• Check if you have a firewall enabled.

If so, disable the firewall function.

02348D-00-BD-F5700-ZC-ENG.indd 19 2013-11-22 오후 4:43:30PROBLEM SOLUTION BD-LIVE I cannot connect to the BD-

• Check whether the network connection is working or not by using the

Network Status menu.

• Check whether the USB memory device is connected to the player.

• The memory device must have at least 1GB of free space to accommodate

the BD-LIVE service.

You can check the available size in BD Data Management.

• Check whether the BD-LIVE Internet Connection menu is set to Allow(All).

• If all above fails, contact the contents provider or update the player to the

When using the BD-LIVE

service, an error occurs.

• The memory device must have at least 1GB of free space to accommodate

the BD-LIVE service.

You can check the available size in BD Data Management.

When the factory default settings are restored, all stored user BD data is deleted.

If you contact us to repair your player, an administration fee may be charged if either:

1. An engineer is called out to your home at your request and there is no defect in the

2. You bring the unit to a repair center and there is no defect in the product.

We will provide you with the amount of the administration fee before we make a home visit or

begin any work on your player.

We recommend you read this manually thoroughly, search for a solution on line at www.

samsung.com, or contact Samsung Customer Care before seeking to repair your player.

Operating Temperature Range +41°F to +95°F Operating Humidity Range 10 % to 75 %

Wireless LAN Bulit-in

- Network speeds equal to or below 10Mbps are not supported.

- Design and specifications are subject to change without prior notice.

- For the power supply and power consumption, refer to the label attached to the player.

- Weight and dimensions are approximate.

02348D-00-BD-F5700-ZC-ENG.indd 20 2013-11-22 오후 4:43:30Compliance and Compatibility Notice

NOT ALL discs are compatible

• Subject to the restrictions described below and those noted throughout this Manual,

including the Disc Type and Characteristics section of this user manual, disc types that can

be played are: pre-recorded commercial BD-ROM, DVD-VIDEO, and Audio CD (CD-DA)

discs; BD-RE/-R, DVD-RW/-R discs; and CD-RW/-R discs.

• Discs other than those listed above cannot be and are not intended to be played by this

player. Some of the discs listed above may not play due to one or more reasons provided

• Samsung cannot assure that this player will play every disc bearing the BD-ROM, BD-RE/-R,

DVD-VIDEO, DVD-RW/-R, DVD+RW/+R and CD-RW/-R logos, and this player may not

respond to all operating commands or operate all features of every disc. These and other

disc compatibility and player operation issues with new and existing format discs are

- Blu-ray is a new and evolving format and this player may not operate all features of Blu-

ray Discs because some features may be optional, additional features may have been

added to the Blu-ray Disc format after the production of this player, and certain available

features may be subject to delayed availability;

- not all new and existing disc format versions are supported by this player;

- new and existing disc formats may be revised, changed, updated, improved and/or

- some discs are produced in a manner that allows specific or limited operation or restricts

features during playback;

- some discs bearing the BD-ROM, BD-RE/-R, DVD-VIDEO, DVD-RW/-R, DVD+RW/+R

and CD-RW/-R logos may still be non-standardized discs;

- some discs may not be played depending on their physical state or recording conditions;

- problems and errors can occur during the creation of Blu-ray Disc or DVD software and/or

the manufacture of discs;

- this player operates differently than a standard DVD player or other AV equipment; and/or

- for reasons noted throughout this user manual and for other reason(s) discovered and

posted by SAMSUNG customer care center.

• If you encounter disc compatibility or player operation problems, please contact SAMSUNG

customer care center.

You may also contact SAMSUNG customer care center for possible updates on this player.

• For additional information on playback restrictions and disc compatibility, refer to the

Precautions, Before Reading the user manual, Disc Types and Characteristics, and Before

Playing sections of this user manual.

• For Blu-ray Disc Player progressive scan output : CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS

product AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS product, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.

• Because AACS (Advanced Access Content System) is approved as the content protection

system for the Blu-ray Disc format, similar to use of CSS (Content Scramble System) for

the DVD format, certain restrictions are imposed on playback, analog signal output, etc., of

AACS protected contents.

The operation of this product and restrictions on this product may vary depending on your

time of purchase as those restrictions may be adopted and/or changed by AACS after the

production of this product. Furthermore, BD-ROM Mark and BD+ are additionally used as

content protection systems for the Blu-ray Disc format, which imposes certain restrictions

including playback restrictions for BD-ROM Mark and/or BD+ protected contents. To obtain

additional information on AACS, BD-ROM Mark, BD+, or this product, please contact

SAMSUNG customer care center.

• Many Blu-ray Disc/DVDs are encoded with copy protection. Because of this, you should

only connect your Player directly to your TV, not to a VCR. Connecting to a VCR results in a

distorted picture from copy-protected Blu-ray Disc/DVDs.

• Under the U.S. Copyright laws and Copyright laws of other countries, unauthorized

recording, use, display, distribution, or revision of television programs, videotapes, Blu-ray

Discs, DVDs, and other materials may subject you to civil and/or criminal liability.

• Cinavia Notice : This product uses Cinavia technology to limit the use of unauthorized

copies of some commercially-produced film and videos and their soundtracks. When

a prohibitet use of an unauthorized copy is detected, a message will be displayed and

playback or copying will be interrupted. More information about Cinavia technology is

provided at the Cinavia Online Consumer Information Center at http://www.cinavia.com.

To request additional information about Cinavia by email, send a postcard with your mailing

address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego CA, 92138,

This product incorporates proprietary technology under licence from Verance Corporation

and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide patens issued

and pending as well as copyright and trade secret protection for certain aspects of such

technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2010 Verance

Corporation. All right reserved by Verance. Reverse engineering or disassembly is prohibited.

02348D-00-BD-F5700-ZC-ENG.indd 21 2013-11-22 오후 4:43:30Network Service disclaimer

All content and services accessible through this device belong to third parties and are

protected by copyright, patent, trademark and/or other intellectual property laws. Such

content and services are provided solely for your personal noncommercial use. You may not

use any content or services in a manner that has not been authorized by the content owner or

service provider. Without limiting the foregoing, unless expressly authorized by the applicable

content owner or service provider, you may not modify, copy, republish, upload, post, transmit,

translate, sell, create derivative works, exploit, or distribute in any manner or medium any

content or services displayed through this device.

THIRD PARTY CONTENT AND SERVICES ARE PROVIDED "AS IS." SAMSUNG DOES NOT WARRANT CONTENT OR SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIEDLY,

FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES,

ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES ARISING OUT OF, OR IN CONNECTION WITH, ANY INFORMATION CONTAINED IN, OR AS A RESULT OF THE USE OF ANY CONTENT OR SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Third party services may be terminated or interrupted at any time, and Samsung makes no

representation or warranty that any content or service will remain available for any period

of time. Content and services are transmitted by third parties by means of networks and

transmission facilities over which Samsung has no control. Without limiting the generality of

this disclaimer, Samsung expressly disclaims any responsibility or liability for any interruption or

suspension of any content or service made available through this device.

Samsung is neither responsible nor liable for customer service related to the content and

services. Any question or request for service relating to the content or services should be made

directly to the respective content and service providers.

• Manufactured under license from Dolby Laboratories. Dolby and the

double-D symbol are trademarks of Dolby Laboratories.

• Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380;

6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the

Symbol & DTS and the Symbol together are registered trademarks & DTS

2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights

• The terms HDMI and HDMI High-Definition Multimedia Interface, and

the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Oracle and Java are registered trademarks of Oracle and/or its affiliates.

Other names may be trademarks of their respective owners

• Open Source License Notice

- In the case of using open source software, Open Source Licenses are available on the

• Blu-ray Disc™, Blu-ray™ and the logos are trademarks of the Blu-ray Disc Association.

• DLNA®, the DLNA Logo and DLNA CERTIFIED® are trademarks,

service marks, or certification marks of the Digital Living Network

02348D-00-BD-F5700-ZC-ENG.indd 22 2013-11-22 오후 4:43:31LIMITED WARRANTY TO ORIGINAL PURCHASER Samsung Electronics Canada Inc.(SECA), warrants that this product is free from defective material and workmanship.

SECA further warrants that if this product falls to operate properly within the specified warranty period and the failure is due to improper workmanship or

defective materials, SECA will repair or replace the product at its option.

All warranty repairs must be performed by a SECA Authorized Service Center. (The name and address of the location nearest you can be obtained by

calling toll free: 1- 800- SAMSUNG)

On carry-in models, transportation to and from the service center is the customer's responsibility.

The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to the authorized

service center at the time service is requested.

This warranty does not cover damage due to accident, fire, flood and/ or other acts of God; misuse, incorrect line voltage, improper installation, improper

or unauthorized repairs, commercial use or damage that occurs in shipping. Exterior and interior finish, lamps, glass are not covered under this warranty.

Customer adjustments which are explained in the instruction manual are not covered under the terms of this warranty. This warranty will automatically be

voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada.

HEAdQUARTERS SAMSUNG ELECTRONICS CANADA INC.,

Contact SAmSUNG WORLd WIdE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

services additionnels.

To upgrade By Online, follow these steps:
