VDL1200SM2 smoke machine - Knife HQ Power - Free user manual and instructions

Product type	Fog machine
Brand	HQ Power
Model	VDL1200SM2
Dimensions	455 x 290 x 265 mm
Weight	5.5 kg
Power supply	230 V AC / 50 Hz
Power consumption	1200 W
Tank capacity	1.2 L
Warm-up time	Approximately 6 minutes
Smoke output	Approximately 450 m³/min
Compatible liquid types	Standard (VDLSL5), high density (VDLSLH5), high density 'pro' (VDLSLHT5), cleaning liquid (VDLCL)
Remote control	Yes, with cable
Protection class	I (earth connection required)
Intended use	Indoor, professional use (discos, theatres)
Maintenance and cleaning	Wipe with a damp, lint-free cloth; do not use alcohol or solvents
Spare parts and repairability	No user-serviceable parts; contact the dealer
Warranty	24 months for private use, 6 months for professional use
Safety	Do not use if damaged; unplug before cleaning; avoid water splashes
Optional accessories	Safety cable VDLSC8

Frequently Asked Questions - VDL1200SM2 smoke machine HQ Power

What type of liquid should I use with the VDL1200SM2 fog machine?

Use a suitable fog liquid: standard (ref. VDLSL5), high density (VDLSLH5) or high density 'pro' (VDLSLHT5). A cleaning liquid (VDLCL) is also available.

How to connect and start the machine?

Set the switch to OFF, fill the tank with the appropriate liquid, plug the power cord into a mains socket, then turn the unit ON. The green LED on the remote control lights up. Press the remote control button to produce smoke.

What to do if the tank runs empty while in use?

Immediately turn off the unit using the rear switch and let it cool down. Never run the machine dry. Regularly check the liquid level via the rear indicator.

How to clean the fog machine?

Unplug the unit before cleaning. Wipe the exterior with a damp, lint-free cloth. Do not use alcohol or solvents. No internal parts are user-serviceable.

Can the machine be used continuously?

No, a fog machine is not designed for continuous operation. Regular breaks extend its lifespan.

What are the important safety precautions?

The unit is Class I: it must be earthed. Do not use outdoors, avoid humidity and water splashes. Do not touch the housing during operation as it gets hot. Unplug when not in use.

What is the warranty for the VDL1200SM2 machine?

For private customers, the warranty is 24 months from the date of purchase. For professional use, it is reduced to 6 months. Specific conditions apply, please refer to the manual.

Is the machine supplied with a remote control?

Yes, a wired remote control is supplied. It allows triggering smoke emission. The green LED lights up when the unit is powered on.

How to install and secure the machine?

Installation must be carried out by a qualified technician. Use a safety cable (e.g. VDLSC8) to secure the unit. Ensure the supporting structure can bear 10 times the weight of the unit for one hour.

What to do in case of problem or breakdown?

First consult the user manual. If the problem persists, contact your dealer. Do not attempt to repair the unit yourself as it contains no user-serviceable parts.

USER MANUAL VDL1200SM2 smoke machine HQ Power

Exterior view of a FOG machine with black and white casing, emitting air from a mounted device (no visible text or symbols on the device itself)

USER MANUAL 2

GEBRUI KERSHAN [LEIDING] 5

NOTICE D'EMPLOI 8

MANUAL DEL USUARIO 11

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing HQPower™! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

	Be very careful during the installation: touching live wires can cause life-threatening electrosh ocks.
	Do not touch the device during operation as the housing heats up.
	Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids.
	Always disconnect mains power when device not in use or when servicing or maintenance activities are performed. Handle the power cord by the plug only.

• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
  • A qualified technician should install and service this device.
• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature.
• This device falls under protection class I. It is therefore essential that the device be earthed. Have a qualified person carry out the electric connection.
• Make sure that the available voltage does not exceed the voltage stated in the specifications of this manual.
• Do not crimp the power cord and protect it against damage. Have an authorised dealer replace it if necessary.
  • Note that damage caused by user modifications to the device is not covered by the warranty.
  • Mechanical wear is not covered by warranty.
• Keep the device away from children and unauthorised users.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

- This device is designed for professional use on stage, in discos, theatres, etc. The VDL1200SM2 should only be used indoors with an alternating current of max. 230 VAC/50 Hz.

- Fog machine are not designed for permanent operation: regular operation breaks will prolong their lives.

- Do not shake the device. Avoid brute force when installing or operating the device.

- Select a location where the device is protected against extreme heat, dust and moisture.

- Use an appropriate safety cable to fix the device (e.g. VDLSC8).

- Familiarise yourself with the functions of the device before actually using it. Do not allow operat on by unqualified people. Any damage that may occur will most probably be due to unprofessional use of the device.

VDL1200SM2

• Use the original packaging if the device is to be transported.
• All modifications of the device are forbidden for safety reasons.
- Only use the device for its intended purpose. All other uses may lead to short circuits, burns, electroshocks, crash, etc. Using the device in an unauthorised way will void the warranty.

4. Overview

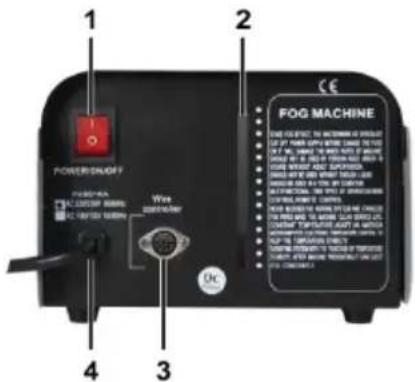

POWER SHAFY Wire FOG MACHINE 1 2 3 4 5 CE 1 2 3 4 5

1 ON/OFF button

2 liquid level gauge

3 wire controller connecto r

4 power cord

5. Mounting the Device

• Have the device installed by a qualified person, respecting EN 60598-2-17 and all other applicable norms.
• The carrying construction must be able to support 10 times the weight of the device for 1 hour without deforming.
• The installation must always be secured with a secondary attachment e.g. a safety cable.
• Never stand directly below the device when it is being mounted, removed or serviced. Have a qualified technician check the device once a year and once before you bring it into service.
  • Install the device in a location with few passers-by that is inaccessible to unauthorised persons.
• Overhead mounting requires extensive experience: calculating workload limits, determining the installation material to be used... Have the material and the device itself checked regularly. Do not attempt to install the device yourself if you lack these qualifications as improper installation may result in injuries.
• Adjust the desired inclination angle via the mounting bracket and tighten the bracket screws.
  • Make sure there is no flammable material within a 0.5 m radius of the device.
  • Have a qualified electrician carry out the electric connection.
• Connect the device to the mains with the power plug. Do not connect it to a dimming pack.
• The installation has to be approved by an expert before the device is taken into service.

6. Use

Warning: Make sure that the tank never runs empty during operation. If it does run empty, immediately switch off the fog machine via the power switch and allow it to cool down. You can check the liquid level on the back of the device (see Overview above).

1. Make sure the power switch is set to OFF.
2. Use the appropriate liquid (see Technical Specifications) to add in the tank on top of the unit.
3. Insert the power cable into the mentioned power supply.
4. Set the power switch on the backside of the device to ON. The device starts operating.
5. The green LED on the controller will light up.
6. Push the red button on the controller and the device will start spurting smoke.
7. Set the power switch to OFF to stop the device.

Black electronic device with a red button and cable (no visible text or symbols)

7. Cleaning and maintenance

• All screws should be tightened and free of corrosion.
• The housing, visible parts, mounting supports and the installation location (e.g. ceiling, suspension, trussing) should not be deformed, modified or tampered with e.g. do not drill extra holes in mounting supports, do not change the location of the connections.
• Moving mechanic parts must not show any signs of wear and tear.
• The electric power supply cables must not show any damage. Have a qualified technician maintain the device.
• Disconnect the device from the mains prior to maintenance activities.
• Wipe the device regularly with a moist, lint-free cloth. Do not use alcohol or solvents.
• There are no user-serviceable parts.
• Contact your dealer for spare parts if necessary.

8. Technical Specifications

power supply 230VAC/50Hz
power consumption 1200W
output ± 450m3 / min.
tank capacity 1.2l
warm-up time ± 6 minutes
dimensions 455 x 290 x 265mm
weight	5.5kg
liquids (optional) standard sm	smoke liquid VDLSL5 (5l)
	high-density smoke liquid VDLSLH5 (5l)
	pro high-density smoke liquid VDLSLHT5 (5l)
	cleaning liquid VDLCL

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulted from (incorrect) use of this device.

For more info concerning this product and the latest version of this manual, please visit our website www.hqpower.eu.

The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved.

No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUI KERSHANDLEIDING

1. Inleiding

1 POWER/SN/OFF 1 2 FOG MACHINE 3 4 Wire CONTAINER CC CE FOG MACHINE FOR FOG STRUCTURE THE ARCHITECTS OF SPECIAL CUT OF POWER SMOYA WITH BEANS TO USE OF WE ARE THE WIRE WITH AVE OF CAN WITH THE WIRE OF PAPER AND COAST FOR WE WITHOUT AVE. CONTAINER WE NEED TO SEE WRITTEN CABBAGE WE ARE FOR 100% WIRE WITH CAN WE ARE FOR 100% WIRE WITH CAN WE ARE FOR 100% WIRE WITH CAN WE ARE FOR 100% WIRE WITH CAN WE ARE FOR 100% WIRE WITH CAN WE ARE FOR 100% WIRE WITH CAN WE ARE FOR 100% WIRE WITH CAN WE ARE FOR 100% WIRE WITH CAN WE ARE FOR 100% WE ARE FOR 100% WIRE WITH CAN WE ARE FOR 100% WIRE WITH CAN WE ARE FOR 100% WIRE WITH CAN WE ARE FOR 100% WIRE WITH CAN WE ARE FOR 100% WIRE WITH CAN

Black electronic device with a red button and cable (no visible text or symbols)

Black electronic device with a red button on its side (no visible text or symbols)

POWER/DIFF 1 2 FOG MACHINE ONE FEET EFFECT TO MAXIMUM OF PRAVANT CAUT FING CAPS WITH CHARGE 100% OF NO. SHAKING THE WIND OUT OF CHARGE SHAKING WITH FLAIR ON/OAC SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/CCOMOLED BY: POWER DENTLE ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OOCOMOLED BY: POWER DENTLE ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/CCOMOLED BY: POWER DENTS ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAC SWITCH WITH AIR SWITCH ON/OAIC SWITCH WITH AIR SWITCH ON/OAIC SWITCH WITH AIR SWITCH ON/OAIC SWITCH WITH AIR SWITCH ON/OAIC SWITCH WITH AIR SWITCH ON/OAIC SWITCH WITH AIR SWITCH ON/OAIC SWITCH WITH AIR SWITCH ON/OAIC SWITCH WITH AIR SWITCH ON/OAIC SWITCH WITH AIR SWITCH ON/OAIC SWITCH WITH AIR SWITCH ON/OAIC SWITCH WITH AIR SWITCH ON/OAIC SWITCH WITH AIR SWITCH

Black electronic device with a red button and cable (no visible text or symbols)

POWER/DIFF 1 2 FOG MACHINE Wire CONTAINMENT 4 3 CE FANG CO/THE, THE MACHINE AT PRAVANT CUT 2/1 FLOWER CAPS WITH MEANS 1000 OF NO. SHAKING THE NAME OF CHAPES 8 SHAKING IS BIG OF PRAVANT 500 N. VEGET WMKING ASCE SPACING ON SHAKING IS BIG OF PRAVANT 500 N. WHOLE OR BIG 6 IN ONE BIG CNT MOZZARES, THE NAME OF CHAPES 8 ON PEAS MOUNTING CONTENTS, AUTO SWITCHING MACHINE WITH MEANS 1000 THE PRIME AND THE MACHINE SLICE WITH LIME CONTACT TYPICALS SCIENT AT IN MOUNT MOZZARES, THE MACHINE WITH MEANS 1000 COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING TYPICALS SCIENT AT IN MOUNT COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS COOLING ITEMS

Black electronic device with a red button on top, no visible text or symbols

VDL1200SM2
