USER MANUAL KDN74AW20N BOSCH

KDN74..en Table of contents

Safety and warning information 5

Directions for disposal 7

Scope of delivery 7

Installing the appliance 8

Connecting the appliance 9

Attaching handles 9

Getting to know the appliance 10

Switching on the appliance 11

Setting the temperature 11

Supercool function 12

Utilisable volume 13

Cooling compartment 13

Freezer compartment 14

Max. freezing capacity 14

Freezing and storing 14

Freezing fresh food 14

Defrosting frozen food 15

Ice and water dispenser 16

Switching the appliance off and

placing it out of operation 17

Cleaning the appliance 17

Operating noises 19

Rectifying minor faults yourself 20

After-sales service 23

fr Table des matières

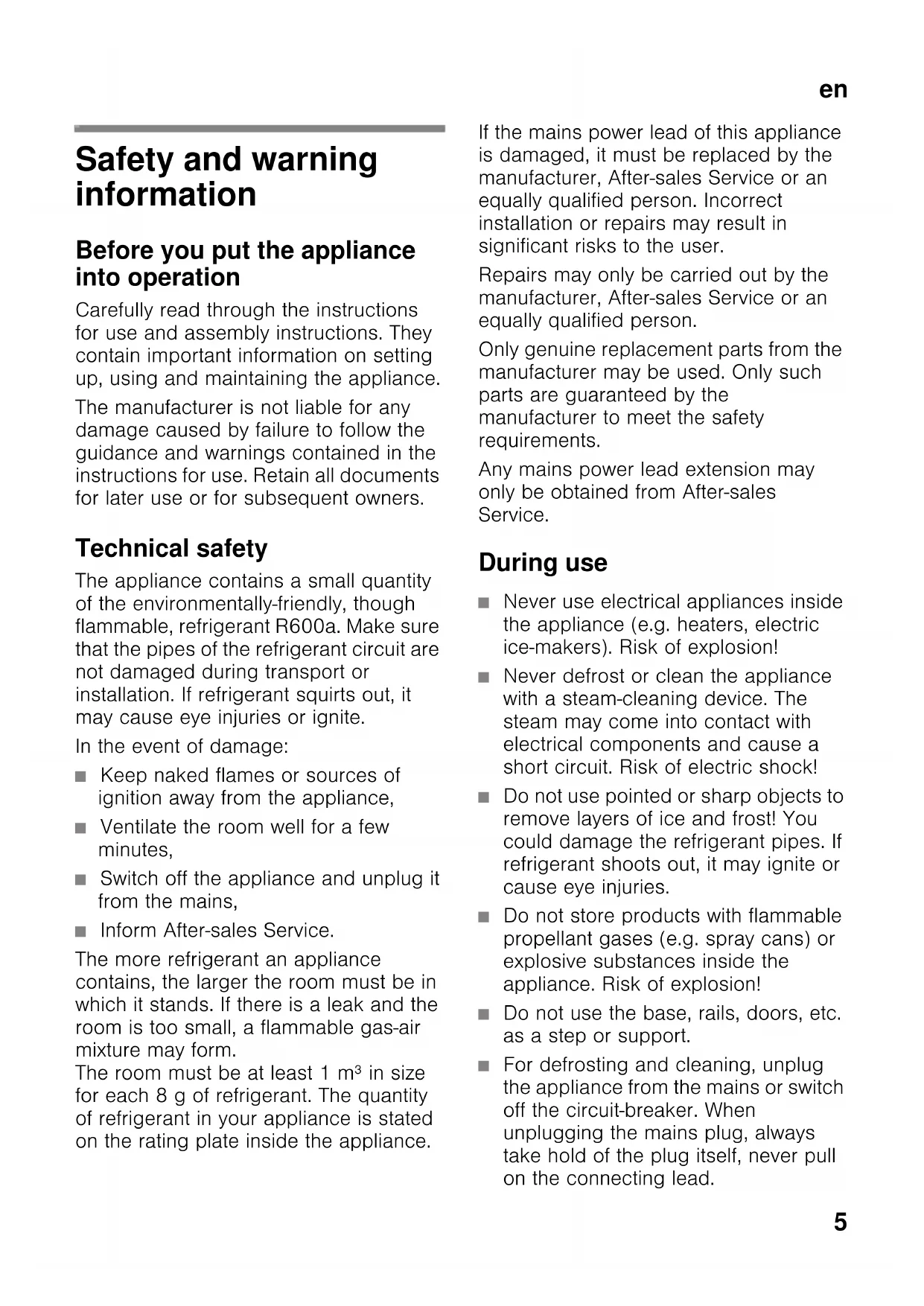

enInstructions for use

Before you put the appliance

Carefully read through the instructions

for use and assembly instructions. They

contain important information on setting

up, using and maintaining the appliance.

The manufacturer is not liable for any

damage caused by failure to follow the

guidance and warnings contained in the

instructions for use. Retain all documents

for later use or for subsequent owners.

The appliance contains a small quantity

of the environmentally-friendly, though

flammable, refrigerant R600a. Make sure

that the pipes of the refrigerant circuit are

not damaged during transport or

installation. If refrigerant squirts out, it

may cause eye injuries or ignite.

In the event of damage:

■ Keep naked flames or sources of

ignition away from the appliance,

■ Ventilate the room well for a few

■ Switch off the appliance and unplug it

■ Inform After-sales Service.

The more refrigerant an appliance

contains, the larger the room must be in

which it stands. If there is a leak and the

room is too small, a flammable gas-air

The room must be at least 1 m³ in size

for each 8 g of refrigerant. The quantity

of refrigerant in your appliance is stated

on the rating plate inside the appliance.

If the mains power lead of this appliance

is damaged, it must be replaced by the

manufacturer, After-sales Service or an

equally qualified person. Incorrect

installation or repairs may result in

significant risks to the user.

Repairs may only be carried out by the

manufacturer, After-sales Service or an

equally qualified person.

Only genuine replacement parts from the

manufacturer may be used. Only such

parts are guaranteed by the

manufacturer to meet the safety

Any mains power lead extension may

only be obtained from After-sales

■ Never use electrical appliances inside

the appliance (e.g. heaters, electric

ice-makers). Risk of explosion!

■ Never defrost or clean the appliance

with a steam-cleaning device. The

steam may come into contact with

electrical components and cause a

short circuit. Risk of electric shock!

■ Do not use pointed or sharp objects to

remove layers of ice and frost! You

could damage the refrigerant pipes. If

refrigerant shoots out, it may ignite or

■ Do not store products with flammable

propellant gases (e.g. spray cans) or

explosive substances inside the

appliance. Risk of explosion!

■ Do not use the base, rails, doors, etc.

as a step or support.

■ For defrosting and cleaning, unplug

the appliance from the mains or switch

off the circuit-breaker. When

unplugging the mains plug, always

take hold of the plug itself, never pull

on the connecting lead.en

■ High-proof alcohol must always be

tightly sealed and stored in an upright

■ Do not contaminate plastic parts or

door seals with oil or grease. Plastic

parts and door seals will otherwise

■ Never cover or block ventilation

openings for the appliance.

■ This appliance may only be used by

persons (including children) with

impaired physical, sensory, or mental

abilities or insufficient knowledge of

the appliance if they are supervised by

a person responsible for their safety or

have been instructed by such a

person on how to use the appliance.

■ Do not store liquids in bottles or tins in

the freezer compartment (in particular

carbonated drinks). Bottles and tins

■ Never eat frozen foods immediately

after they have been taken out of the

freezer compartment.

Risk of freezer burn!

■ Avoid prolonged hand contact with

frozen foods, ice, and the evaporator

Risk of freezer burn!

Avoiding risks to children and

other at-risk persons

Persons at risk are:

■ Persons whose powers of perception

are physically or psychologically

■ Persons who do not have sufficient

knowledge about how to use the

■ Make sure that children and other at-

risk persons have understood the

■ A person responsible for safety must

supervise or instruct children and

other at-risk persons when they are

using the appliance.

■ Do not allow children under 8 years

old to use the appliance.

■ Supervise children when cleaning and

■ Never let children play with the

General requirements

The appliance is suitable for the following

■ chilling and freezing food,

■ dispensing drinking water.

This appliance is intended for use up to a

maximum height of 2000 metres above

This appliance is intended for domestic

use in private households and for a

domestic environment.

The appliance is fitted with interference

suppression in accordance with EU Directive 2004/108/EC.

The refrigeration circuit has been

checked for leak tightness.

This product complies with the

applicable safety requirements for

electrical appliances

Directions for disposal

* Disposing of packaging

The packaging protects your appliance

from damage during transport. All the

materials used are environmentally

friendly and can be recycled. Please help

by disposing of the packaging in an

environmentally-responsible manner.

You can obtain information about current

disposal methods from your specialist

dealer or local council.

* Disposing of your old

Old appliances are not useless waste.

Valuable raw materials can be recovered

through environmentally responsible

For worn-out appliances:

1. Unplug the mains plug.

2. Cut the power cord and remove it

along with the mains plug.

3. Do not remove the shelves and

containers. Leaving them intact makes

it more difficult for children to climb in.

4. Never let children play with a disused

appliance. Risk of asphyxiation!

Refrigerators contain refrigerant as well

as gases in the insulation material.

Refrigerant and gases must be disposed

of properly. Do not damage the

refrigerant circuit pipes before disposing

After unpacking the appliance, check all

parts for transport damage.

If you wish to make a complaint, please

contact the dealer from whom you

purchased the appliance or our after-

The scope of delivery includes the

following parts: ■ Free-standing appliance■ Features (vary depending on the model) ■ Instructions for use and assembly instructions ■ After-sales service booklet■ Guarantee slip■ Information on energy consumption and noises ■ Bag of assembly materials This appliance is marked in

accordance with European

directive 2012/19/EU regarding

old electric and electronic

appliances (waste electrical and

electronic equipment - WEEE).

The directive provides a

framework for the collection and

recycling of old appliances, which

is valid across the EU.

Installing the appliance

The ideal installation location is a dry,

well-ventilated room. The installation

location should not be subject to direct

sunlight or near a heat source, such as a

cooker, heating element, etc. If setting up

the appliance next to a heat source is

unavoidable, use a suitable insulating

plate or observe the following minimum

distances from the heat source:

■ 3 cm from an electric or gas cooker.

■ 30 cm from oil or solid fuel cookers.

Appliances with fixed handles require a

distance of at least 55 mm from the wall

on the hinged side so that the door can

Note the room temperature and

The appliance is designed for a certain

climate class. Depending on the climate

class, the appliance can be operated at

the following ambient temperatures.

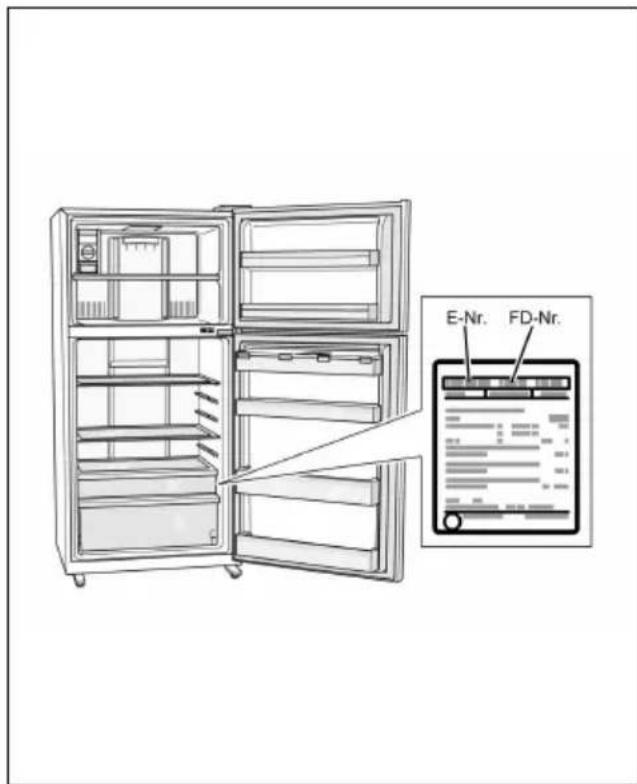

The climate class is specified on the

rating plate. Figure ,

The appliance can function within the

ambient temperature limits of the

specified climate class. If an appliance in

the SN climate class is operated at lower

ambient temperatures, damage to the

appliance can be excluded up to a

temperature of +5 °C.

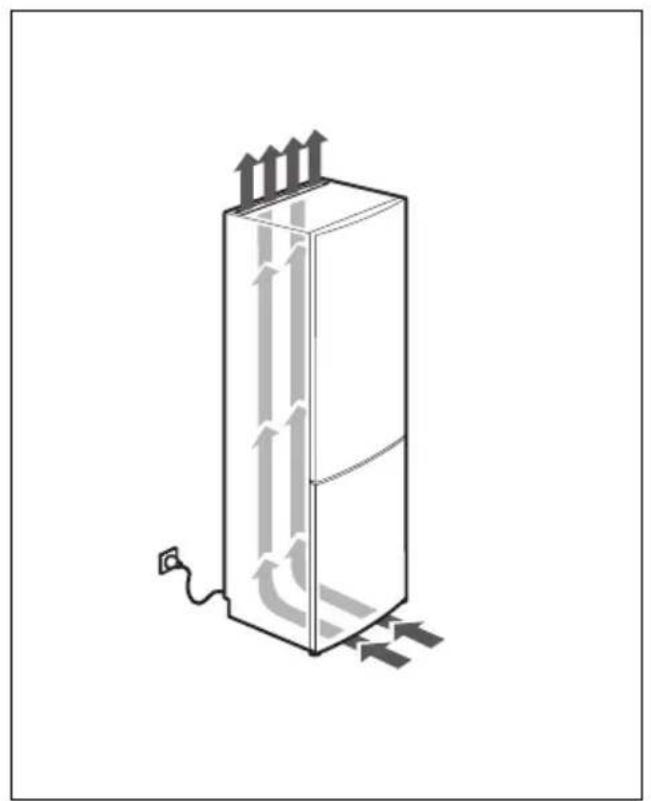

The air on the appliance's back panel

and side panels heats up. The heated air

must be able to escape unimpeded.

Otherwise, the refrigerating unit has to

work harder, which increases the

appliance's power consumption.

Therefore: You must never cover or

block the ventilation openings!

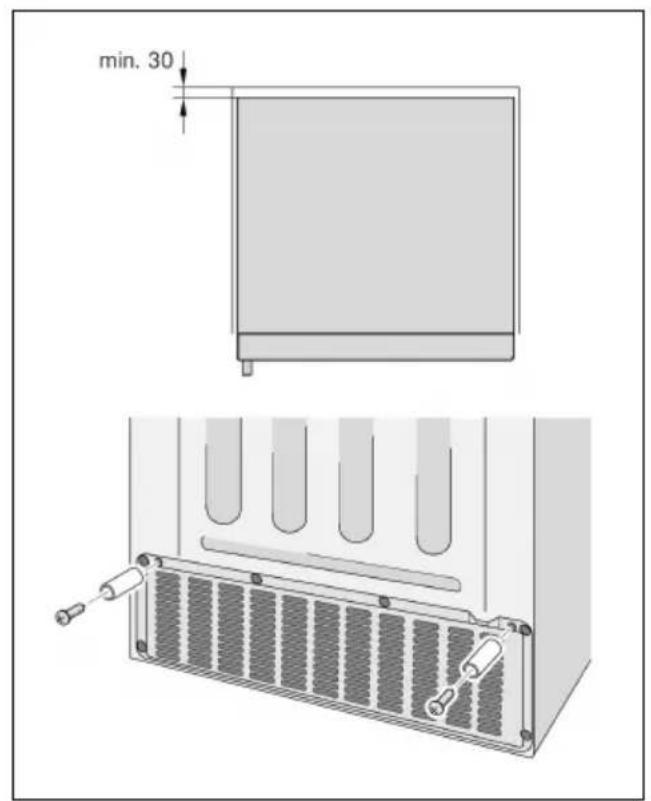

The minimum distance to all sides must

Use the screws to attach the spacers

provided to the relevant openings at the

rear of the appliance. This will maintain

the minimum distance from the wall, thus

providing adequate ventilation.

If the appliance is standing at an angle,

this may mean that the doors do not

Levelling the appliance

To ensure that it functions properly, the

appliance must be set level using a spirit

If the appliance is standing at an angle,

this may mean that the doors do not

Climate class Permissible ambient

SN +10 °C to 32 °C N +16 °C to 32 °C ST +16 °C to 38 °C T +16 °C to 43 °Cen

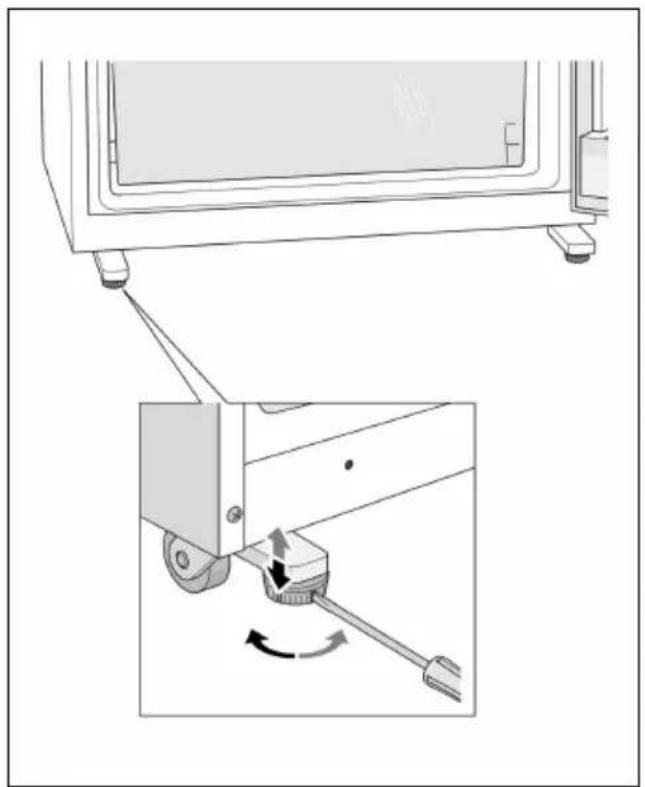

1. Position the appliance in the intended

2. Screw the front feet out until they

stand firmly on the ground and align

the appliance at the front.

3. Use a spirit level to check that the

appliance is horizontal.

The front feet must stand firmly on the

ground so that the appliance does not

After setting up the appliance, wait for at

least one hour before starting the

appliance up. The oil contained in the

compressor may have been displaced

into the refrigeration system during

Before starting the appliance up for the

first time, clean its interior (see section

“Cleaning the appliance”).

Electrical connection

The socket must be near to the

appliance and easily accessible after the

appliance has been installed.

The appliance conforms to protection

class I. Connect the appliance to a

220-240 V/50 Hz alternating current

supply using a socket with protective

earthing conductor which has been

correctly installed. The socket must be

protected by a fuse with a rating of 10 A

In the case of appliances operated

outside of Europe, check whether the

voltage and type of current specified

conform to the values of your electricity

grid. You will find this information on the

rating plate. Figure ,

The appliance must never be connected

up to an electronic energy-saving socket.

Sinusoidal-commutated and line-

commutated inverters can be used with

our appliances. Line-commutated

inverters are used with photovoltaic

systems that are connected directly to

the national grid. Sinusoidal-

communicated inverters must be used

with standalone applications (e.g. on

ships or mountain huts) that do not have

a direct connection to the national grid.

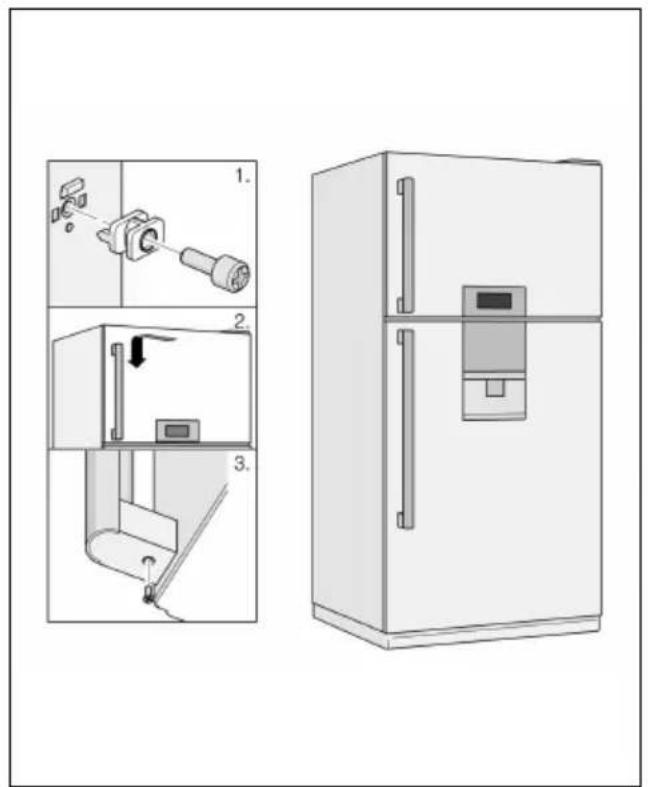

Only attach the handles once the

appliance has been positioned in its

installation location and has been

aligned so that it is level.

1. Push the holders into the guides.

2. Position and tighten the screws.

3. Push the handles onto the holders and

slide them downwards. The "Top"

sticker must be facing upwards.

4. Position and tighten the screw.en

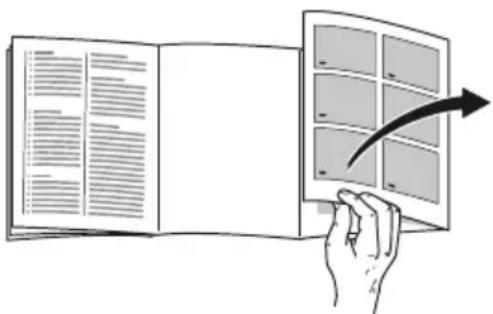

Fold out the last page that contains the

figures. These instructions for use apply

The features of the models may vary.

Deviations between the figures are

3 Shelf in the freezer compartment

8 Shelves in the cooling

9 Stay-fresh compartment

10 Fruit and vegetable container with

13 Door shelf for eggs, tubes and

14 Door shelf for large bottles

1 "freezer/super" button

■ For setting the temperature in

the freezer compartment

■ For switching the ”superfreeze”

function on and off.

For switching the button lock on

For switching off the warning tone

4 "fridge/super" button

■ For adjusting the temperature

in the fridge compartment

■ For switching the “supercool”

function on and off.

5 Fridge compartment

Displays the set temperature for

the fridge compartment.

The “supercool” function is

The alarm function is active.

The button lock is switched on.

7 Freezer compartment

Displays the set temperature for

the freezer compartment.

The alarm function is active.en

The appliance starts to cool after it is

connected to the power supply. The

lighting is switched on when the door is

An acoustic warning tone sounds. The

"alarm" button can be used to switch off

the audible warning signal.

The factory has recommended and set

the following temperatures:

■ Fridge compartment: +4 °C

■ Freezer compartment: -18 °C.

Notes on using the appliance

■ After switching on the appliance, it

may be several hours before the set

temperatures are reached.

■ Thanks to the fully automatic no-frost

system, the freezer compartment

remains ice-free. There is no longer

any need to defrost it.

■ The front side of the housing is slightly

heated. This prevents condensation

from forming around the door seal.

■ If the freezer compartment door

cannot be opened again soon after

being closed, wait for a moment until

the negative pressure has cleared.

The temperature can be set from +2 °C

Press button 4, "fridge/super", repeatedly

until display panel 5 displays the

required refrigerator compartment

The last set value is saved.

■ Do not store perishable foods at

temperatures higher than +4 °C.

■ For short-term storage of food, a

higher temperature can be set

(energy-saving operation).

■ When frequently opening the door and

placing large quantities of food in the

cooling compartment, a lower

temperature should be set.

The temperature can be set from -15 °C

Press the "freezer/super" button 1

repeatedly until the display panel 7

shows that the required freezer

compartment temperature is set.

The last set value is saved.en

With the supercool function, the cooling

compartment is cooled to the coldest

After approx. 40 minutes, or once the

temperature in the cooling compartment

is 2 °C lower than the set temperature,

the super cooling function automatically

Once the coldest temperature is

reached, it automatically changes to the

present temperature.

The supercool function is recommended

in the following cases:

■ Before putting a large amount of food

in the cooling compartment.

■ To cool drinks quickly.

Press button 4, "fridge/super", repeatedly

Food should be frozen thoroughly as

quickly as possible. This ensures that

vitamins, nutritional values, the look and

the taste of the food is retained.

To ensure that there is no undesired

increase in temperature while you are

placing fresh food in the freezer, switch

on the "superfreeze" function a few hours

beforehand. In general, 4-6 hours is

sufficient. When making use of the

maximum freezing capacity, 24 hours

After 48 hours, the temperature

automatically changes to the

temperature that was set before using

repeatedly until display panel 7 displays

When the button lock is switched on, all

of the buttons on the control element are

Exception: When the button lock is

switched on, the "alarm" button can be

used to switch off the audible warning

signal. In addition, water can still be

dispensed from the appliance.

Switching on and off

Press the "lock" button 2.

If the button lock is switched on, "lock" is

shown on the display panel.

To switch the button lock off, press and

hold "lock" button 2 for

approx. 3 seconds.en

If an alarm is triggered, an audible

warning signal sounds and "alarm" is

shown on the display panel.

Press the "alarm" button to switch off the

audible warning signal. Figure "/3

The door alarm switches on if one of the

appliance doors remains open for longer

The alarm stops when the door is closed

The temperature alarm is triggered if the

refrigerator compartment or freezer

compartment becomes too warm and

the food is endangered.

Without any risk to the frozen food, the

alarm may be triggered:

■ when the appliance is first used,

■ when putting large quantities of fresh

food in the compartment.

Refrigerator compartment

"alarm" is displayed below the

refrigerator compartment temperature on

the right of the display panel.

In cases of doubt, do not use raw food.

Before consumption, heat up any chilled

food that has warmed up.

"alarm" is displayed below the freezer

compartment temperature on the left of

Do not refreeze defrosted food. It can

only be refrozen after it has been made

into a ready-to-eat meal (cooked or

Do not continue to use the complete

max. storage time for the frozen food.

You will find information regarding the

utilisable volume on the rating plate (see

section "After-sales service").

The cooling compartment is the ideal

place to keep prepared dishes, baked

goods, canned goods, condensed milk,

hard cheese, fruit and vegetables that

are sensitive to cold, and tropical fruits.

When arranging the food, note

When arranging the food, bear in mind

■ Arrange your food so that it is well-

packaged or covered. This ensures

that the aroma, colour and freshness

are not lost. This also prevents

flavours from mixing and the plastic

parts from becoming discoloured.

■ Allow warm food and beverages to

cool before putting them into the

■ Do not block the cooling

compartment's air outlets with food.

Doing so impedes the air circulation.

Food that is stored directly in front of

the air outlets may become frozen by

the cold air that is discharged.en

Use the freezer compartment

■ Storing deep frozen food.

Make sure that the freezer compartment

door is always closed. When the door is

open, the frozen foods defrost and the

freezer compartment ices up heavily.

Furthermore: Energy is wasted due to the

When you close the freezer compartment

door, there is negative pressure in the

freezer compartment. This causes a

sucking noise. Wait for two to three

minutes until the negative pressure has

Max. freezing capacity

You will find information on the maximum

freezing capacity in 24 hours on the

rating plate (see section "After-sales

Freezing and storing

Purchasing frozen foods

■ Packaging must not be damaged.

■ Observe the best before date.

■ The temperature in the commercial

chest freezer must be -18 °C or

■ As far as possible, frozen food must

be transported in an insulated

container and quickly placed in the

freezer compartment.

If lots of food is to be stored, you can

remove the ice twister and the shelf.

To ensure that there is no impact on the

air circulation in the appliance, do not

stack the food beyond the stacking limit.

Only use fresh, undamaged food for

In order to retain the nutritional value,

aroma and colour of the food as much

as possible, blanch vegetables before

they are frozen. Blanching is not required

for aubergines, peppers, courgettes and

You can find literature about freezing and

blanching in bookshops.

Do not allow food that is to be frozen to

sit right next to food that has already

■ The following are suitable for freezing:

Baked goods, fish and seafood, meat,

game, poultry, vegetables, fruit, herbs,

eggs without their shells, dairy

products such as cheese, butter and

curd cheese, prepared dishes and

leftovers such as soups, stews,

cooked meat and fish, potato dishes,

baked casseroles and sweet foods.

■ The following are not suitable for

Types of vegetables that are usually

eaten raw – such as green salad or

radishes, eggs in their shells, grapes,

whole apples, pears and peaches,

hard-boiled eggs, yoghurt, soured

milk, sour cream, crème fraîche and

Packaging frozen food

Pack food so that it is airtight to prevent

it from losing its flavour or drying out.

1. Store food in its packaging.

2. Press out any air.

3. Close the packaging tightly.

4. Label packaging with its contents and

The following are suitable as

Plastic film, polyethylene hose film,

aluminium foil, freezer bags.

You will find these products at your

The following are not suitable as

Wrapping paper, greaseproof paper,

cellophane, rubbish bags and used

The following are suitable for sealing

Rubber bands, plastic clips, pack-twines,

cold-resistant scotch tape, or similar.

Polyethylene bags and hose film can be

fused closed using a bag sealer.

Storage life of frozen foods

Depending on the type of food.

At a temperature of -18 °C:

■ Fish, sausages, prepared dishes,

■ Cheese, poultry, meat:

■ Vegetables, fruit:

Defrosting frozen food

You can decide between the following

options, depending on the type of food

and its intended use:

■ at ambient temperature

■ in an electric oven, with/without hot air

■ In the microwave oven.

Do not refreeze defrosted food. It can

only be refrozen after it has been made

into a ready-to-eat meal (cooked or

Do not continue to use the complete

max. storage time for the frozen food.en

You can use the ice and water dispenser

to dispense ice cubes and cold water

Observing the drinking water

All materials used to manufacture water

dispenser are odourless and tasteless.

If the water has an after-taste, this may

be caused by the following:

■ The mineral and chlorine content of

■ The freshness of the drinking water.

If water has not been dispensed for a

long period of time, the water may

taste "stale". In this case, empty the

water container and fill it with fresh

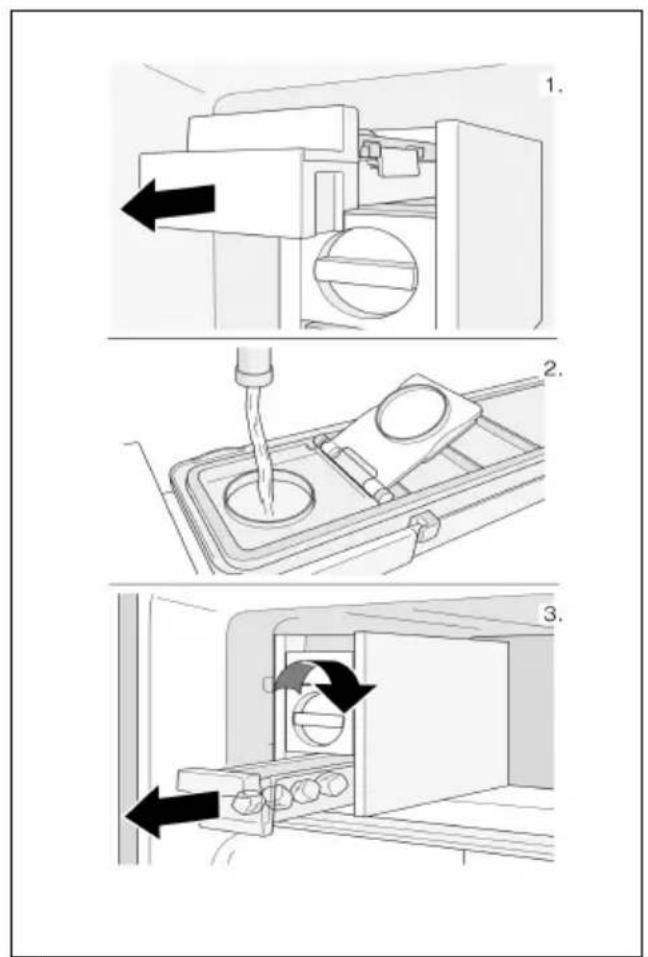

1. Pull out the water container.

2. Open the filling unit for the water

3. Pour fresh water up to the marker line

in the water container and close the

Rub dry the exterior and lower outlet

opening of the water container.

4. Slide the water container into the ice

5. Once the ice cubes are frozen, turn

the turning handle to the right.

The ice cubes become loose and fall

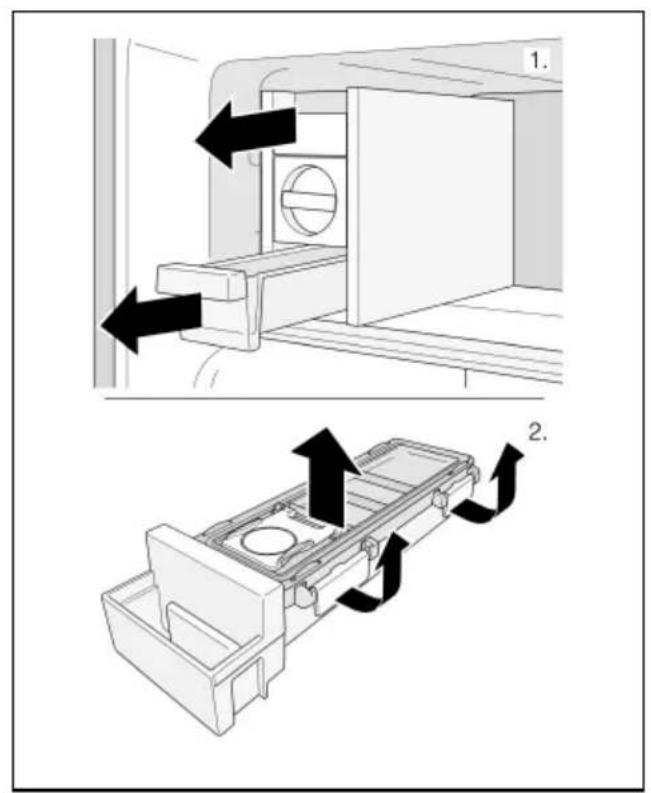

6. Pull out the container and remove the

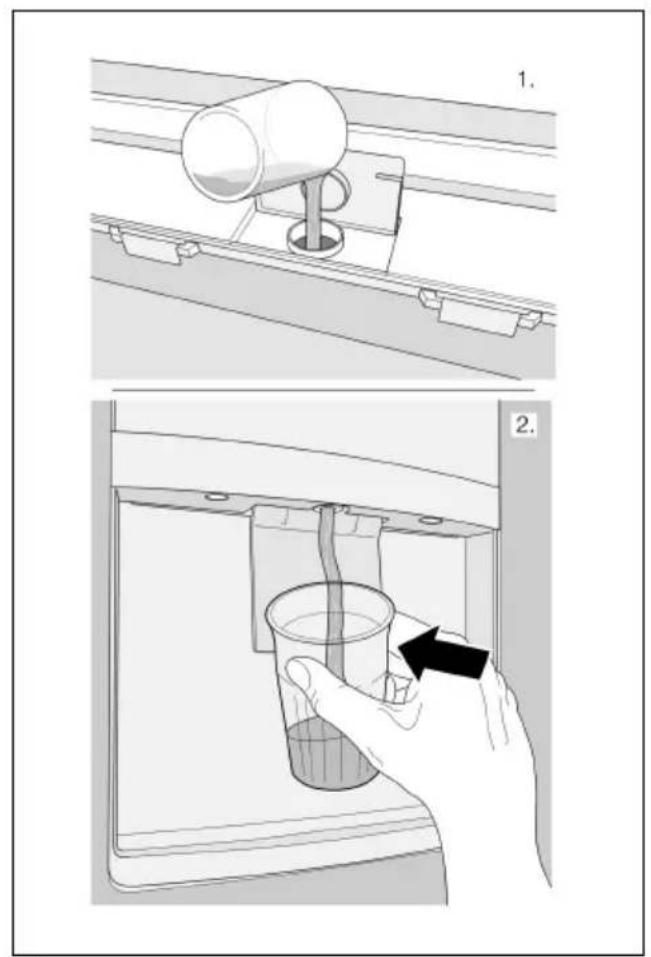

1. Open the filling unit for the water

2. Pour fresh water up to the marker line

in the water container.

Only fill the water container with water.

3. Press the glass against the trigger

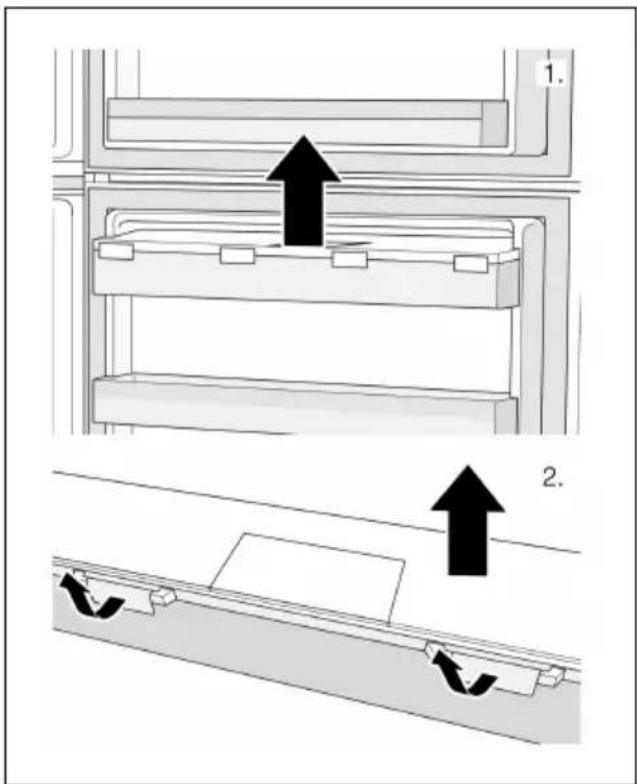

You can vary positioning of the interior

shelves and the door shelves depending

on your requirements:

■ Lift the shelf and move it towards the

■ Lift the door shelf and remove it.

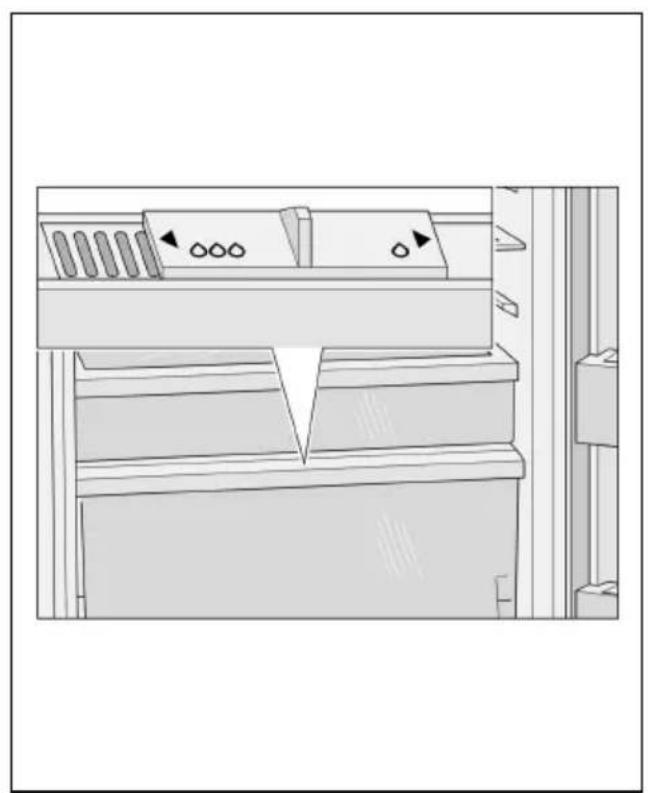

Stay-fresh compartment

The temperatures in the stay-fresh

compartment are lower than in the

cooling compartment. There may also be

temperatures lower than 0 °C.

Ideal for storing fish, meat and sausages.

Not suitable for salads, vegetables or

food that is sensitive to cold.

To ensure that the stay-fresh

compartment functions correctly, it must

be completely closed and the shelf must

rest on it correctly.en

Unpleasant odours in the refrigerator

compartment are prevented by the odour

Tip: Despite this, strong-smelling foods

should still be stored in securely sealed

If the effect of the odour filter decreases,

it can easily be revitalised:

1. Remove the odour filter.

2. Dry the filter with a hair dryer.

3. Lay the odour filter in the sun in order

to eliminate any remaining unpleasant

odours (decomposition of the odour

compounds by ultraviolet light).

4. Place the odour filter back in the

Vegetable container with

To create the perfect storage climate for

vegetables, salad and fruit, depending

on the quantity of food in storage, the

humidity can be controlled in the

vegetable container.

Small quantities of food –

Move the controller to the left.

Large quantities of food –

Move the controller to the right.

Switch off the appliance

Unplug the appliance from the mains or

switch off the childproof lock.

The temperature display goes blank and

the refrigerating unit switches off.

Putting the appliance out of

If you do not use the appliance for long

1. Unplug the appliance from the mains

or switch off the childproof lock.

2. Clean the appliance.

3. Leave the appliance door open.

Cleaning the appliance

■ Do not use gritty, acidic or chlorine-

based cleaning agents or solvents.

■ Do not use any abrasive materials or

materials that may scratch surfaces.

This may lead to corrosion of the

■ Never clean the shelves or containers

The parts may warp.en

The cleaning water must not get into

■ Opening slots in the front bottom area

of the freezer compartment,

■ Operating controls,

1. Before cleaning the appliance, unplug

the mains plug or disconnect the fuse.

2. Take out the frozen food and store it in

a cool place. Place an ice block (if you

have one) on the food.

3. Clean the appliance with a soft cloth,

lukewarm water, and a little pH-neutral

detergent. The water used for rinsing

must not get into the lighting.

4. Only wipe the door seal with clean

water and then rub it until it is dry.

5. After cleaning, reconnect the

appliance to the mains and switch it

6. Put the frozen food back in.

To clean the appliance, all of the variable

elements can be removed.

Lift the shelf and move it towards the

Removing the door shelves

Lift the door shelf and remove it.

Removing the ice twister storage tank

1. Remove the storage tank and water

2. Remove the cover of the water

container and empty the water

3. Clean the individual parts of the water

container and the storage tank with

clear water, and wipe them dry with a

Removing the water container

1. Remove the water container.

2. Remove the cover of the water

container and empty the water

3. Clean the individual parts of the water

container with clear water, and wipe

them dry with a cloth.

Your device is equipped with a

maintenance-free LED light.

Any repair work on the lighting must only

be carried out by the after-sales service

or authorised experts.en

■ Install the appliance in a dry,

ventilated room. The appliance must

be installed out of direct sunlight and

away from heat sources (e.g. heating

Use an insulating plate if necessary.

■ Allow hot food and drinks to cool

before placing them in the appliance.

■ Place frozen food that is to be

defrosted in your cooling

compartment. Use the low

temperature of the frozen food to cool

■ Open the appliance door for as little

■ Clean the rear side of the appliance

occasionally with a vacuum cleaner or

brush in order to avoid increased

Completely normal noises

Motors running (e.g. refrigeration units,

Bubbling, whirring or gurgling noises

Refrigerant is flowing through the pipes.

Motors, switches or solenoid valves are

Automatic defrosting is taking place.

If the appliance is positioned unevenly

Align the appliance using a spirit level.

Use the threaded feet for this, or place

something underneath the feet.

If the appliance is touching adjacent

Move the appliance away from adjacent

furniture or appliances.

Containers or shelves are wobbling or

Check the removable parts and reinsert

If bottles or containers are touching

Rectifying minor faults yourself

Before you call the after-sales service:

Check whether you can rectify the fault yourself by using the notes below.

You must bear the costs for consultation with the after-sales services yourself – even

during the warranty period.

Problem Possible cause Remedy

It is too cold in the

cooling compartment.

temperatures may also

cause colder cooling

temperatures. This is

Set the temperature in the cooling

compartment so that it is slightly

If this is not sufficient, e.g. if the

room temperatures are too cold, you

can also set the temperature in the

freezer compartment temperature so

The temperature in the

The appliance door is

Do not open the appliance door

openings are covered.

Remove any obstructions.

Do not exceed the max. freezing

deviates considerably

In some cases, it is sufficient to

switch off the appliance for

If the temperature is too high, wait a

few hours and check whether the

temperature has aligned with the

If the temperature is too low, wait

until the next day and check the

temperature again.en

The lighting switches

After closing and opening the

appliance door, the lighting is

No display lights up. If the appliance is not

time, the control panel

As soon as the appliance is used

again (e.g. the door is opened), the

display switches back to its normal

whether there is power, check the

One of the appliance

Close the appliance doors.

"alarm" is displayed

below the refrigerator

It is too warm in the

Press the "alarm" button to switch off

If it has become too warm in the

cooling compartment, properly heat

up any chilled goods that have been

warmed before consumption.

In cases of doubt, do not use raw

been put in for cooling

Before putting a large amount of

food in the cooling compartment,

switch on the "supercool" function.

"alarm" is displayed

temperature on the left

of the display panel.

It is too warm in the

freezer compartment.

Press the "alarm" button to switch off

the audible warning signal.

Do not refreeze defrosted food. It

can only be refrozen after it has

been made into a ready-to-eat meal

(cooked or roasted).

Do not continue to use the complete

max. storage time for the frozen

freezing at the same

Do not exceed the max. freezing

Before putting a large amount of

food in the freezer compartment,

switch on the "superfreeze" function.

openings are covered.

Remove any obstructions.

Problem Possible cause Remedyen

You can find an after-sales service point

near to you in the telephone directory or

in the list of after-sales service points.

When you call the after-sales service,

quote your product number (E no.) and

the production number (FD no.) of your

You will find this information on the rating

Please help us to avoid unnecessary

journeys by quoting the appliance and

production number. This will save you

the additional associated costs.

Repair order and consultation

The attached after-sales service directory

contains the contact data for all

When filling the water

ice twister, the water

formed on the outlet

opening of the water

Clean the water container; see the

section on cleaning the appliance.

Problem Possible cause Remedy

directive UE 2004/108/EC.

electrical and electronic

4 Tasto "fridge/super"

pesche, uova sode, yogurt, latte

and electronic equipment -

and electronic equipment –
