USER MANUAL BSGL5310 BOSCH

Register your new Bosch now:

h 11 0 p uore Gcnailpp

schlägigen Sicherheitsbestimmungen.3

Please keep this instruction manual. When passing the

vacuum cleaner on to a third party, please also pass on

this instruction manual.

This vacuum cleaner is intended for domestic use and

not for commercial use. Only use this vacuum cleaner in

accordance with the instructions in this instruction man-

In order to prevent injuries and damage, the vacuum

cleaner must not be used for:

Vacuum-cleaning persons or animals

- hazardous, sharp-edged, hot or glowing substances.

- damp or liquid substances.

- highly flammable or explosive substances and gases.

- ash, soot from tiled stoves and central heating sys-

- toner dust from printers and copiers.

Spare parts, accessories, dust bags

Our original spare parts, original (special) accessories

and original dust bags are designed to work with the

features and requirements of our vacuum cleaners. We

therefore recommend that you only use our original spare

parts, original (special) accessories and original dust

bags. This will ensure that your vacuum cleaner has a

long service life and that the quality of its cleaning

performance will remain consistently high throughout.

Using unsuitable or inferior-quality spare parts, (speci-

al) accessories and dust bags can damage your vacu-

um cleaner. Damage caused by the use of such pro-

ducts is not covered by our guarantee.

This vacuum cleaner complies with the

recognised rules of technology and the rele-

vant safety regulations.

The appliance may be used by children

over the age of 8 years and by persons

with reduced physical, sensory or mental

capacity or by persons with a lack of

experience or knowledge if they are

supervised or have been instructed on

the safe use of the appliance and the

have understood the potential dangers of

using the appliance.

The mains socket must be protected by at least a 16

amp circuit breaker.

If a circuit breaker is tripped when you switch on the

vacuum cleaner, this may be because other electrical

appliances which have a high current draw are con-

nected to the same power circuit.

To prevent the circuit breaker from tripping, select the

lowest power setting before switching the appliance

on, and increase the power only once it is running.

Disposal information

The packaging is designed to protect the vacuum

cleaner from being damaged during transportation. It

is made of environmentally friendly materials and can

therefore be recycled. Dispose of packaging that is no

longer required at an appropriate recycling point.

Old appliances still contain many valuable materials.

Therefore, please take appliances that have reached

the end of their service life to your retailer or recycling

centre so that they can be recycled. For current dis-

posal methods, please enquire at a retailer or your

Disposal of filters and dust bags

Filters and dust bags are manufactured from environ-

mentally friendly materials. Provided they do not con-

tain substances that are not permitted in household

waste, you can dispose of them with your normal

Notes on the energy label

This vacuum cleaner is a general purpose vacuum cleaner.

To achieve the declared energy efficiency and cleaning

performance class on carpet and hard floor, please use

the interchangeable universal nozzle.

These calculations are based on the delegated

regulation (EU) no. 665/2013 established by the

commission on 3rd May 2013 as a supplement to

Directive 2010/30/EU.

All of the procedures in these instructions that are not

described in more precise detail were listed based on

DIN EN 60312-1:2014.

Children must never play with the

Cleaning and user maintenance must

never be carried out by children without

Plastic bags and films must be kept out

of the reach of children before disposal.

=> Risk of suffocation.

Only connect and use the vacuum cleaner in accor-

dance with the specifications on the rating plate.

Never vacuum without the dust bag or dust container,

motor protection or exhaust filter.

=> This may damage the vacuum cleaner.

Always keep the vacuum cleaner away from your head

when using nozzles and tubes.

=> This could cause injury!

When vacuuming stairs, the appliance must always be

positioned below the user.

Do not use the power cord or the hose to carry or

transport the vacuum cleaner.

For safety reasons, if this appliance's mains power

cable becomes damaged, it must be replaced by the

manufacturer, their after-sales service department or a

similarlyqualified person.

If using the appliance for longer than 30 minutes, pull

out the power cord completely.

When disconnecting the appliance from the mains,

pull on the plug itself to remove it; do not pull on the

Do not pull the power cord over sharp edges or allow

it to be-come trapped.

When the cable is being automatically rewound,

ensure that the mains plug is not thrown towards per-

sons, body parts, animals or objects.

=> Use the mains plug to guide the power cord.

Pull out the mains plug before carrying out any work

on the vacuum cleaner.

Do not operate the vacuum cleaner if it is damaged.

Unplug the appliance from the mains if a fault is

For safety reasons, only authorised after-sales service

personnel are permitted to carry out repairs and fit

replacement parts to the vacuum cleaner.

Protect the vacuum cleaner from the weather, moisture

and sources of heat.

Do not pour flammable substances or substances

containing alcohol onto the filters (dust bag, motor

protection filter, exhaust filter, etc.).

The vacuum cleaner is not suitable for use on

=> Vacuuming up building rubble could damage the

When not in use, switch off the appliance and pull out

At the end of its life, the appliance should immediately

be rendered unusable, then disposed of in an appro-

=> Fare for kvelning!12

Directivei 2010/30 UE.

Congratulations on your purchase of a Bosch vacuum

cleaner from the GL50 product series.

This instruction manual describes various GL50 models,

which means that some of the equipment features and

functions described may not apply to your model. You

should only use original Bosch accessories, which have

been specially developed for your vacuum cleaner, to

achieve the best possible vacuuming results.

Fold out the picture pages.

1 Adjustable floor tool with locking collar*

2 Hard-floor tool with locking collar*

3 TURBO-UNIVERSAL® brush for floors*

4 Telescopic tube with adjusting sleeve

(and locking collar)*

11 Exhaust grille (corresponds to one of the two

12 Upholstery nozzle*

14 Accessories compartment

16 Motor protection filter, washable*

18 Storage aid (on underside of unit)

20 Dust bag compartment lid

21 “Animal”* turbo nozzle

22 Pet hair upholstery tool*

Replacement parts and special

A Replacement filter pack

To get the most out of your appliance, we

recommend using PowerProtect genuine

replacement bags (BBZ41FGALL).

- 4 dust bags with fasteners

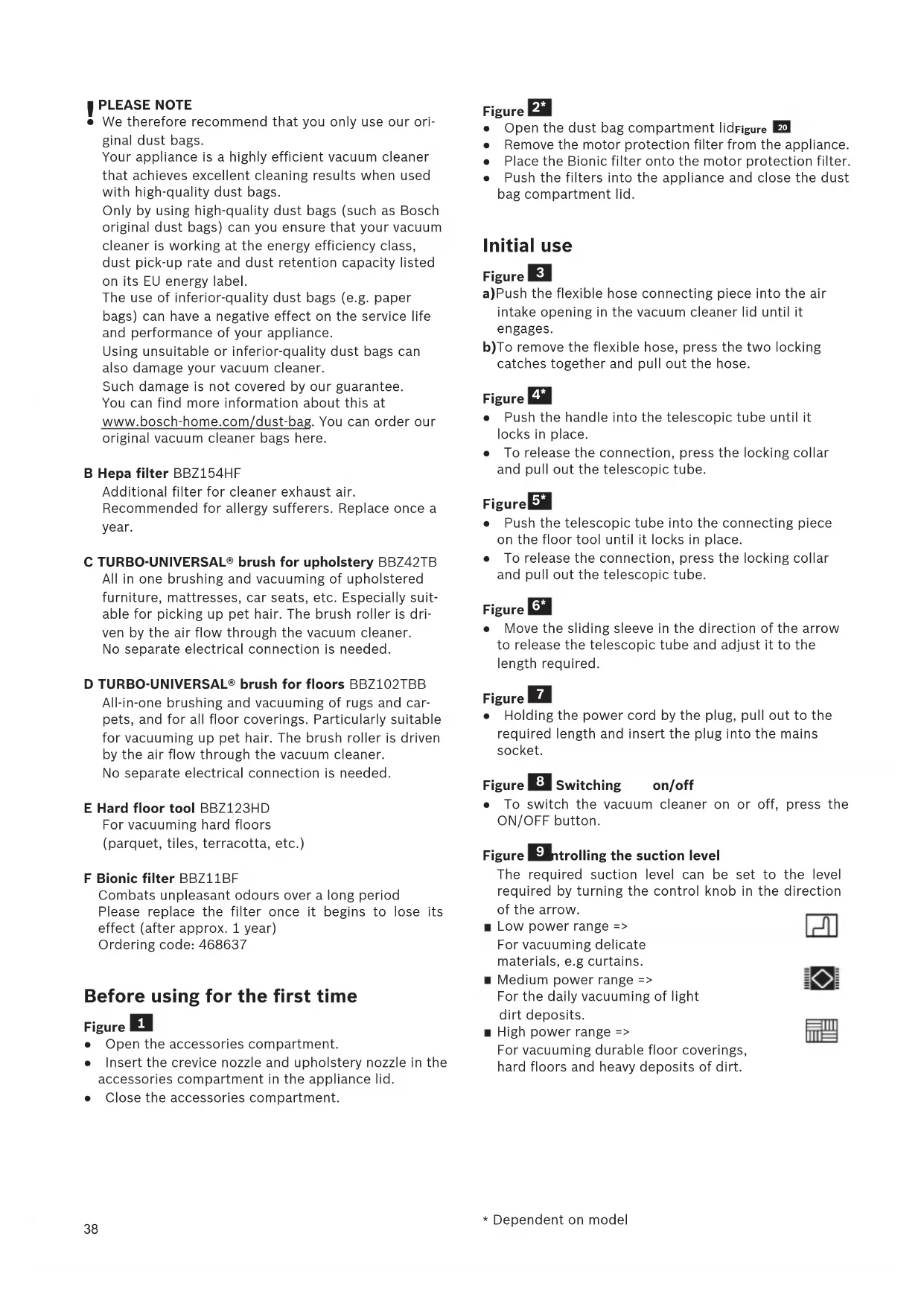

PLEASE NOTE We therefore recommend that you only use our ori-

Your appliance is a highly efficient vacuum cleaner

that achieves excellent cleaning results when used

with high-quality dust bags.

Only by using high-quality dust bags (such as Bosch

original dust bags) can you ensure that your vacuum

cleaner is working at the energy efficiency class,

dust pick-up rate and dust retention capacity listed

on its EU energy label.

The use of inferior-quality dust bags (e.g. paper

bags) can have a negative effect on the service life

and performance of your appliance.

Using unsuitable or inferior-quality dust bags can

also damage your vacuum cleaner.

Such damage is not covered by our guarantee.

You can find more information about this at

www.bosch-home.com/dust-bag

original vacuum cleaner bags here.

B Hepa filter BBZ154HF Additional filter for cleaner exhaust air.

Recommended for allergy sufferers. Replace once a

C TURBO-UNIVERSAL® brush for upholstery BBZ42TB All in one brushing and vacuuming of upholstered

furniture, mattresses, car seats, etc. Especially suit-

able for picking up pet hair. The brush roller is dri-

ven by the air flow through the vacuum cleaner.

No separate electrical connection is needed.

D TURBO-UNIVERSAL® brush for floors BBZ102TBB All-in-one brushing and vacuuming of rugs and car-

pets, and for all floor coverings. Particularly suitable

for vacuuming up pet hair. The brush roller is driven

by the air flow through the vacuum cleaner.

No separate electrical connection is needed.

E Hard floor tool BBZ123HD For vacuuming hard floors

(parquet, tiles, terracotta, etc.)

F Bionic filter BBZ11BF Combats unpleasant odours over a long period

Please replace the filter once it begins to lose its

effect (after approx. 1 year)

Ordering code: 468637

Before using for the first time

● Open the accessories compartment.

● Insert the crevice nozzle and upholstery nozzle in the

accessories compartment in the appliance lid.

● Close the accessories compartment.

● Open the dust bag compartment lid.

● Remove the motor protection filter from the appliance.

● Place the Bionic filter onto the motor protection filter.

● Push the filters into the appliance and close the dust

bag compartment lid.

a)Push the flexible hose connecting piece into the air

intake opening in the vacuum cleaner lid until it

b)To remove the flexible hose, press the two locking

catches together and pull out the hose.

● Push the handle into the telescopic tube until it

● To release the connection, press the locking collar

and pull out the telescopic tube.

● Push the telescopic tube into the connecting piece

on the floor tool until it locks in place.

● To release the connection, press the locking collar

and pull out the telescopic tube.

● Move the sliding sleeve in the direction of the arrow

to release the telescopic tube and adjust it to the

● Holding the power cord by the plug, pull out to the

required length and insert the plug into the mains

Figure Switching on/off

● To switch the vacuum cleaner on or off, press the

Figure Controlling the suction level

The required suction level can be set to the level

required by turning the control knob in the direction

For vacuuming delicate

materials, e.g curtains.

Medium power range =>

For the daily vacuuming of light

For vacuuming durable floor coverings,

hard floors and heavy deposits of dirt.

Depending on the type of hard floor involved (e.g.

rough rustic tiles), floor tools are subject to a certain

amount of wear. Therefore, you must check the

underside of the floor tool at regular intervals. Worn

undersides of floor tools may have sharp edges that

can damage sensitive hard floors, such as parquet or

linoleum. The manufacturer does not accept any

responsibility for damage caused by worn floor tools.

Adjusting the floor tool:

● Remove the crevice nozzle or upholstery nozzle from

the accessories compartment in the appliance lid.

Figure Vacuuming with accessories

Attach the nozzles to the suction pipe or handle as

a)Crevice nozzle for vacuuming crevices and corners, etc.

b)Upholstery nozzle for vacuuming upholstered

furniture, curtains, etc.

For vacuuming hard floor coverings

(tiles, parquet flooring, etc.)

● Push the telescopic tube into the connecting piece

of the hard floor tool until it locks in place.

● To release the connection, press the locking collar

and pull out the telescopic tube.

Figure Professional upholstery nozzle

● For intensive cleaning of upholstered furniture

(attach to the handle or suction pipe, depending on

● To clean the professional upholstery nozzle, simply

vacuum it using the handle.

● After use, place the crevice or upholstery nozzle back

into the accessories compartment in the appliance

If your appliance is equipped with a turbo brush,

consult the accompanying instruction manual for

instructions on its use and maintenance.

● You can use the parking aid on the back of the

appliance if you wish to stop vacuuming for a short

● Once you have switched off the appliance, slide the

hook on the floor tool into the recess on the rear of

To overcome obstacles, e.g. steps, the appliance can

also be carried by the handle on the appliance body.

When the work is done

● Pull out the mains plug.

● Tug the power cord briefly and then let go

(the power cord retracts automatically).

● To store or transport the appliance, you can use the

storage aid on the underside of the appliance.

● Stand the appliance up on its end. Slide the catch on

the floor tool into the groove on the underside of the

Please note: Always switch off the appliance before

● If the dust bag change indicator lights up red

continuously when the floor tool is lifted from the

floor and the highest power setting has been

selected, the dust bag must be changed, even

though it may not yet be full. Even if the dust bag is

not full, it may still need changing, due to the type of

dust which has been vacuumed.

First check that the nozzle, suction pipe and flexible

hose are not blocked, as this would also lead to the

dust bag change indicator being triggered.

Figure Opening the lid

● Open the lid by moving the locking lever in the

direction of the arrow.

a)Seal the dust bag by pulling the sealing plate, and

b)Slide the new dust bag into the holder up to the stop.

Please note: the lid will only close if a dust bag has

Cleaning the motor protection filter

The motor protection filter should be cleaned regularly

by tapping out the dirt and rinsing.

● Open the dust bag compartment lid.

● Remove the motor protection filter from the appliance

in the direction of the arrow.

● Disconnect the motor protection filter from the Bionic

● Clean the motor protection filter by tapping out the

● If it is very dirty, the motor protection filter should be

rinsed. The filter must then be left to dry for at least

Please note: the Bionic filter must not come into

contact with water, as this will adversely affect the

correct operation of the filter.

● After cleaning, place the Bionic filter onto the motor

protection filter as necessary and push both filters

● Close the dust bag compartment lid.

Replacing the Bionic filter

If your appliance is equipped with a Bionic filter, it

should be replaced once it begins to lose its effect

(after approx. 1 year).

● Open the dust bag compartment lid.

● Remove the motor protection filter together with the

Bionic filter from the appliance.

● Remove the old Bionic filter from the motor

protection filter and dispose of it.

● Place the Bionic filter onto the motor protection filter.

● Push the filters into the appliance and close the dust

bag compartment lid.

● The motor protection filter must also be inserted into

the appliance if you no longer wish to use the Bionic

Replacing the exhaust filter

Replacing the micro-hygiene filter

This should be replaced with every replacement filter pack.

● Open the dust bag compartment lid.

● Release the filter holder by turning the locking lever

in the direction of the arrow.

● Remove the micro-hygiene filter. Insert the new

micro-hygiene filter into the appliance.

● Insert the filter holder in the appliance and lock it in

Replacing the HEPA filter

If your vacuum cleaner is equipped with a HEPA filter,

this should be replaced once a year.

● Open the dust bag compartment lid.

● Unlock the Hepa filter by turning the locking lever in

the direction of the arrow and remove the filter from

● Insert the new HEPA filter and lock it in place.

If you have vacuumed up fine dust particles, clean the

motor protection filter and, if necessary, replace the

micro-hygiene filter or HEPA filter.

Always switch off the vacuum cleaner and disconnect

it from the mains before cleaning the vacuum cleaner.

The vacuum cleaner and plastic accessories can be

cleaned with a commercial plastic cleaner.

Do not use abrasive agents, glass or all-purpose

cleaning products. Never immerse the vacuum

If necessary, the dust compartment can be cleaned

with a second vacuum cleaner or simply wiped with

a dry cloth or dusting brush.

Subject to technical modifications.

,HAFCE,"J2)L

BSH Home Appliances FZE Round About 13,

HEATHERTON, Victoria 3202

mailto:bshau-as@bshg.com

www.bosch-home.com.au

European Trade Center Building,

Milton Keynes MK12 5PT To arrange an engineer visit, to

order spare parts and accessories

or for product advice please visit

www.bosch-home.co.uk

Tel.: 0344 892 8979* *Calls are charged at the basic rate, pleasecheck with your telephone service providerfor exact charges*0.03  per minute at peak.Off peak 0.0088  per minute

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor

North Block, Skyway House

www.bosch-home.com/hr

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Spares and Accessories

Industrial Park North

www.bosch-home.com/it

General Serviss Limited

S.R.L. "Rialto-Studio"

BSH Household Appliances

Arena House, 2nd Floor, Main Bldg,

Plot No. 103, Road No. 12, MIDC,

4th floor, No. 112 Sec 1

gama-electronics.com

15th Road Randjespark

Abdul Latif Jameel Electronics

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.

Rücknahme und Verwertung der Altgeräte vor.

This appliance is labelled in accordance with European

Directive 2012/19/EU concerning used electrical and

electronic appliances (waste electrical and electronic

equipment - WEEE). The guideline determines the fra-

mework for the return and recycling of used applian-

ces as applicable throughout the EU.

Cet appareil est marqué selon la directive européenne

electronic equipment - WEEE).

tronic equipment – WEEE).

electronic equipment - WEEE).

electronic equipment - WEEE).

electrical and electronic equipment - WEEE).

electronic equipment - WEEE).

electrical and electronic equipment - WEEE).

((waste electrical and electronic equipment - WEEE

GB Conditions of guarantee

For this appliance the guarantee conditions as set

out by our representatives in the country of sale

apply. Details regarding same may be obtained

from the dealer from whom the appliance was

purchased. For claims under guarantee the sales

receipt must be produced.

FR Conditions de garantie
