USER MANUAL LIION 181S Güde

Deutsch - D 3-6
Originalbetriebsanleitung
AKKUSCHRAUBER LI-ION
English - GB 7-9
Translation of original operating instructions
CORDLESS DRILL/DRIVER LI-ION
Francais - F 10-13

Traduction du mode d'emploi d'origine
TOURNEVIS A ACCU LI-ION
Cestina-CZ 14-16
Překlad originániho námovu k provozu
AKU SROUBOVAK LI-ION
Slovencina - SK 17-19
Preklad originaleho nadvu na prevadzku
AKKU SKRUTKOVAC
Nederlandls - NL 20-23
Vertaling van de originele gebruiksaanwijzing
SCHROEVENDRAIERS
Italiano - 1 24-27
Traduzione del Manuale d'Uso originale
CACCIAVITI
Magyar-H28-31
Az eredeti hasznalati utasitas forditasa
AKKUS CSAVAROZO
Slovenscina - SLO 32-34
Prevod originalnih navodil za uporabo
AKU IZVIJAC LI-ION
Hrvatski HR 35-38
Prijevod originalih uputa za korištenje.
AKU ODVIJA C LI-ION
Bosnjacki BH 39-41
Prijevod originalih uputa za koriistenje.
AKU ODVRTAC LI-ION
Româna - RO 42-45
Traducerea modului de operare, original
SURUBELNIsA CU ACUMULATOR LI-ION
Блгарский - BG 46-49
PpeBOD Ha opurnannHOTO ynbTBAHe 3a EKCNIOaTua
AKMYJATOPHA OTBEPKA LI-ION

Einleitung

Please read thoroughly this operation manual and attached safety instructions to enjoy your machine. We further recommend to retain the operation manual for future references. We reserve right to make technical changes for the purpose of improvement in the course of continuous product development. This is the original operation manual.

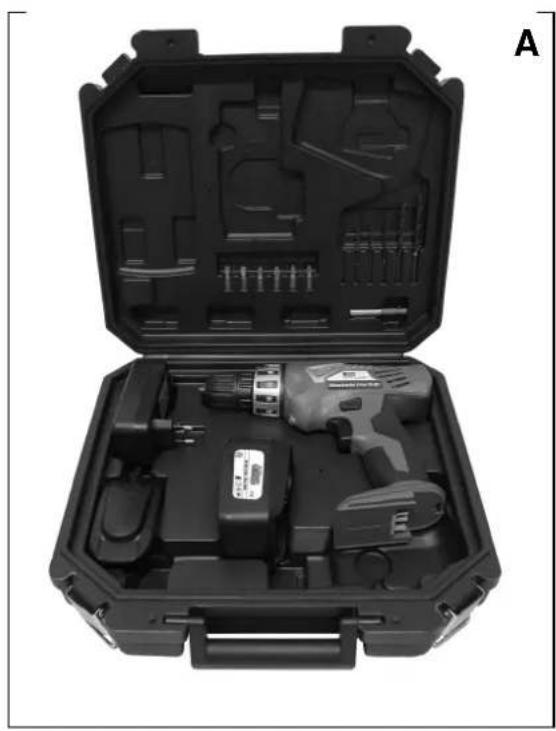

Scope of supply Fig. A

Unpack the appliance and check completeness and delivery of the following components:

LITHIUM-ION 18-1S CORDLESS SCREWDRIVER

• Plastic case
• Cordless screwdriver
• 1 lithium-ion battery
  61-6 mm drills for metal
• 6 bit extensions including fixture
• Charger
• Operating Instructions

Please contact your dealer if any parts are missing or are damaged.

Appliance description (pic. B+C+D+E+F)

Lithium-ion cordless screwdriver with soft grip. Lithium-ion technology for fast, flexible and easy work.

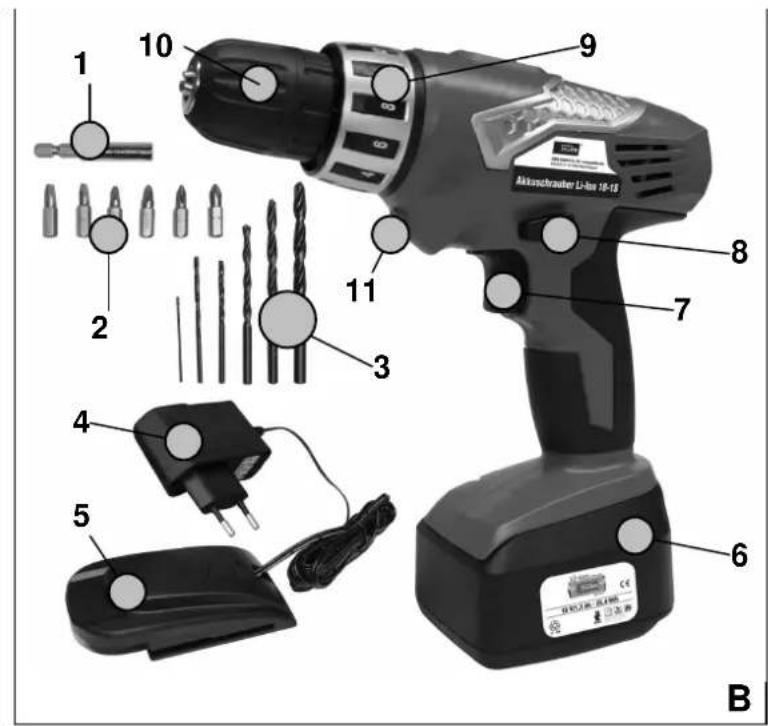

Pic. B:

1. Fixture
2. Bit extensions
3. Drills for metal
4. Charger
5. Charger (battery main station)
6. Lithium-ion battery
7. On/Off
8. Rotation direction selector - right/left running
9. Torque adjustment
10. Quick chuck
11. Release lever
12. Charging indicator

Technical specifications

LITHIUM-ION 18-1S CORDLESS SCREWDRIVER

Voltage: 18 V

Battery capacity: 1.3 Ah

Gearbox: 1 speed

Speed range: 0-550 per min

Torque levels: 23+1

Max. torque: 15 Nm

Chuck clamping range: 0.8 - 10 mm

Charging time: 3 - 5 hours

Weight: 1.2kg

Dimensions LxWxH: 220 × 70 × 225 ~mm

General safety instructions

Read this user guide thoroughly. Make sure you know the controls and correct use of the appliance. Store the user guide safely for future reference.

Safe work

Keep your workplace tidy!

Disorder on workplace may result in injuries.

Consider surrounding conditions!

Do not expose to rain.

Do not use in moist or wet environment.

Provide good lighting.

Do not use close to flammable liquids or gases

Store your device properly!

The device, if not used, should be stored in a dry and closed space, out of reach of children.

Do not overload your device!

Operate the appliance within specified working capacity.

Use correct device!

Do not use the device for purposes other than intended.

Use the right appliance!

Do not use the appliance for purposes for which it has not been designed.

Take care of your appliance!

Observe maintenance directions and instructions.

Check appliance cable regularly and ask an authorized specialist to replace the same if damaged.

Be careful!

Be aware of what you are doing. Approach your work with sound mind. Do not use the device if you are tired.

WARNING!

Use of non-compliant accessories may result in an injury.

Have your device repaired by an electrician only!

This device complies to applicable safety provisions. Repairs may be performed by an electrician with the use of genuine spare parts, otherwise the user may be exposed to injury hazard.

Safety instructions specific for this device

Switch the appliance off before working on it.

Wear protective glasses.

Risk from rotating drill.

Pay attention to prevent injury of persons standing

nearby and their hitting by thrown-off items.

Wait until all parts of the appliance stop before touching any part of it.

Never expose the appliance to rain or moisture. To eat in a dry place only.

Children, persons not acquainted with the appliance and persons with limited psychical, sensory or mental abilities must not use this appliance.

Original accessories to be used only.

Check whether the screwdriver bit is fitted properly before putting the appliance into operation.

Do not try to change the engine speed setting. Contact a professional in case of problems.

Before drilling holes to a wall, make sure you are not in contact to strike electric current, gas or water using a currentizer if necessary.

Application according to intended use

Suitable for screwing and loosening of screws and drilling to wood, metals and plastic materials. Any other use contradicts to the intended use. Manufacturer is not responsible for subsequent damage and injuries. Please note the appliance is intended for domestic use only.

Before putting into operation

The accumulator is supplied partially charged. It must be charged to full extent before it is put into operation for the first time.

CAUTION:

• Charge the accumulator only using a charged included in the supply.
• Use only sharp drills and screw bits that are in a perfect and appropriate condition.
• When drilling and screwing to walls, check whether there are no electric lines or water piping or gas lines in the wall.

Operation

Battery charging:

1. The battery will be released from the appliance by pressing the lock-in buttons (pic. E/12) and putting it out.
2. Now check if the system voltage details given on the charger type label match the existing system voltage.
3. Plug the charger and connect the charging cable to the charging connection.

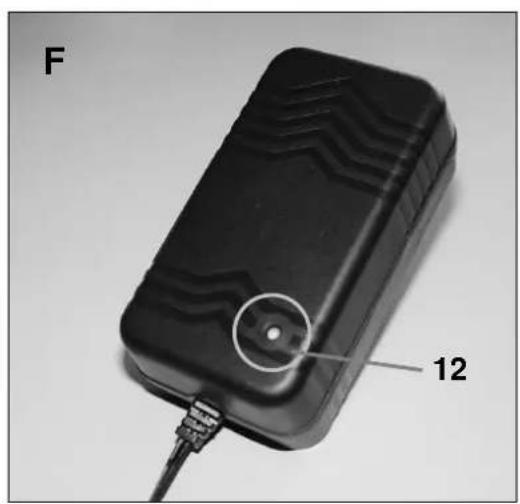

4. "Red" LED is on when the battery is being charged (pic. F/13).
5. "Green" LED is on when charging is completed (pic. F/13).

To ensure long service life of the accumulator, timely charging should be provided at all times. If the accumulator is shortly before being discharged, it switches off. In any case, do not use the cordless screwdriver any more. Doing so could dramatically reduce the service life of the accumulator.

Torque adjustment:

Torque can be adjusted depending on the size of screws on the torque adjustment device (pic. D/9).

Torques depend on a number of factors:

• Type and hardness of material you are working with.
• Type and length of the screws that are used.
• Requirements imposed on the screwed joints.

Adjust the torque only when the cordless wdriver is idle.

Drilling:

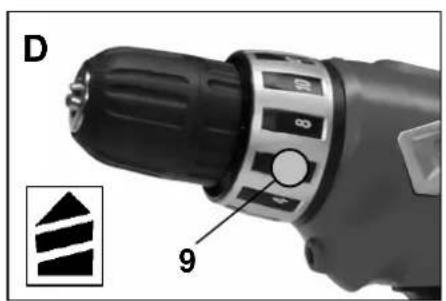

To drill, adjust the torque (pic. D) to the final "drilling" level.

Rotation direction switching:

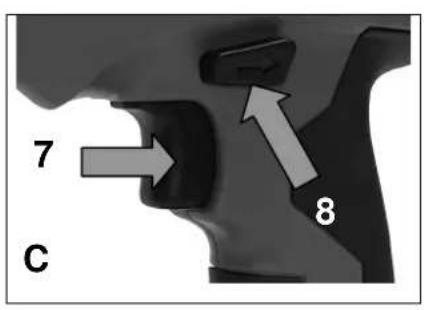

The rotation direction may be adjusted by the shift switch (pic. C/8). You can choose between the right and left rotation. To prevent damage of the gearing, the rotation direction may only be changed when the appliance is idle. If the switch is in the central position, On/Off is blocked.

On/Off:

The more this switch (pic. C/7) is pressed, the higher the cordless screwdriver speed.

Tool clamping/change:

When working on the cordless screwdriver, adjust the rotation direction switch (pic. B/7) to the central position.

1. Screw the chuck (pic. B/10) out to remove the tool.
2. Now choose the appropriate tool and insert it as deep in the hole as possible.
3. Screw the chuck tightly again and check whether the tool is fitted tightly.

LED light:

LED light (pic. B/11) enables additional lighting of the screwing or drilling space. LED light is immediately switched on after pressing On/Off

Marking

Product safety:

CE
Product corresponds to applicable EU standards

Commands:

Please read the Operating Instructions before using the appliance

Environment protection:

AKKU Li - Ion
Any defective and/or disposed electric or electronic devices must be delivered to respective collection centres.

Package:

J
Protect against moisture This side up

Technical specifications:

	min
Chuck clamping range Revolutions
	LRR
Weight	Right/left running Nm = max. torque
Li-Ion	3-5s=Ω
Battery voltage/capacity Battery charging time
23+1
Torque levels

Other instructions:

+40°C +10°C 2×-1
Storage temperature Protect the battery against moisture Store the battery fully charged only	Max. temperature details Do not plunge the battery to liquids To be kept out of reach of flames and fire

EU DECLARATION ON CONFORMITY

The company

Güde GmbH & Co. KG

Birkichstrasse 6

D-74549 Wolpertshausen

Germany

hereby declares that the design and structure of the devices listed below and in designs marketed conforms to applicable basic requirements of the EU directives on safety and hygiene.

This declaration on conformity becomes void in case of a change to the device not consulted with us.

Identification of the devices:

CORDLESS DRILL/DRIVER 18-1S

Order No.:

58100

Applicable EU directives:

2006/42 EG; 2004/108 EG; 2006/95/EG

Harmonized standards used

EN 60745-1/A11:2010; EN 60745-2-1:2010; EN 60745-2-2:2010; EN 55014-1/A1:2009; EN 55014-2/A2:2008;

Charger:

EN 60335-1:2002 + A11:2004 + A1:2004 + A12:2006 + A2:2006 + A13:2008 + A14:2010; EN 60335-2-29:2004 + A2:2010; EN 62233:2008; EN 55014-1:2006; EN 61000-3-2:2006; EN 61000-3-

3:2008; EN 55014-2:1997+A1:2001+A2:2008

Date/signature of manufacturer: 14.05.2012

Information about signer: the executive

Mr Arnold

Technical documentation: J. Burkle FBL; QS

Warranty

The warranty applies exclusively on material or production defects. For warranty claims, please submit an original proof of purchase with date of purchase indicated. The warranty does not cover unprofessional use, such as overloading, violent use, damage caused by third party or a thing. The warranty also does not cover failure to comply with the operation manual and normal wear and tear.

Emergency procedures

Administer first aid according to injury and call for qualified medical assistance. Protect injured person against other injuries and keep him/her in rest.

For reasons of potential injury, a first aid box according to DIN 13164 must be available on workplace. Replenish immediately material used from the first aid box. If you require medical assistance, give the following information:

1. Place of accident
2. Type of accident
3. Number of injured persons
4. Type of injury

Disposal

Disposal instructions are illustrated in the form of pictograms on the device or packaging. Description of the pictograms is given in "Identification" chapter.

Disposal of transport packaging

Packaging protects the device against damage during transport. Packaging materials are usually selected according to their effect on environment and disposal methods and can therefore be recycled.

Returning of the packaging back to circulation saves resources and costs for packaging disposal.

Parts of the packaging (e.g. foil, styropor) may be dangerous for children. Risk of suffocation!

Keep these parts of the packaging out of reach of children and dispose as soon as possible.

Operator requirements

The operators must thoroughly read operation manual before use.

Qualification

Except for thorough training by an expert for use of the device, no special qualification is required.

Minimum age

The device may be operated by persons over 16 years of age. An exception is use by younger person if the use takes place under supervision of an adult trainer in the course of education.

Training

Use of the device requires corresponding guidance by an expert or operation manual only. No special training is required.

Cleaning

Keep the air holes and appliance body clean and with no dust.

Use soft cloth and fine soap solution for cleaning. Avoid direct contact of the appliance with aggressive cleaning agents. Do not use aggressive, volatile or caustic products.

Protect the appliance against moisture and dust.

If not used for a longer period of time, store covered on dry, safe place not accessible to children.

Service

Any technical questions? Complaint? Do you need spare parts or operation manual?

Go to our website www.guide.com and the section

Service will help you quickly and without bureaucracy. Please, help us to help you. In order to identify your device in case of complaint, please indicate serial number, order number and year of manufacture. All information is available on the product label. To have all information always at hand, put them down.

Serial number:

Order number:

Year of manufacture:

Phone: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Introduction

TOURNEVIS Á ACCU Li-Ion 18-1S

N° de commande :

58100

Directives correspondantes de la CE :

2006/42 EG; 2004/108 EG; 2006/95/EG

Rozsahtacok:0-550min

Stupne krutiaceho momentu: 23 + 1

Max. krutiaci moment: 15 Nm

Rozsah upnutia sklucovadia: 0,8-10 mm

Dlzkanaabijania:3-5hod.

Hmotnost:1,2kg

Rozmery D × S × V: 220 × 70 × 225 mm

Vseobecnbezpecnostnpokyny

D-74549 Wolpertshausen Germany,

He n3non3BaIte ypeDa B 6n3OCT Do 3anaIaIIMN TeuHocTn nnra3OBe.

CbXpaHraBaIe Do6pe cB0r ypei!

YpeI, KOTo He Ce I3NoI3Ba, 6n Tp8BaIoo Da CbXpaHraBe Ha cyxo, 3aKnIOyeHO HeIOCTbIHO 3a Deca MxCTO.

He npetobapbaTe cBov ypei!

PaBoTeTe B NocOueHnI DaIaNa3OH Ha MoUHOCT.

H3noJ3BaIte IooXOJaU ype!

He n3no3BaTe ypea 3a cei, 3a konTo He e npedHa3HaueH.

TpNxTe ce 3a cB0y ype!

KoHTpOInapIaTe peoBHO yIbJxHKeTIINHeKa6eJIuN CnyaHa Hne06xoImoMocrTn CmeHeTe. PoIbPjXaIte DApBxKte CyxH, 6e3 CpeNt OMaCNO Ma3HNHn.

NPEdynpeKDeHNE!

N3no3BaHeTo Ha npHnApJnHexKHO MoKe da 03Haaba 3a Bac pnc 3a 3nononyka.

OcTaBeTe CBoI ypeI 3a peMoHT cAmO npn eJIeKtpoTeXHnK!

To3n ypei OTROBAPHa CbOTBeHTHHe pa3nope6n 3a 6e3oNaCHoc. PeMOHT MoKeJa N3BbPbBa cAmO eNEKrPoTeXnK, c yNtpe6Ha HoOpINHaJIHn pe3epBHN qACTn, HnAte 3a NoTpe6nTeJra TOBA MoKe Ja O3Haaba pNCK 3a 3JNONyKa.

Hnctpykun 3a 6e3onacnoct cneuynu nn 3a ype da

Ipepa60ta no ypea, n3KnIOye Cbua.

HocTe npedna3n ouina.

Onacnoct ot Bbptraata ce bypnra.

O6bpHeTe BHIMaHHe, Da He ce CTnIrHe Do

HapaHaBaHe Ha CTOraUte B 6mN3OCT Xopa, mN Do 3acraHaTe O M OTXTBbPJIeHN Yactn.

Ipei Da DOKOCHTe KOrTo I Da 6nIO qACT OT ypeA,
3yakaTe DOKATO CnPAT BCNUqCTHa ypeA.

Hnkora He n3naraaTe ypeHa Na BxKn NnBnara.

CbxpaHraBaIte ro cMo Ha cyxo MrcTo.

3a6paHeo e o6cnyxBaHTo Ha To3n ypeD ot Deca nIuza, KOTo He ca 3aNo3HaTu C ypeDa N OT Xopa COrpaHHeN cNcxuHn, CeTbHn Nn DyUeBHN cnocO6HoCTn.

I3noI3BaIte cAmO opnHnHaJIHn npHnAdneXHoCTN.

Ipei Nyckahe B ekcnloataa npoBepete, daHn Hakpaunika Ha oTbepkatae 3akpenen do6pe.

He ce onITBaIte da npOMEHrTe 0bOpOTnTe Ha MOTopa. Ako mATE npOBeM, oBpHrTe CE KbM CneuaJIaNCT.

Ipein npo6nBaHe Ha OTBOpn B CTeHa B CnyaHn HxOIMOCT npOBepeteC DeTEKTop 3a INCTanaLna, Ye

HrMa Da Ce HaTbKHHe Ta eJekTpueckn TOK, Ra3 NIM BOda.

YnoTpe6a B cboTBcTbne C npedHa3HaueHneTo

Iopdxoja3a3abnHTBaHe npaXna6BaHe Ha 6oJTOBe n 3a npo6uBAHe BdbpBO,MeTaNnPnacTMACN.

Bcka npya ynoTpe6a e ynoTpe6a B npotnbopeuee c npedhaHauehneTo. 3a noCnEbnu uetn H anonnyk npo3BOJntela He hocn OTOBOPHOCT. MoIy oBpHeTe BHIMHe Ha TOBa, ye NaHTe ypeDn He ca npoeKtnpaHn 3a npomNJIeHa ynoTpe6a.

PpeDn BbBexKaHe BekcnoaTaunr

Akymynatopa ce doctabra 3apehen camo qactnHO. Ipei nIbpoHauHa ynoTpe6a e Heo6xoImo da ce 3apei HaIbIHO.

BHIMAHNE:

3apeKdaIte akMyIaTopa cMo cbc 3apAHOTo yCTPOCTBO, KOETO e auct OT doCTaBkata.
- 3no3BaIte cmo octpn6yprnn n 6e3ynpueHH NIOxOJaUN 3aBnHTBaUN HakpaHnU.
- Pnp npobBaHe n 3aBnHTBaHe B CTeHN n 3nIOBe npOBepeTe, DaIN B TAn HMa CkPnT eNEKTPnEckn IHCTaJaCn INN BOOpNOpBOHDn INN rA3OBN Tpb60npOBoDn.

Yka3aHnna 3a pa6oTa

Ipe3apexdaHeHaakymylaTopa:

1. Ocb6oBeTe akyMynatopa ot ypeDa Taka, che haTnChete upaKbaunTe 6ytoHn (kapt. E/12) n ro n3BaDeTe.
2. Cera cpaBHeTe, daHn HApEKeHHeTO Ha MpeKata nocoOHeHO NaNoBaTa TaBeJa Ka 3apAHIoYCTpOJCTBO CSbNAta C hAnPepKeHTo HO MaPpeKaTaa.
3. MyuHeTe 3apJHTo yCtpoIcTBo B uenCeHaTa KyTn I CBpKTe KaBeJa 3a 3apeXdaHe C npucbeHHeHHeTO 3a 3apeXdaHe.
   4.Akoakymyntopacéapexka,CbETn,hepeHo"LED CBETOIOHOOCBETJIeHHe (KAPr.F/13)
4. CneI npKIOUbaHe Ha 3apeXdaHeTo cBeTn,3eNeHO" LED cBetoNOdHO ocBtneHne (kap.T/F/13)

3a da 6b de rapaHTnpaH dbIbr XNBOT Ha akymynaTopa, 6n Tp8BaNo BnHa N da ocHpyrTe CBOEBpeMeHHO npesapexkdahe.

Ako akymyIaTopo e B cBcTOrHne da ce n3ToU, MAnKo
npeni ToBa, TOn CE n3KJIIOvBa. B HNKaKbB CnyaI, Beue He
n3NONBaTe akymyIaTopHaTa OTBepKa. C TOBa MoKeTe
dpaCTMHO Da cbKpATNe XINBOTOcNOC6HOCTTa Ha
akymyIaTopa.

Hactponka Ha Bbptraun Momet:

Bbptraa Momet ce oopm cnopei roneMHata Ha 6oIta Bbpyy yctpojCTBOTO 3a HactpojKa Ha Bbptraa Momet (kapr. D/9).

BbptTMMOMeHT3aBnCOnOTHAKOJIKOpakTopa:

OT TUNA N TBbPDOCTTa Ha MaTePnAna, C KOITOp pa6oTne.
OT TINa IN DbJxHnHaTa Ha IN3NON3BaHInTe 6oNTOBe.
OT N3NCKBaHnRA TAnCTaBnHN Bbpxy BNHTOBNTe Bpb3Kn.

N3BbPwBaIte peryJnpaHe Ha Bbptraun MOMENT

cMo, KOraTo aKymyNaTOpHaTa OTBepKa e B NOKoN.

PpO6nBaHe:

3a ceJIte Ha npoBbAHe HAcTpoIe BbpTAA MOpHc (KapT.D)Ha nocnEhata cTeenepnoBbAe

PpeBkIIOyBaTeJ Ha nocOKaTa Ha BbPeThe:

C nIb3raaunie C npBkNIOUbaTei (KapT. C/8) moKeTe da HacTpOte NOCOKaTa HA BpTeHe. MoKeTe da 136epeTe MExdy DnXKeHne BAnCHO N BnRABO. 3a Da He ce CTINHe Do yBpeKaHa Na PpeDABaHETo, e pa3peSeHO da ce pomeHn NocOKaTa Ha BpTeHe cAmo Pnp NOKoHa ypeDa. Ako npBkNIOUbaTeHa B CpeHa No3nua, BKnIOUbaTeJa BKN./n3Kn. e 6nokpaH.

BknIOyBaTeN Bk./n3Kn.:

KoIKKTo NOBHe HAtUcHTe To3N BKNIOuBaTeI (KapT. C/7), TOIKOBA No-BvCOKN Ue 6bDat o6opOTNe Ha akymnaTophata OTBepka.

3axBaUaHe/cmHa Ha HnHCTpyMeHTa:

Pn pabotn Bbpxy akymylaTohpata OTBepka BaBepe npe BbKnIOuBaTeNla 3a Nocokata Ha BbptHe r.B/7) B cpeHNOJoxHeN.

1. Pa3BnHTe NaTPOHHNka (KAPT. B/10) taka, ye da MOXeTe Da N3BaJNTe INHCTpyMeHTa.
2. Cera n36peTe NOxOJaHnHCTpyMeHT I RO BMBKHETe KOJIKOTO CE MOKe NO-HaBBTpeBOTbopa.
3. OTHOBO 3dpabo 3aTeHHe NaTPOHHNka N npOBepeTe, daIN INHCTpyMeHTa IN NOCTaBeH 3dpabo.

LED cBetoAnoNoOcBETneHnE:

LED CBeToDIOHOTOCBETNEHne (kap.T. B/11) no3BOJRABA
DONbIHNTEJIHO OCBETNEHNE B MRCTO HA 3aBVHTBAHE
NII NPO6BaHE. LED CBeToDIOHOTO OCBETNEHNE CBE TBA
ABTOMaTHNO, BeDHaCnE KATO HATNCHe
BKNIQHbATENBA./N3KN.

06o3HaueHne

Be3onacnoctHa npOdykta:

CE
Проблема OTROВарая на сбotingнітіе НорMU на EC

HapekdaHn:

CTOBAdKJIapnpaMeHne,

Güde GmbH & Co. KG

Birkichstrasse 6

D-74549 Wolpertshausen

TepMaHnA

Ye KOHJENIHTA KHOCTPYKLIINrTA Ha DOyNOCOHeHITe YpeBn B IN3bJIHeHHa, KOIO NcKame B O6pbIeHne, OTROBAPRT HA CBoTBeTHIne N3NCKBaHHa HNCHPTyKlMHTe HA EC 3a 6e3oNaChOCT XmRHeHa.

B cnyuHa n3MeHHe Ha ypeHa, KoTo He e 6nno KOHCyNTnpaHO C hac, Ta3n DeKnapaunr r6bCBOA BAINHDOC.

0603haueHHe Ha ypeDNTe:

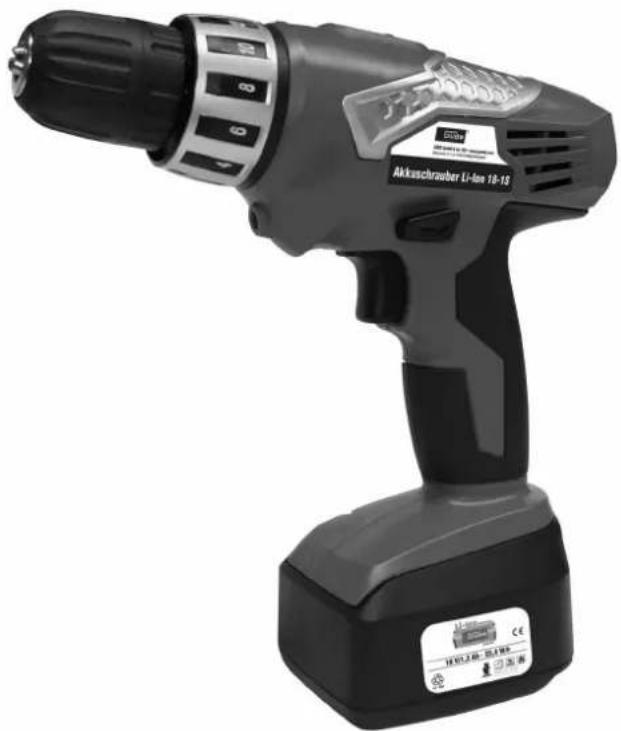

AKYMNYATOPHA OTBEPKA LI-ION 18-1S

3aBka No:

58100

CboTBeTHn Hape6n Ha EC:

2006/42 EG; 2004/108 EG; 2006/95/EG

H3noJ3BaHH XapMOHN3HpaHH HOpMN:

EN60745-1/A11:2010; EN60745-2-1:2010; EN60745-2-2:2010; EN 55014-1/A1:2009; EN 55014-2/A2:2008; 3aerndno yctpoiCTBO: EN 60335-1:2002 + A11:2004 + A1:2004 + A12:2006 + A2:2006 + A13:2008 + A14:2010; EN 60335-2-29:2004 + A2:2010; EN 62233:2008; EN 55014-1:2006; EN 61000-3-2:2006; EN 61000-3-3:2008; EN 55014-2:1997+A1:2001+A2:2008

Data/noDnnc Ha npOn3BODHTeY: 14.05.2012r.

DaHHn 3a noDnncAHn:

n3n. dInpekTop

rocn. ApnoJd

Texnuecka doKymentau: J. Burkle FBL; QS

Rapan

IrapAHJRATa ce OTHACNIKIOHTENHO 3a DEPEKTNa H MaTePmna NIN 3a 4abpHnH NEDePcKn. PnpYpaXHHBaHe Ha peKlAmauM BRapAHUOMHHC pOKe HaoBxOIMO da npbBaNTe OPUMHNHE DOKyMEHT ON 3akynyBaHcE TO cData HA NOKyTKata.

OT npaBO Ha rapAHUcA n3KTHIOHn HENpOpeChHOHaIIHa yIITOpE6Ba KATO HAp. npeTOBpaHE NaYpeDy, yNtOpeBa CbC cHa, yBpeKaHe O T yXJIO LIne INH ON T YXJn PpeIMet. HeTn3BaHETo H YtB TaBeHTo 3a NtOpeBa MOnTAtK An HopMaHHTO I3HOCBaHE CbLIO Ca I3KTHIOHm OT rapaHUN.

PobedeHne BcnyaHa 6eDa

Okajete np3IIONyka cB0TBeTHATA nbpBa NOMOuN NOBnKaIte KOJIKOTo ce MOKENo-6bP3O KBaINΦuNpHaMeNDUHCKA NOMOuN.

PpeDnaseTe nocpaanna OTo Dpytn 3noNOnyKn I ro yCnOKoIte.

3apaHn eBHTyAnHa 3IonoNyka Ha pa6oTHOTo MRCTO TpRbBa BnHar Da nMa NOp pKa anTeuKa 3a NbPba NOMou cblnacHo DIN 13164.MaTePna, KoITo B3eMeTe OT anTeuKaTa TpRbBa da 6bDe DonbInHe BeDHa.

Ako matae Hxka O T NOMO, NOCOyTe Te3n DaHHN:

1. MrcTo Ha 3lononykata
2. BnHa 3nononykata
   3.Бpoн ha paheHnte
3. BnI HapaHbAhe

NKBnDaun

HCTpykUNTe 3a NIKBDAua npOIm3n3aT OT NIKTOPpAMTe, KOTo ca pa3noLoXeHn Ha ypeDa pecn. Ha OAnokBaTa. OInCaHMeTo Ha oTdeJIHnTe 3NaueHnIe 1He HamePte B pa3dEn "O6o3NaueHnIe".

JIINKBnDauZna Ha TpaHcNOpTHaTa OnaKOBka

OnakOBkata npedna3Ba ypeDa nped ybpexdahe npi
TpanCnoptnape. OnakOBbChnTe MaTePnAnm O6nKHOBeHo
ca n3bpaHn Cnped TqXhata rpnka 3a OKoJHata cpea HauHa Ha NIKBuaIaNn 3aTOBa Morat da ce
peuKnipat.BpUaHeTo Ha onakOBkata B o6pbueHne
cncTeBA CypOBHH 3a MaTePnAna nNoHnKaBa
pa3xOndte 3a NIKBuaIaNn Ha
otnAdbuIte. qactn ot onakOBkata (Hapn. pOJIO,
CTIpONOp) MOrAT Da npedctabJIbAt ONachocT 3a Deua.
CbucteByBa AnochocT 3aDywaBaHe! CbxpaHraBaIte
qactn OT onakOBkata Ha HeD0CTbHNO 3a Deua MRCTO, n IN
NIKBnuPiayTe KOLKOto Ce MoKe No-6bp30.

3nckBaHna 3a 06cnykBaHe

PpeynynoTpe6aHa ypea 06cnykaaun Tp6Ba CTapaTeJIHO da npooye YnTBaHTo 3a 06cnykaHe.

KbailnФикauя

OCBeH NoDpO6HoNoyHeMeOT CnEuaNtCT 3a N3IOJ3BaHeTo Ha yPeJa He EHeo6XoIma HnKaKBa CneuAnHa KBaNfCnAua.

MnHmHaBb3pact

C ypeMaorat da paobotr cmo Nua, KOTo ca HABbpwnn 16 roHn.

N3KIOUHENI INPABN 3NIOJ3BAHETO HA HEnbJIHOJEHTNcAMO, AOKo TOBa CTaba No Bpeme Ha npOpeCNOHaHnTOO OByeHHe c LcE NocTirHa He YaMeHne NOD HaD3Opa HA OByuBaAaTOTo IInCe.

06yueHne

I3no3BaHTo Ha ypea n3nCKBa cAmo CbOTBeTHO noyueHHe OT CneuaJIACT, peCn. OT YtBtBAHeTO 3a o6cnyKbaHe . CneuaJHo ObyeHHe He e Heo6xOJMo.

UHCTeHe

IopdbpkaaTe BeHTnnaHOnHHte OTBOpn KOpnyca Haypea NCTn 6e3 npax.

3a nouchBaHe n3noJ3BaIte MeK napau n fHHeN canyHep pa3TbOp. N36BerHeTe npK KOHTaH na ypeDa c arpeCBHn nouchCTBaU npenapatn. He Tp86Ba da ce n3noJ3Bat arpeCBHn, neTlNBn Kopo3NBn nouchBau npenapatn.

Ypea Tpr6Ba Da ce na3n ppe Bnara n npax.

Ako He 3n0n3BaTe ypeDa, cxbpaHbAte To 3aKpnt Ha cyxo, 6e3oNaCHO, HEOCTbNHO 3a DeLa MRCTO.

CepBn3

ImateIeTexnuecknBbnpocn?Peknaamn? Heo6xodmnnBaCapepBnHaNynyTBAHe 3a06cnyXbae? Ha hawata ctpanu www.guede.com B otDen CepBn3 ue BN NOMOHem 6bp3o N 6e3 n3nUHs Hbiopokpaun. IomorHete HMOJra 3a da MOKEM Da BN nomarame.3a da moKem da ndENTnupnmpame Baunr ypeB Cnyau Ha peKnamaun, H e Heo6xOmo Da 3Haem HerOBnA cepneH homep,Homepa Ha npodykTa n rOdHnHa npOn3BODCTBO. BCnuKN Te3n DaHHn Ue HamepuTe HA TINOBATA Tabenka. 3a da IMate Te3n DaHHn PbKa NOCTORHHO, 3aNNWeTe rn,MOJRA NO-DONY.

CepenH HOMEP: 3aBbKa HOMEP: ToDnHa Na pOn3BOdCTBO:

Ten.: +49 (0) 79 04 / 700-360
Φaκc: +49 (0) 79 04 / 700-51999
E-Mail: [e-mail]

---

GüDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland
