USER MANUAL Xperia M2 Dual SONY
A propos de ce guide de l'utilisateur. 7
Overview. 7
Assembly 8
Screen protection. 9
Starting your device for the first time. 9
Why do I need a GoogleTM account? 10
Charging your device 11
Apprendellesbases 12
Envoyer et receivevoir des e-mails. 78
Configuration One-touch 120
1 Proximity/Light sensor
2 Charging/Notification light
3 Ear speaker
4 Front camera lens
5 Micro SIM card slot cover
6 Power key
7 Volume/Zoom key
8 Camera key
9 Strap hole
10 Speaker
11 Illuminating bar
12 Main microphone

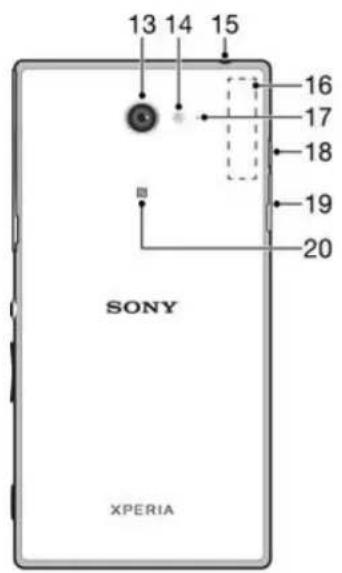

13 Main camera lens
14 Camera light
15 Headset jack
16 Wi-Fi/GPS/Bluetooth antenna area
17 Second microphone
18 Port for charger/USB cable
19 Memory card slot cover
20 NFC detection area

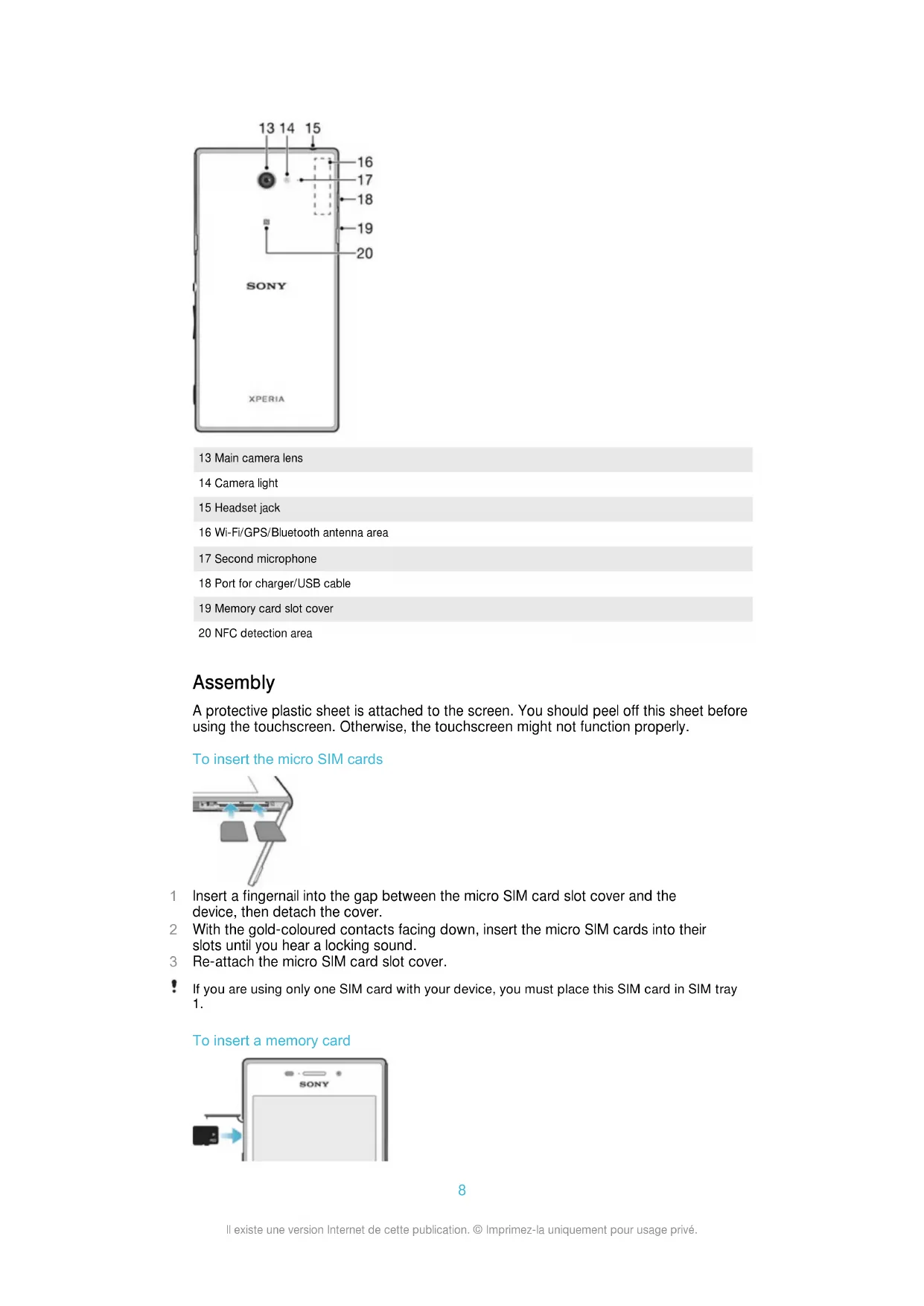

Assembly
A protective plastic sheet is attached to the screen. You should peel off this sheet before using the touchscreen. Otherwise, the touchscreen might not function properly.
To insert the micro SIM cards
1 Insert a fingernail into the gap between the micro SIM card slot cover and the device, then detach the cover.
2 With the gold-coloured contacts facing down, insert the micro SIM cards into their slots until you hear a locking sound.
3 Re-attach the micro SIM card slot cover.
If you are using only one SIM card with your device, you must place this SIM card in SIM tray 1.
To insert a memory card
1 Insert a fingernail into the gap between the memory card cover and the device, then detach the memory card cover.
2 Place the memory card in the memory card slot, with the gold-coloured contacts facing down, then push the memory card all the way into the slot until you hear a locking sound.
3 Re-attach the memory card cover.
To remove a micro SIM card
1 Detach the micro SIM card slot cover.
2 Press the micro SIM card inwards and then release it quickly.
3 Draw the card outwards to remove it fully.
4 Re-attach the micro SIM card slot cover.
To remove the memory card
1 Turn off the device, or unmount the memory card from Reglages > Stockage > Demonter la carte SD.
2 Remove the cover of the memory card slot, then press against the edge of the memory card and release it.
3 Draw the card outwards to remove it fully.
Screen protection
Before using your device, remove the transparent protection film by pulling up on the protruding tab.
It is recommended to protect your device with a Sony-branded screen cover or protector intended for your Xperia™ model. The use of third party screen protection accessories may prevent your device from working by covering sensors, lenses, speakers, or microphones and it can invalidate the warranty.
Starting your device for the first time
The first time you start your device, a setup guide opens to help you configure basic settings, sign in to online accounts and personalise your device. For example, if you have a Sony Entertainment Network account, you can sign in to it here and get set up straight away.
You can also access the setup guide later from the Settings menu.

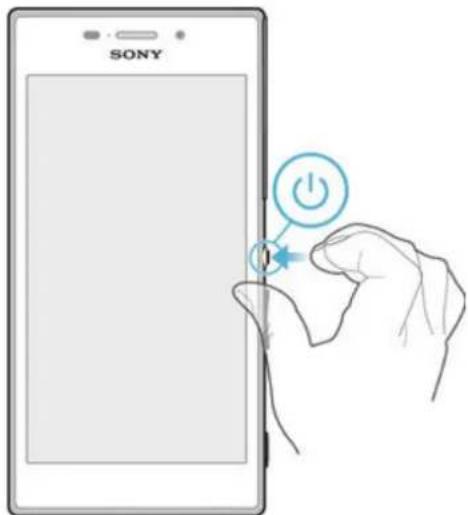

To turn on the device
Make sure that the battery is charged for at least 30 minutes before you turn on the device for the first time.
1 Press and hold down the power key until the notification light flashed once.
2 Enter your SIM card PIN when requested, then tap
3 Wait a while for the device to start.
To turn off the device
1 Press and hold down the power key until the options menu opens.
2 In the options menu, tap Éteindre.
It may take a while for the device to shut down.
Why do I need a Google™ account?
Your Xperia™ device from Sony runs on the Android™ platform developed by Google™. A range of Google™ applications and services is available on your device when you purchase it, for example, Gmail™, Google Maps™, YouTube™ and the Play Store™ application, which gives you access to the Google Play™ online store for downloading Android™ applications. To get the most out of these services, you need a Google™ account. For example, a Google™ account is mandatory if you want to:
Download and install applications from Google PlayTM.
- Synchronise email, contacts and the calendar using Gmail™.
Chat with friends using the HangoutsTM application.
- Synchronise your browsing history and bookmarks using the Google Chrome™ web browser.
- Identify yourself as the authorised user after a software repair using Xperia™ Companion.
- Remotely find, lock or clear a lost or stolen device using the my Xperia™ or Android™ Device Manager services.
For more information about Android™ and Google™, go to http://support.google.com.
It is crucial that you remember your Google™ account username and password. In some situations, you may need to identify yourself for security reasons using your Google™ account. If you fail to give your Google™ username and password in such situations, your device is locked. Also, if you have more than one Google™ account, make sure to enter the details for the relevant account.
To set up a Google™ account on your device
1 From your Ecran d'accueil, tap
2 Find and tap Reglages > Comptes > Ajouter un compte > Google.
3 Follow the registration wizard to create a Google™ account, or sign in if you already have an account.
You can also sign in to or create a Google™ account from the setup guide the first time you start your device. Or you can go online and create an account at www.google.com/accounts.
Charging your device
Your device has an embedded, rechargeable battery that should be replaced only by Sony or an authorised Sony repair centre. You should never try to open or take apart this device yourself. Opening the device can cause damage that will void your warranty.
The battery is partly charged when the device is shipped from the factory. Depending on how long it was in the box before you purchased it, the battery level may be quite low. It is therefore recommended that you charge the battery for at least 30 minutes before starting up your device for the first time. You can still use your device while it is charging. Read more about how to improve the battery performance in Gestion de la batterie et de l'alimentation on page 21.

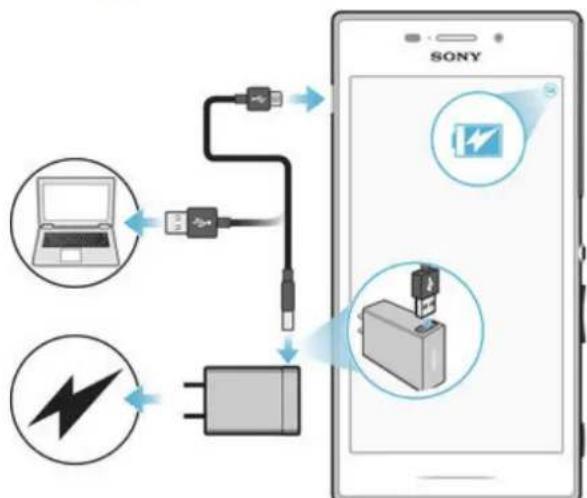

To charge your device
1 Plug the charger into a power outlet.
2 Plug one end of the USB cable into the charger (or into the USB port of a computer).
3 Plug the other end of the cable into the micro USB port on your device, with the USB symbol facing up. The notification light illuminates when charging begins.
4 When the device is fully charged, disconnect the cable from your device by pulling it straight outwards. Make sure not to bend the connector.
If the battery is completely discharged, it may take a few minutes before the notification light illuminates and the charging icon appears.
Battery notification light status
Green The battery is charging and the battery charge level is greater than 90%
Red The battery is charging and the battery charge level is less than 15%
Orange The battery is charging and the battery charge level is less than 90%
