SECSA110 - Smoke detector NEDIS - Free user manual and instructions

Product type	Optical smoke detector
Brand	Nedis
Model	SECSA110
Power supply	9 V DC lithium battery (included)
Battery life	10 years
Detection type	Optical (photoelectric detection chamber)
Alarm sound level	≥ 85 dB at 3 meters
Test button	Yes, for weekly function test
Low battery indicator	Yes, flashing + beep sound
Normal operation indicator	LED flashes every 45 seconds
Dimensions (estimated)	Approximately Ø 10 x 4 cm
Weight (estimated)	Approximately 150 g (with battery)
Operating temperature	-10 °C to +40 °C
Operating relative humidity	Up to 85% non-condensing
Standards	EN 14604:2005/AC:2008
Recommended installation location	On ceiling, at least 30-50 cm from walls and corners
Locations to avoid	Kitchen, bathroom, garage, near fans or heat sources
Package contents	Smoke detector, 9 V lithium battery, mounting accessories, manual
Maintenance	Clean once a month with a soft brush (vacuum). Do not paint or expose to water.
Detector lifespan	10 years from purchase date
Warranty	Legal warranty of conformity (see manual for details)
Repairability	Spare parts not available; replace the entire detector at end of life

Frequently Asked Questions - SECSA110 NEDIS

How to test the SECSA110 smoke detector?

Press and hold the test button for a few seconds until the alarm sounds. If it does not sound, check that the LED flashes every 45 seconds. A weekly test is recommended.

What to do if the alarm sounds when there is no smoke?

Check for dust or steam. Clean the detector with a vacuum soft brush attachment. If the problem persists, replace the battery or the detector.

What is the battery life of the SECSA110?

The built-in lithium battery has a lifespan of 10 years. The detector must be replaced after this period.

Where to install the Nedis SECSA110 smoke detector?

Install it on the ceiling, preferably in the center, at least 30-50 cm from walls and corners. Place one in each bedroom and hallway leading to the exit.

How to know if the battery is low?

The LED flashes and a beep sounds approximately every 45 seconds. Replace the battery immediately (or the detector if the battery is built-in).

Can you paint the smoke detector?

No, never paint the smoke detector. Paint can obstruct the sensors and cause malfunction.

How to clean the smoke detector?

Clean once a month with a vacuum soft brush attachment. Do not use water or cleaning products.

Is the SECSA110 compliant with standards?

Yes, it is certified EN 14604:2005/AC:2008 and bears the CE marking.

What to do in case of fire?

Stay calm, leave the premises quickly, close doors behind you, call emergency services. Do not re-enter the building.

How to install the smoke detector on the ceiling?

Attach the mounting plate to the ceiling with the provided screws and wall plugs. Insert the battery (remove the plastic protective cover), then turn the detector clockwise to lock it.

USER MANUAL SECSA110 NEDIS

SEC-SA100/110

White portable smoke shield with ventilation grille and circular base (no text or symbols visible)

MANUAL (p. 2)

Optical Smoke Alarm

MODE D'EMPLOI (p. 10)

MANUAL DE USO (p. 22)

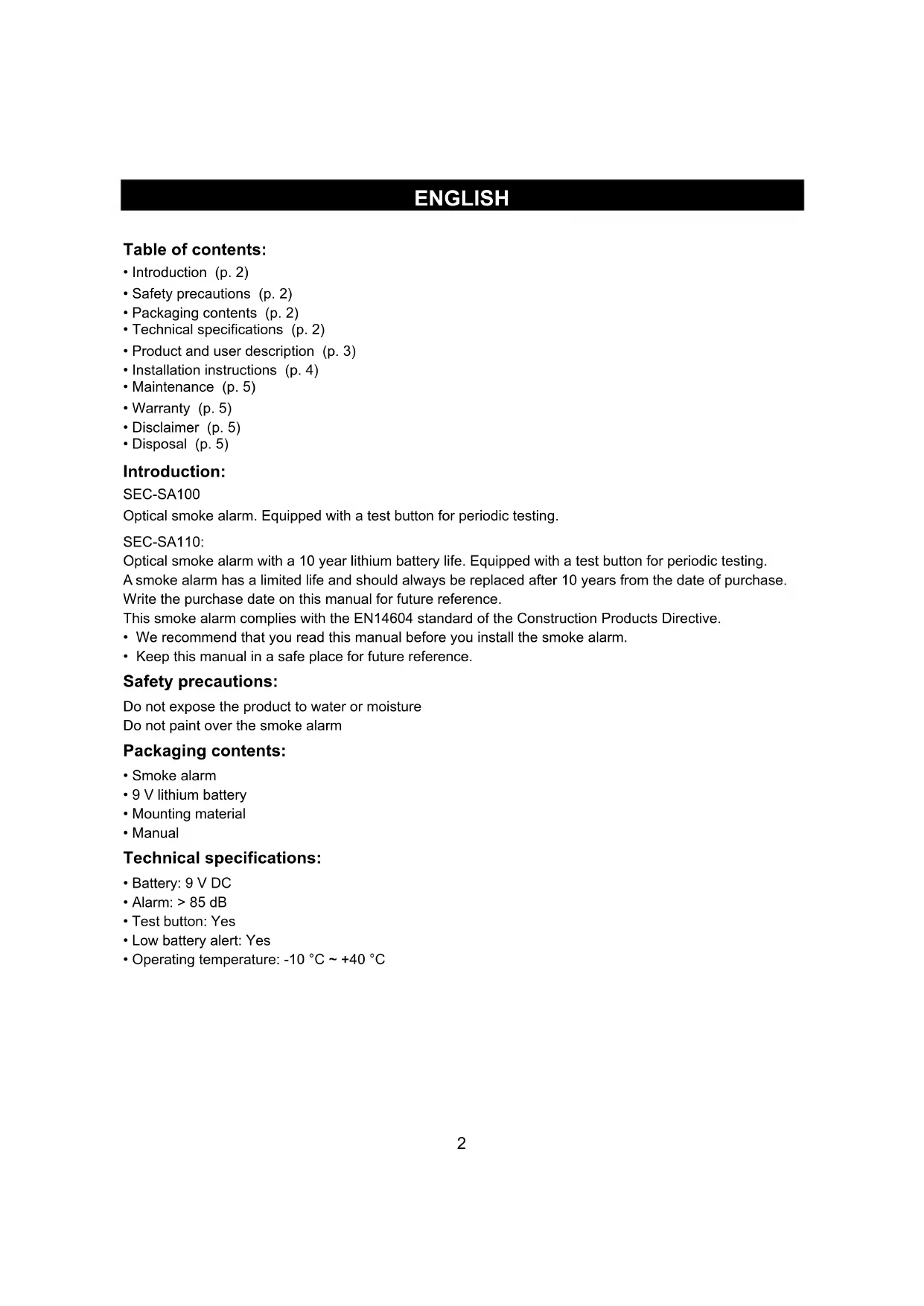

• Introduction (p. 2)
  • Safety precautions (p. 2)
  • Packaging contents (p. 2)
  • Technical specifications (p. 2)
  • Product and user description (p. 3)
  • Installation instructions (p. 4)
• Maintenance (p. 5)
• Warranty (p. 5)
• Disclaimer (p. 5)
• Disposal (p. 5)

Introduction:

SEC-SA100

Optical smoke alarm. Equipped with a test button for periodic testing.

SEC-SA110:

Optical smoke alarm with a 10 year lithium battery life. Equipped with a test button for periodic testing.

A smoke alarm has a limited life and should always be replaced after 10 years from the date of purchase.

Write the purchase date on this manual for future reference.

This smoke alarm complies with the EN14604 standard of the Construction Products Directive.

• We recommend that you read this manual before you install the smoke alarm.

- Keep this manual in a safe place for future reference.

Safety precautions:

Do not expose the product to water or moisture

Do not paint over the smoke alarm

Packaging contents:

• Smoke alarm
• 9 V lithium battery
• Mounting material
• Manual

Technical specifications:

• Battery: 9 V DC
• Alarm: > 85 dB
• Test button: Yes
• Low battery alert: Yes
• Operating temperature: -10^ +40^

Product and user description:

Close-up of a circular white device with a black dot and a numbered arrow pointing upward, showing internal wave patterns (no text or symbols)

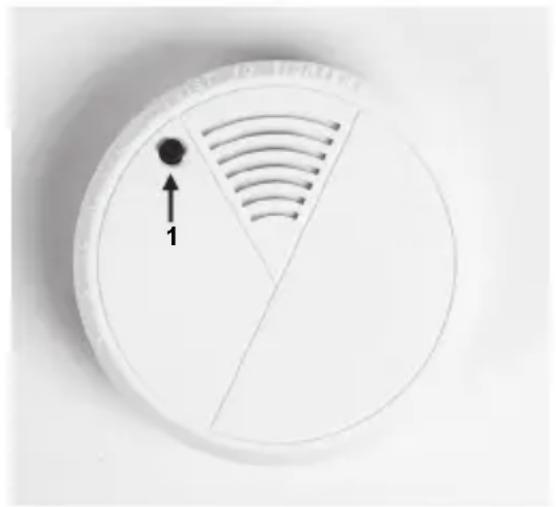

1. Test button / battery indicator

Testing the smoke alarm

Like any other electronic device, smoke alarms are not foolproof. Smoke alarms contain electronic components that can fail or wear out at any time.

We recommended that you test the smoke alarm every week to make sure it is working properly.

Push and hold the test button until the alarm sounds for a few seconds. If it does not sound, check if the battery indicator flashes once every 45 seconds. If this is not the case, replace the battery immediately.

Battery indicator.

The battery indicator flashes every 45 seconds to show the smoke alarm is working properly. When the battery indicator flashes and gives a short beep sound, it is indicating that the battery has low capacity and should be replaced immediately.

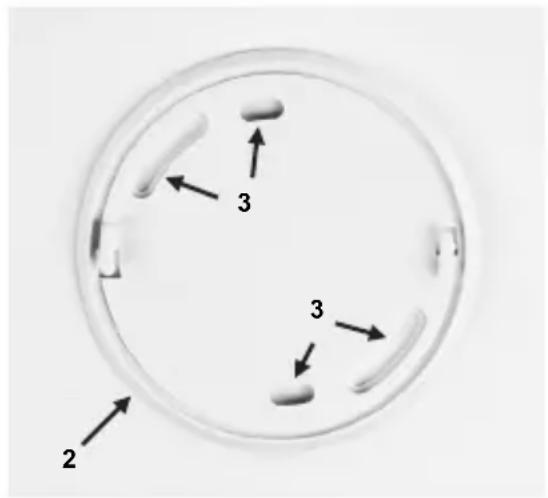

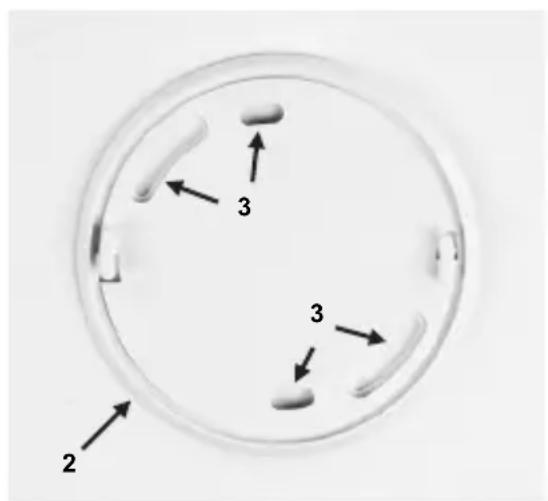

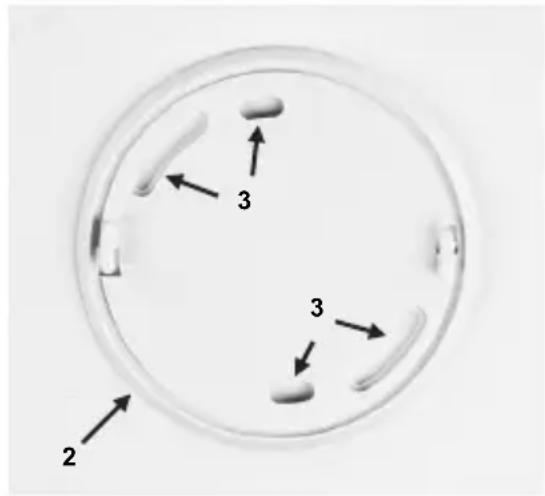

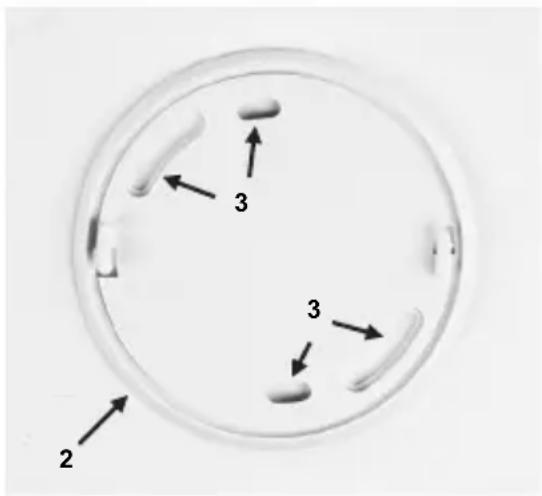

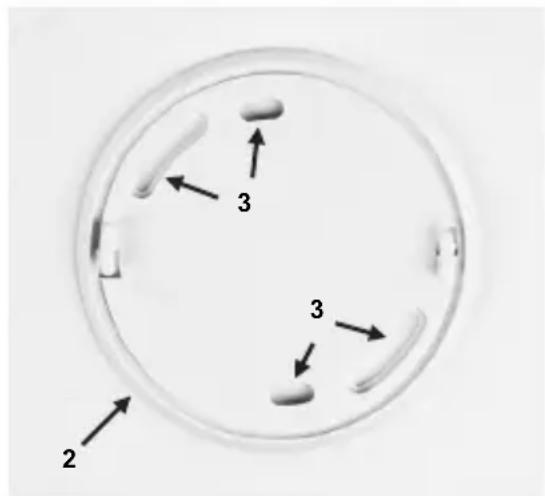

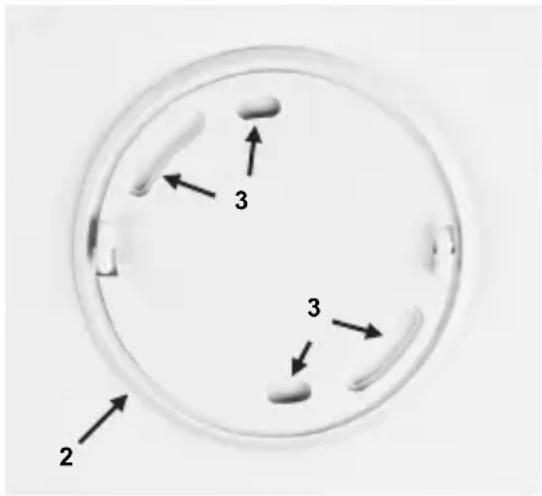

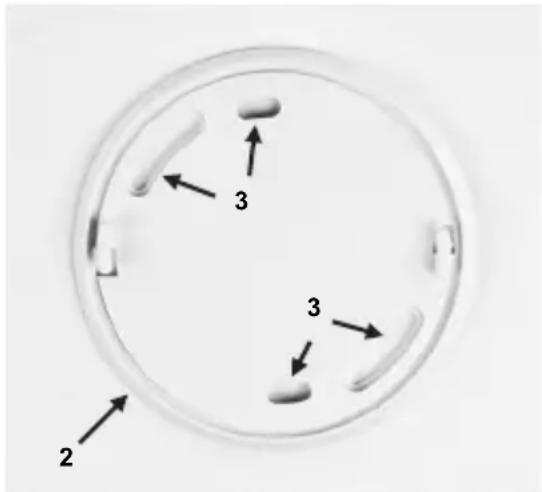

2. Mounting plate

3. Mounting holes

Use the supplied screws and plugs to mount the mounting plate to the ceiling.

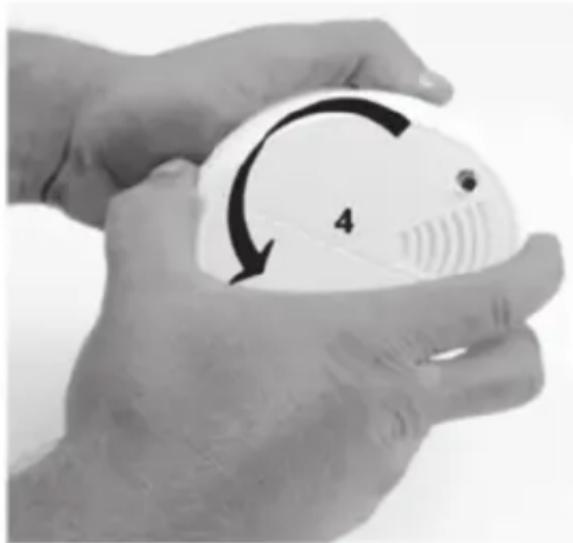

4. Remove the mounting plate

Turn the mounting plate of the smoke alarm counterclockwise to get access to the battery compartment of the smoke alarm.

5. Battery compartment

6. Safety catch

The safety catch prevents the smoke alarm being returned to the mounting plate without inserting the battery first.

7. Battery connector

Take off the plastic seal of the battery and connect the battery with the battery connector. After placing the battery test the alarm with the test button to ensure it is working properly (see testing the smoke alarm). When the mounting plate is mounted and the smoke alarm tested after inserting the battery, place the smoke alarm on the mounting plate by turning it clockwise.

Close-up of a hand holding a white circular object with a curved arrow and the number 4, no visible text or symbols on the object itself.

Read the following chapter to find out which places in your house are the best choices to mount the smoke alarm(s).

Installation instructions:

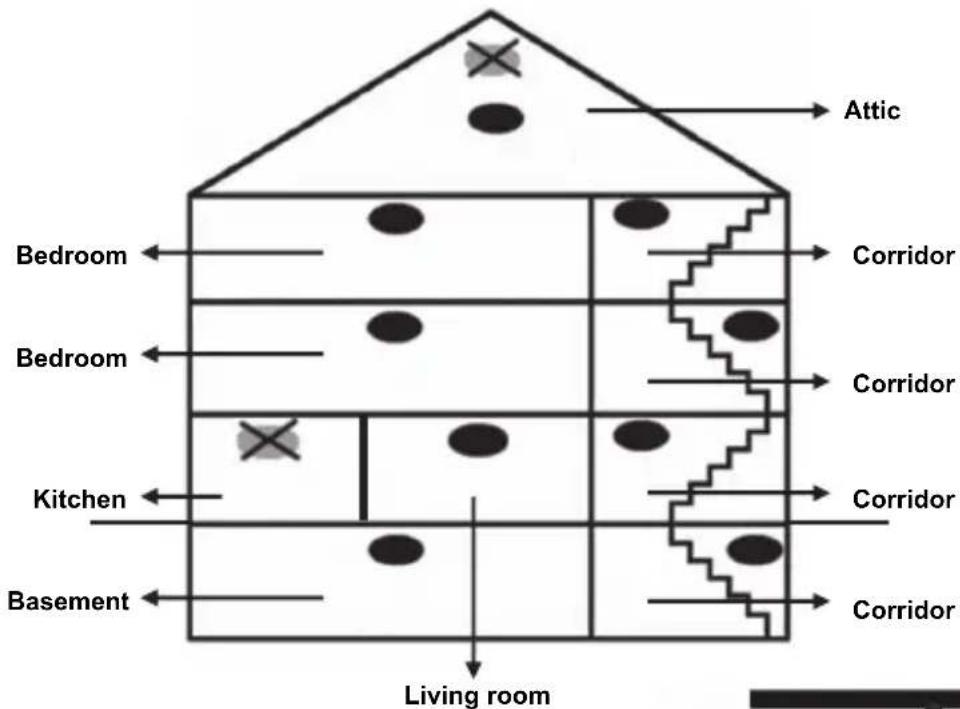

Install a smoke alarm in every room or area on every level of the home

Smoke may not reach the smoke alarm if it is installed in only one room or area. If a fire starts in another room or area than where the smoke alarm is installed, the smoke alarm will not detect the smoke, or it will detect it too late. A smoke alarm will not promptly detect a fire except in the room or area in which it is installed.

Place at least one smoke alarm in every room/area that is on your way from the bedroom to the front door. It is recommended to make a flight plan and practice it with the household members in case of an emergency.

The requirements for the installation of a smoke alarm may differ per region. Please contact your local authorities for possible additional requirements.

Example for the installation of smoke alarms:

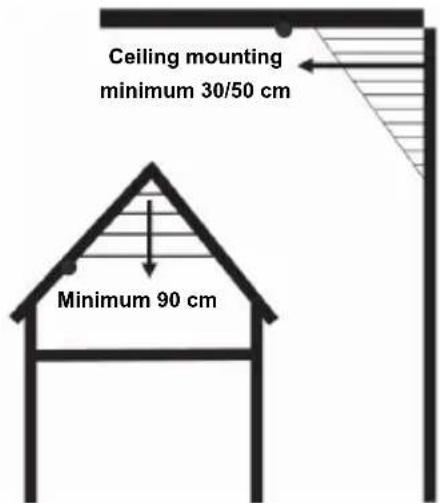

On ceilings

Install smoke alarms as close as possible to the centre of the ceiling. If this is not possible, install the smoke alarm at least 30 to 50 cm from the wall or corner (due to dead air space).

Rooms with gabled ceilings

Install the smoke alarm 90 cm from the highest point (due to dead air space).

When installing a smoke alarm in a corridor with a length of 7.5 metres or more. It is recommended to install a smoke alarm in the beginning and the end of the corridor.

Do not install a smoke alarm

• In a humid, dusty and smoky environment
• In rooms or areas where temperatures are below 4 °C or above 38 °C
• In the kitchen, bathroom or garage
• In drafty places
• Near a fan or air vent
• Above heating

Maintenance:

It's recommended to clean the smoke alarm once a month. Gently vacuum the outside of the smoke alarm with the soft brush attachment of the vacuum cleaner. Do not use water, cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

Disclaimer:

Designs and specifications are subject to change without prior notice. All logos, brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognised as such.

Disposal:

• This product is designated for separate collection at an appropriate collection point. Do not dispose of this product with household waste.
• For more information, contact the retailer or the local authority responsible for waste management.

This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member states of the European Union. It also complies with all applicable specifications and regulations in the country of sales.

Formal documentation is available upon request. This includes, but is not limited to: Declaration of Conformity (and product identity), Material Safety Data Sheet and product test report.

Please contact our customer service desk for support:

via website: http://www.nedis.com/en-us/contact/contact-form.htm

via e-mail: [e-mail]

via telephone: [phone] (during office hours)

NEDIS B.V., De Tweeling 28, 5215 MC 's-Hertogenbosch, THE NETHERLANDS

Model: HS-103

DoP: 20130723001

1134-CPD-32

EN 14604:2005/AC:2008

Smoke alarm devices

Intended fire safety and installed in buildings

Essential characteristic 1: Pass

Essential characteristic 2: Pass

Essential characteristic 3: Pass

Essential characteristic 4: Pass

Essential characteristic 5: Pass

Essential characteristic 6: Pass

Essential characteristic 7: Pass

Essential characteristic 8: Pass
