DTCT30WT - Smoke detector NEDIS - Free user manual and instructions

Product type	Optical smoke detector
Brand	Nedis
Model	DTCT30WT
Power supply	9 V DC battery
Alarm sound level	Greater than 85 dB
Test button	Yes
Low battery indicator	Yes
Operating temperature	-10 °C to +40 °C
Standard	EN14604:2005/AC:2008
Lifetime	10 years (replace after purchase date)
Recommended installation	On ceiling, at least 30 cm from walls or corners
Maintenance	Clean once a month with a soft brush vacuum cleaner
Package contents	Detector, 9 V battery, mounting bracket, manual
Warranty	No liability in case of modification or incorrect use
Disposal	Do not dispose with household waste, appropriate collection point

Frequently Asked Questions - DTCT30WT NEDIS

How to install the smoke detector?

Install the mounting bracket on the ceiling using the screws and plugs provided. Connect the 9V battery, then turn the detector clockwise onto the mounting plate. Preferably place the detector in the center of the ceiling, at least 30 cm from walls.

How to test the smoke detector?

Press and hold the test button until the alarm sounds for a few seconds. Perform this test every week to verify proper operation.

What to do if the alarm does not sound during the test?

Check that the battery indicator flashes once every 45 seconds. If not, replace the battery immediately and test again.

What does the indicator flashing mean?

A flash every 45 seconds indicates normal operation. If the indicator flashes with a beep sound, the battery is low and must be replaced.

When to replace the battery?

Replace the battery as soon as the indicator flashes and beeps. Use a new 9V battery. Test the alarm after replacement.

Where to install the smoke detector?

Install a detector in every room and on every floor, especially along the path from bedrooms to exits. On the ceiling, away from walls, fans, and draft sources.

Where not to install the smoke detector?

Avoid humid, dusty, or smoky environments (kitchen, bathroom, garage), temperatures below 4°C or above 38°C, and near fans or air vents.

How to clean the smoke detector?

Clean the outside once a month with a vacuum cleaner fitted with a soft brush. Do not use water or cleaning agents.

What is the lifetime of the detector?

The detector must be replaced 10 years after the purchase date. Write this date on the manual for reference.

What to do in case of false alarm?

Check for smoke or steam. If the alarm is triggered by steam or dust, move the detector or clean it. If the problem persists, replace the battery.

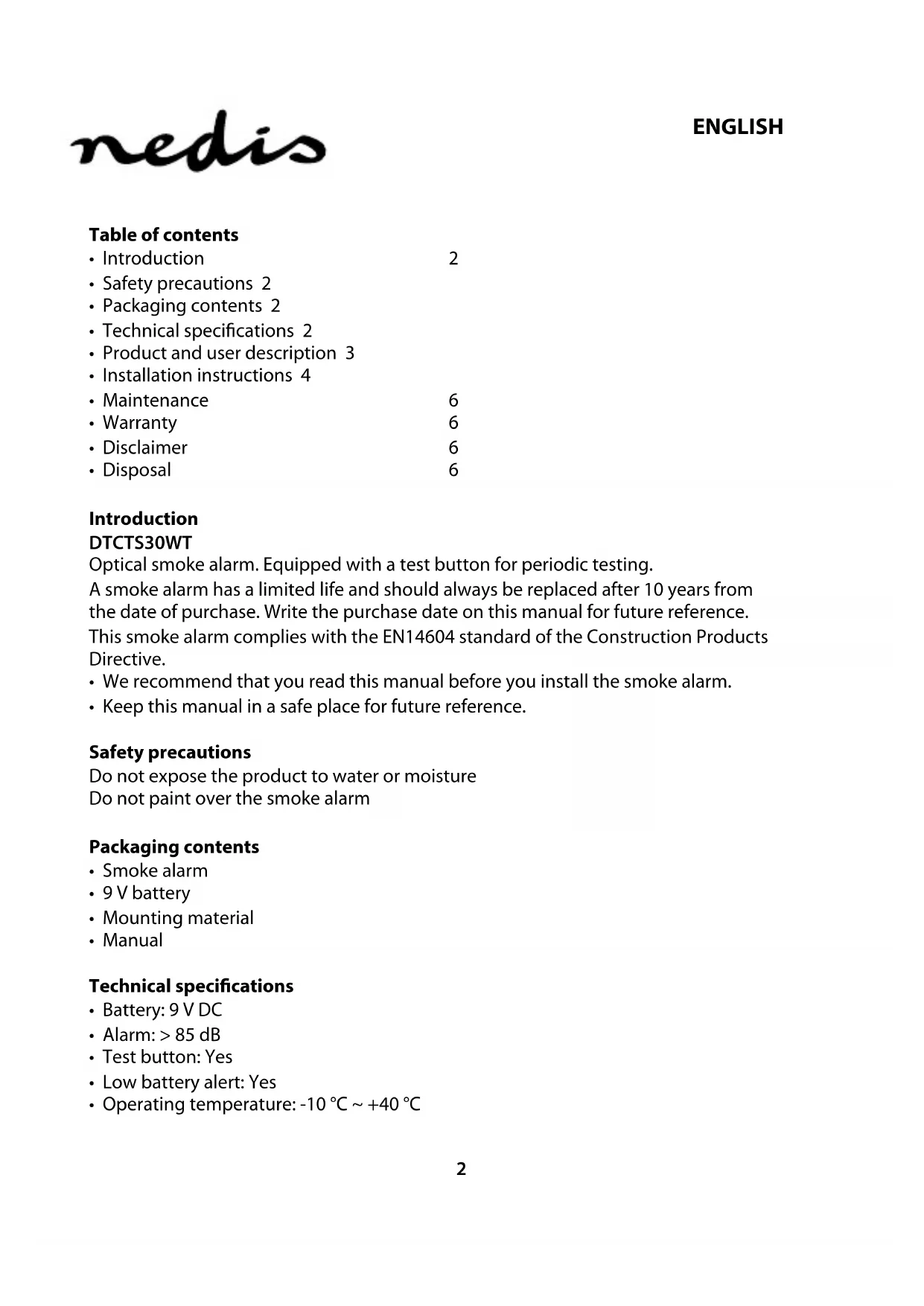

USER MANUAL DTCT30WT NEDIS

• Introduction 2
  • Safety precautions 2
• Packaging contents 2
  • Technical specifications 2
  • Product and user description 3
  • Installation instructions 4
• Maintenance 6
• Warranty 6
• Disclaimer 6
• Disposal 6

Introduction

DTCTS30WT

Optical smoke alarm. Equipped with a test button for periodic testing.

A smoke alarm has a limited life and should always be replaced after 10 years from the date of purchase. Write the purchase date on this manual for future reference.

This smoke alarm complies with the EN14604 standard of the Construction Products Directive.

• We recommend that you read this manual before you install the smoke alarm.

- Keep this manual in a safe place for future reference.

Safety precautions

Do not expose the product to water or moisture

Do not paint over the smoke alarm

Packaging contents

• Smoke alarm
• 9 V battery
• Mounting material
• Manual

Technical specifications

• Battery: 9 V DC
• Alarm: > 85 dB
• Test button: Yes
• Low battery alert: Yes
• Operating temperature: -10^ +40^

Product and user description

Simple diagram of a light bulb with a downward arrow and a dot, no text or symbols present.

1. Test button / battery indicator

Testing the smoke alarm

Like any other electronic device, smoke alarms are not foolproof. Smoke alarms contain electronic components that can fail or wear out at any time.

We recommended that you test the smoke alarm every week to make sure it is working properly.

Push and hold the test button until the alarm sounds for a few seconds. If it does not sound, check if the battery indicator flashes once every 45 seconds. If this is not the case, replace the battery immediately.

Battery indicator

The battery indicator flashes every 45 seconds to show the smoke alarm is working properly. When the battery indicator flashes and gives a short beep sound, it is indicating that the battery has low capacity and should be replaced immediately.

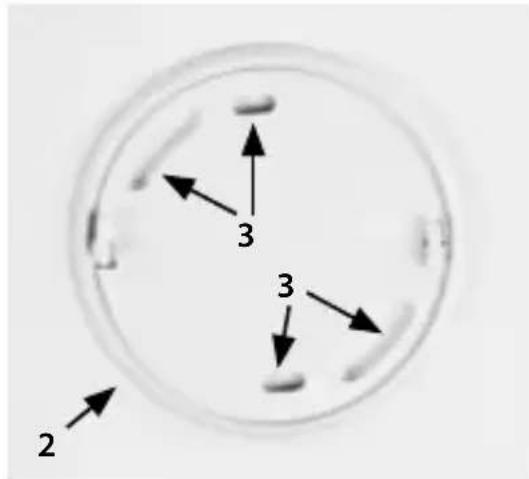

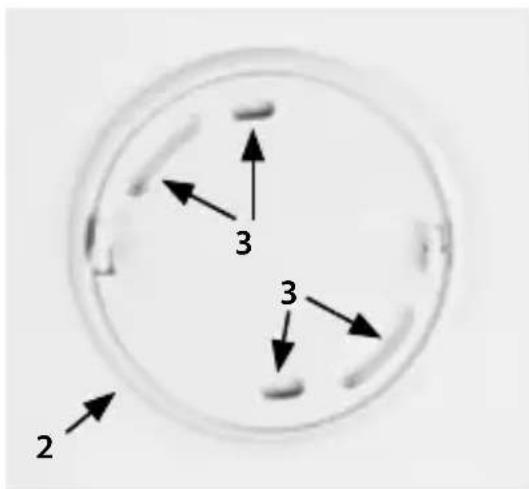

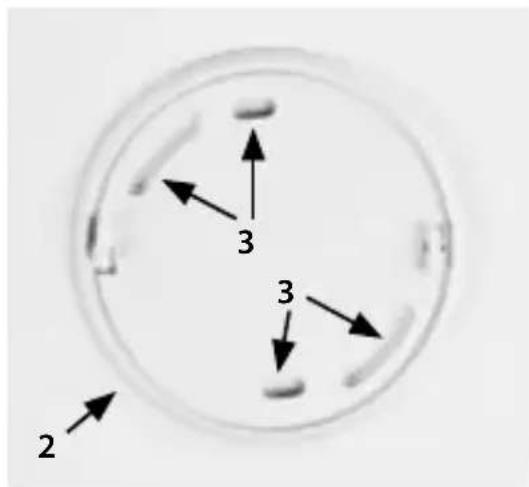

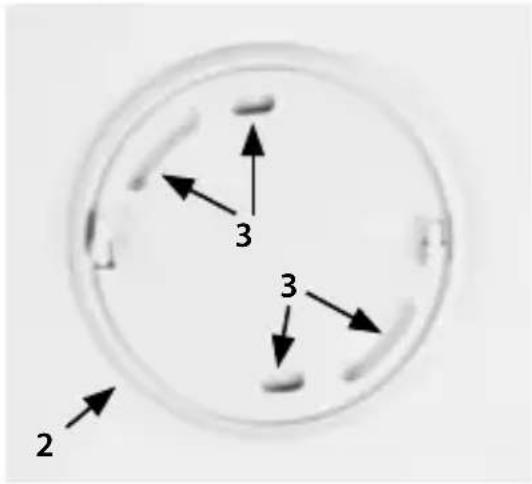

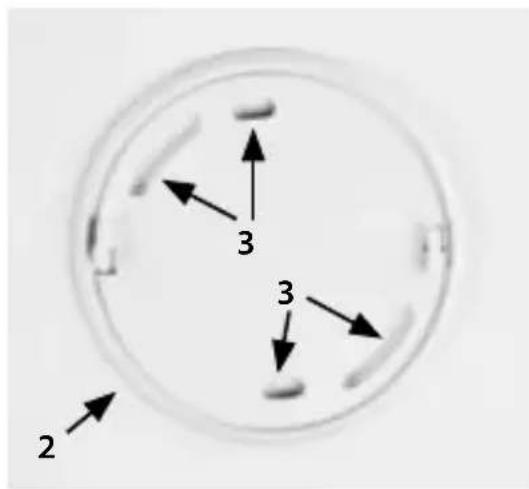

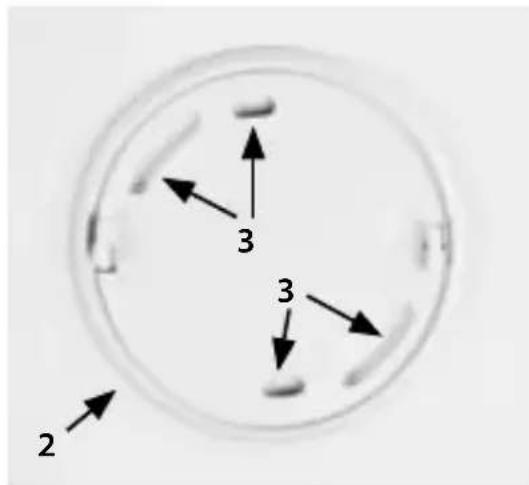

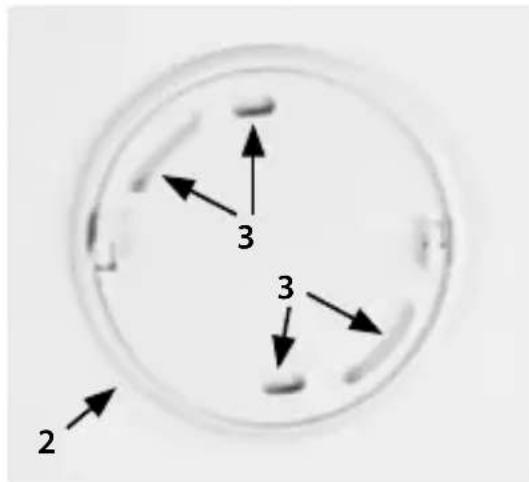

2. Mounting plate

3. Mounting holes

Use the supplied screws and plugs to mount the mounting plate to the ceiling.

4. Remove the mounting plate

Turn the mounting plate of the smoke alarm counter- clockwise to get access to the battery compartment of the smoke alarm.

5. Battery compartment

6. Safety catch

The safety catch prevents the smoke alarm being returned to the mounting plate without inserting the battery first.

7. Battery connector

Take off the plastic seal of the battery and connect the battery with the battery connector. After placing the battery test the alarm with the test button to ensure it is working properly (see testing the smoke alarm).

When the mounting plate is mounted and the smoke alarm tested after inserting the battery, place the smoke alarm on the mounting plate by turning it clockwise.

Read the following chapter to find out which places in your house are the best choices to mount the smoke alarm(s).

Installation instructions

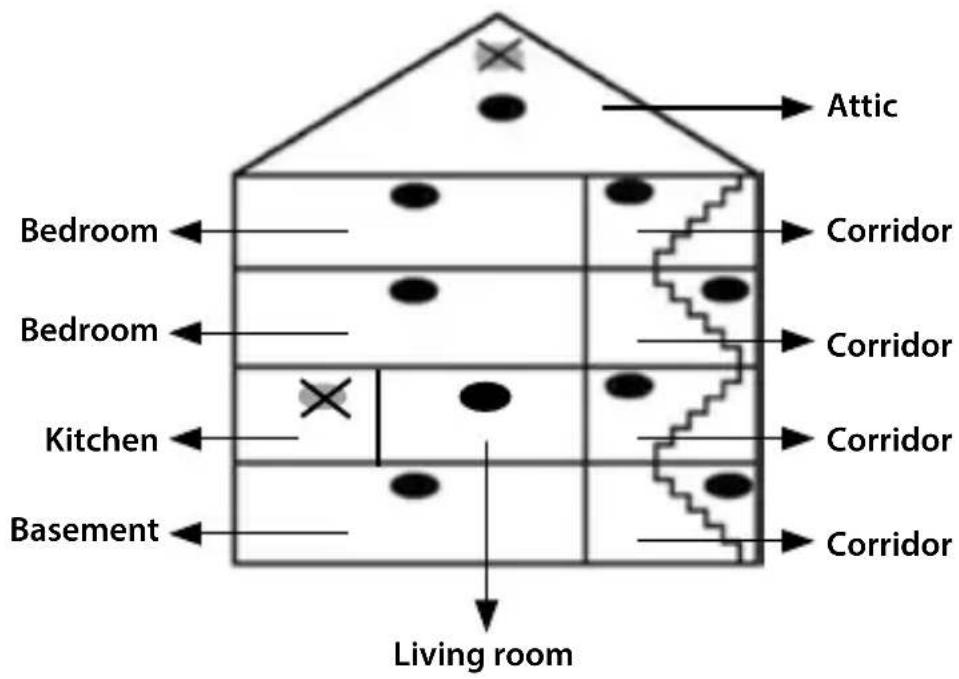

Install a smoke alarm in every room or area on every level of the home

Smoke may not reach the smoke alarm if it is installed in only one room or area. If a fire starts in another room or area than where the smoke alarm is installed, the smoke alarm will not detect the smoke, or it will detect it too late. A smoke alarm will not promptly detect a fire except in the room or area in which it is installed.

Place at least one smoke alarm in every room/area that is on your way from the bedroom to the front door.

It is recommended to make a flight plan and practice it with the household members in case of an emergency.

The requirements for the installation of a smoke alarm may differ per region. Please contact your local authorities for possible additional requirements.

Example for the installation of smoke alarms:

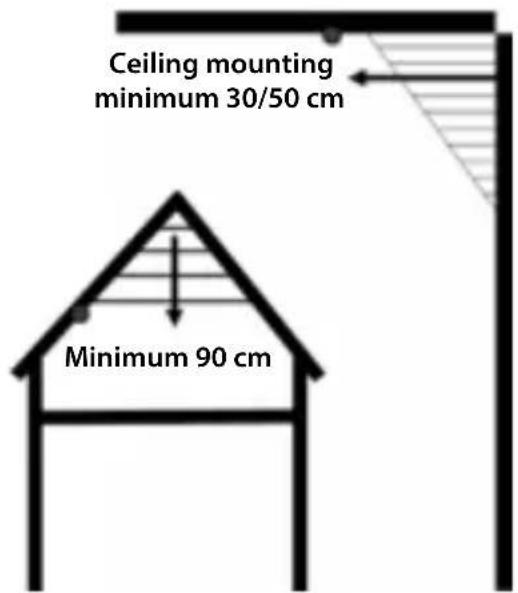

On ceilings

Install smoke alarms as close as possible to the centre of the ceiling. If this is not possible, install the smoke alarm at least 30 to 50 cm from the wall or corner (due to dead air space).

Rooms with gabled ceilings

Install the smoke alarm 90 cm from the highest point (due to dead air space). When installing a smoke alarm in a corridor with a length of 7.5 metres or more. It is recommended to install a smoke alarm in the beginning and the end of the corridor.

Do not install a smoke alarm

• In a humid, dusty and smoky environment
• In rooms or areas where temperatures are below 4 °C or above 38 °C
• In the kitchen, bathroom or garage
• In drafty places
• Near a fan or air vent
• Above heating

Maintenance

It's recommended to clean the smoke alarm once a month. Gently vacuum the outside of the smoke alarm with the soft brush attachment of the vacuum cleaner. Do not use water, cleaning solvents or abrasives.

Warranty

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

Disclaimer

Designs and specifications are subject to change without prior notice. All logos, brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognised as such.

Disposal

• This product is designated for separate collection at an appropriate collection point. Do not dispose of this product with household waste.
• For more information, contact the retailer or the local authority responsible for waste management.

This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member states of the European Union. It also complies to all applicable specifications and regulations in the country of sales. Formal documentation is available upon request. This includes, but is not limited to: Declaration of Conformity (and product identity), Material Safety Data Sheet, product test report.

Please contact our customer service desk for support:

via website: http://www.nedis.com/en-us/contact/contact-form.htm

via e-mail: [e-mail]

via telephone: [phone] (during office hours)

NEDIS B.V., De Tweeling 28, 5215 MC 's-Hertogenbosch, THE NETHERLANDS

Model: DTCTS30WT

DoP: 20181024001

1134-CPR-244

EN 14604:2005/AC:2008

Smoke alarm devices

Intended fire safety and installed in buildings

Essential characteristic 1: Pass

Essential characteristic 2: Pass

Essential characteristic 3: Pass

Essential characteristic 4: Pass

Essential characteristic 5: Pass

Essential characteristic 6: Pass

Essential characteristic 7: Pass

Essential characteristic 8: Pass
