USER MANUAL 2135056 RUSSELL HOBBS

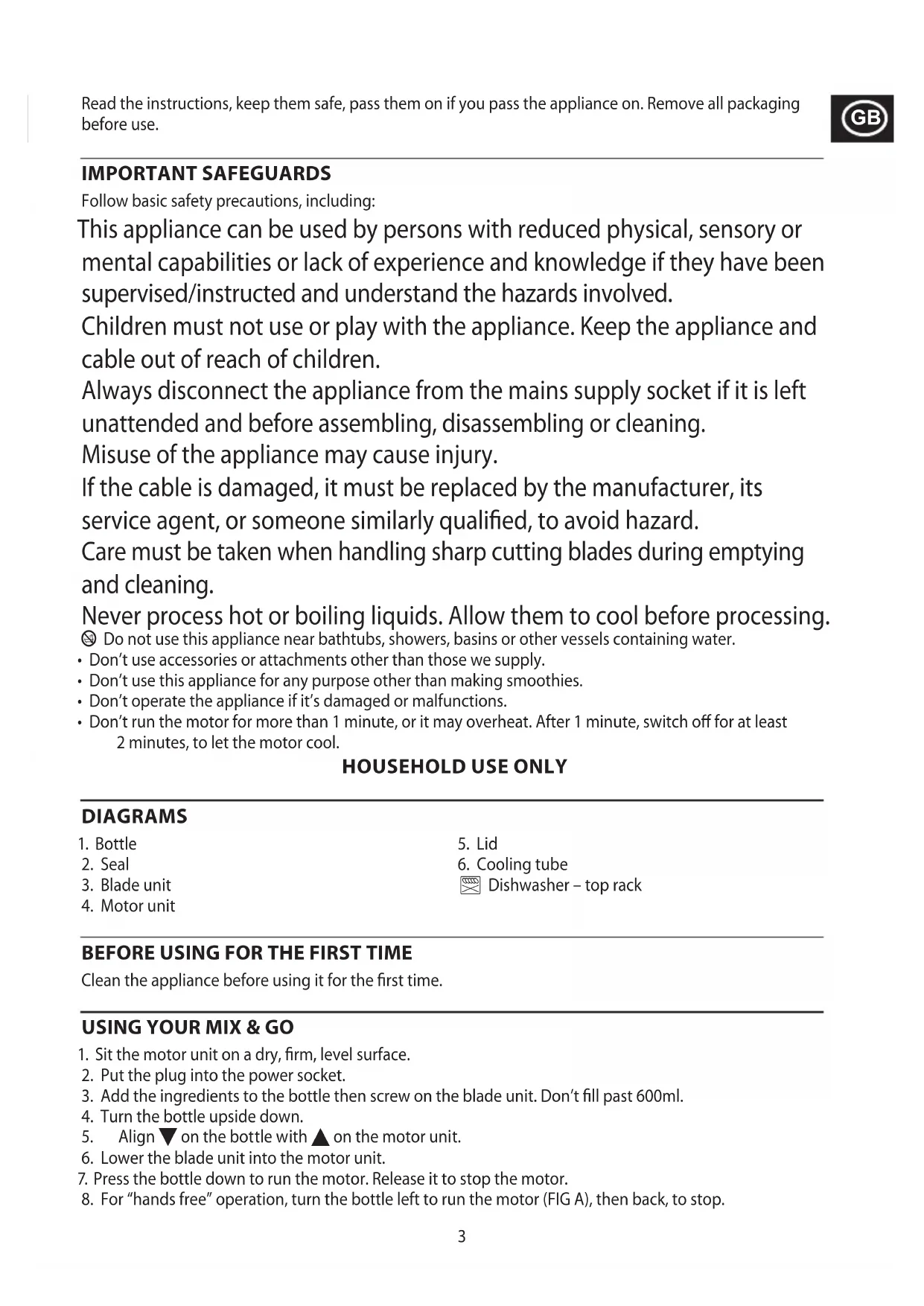

Read the instructions, keep them safe, pass them on if you pass the appliance on. Remove all packaging before use. IMPORTANT SAFEGUARDS Follow basic safety precautions, including: This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children must not use or play with the appliance. Keep the appliance and cable out of reach of children. Always disconnect the appliance from the mains supply socket if it is left unattended and before assembling, disassembling or cleaning. Misuse of the appliance may cause injury. If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard. Care must be taken when handling sharp cutting blades during emptying and cleaning. Never process hot or boiling liquids. Allow them to cool before processing. b Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• Don’t use accessories or attachments other than those we supply.

• Don’t use this appliance for any purpose other than making smoothies.

• Don’t operate the appliance if it’s damaged or malfunctions.

• Don’t run the motor for more than 1 minute, or it may overheat. After 1 minute, switch off for at least 2 minutes, to let the motor cool.

Clean the appliance before using it for the first time.

1. Sit the motor unit on a dry, firm, level surface.

2. Put the plug into the power socket.

3. Add the ingredients to the bottle then screw on the blade unit. Don’t fill past 600ml.

4. Turn the bottle upside down.

5. Align d on the bottle with u on the motor unit.

6. Lower the blade unit into the motor unit.

7. Press the bottle down to run the motor. Release it to stop the motor.

8. For “hands free” operation, turn the bottle left to run the motor (FIG A), then back, to stop.

9. Once finished, lift the bottle off the motor unit, turn it upright, unscrew the blade unit then screw the

lid onto of the bottle.

10. Flip the cap on the lid open to pour, press it closed to store.

USING THE COOLING TUBE

The cooling tube helps to keep your drink cooler and fresher for longer.

1. Open the cooling tube screw cap and fill the tube with water to the MAX mark on the tube.

2. Replace the screw cap.

3. Place the cooling tube in the freezer (or freezer compartment of your fridge) until the water inside

4. Once frozen, screw the cooling tube into the underside of the lid (FIG B)

5. Follow the previous instrctions to make your drink and once made, fit the lid and cooling tube to the

bottle. Remember, when using the cooling tube only fill the bottle up to the cooling tube MAX marking ( MAX

1. Unplug the appliance.

2. Wipe the the motor unit with a damp cloth.

3. Remove the seal with something blunt, like the handle of a fork.

4. Hand wash the removable parts.

5. Press the seal back into place with something blunt, like the handle of a fork.

¬ You may wash these parts in the top rack of a dishwasher. If you use a dishwasher, the harsh environment inside the dishwasher will affect the surface finishes. The damage should be cosmetic only, and should not affect the operation of the appliance. RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.5 FRUITY SMOOTHIES Process everything till smooth. 60ml yogurt 200ml milk 30g oatmeal 1 banana 30ml honey 2 apples, cored 170g chocolate ice cream 300g orange juice 150g hazelnut yogurt 1 banana 200ml milk 300ml chocolate milk 2 pears, cored 200ml yogurt 1 mango, stone removed 200ml milk 5ml honey 300ml milk 1 banana 12 strawberries 400ml milk 1 banana 20ml honey 10ml vanilla extract 360ml lemonade 125g vanilla ice cream 70g blueberries 300ml orange juice 300ml cranberry juice 1 banana 4 halves of tinned apricot 80ml apricot juice (from tin) 2 peaches, stone removed 60ml yogurt 200ml milk 10ml honey 600ml apple juice 1 mango, stone removed 300ml apple juice 90g raspberries 12 strawberries 400ml apple juice 1 kiwi fruit, peeled 150g melon 350ml lemonade 125ml chocolate ice cream 100ml cherries, stones removed ADULT ONLY SMOOTHIES (2 portions) 200ml ginger beer 150g melon 40ml rum 100ml cranberry juice 50ml vodka 50ml cointreau 100ml milk 40g vanilla ice cream 2.5g instant coffee powder 40ml irish cream liqueur 100ml lemonade 60ml gin 5ml lemon juice 3 strawberries 300ml apple juice 90g raspberries 12 strawberries 400ml apple juice 1 kiwi fruit, peeled 150g melon 350ml lemonade 125ml chocolate ice cream 100g cherries, stones removed
