Grill Compact 117000 - Barbecue PRINCESS - Free user manual and instructions

USER MANUAL Grill Compact 117000 PRINCESS

117000 Princess Grill Compact

127000 Princess Grill Sandwich Grill Basic

128000 Princess Grill Sandwich Grill Basic Black

ondergedompeld in water of

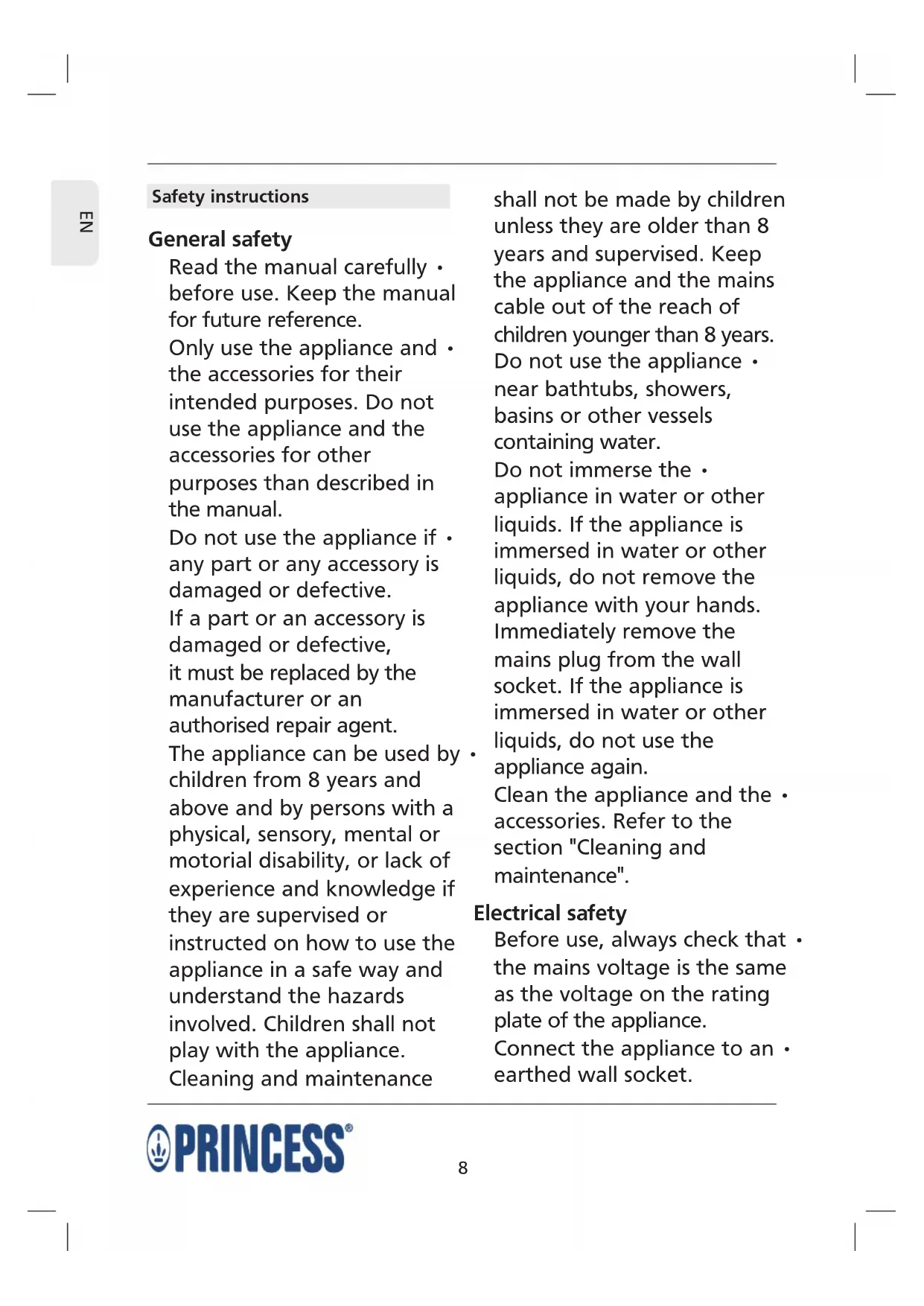

Read the manual carefully •

before use. Keep the manual

for future reference.

Only use the appliance and •

the accessories for their

intended purposes. Do not

use the appliance and the

accessories for other

purposes than described in

Do not use the appliance if •

any part or any accessory is

damaged or defective.

If a part or an accessory is

damaged or defective,

it must be replaced by the

authorised repair agent.

The appliance can be used by •

children from 8 years and

above and by persons with a

physical, sensory, mental or

motorial disability, or lack of

experience and knowledge if

they are supervised or

instructed on how to use the

appliance in a safe way and

understand the hazards

involved. Children shall not

play with the appliance.

Cleaning and maintenance

shall not be made by children

unless they are older than 8

years and supervised. Keep

the appliance and the mains

cable out of the reach of

children younger than 8 years.

Do not use the appliance •

near bathtubs, showers,

basins or other vessels

Do not immerse the •

appliance in water or other

liquids. If the appliance is

immersed in water or other

liquids, do not remove the

appliance with your hands.

Immediately remove the

mains plug from the wall

socket. If the appliance is

immersed in water or other

liquids, do not use the

Clean the appliance and the •

accessories. Refer to the

section "Cleaning and

Before use, always check that •

the mains voltage is the same

as the voltage on the rating

plate of the appliance.

Connect the appliance to an •

earthed wall socket.9

EN If necessary, use an earthed

extension cable of a suitable

diameter (at least 3 x 1.5

For additional protection, •

install a residual current

device (RCD) with a rated

residual operating current

that does not exceed 30 mA.

The appliance is not intended •

to be operated by means of

an external timer or separate

remote-control system.

Make sure that water cannot •

enter the contact plugs of

the mains cable and the

Make sure that the mains •

cable does not hang over the

edge of a worktop and

accidentally or tripped over.

Keep the mains cable away •

from heat, oil and sharp

Regularly check the mains •

cable and the mains plug for

signs of damage. Do not use

the appliance if the mains

cable or the mains plug is

damaged or defective. If the

mains cable or the mains

plug is damaged or defective,

it must be replaced by the

authorised repair agent.

Do not pull the mains cable •

to disconnect the mains plug

Disconnect the mains plug •

from the mains when the

appliance is not in use,

disassembly and before

cleaning and maintenance.

Safety instructions for grills

The appliance is suitable for •

Do not use the appliance •

Place the appliance on a •

stable and flat surface.

Place the appliance on a •

heat-resistant and splash-

Do not place the appliance •

Do not cover the appliance.•

Make sure that there is •

sufficient space around the

appliance to allow heat to

escape and provide sufficient

EN Make sure that the appliance •

does not come into contact

with flammable material.

Keep the appliance away •

from heat sources. Do not

place the appliance on hot

surfaces or near open flames.

Beware of steam and •

splashes when putting food

on the hot baking plates.

Caution: Hot grease can •

splash from the baking plates.

Do not use charcoal or similar •

Do not pour cold water onto •

the hot baking plates. The

water will splash and

damage the baking plates.

Always be careful when •

touching the appliance. Use

oven gloves if you need to

touch the appliance during

or shortly after use.

Beware of hot parts. The •

surfaces marked with a

caution symbol for hot

surfaces are liable to become

hot during use. The accessible

surfaces can become hot

when the appliance is

operating. The outer surface

can become hot when the

appliance is operating.

The baking plates become •

very hot during use. Do not

touch the hot baking plates.

Make sure that your hands •

are dry before touching the

Do not leave the appliance •

unattended during use.

Do not move the appliance •

while it is switched on or is

still hot. Remove the mains

plug from the wall socket

and wait until the appliance

Do not use the appliance •

near birds (e.g. tropical birds

such as parrots). The baking

plates are finished with a

non-stick coating based on

PTFE. Upon heating, the

coating may release small

amounts of gases which are

fully harmless for people.

However, the nervous

systems of birds are

extremely sensitive to these

Cleaning and maintenance

The appliance must be cleaned after each use.

Before you proceed, we need you to pay

attention to the following notes:

- Before cleaning or maintenance, remove

the mains plug from the wall socket and

wait until the appliance has cooled down.11

- Do not immerse the appliance in water or

Before you proceed, we would like you to

focus your attention on the following notes:

- Do not use aggressive or abrasive cleaning

agents to clean the appliance.

- Do not use sharp objects to clean the

- Do not clean the accessories in the

Regularly check the appliance for possible •

Clean the outside of the appliance with a •

soft, damp cloth. Thoroughly dry the

outside of the appliance with a clean, dry

Clean the baking plates after each use:•

- Remove any residues with a paper towel.

- Clean the baking plates with a soft,

damp cloth and a few drops of washing-

up liquid. Rinse the baking plates under

running water. Thoroughly dry the

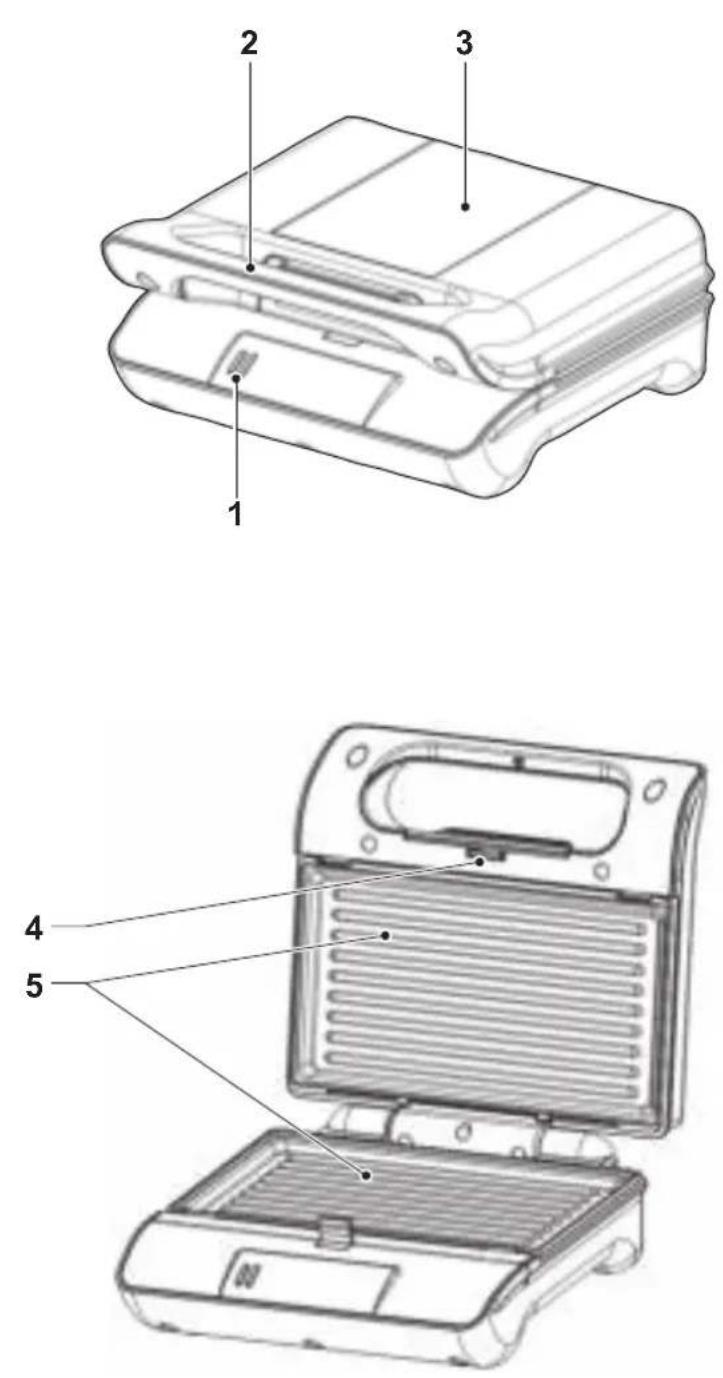

Description (fig. A)

Your 117000/127000/128000 Princess grill has

been designed for grilling food without using

fat. The appliance is suitable for indoor use only.

The appliance is suitable for domestic use only.

1. Temperature indicator

Before you proceed, we need you to pay

attention to the following notes:

- Make sure that there is sufficient space

around the appliance to allow heat to

escape and provide sufficient ventilation.

Clean the appliance. Refer to the section •

"Cleaning and maintenance".

Place the appliance on a stable and flat •

Insert the mains plug into the wall socket. •

The temperature indicator comes on. The

appliance starts heating.

After use, remove the mains plug from the •

wall socket and allow the appliance to cool

Note: If you switch on the appliance for the

first time, the appliance may emit a little

smoke and a characteristic smell for a short

period. This is normal operation.

Before you proceed, we need you to pay

attention to the following notes:

- Before assembly or disassembly, remove

the mains plug from the wall socket and

wait until the appliance has cooled down.

- Do not let metal cutlery touch the baking

plates to prevent damage to the non-stick

Grilling food (fig. A)

Place the appliance on a stable and flat •

Close the lid (3). Make sure that the lid •

latch (4) locks into place.

To switch on the appliance, insert the •

mains plug into the wall socket. The

temperature indicator (1) comes on. The

appliance starts heating.

The temperature indicator (1) goes off •

when the heating elements have reached

the required temperature. The appliance is

Release the lid latch (4) and open the lid •

Place the food onto the lower baking plate •

Close the lid (3). Make sure that the lid •

latch (4) locks into place. The temperature

indicator (1) comes on.

The temperature indicator (1) goes off •

when the heating elements have reached

the required temperature.

Grill the food until it is ready for consumption.•

Stay close to the appliance in order to •

check from time to time whether the food

is ready and to make sure that the food

EN Release the lid latch (4) and open the lid (3) •

when the food is ready for consumption.

Remove the food from the baking plate (5) •

using a flat wooden or plastic spatula.

Close the lid (3) to retain the heat for •

further use. Make sure that the lid latch (4)

To switch off the appliance, remove the •

mains plug from the wall socket.

Allow the appliance to cool down •
