USER MANUAL WS92GDBI HAIER

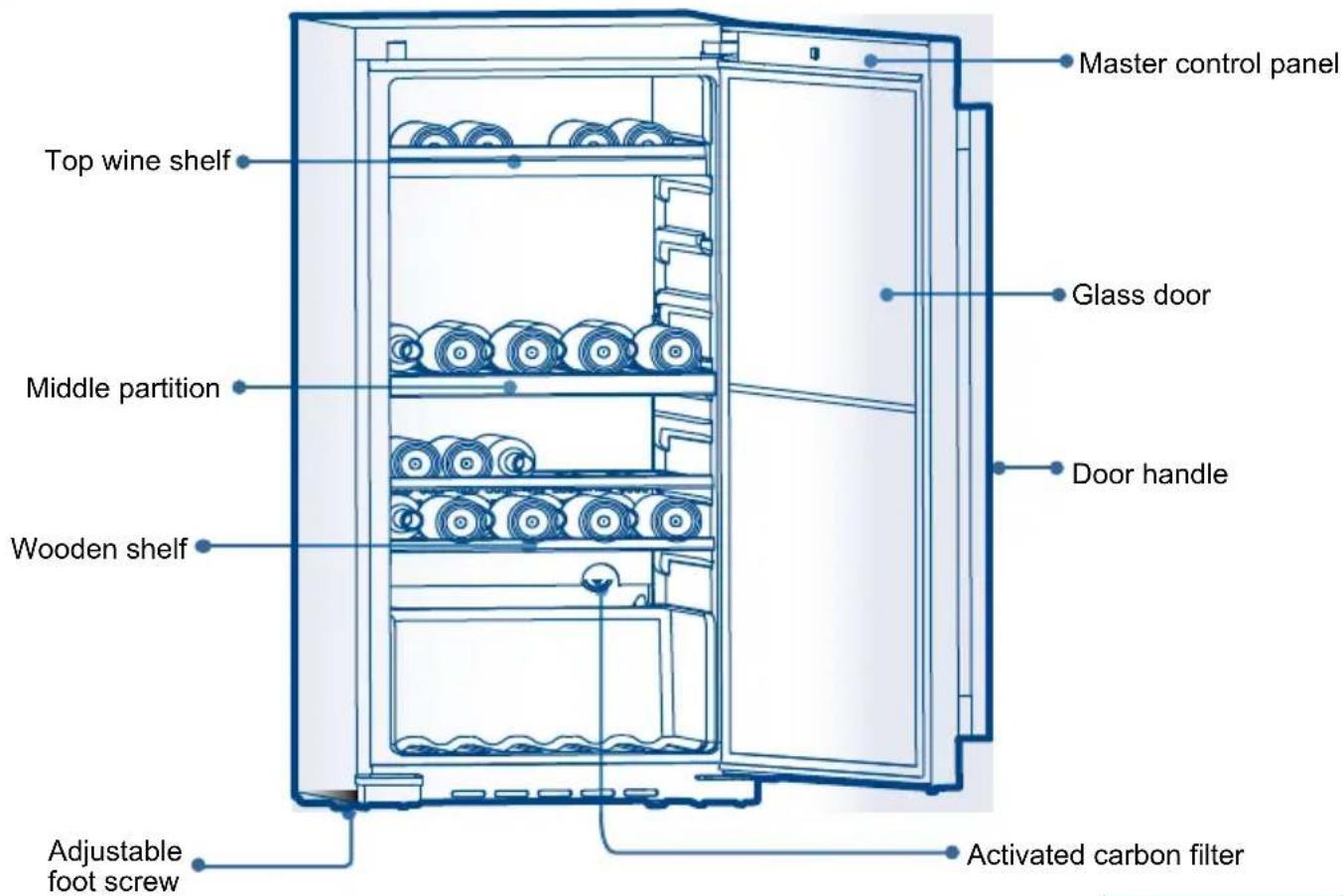

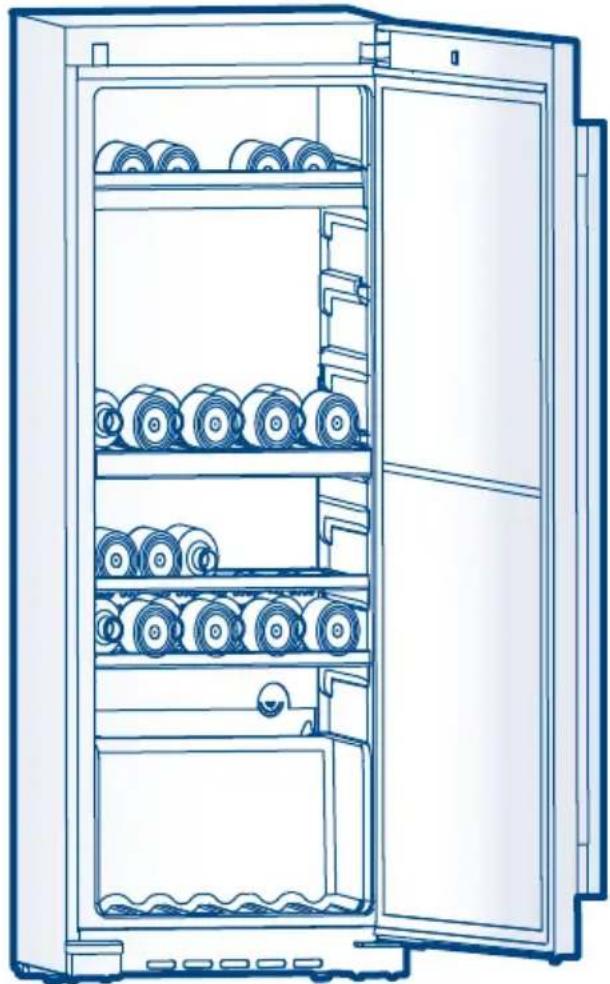

Names of Wine Cellar Components

Activated carbon lter

Master control panel

(50 bottle capacity)

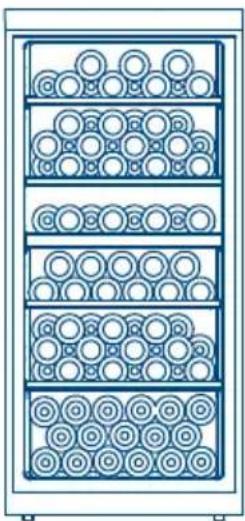

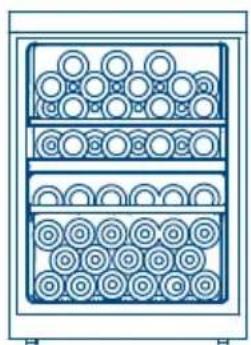

(92 bottle capacity)

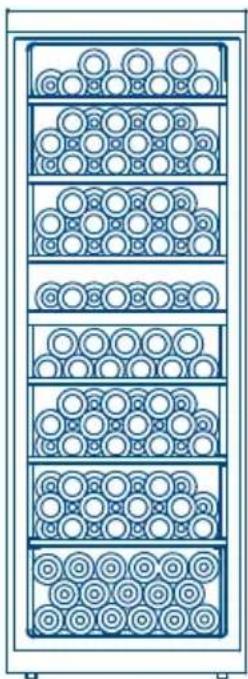

(136 bottle capacity)

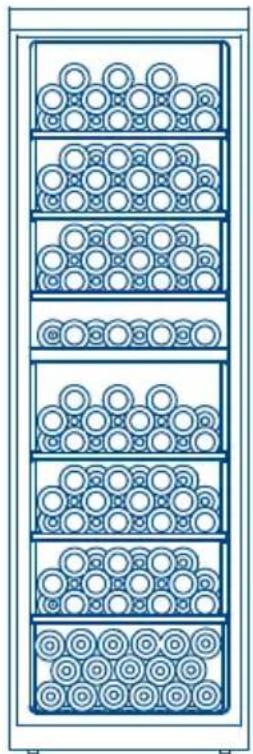

(151 bottle capacity)3

Introduction to Primary Functions of the Appliance 7

1.Automatic Locking and Unlocking 7

2.Temperature Adjustment 7

Precautions for Use of Wine Cellar 9

Automatic Defrosting 9

Normal Operating Sounds You May Hear 10

Proper Wine Cellar Care and Cleaning 11

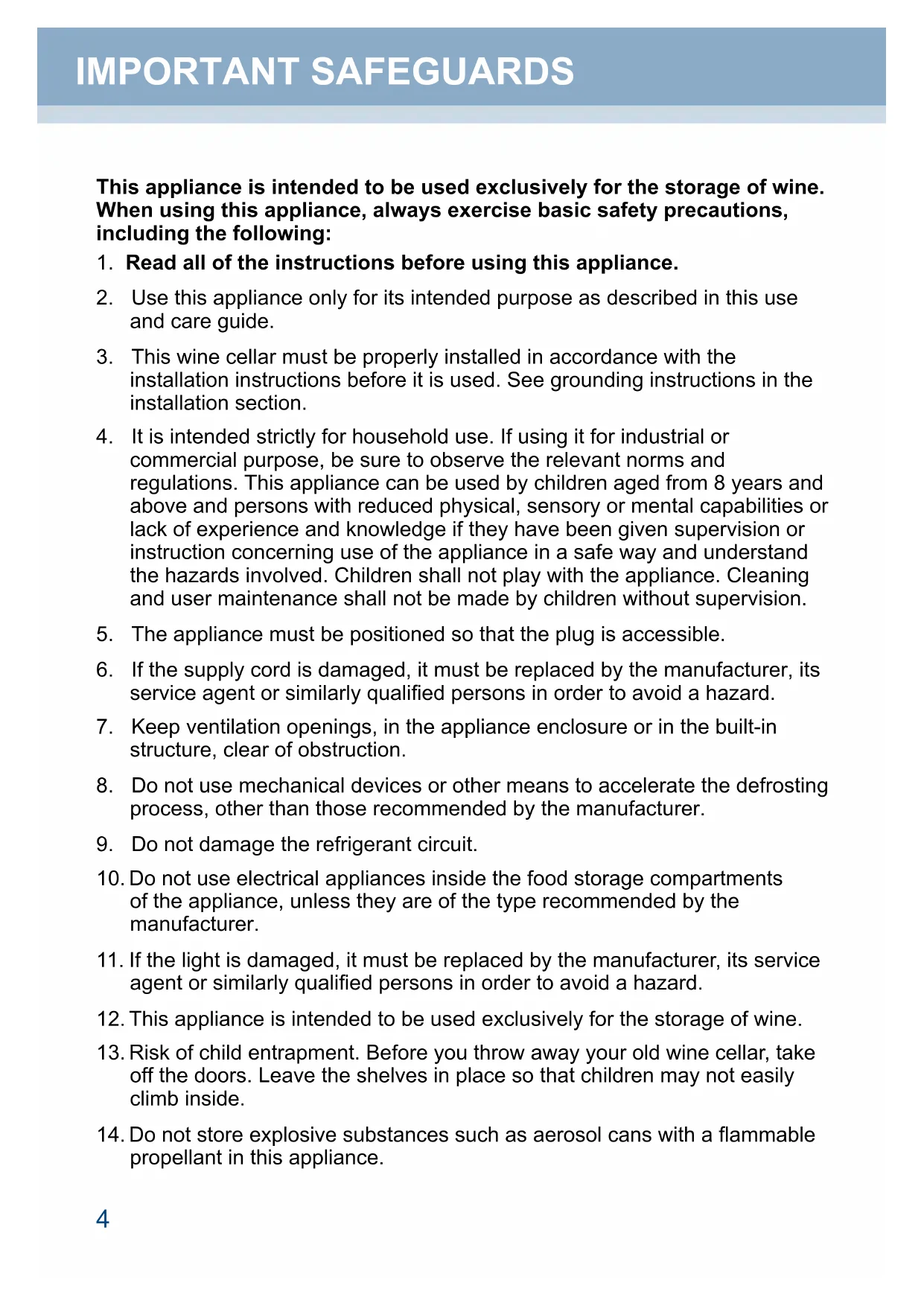

This appliance is intended to be used exclusively for the storage of wine.

When using this appliance, always exercise basic safety precautions,

including the following:

1. Read all of the instructions before using this appliance.

2. Use this appliance only for its intended purpose as described in this use

3. This wine cellar must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions in the

installation section.

4. It is intended strictly for household use. If using it for industrial or

commercial purpose, be sure to observe the relevant norms and

regulations. This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way and understand

the hazards involved. Children shall not play with the appliance. Cleaning

and user maintenance shall not be made by children without supervision.

5. The appliance must be positioned so that the plug is accessible.

6. If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualied persons in order to avoid a hazard.

7. Keep ventilation openings, in the appliance enclosure or in the built-in

structure, clear of obstruction.

8. Do not use mechanical devices or other means to accelerate the defrosting

process, other than those recommended by the manufacturer.

9. Do not damage the refrigerant circuit.

10. Do not use electrical appliances inside the food storage compartments

of the appliance, unless they are of the type recommended by the

11. If the light is damaged, it must be replaced by the manufacturer, its service

agent or similarly qualied persons in order to avoid a hazard.

12. This appliance is intended to be used exclusively for the storage of wine.

13. Risk of child entrapment. Before you throw away your old wine cellar, take

off the doors. Leave the shelves in place so that children may not easily

14. Do not store explosive substances such as aerosol cans with a ammable

propellant in this appliance.

IMPORTANT SAFEGUARDS5

EN Installing Your Wine Cellar

Unpacking Your Wine Cellar 1. Remove all packaging material. This includes the foam base and all adhesive tape holding the wine cellar accessories inside and outside. 2. Inspect and remove any remains of packing, tape or printed materials before powering on the wine cellar. Leveling Your Wine Cellar • Your wine cellar has four leveling legs which are located in the front and rear corners of your wine cellar. After properly placing your wine cellar in its nal position, you can level your wine cellar. • Leveling legs can be adjusted by turning them clockwise to raise your wine cellar or by turning them counterclockwise to lower your wine cellar. The wine cellar door will close easier when the leveling legs are extended. Proper Air Circulation • To assure your wine cellar works at the maximum efciency it was designed for, you should install it in a location where there is proper air circulation, plumbing and electrical connections. • The following are recommended clearances around the wine cellar: Sides 4" (100mm) Top 4" (100mm) Back 4" (100mm) • Do not over ll your wine cellar for proper wine cooling. Note: If your wine cellar has been tilted for any reason, wait 24 hours before plugging it in. More than 10 cm from the top More than 10 cm

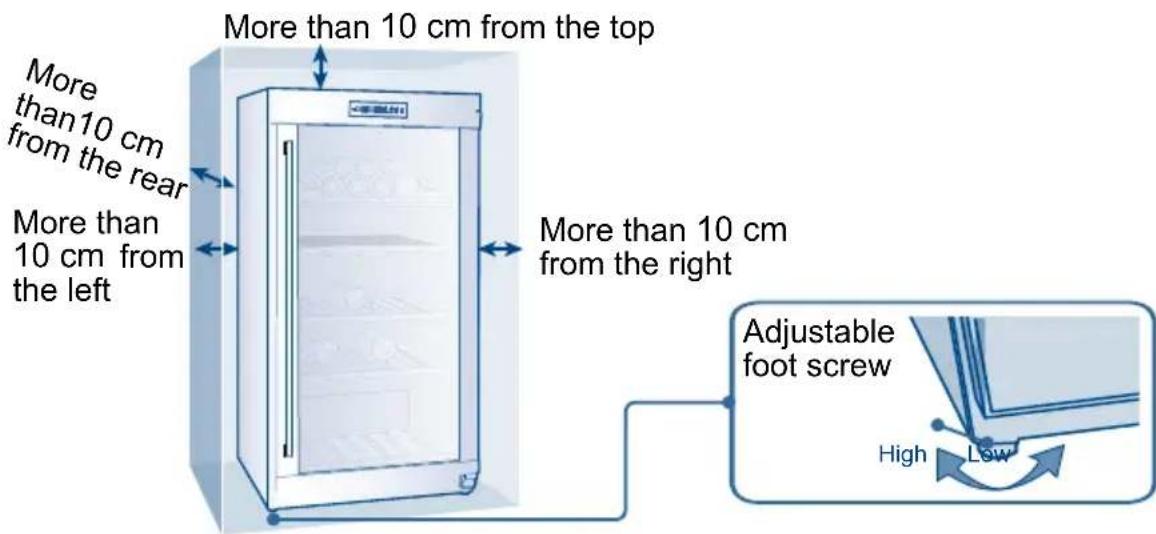

from the right High Low Adjustable foot screw More than

from the rear More than 10 cm from the left6

Electrical Requirement

• Make sure there is a suitable power Outlet (220-240V, 15 amps outlet) with proper grounding

to power the wine cellar.

• Avoid the use of three plug adapters or cutting off the third grounding in order to

accommodate a two plug outlet. This is a dangerous practice since it provides no effective

grounding for the wine cellar and may result in shock hazard.

• Do not install your wine cellar in any location not properly insulated or heated e.g. garage etc.

Your wine cellar was not laid to operate if the ambient temperature is below 10°C.

• Select a suitable location for the wine cellar on a hard even surface away from direct

sunlight or heat source e.g. radiators, baseboard heaters, cooking appliances etc. Any oor

unevenness should be corrected with the leveling legs located on the front and rear bottom

corners of the wine cellar.

• Your wine cellar is designed for free-standing installation only. It is not designed for built-in

Use of Extension Cord

• Avoid the use of an extension cord because of potential safety hazards under certain

conditions. If it is necessary to use an extension cord, use only a 3-wire extension cord that

has a 3-blade grounding plug and a 3-slot outlet that will accept the plug. The marked rating

of the extension cord must be equal to or greater than the electrical rating of the appliance.

Once you have plugged the unit into an electrical outlet, let the unit run for at least 30 minutes

to acclimatize itself before making any adjustments. During this time, depending on the internal

temperature, the red or white wine light will stay on for the upper compartment and red or white wine

light will stay on for the lower compartment. The LED display will show the current internal temperature.7

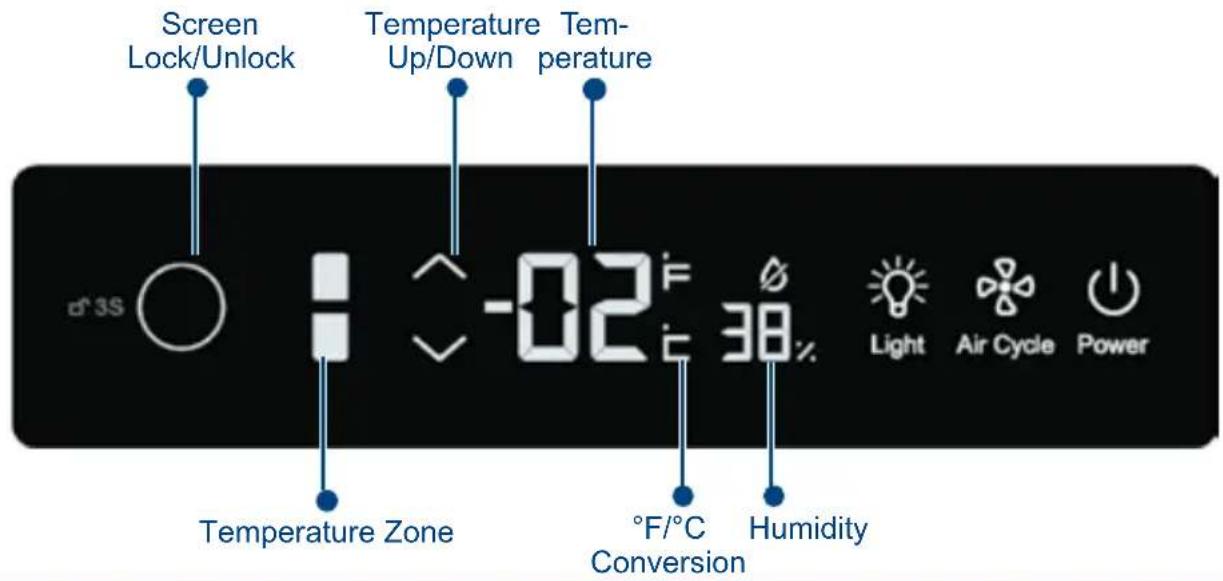

EN Introduction to Primary Functions of the Appliance

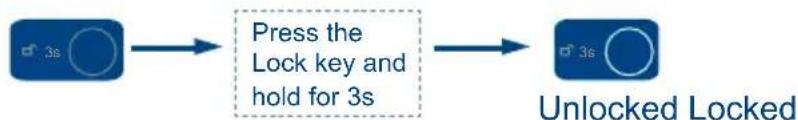

Automatic Locking and Unlocking

The appliance has an automatic locking function in order to prevent improper operation of the set operating conditions and temperature due to accidental triggering.The "Lock" icon will be displayed and control panel will be locked if operation is stopped for 30 seconds.In order to unlock the panel, press the key and hold it for 3 seconds. The control panel will be unlocked.Other keys can be operated when the panel is unlocked. 2.

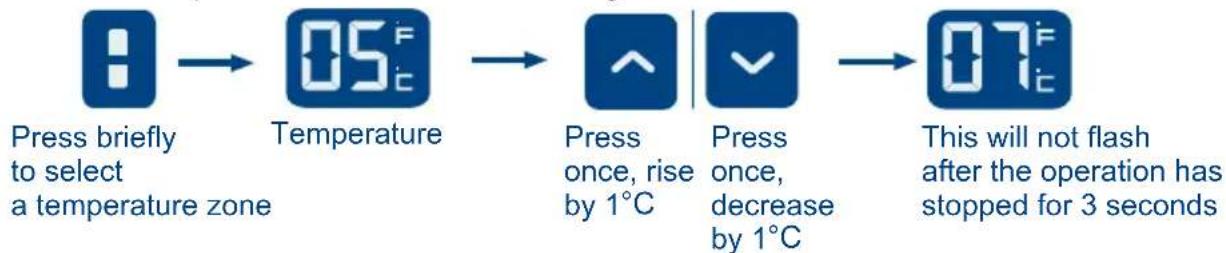

Temperature Adjustment

Press "TEMP Zone Selection" briey in order to select the required temperature zone. If the selected temperature zone turns on, "TEMP Display Zone" displays the temperature of the current temperature zone.After completion of temperature zone selection, press the "TEMP Up/Down" keys briey in order to enable temperature settings. At this time, the gures on "TEMP Display Zone" ash and can be set by pressing the "TEMP Up/Down" keys. The temperature rises by 1°C each time when the Up key is pressed and falls by 1°C each time when the Down key is pressed. Temperature settings range is between 5~20°C. After the temperature is selected, operation will be suspended for 3 seconds, and then the currently set parameter will become the system default. The process of temperature adjustments in other temperature zones is the same as that given above. Control Panel Press briey to select a temperature zone Temperature Press once, rise by 1

°C Press once, decrease by 1

°C This will not ash after the operation has stopped for 3 seconds Humidity Temperature Zone °F/°C Conversion Screen Lock/UnlockTemperature Up/Down Tem- peraturePress the Lock key and hold for 3s Unlocked Locked 3s

3s Stop key operation for 30sUnlocked Locked 3s

Humidity display zone will display the humidity inside your wine cellar in real time.

Press "Circulate" briey to start up the fan inside the cellar in order to make the temperature inside more uniform.

Celsius/Fahrenheit Conversion

Press "Circulate" and hold it for 3 seconds in order to activate the conversion between Celsius and Fahrenheit.

In the initial status, the power key is in on. If it is not locked, all of the power key icons are on. After

holding the power key for 3 seconds, the main power will turn off (power for all electrical devices inside

will be cut off and the whole appliance will be in standby) and the power key will be half-on. If the device

is off, the power can be turned on by holding the power key for 3 seconds, and then all icons on the

display screen will turn on. After the operation is stopped for 30 seconds, the display screen will be

locked. If the screen is locked, the power key icons are half-on.

Low-Temperature Compensation

This wine cellar has a low-temperature compensation function so as to ensure the stability of the storage

temperature of the wine.

If the ambient temperature is lower than the set temperature, the temperature inside the cellar will fall

accordingly. If the temperature inside the cellar is lower than the shutdown temperature by 2°C(4°F), the cellar

will automatically enable the low-temperature compensation function in order to heat the cellar. If the

temperature inside reaches the set temperature, the low-temperature compensation function will be disabled.

Temperature Power-Off Memory

In case of a power outage, the cellar will automatically save the set temperature. After power recovery,

it will run based on the temperature set before the power outage while other functions will return to the

• To complement the look of your wine collection, a soft light has been built into the wine cellar. Simply

push the "Light" button and the light comes on, push again for off. For maximum energy efciency,

leave light off when not viewing your collection.

• When door is open the light will go on. Upon closing the door, the light will go off.9

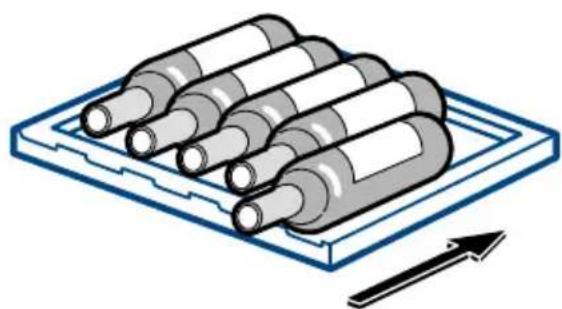

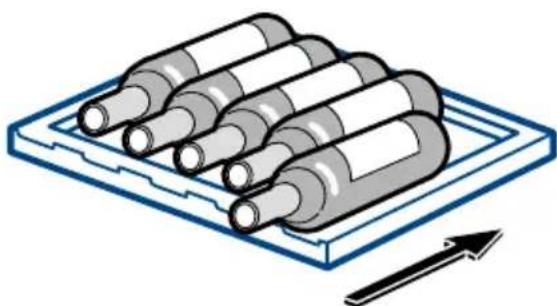

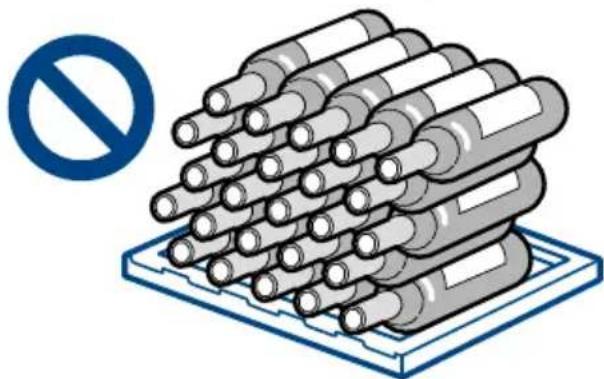

EN Do not place too much wine in the cellar so as not to exceed the bearing capacity of the wine shelves. Do not place more than three layers of wine on each shelf. The number of wine bottles should not exceed three layers on each shelf, or the bearing capacity of the wine shelves should not exceed 35kg.Before placing the bottles inside the wine cellar, conrm whether or not the wine shelves are completely stable.In addition, conrm whether or not any bottle protrudes from the shelves in order to prevent bottles hitting the glass door upon closing. Precautions for Use of Wine Cellar

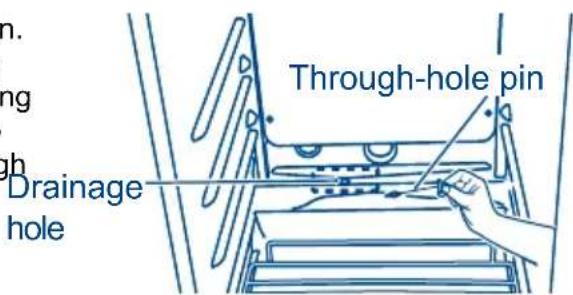

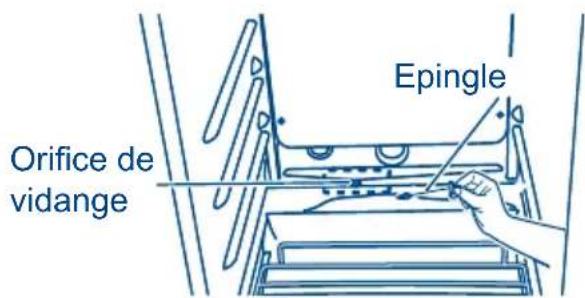

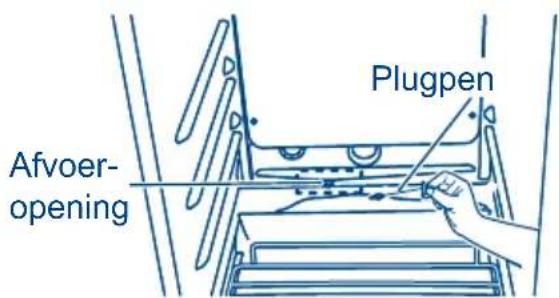

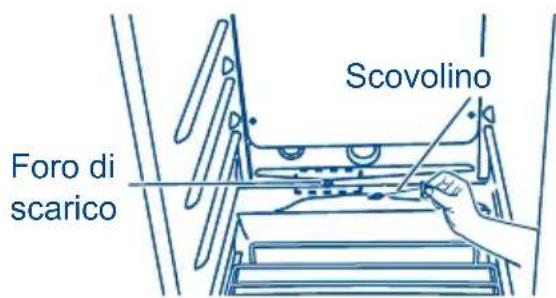

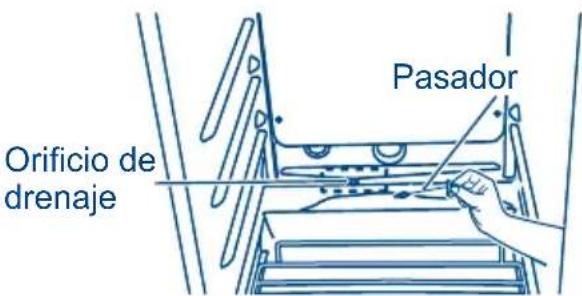

Automatic Defrosting This appliance has an automatic defrosting function.When using the appliance for the rst time, please place a through-hole pin at the drainage hole. During use, ensure that the drainage hole is unblocked so as to force defrosting water to ow smoothly through the drainage hole into the water receiver inside the cellar cabin. If blocked, take the through-hole pin inside drainage hole out, clear away blockages inside and then put the pin back.Regularly clean water receivers at the bottom of the upper and lower compartments; use a dry cloth to absorb water inside the water receivers and wipe down them (clean them every three months as suggested). Air exchange with activated carbon lter The way in which wines continue to mature depends on the ambient conditions. The quality of the air is therefore decisive for preserving the wine. An activated carbon lter has been tted in the lower area of the rear wall of the appliance to ensure that the air through put remains at an optimum quality. CAUTIONWe recommend that you replace the lter once a year. Filters can be obtained from your dealer. Changing the lter: Take the lter by the handle. Turn it to the left and remove. Inserting the lter: Insert with the handle in a vertical position. Turn it to the right and insert. Through-hole pinDrainage hole10

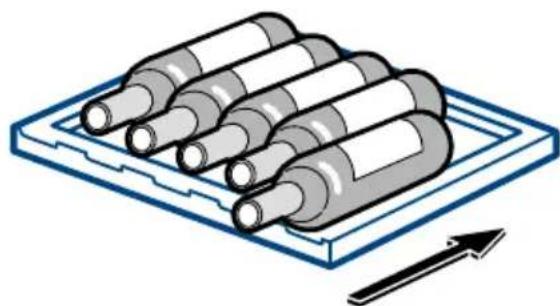

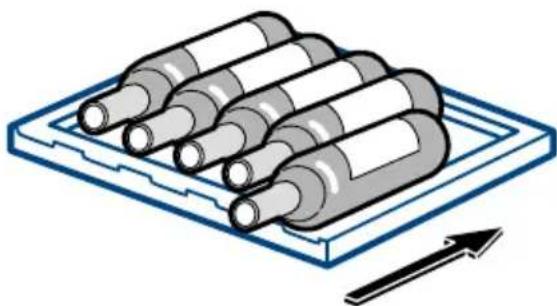

• The shelves are designed for appearance and easy cleaning. Larger bottles or Magnums can

be more easily accommodated at the cross shelves at the bottom of the cellar.

• There are some shelves for easy storage and removal of your wine.

Normal Operating Sounds You May Hear

• Boiling water, gurgling sounds or slight vibrations that are the result of the refrigerant

circulating through the cooling coils.

• The thermostat control will click when it cycles on and off.11

EN Cleaning and Maintenance

To avoid electric shock always unplug your wine cellar before cleaning. Ignoring

this warning may result in death or injury.

Before using cleaning products, always read and follow manufacturer's

instructions and warnings to avoid personal injury or product damage.

• Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm

water. Use sponge or soft cloth, dampened with the cleaning solution, to wipe

down your wine cellar.

• Rinse with clean warm water and dry with a soft cloth.

• Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated

detergents, solvents or metal scouring pads. SOME of these chemicals may

dissolve, damage and/or discolor your wine cellar.

• Clean door gaskets every three months according to general instructions.

Gaskets must be kept clean and pliable to assure a proper seal.

• Petroleum jelly applied lightly on the hinge side of gaskets will keep the gasket

pliable and assure a good seal.

If the wine shelf was accidentally sprinkled with wine or water droplets, please

use 300-400 sandpaper to polish, then use soft cloth to wipe down the sawdust.

Do not use towel or soft cloth with water.

• Occasionally there may be power interruptions due to thunderstorms or other causes.

Remove the power cord from AC outlet when a power outage occurs. When power has

been restored, replug power cord to AC outlet.

Vacation and Moving Care

• For long vacations or absences, unplug the wine cellar and clean the wine cellar and

door gaskets according to "General cleaning" section. Leave doors open, so air can

• When moving always move the wine cellar vertically. Do not move with the unit lying

down, as possible damage to the sealed system could occur.

Note: After moving, wait for 24 hours before plugging in the wine cellar.

Proper Wine Cellar Care and Cleaning12

Wine Cellar Does Not Operate:

• Check if wine cellar is plugged in.

• Check if there is power in the AC outlet, by checking the circuit breaker.

Wine appears too warm:

• Frequent door openings.

• Allow time for recently added wine to reach desired temperature.

• Check gaskets for proper seal.

• Clean condenser coils.

• Adjust temperature control to colder setting.

Wine temperature is too cold:

• If temperature control setting is too cold, adjust to a warmer setting.

Wine cellar runs too frequently:

• This may be normal to maintain constant temperature during high temperature and humid days.

• Doors may have been opened frequently or for an extended period of time.

• Clean condenser coils.

• Check gasket for proper seal.

• Check to see if doors are completely closed.

Moisture build up on interior or exterior of the wine cellar:

• This is normal during high humidity periods.

• Prolonged or frequent door openings.

• Check door gaskets for proper seal.

Wine cellar door does not shut properly:

• Level the wine cellar.

• Check for blockages e.g. wine bottles, shelves.

Do not dispose of electrical appliances as unsorted

municipal waste, use separate collection facilities.

Contact you local government for information

regarding the collection systems available. If

electrical appliances are disposed of in landlls or

dumps, hazardous substances can leak into the

groundwater and get into the food chain, damaging

your health and well-being. When replacing old

appliances with new ones, the retailer is legally

obligated to take back your old appliance for

disposals at least free of charge.

This appliance is being developed continuously. We reserve the right to change the components of the wine cellar without notice.User GuideInforma-tion KitTop Oblique Wine Shelf (Optional)Small Wooden ShelfWooden ShelfThrough-hole Pin Key WS50GDBI 1 1 0 1 1 1 2WS92GDBI 1 1 1 1 3 1 2WS136GDBI 1 1 1 1 5 1 2WS151GDBI 1 1 1 0 6 1 2 Model Climate Type

Electric Shock Resistance TypeAvailable Capacity (l) Rated Voltage (V)Rated Frequency (Hz) Input Power (W) WS50GDBI SN~ST I 106 220~240 50 80WS92GDBI SN~ST I 206 220~240 50 85 WS136GDBI SN~ST I 306 220~240 50 75

WS151GDBI SN~ST I 356 220~240 50 85 Temperature Range (°C) Refrigerant (R600a) (g) Supply Cord Connection Mode Weight (kg) Noise (Acoustic Power Level) dB (A) Overall Dimension (Depth × Width × Height) (mm) 5~20 22 Y 55 39 695×595×8205~20 32 Y 76 39 695×595×1,2655~20 50 Y 86 39 695×595×1,6555~20 55 Y 92 39 695×595×1,850Remarks: 1. According to international standards, if the climate is an SN~ST type, the ambient temperature for use of the wine cellar ranges between 10°C and 38°C. 2. "Noise (acoustic power level)" marked in the technical data refers to a situation in which the semi-anechoic , a resilient rubber cushion as thick as 5 mm to 6 mm is placed inside. It can run for at least 30 minutes after the door is closed. A test will be conducted after stable running (excluding startup and shutdown). Ground noise will be

tested at 1 m from the front, rear, left and right surfaces of the wine cellar respectively.

During use, it is normal that the actual noise is different from the marked noise due to the effects of the

type of wine stored in the wine cellar, ambient noise, door opening and closing, compressor startup and shutdown, etc. 3. The standard implementation sequence of the enterprise for this appliance series is: Q/0212BGC 007-2012

0070510021A Manufacturer Code:
