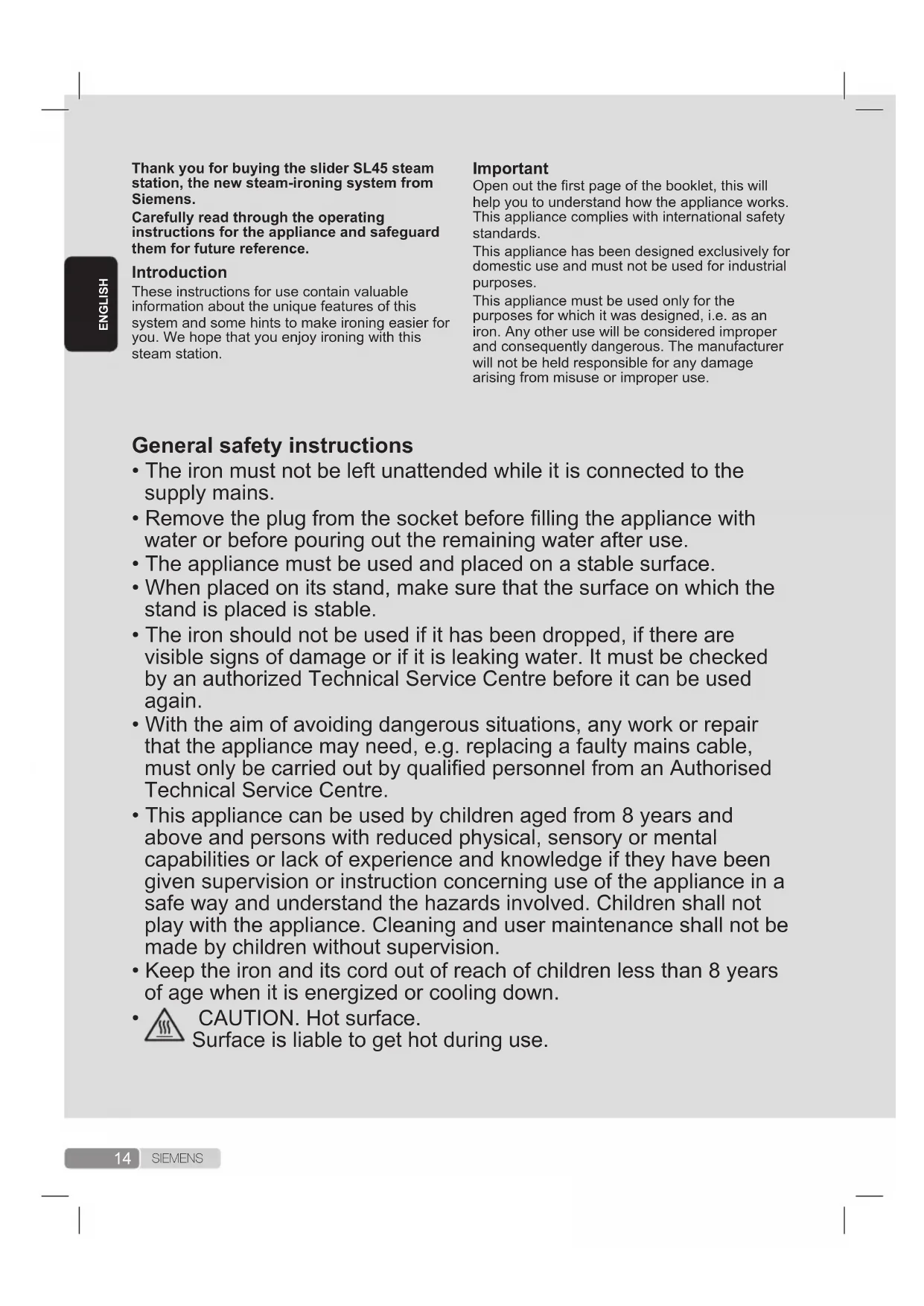

These instructions for use contain valuable

information about the unique features of this

system and some hints to make ironing easier for

you. We hope that you enjoy ironing with this

Open out the rst page of the booklet, this will

help you to understand how the appliance works.

This appliance complies with international safety

This appliance has been designed exclusively for

domestic use and must not be used for industrial

This appliance must be used only for the

purposes for which it was designed, i.e. as an

iron. Any other use will be considered improper

and consequently dangerous. The manufacturer

will not be held responsible for any damage

arising from misuse or improper use.



• The iron must not be left unattended while it is connected to the

• Remove the plug from the socket before lling the appliance with

water or before pouring out the remaining water after use.

• The appliance must be used and placed on a stable surface.

• When placed on its stand, make sure that the surface on which the

stand is placed is stable.

• The iron should not be used if it has been dropped, if there are

visible signs of damage or if it is leaking water. It must be checked

by an authorized Technical Service Centre before it can be used

• With the aim of avoiding dangerous situations, any work or repair

that the appliance may need, e.g. replacing a faulty mains cable,

must only be carried out by qualied personnel from an Authorised

Technical Service Centre.

• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in a

safe way and understand the hazards involved. Children shall not

play with the appliance. Cleaning and user maintenance shall not be

made by children without supervision.

• Keep the iron and its cord out of reach of children less than 8 years

of age when it is energized or cooling down.

CAUTION. Hot surface.

Surface is liable to get hot during use.15

S I E M E N S  

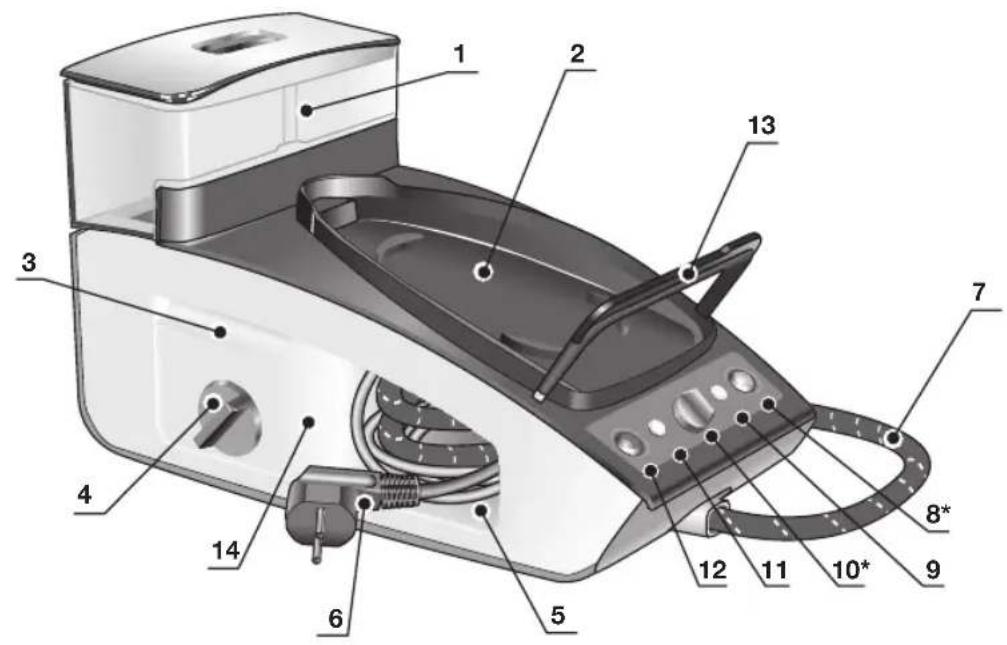

2. Removable iron pad

4. “calc’nClean Plus” scale collector

5. Steam hose and mains cable storage

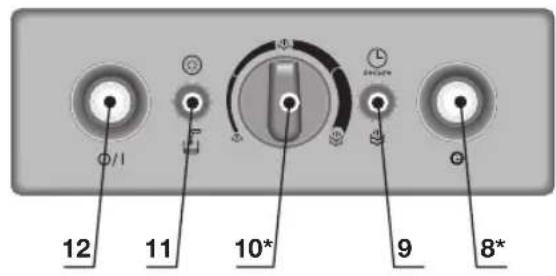

8. “Energy Saving” button *

9. “Steam ready” / “Auto shut-off” pilot light

10. Variable steam control *

11. “Rell water tank” / “Clean warning” pilot light

12. Illuminated main power button (0/I)

13. Iron xation system “secureLock”

14. Housing with internal steam generator

1. Release the iron from its lock system (13) by

pulling the lever located at the heel of the iron

2. Remove any label or protective covering from

3. Place the appliance horizontally on a solid,

stable surface. You may remove the iron pad

from the appliance and place the iron on it on

another solid, stable, horizontal surface.

4. Fill the water tank.

5. Unwind the mains cable (6) fully and plug it into

6. Set the main power button (12) to the on

position (illuminated in red).

7. The “Steam ready” indicator lamp (9) will light

up after several minutes, indicating that the

appliance is ready to use.

The steam generator will take more time to

reach “Steam ready” state only upon the initial

heating up, or after performing the de-scaling

operation (calc'nClean).

When water is already present in the steam

generator during regular use, heat up time to

reach the operating temperature will be faster.

• This appliance is to be connected and used in

accordance with the information stated on its

characteristics plate.

• This appliance must be connected to an

earthed socket. If it is absolutely necessary to

use an extension cable, make sure that it is

suitable for 16A and has a socket with an earth

• If the safety fuse tted in the appliance blows,

the appliance will be rendered inoperative. To

restore normal operation the appliance will

have to be taken to an authorised Technical

• In order to avoid that, under unfavourable

mains conditions, phenomena like transient

voltage drops or lighting uctuations can

happen, it is recommended that the iron is

connected to a power supply system with a

maximum impedance of 0.27Ω . If necessary,

the user can ask the public power supply

company for the system impedance at the

• The appliance must never be placed directly

under the tap to ll the water tank.

• Unplug the appliance from the mains supply

after each use, or if a fault is suspected.

• The electrical plug must not be removed from

the socket by pulling the cable.

• Never immerse the iron in water or any other

• Do not leave the appliance exposed to weather

conditions (rain, sun, frost, etc.)

This appliance reaches high temperatures and

produces steam during use, this could cause

scalds or burns if not used properly.

 The steam hose, base station, metal plate at

the bottom of the removable iron pad (2) and in

particular the iron can get hot when used. This

 Never aim the steam at people or animals.

 Do not allow the power cable to come into

contact with the soleplate when it is hot.

 Be aware that the system can keep on

steaming for a short additional time after

releasing the steam trigger. This is a normal

function.16 S I E M E N S 8. This appliance has a built-in water level sensor.

The “rell water tank” indicator (11) will light

when the water tank is empty.

• Normal tap water can be used.

To prolong the optimum steam function, mix tap

water with distilled water 1:1. If the tap water in

your district is very hard, mix tap water with

distilled water 1:2.

You can inquire about the water hardness with

your local water supplier.

• The water tank can be lled at any time while

using the appliance.

• To avoid damage and/or contamination of the

water tank and the boiler, do not put perfume,

vinegar, starch, descaling agents, additives or

any other type of chemical product into the

• Do not use condensation water from tumble

dryers, air conditioning systems or similar. This

appliance has been designed to use normal tap

• The iron is not designed to rest on its heal.

Please always position it horizontally on the

• The iron pad can be placed into the specially

designed recess on the appliance or

somewhere suitable alongside the ironing area.

 

• During it rst use the iron may produce certain

vapours and odours, along with white particles

on the soleplate, this is normal and it will stop

• While the steam release button is pressed, the

water tank may produce a pumping sound, this

is normal, indicating that water is being

pumped to the steam tank.

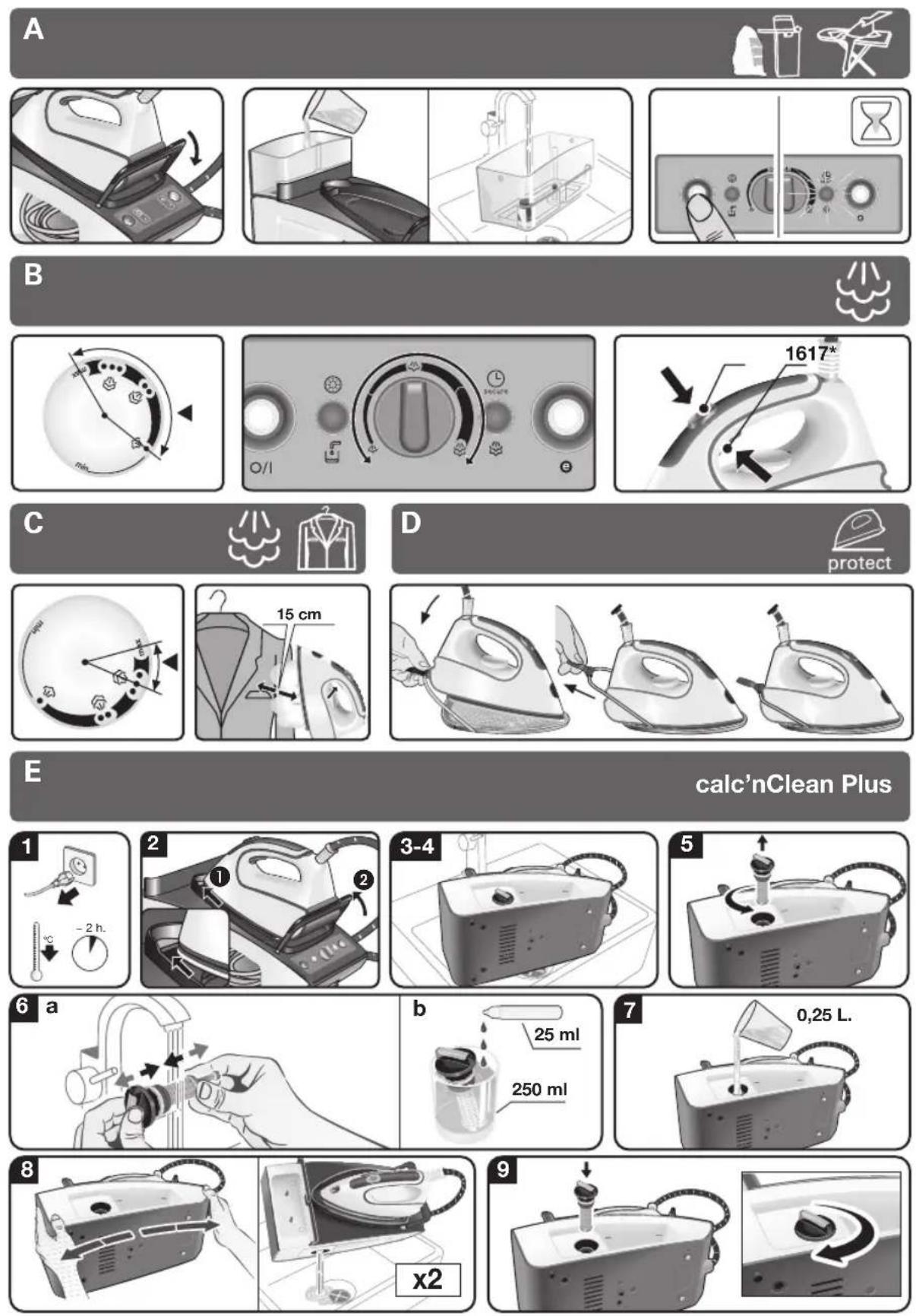

1. Check the ironing instruction label on the

garment to determine the correct ironing

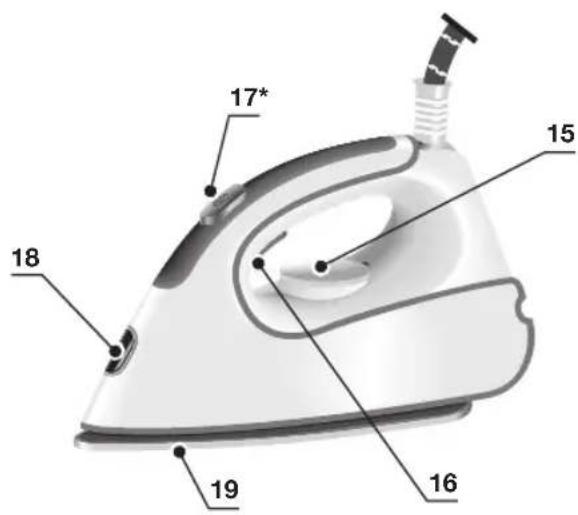

2. Turn the temperature selector (15) to the

3. The indicator lamp (18) will remain lit while the

iron is heating and go out as soon as the iron

has reached the selected temperature.

• Sort your garments out based on their cleaning

symbol labels, always starting with clothes that

have to be ironed at the lowest temperatures.

• If you are not sure what the garment is made of

then begin ironing at a low temperature and

decide on the correct temperature by ironing a

small section not usually seen when worn

1. Turn the temperature selector (15) to the

2. 

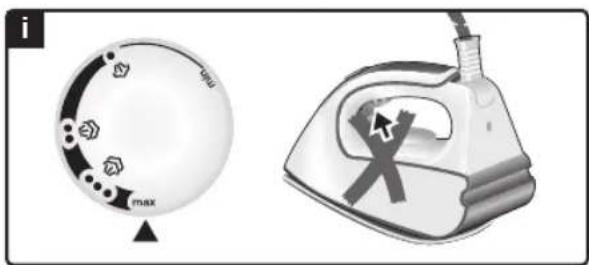

 Set the amount of steam to suit your needs,

using the variable steam control (10*).

For normal use, please choose one of the

following recommended settings:

 

3. Press the steam (16-17*) release button to

When ironing on a lower temperature setting “•”.

• If the appliance has variable steam control

(10*), set the variable steam control to its

S I E M E N S  • If the appliance does not have variable steam

control, press the steam release button only for

a few seconds at a time when ironing at lower

In both cases, if you nd that water is dripping out

of the soleplate, set the temperature selector (15)

to a higher position 



• At the beginning of each use, it is possible that

drops of water will be dispensed alongside

Therefore, it is advisable to try the iron on the

ironing board or a piece of cloth to start with.

 for better ironing results, iron the last

strokes without steam to dry the garment.

This appliance has a special function for tackling

The “pulseSteam” function helps soften stubborn

garments like jeans or linen faster.

When the steam release button is activated, the

steam generator will give three powerful shots of

steam so that the steam reaches even deeper

1. Set the temperature selector (15) on “•••”.

2. Press the steam release button (16) on the

bottom of the handle two times in quick

succession (double-click).

 

Briey press the steam release button (17*) on

the top of the handle.

• It is possible to stop the shots of steam by

quickly pressing the steam button again.

• Some water drops may appear when you use

the “pulseSteam” function for the rst time.

The water drops will disappear after you have

used the function for some time.



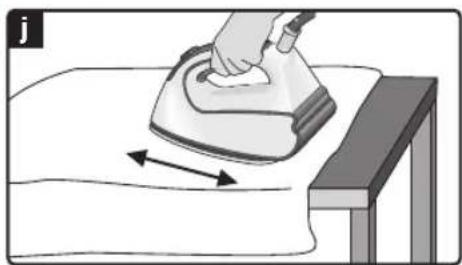

Begin ironing but without pressing the steam

1.Set the temperature control knob to at least the

2. Hold the iron in an upright position 15 cm away

from the garment being steamed.

3. You can steam iron curtains and hanging

garments (jackets, suits, coats...) by placing the

iron in a vertical position and pressing the

steam release button (16 or 17*).



This system has intelligent steam control, which,

after releasing the steam release button (16),

provides a small amount of additional steam.

The additional steam can always be stopped by

briey pressing the steam release button once



If the “Energy saving” button (8*) is switched on,

you can save up to 25% of the energy and 40%

of the water consumption (*), and still achieve

good results when ironing most of your garments.

It is advisable to use the normal energy setting

only for thick and very wrinkled fabrics.

(*) In comparison to the maximum setting.

Note: If you work with the “Energy saving”

function, the variable steam regulation and

temperature regulation can still be used as

S I E M E N S  

Pilot light (11) will ash indicating that boiler must

1. Check carefully that the appliance is cold and

unplugged for more than 2 hours, and that the

water tank (1) is empty.

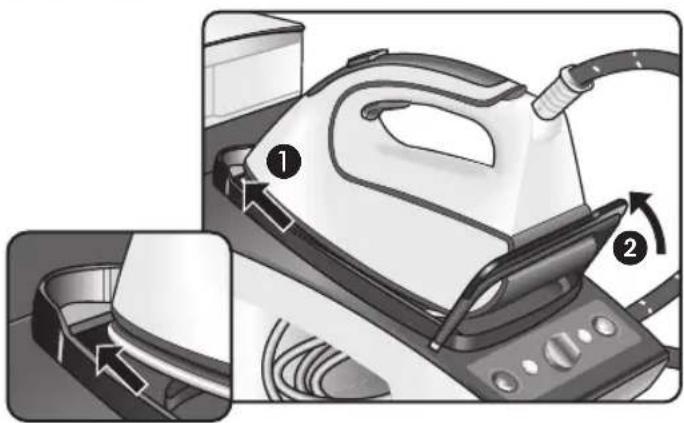

2. Fix the iron to the stand by inserting the tip of

the iron into the front slot and moving the

xation lever (13) against the heel of the iron.

3. Place your appliance over a sink or bucket.

4. Lean the appliance on the opposite side of the

5. Unscrew the lter (4) and take it out.

6. 

To wash the lter, you may:

a. Place the lter under the water tap and wash

it up until calc residues are removed. Squeeze

the lter as indicated in the picture E.

b. Immerse the lter in tap water (250 ml) mixed

with a measure (25 ml) of descaling uid.

The descaling uid can be obtained from our

After-sales service or from our website.

7. Holding your steam generator in the lateral

position and using a jug, ll the boiler with 1/4

litre of water and replace the lter.

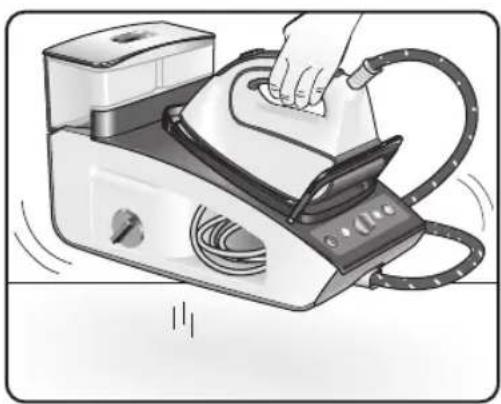

8. Shake the base unit for a few moments,

unscrew the lter again and empty the boiler

completely over a sink or bucket.

For best results, we recommend that this

operation is performed twice.

Important: before re-closing, make sure no

water remains in the boiler.

9. Replace and tighten up the lter.





This procedure helps to remove scale particles

out of the steam chamber.

This cleaning procedure may be performed

occasionally (approximately once a year), when

after a long period of use with very hard water,

scale particles start to come out of the soleplate.

a) Ensure that the iron is cooled down.

b) Set the temperature selector (15) of the iron to

If during ironing, the steam release button

(16-17*) on the iron handle is not pressed for a

certain length of time (8 minutes), the steam

station will automatically switch off.

The “auto shut-off” pilot lamp (9) will ash when

auto shut-off has been activated.

To switch the steam station back on, press the

steam release button again.

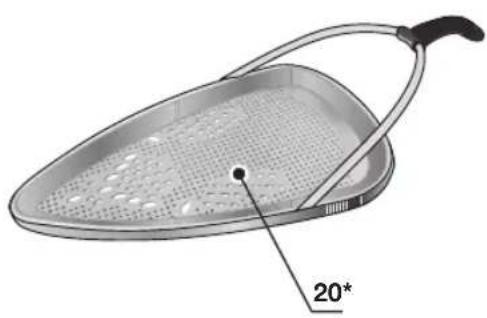

The fabric-protection soleplate cover (20*) is

used for steam-ironing delicate garments at

maximum temperature without damaging them.

Use of the soleplate cover also does away with

the need for a cloth to prevent shine on dark

It is advisable to rst iron a small section on the

inside of the garment to see if it is suitable.

To attach the soleplate cover to the iron, place

the tip of the iron into the end of the soleplate

cover and pull the elastic strap over the lower

rear of the iron until it ts tightly. To release the

soleplate cover, pull the elastic strap and remove

The fabric-protection soleplate cover may be

purchased from our customer service or from our

To extend the life of your steam generator and to

prevent any build up of scale, it is essential that

you rinse out the lter (4) and the boiler after

several hours of use. If the water is hard,

increase the frequency.

Do not use descaling agents for rinsing out the

boiler, as they could damage it.19

S I E M E N S  3. Empty the water tank.

4. Place the iron on the iron pad (2), standing on

the soleplate, and x it by inserting the tip of

the iron into the front slot and moving the lock

lever (13) against the heel of the iron.

5. Store the mains cable (6) and steam hose (7)

in the storage compartment (5). Do not wrap

the cords too tight.

6. Hold the iron´s handle when moving the

appliance, as shown in gure G, or use the

carrying handles (3) on the sides.

Steam production consumes the most energy. To

help minimise the energy used, follow the advice

• Start by ironing the fabrics that require the

lowest ironing temperature.

Check the recommended ironing temperature

in the label on the garment.

• Regulate the steam according to the selected

ironing temperature, following the instructions

• Try to Iron the fabrics while they are still damp

and reduce the steam setting. Steam will be

generated from the fabrics rather than the iron.

If you tumble dry your fabrics before ironing

them, set the tumble drier on the ‘iron dry’

• If the fabrics are damp enough, turn off the

steam regulator completely.

Our goods come in optimised packaging. This

basically consists in using non-contaminating

materials which should be handed over to the

local waste disposal service as secondary raw

materials. Your local town council can give you

information about how to dispose of obsolete



c) Fill the tank with tap water.

d) Plug in the mains cable and set the main

power switch (12) to the “I” position (illuminated

e) Wait until the “steam ready” indicator lamp (9)

f) If the steam station has steam regulator (10*),

set it to the maximum position.

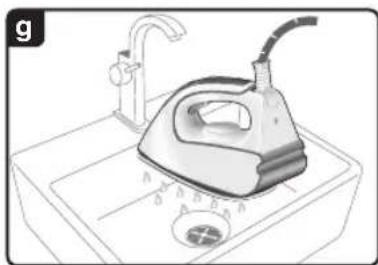

g) Hold the iron over the sink or a container to

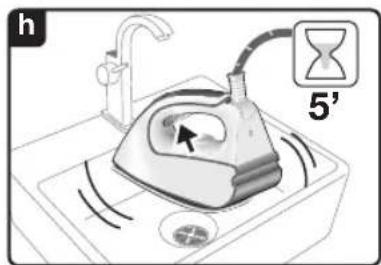

h) Press the steam release button (16) and gently

shake the iron. Boiling water and steam will

come out, carrying scale and or deposits that

might be there. This could take approximately 5

i) Set the temperature selector (15) of the iron to

the “max” position, without pressing the steam

release button (16). The water in the steam

chamber will start evaporating. Wait until all the

water inside the chamber has been evaporated.

j) To clean the soleplate, immediately rub off any

residue by running the hot iron over dry cotton



1. After ironing, pull out the plug and allow the

appliance to cool down before cleaning.

2. Wipe the housing, handle and iron body with a

3. If the soleplate is soiled with dirt or scale, clean

it with a damp cotton cloth.

4. If the cloth is synthetic, it may melt due to the

high temperature on the soleplate (19). Switch

off the steam and rub off any residue

immediately with a thickly folded, dry cotton

5. Never use abrasive products or solvents. To

keep the soleplate (19) smooth, you should

avoid hard contact with metal objects. Never

use a scouring pad, or chemicals to clean the

1. Always allow the appliance to cool down before

2. Set the main power button to the “0” position

(the red light will go off) and disconnect the

• Boiler and lter must be rinsed. • Rinse the lter and the boiler according

to the cleaning instructions in this

manual (see section E).

• There is a connection problem.

• The main power button is not

• Check the mains cable (6), the plug

• Set the main power button (12) to the

“I” position (illuminated in red).

• The main power button is not

• The temperature is set to a low

• Set the main power button (12) to the

“I” position (illuminated in red).

• Set the temperature to the desired

• During rst use: certain

components on the appliance

have been lightly greased at the

factory and may produce a little

smoke when initially heated.

• During subsequent use: the

soleplate may be soiled.

• This is completely normal and will stop

after a short while.

• Clean the soleplate according to the

cleaning instructions in this manual.

• The steam function is being used

before it has reached the correct

• The water is condensing inside

the pipes because steam is being

used for the rst time or has not

been used for a long time.

• The steam generator contains too

• Reduce the steam ow when ironing at

• Point the iron away from the ironing

area and press the steam release

button until steam is produced.

• Clean the boiler as described in

section “calc'nClean Plus” (E).

• There is a build up of scale or

minerals in the steam tank.

• Chemical products or additives

• Use tap water mixed 50% with distilled

or demineralised water. To prolong the

optimum steam function, mix tap water

with distilled water 1:1. If the tap water

in your district is very hard, mix tap

water with distilled water 1:2.

• Clean the soleplate with a damp cloth.

• Never add products to the water.

• The boiler is not switched on or

the water tank is empty.

• The steam regulation is set to the

• Set the main power button (12) to the

“I” position (illuminated in red), and/or

• Increase the steam ow (see section

• The selected temperature is too

high and has damaged the

• Select a suitable temperature for the

material being ironed and clean the

soleplate with a damp cloth.

• This is a regular consequence of

continued use over a long period

• Clean the soleplate with a damp cloth.21

• Boiler and lter must be rinsed. • Rinse the lter and the boiler according

to the cleaning instructions in this

manual (see section E).

• There is a connection problem.

• The main power button is not

• Check the mains cable (6), the plug

• Set the main power button (12) to the

“I” position (illuminated in red).

• The main power button is not

• The temperature is set to a low

• Set the main power button (12) to the

“I” position (illuminated in red).

• Set the temperature to the desired

• During rst use: certain

components on the appliance

have been lightly greased at the

factory and may produce a little

smoke when initially heated.

• During subsequent use: the

soleplate may be soiled.

• This is completely normal and will stop

after a short while.

• Clean the soleplate according to the

cleaning instructions in this manual.

• The steam function is being used

before it has reached the correct

• The water is condensing inside

the pipes because steam is being

used for the rst time or has not

been used for a long time.

• The steam generator contains too

• Reduce the steam ow when ironing at

• Point the iron away from the ironing

area and press the steam release

button until steam is produced.

• Clean the boiler as described in

section “calc'nClean Plus” (E).

• There is a build up of scale or

minerals in the steam tank.

• Chemical products or additives

• Use tap water mixed 50% with distilled

or demineralised water. To prolong the

optimum steam function, mix tap water

with distilled water 1:1. If the tap water

in your district is very hard, mix tap

water with distilled water 1:2.

• Clean the soleplate with a damp cloth.

• Never add products to the water.

• The boiler is not switched on or

the water tank is empty.

• The steam regulation is set to the

• Set the main power button (12) to the

“I” position (illuminated in red), and/or

• Increase the steam ow (see section

• The selected temperature is too

high and has damaged the

• Select a suitable temperature for the

material being ironed and clean the

soleplate with a damp cloth.

• This is a regular consequence of

continued use over a long period

• Clean the soleplate with a damp cloth.

• Water is being pumped into the

• Water tank (1) is not correctly

inserted in the housing.

• The sound will not stop.

• Adjust the water tank to t correctly.

• If the sound will not stop, do not use

the steam generator and contact an

authorised technical service centre.

• Steam release button has been

activated for too long a period of

time, that is, it has been pressed

• Use the steam release button at

intervals. This improves the ironing

result as the textiles will be steamed,

dried and ironed properly.

• May be caused by steam

condensed on the ironing board.

• Wipe the textile cover of the ironing

board, and iron any water drops to dry

• Water spots are caused by steam

condensation in the hose when

cooling down after use.

• Water drops stop coming out of the

soleplate after using the “pulseSteam”

function for some time.

• This is normal. It is caused by the

steam passing through the hose

during steam ironing.

• Place the hose on the opposite side so

that you cannot touch the hose during

• Filter (4) located at the side of the

• Tighten up the lter.

placing it on the pad

• “pulseSteam” function has been

activated by double click.

• Just press the trigger once again and

the iron will stop steaming at once.

If the above does not solve the problem, get in touch with an authorised technical service.

22

S I E M E N S  

reprises (double-clic).

S I E M E N S  

S I E M E N S  

S I E M E N S  

S I E M E N S  

• For at undgå at der under ugunstige

S I E M E N S  

viskestykke for at undgå, at mørke stoffer skinner.

S I E M E N S  

S I E M E N S  

slangen under dampstryking.

S I E M E N S  

S I E M E N S  

S I E M E N S  

• Limpe a base de acordo com as

engomar e passe as manchas a ferro,

função “pulseSteam”, as gotas de água

  

  

  

S I E M E N S  

S I E M E N S  

S I E M E N S РУССКИЕ E

S I E M E N S  

 S I E M E N S 
