Microwave Oven Owner's Manual

Please read these instructions carefully before installing and operating the oven.1

Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the Door (bent), Hinges and latches (broken or loosened), Door seals and sealing surfaces. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

Power Consumption: 230V, 50Hz, 1400W (Microwave) 2050W (Convection) 1250W (Grill) Rated Microwave Power Output: 900W Operation Frequency: 2450MHz Outside Dimensions: 300mm(H)×539mm(W)×446mm(D) Oven Cavity Dimensions: 240mm(H)×354mm(W)×358mm(D) Oven Capacity: 30Litres Cooking Uniformity: Turntable System Net Weight: Approx. 16.4kg If the oven fails to operate:

1. Check to ensure that the oven is plugged

in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.

2. Check for a blown circuit fuse or a tripped

main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

3. Check to ensure that the control panel is

programmed correctly and the timer is set. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven. IF NONE OF THE ABOVE RECTIFIES THE

SITUATION, THEN CONTACT A QUALIFIED

TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

1. Make sure that all the packing materials

are removed from the inside of the door.

2. WARNING: Check the oven for any

damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel.

3. This microwave oven must be placed on a

flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.

4. Do not place the oven where heat,

moisture, or high humidity are generated, or near combustible materials.

5. For correct operation, the oven must have

sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.

6. Do not operate the oven without glass tray,

roller support, and shaft in their proper positions.

7. Make sure that the power supply cord is

undamaged and does not run under the

oven or over any hot or sharp surface.

8. The socket must be readily accessible so

that it can be easily unplugged in an emergency.

9. Do not use the oven outdoors.

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage. WARNING Improper use of the grounding plug can result in a risk of electric shock. Note

If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.

2. Neither the manufacturer nor the dealer

can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures. The wires in this cable main are colored in accordance with the following code: Green and Yellow = EARTH Blue = NEUTRAL Brown = LIVE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the

2. Reorient the receiving antenna of radio or

3. Relocate the microwave oven with respect

4. Move the microwave oven away from the

5. Plug the microwave oven into a different

outlet so that microwave oven and receiver are on different branch circuits. When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric

shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.

Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or

laboratory use. Do not operate the oven when empty. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard

WARNING: Only allow children to use the oven

without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

Warning: When the appliance is operated in the

combination mode, children should only use the oven under adult supervision due to the temperatures generated. To reduce the risk of fire in the oven cavity: a. When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition; b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

WARNING: Liquid or other food must not be heated

in sealed containers since they are liable to explode. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handling the container. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil. Utensils should be checked to ensure that they are suitable for use in microwave oven.

WARNING: It is hazardous for anyone other than a

trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Arrange food carefully. Place thickest areas

towards outside of dish.

2. Watch cooking time. Cook for the shortest

amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.

3. Cover foods while cooking. Covers prevent

spattering and help foods to cook evenly.

4. Turn foods over once during microwaving to

speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.

5. Rearrange foods such as meatballs halfway

through cooking both from top to bottom and from the center of the dish to the outside.

1. The ideal material for a microwave utensil is

transparent to microwave, it allows energy to pass through the container and heat the food.

2. Microwave can not penetrate metal, so metal

utensils or dishes with metallic trim should not be used.

3. Do not use recycled paper products when

microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.

4. Round /oval dishes rather than square/oblong

ones are recommend, as food in corners tends to overcook.

5. Narrow strips of aluminum foil may be used to

prevent overcooking of exposed areas. But be careful don’t use too much and keep a distance of 1 inch (2.54cm) between foil and cavity. The list below is a general guide to help you select the correct utensils. Cookware Microwave Grill Convection Combination* Heat–Resistant Glass Yes Yes Yes Yes Non Heat–Resistant Glass No No No No Heat–Resistant Ceramics Yes Yes Yes Yes Microwave–Safe Plastic Dish Yes No No No Kitchen Paper Yes No No No Metal Tray No Yes Yes No Metal Rack No Yes Yes No Aluminum Foil & Foil Container No Yes Yes No

• Combination: applicable for both "microwave+grill", and "microwave+convection" cooking.

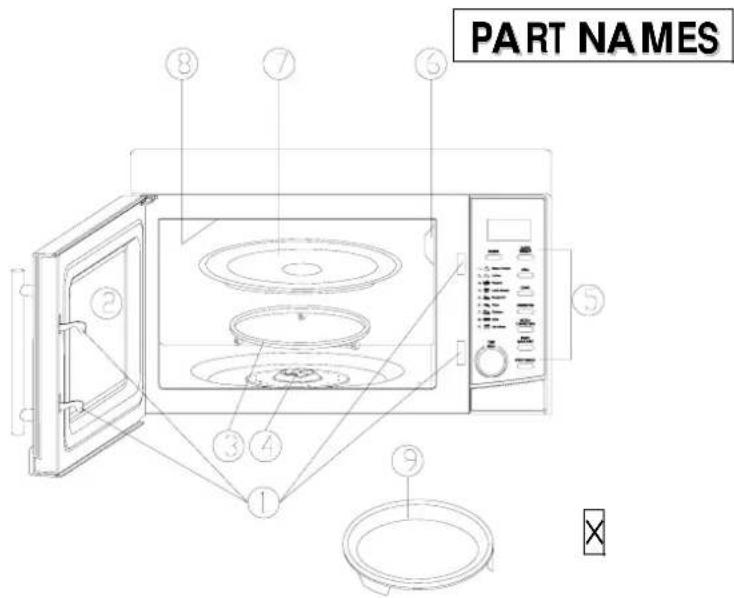

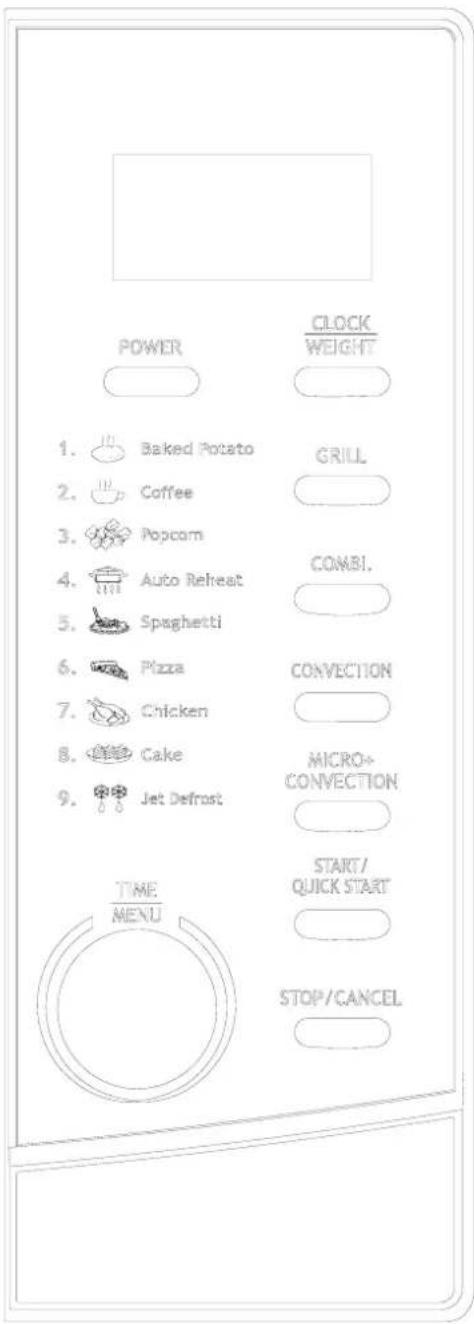

DISPLAY SCREEN Cooking time, power, indicators and present time are displayed. POWER Press to select microwave power level. GRILL Press to set a grill-cooking program. CONVECTION Press to program convection temperature. COMBI. Press to select one of two combination cooking settings. MICRO+CONVECTION Press to select one of four combination cooking settings. TIME/MENU (DIAL) Rotate to set cooking time or select auto-menu.

Press to start cooking program or set quick start cooking program. CLOCK/WEIGHT Used to set clock time or enter food weight. STOP/CANCEL Touch to stop cooking program or clear all previous settings before cooking starts.

(Please also see the following pages for more detail)

BEEPS DURING OVEN SETTINGS

♦ ONE BEEP: Oven accepts the entry. ♦ TWO BEEPS: Oven does not accept the entry. Please check and try again.

When the oven was plugged in, “1:00” should have appeared in the display. This clock is 24-hour cycle. FOR EXAMPLE: Suppose you want to set the oven clock time to 8:30.

1. Press CLOCK/WEIGHT button once.

2. Rotate the TIME/MENU dial until the 8 hour

4. Rotate the TIME/MENU dial until the 30

minute is displayed.

5. Press CLOCK/WEIGHT button to confirm.

MICROWAVE COOKING Maximum cooking time is 95 minutes. Microwave cooking allows you to customize cooking power and time. First, you select a power level by pressing the POWER button a number of times (see the table below). Then you set the cooking time by rotating the TIME/MENU dial, before pushing the START/QUICK START button. Press POWER button Press Power Description once 100%(P-100) High twice 90%(P-90) 3 times 80%(P-80) 4 times 70%(P-70) Medium High 5 times 60%(P-60) 6 times 50%(P-50) Medium 7 times 40%(P-40) 8 times 30%(P-30) Med. Low/Defrost 9 times 20%(P-20) 10 times 10%(P-10) Low 11 times 0%(P-00) Suppose you want to cook for 5 minute at 60% power level.

1. Press POWER repeatedly to select cooking

2. Rotate the TIME/MENU dial until the correct

cooking time (5:00) is displayed.

3. Press START/QUICK START button.

1. If you want to temporarily stop a cooking

session, press the STOP/CANCEL once and then you can start the cooking again by press START/QUICK START; or press the STOP/CANCEL twice to cancel the cooking program altogether.

2. You can check the power level during

cooking by pressing POWER. GRILL Maximum cooking time is 95 minutes. Grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages and pieces of chicken. It is also suitable for hot sandwiches and au gratin dishes. Suppose you want to program grill cooking for 12 minutes.

NOTE: Grill cooking power is set at full power level by the system. CONVECTION The maximum cooking time is 9 hours and 30 minutes (9H:30). During convection cooking, hot air is circulated throughout the oven cavity to brown and crisp foods quickly and evenly. This oven can be

programmed for ten different cooking temperatures. 110℃Æ125℃Æ140℃Æ155℃Æ170℃Æ185℃ Æ200℃Æ215℃Æ230℃Æ250℃ To Cook with Convection Press CONVECTION button to set convection temperature. Suppose you want to cook at 200℃for 40 minutes.

1. Press CONVECTION button a number of

times to select temperature.

2. Rotate the TIME/MENU dial until the correct

cooking time is displayed.

1. After time has elapsed the system will sound

to remind you and End appears in display. Press STOP/CANCEL button or open door to clear End before starting another cooking function.

2. You can check the convection temperature

while cooking is in progress by pressing the CONVECTION button. To Preheat and Cook with Convection Your oven can be programmed to combine preheating and convection cooking operations. Suppose you want to preheat to 170℃ and then cook 35 minutes.

the oven reaches the programmed temperature, one beep will sound.

3. Open the door and place container of food

at the center of the turntable.

4. Rotate the TIME/MENU dial until the correct

cooking time is displayed.

1. You can not set the preheat time, and the

maximum is 30 minutes.

2. After the preheat time elapsed, the system

will sound DE- every 5 seconds. If there is no any operation within 30 minutes, the system will stop automatically and display End. MICROWAVE +GRILL Maximum cooking time is 95 minutes. This feature allows you to combine grill and microwave cooking on two different settings. First, press this button once or twice to choose an appropriate combination setting, then, at the screen prompt, enter the desired cooking time by turning the TIME/MENU dial. After you have pushed the start button, the system begins to count down. NOTE: During cooking, you can see the programmed setting by pressing this button. The maximum cooking time here is 95 minutes. COMBINATION 1 Use for fish, potatoes or au gratin. Suppose you want to set combination 1 cooking for 25 minutes.

COMBINATION 2 Use for pudding, omelets, baked potatoes and poultry. Suppose you want to set combination 2 cooking for 12 minutes.

MICRO+CONVECTION The maximum cooking time is 9 hours and 30 minutes (9H:30). This oven has four pre-programmed settings that make it easy to cook with both convection heat and microwave automatically. Press MICRO+CONVECTION button to select convection temperature: Press Oven temperature(℃) COMB1 once 150 COMB2 twice 180 COMB3 3 times 220 COMB4 4 times 2509

Suppose you want to bake food for 26 minutes with COMB3.

2. Rotate the TIME/MENU dial until the correct

cooking time is displayed.

3. Press START/QUICK START button to start.

NOTE: You can check the convection temperature while cooking is in progress by pressing the MICRO+CONVECTION button. JET DEFROSTING Maximum defrosting time is 95 minutes. Suppose you want to defrost frozen food for five minutes.

1. Rotate the TIME/MENU dial until “9” and

“CODE” are displayed.

NOTE: During defrosting process, the oven will pause to remind user to turn food over to obtain uniform defrosting.

MULTI-STAGE COOKING Your oven can be programmed for up to 3 automatic cooking sequences. Suppose you want to set the following cooking program. Microwave cooking Grill cooking Convection cooking (without preheat function)

1. Enter into the first stage of a microwave

cooking program without pressing the START/QUICK START button.

2. Enter into the second stage of a grill cooking

program without pressing the START/QUICK START button.

3. Enter into the third stage of a convection

AUTO COOK functions can not set into multi-stage cooking program.

2. If the cooking stages are 2 stage or 3 stage,

MEM will appears in display. AUTO COOK For food or the following cooking mode, it is not necessary to program the duration and the cooking power. It is sufficient to indicate the type of food that you wish to cook as well as the weight of this food.

2. Press CLOCK/WEIGHT to enter the food weight or the number of serving.

3. Press START/QUICK START.

Auto Cook Code/Menu Select food code Notes 1 Baked Potato (each 230g) 1、The user is required to set weight by pressing CLOCK/WEIGHT button for the system to determine the time needed to do the job. 2、For food 7 (chicken), oven will stop during cooking to let you to turn food over and then close the door, press the START/QUICK START to resume cooking. 2 Coffee (each 200ml) 3 Popcorn (99g) 4 Auto Reheat(g) 5 Spaghetti (g) 6 Pizza(g) 7 Chicken(g)

The child proof lock prevents unsupervised operation by little children. To set the child proof lock: Press STOP/CANCEL button for 3 seconds, then a beep will sound and the indicator light will come on. In the lock state, all buttons are disabled. To cancel the child proof lock: Press STOP/CANCEL button for three seconds, then a beep will sound and the indicator light will come off. QUICK START Use this feature to program the oven to microwave food at 100% power conveniently. Press START/QUICK START button in quick succession to set the cooking time. TO STOP THE OVEN WHILE THE OVEN IS OPERATING

1. Press STOP button.

You can restart the oven by pressing START pad. Touch STOP/CANCEL to erase all instructions.

You can restart the oven by closing the door and pressing START/QUICK START pad. NOTE: Oven stops operating when door is opened.

AUTOMATIC PROTECTION MECHANISM

1. Anytime in the operation of the oven, when the

oven cavity temperature reaches a phenomenon of 300°C, the oven automatically enters into self-protection mode. The display shows E 01, with one beeping until the said phenomenon disappears, and STOP/CANCEL is pressed to make the oven back to normal. 2.In case of a shortcut to the sensor, the oven will enter into protection mode as display shows E 03 and beeps sound until STOP/CANCEL is touched. COOLING FEATURE The electronical controlling system of the microwave oven has the feature of cooling. As for any cooking mode which cooking time above 2 minutes, after finishing cooking, the oven fan will work about 3 minutes automatically to cool the oven for prolonging the life of the oven.

1. Turn off the oven and remove the power plug from the wall socket before cleaning.

2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls,

wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.

3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating

parts inside the oven, water should not be allowed to seep into the ventilation openings.

4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a

damp cloth to remove any spills or spatters. Do not use abrasive cleaner.

5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When cleaning the

control panel, leave oven door open to prevent oven from accidentally turning on.

6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This

may occur when the microwave oven is operated under high humidity condition. And it is normal.

7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy

water or in a dishwasher.

8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply wipe

the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.

9. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon

in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.

10. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

11. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the

oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

12. Please do not dispose this appliance into the domestic rubbish bin, it should be disposed to the

particular disposal center provided by the municipalities. If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)
