22502 - Toaster HAMILTON BEACH - Free user manual and instructions

Product Type	Toaster
Brand	Hamilton Beach
Model	22502
Number of Slots	2
Exterior Material	Stainless Steel
Power Supply	120 V, 60 Hz
Power	900 W (estimated)
Cord Length	0.9 m
Shade Range	1 to 9
Functions	Defrost, Bagel, Cancel
Automatic Ejection	Yes
Crumb Tray	Removable, weekly cleaning recommended
Automatic Shut-off	Yes (end of cycle)
Maintenance	Wipe exterior with damp cloth; do not use abrasive cleaners
Safety	Polarized plug, never immerse
Warranty	1 year limited (parts and labor)
Weight	1.5 kg
Dimensions (L x W x H)	28 x 17 x 20 cm

Frequently Asked Questions - 22502 HAMILTON BEACH

How can I defrost bread in the toster?

Place the frozen food in the slot, lower the lever, then press the Defrost button after the cycle begins. The toaster will automatically adjust the toasting time.

How to use the Bagel function?

Place the half bagel cut side facing the inside of the toaster. Lower the lever, then press the Bagel button. Only the inside will be toasted.

What to do if a slice of bread gets stuck in the toaster?

Unplug the toaster and let it cool. Turn it over and gently shake it to dislodge the food. Never use a fork or metal utensil.

How to clean the crumb tray?

Unplug the appliance and let it cool. Slide the crumb tray outward, wipe it with a clean cloth, and replace it. Weekly cleaning is recommended.

Why doesn't my toaster latch when I lower the lever?

Check that the toaster is plugged into an electrical outlet. The lever only latches when the appliance is powered.

Can I toast pastries like Pop-Tarts in this toaster?

No, toaster pastries should be heated in a toaster oven. Using them in a traditional toaster can cause a fire.

What is the warranty on this product?

This toaster is warranted for 1 year against defects in materials and workmanship. The warranty is limited to the original purchaser with proof of purchase.

Can I use an extension cord with this toaster?

Yes, but use an extension cord of equal or higher gauge than the appliance and ensure it does not pose a tripping hazard.

How to avoid fire risk during use?

Never cover the toaster while in operation. Keep it away from curtains, walls, and flammable materials. Do not leave it unattended and clean the crumb tray regularly.

Can the toaster toast foods other than bread?

No, only use bread, bagels, English muffins, or frozen waffles. Avoid buttered foods, toasties, fried foods, or rice cakes.

USER MANUAL 22502 HAMILTON BEACH

840158702 ENv02.qxd:840147300 ENy01.qxd 3/1/10 3:50 PM Page

Toaster

READ BEFORE USE

Grille-pain

Visit hamiltonbeach.com for delicious recipes and to register your product online!

Francais 9

Canada:1-800-267-2826

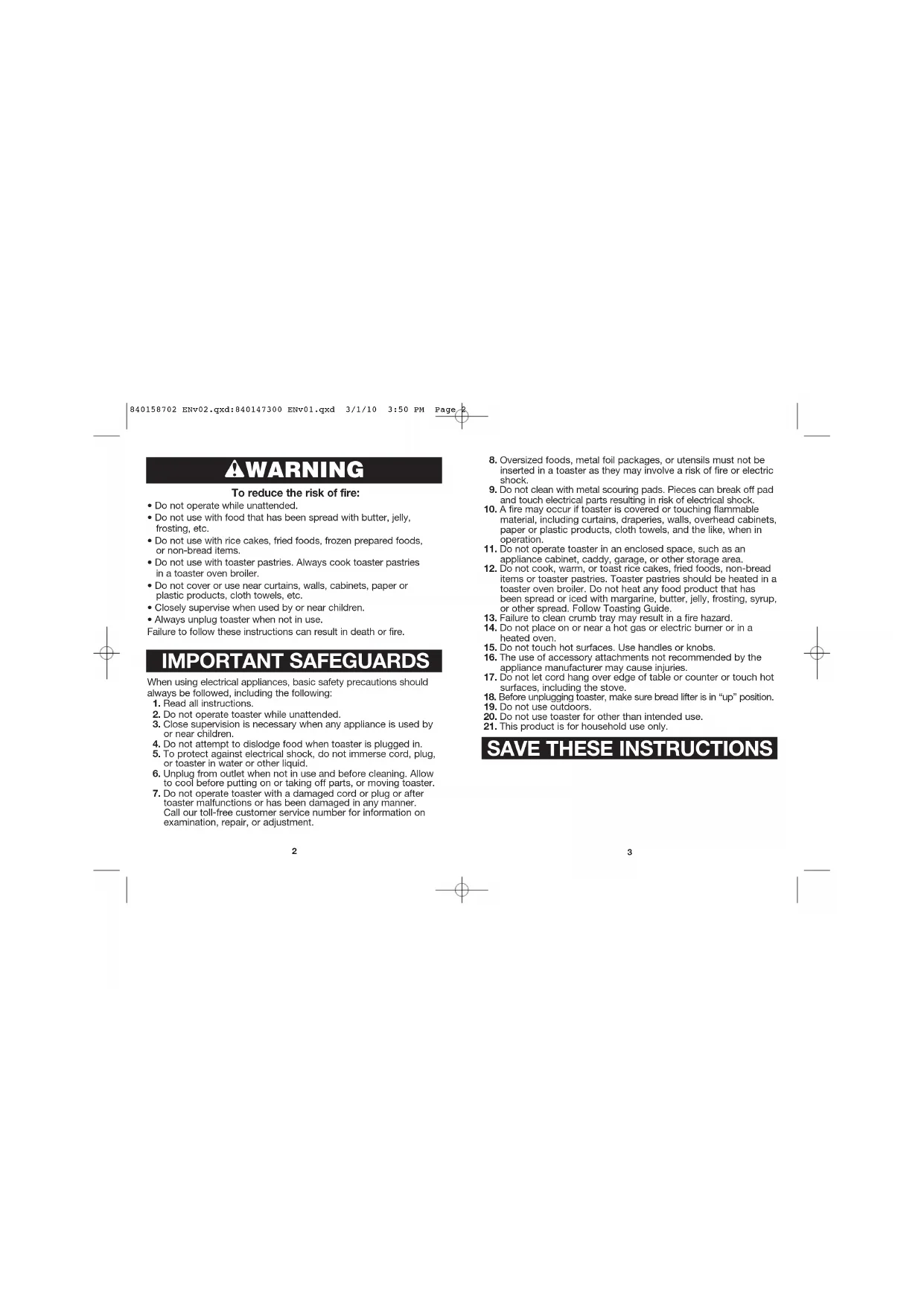

To reduce the risk of fire:

• Do not operate while unattended.
• Do not use with food that has been spread with butter, jelly, frosting, etc.
• Do not use with rice cakes, fried foods, frozen prepared foods, or non-bread items.
• Do not use with toaster pastries. Always cook toaster pastries in a toaster oven broiler.
• Do not cover or use near curtains, walls, cabinets, paper or plastic products, cloth towels, etc.
• Closely supervise when used by or near children.
  Always unplug toaster when not in use.
  Failure to follow these instructions can result in death or fire.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Do not operate toaster while unattended.
3. Close supervision is necessary when any appliance is used by or near children.
4. Do not attempt to dislodge food when toaster is plugged in.
5. To protect against electrical shock, do not immerse cord, plug, or toaster in water or other liquid.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, or moving toaster.

7. Do not operate toaster with a damaged cord or plug or after toaster malfunctions or has been damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.

8. Oversized foods, metal foil packages, or utensils must not be inserted in a toaster as they may involve a risk of fire or electric shock.

9. Do not clean with metal scouring pads. Pieces can break off pad and touch electrical parts resulting in risk of electrical shock.
10. A fire may occur if toaster is covered or touching flammable material, including curtains, draperies, walls, overhead cabinets, paper or plastic products, cloth towels, and the like, when in operation.
11. Do not operate toaster in an enclosed space, such as an
    appliance cabinet, caddy, garage, or other storage area.
12. Do not cook, warm, or toast rice cakes, fried foods, non-bread items or toaster pastries. Toaster pastries should be heated in a toaster oven broiler. Do not heat any food product that has been spread or iced with margarine, butter, jelly, frosting, syrup, or other spread. Follow Toasting Guide.
13. Failure to clean crumb tray may result in a fire hazard.
14. Do not place on or near a hot gas or electric burner or in a heated oven.
15. Do not touch hot surfaces. Use handles or knobs.
16. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
17. Do not let cord hang over edge of table or counter or touch hot surfaces, including the stove.
18. Before unplugging toaster, make sure bread lifter is in "up" position.
19. Do not use outdoors.
20. Do not use toaster for other than intended use.
21. This product is for household use only.

SAVE THESE INSTRUCTIONS

840158702 ENv02.qxd:840147300 ENv01.qxd 3/1/10 3:50 PM

OTHER CONSUMER SAFETY INFORMATION

To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.

WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the blender. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

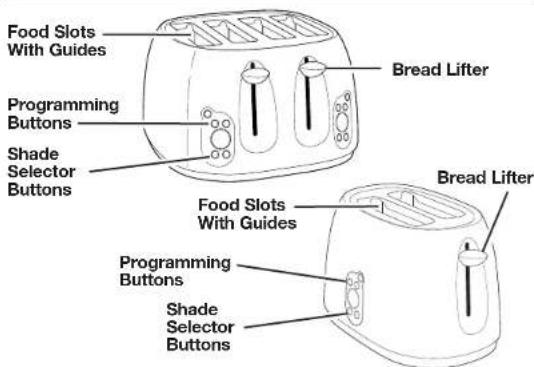

Parts and Features

4

1. Food Slots With Guides
2. Bread Lifter - Push down bread lifter to start toaster. The bread lifter may be lifted up to stop toasting during a cycle.
3. Shade Selector - The shade selector ranges from light to dark (1) to dark to dark (9). After pressing down the lighter to illuminate display, adjust to shade by pressing - or +.
4. Slide-Out Crumb Tray (see page 7 for more information).

1. Programming Buttons

Defrost Use only on frozen foods that were made to be placed in a toaster. This feature allows additional time for the food to thaw and heat through.

To use: Press after toast cycle has started.

Bagel - Use to toast only one side of a cut bagel, English muffin, or bun. Load toaster with cut side of food facing in; the outer heating elements are turned off during this cycle. To use: Press BAGEL after toast cycle has started.

Cancel - To cancel or end a cycle, press and the cycle will stop.

840158702 ENV02.qxd:840147300 ENV01.qxd 3/1/10 3:50 PM

Page

How to Toast

1. Plug toaster into electrical outlet.
2. Place appropriate food items in slots. If toasting bagels, English muffins, or buns, place in slots with cut sides facing inside wall of toaster.
3. Push bread lifter down to energize toaster and illuminate display. NOTE: The bread lifter will not latch down unless the toaster is plugged in.
4. Press - or + to adjust toast shade. If toasting a bagel or a frozen item, also press Bagel and/or defrost function.
5. At the end of toasting cycle, bread will pop up automatically and the display will go out.
6. To stop the toasting cycle sooner, lift up bread lifter or push the () button.

Toasting Guide for Button Models

FOOD	Shade Setting	Optional Setting
Regular bread	2 to 8
English muffins 7 to 8 Bagel
Bagels or buns 7 to 9 Bagel
Frozen bread 6 to 8		*
Frozen bagels 8 to 9		*
Frozen waffles 9		*
Toaster pastries (such as Pop-Tarts)Do not heat in toaster-use toaster oven broiler. If you must use toaster, ALWAYS set to lowest shade setting; NEVER heat cracked, broken, or warped pastries; and NEVER leave unattended.

Pop-Tarts is a registered trademark of the Kellogg Co.

Cleaning

NOTE: If the toaster is used daily, the crumb tray should be cleaned weekly.

1. Unplug toaster and let cool.
2. Slide out crumb tray, discard crumbs, and wipe tray with clean cloth. Replace crumb tray.
3. Wipe outside of toaster with a damp cloth. Do not use abrasive cleansers that may scratch the surface of the toaster.

Tips and Troubleshooting

• To remove food that becomes lodged in food slots, disconnect from outlet and allow toaster to cool. Turn toaster upside down and shake. Do not use fork or other utensil that could damage heating element or result in risk of fire or electrical shock.
• When toasting a single slice, you may notice variations in bread color from side to side.
• Setting 9 is the darkest shade of toast color. If a darker shade is desired, reset at 5. Watch closely and toast for a second cycle.

LIMITED WARRANTY

This warranty applies to products purchased in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use.

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the US or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.
