USER MANUAL Blender2Go 217400 PRINCESS

217400 Princess Blender2Go

gedompeld in water of

Citroen-knoflook dressing

You have purchased a Princess product. Our

aim is to provide quality products with a tasteful

design and at an affordable price. We hope

that you will enjoy this product for many years.

The appliance shall not be •

used by children. Keep the

appliance and the mains

cable out of the reach of

children. Children shall not

play with the appliance.

The appliance can be used by •

persons with reduced

physical, sensory or mental

capabilities or with lack of

experience and knowledge if

they are supervised or

instructed on how to use the

appliance in a safe way and

understand the hazards

Read the manual carefully •

before use. Keep the manual

for future reference.

Only use the appliance and •

the accessories for their

intended purposes. Do not

use the appliance and the

accessories for other

purposes than described in

Do not use the appliance if •

any part or any accessory is

damaged or defective.

If a part or an accessory is

damaged or defective, it

must be replaced by the

authorised repair agent.

Do not use the appliance •

near bathtubs, showers,

basins or other vessels

Do not immerse the •

appliance in water or other

liquids. If the appliance is

immersed in water or other

liquids, do not remove the

appliance with your hands.

Immediately remove the

mains plug from the wall

socket. If the appliance is

immersed in water or other

liquids, do not use the

Clean the appliance and the •

accessories. Refer to the

section "Cleaning and

Before use, always check that •

the mains voltage is the same

as the voltage on the rating

plate of the appliance.14

EN The appliance is not intended •

to be operated by means of

an external timer or separate

remote-control system.

Connect the appliance to an •

earthed wall socket. If

necessary, use an earthed

extension cable of a suitable

diameter (at least 3 x 1 mm

For additional protection, •

install a residual current

device (RCD) with a rated

residual operating current

that does not exceed 30 mA.

Make sure that water cannot •

enter the contact plugs of

the mains cable and the

Make sure that the mains •

cable does not hang over the

edge of a worktop and

accidentally or tripped over.

Keep the mains cable away •

from heat, oil and sharp

Do not use the appliance if •

plug is damaged or defective.

If the mains cable or the

mains plug is damaged or

defective, it must be replaced

by the manufacturer or an

authorised repair agent.

Do not pull the mains cable •

to disconnect the mains plug

Disconnect the mains plug •

from the mains when the

appliance is not in use,

disassembly and before

cleaning and maintenance.

Safety instructions for

The appliance is suitable for •

Do not use the appliance •

Place the appliance on a •

stable and flat surface.

Keep the appliance away •

from heat sources. Do not

place the appliance on hot

surfaces or near open flames.

Do not use the appliance for •

pressing fruits or vegetables.

Do not use the appliance for •

Do not use the appliance for •

EN Do not use the appliance for •

Do not use the appliance •

with an empty jar or bottle.

When using the jar, always •

Do not leave the appliance •

switched on continuously for

more than two minutes.

Make sure that your hands •

are dry before touching the

Beware of sharp parts. Keep •

your hands away from the

moving parts during use and

maintenance. The appliance

Beware of hot parts. Wait •

until the appliance has

touching the housing and the

parts of the appliance. The

appliance becomes hot

Be extra careful during •

cleaning and maintenance.

Be extra careful when

emptying the jar or the

bottle. Be extra careful when

handling the sharp blade.

Do not leave the appliance •

unattended during use.

Cleaning and maintenance

The appliance must be cleaned after each use.

Before you proceed, we need you to pay

attention to the following notes:

- Before cleaning or maintenance, switch off

the appliance, remove the mains plug from

the wall socket and wait until the appliance

- Do not immerse the appliance in water or

- Always be careful when cleaning the blade.

The blade is very sharp. Risk of personal

Before you proceed, we would like you to

focus your attention on the following notes:

- Do not use aggressive or abrasive cleaning

agents to clean the appliance.

- Do not use sharp objects to clean the

- Do not clean the appliance in the

Regularly check the appliance for possible •

Clean the outside of the appliance with a •

soft, damp cloth. Thoroughly dry the

outside of the appliance with a clean, dry

Clean the accessories:•

- Clean the blade and the seal ring in

soapy water or in the dishwasher.

- Clean the jar, the jar lid and the jar lid

insert in soapy water or in the

- Clean the bottle and the bottle lid in

soapy water or in the dishwasher.

- Rinse the accessories under running

- Thoroughly dry the accessories.16

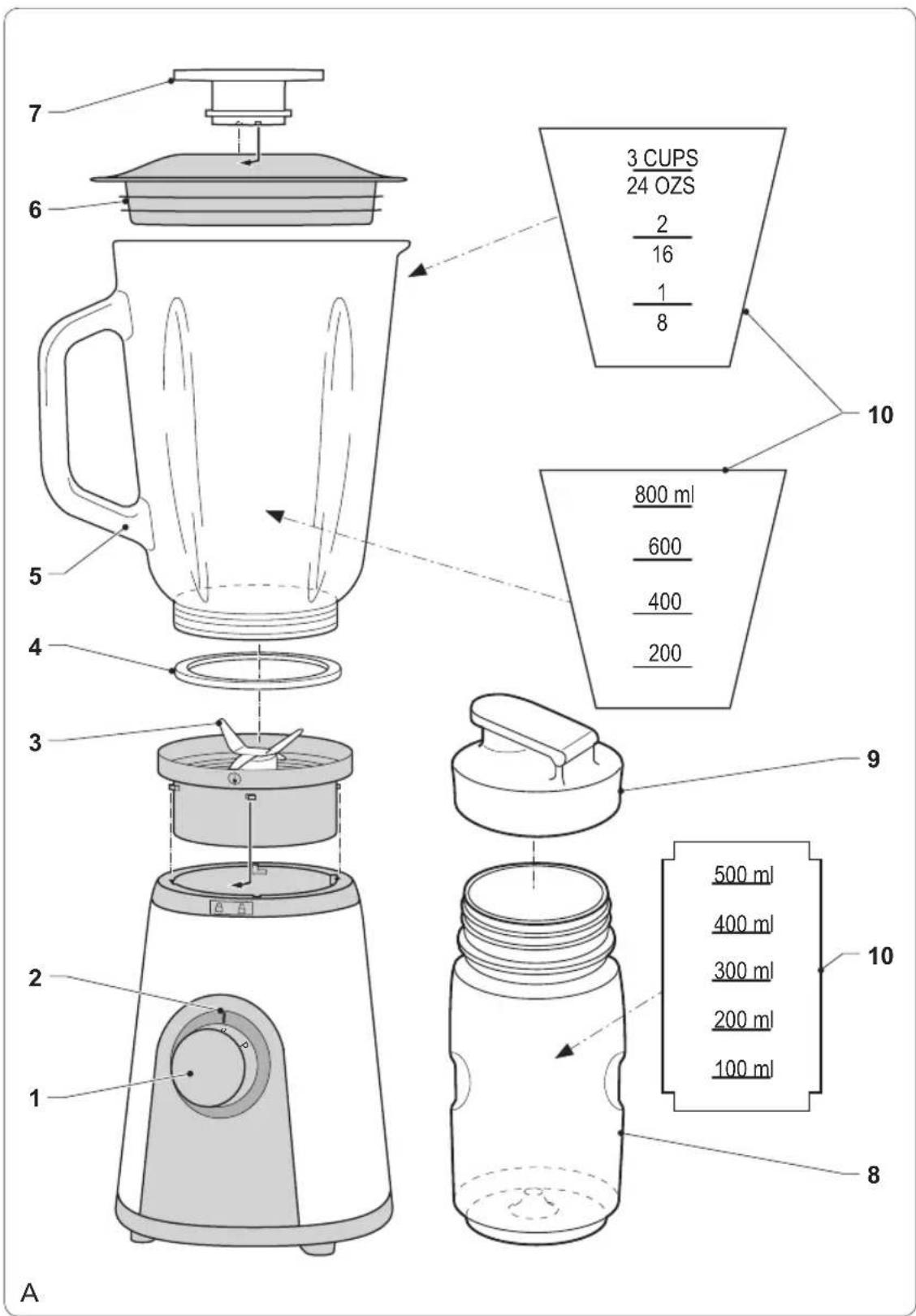

EN Description (fig. A)

Your 217000/217400 Princess blender has

been designed for the following applications:

mashing fruits and vegetables; preparing

smoothies, shakes and juices; preparing cold

soups; preparing dressings, dips and sauces.

The maximum capacity of the jar is 800 ml.

The maximum capacity of the bottle is 500 ml.

The appliance is suitable for indoor use only.

The appliance is suitable for domestic use only.

Before you proceed, we need you to pay

attention to the following notes:

- The appliance has been designed for

mixing cold and lukewarm ingredients

(max. 55 °C). It is recommended not to use

the appliance for mixing hot liquids and

solids. Hot liquids and solids can easily

cause the jar to break and the jar lid to

abruptly come off the appliance due to

steam pressure. Keep the jar lid pressed

with your hand when mixing lukewarm

liquids to prevent leakage.

8. Bottle (217400 only)

10. Juice level indicator

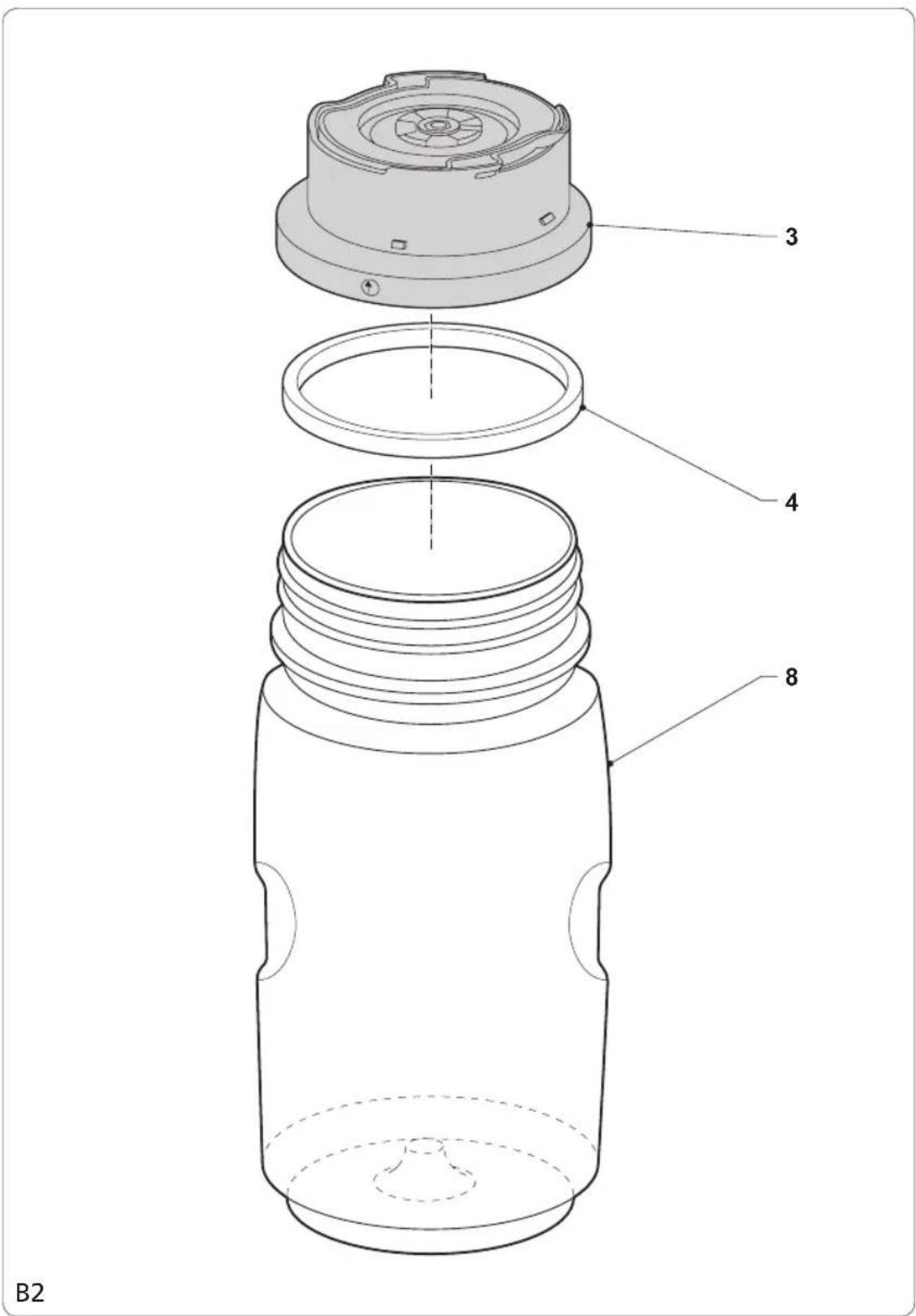

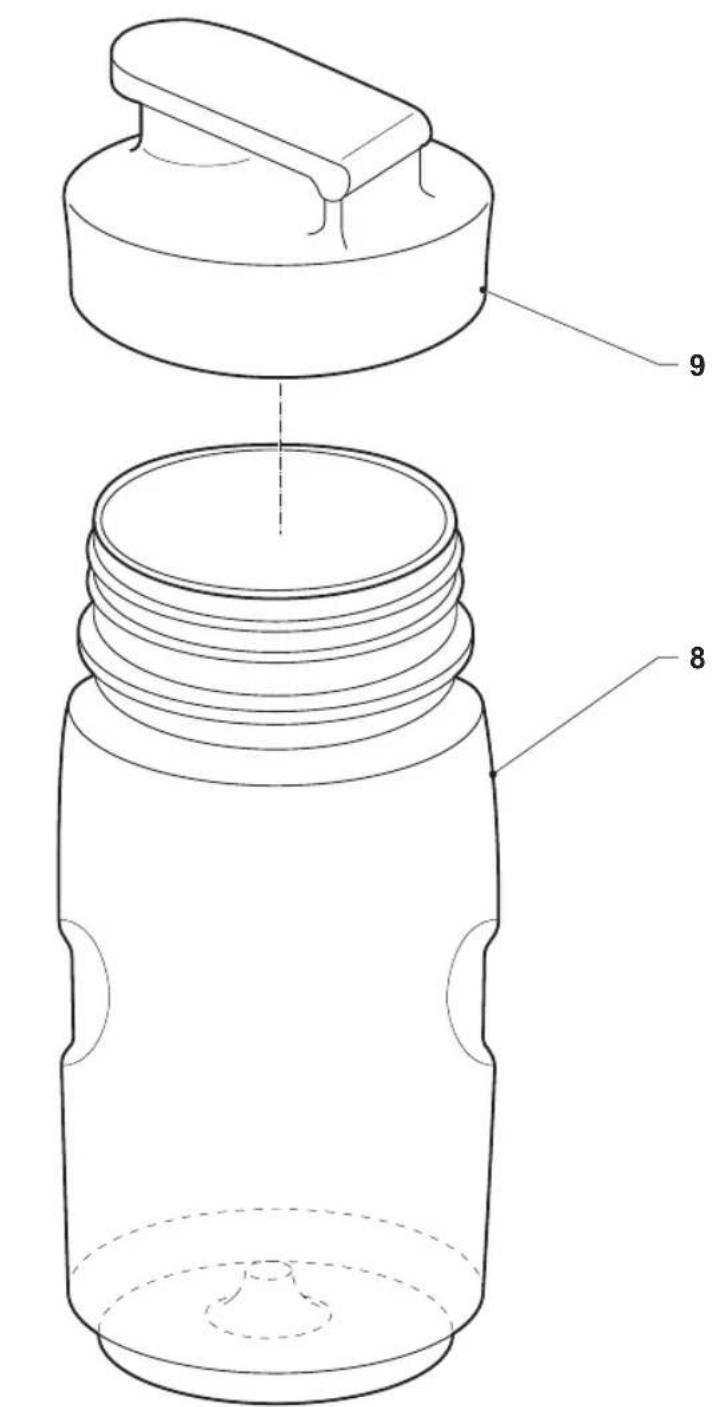

Assembly (fig. A & B)

Before you proceed, we need you to pay

attention to the following notes:

- Before assembly or disassembly, switch off

the appliance, remove the mains plug from

the wall socket and wait until the appliance

Place the seal ring (4) onto the blade (3).•

Mount the blade (3) to the bottom of the •

jar (5). Lock the blade (5) by turning it

Mount the jar (5) onto the appliance. Lock •

the jar (5) by turning it clockwise.

Mount the jar lid (6) onto the jar (5).•

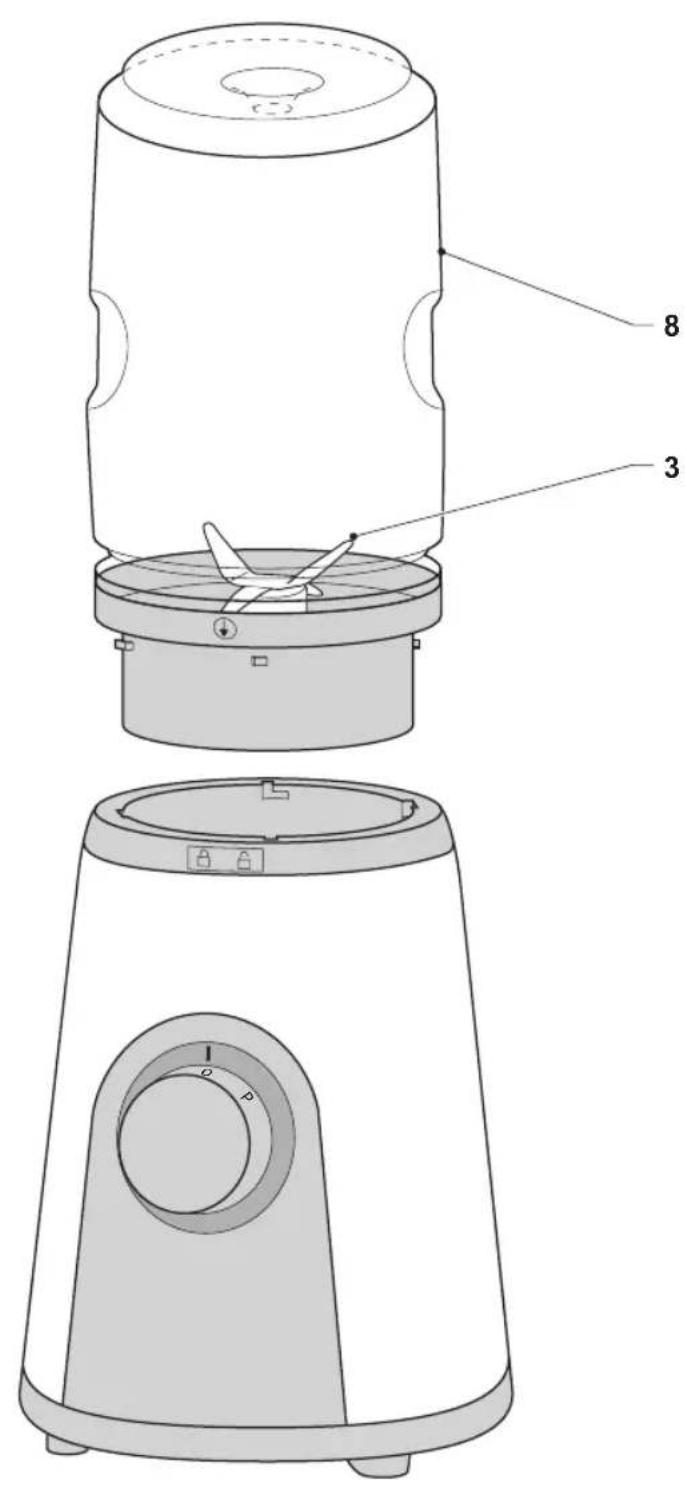

Fig. B3: Turn the bottle (8) upside down. •

Place the bottle (8) onto the appliance.

Lock the bottle (8) by turning it clockwise

until it clicks into place.

Switching on and off (fig. A)

Before you proceed, we need you to pay

attention to the following notes:

- Do not switch on the appliance when the

jar or the bottle is empty.

- Do not leave the appliance switched on

continuously for more than two minutes.

After two minutes, switch off the appliance

and allow it to cool down for three

minutes before switching it on again.

To switch on the appliance with continuous •

low speed, set the on/off switch (1) to the

To switch on the appliance with continuous •

high speed, set the on/off switch (1) to the

To switch on the appliance in pulse mode, •

set the on/off switch (1) to the "P" position.

To switch off the appliance, set the on/off •

switch (1) to the "O" position.

Before you proceed, we need you to pay

attention to the following notes:

- Do not exceed the maximum mark on the

juice level indicator.17

- Do not overload the appliance. Do not put

too many ingredients into the jar or the

bottle at one time. If the motor stops,

immediately switch off the appliance,

remove the mains plug from the wall

socket and allow the appliance to cool

down for at least 10 minutes.

Cut the fruit and/or vegetables into pieces. •

Make sure that the pieces of fruit and/or

vegetables fit in the jar or the bottle.

Put the pieces of fruit and/or vegetables •

into the jar or the bottle.

Assemble the appliance. Refer to the •

Insert the mains plug into the wall socket. •

The power indicator comes on.

Switch on the appliance. The appliance •

blends the ingredients in a few seconds.

The longer the appliance is switched on,

the finer the ingredients will be blended.

If necessary, add more pieces of fruit and/•

- Switch off the appliance.

- Turn the jar lid insert counterclockwise

to remove it from the jar lid.

- Cut the fruit and/or vegetables into

pieces. Make sure that the pieces of fruit

and/or vegetables fit in the jar.

- Put the pieces of fruit and/or vegetables

- If the pieces are too large for the filling

opening of the jar lid, remove the jar lid

and add the pieces of fruit and/or

- Mount the jar lid onto the jar.

- Mount the jar lid insert into the jar lid.

- Switch on the appliance. The appliance

blends the ingredients in a few seconds.

The longer the appliance is switched on,

the finer the ingredients will be blended.

- Switch off the appliance.

- Unlock the bottle by turning it

counterclockwise. Remove the bottle

from the appliance. Turn the bottle

- Loosen the blade from the bottle.

- Cut the fruit and/or vegetables into

pieces. Make sure that the pieces of fruit

and/or vegetables fit in the bottle.

- Put the pieces of fruit and/or vegetables

- Tighten the blade onto the bottle.

- Turn the bottle upside down. Place the

bottle onto the appliance. Lock the

bottle by turning it clockwise until it

- Switch on the appliance. The appliance

blends the ingredients in a few seconds.

The longer the appliance is switched on,

the finer the ingredients will be blended.

After use, switch off the appliance.•

Remove the mains plug from the wall •

socket. The power indicator goes off.

Allow the appliance to cool down •

Ingredients Quantity

Apricot (fresh, diced) 1

Pineapple (crushed) 1/4 cup

Skim milk powder 1 tbsp.

Protein powder 1 tbsp. (option)

Put the ingredients in the blender.•

Blend the ingredients until they are •

blended to a smooth, mixed substance.

Cover the substance and leave it in the •

refrigerator for 1-2 hours to cool down.

EN Put the ingredients in the blender.•

Blend the ingredients until they are •

blended to a smooth, mixed substance.

Cover the substance and leave it in the •

refrigerator for 1-2 hours to cool down.

Ingredients Quantity

Tomato (quartered) 4

Cucumber (sliced) 1/2

Green pepper (with seeds) 1/2

Salt / Pepper according to taste

Put the ingredients in the blender.•

Blend the ingredients until they are •

blended to a smooth, mixed substance.

Cover the substance and leave it in the •

refrigerator for 1-2 hours to cool down.

Lemon garlic dressing

Ingredients Quantity

Salt / Pepper according to taste

Put the ingredients in the blender.•

Blend the ingredients until they are •

blended to a smooth, mixed substance.

Cover the substance and leave it in the •

refrigerator for 1-2 hours to cool down.

Put the ingredients in the blender.•

Blend the ingredients until they are •

blended to a smooth, mixed substance.

Cover the substance and leave it in the •

refrigerator for 1-2 hours to cool down.

Put the appliance and the accessories in •

the original packaging.

Store the appliance with the accessories in •

a dry and frost-free place, out of the reach

U.K. Wiring instructions

The wires in the mains lead are coloured in

accordance with the following code:

BLUE NEUTRAL BROWN LIVE As the colours of the wire in the mains lead of

this appliance may not correspond with the

colour markings identifying the terminals on

your plug, proceed as follows:

The wire which is coloured BLUE must be

connected to the terminal which is marked

with the letter N or coloured black.

The wire which is coloured BROWN must be

connected to the terminal which is marked

with the letter L or coloured red.

Should the fuse in the BS1363 plug require

replacement, a 3Amp BS1362 fuse must be

This is a double-insulated appliance and does

not need an earth connection.19

EN Warning! On no account should either the live

or neutral wires be connected to the earth

Subject to change; specifications can be

changed without further notice.20

diameter (minst 3 x 1 mm

retire o aparelho com as

 

13© Princess 2013 05/13
