USER MANUAL 31334 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides - as well as delicious recipes, tips, and to register your product online!

Please call us - our friendly associates are ready to help. USA:1,800,851,8900

Questions?

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.
• Do not operate unattended while in Toast or Broil modes.
• Do not use with oven cooking bags.
  Always allow at least one inch between food and heating element.
  Always unplug toaster oven when not in use.
• Regular cleaning reduces risk of fire hazard.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electric shock, do not immerse cord, plug, or toaster oven in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before cleaning appliance and putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner or in a heated oven.

11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
12. To disconnect, turn all controls to OFF; then remove plug from wall outlet.
13. Use extreme caution when removing pan or disposing of hot grease.
14. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electrical shock.
15. Oversize foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.

16. A fire may occur if the toaster oven is covered, touching, or near flammable material, including curtains, draperies, walls, and the like, when in operation. Do not store any item on top of the appliance when in operation or before the appliance cools down.

17. Extreme caution should be exercised when using containers constructed of materials other than metal or glass.

18. Do not store any materials, other than manufacturer-recommended accessories, in this oven when not in use.
19. Do not place any of the following materials in the oven: paper, cardboard, plastic, and the like.

20. Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.

21. To turn oven off, turn timer to O (OFF) position. See "Parts and Features" section.

22. Do not place eyes or face in close proximity with tempered safety glass door, in the event that the safety glass breaks.
23. Always use appliance with crumb tray securely in place.
24. Do not use appliance for other than intended use.
25. Clean oven interior carefully. Do not scratch or damage heating element tube.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

This appliance is equipped with a fully tempered safety glass door. The tempered glass is four times stronger than ordinary glass and more resistant to breakage. Tempered glass can break; however, it breaks into pieces with no sharp edges. Care must be taken to avoid scratching door surface or nicking edges. If the door has a scratch or nick, call our toll-free customer service number.

Always unplug your toaster oven from the outlet when not in use.

BEFORE FIRST USE

Most heating appliances produce an odor and/or smoke when used the first time. Plug the toaster oven into an outlet. Turn Temperature Dial to 450^ (230^) . Heat at this temperature for 10 minutes. The odor should not be present after this initial preheating. Wash baking pan and oven rack before using.

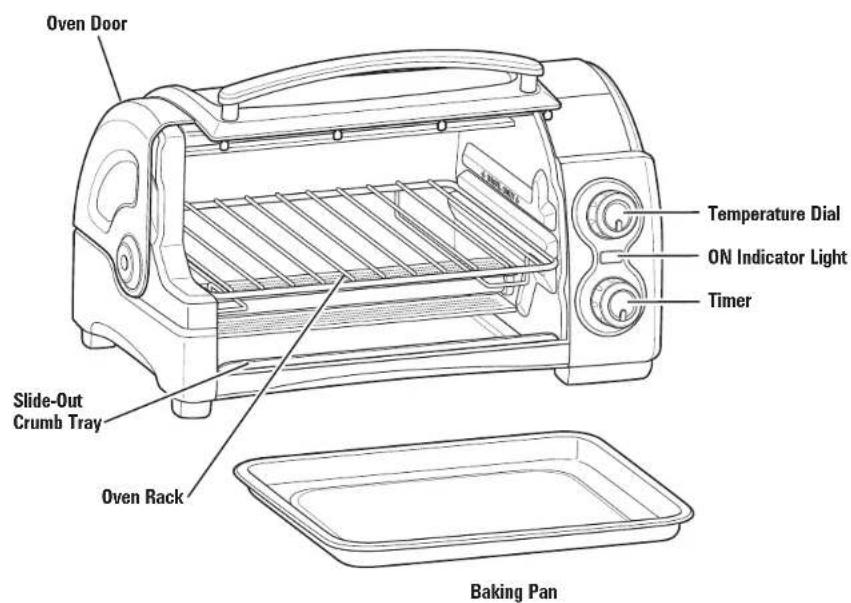

Parts and Features

HIGH RACK POSITION: broiling

LOW RACK POSITION: baking and toasting

How to Toast

WARNING

Fire Hazard

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.

• Do not leave appliance unattended when in operation.

• Always unplug toaster oven when not in use.

Place oven rack in LOW RACK POSITION (shown) for toast, English muffins, bagels, and waffles.

Turn Temperature Dial to maximum temperature (□). Place food in oven.

Rotate Timer past 10 and then back to desired toast color. A bell will sound when the toast cycle is complete.

When finished, turn Timer dial to O (OFF) and unplug.

• When toasting only two slices of bread, place bread in middle of oven rack to get even toasting on top and bottom.
• To toast bagels, English muffins, and waffles, place oven rack in LOW RACK POSITION and place food cut/split side facing up. This will toast the cut/split side more than the outside food. Set Timer to desired setting.

• To toast regular toaster pastries or frozen pastries, place oven rack in the LOW RACK POSITION. Select a color lighter than Medium and toast directly on the oven rack.If pastry has a glaze or frosting, use baking pan.

• When toasting, condensation may form on the oven door. The moisture will slowly escape from the enclosed oven.

• The number of slices of bread and the bread freshness will affect toast color. For example, toasting 4 slices of bread will require a darker toast color setting than 2 slices of bread. Adjust the Timer based on desired color and number of slices.
• If you are not satisfied with the color balance between the two sides of your food in the recommended rack position, select a different rack position.

How to Bake

WARNING

Fire Hazard

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.

• Do not use oven cooking bags.

• Always allow at least one inch (2.5 cm) between food and heating element.

• Always unplug toaster oven when not in use.

Place oven rack on LOW RACK POSITION (shown).

Turn Temperature Dial to desired temperature.

Rotate Timer past 10 and let preheat for 5 minutes prior to placing food in oven.

After oven is preheated, set Timer to desired time by rotating Timer past 10 and then to desired baking time or rotate Timer to mON.

When finished, turn Timer dial to O (OFF) and unplug. 6

• Do not totally enclose foods in aluminum foil. Foil can insulate foods and slow down heating.
• To reheat rolls or biscuits, place on baking pan and heat at 300^ (149°C) for 10 minutes.
• Reheat leftover roasts or casseroles at 350^ (177^) for 20 to 30 minutes or until heated through.
• Bake foods, such as pizza, on the LOW RACK POSITION. Place food directly on oven rack or in baking pan.

To locate the Cooperative Extension service in your county, please visit: http://www.csrrees.usda.gov/Extension/.

How to Broil

Slide oven rack into HIGH RACK POSITION. Insert baking pan under oven rack and add food. DO NOT PREHEAT OVEN.

WARNING

Fire Hazard

• If contents ignite, do not open oven door. Unplug oven and allow contents to stop burning and cool before opening door.
• Do not leave oven unattended during operation.

Turn Temperature Dial to (broil).

Rotate Timer past 10 and then to the desired broiling time or rotate Timer to lll (ON).Turn foods when browned or halfway through cooking time.

FOOD	APPROX. BROIL TIME
Hamburgers	25 minutes
Hot Dogs	15 minutes
Sausage Links or Patties (pierce casings before cooking)	15 to 20 minutes
Fish	15 minutes

These cooking times are an average and should be adjusted to individual preferences. Turn foods halfway through cooking time.

• Keep one inch (2.5cm) between food and heating element.
• Do not use oven cooking bags.
• Do not heat foods in plastic containers.
• Follow food manufacturer's instructions.

When finished, turn Timer dial to 0 (OFF) and unplug.

Cook beef and pork to at least 160^ (71°C).
Cook chicken to at least 165^ (73^)
- Cook fish until at least 145^ (63^) or until opaque or flakes with a fork.

Visit foodsafety.gov for more safe cooking temperature information.

Care and Cleaning

When finished, turn Timer dial to 0 (OFF) and unplug.

To clean inside of oven, wipe oven walls, bottom of oven, and glass door with a damp, soapy cloth. Repeat with a damp, clean cloth.

For stubborn stains, use a plastic scouring pad.

To remove door: Open door; gently pull straight up and remove to clean with hot, soapy water. Rinse with water and dry. Do not place door in dishwasher.

WARNING

Electrical Shock Hazard.

Do not clean with metal scouring pads. Pieces can break off pad and touch electrical parts.

Wipe outside of oven with a damp cloth. Do not use abrasive cleansers or metal scouring pads.

To replace door: Align inside of door piece with outside door piece; gently slide into position. Door must remain in fully open position during removal and replacement.

Troubleshooting

PROBLEM

Oven will not heat.

Moisture forms on inside of oven door when toasting.

An odor and smoke come from oven.

Oven will not toast.

Some foods burn and some are not done.

Concentrated steam comes out of top corners of oven door.

PROBABLE CAUSE

• Check to make sure electrical outlet is working and the oven is plugged in. Turn Temperature Dial to 350^ (177^) and turn Timer to ON).
• This is normal when toasting in a toaster oven. Moisture is slower to escape from a toaster oven than from a toaster. The amount of moisture will differ between fresh bread, bagels, and frozen pastries.
• Smoke and odor are normal during first use of most heating appliances. These will not be present after initial heating period.
• Check to make sure outlet is working and oven is plugged in. Turn Temperature Dial to (toast) and rotate Timer past 10 and then back to desired toast color.
• Adjust oven temperature or cooking time for best results with your recipes.
• Moisture escaping from oven will be concentrated into streams from the top corners of the door. This gives the appearance of smoke. This is normal for this product.

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides - as well as delicious recipes, tips, and to register your product online!

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz ).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1,800,851,8900 in the U.S. or 1,800,267,2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

AAVERTISSEMENT

Danger d'incendie.

Mixcoac MEXICO 03910 D.F.

Tel: [phone] • Fax: [phone]

Nuevo Leon

Ruperto Martinez No.238 Ote

Centro MONTERRE, 64000 N.L.

Tel: [phone] Fax: [phone]

Jalisco

SERVICIOS DE MANTENIMIENTO CASTILLO
Garibaldi No. 1450
Ladrón de Guevara
GUADALAJARA 44660 Jal.
Tel: [phone] Fax: [phone]

Chihuahua

DISTRIBUIDORA TURMIX
Av. Paseo Triunfo de la Rep. No. 5289 Local 2 A.
Int. Hipermart
Alamos de San Lorenzo
CD.JUAREZ 32340 Chih
Tel: [phone] Fax: [phone]

Modelo:

31334

Tip:

057

Characteristicas Elcricas:

120V~ 60Hz 1200W

1200W
