USER MANUAL DO9059G DOMO

Platter grates with various dishes arranged on a black and white surface, including shrimp, pizza, and fried snacks (no text or symbols visible)

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

RECYCLING INFORMATIONEN

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Simple black line drawing of a plug with a curved cable (no text or symbols)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Black plastic kitchen utensils arranged in a row, with one item highlighted by a numbered arrow (3) — no text or symbols present.

⑤

④

Black plastic kitchen utensils arranged in a row, no text or symbols visible

Diagram of a portable grater with labeled parts (① and ②), showing internal components and heat distribution (no text or symbols beyond labels)

③

Top-down view of a microwave oven with red spiral pattern and numbered label (5), no readable text or symbols beyond annotations

④

AVANT LA PREMIÈRE UTILISATION

Diagram of a portable appliance with labeled parts including a cooker, keyboard, and accessories

VOR DEM ERSTEN GEBRAUCH

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

Read the manual carefully before using the appliance.

• Do not use the appliance if it is damaged.
• Do not immerse the appliance in water or any other liquid.
• This appliance is for indoor use only and be careful around hot surfaces and materials such as curtains, tablecloths, etc.
• Preferably use a heat-resistant mat under the equipment and make sure the surface is flat and smooth.
• Hold the plug and not the electric lead to disconnect the appliance from the electric socket.
• Make sure that the plug and the electric lead to do come into contact with hot parts/surfaces.
• Allow the appliance to cool off completely before cleaning or storing it.
• Use only the parts supplied by the manufacturer.
• Do not touch any hot parts during use. Use the handles.
• Clean the appliance each time after use because it comes into contact with food.
• Be careful with fats and oils when using the appliance. Fats and oils are highly flammable.
• Do not use any sharp objects such as knives and forks on the different parts of the appliance. This can result

in damage to the non-stick layer on the mini pans.

• Make sure that children are supervised so that they can not play with the appliance.
• Do not use the appliance when the cord is damaged or when the appliance is dropped or damaged. To avoid the risk of electrical shock, never disassemble the appliance yourself, but take it to a qualified technician. If the appliance is assembled incorrectly, this may cause electrical shock when the appliance is used.

- All repairs should be conducted by an acknowledged service center.

- Only use the appliance for its intended purpose.

- If the use of an extension cord is absolutely necessary, then use a cord of 10 Amp. Cords of less than 10 Amp. can overheat.

- Do not use another high voltage appliance on the same circuit to prevent overcharge of the circuit.

- Check if the voltage stated on the appliance corresponds with the voltage of your power grid at home.

- The heating element is somewhat greased, which may cause the grill to smoke a little during the first use. This is normal and the smoke will disappear after a short while. Turn on the grill for about 10 minutes before using the appliance for the first time. This will make the smoke and smell disappear.

- Never use the appliance outdoors and always put it in a dry surrounding.

- Never leave the appliance unattended when it is in use.

- Never move the appliance by pulling the cord. Make sure that the cord can not be trapped. Do not wind the cord around the appliance.

- Make sure that the appliance has cooled down completely before storing it. Caution, the stone retains the heat for quite a while.

• Make sure that there is enough ventilation around the appliance. Do not place the appliance too close to a wall.

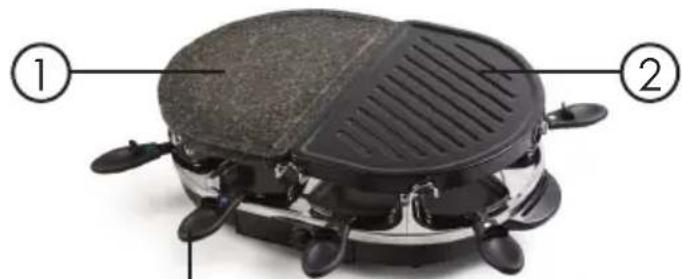

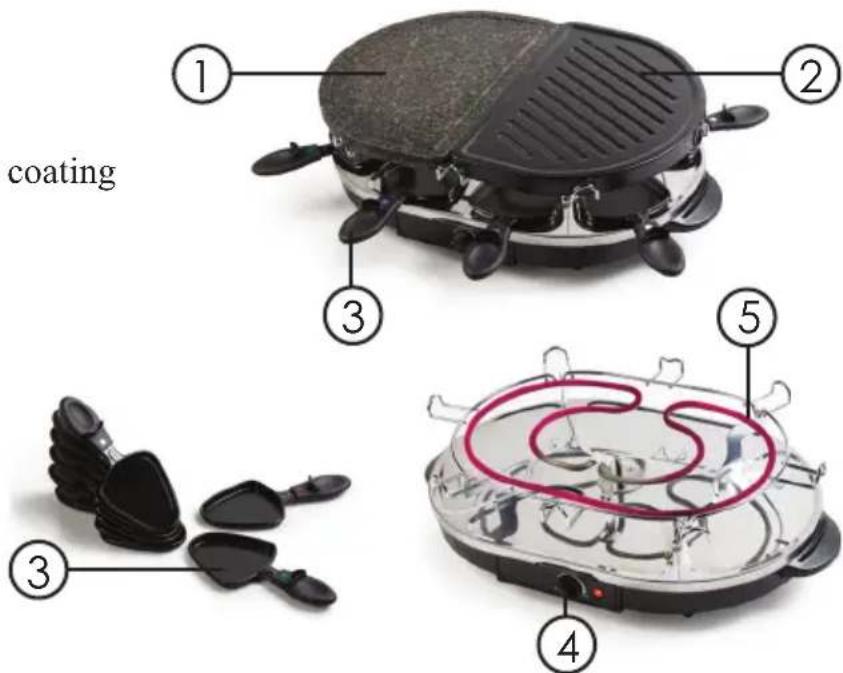

PARTS

1. Stone baking plate

2. Grill plate with anti-stick coating

3. 8 raclette pans with colour markings

4. Temperature knob

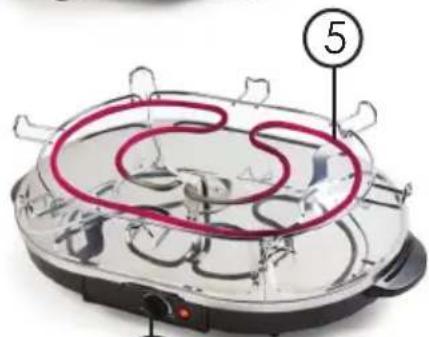

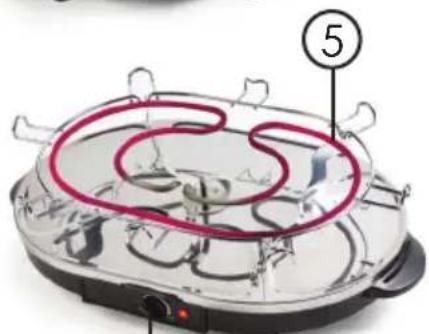

5. Double heating element

6. 8 wooden spatulas

coating ① ② ③ ⑤ ③ ④

INSTRUCTIONS FOR FIRST TIME USE

- Remove all packing materials and carefully clean the appliance, the stone, the grill plate and the mini pans before the first use. (See “Cleaning”).

- Use a thin layer of vegetable oil in the mini pans and on the grill plate and apply a fine layer of salt to the stone plate. This will prevent sticking and cleaning after use will be easier.

- When using the appliance for the first time a small amount of smoke may be released from the heating element. This is completely normal and harmless. For this reason allow the appliance 10 minutes to preheat before using for the first

time in order to burn any possible remaining residues.

• Place the unit preferably on a surface that is easy to clean. The surface should also be heat-resistant. Do not place the appliance on an untreated wooden surface.
• Make sure that there is enough ventilation around the grill.
• Make sure that the grill is switched off. Plug into an earthed socket.
• Turn the temperature knob to the desired position. The indicator light will light up to show that the appliance is heating up. The light will go off again as soon as the set temperature is reached. During use the light will go on and off regularly, which means that the appliance is setting the desired temperature.

IMPORTANT REMARKS

• The stone is a natural product. Small rips can become visible during use. This is a normal phenomenon and is not covered by the warranty. The stone can also change colour and become darker. This does not affect the performance of the appliance.
• If the stone plate has been stored in a humid surrounding, make sure to put it in a regular environment at room temperature 2 days in advance.
• Avoid shocks when moving the stone plate. Also avoid strong temperature changes.
• Do not put food on the hot stone that is too large, too cold or frozen.
• Never sprinkle cold water on a hot stone, the stone plate might crack.
• Never move a stone that is still hot, to avoid burns and cracks in the stone.
• Only place food onto the stone. Never place any heavy objects on top of the stone.
• If you use meat that is marinated, know that the spices will be absorbed by the stone. This may cause colour change of the stone and may give a special taste to the grilled meat.

STONE GRILLING AND GRILLING

• Place the appliance in the middle of the table. Make sure that the space around the appliance is properly ventilated.
• Place the stone with its shiny side and overflow edges upwards.
• Never place a cold stone on a preheated appliance.
• Wait until you are sure that the stone and the grill plate are sufficiently hot before cooking on it; allow the appliance a minimum of 10 and maximum 30 minutes to preheat.

• Apply a thin layer of vegetable oil to the grill plate and mini pans and apply a very thin layer of salt to the stone to prevent sticking. Caution: do not use any oil on the stone.

• Never place frozen foodstuffs on the stone, always defrost them beforehand.

• Do not place sour foodstuffs (gherkins, pearl onions) on the stone.
• Never touch the hot stone with your bare hands.
• Cut meat into small squares to shorten cooking time.
• Only use wooden or plastic utensils so you do not damage the stone or the anti-stick coating of the grill plate or mini pans.
• It is recommended to already remove as much food residues as possible during grilling with a wooden spatula. When the remains are dried up, they are harder to remove.

RACLETTE

• Apply some grease to the raclette pans before using them, to avoid sticking.
• Do not touch the pans with bare hands; use the handles and take care not to heat used empty pans.
• For raclette use approximately 200-250g special raclette cheese per person. Cut the cheese into slices of 2mm.
• Lay the cheese in the raclette mini pans and place the mini pans on the appliance in the specially designed slots. The cheese will be ready in about 3-4 minutes. Do not overfill the pans.
• The above can be prepared with a combination of onions, gherkins, lettuce, baguettes or potatoes.
• The raclette mini pans are also suitable for frying eggs or new potatoes (small) and even meat.

CLEANING

Clean the appliance after every use.

1. Switch off and unplug the appliance before cleaning it. Wait until the appliance has completely cooled down.
2. All external surfaces can be cleaned with a damp cloth or sponge.
3. Clean the grill plate and raclette pans with water and some mild detergent.
4. Do not use sharp objects. Only use a wooden scraper.
5. Make sure that water can not get into the appliance.
6. Never immerse the appliance in water. Never pour cold water over a hot stone.
7. Never use any aggressive of abrasive cleaning agents. These could cause damage to the special layer on the stone and the non-stick surface layer on the grill plate and pans.
8. Do not immerse the appliance in water and never clean it in a dishwasher.
9. The mini pans can be immersed in water and are dishwasher safe.
