USER MANUAL DO9051G DOMO

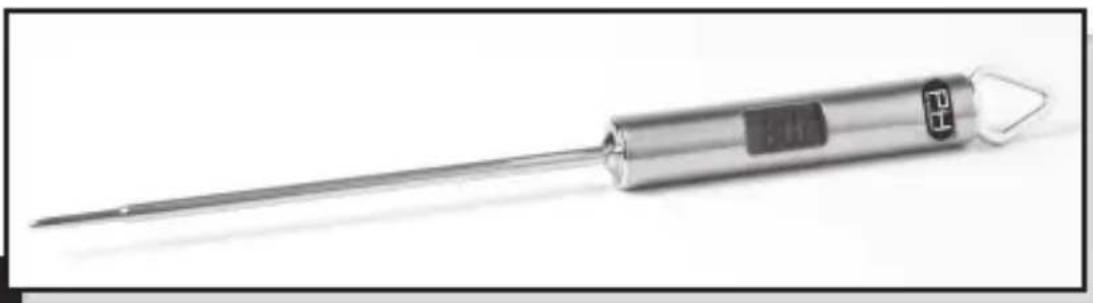

CULINARY THERMOMETER

KUCHYNSKY TEPLOMER

DO301CT

Piot Huysentay byDOMO

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

ZÁRUKA

RECYCLAGE-INFORMATIE

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring that this product is disposed of correctly, you will

help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat package ecologically.

INFORMACE O RECYKLACI ODPADU

REMAPLACEMENT DES PILES

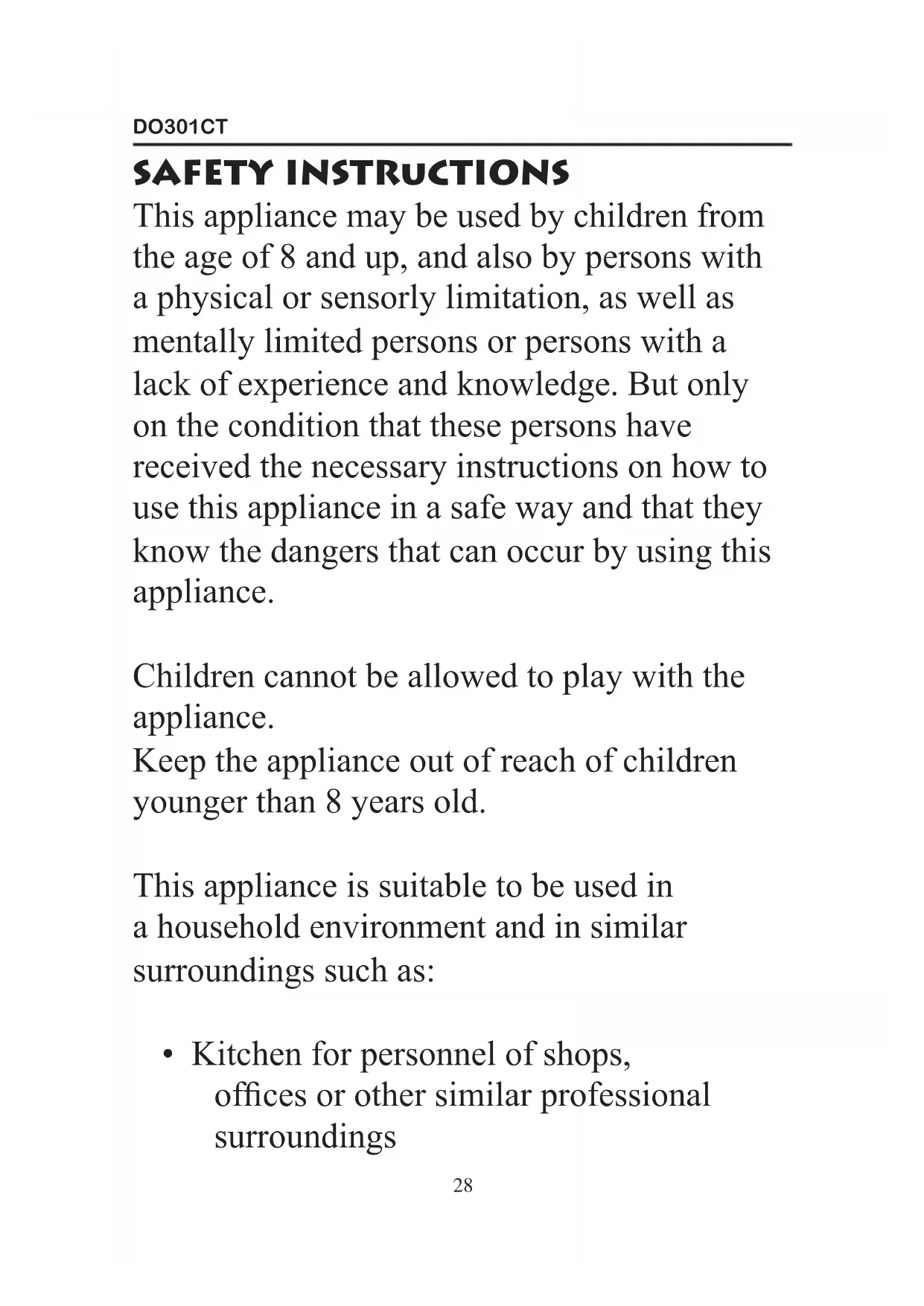

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and that they know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance.

Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings

Farms
- Hotel or motel rooms and other surroundings with a residential character
Guest rooms or similar

CAUTION

• The thermometer is not waterproof and can not be used in the dishwasher.
• Never immerse the appliance in water.
• Never use the thermometer in a closed oven.
• Always clean the sensor after use and place the silicone protection cap over the sensor.
• Replace the batteries if the screen becomes blurry.

USE

1. First place the batteries that are packed separately (see 'Replace batteries').

1. Remove the silicone protection cap and clean the probe and the thermometer before the first use with a damp cloth.

1. Press the on/off button to turn on the thermometer.

1. With the ^ C / ^ button you can switch between Celsius and Fahrenheit.

2. Stick the point of the probe in the middle of the meat (in the oven or in the frying pan) to measure the temperature. The measurement is correct when the indication on the LCD screen does not change anymore. This takes about 4 to max. 10 seconds.

3. The display of the thermometer has a display light. When you turn on the thermometer this light will light up for 7 seconds. After these 7 seconds the light will go out automatically. To make it light up again, you need to press the on/off button or the ^ C / ^ button twice.

4. To turn off the thermometer, press the on/off button once. The appliance will shut down immediately.

PIET HUYSENTRUYT RECOMMENDS

Piet Huysentruyt has tested the culinary thermometer and has set up a detailed guideline to cook meat and fish with an optimal result according to the right temperature for every kind:

MEAT Very rare Medium rare Medium Well done

Bleu Rosé A point Bien cuit

Beef 40 °C 48 - 50 °C 55 - 60 °C 65 - 70 °C

Veal 40 °C 48 - 50 °C 55 - 60 °C 65 - 70 °C

Lamb 50 °C 55 °C 65 °C 75 °C

Pork 50 °C 55 °C 65 °C 75 °C

GAME	Very rare	Medium rare	Medium	Well done
Pheasant				65 - 70 °C
Red game	40 °C	48 - 50 °C	55 - 60 °C	65 - 70 °C
Pigeon	40 °C	48 - 50 °C	55 - 60 °C	65 - 70 °C

POULTRY
Chicken	65 - 70 °C
Turkey	65 - 70 °C

FISH
Salmon	48 °C
Cod	58 °C

CLEANING

Clean the probe after every use with a damp cloth en put the silicone protection cap back on the thermometer.

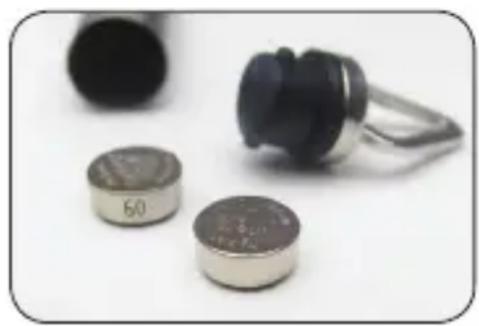

REPLACE BATTERIES

1. Remove the cap from the battery compartment by turning the hook counterclockwise.

2. Place 2 new LR44 batteries with the + side up.

1. Close the battery compartment by putting the hook in its place and turning it clockwise.

2. Always use two new batteries and never mix old and new batteries. Do not throw old batteries into the garbage can but put them up for recycling.

TECHNICAL DATA

Casing & probe:

Stainless steel 18/8 (304) with a silicone protection cap

Dimensions:

15mm by 185mm , probe: 108mm

Measuring range:

Celsius: -45^ to +200^

Fahrenheit: -49^ to +392^

Measurement accuracy:

± 1^ at a measurement of 0 - 100^
± 2^ at a measurement of 100 - 200^

BEZPEČNOSTNI UPOZORNÉNÍ
