DO440K - Coffee machine DOMO - Free user manual and instructions

Product type	Filter coffee machine
Brand	DOMO
Model	DO440K
Carafe capacity	400 ml
Coffee type	Ground coffee or pods
Filter	Removable permanent filter + possibility to use a filter cone
Water reservoir	Integrated, with lid
Automatic shut-off	Yes, after the cycle ends
Indicator light	Yes, indicates power on
Housing material	Plastic
Cleaning of parts	Filter basket, permanent filter, carafe and lid dishwasher safe
Descaling	Recommended once a month with white vinegar
Safety	Automatic shut-off, overheat protection
Warranty	2 years
Usage	Household use only
Included accessories	Permanent filter, carafe with lid, filter basket
Additional function	Hot water preparation for tea or other beverages
Control type	Single on/off button

Frequently Asked Questions - DO440K DOMO

How to use my Domo DO440K coffee machine for the first time?

Before first use, wash the removable parts (filter basket, permanent filter, carafe) with soapy water. Then run a cycle with clear water without coffee: fill the water reservoir to the maximum mark, place the carafe under the filter holder, press the power button, and let the water flow. Empty the carafe. The appliance is then ready.

Can I use coffee pods in this machine?

Yes, you can use coffee pods. Place one or two pods in the permanent filter. For a full carafe, we recommend two pods. Make sure the filter basket and filter are correctly installed.

How to clean the permanent filter?

The permanent filter is dishwasher safe. You can also wash it in hot water with detergent. Let it dry completely before reuse.

How to descale the Domo DO440K machine?

To descale, fill about 1/3 of the carafe with white vinegar and complete with cold water to the maximum mark. Pour into the reservoir, run a full cycle. Discard the solution and repeat with a new vinegar solution. Then run two cycles of clear water to completely remove the vinegar taste.

What to do if the machine does not turn on?

Check that the plug is properly inserted and that the outlet works. Make sure the indicator light is off before pressing the button. If the light is on, wait for the cycle to finish. If the problem persists, contact customer service.

Is the carafe made of glass?

The manual does not specify the exact material, but it is likely a glass carafe with a plastic lid. It is dishwasher safe.

Can I use ground coffee and pods in the same machine?

Yes, this machine accepts both ground coffee and pods. Use the permanent filter for both types. For ground coffee, add the desired amount into the filter.

How to prevent the hot water prepared for tea from having a coffee taste?

Before preparing hot water for other drinks, remove the filter basket and the permanent filter from the filter holder. This avoids any coffee aftertaste.

Does the appliance turn off automatically?

Yes, the DO440K machine automatically stops at the end of the brewing cycle. The indicator light turns off to indicate the end. Then unplug the appliance.

What is the maximum water capacity of the reservoir?

The water reservoir can be filled to the maximum mark, which corresponds to the carafe capacity of 400 ml. Do not exceed this level.

USER MANUAL DO440K DOMO

Red and silver striped device resembling a Domo-Starter blender (no visible text or symbols on body)

DO437K - DO440K

PRODUCT OF LINEA 2000

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

RECYCLING INFORMATIONEN

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Simple black line drawing of a plug with a curved cable (no text or symbols)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Warning symbol depicting steam rising inside a triangle (no text or numbers)

Labeled diagram of a portable blender with numbered parts including buckets and a water drop.

EERSTE GEBRUIK

Line drawing of a mechanical device with a lid and base mount (no text or symbols)

Cross-sectional diagram of a mechanical component with internal structure (no text or symbols)

KOFFIE ZETTEN MET KOFFIEPADS

Warning symbol depicting steam rising inside a triangle (no text or numbers)

Labeled diagram of a Kerosen brand blender with numbered parts including buckets and a water dispenser

Line drawing of a mechanical device with a lid and base, no text or symbols present

Technical diagram of a mechanical component with concentric circular features and a central cross-section (no text or symbols)

Warning symbol depicting steam rising inside a triangle (no text or numbers)

Labeled diagram of a Kevada blender with numbered parts including buckets and a lid

ERSTE BENUTZUNG

Line drawing of a mechanical device with a cylindrical top and base, no text or symbols present

Cross-sectional diagram of a mechanical component with concentric circles and internal channels (no text or symbols)

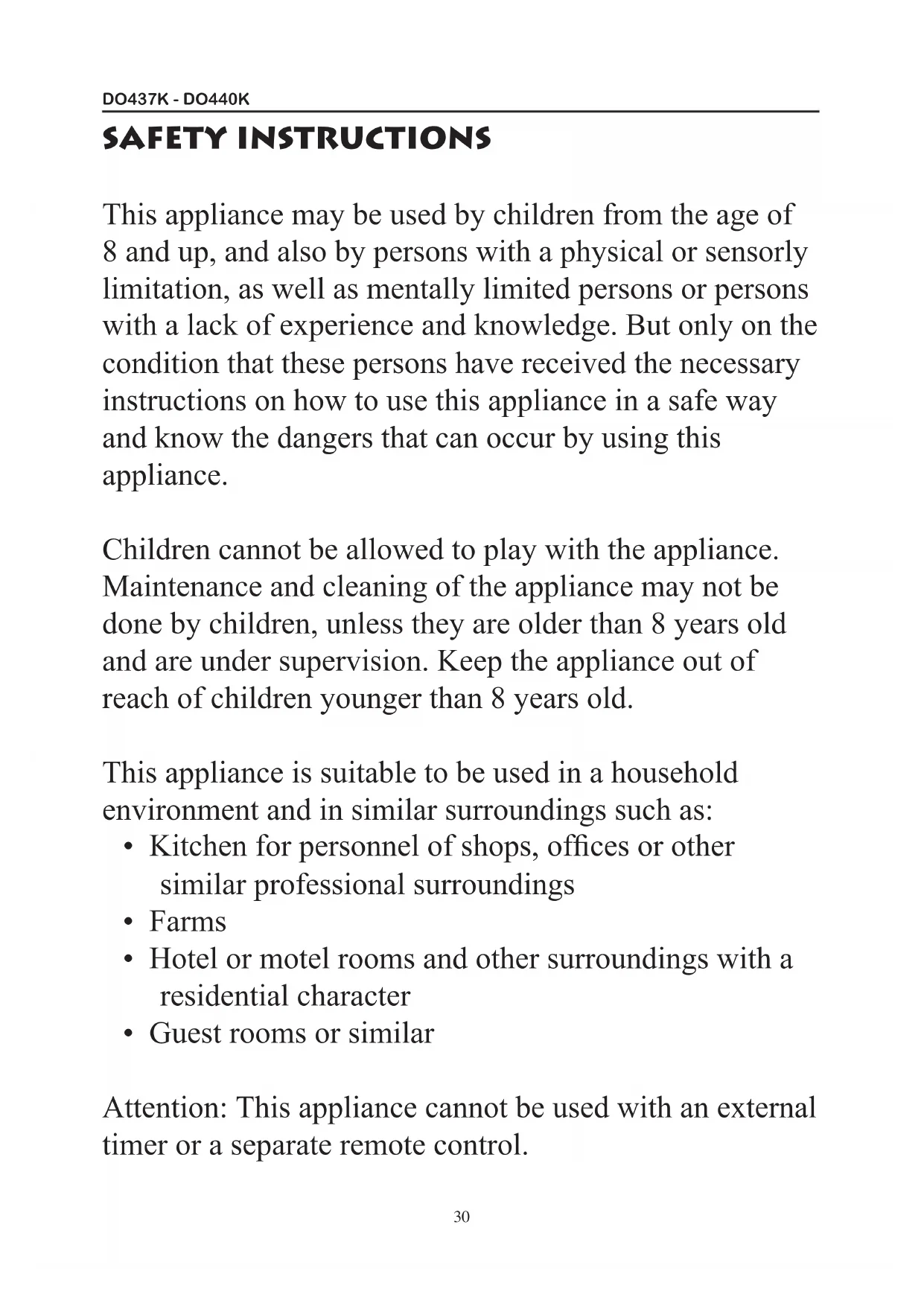

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

Warning symbol depicting steam rising inside a triangle (no text or numbers)

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

• Read all instructions before use.
• Before use check if the voltage indicated on the appliance corresponds with the voltage of your power net.
• Do not let the cord hang on a hot surface or over the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used by or near children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance and let it cool down when the appliance is not in use, before assembling or disassembling any parts and before cleaning. Pull the plug itself when removing the plug from the socket. Never pull the cord to unplug.
• Never leave an operating appliance unattended.
• Never place this appliance on or near a gas stove or

electrical stove, in a hot oven or on a spot where it may come into contact with a warm appliance.

• Do not use the appliance outdoors.
• Only use the appliance for the purpose for which it was designed.
  • Always use the appliance on a firm, dry, level surface.
• Do not touch any hot surfaces.
• Never immerse the appliance, the cord or the plug in water or other liquids to avoid fire, electrical shock or injuries.
• Be extra careful when moving an appliance that contains hot liquids.
• The appliance switches off automatically when the brewing process is finished. Unplug after use.
• Never clean the appliance with a metal scouring pad.
• This appliance is equipped with a safety screw, so that the housing can not be removed. Never try to remove the housing to avoid the risk of fire or electrical shock. Never try to repair the appliance yourself. Take the appliance to a qualified service center for check-up and repair.

SAVE THESE INSTRUCTIONS

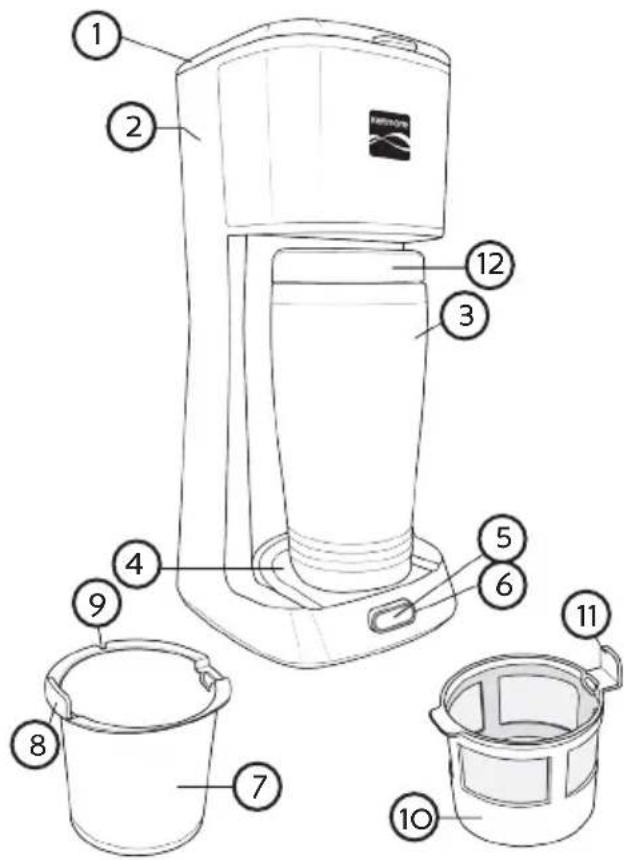

PARTS

1. Lid
2. Water tank
3. Portable cup
4. Platform for cup
5. Start button

6. Indicator light

7. Removable filter basket

8. Handle

9. Gap for placement

10. Removable permanent filter

11. Handle

12. Cup lid with closeable drinking spout

Labeled diagram of a portable blender with numbered parts including buckets and a water dispenser

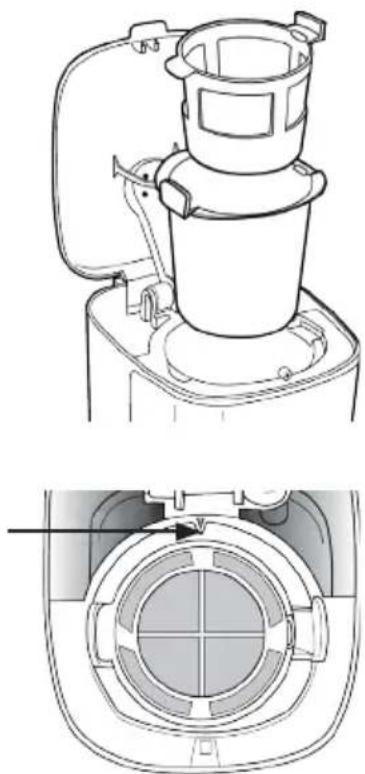

FIRST USE

1. Clean the removable parts according to the instructions in the section ‘Cleaning and maintenance’.
2. Before brewing coffee for the first time, let the My Coffee run with only water:
3. Pour fresh cold water in the water tank up to the maximum indication.

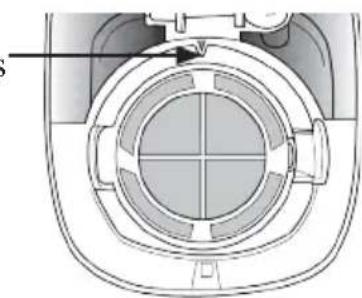

4. Place the removable filter basket into the filter holder, so that the handle is resting in the gap at the left side of the filter holder. The small gap in the filter basket will now nicely surround the triangle at the top of the filter holder.
5. Place the permanent filter into the basket, so that the handle is resting in the gap at the right side of the basket.

Caution: If the filter basket and the filter are not placed correctly, the appliance will not operate properly.

Technical line drawing of a portable blender with top and side views (no text or symbols)

1. Close the lid.
2. Place the cup on the platform below the filter holder.
3. Plug in the My Coffee.
4. Press the start button and let the water run through. Pour the water out of the cup after the process.

Tip: Once you have pressed the start button, you can not turn off the appliance, nor interrupt the process. The appliance needs to complete the entire brewing process before you can start a new process. At the end of the brewing process the indicator light will go off.

MAKING COFFEE WITH GRINDED COFFEE

1. Open the lid.
2. Pour fresh cold water into the water tank up to the maximum indication.
3. Place the removable filter basket into the filter holder, so that the handle is resting in the gap at the left side of the filter holder. The small gap in the filter basket will now nicely surround the triangle at the top of the filter holder.
4. Place the permanent filter into the basket, so that the handle is resting in the gap at the right side of the basket. Or: instead of the permanent filter you can also use a regular coffee filter. You can place the filter directly into the filter basket.

Caution: If the filter basket and the filter are not placed correctly, the appliance will not operate properly.

1. Add grinded coffee into the (permanent) filter. Take into account that the cup has a content of 400 ml.
2. Close the lid.
3. Place the cup on the platform below the filter holder.
4. Plug in the appliance.

Caution: Make sure that the indicator light is off after you have plugged in the My Coffee. If the light is on, wait until it goes off and let the appliance cool down for 5 minutes. Only then press the start button.

1. Press the start button. The indicator light will light up and the coffee will start running. When the brewing process is finished, the indicator light will go off and the appliance will switch off automatically. Let the coffee drip before removing the cup from the platform.

Tip: You can also use the My Coffee to generate hot water for other hot beverages, like tea, instant hot chocolate or instant soup. To avoid the coffee taste in the water, remove the permanent filter and the filter basket before you start the brewing process.

Caution: Be careful when opening the lid after brewing coffee. The appliance can be hot here and hot steam may escape. Always open the lid with the small handle at the front.

MAKING COFFEE WITH COFFEE PADS

1. Open the lid.
2. Pour fresh cold water into the water tank up to the maximum indication.
3. Place the coffee pad(s) in the permanent filter. We recommend to use 2 coffee pads for a full cup.
4. Place the removable filter basket into the filter holder, so that the handle is resting in the gap at the left side of the filter holder. The small gap in the filter basket will now nicely surround the triangle at the top of the filter holder.
5. Place the permanent filter with the coffee pads in the basket, so that the handle is resting in the gap at the right side of the basket.

Caution: If the filter basket and the filter are not installed correctly, the appliance will not function properly.

1. Close the lid.

2. Place the cup on the platform below the filter holder.

3. Plug in the appliance.

4. Press the start button. The indicator light will light up and the coffee will start running through. When the brewing process is finished, the indicator light will go off and the appliance will switch off automatically. Let the coffee drip before removing the cup from the platform.

CLEANING AND MAINTENANCE

1. Make sure that the My Coffee has switched off automatically and remove the plug from the socket.
2. Let the appliance cool down.
3. Open the lid and remove the permanent filter and the filter basket.
4. Dispose of the coffee remains in these parts.
5. The filter basket, the permanent filter, the cup and the lid of the cup are dishwasher safe. You can also wash them in warm water with some washing-up liquid.
6. Clean the outside of the My Coffee and the inside of the lid with a soft, damp cloth.

Important: Never use abrasive, scouring cleaning products or scouring pads. Never immerse the appliance itself in water.

Cleaning with vinegar

To remove and avoid scale, clean the My Coffee with vinegar once a month. Excessive steam development or a longer brewing process may indicate that the appliance needs to be cleaned.

1. Fill the cup for about 1/3 with white vinegar and add 2/3 cold water until the cup is full. Pour the solution into the water tank.
2. Place the cup on the platform below the filter holder.
3. Press the start button and let the vinegar solution run through until the appliance switches off automatically. The light will go off.
4. Repeat this process with a new vinegar solution. Never reuse the first vinegar solution that has already run through. Pour away the vinegar solutions after they have run through.
5. After this, fill the cup with cold water and pour the water into the water tank. Press the start button and let the water run through. Repeat this process until the vinegar taste has disappeared completely.
6. Wash and dry the permanent filter, the filter basket, the lid and the cup as described above.

PRECAUCIONES IMPORTANTES

Warning symbol depicting steam rising inside a triangle (no text or numbers)

Labeled diagram of a blender with numbered parts including buckets and a water dispenser

PRIMER USO

Line drawing of a mechanical device with a lid and base mount (no text or symbols)

Cross-sectional diagram of a mechanical component with concentric circular features and a central hub (no text or symbols)

Warning symbol depicting steam rising inside a triangle (no text or numbers)

Labeled diagram of a portable blender with numbered parts including buckets and a lid

PRVNÍ POUŽITÍ

Line drawing of a blender with open lid and base (no text or symbols)

Cross-sectional diagram of a mechanical component with concentric circular features and a central hub (no text or symbols)
