USER MANUAL DO1087K DOMO

Exterior view of a modern espresso machine (no visible text or symbols on the device body)

DO1087K

Handleiding Espressomachine

Mode d'emploi Machine Espresso

Gebrauchsanleitung Espressomaschine

Instruction booklet Espresso machine

Manual de instrucciones Máquina de café exprés

Istruzioni per l'uso Macchina per caffè espresso

Two black-and-white icons: a warning triangle with an exclamation mark and an open book (no text or symbols)

Technical diagram of a coffee maker with numbered parts labeled for identification.

9 10 11 12

Illustration of a hand pouring dark liquid into a small container (no text or symbols)

Illustration of a hand using a dropper to measure a small container with liquid (no text or symbols)

Illustration of a hand using a tool to measure a small object, with no visible text or symbols.

Prohibition sign for a trash bin with crossed and unexposed lines, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Illustration of hands pouring dark liquid into a small container (no text or symbols)

Illustration of a hand using a tool to press a small container with a downward arrow (no text or symbols)

Illustration of a hand using a tool to measure a small object, with no visible text or symbols.

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Illustration of a hand pouring liquid into a small container (no text or symbols)

Illustration of a hand using a dropper to measure a small container with a downward arrow (no text or symbols)

Illustration of a hand holding a candle with a lit flame, no text or symbols present

Prohibition sign depicting a trash bin crossed out by a diagonal line, with a blank rectangular base below.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
• In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;
· farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

· This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

· The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

- CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

- The surfaces of the appliance are likely to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.

· Never leave the appliance unattended while it is functioning.

· Do not use or store this appliance outdoors.

- Do not use this appliance for other than intended use.

- Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

- The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

- Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

· To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

· Do not operate the appliance with wet hands.

- A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. DO NOT USE WITH AN EXTENSION CORD.

- Unwrap the cord completely to prevent overheating of the cord.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Do not allow the power cord supply to run underneath or around the unit.

- Do not place on or near a hot gas or electric burner or sink, or in a heated oven.

- Do not place near flammable materials, gases or explosives.

- Make sure the appliance is correctly assembled, then plug the cord in the wall outlet. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

- During boiling, hot steam may come through the filter or any other opening. Keep hands and face at a safe distance during operation.

· Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

· Do not overfill the kettle. Never add water above the maximum level marked on the appliance.

- Do not spill any liquid on the connector.

- Only use the utensils delivered with the appliance.

· Do not move the appliance while in use or when still hot. Allow to cool before moving the appliance.

- Do not remove the porta-filter while brewing coffee. Caution should also be taken while removing the porta-filter since the metal parts will be hot. Please make sure to hold it by the handle and to use the filter retention clip to dispose the grounds. Caution should be taken when moving unit with hot liquids.

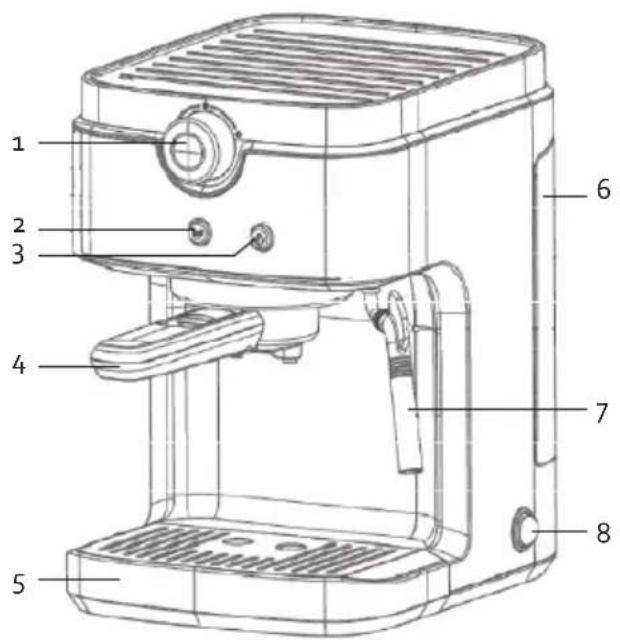

PARTS

1. Selection button
2. Espresso button
3. Steam button
4. Portafilter
5. Drip catcher
6. Water reservoir
7. Steam pipe
8. On-off button
9. Small filter
10. Large filter
11. Retainer clip portafilter
12. Measuring spoon

1 2 3 4 5 6 7 8

9 10 11 12

BEFORE FIRST USE

Check whether all accessories are included with the appliance and whether or not the appliance is damaged.

First run some water through it without adding coffee. Fill the water reservoir to the maximum line. Place a cup under the drip catcher. Put the plug in the socket and press the on-off button. The indicator lights will flash. Press one of the buttons to allow the water to run through. Then throw the water away. The appliance will go into standby mode.

USE

COFFEE

1. Fill the reservoir with the desired amount of water. Make sure the water level stays between the "MIN" and "MAX" lines on the reservoir. The reservoir can be removed by using the handle to pull it toward you.
2. Put the plug in the socket and press the on-off button.

3. Turn the selection button to the middle position "o". The appliance will begin to heat up and the indicator lights will flash. While heating, a small amount of water may be deposited into the drip catcher via a hose at the bottom of the appliance. This is normal.

4. Select the desired filter

a. the small filter for an espresso b. the large filter for 2 cups or a double espresso

1. Press the filter in the portafilter.
2. Fill the filter with fresh, finely ground espresso coffee using the measuring spoon.
3. Press the ground coffee firmly and evenly using the presser on the back side of the measuring spoon.
4. Remove any excess coffee from the edge.

Illustration of hands pouring dark liquid into a small container (no text or symbols)

Illustration of a hand using a tool to measure a small container with a lid, showing a downward arrow (no text or symbols)

Illustration of a hand using a dropper to measure a small container with a pointer (no text or symbols)

1. Place the portafilter under the brew group. Hold the handle so that it connects correctly to the open-lock symbol on the appliance and fits into the groove.
2. Turn it slowly to the right, to the closed-lock symbol on the appliance.
3. When the appliance is preheated, the indicator light in the espresso button will light up. Turn the selector switch to the coffee symbol.
4. Place a cup on the drip tray and press the espresso button. By default, the espresso button is for a 40 ml cup. If you want a double espresso or two cups of coffee, press the espresso button for three seconds. The standard amount of a double espresso is 80 ml. The coffee will continue to flow and the indicator light on the button will flash. The indicator light is blue for an espresso and red for a double espresso. When the coffee has finished flowing, the machine stops automatically and the indicator light on the button lights up. If you want to stop the machine sooner, press the espresso button again while the coffee is flowing.
5. Remove your cup from under the portafilter. Turn the selection button to the middle position "o". A small amount of water may be deposited into the drip catcher via a hose at the bottom of the appliance. This is normal.
6. Remove the portafilter from the appliance. Place the retainer clip against the filter and bang the coffee grounds out of the filter.
7. Clean the portafilter and dry it off for the next use.

Tips:

• If you turn the selector switch to the middle position 'o' when the coffee is ready, it will be easier to remove the portafilter.
• The drip catcher can be removed to fit a large cup under the portafilter. Be sure that the drip tray is replaced before turning the selection button to the middle position "o". A small amount of water may be deposited into the drip catcher via a hose at the bottom of the appliance when turning it to this position.

MILK

1. Put the plug in the socket and press the on-off button.
2. Turn the selection button to the middle position "o". Press the steam button to heat up the appliance. The indicator light will flash. Once the indicator light stays on, the appliance is heated.
3. While it is heating up, a small amount of water may end up in the drip catcher. This is normal.
4. Fill a small jar with cold milk (not hot!). Be careful not to fill it too full. When the milk foams, it increases in volume. Place the jar under the steam pipe.
5. Turn the selection button to the steam symbol.
6. Immerse a few millimetres of the steam pipe into the milk. To get creamier foam, immerse the steam pipe in the milk and rotate the jar with slow movements from the bottom to the top.
7. Once you have the desired amount of foam, turn the selection button to the middle position "o".
8. Clean the steam pipe after each use. Caution: the steam pipe may still be hot.

HOT WATER

1. Put the plug in the socket and press the on-off button.
2. Turn the selection button to the steam symbol.
3. Place a cup under the steam pipe.

4. Press the espresso button.

5. When you have enough water, turn the selection button to the middle position "o".

CLEANING AND MAINTENANCE

Caution: Unplug the appliance and let it cool down before cleaning it. Never immerse the cord, the plug or the appliance in water or other fluids in order to avoid the risk of electrical shock. After each use, make sure the plug is removed from the outlet.

• Clean the filters, portafilter and the drip catcher with clean, hot water. Caution: These parts are not dishwasher safe.
• Wipe the product's exterior body with a soft, damp cloth to remove stains.
• Rinse the appliance regularly by setting coffee without putting ground coffee in the filter.
• Rinse the steam pipe regularly by setting hot water.

DESCALING

When?

Descale the appliance regularly. Regular descaling ensures constant quality of the coffee, lower energy consumption and extends the life of the espresso machine.

How?

• Fill the water reservoir with 1/4 vinegar and 3/4 water up to the maximum line.
• Put the plug in the socket and press the on-off button.
• Put the portafilter with filter but without coffee in the appliance.
• Remove the drip tray and place a collection beaker under the brewing head and steam nozzle.
• Turn the selector switch to the steam symbol. ⏻ Press the steam button for at least five seconds.
• The steam nozzle descaling procedure starts and the vinegar solution will come out of the nozzle highly pressurised. The buttons will blink alternately. The procedure is complete after five minutes. Both buttons flash at the same time.
• Remove and empty the collection beaker. Then put it back.
• Turn the selector switch to the coffee symbol.

- The brewing head descaling procedure starts and the vinegar solution runs through the filter. The buttons will blink alternately. The procedure is complete after five minutes. The indicator light for the steam button will light up.

After descaling, rinse with clean water.

• Remove the remaining vinegar water from the water reservoir and fill it with clean water. Place the reservoir in the appliance.
• Remove and empty the collection beaker. Then put it back.
• Press the steam button. The brewing head cleaning starts. The buttons will blink alternately. The procedure is complete after one minute. Both buttons flash at the same time.

• Remove and empty the collection beaker. Then put it back.

• Turn the selector switch to the steam symbol. The steam nozzle cleaning starts. The buttons will blink alternately. The procedure is complete after one minute.
  · The appliance is now descaled and returns to standby mode.

ENVIRONMENTAL GUIDELINES

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.
